*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Toyoda |
| Model No.: | FV1365 |
| Year of Manufacture: | 2013 |
| Machine Type: | CNC Vertical Machining Center |

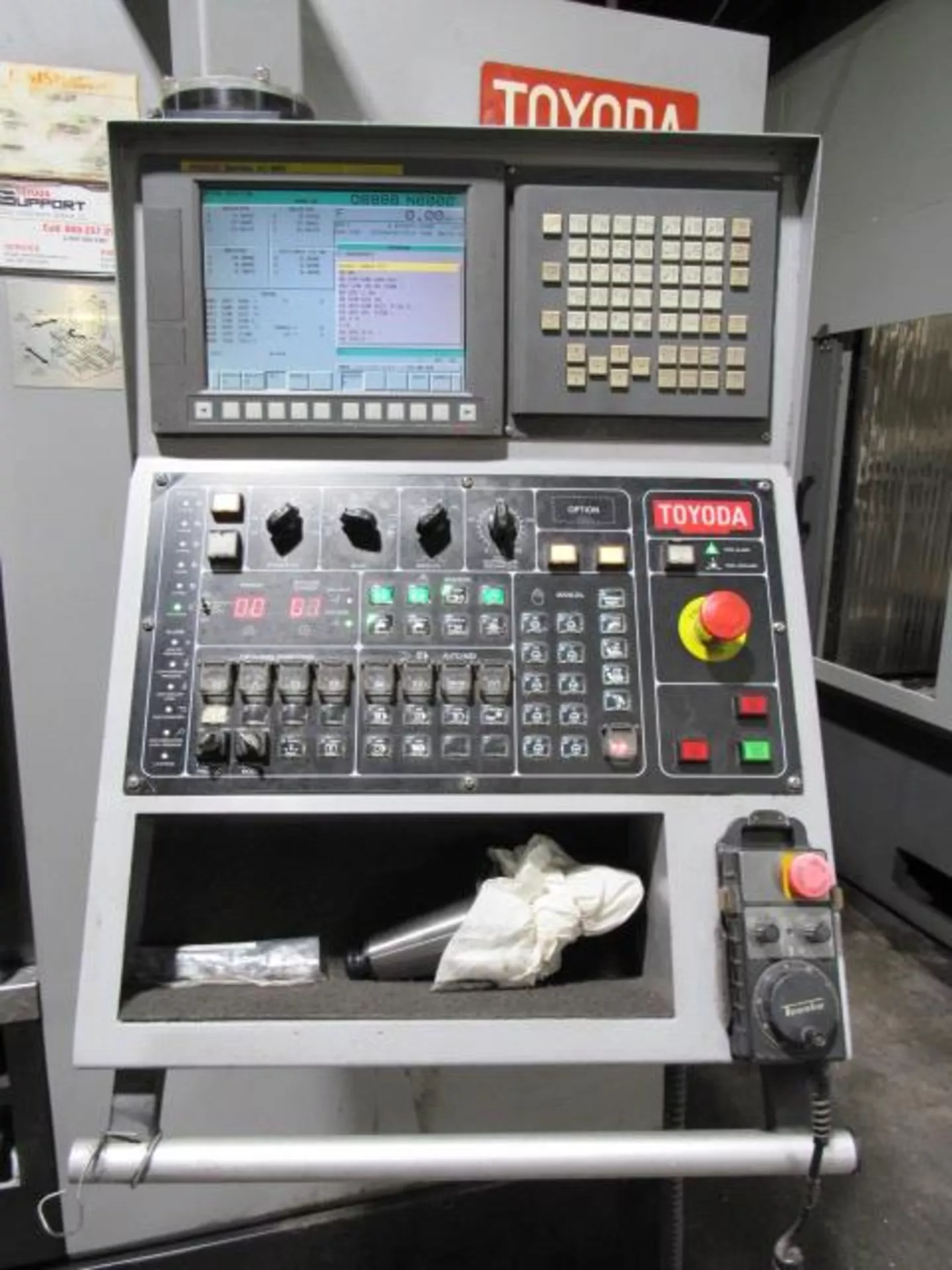

| CNC Control: | Fanuc CNC Control (commonly Fanuc 0i / 18i series) |
| Equipped With: |
|---|
| Fanuc CNC Control |
| 24-Tool Automatic Tool Changer |
| Gear-Driven High-Torque Spindle |
| Automatic Lubrication System |
| Fully Enclosed Splash Guard |
| Coolant System with Tank and Pump |
| Chip Conveyor Interface |
| Rigid Tapping Capability |
| Capacity: |
|---|
| Table Size: 57.1″ × 25.6″ (1450 × 650 mm) |
| Maximum Table Load: 2,866 lbs (1,300 kg) |
| Distance Spindle Nose to Table: 4.9″ – 28.5″ (125 – 725 mm) |
| Travel: |
|---|
| X-Axis Travel: 51.2″ |
| Y-Axis Travel: 25.6″ |
| Z-Axis Travel: 23.6″ |
| Rapid Traverse (X/Y/Z): 30 / 30 / 24 m/min |
| Maximum Feedrate: High-Speed Servo Feed System |
| Spindle: |
|---|
| Spindle Speed: 8,000 RPM (Gear Driven) |
| Optional Spindle Speed: 12,000 RPM Direct Drive |
| Spindle Motor Power: 20 HP (15 kW) |
| Spindle Taper: CAT-40 or CAT-50 |
| Spindle Torque: Up to 282 ft-lb (380 Nm) |
| Automatic Tool Changer: |
|---|
| Tool Changer Type: Automatic Tool Changer (ATC) |
| Tool Capacity: 24 Tools Standard |
| Optional Tool Capacity: 32 – 40 Tools |
| Tool Change Time: Approx. 3 Seconds |
| Machine Construction: |
|---|
| Meehanite Cast Iron Machine Base for Rigidity |
| Box-Way Guideways on All Axes for Heavy Cutting Stability |
| Four-Slide Y-Axis Support System to Minimize Table Overhang |
| High-Precision Hand-Scraped Slideways for Long-Term Accuracy |
| General: |
|---|
| Machine Dimensions: Approx. 187″ × 118″ × 116″ |
| Machine Weight: Approx. 16,755 lbs (7,600 kg) |
| Optional Features: |
|---|
| Coolant Through Spindle (CTS) |
| Chip Conveyor |
| 4th-Axis Rotary Table Integration |
| Renishaw Tool / Part Probing |
| High-Speed 12,000 RPM Spindle Option |
| 32–40 Tool Magazine Upgrade |
