*All specifications are approximations and are subject to verification. Comes as shown in the images.
Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: |
Toyoda |
| Model No.: |
SB-216 |
| Year of Manufacture: |
2012 |
| Condition: |
Used – Good |
| Machine Type: |

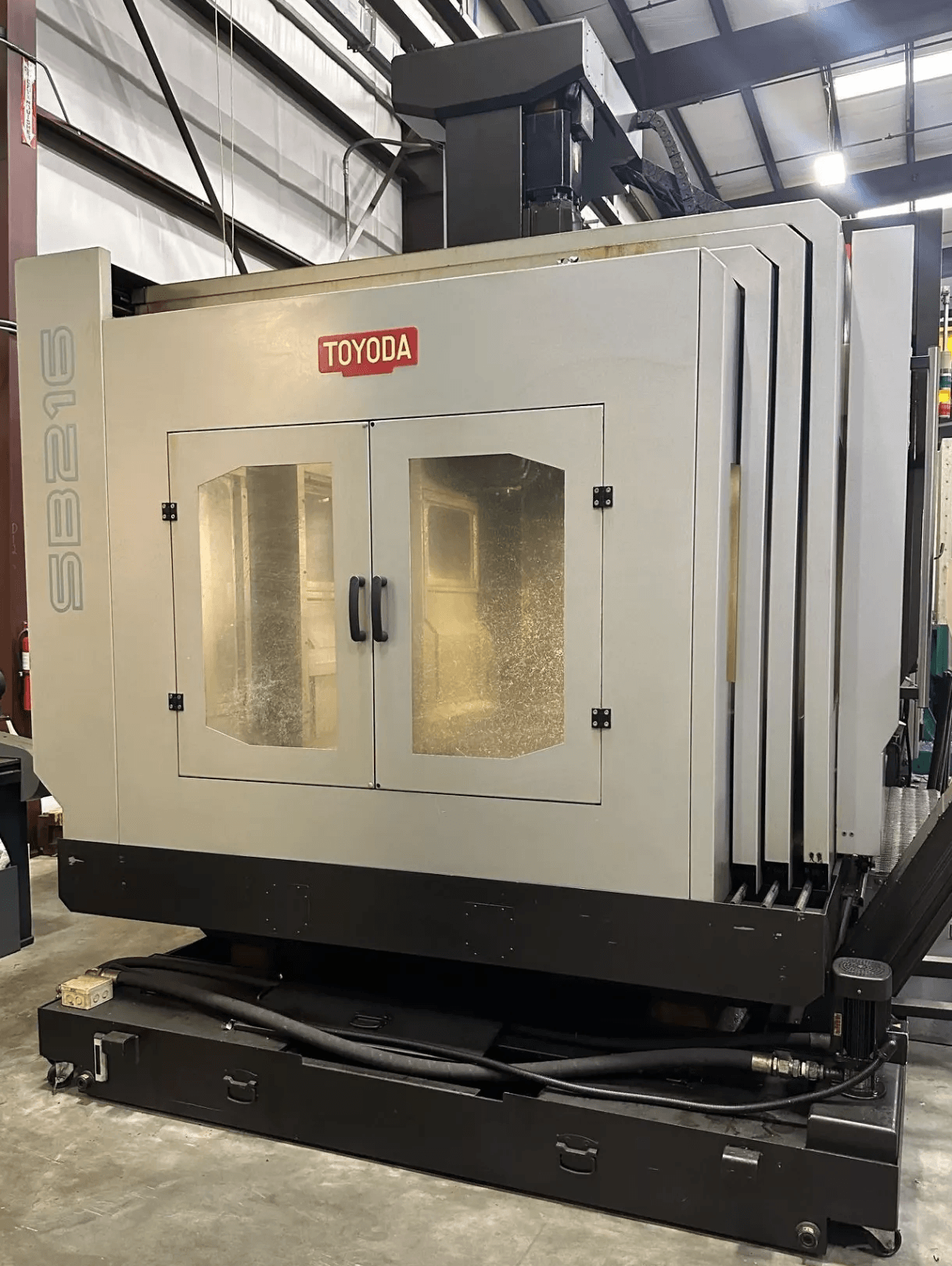

CNC Bridge Type Vertical Machining Center |
| CNC Control: |

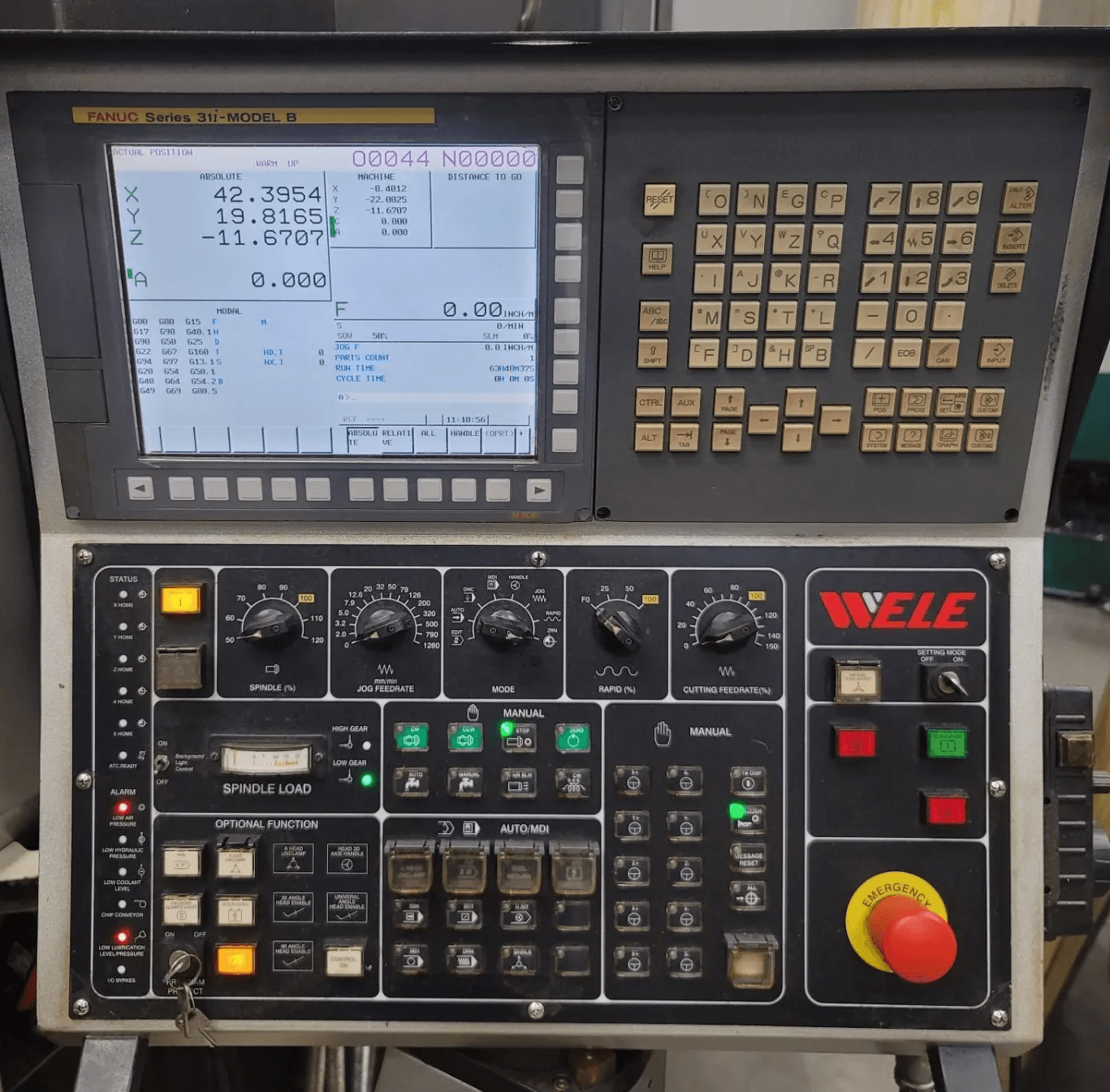

Fanuc 31i-MODEL B CNC Control |
| Equipped With: |
| Fanuc 31i-MODEL B CNC Control |
| High-Rigidity Double Column Construction |
| Full Enclosure |
| High Torque Spindle System |
| Automatic Tool Changer |
| Coolant System |
| Chip Management System |
| Capacity: |
| Table Size: ~79″ × 157″ (approx typical for SB-216 class) |
| Maximum Table Load: Heavy-duty capacity (approx 20,000+ lbs) |
| Distance Between Columns: Wide bridge design for large components |
| Travels: |
| X-Axis Travel: ~126″ |
| Y-Axis Travel: ~86″ |
| Z-Axis Travel: ~30″ – 40″ |
| Spindle: |
| Spindle Speed: 6,000 RPM |
| Spindle Taper: CAT 50 |
| Spindle Motor: High Torque (gear-driven) |
| Tooling: |
| Automatic Tool Changer: 30–40 Tools |
| Heavy-duty tooling support for large parts |

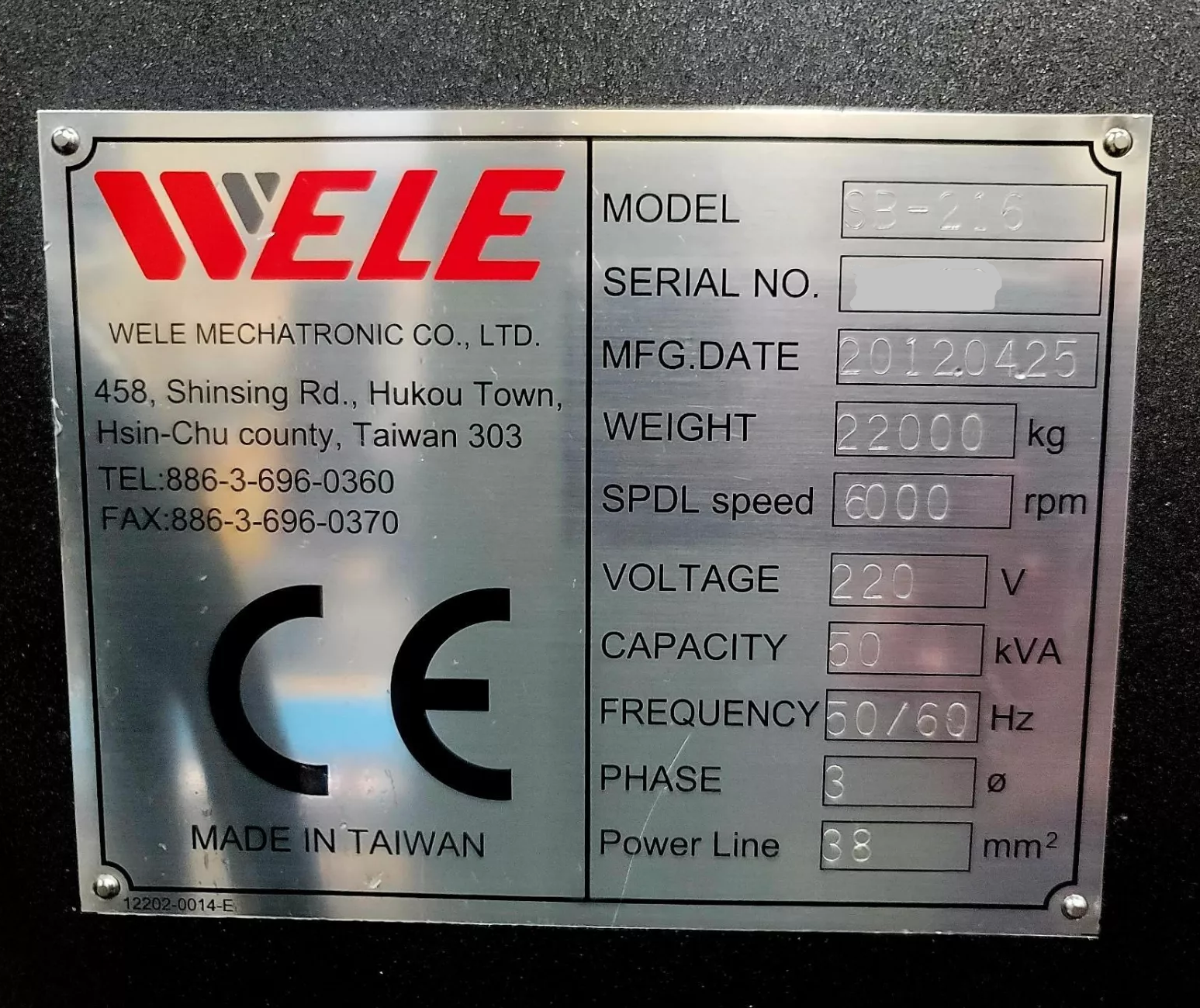

| Electrical: |
| Voltage: 220V |
| Phase: 3 Phase |
| Frequency: 50/60 Hz |
| Power Capacity: 50 kVA |
| General: |
| Machine Weight: Approx. 22,000 kg |
| Features: |
| Heavy-duty Toyoda construction ensures exceptional rigidity and accuracy |
| Bridge (gantry) design ideal for large, heavy workpieces |
| High torque spindle for aggressive cutting applications |
| Fanuc 31i control offers advanced programming & reliability |
| Wide column spacing supports oversized parts |
| Excellent for aerospace, die/mold, oil & gas, and heavy fabrication |
