*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

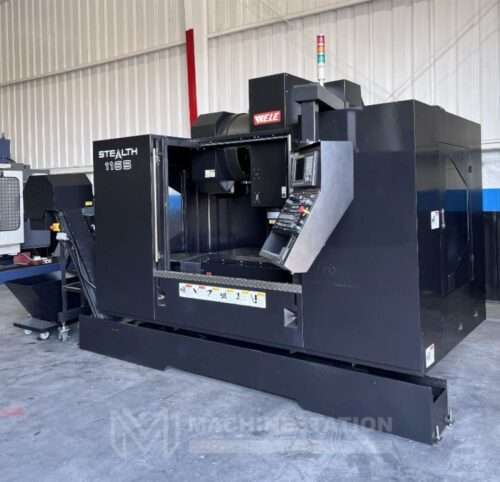

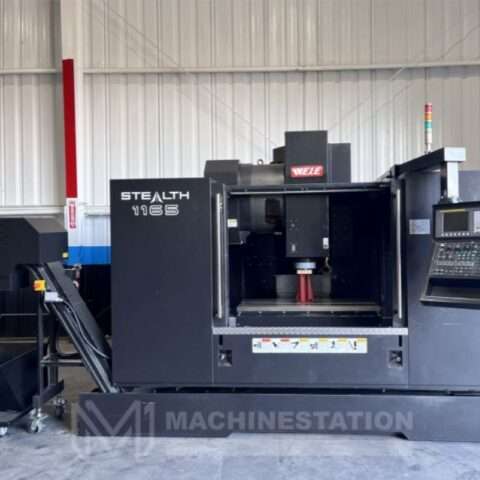

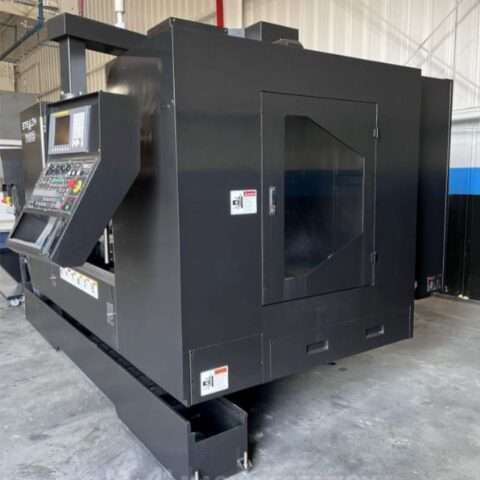

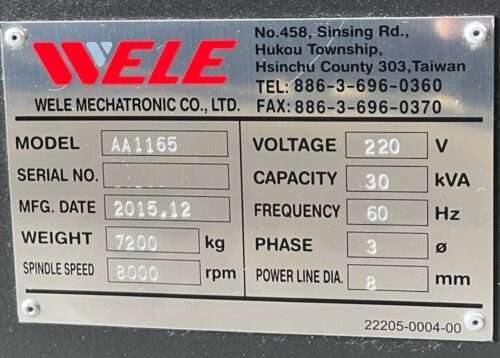

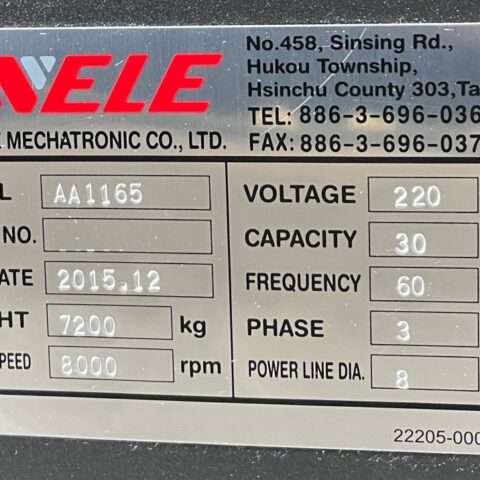

| Make: | Toyoda Wele |

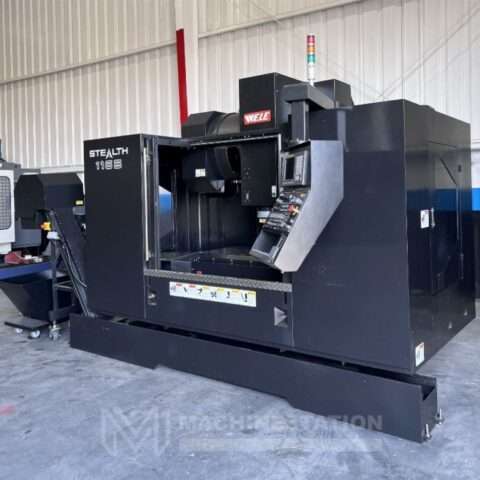

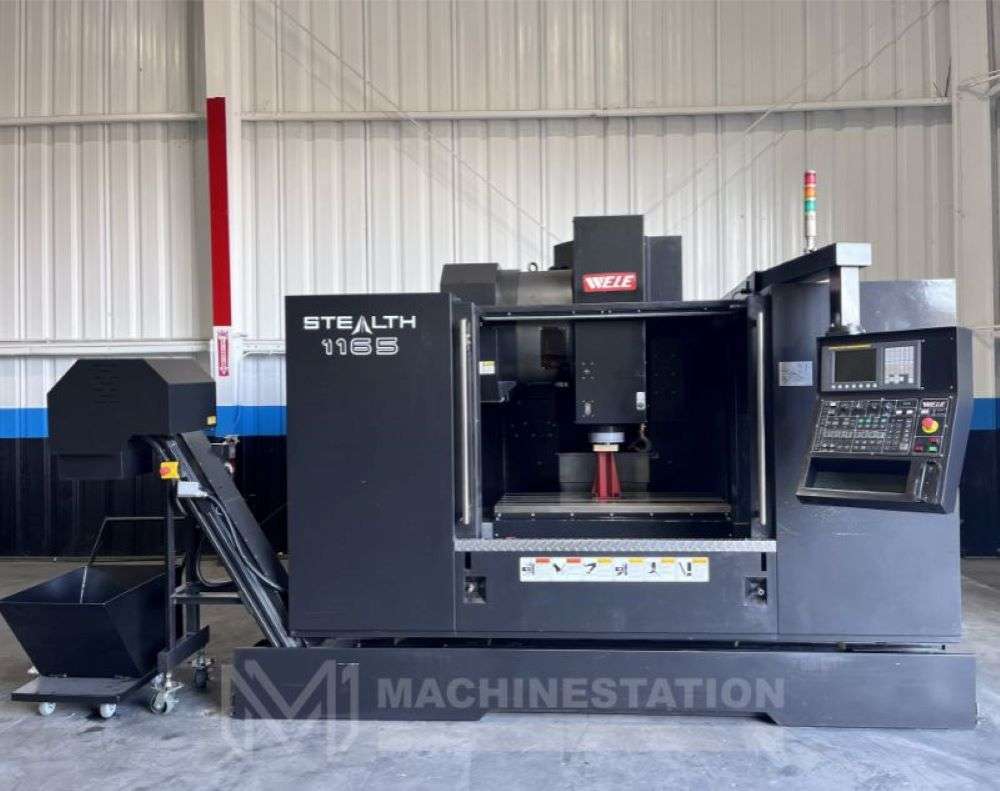

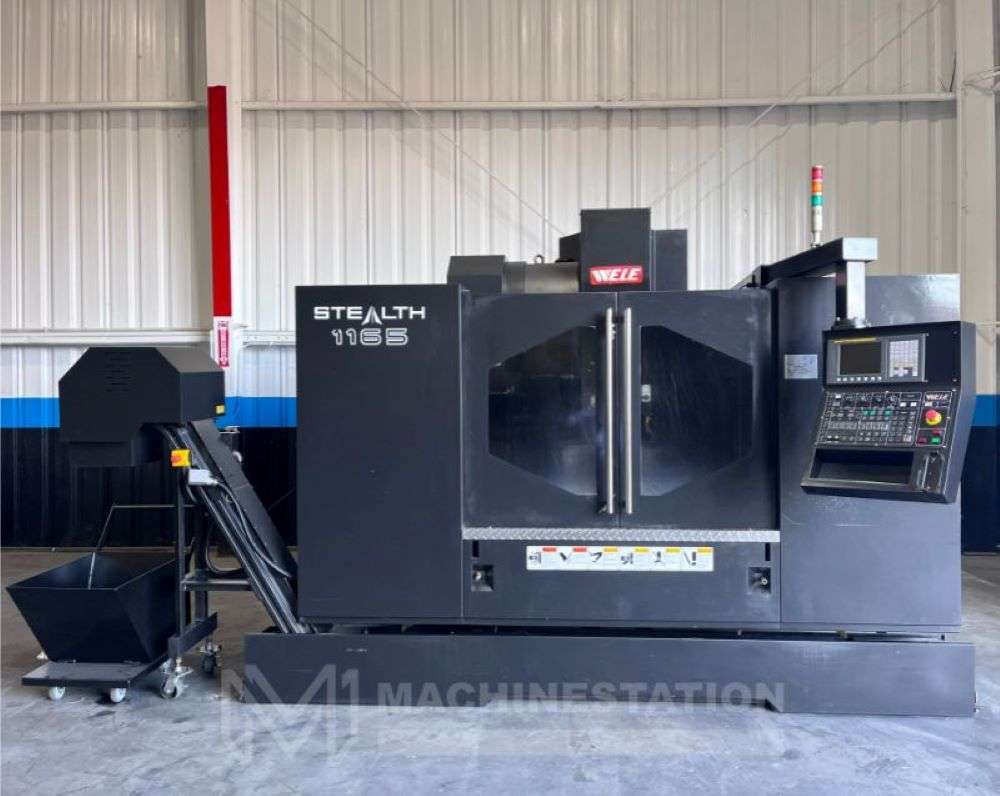

| Model: | Stealth AA1165 |
| Year: | 12/2015 (installed in 2016) |
| Condition: | Used – Excellent |
| Key Features: |
|---|

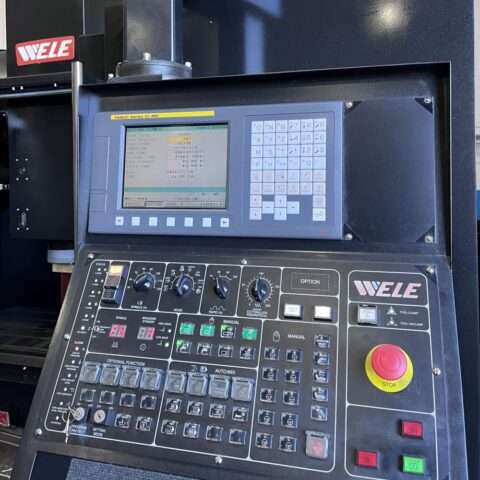

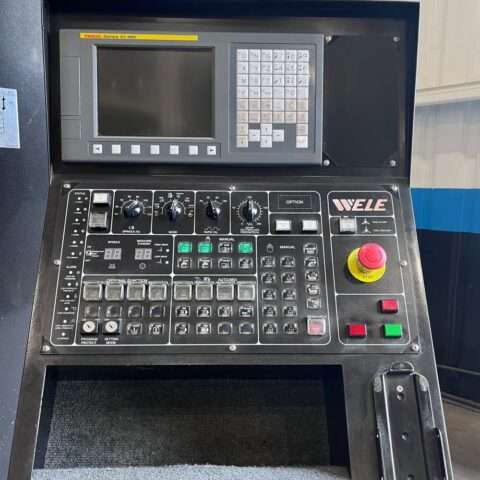

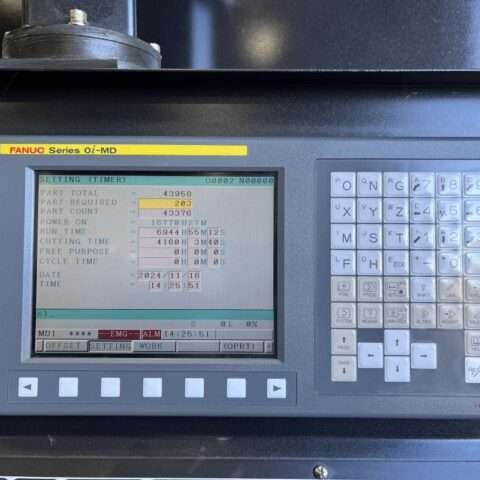

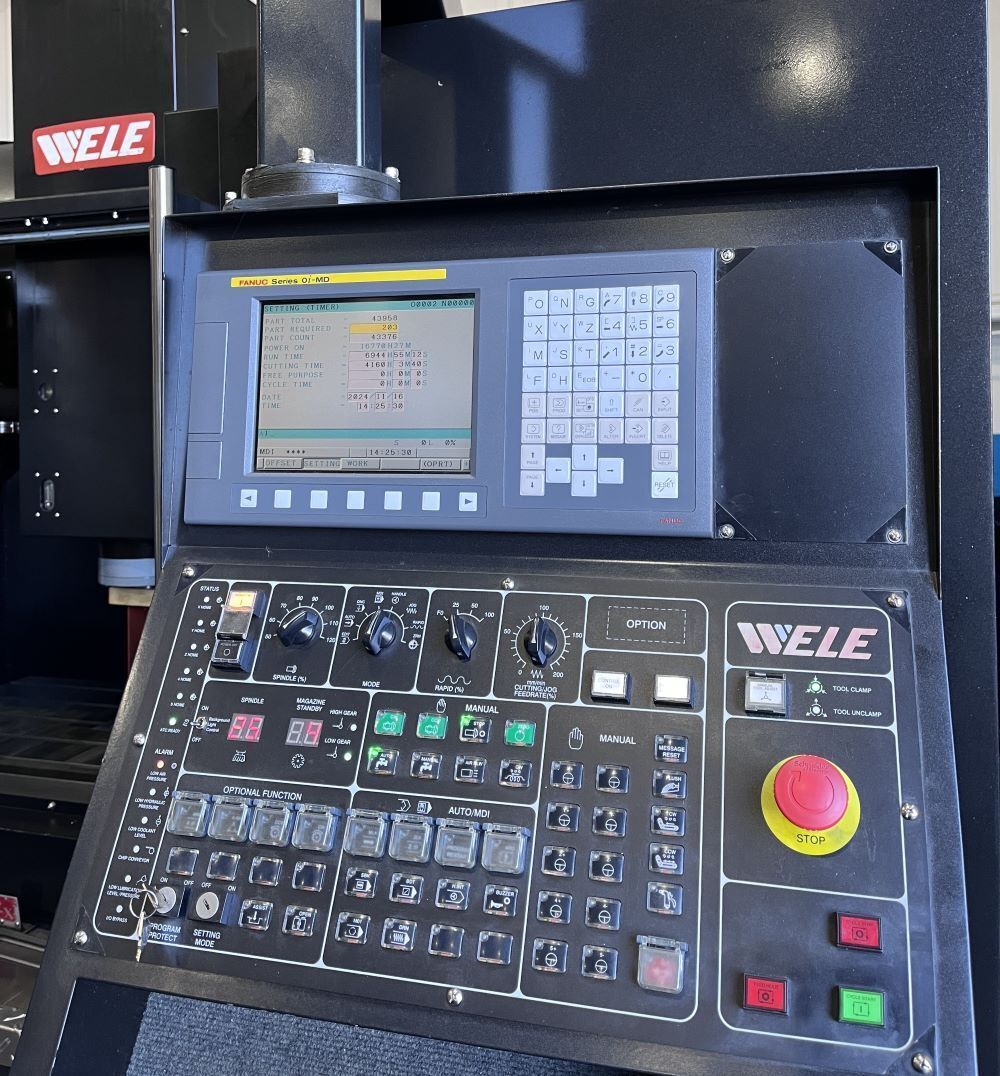

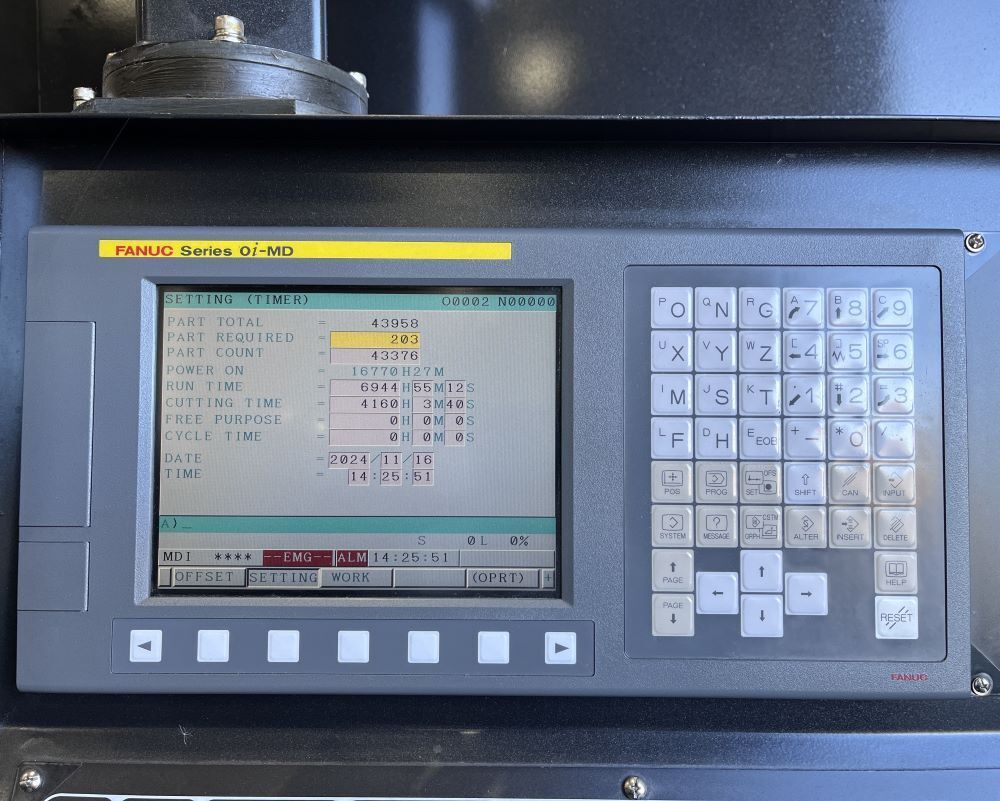

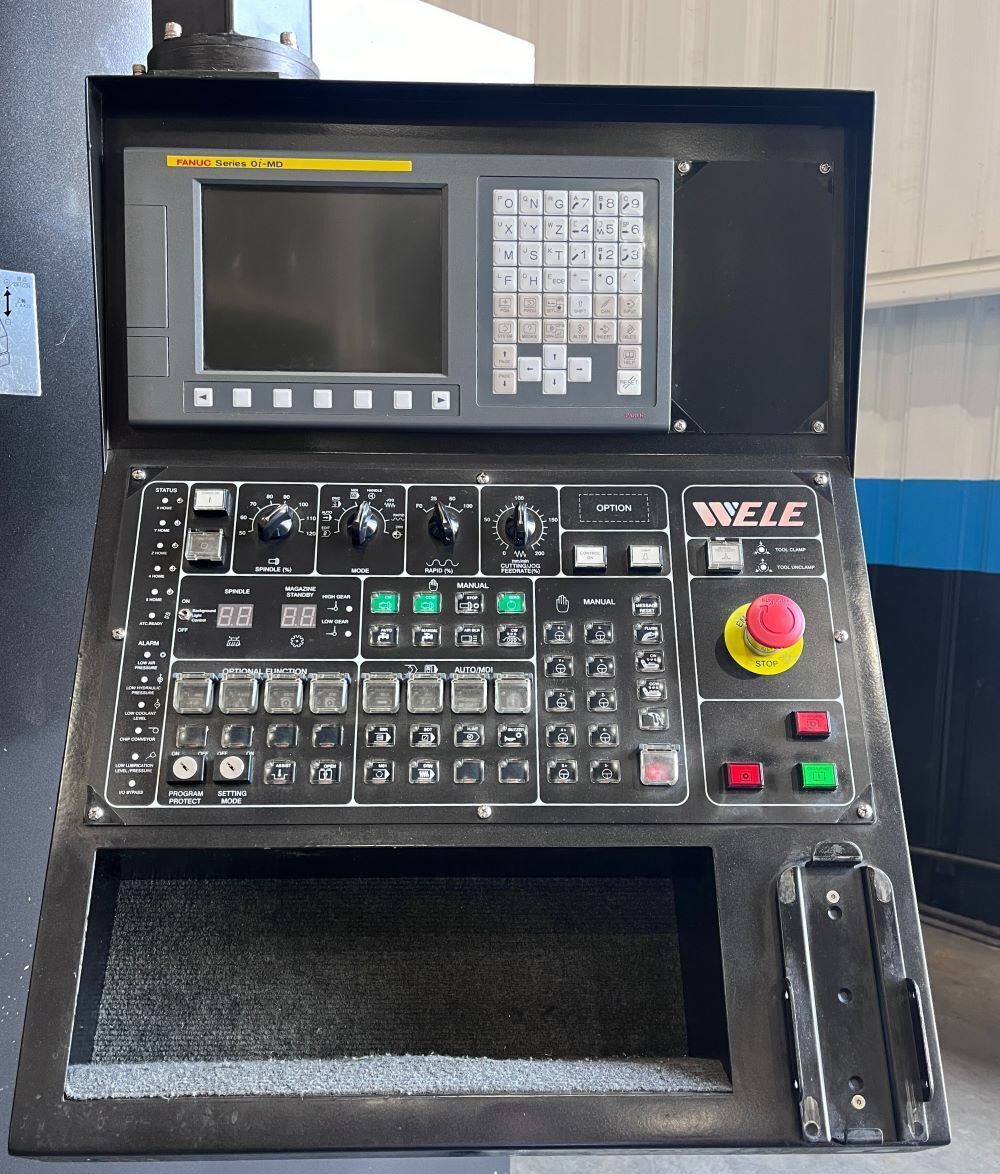

| Fanuc Oi-MD CNC Control |
| Box way Construction |
| 8,000 RPM Gear Head Spindle |

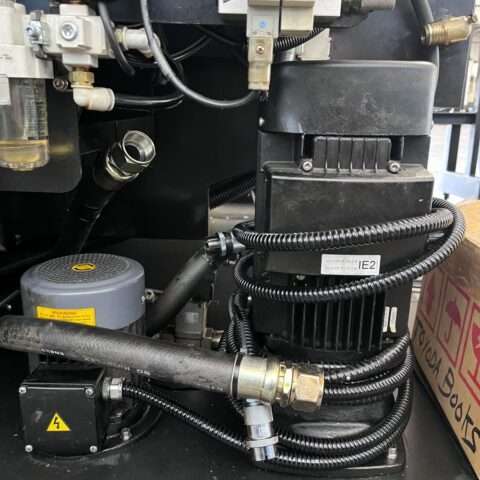

| Through Spindle Coolant |
| CAT-40 Taper Spindle |

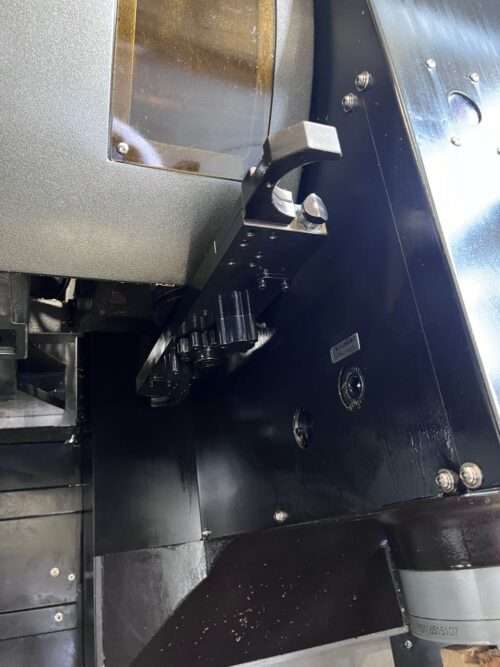

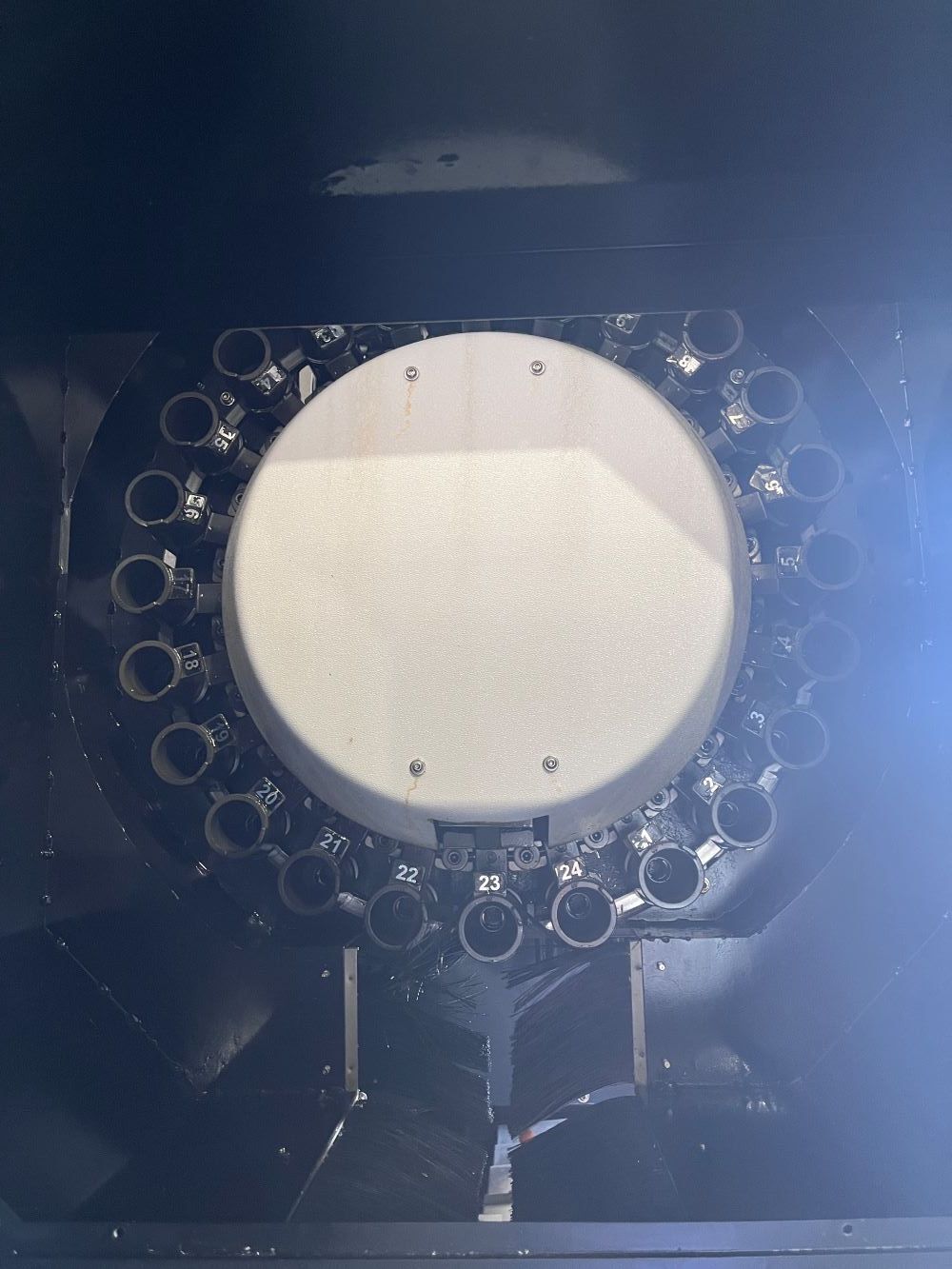

| 24 Station Automatic Tool Changer |
| 20 HP High Torque Spindle |
| MPG Control |
| Rigid Tapping |

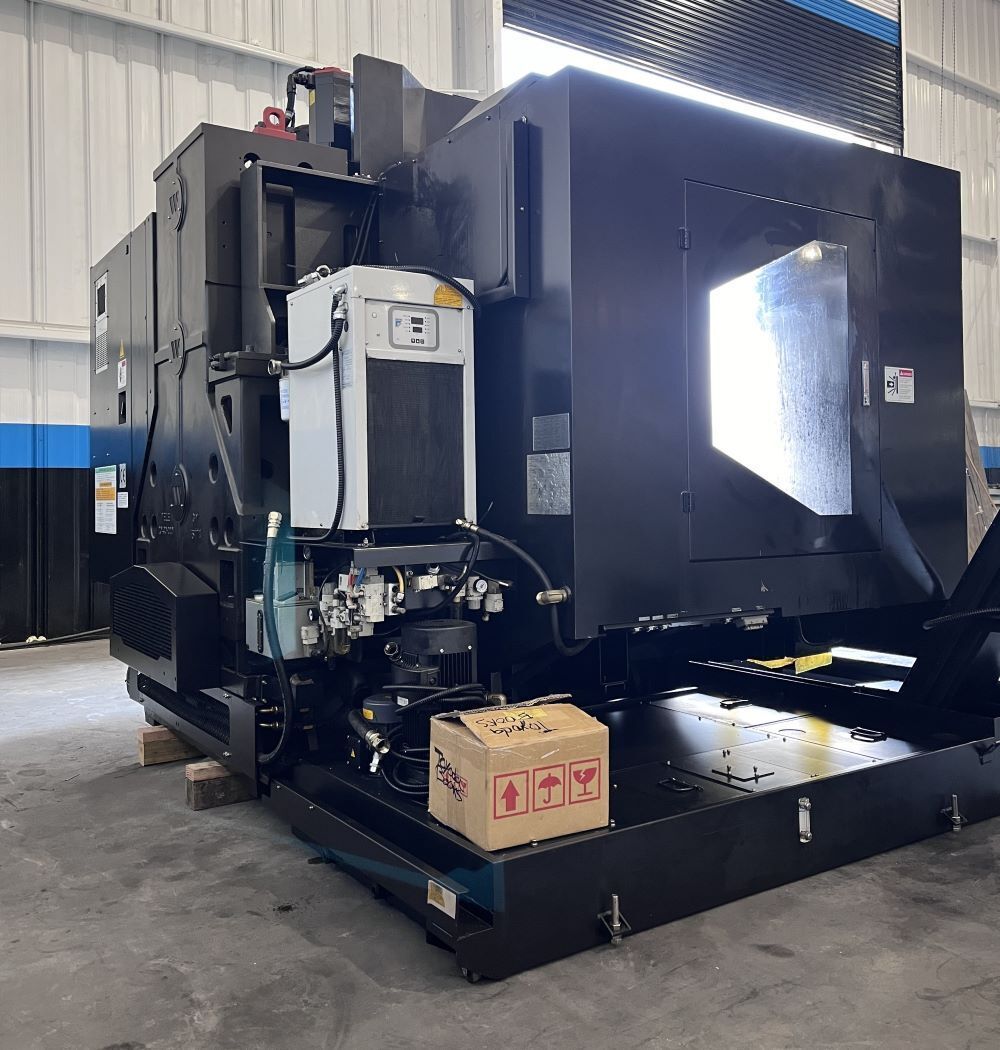

| Spindle Chiller Unit |

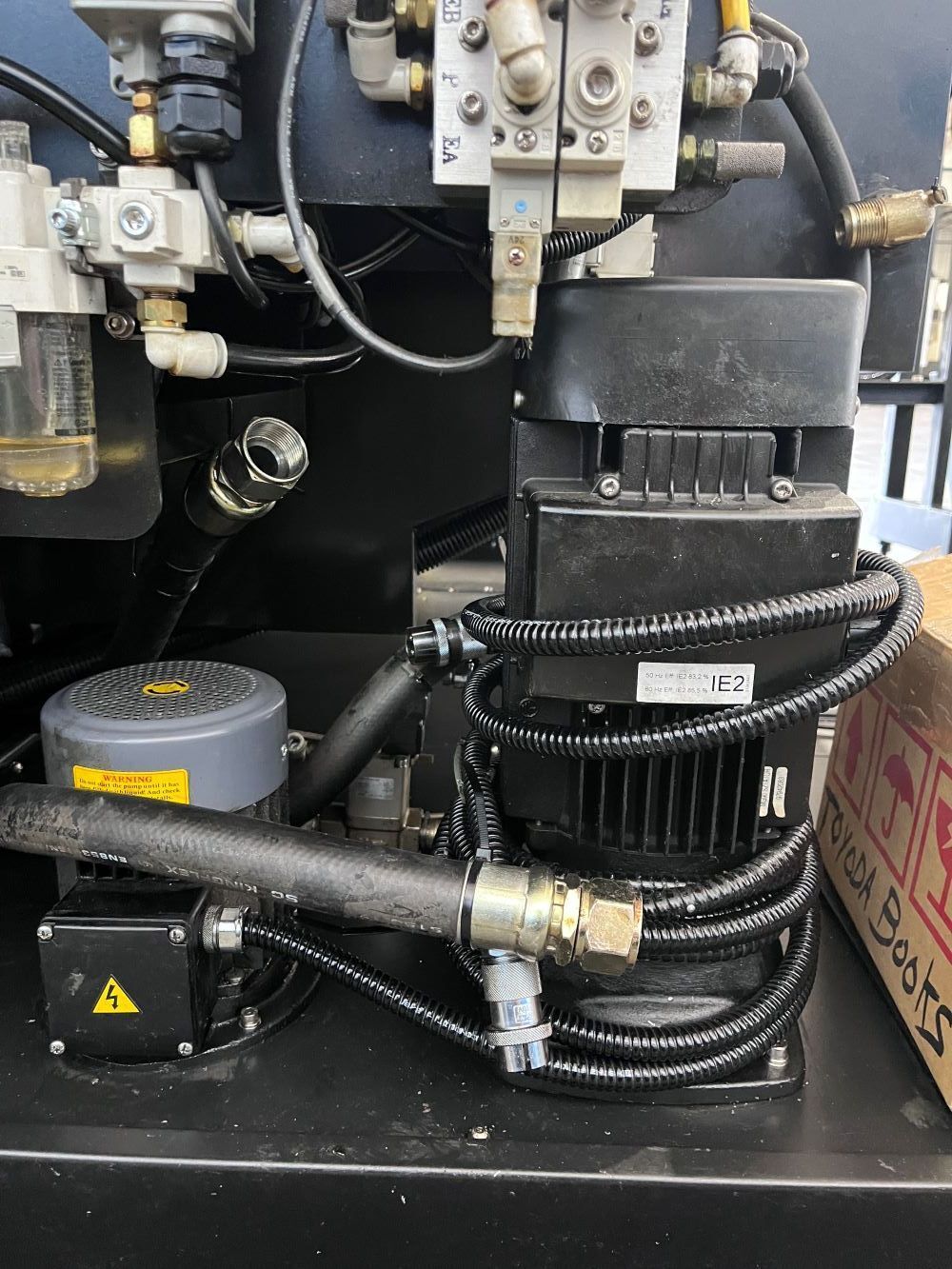

| Coolant System |

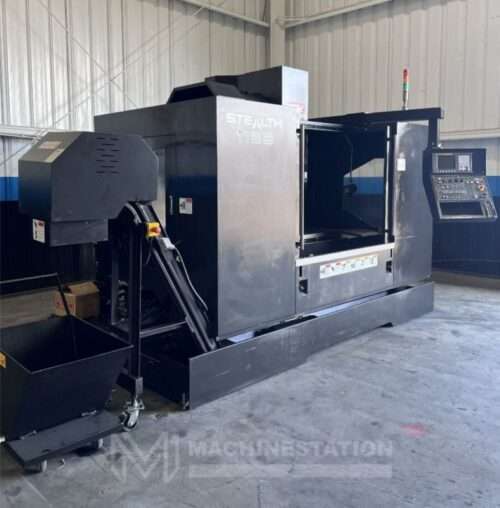

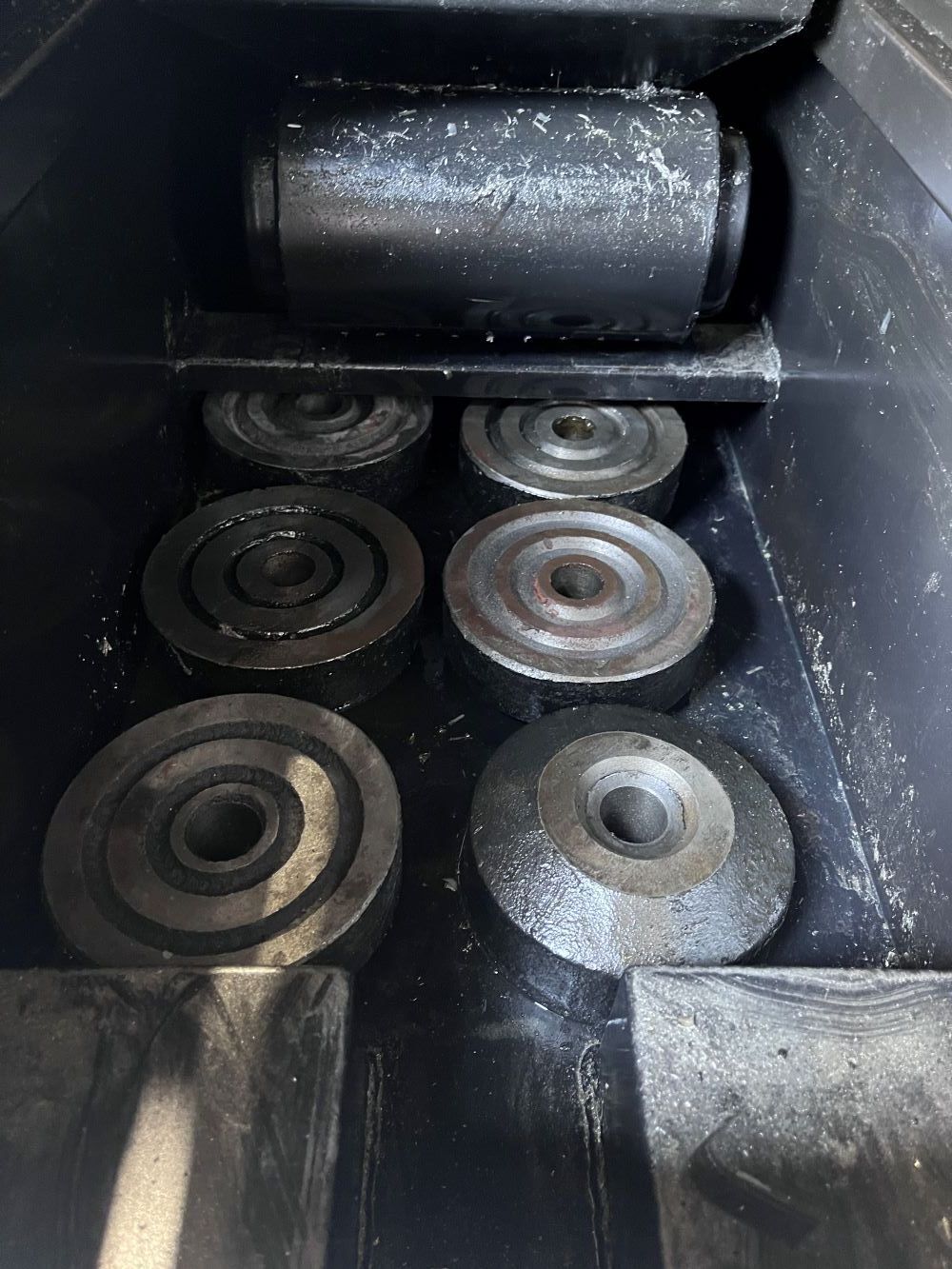

| Chip Conveyor |

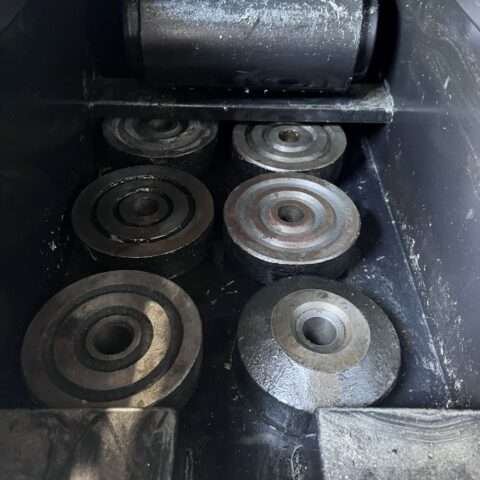

| Levelling Pads |

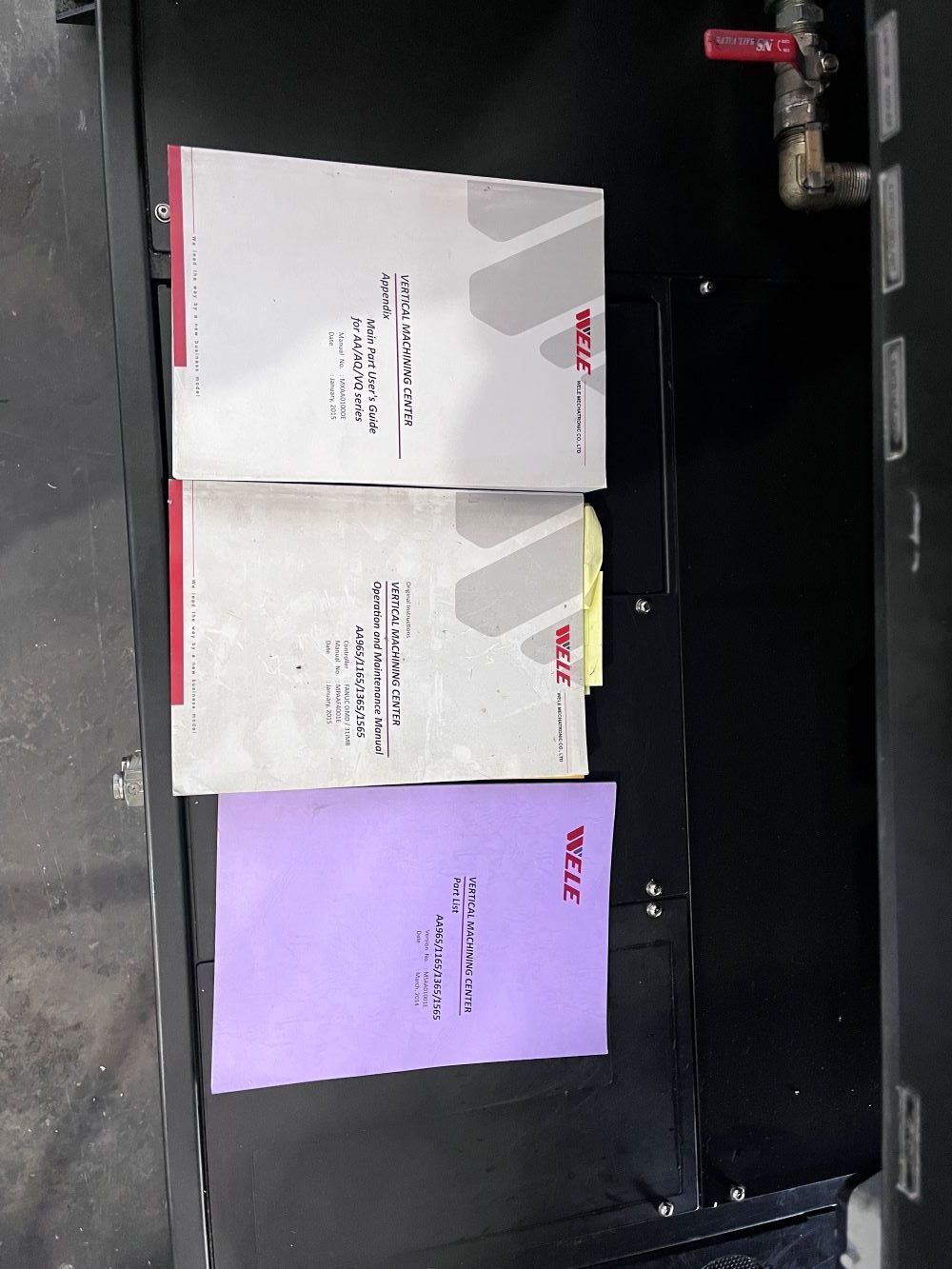

| Books & Manuals |
| Travel: |
|---|
| X-Axis: 43.3″ |
| Y-Axis: 25.6″ |
| Z-Axis: 23.6″ |
| Rapid Traverse Rates X & Y Axis: 945 Inch Per Minute |
| Rapid Traverse Rates Z Axis: 787 Inch Per Minute |
| Cutting Feed Rates: 393 Inch Per Minute |
| Spindle Nose to Table (Min.- Max.): 4.9″ – 28.5″ |

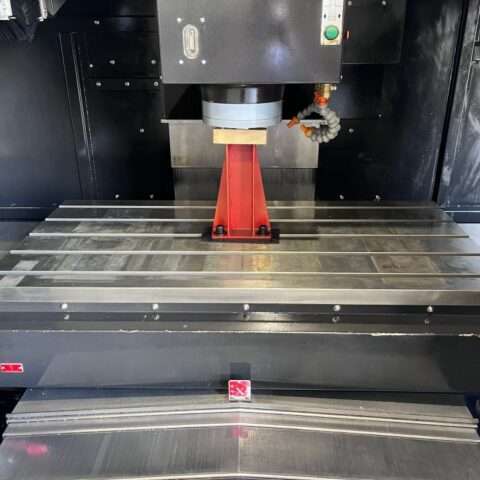

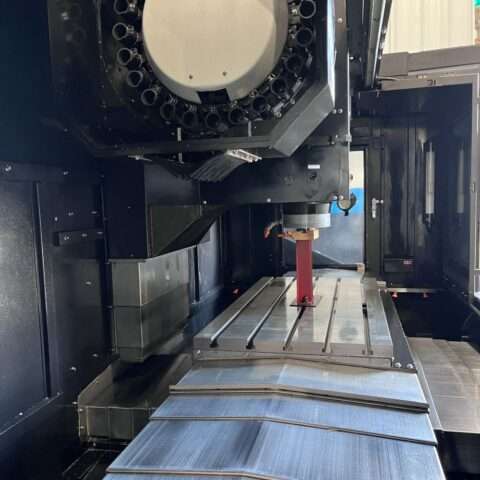

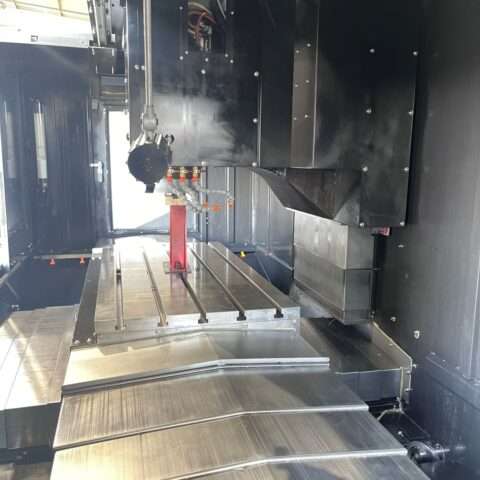

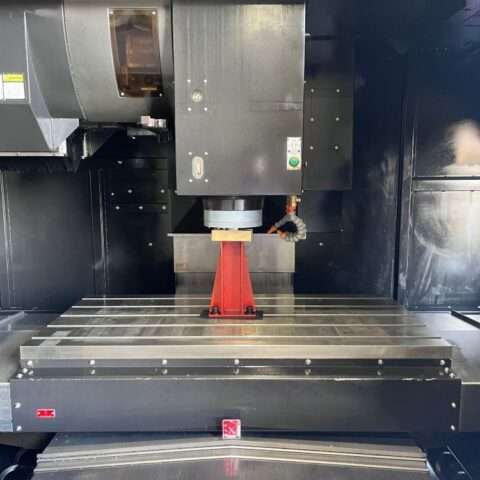

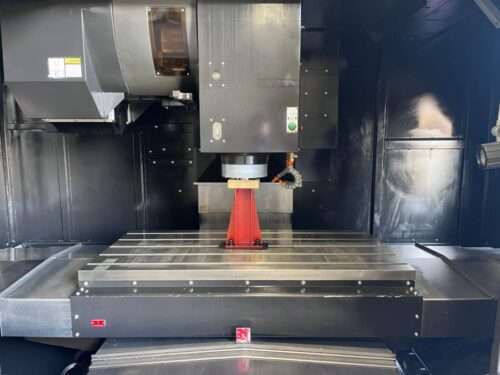

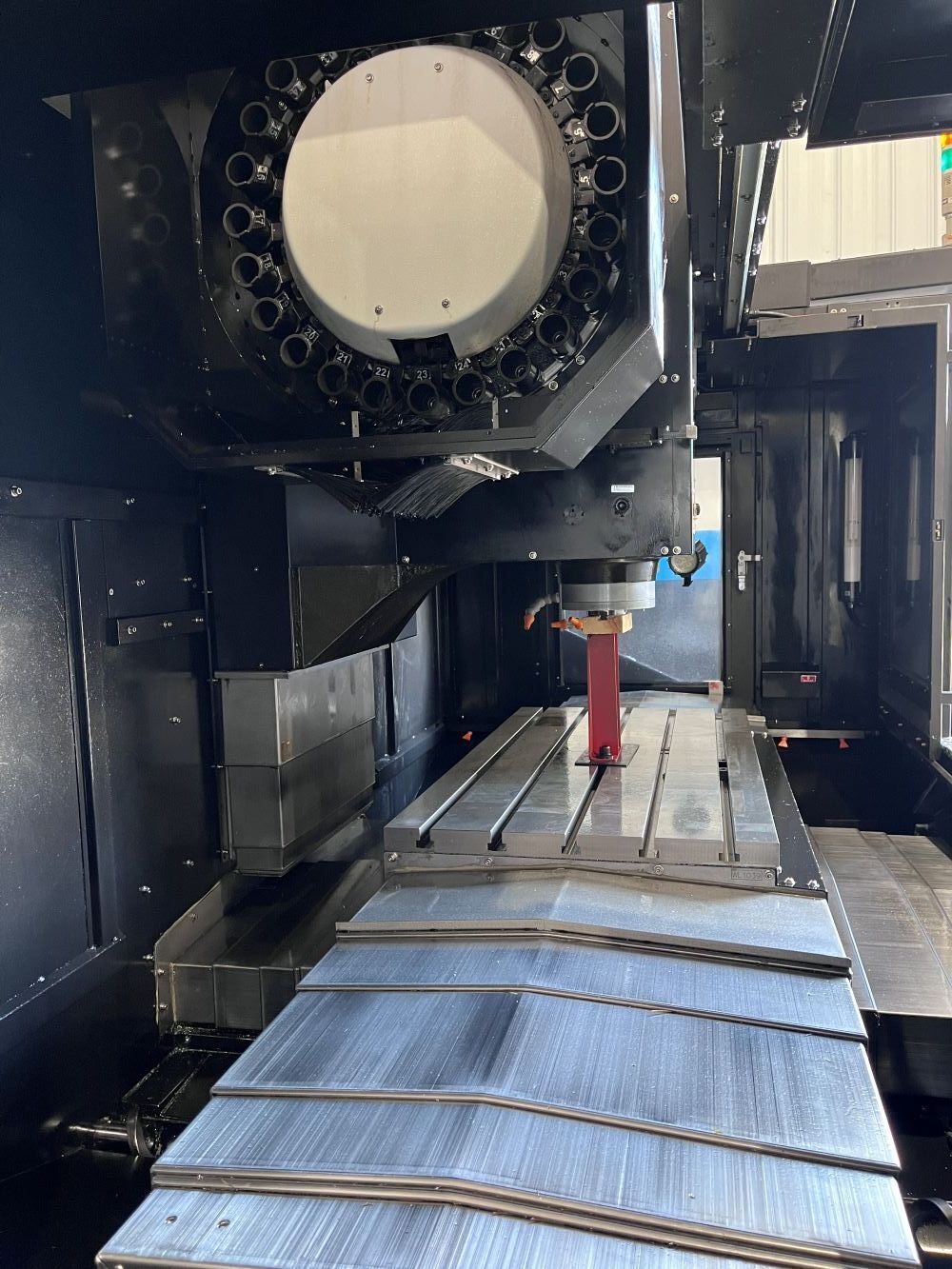

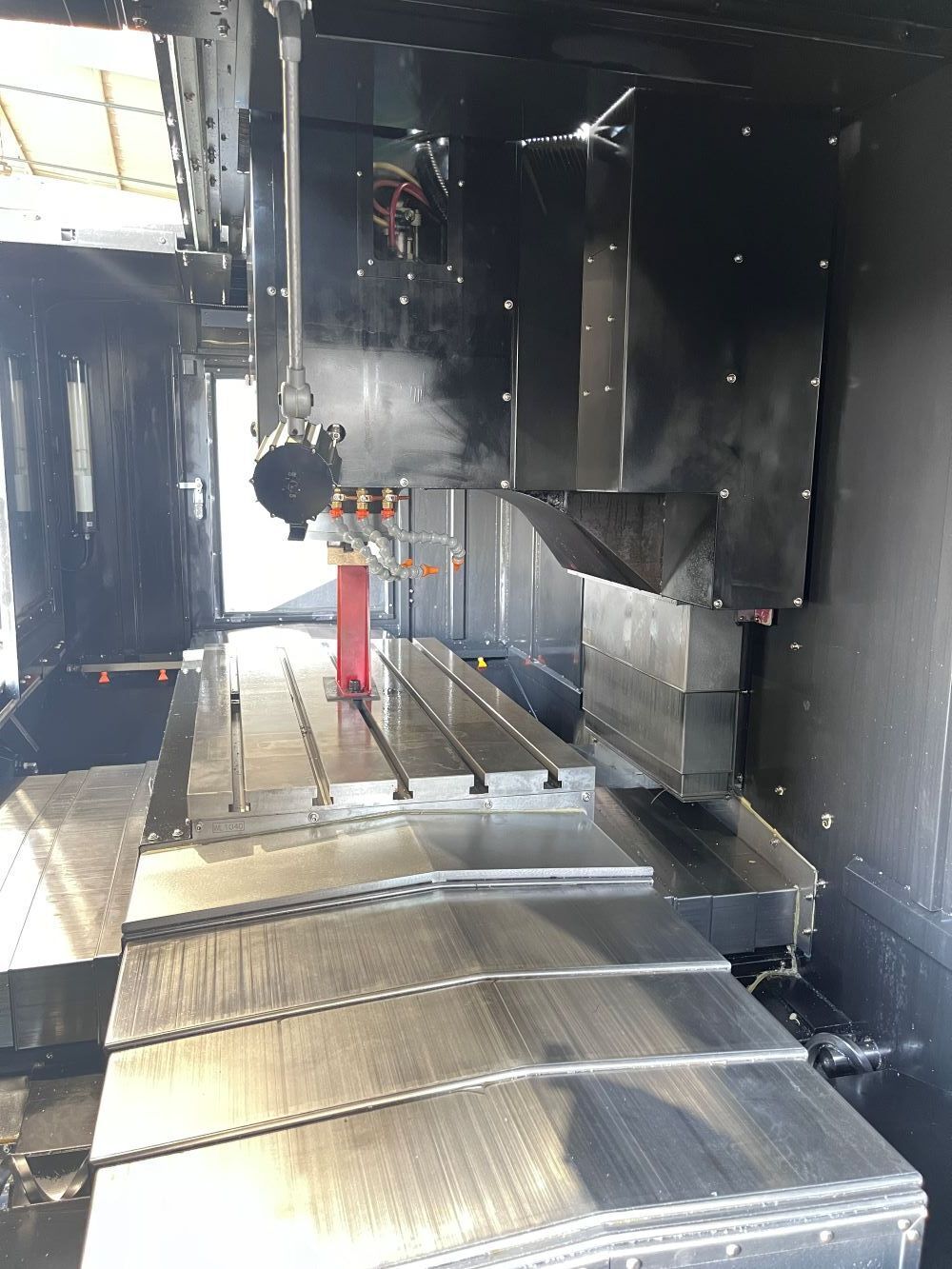

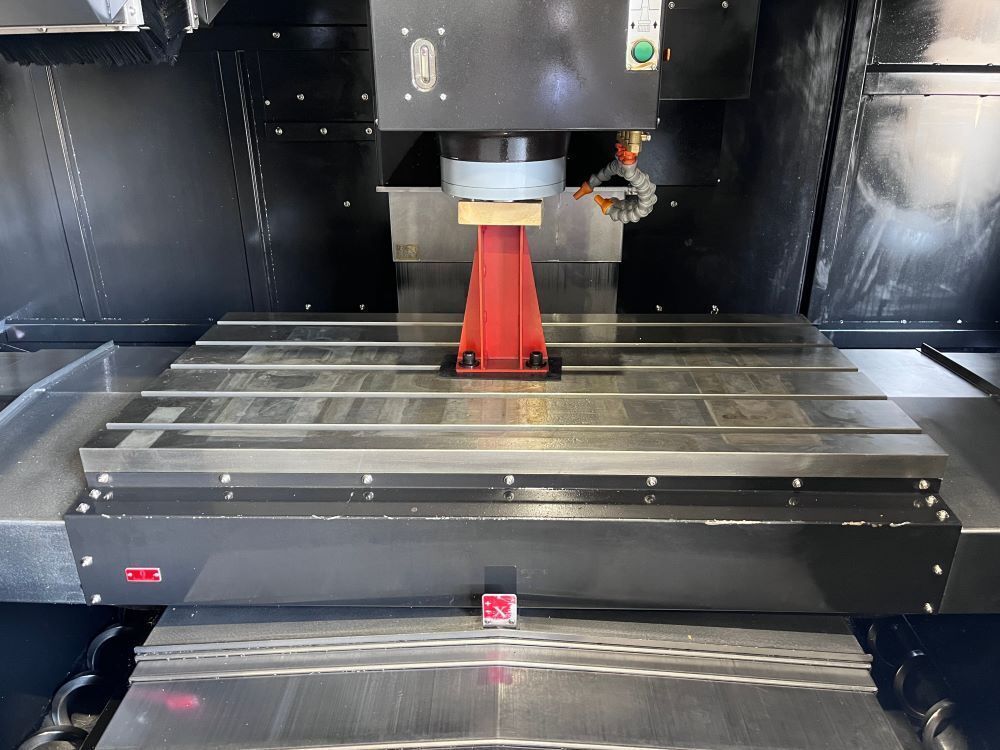

| Table: |
|---|
| Length: 51.2″ |
| Width: 25.6″ |
| Number of Std T-Slots: 5 |
| T-Slot Width: 5/8″ |
| Max Weight on Table: 2425 lbs |

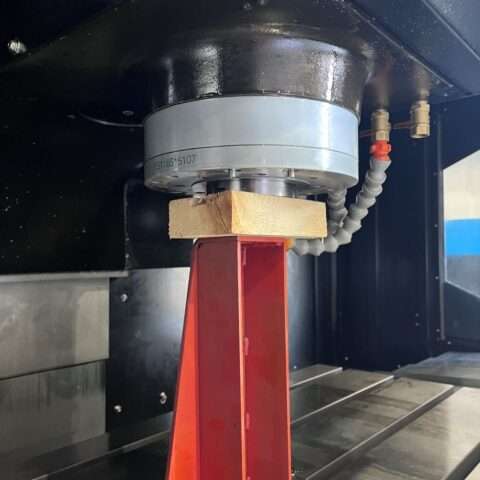

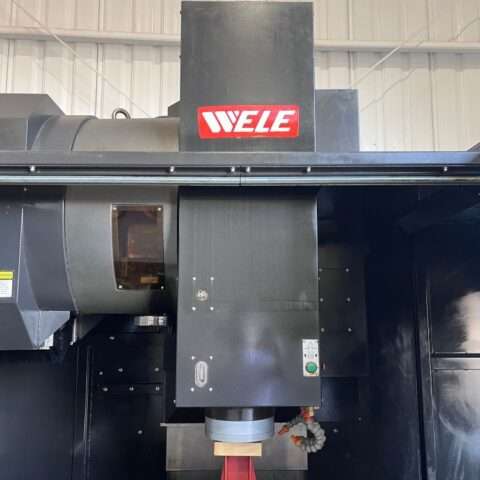

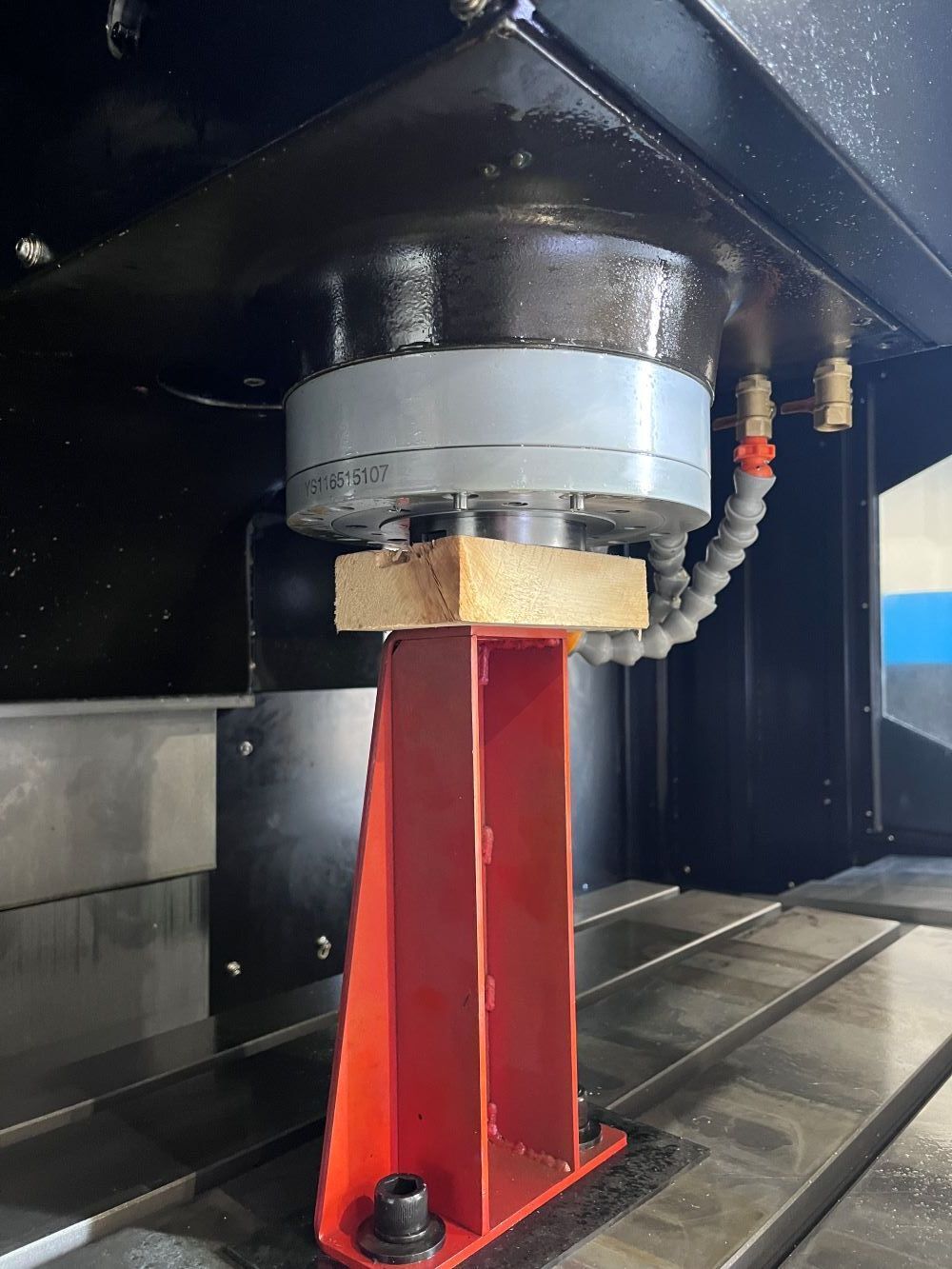

| Spindle: |
|---|
| Taper Size: CAT-40 |
| Speed Range: 8,000 RPM |
| Spindle Power: 20 HP |

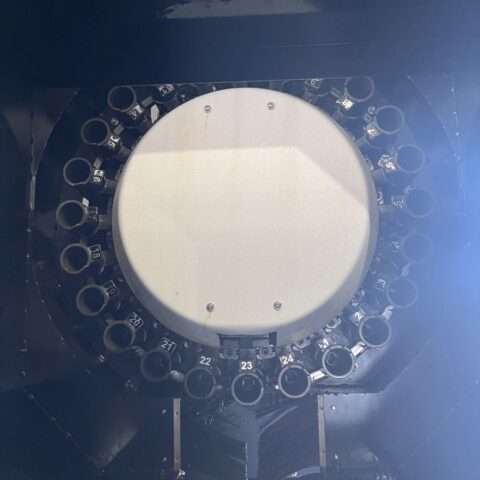

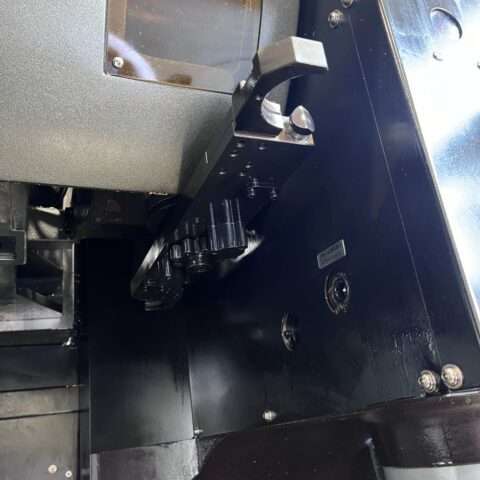

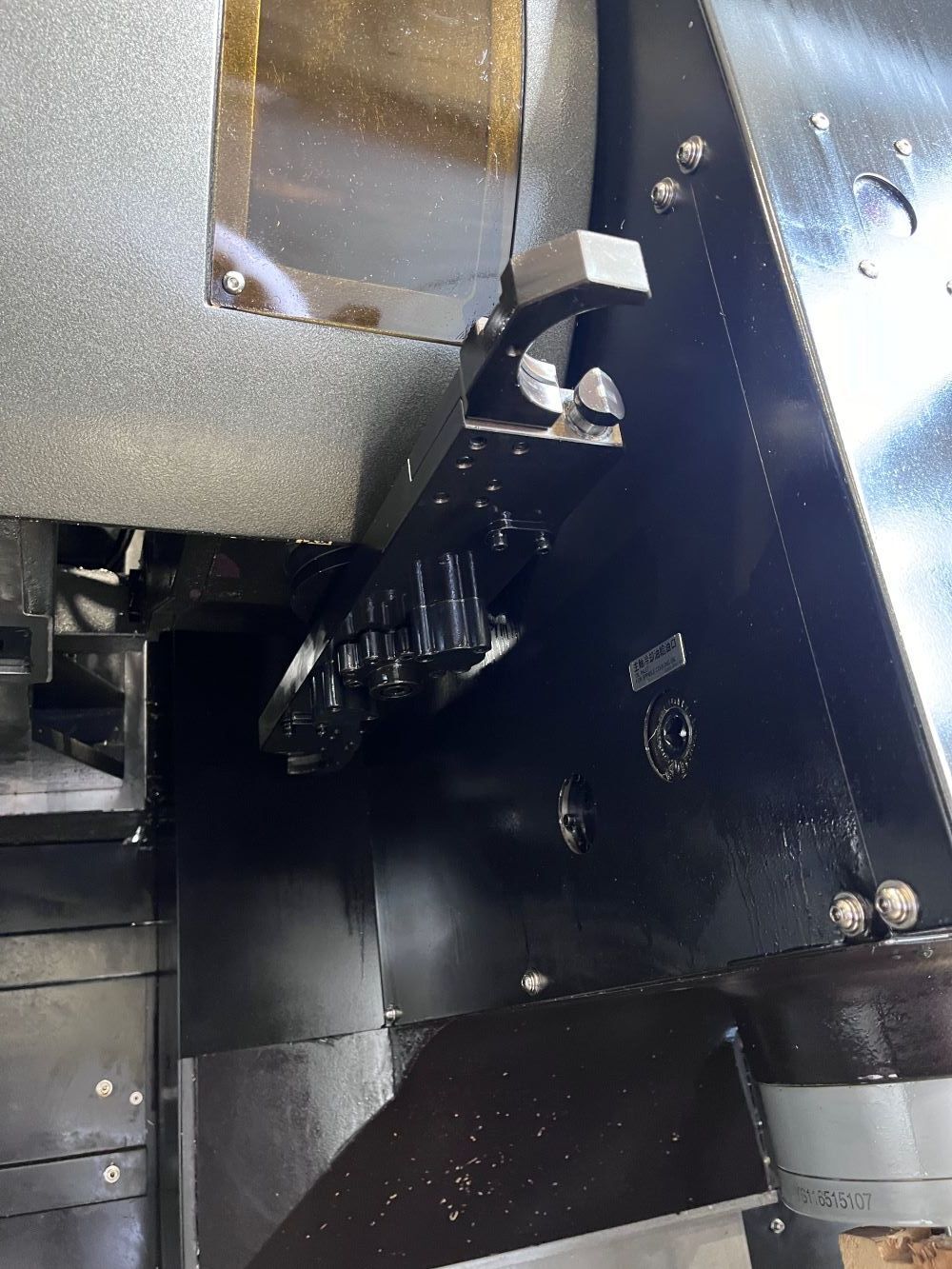

| Automatic Tool Changer: |
|---|
| Capacity: 24 Tools |
| Max Tool Weight: 12 lbs |
| Max Tool Dia: 2.99″ – 5.0″ |
| Max Tool Length: 9.8″ |
| Tool Changing Time: 3 Seconds |
| General: |
|---|
| Air Required: 100 psi 4 scfm |

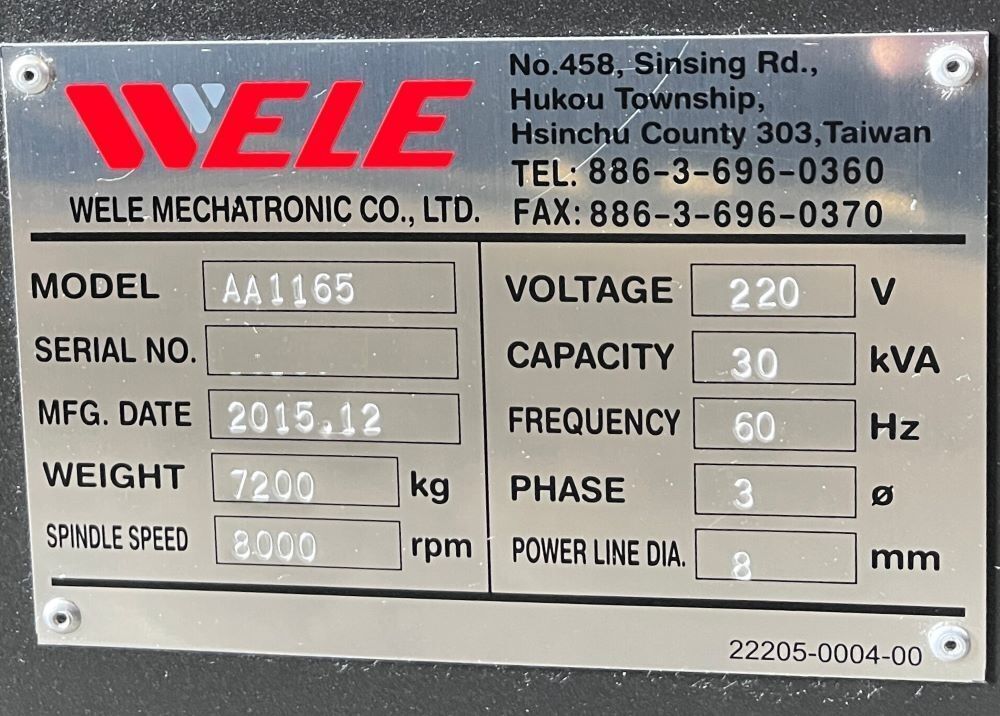

| Power: 220v / 66FLA / 3-Phase / 30 kva |
| Overall Dimensions: 126″ x 88″ x 115″ High |
| Weight: 15,873 lbs Approx. |
