*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Traub |
| Model: | A25 |
| Machine Type: | Automatic Lathe |
| Equipped With: |
|---|

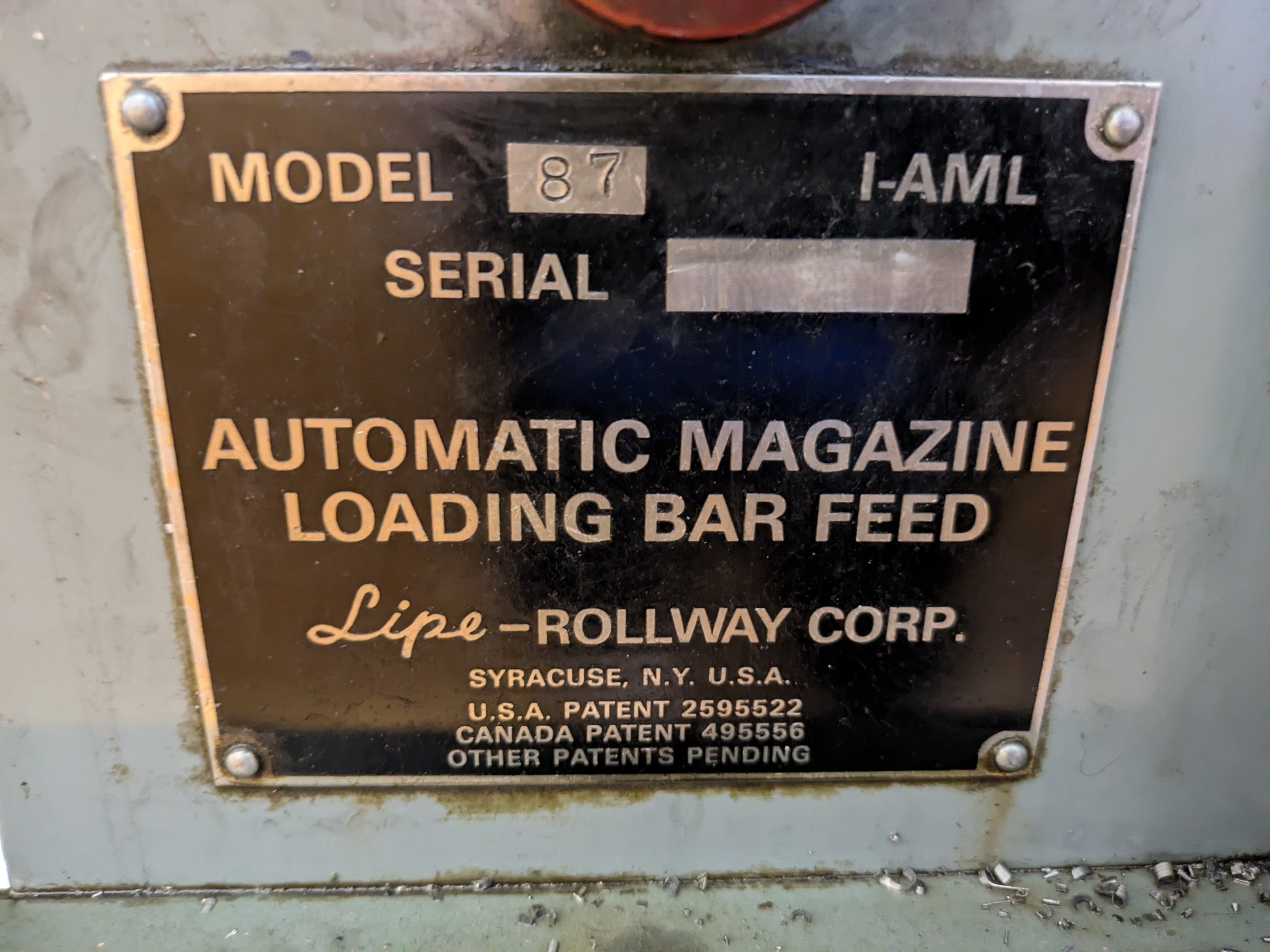

| Lipe Rollway Model 87 Automatic Magazine Bar Feeder |
| Lipe Rollway Bar Feeder |
| Automatic Magazine Loading Bar Feed |
| Single Spindle |
| 4-Tool Turret Slide |
| Longitudinal Turning Attachment |
| Coolant System |
| Capacity: |
|---|
| Maximum Turning Diameter: 0.98″ |
| Maximum Turning Length: 2.76″ |
| Spindle Bore: 0.98″ |
| Maximum Work Capacity: Approx. 1″ |
| Maximum Tailstock Collet Capacity: 0.51″ |
| Spindle: |
|---|
| Spindle Speeds: 550–4,000 RPM |
| Maximum Spindle Speed: 4,000 RPM |
| Number of Spindle Speeds: 12 |
| Tooling: |
|---|
| Number of Tool Cutters: 4 |
| Turret Slide: 4 Tools |
| Tool Holding Capacity: 0.75″ |
| Bar Feeder: |
|---|
| Make: Lipe Rollway |
| Model: 87 |
| Type: Automatic Magazine Loading Bar Feed |
| Bar Feeder Capacity: 0.75″ |
| General: |
|---|
| Electrical: 380 v/3 Phase / 50 Hz |
| Machine Dimensions (Approx.): 51.2″ L × 23.6″ W × 59.1″ H |
| Machine Weight (Approx.): 1,543 lbs |
