Traub TNL 12/7 12.7mm 7-Axis CNC Swiss-Type Lathe

SKU 11756
Make/Model Traub TNL 12/7
Year 2001
Condition Used - Good
Video On Request
Out of stock
SKU: 11756
Make/Model: Traub TNL 12/7
Year: 2001
Condition: Used – Good
Video: On Request
SKU: 11756

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

Make: Traub
Model: TNL 12/7
Year: 2001
Machine Type: 7-Axis CNC Swiss-Type Lathe

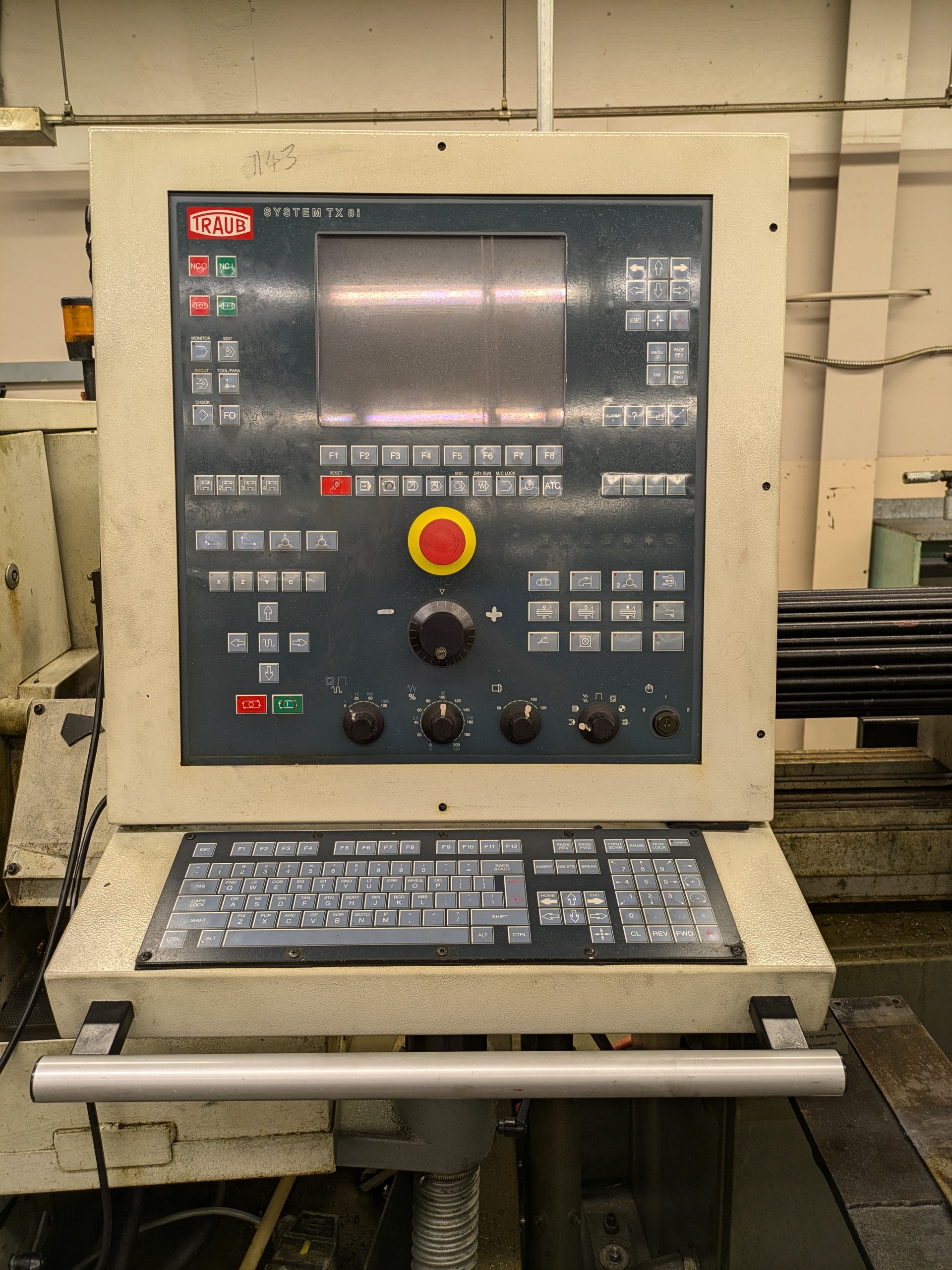

Control: Traub TX8i CNC Control
Equipped With:
Traub TX8i CNC Control
C-Axis
Upper Tool Turret
Lower Tool Turret
Live Tooling
Bar Feeding System
LNS Tryton SST 6 Bar Feeder
Chip Conveyor
Coolant System
Hydraulic System
Capacity:
Maximum Bar Capacity: 0.50″
Maximum Machining Diameter: 0.50″
Number of Axes: 7
Number of Spindles: 2
Main Spindle: C-Axis
Counter Spindle: C-Axis
Travels:
X1 Axis Travel: 1.38″
Y1 Axis Travel: 1.48″
Z1 Axis Travel: 1.89″
X2 Axis Travel: 1.38″
Z2 Axis Travel: 1.97″
Spindle:
Main Spindle Speed: 12,000 RPM
Counter Spindle Speed: 12,000 RPM
Rotary Tool Speed: 8,000 RPM
C-Axis: Yes
Tooling:
Upper Turret: 6 Positions
Lower Turret: 6 Positions
Driven Tool Positions: 6
Live Tooling: Yes
Rotary Tool Speed: 8,000 RPM
Electrical:
Input Voltage: 460 Volts
Phase: 3 Phase
Frequency: 60 Hz
General:
Country of Manufacture: Germany
Machine Weight (Approx.): 2,000 kg
Machine Dimensions (Approx): 112″ L x 43″ W x 58″ H
Equipped With:
Traub TX8i CNC Control
C-Axis
Upper Tool Turret
Lower Tool Turret
Live Tooling
Bar Feeding System
LNS Tryton SST 6 Bar Feeder
Chip Conveyor
Coolant System
Hydraulic System
Capacity:
Maximum Bar Capacity: 13 mm
Maximum Machining Diameter: 13 mm
Number of Axes: 7
Number of Spindles: 2
Main Spindle: C-Axis
Counter Spindle: C-Axis
Travels:
X1 Axis Travel: 35 mm
Y1 Axis Travel: 38 mm
Z1 Axis Travel: 48 mm
X2 Axis Travel: 35 mm
Z2 Axis Travel: 50 mm
Spindle:
Main Spindle Speed: 12,000 RPM
Counter Spindle Speed: 12,000 RPM
Rotary Tool Speed: 8,000 RPM
C-Axis: Yes
Tooling:
Upper Turret: 6 Positions
Lower Turret: 6 Positions
Driven Tool Positions: 6
Live Tooling: Yes
Rotary Tool Speed: 8,000 RPM
Electrical:
Input Voltage: 460 Volts
Phase: 3 Phase
Frequency: 60 Hz
General:
Country of Manufacture: Germany
Machine Weight (Approx.): 2,000 kg
Machine Dimensions (Approx): 2,845 mm L x 1,092 mm W x 1,473 mm H
