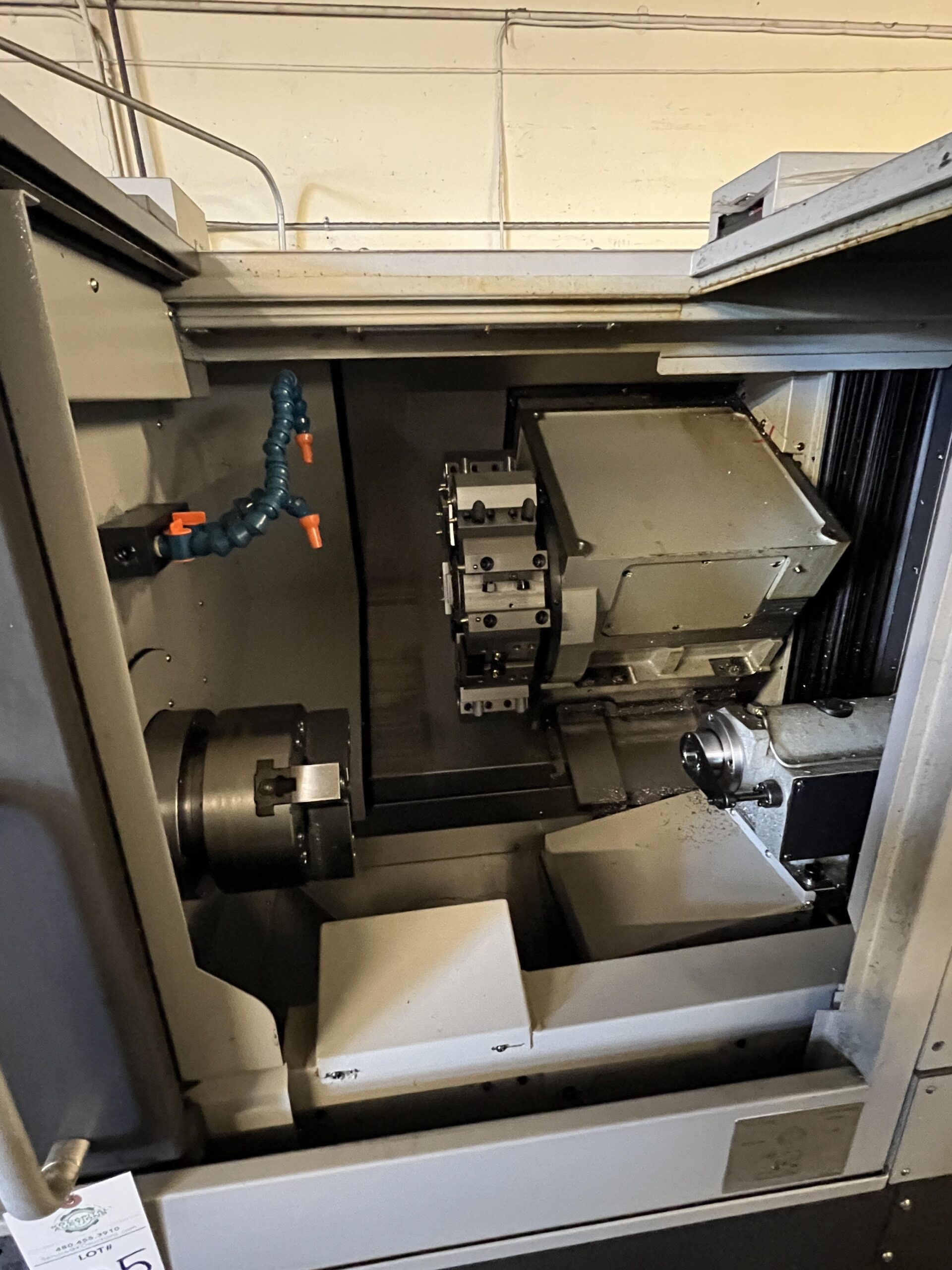

Tsugami M08J-II CNC Turning Center
SKU
11703
Make/Model
Tsugami M08J-II
Year
2018
Condition
Used - Good
Video
On Request
In stock
| SKU: | 11703 |
| Make/Model: | Tsugami M08J-II |
| Year: | 2018 |
| Condition: | Used – Good |
| Video: | On Request |
Add to WishlistRemove from Wishlist
Add to Wishlist
*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Tsugami |
| Model: | M08J-II |
| Year: | 2018 |
| Equipped With: |
|---|
| Fanuc Series 0i-TF CNC Control |
| 8″ 3-Jaw Hydraulic Chuck |
| 8-Station Turret |
| Tailstock |
| Chip Conveyor |
| Coolant System |
| Automatic Lubrication System |
| Full Machine Enclosure |
| Capacity: |
|---|
| Chuck Size: 8″ |
| Maximum Machining Diameter: 11.02″ |
| Maximum Machining Length: 11.4″ |
| Maximum Bar Capacity: 2.56″ |
| Travels: |
|---|
| X-Axis Travel: 12.99″ |
| Z-Axis Travel: 12.60″ |
| X-Axis Rapid Traverse: 945 IPM |
| Z-Axis Rapid Traverse: 1,063 IPM |
| Spindle: |
|---|
| Spindle Speed: 200 – 4,000 RPM |
| Main Spindle Motor: 14 HP |
| Spindle Type: Belt Driven |
| Turret: |
|---|
| Number of Turret Stations: 8 |
| Turret Type: 8-Station CNC Turret |
| General: |
|---|
| Machine Dimensions (Approx.): 73.4″ × 65.9″ × 63.0″ |
| Machine Weight: 7,716 lbs |
| Equipped With: |
|---|
| Fanuc Series 0i-TF CNC Control |
| 203 mm 3-Jaw Hydraulic Chuck |
| 8-Station Turret |
| Tailstock |
| Chip Conveyor |
| Coolant System |
| Automatic Lubrication System |
| Full Machine Enclosure |
| Capacity: |
|---|
| Chuck Size: 203 mm |
| Maximum Machining Diameter: 280 mm |
| Maximum Machining Length: 290 mm |
| Maximum Bar Capacity: 65 mm |
| Travels: |
|---|
| X-Axis Travel: 330 mm |
| Z-Axis Travel: 320 mm |
| X-Axis Rapid Traverse: 945 IPM |
| Z-Axis Rapid Traverse: 1,063 IPM |
| Spindle: |
|---|
| Spindle Speed: 200 – 4,000 RPM |
| Main Spindle Motor: 14 HP |
| Spindle Type: Belt Driven |
| Turret: |
|---|
| Number of Turret Stations: 8 |
| Turret Type: 8-Station CNC Turret |
| General: |
|---|
| Machine Dimensions (Approx.): 1,864 mm × 1,674 mm × 1,600 mm |
| Machine Weight: 7,716 lbs |
| Categories | CNC Lathes & Turning Centers |
|---|---|
| Make | Tsugami |
| Model | M08J-II |
Payment Terms
A booking deposit secures the machine, with the remaining balance due prior to loading or shipment. We accept bank transfer, wire transfer, and approved payment methods.
Shipping & Logistics
We coordinate domestic and international shipping, including loading, containerization, and freight arrangements through trusted logistics partners.
Machine Inspection
Buyers can request a live video demonstration, machine inspection, or schedule an on-site visit before completing the purchase.
Export & Documentation
For international orders, we can assist with export documentation, commercial paperwork, and pre-shipment inspection requirements.
