*All specifications are approximations and are subject to verification. Comes as shown in the images. Additionally, please give us a call if you have any questions before purchasing. All sales are final.*
| Make: |
TSUGAMI |
| Model: |
B0326-III |
| Year: |
2024 |
| Condition: |
Almost New |
| Equipped With: |

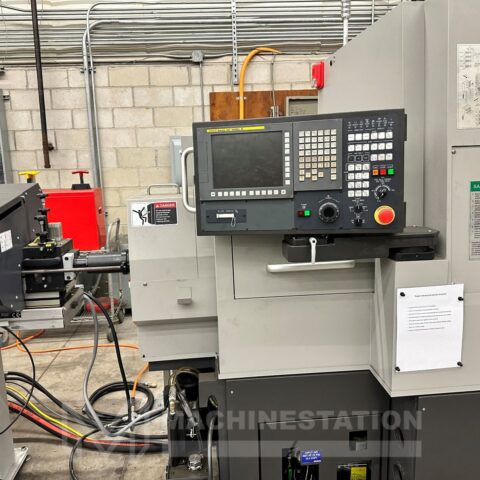

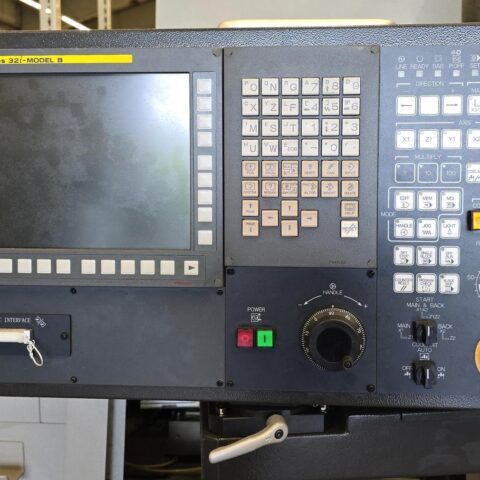

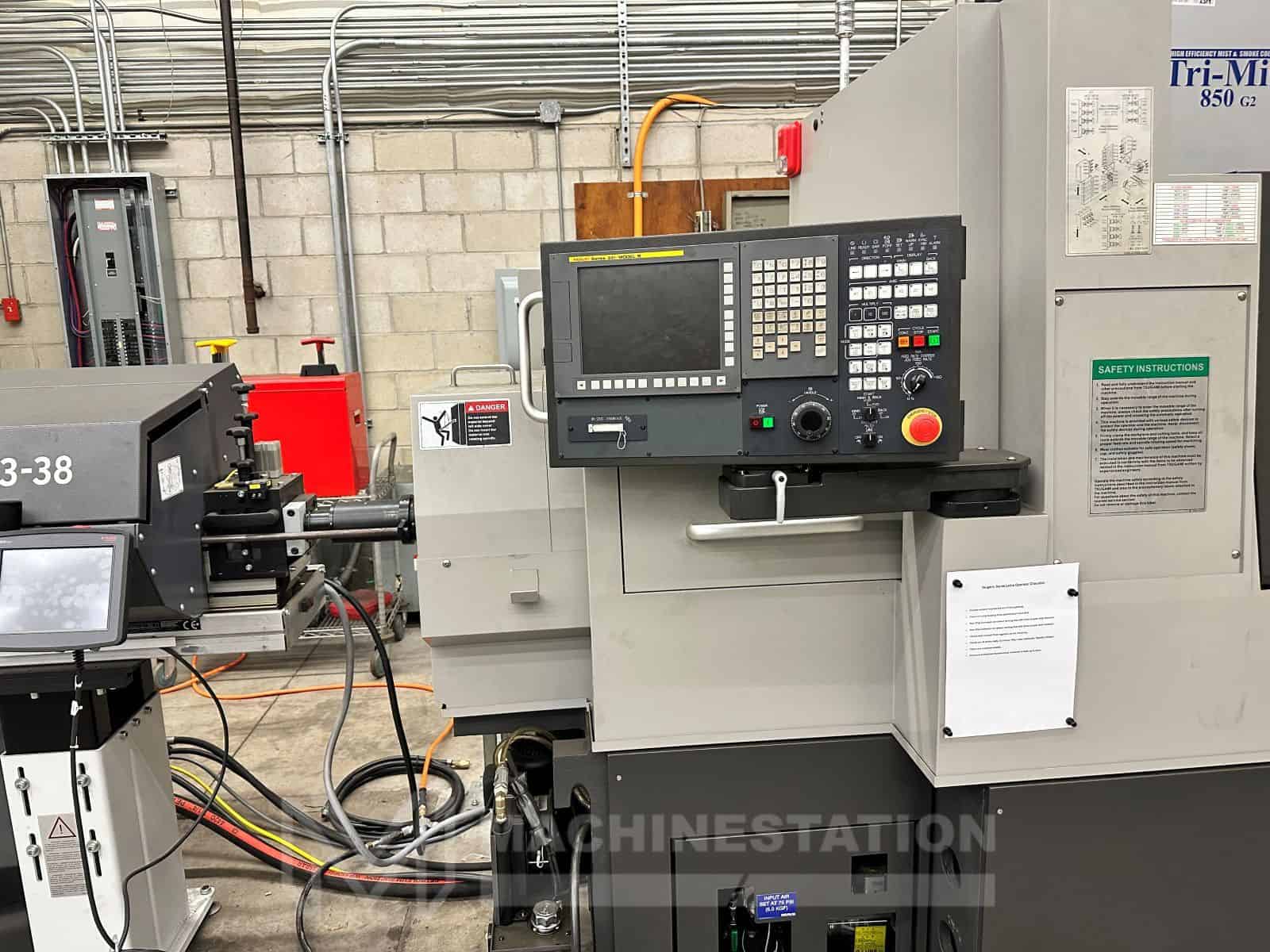

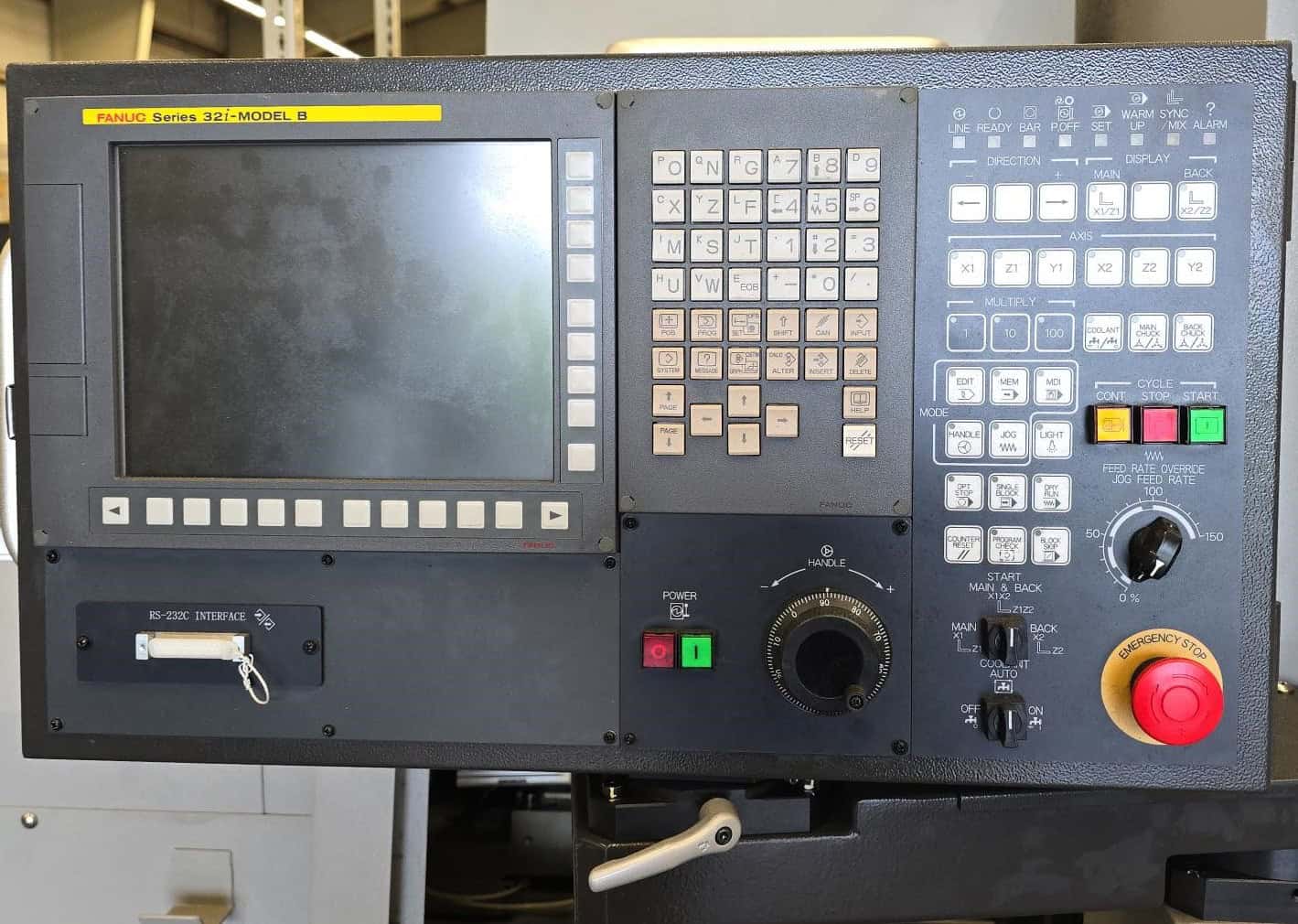

- Fanuc 32i-MB CNC Control
- Controlled Axes (Liner Axes) X1, X2, Y1, Y2, Z1, Z2

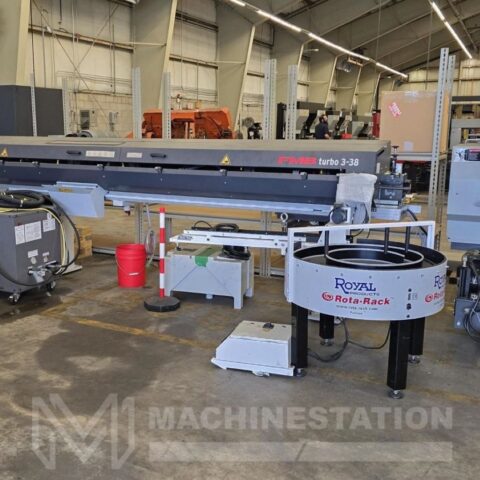

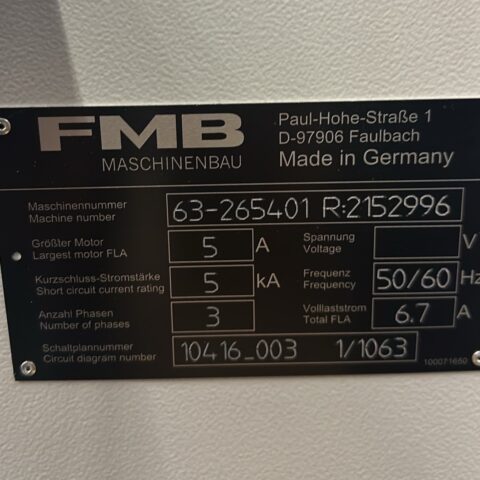

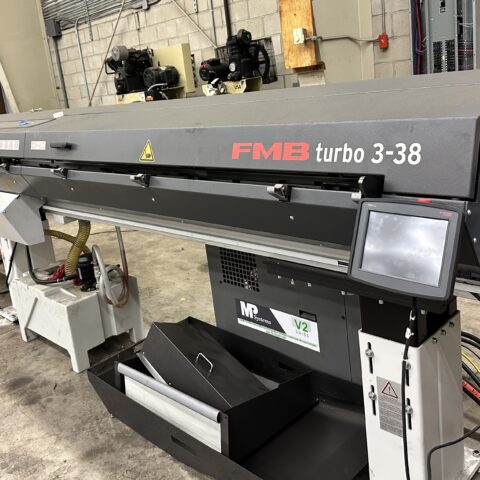

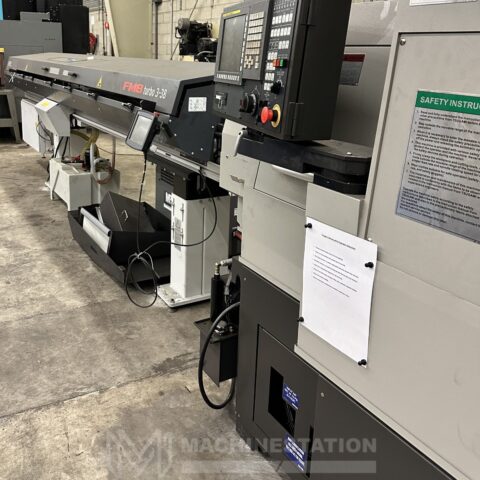

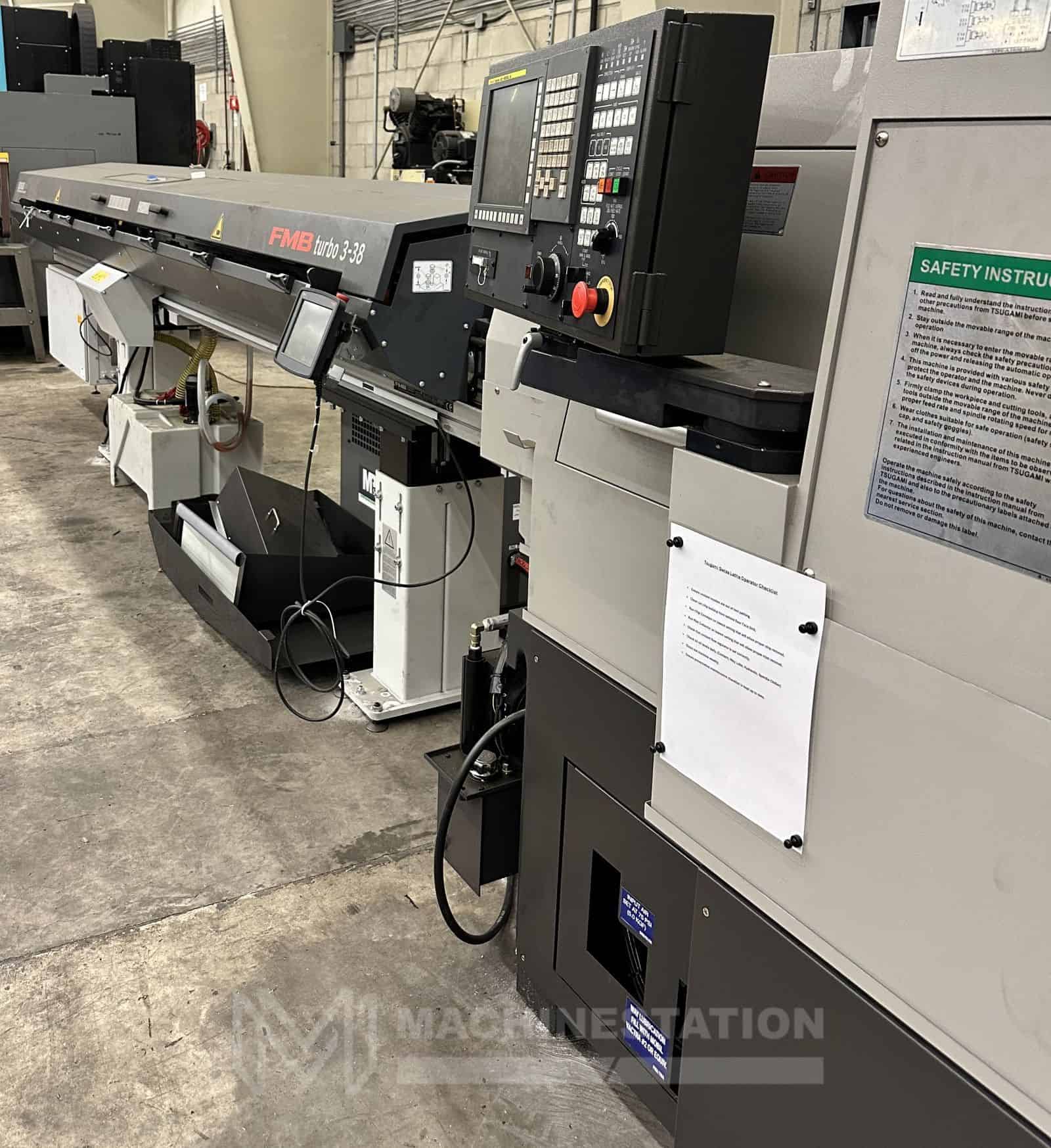

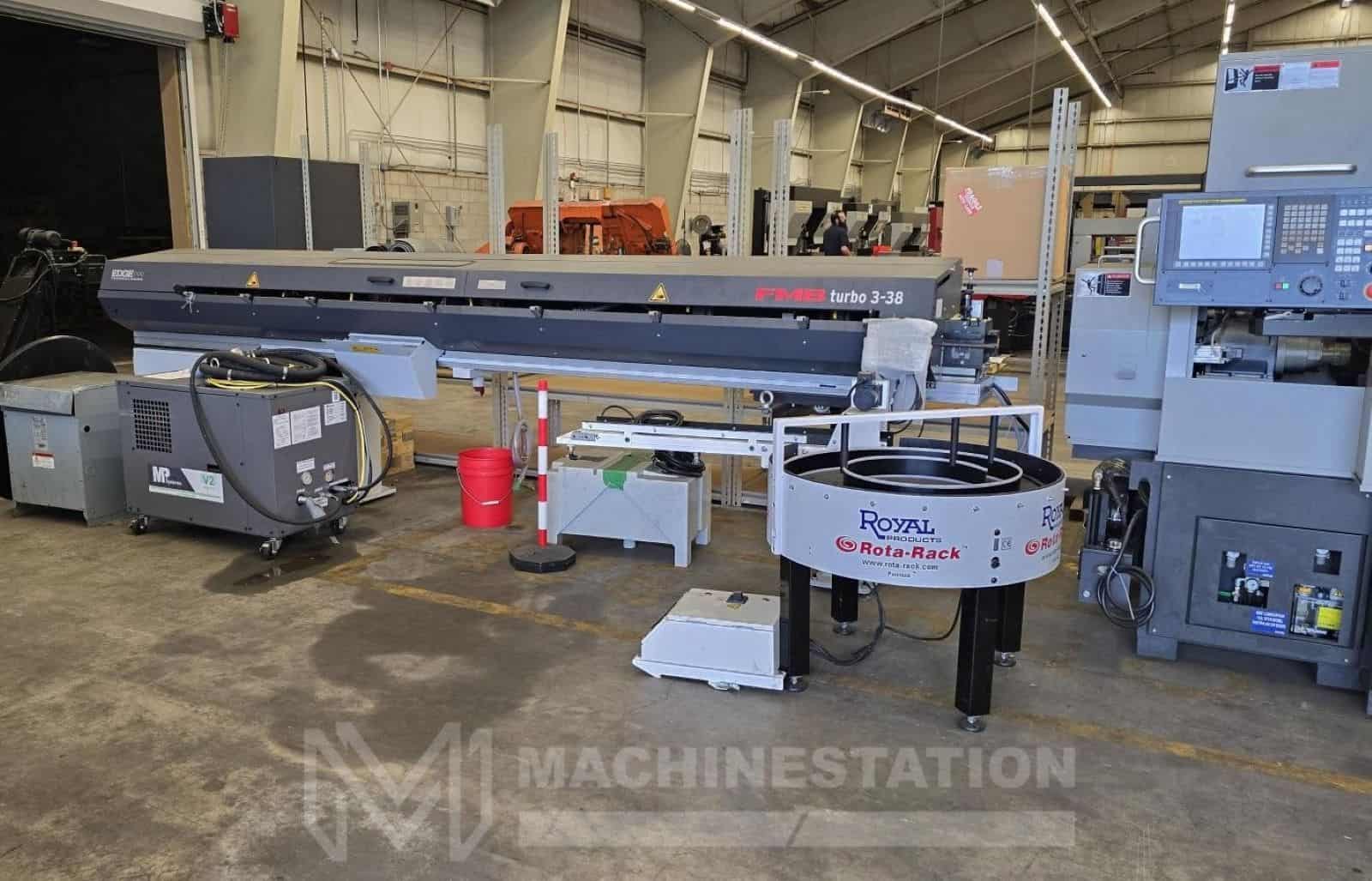

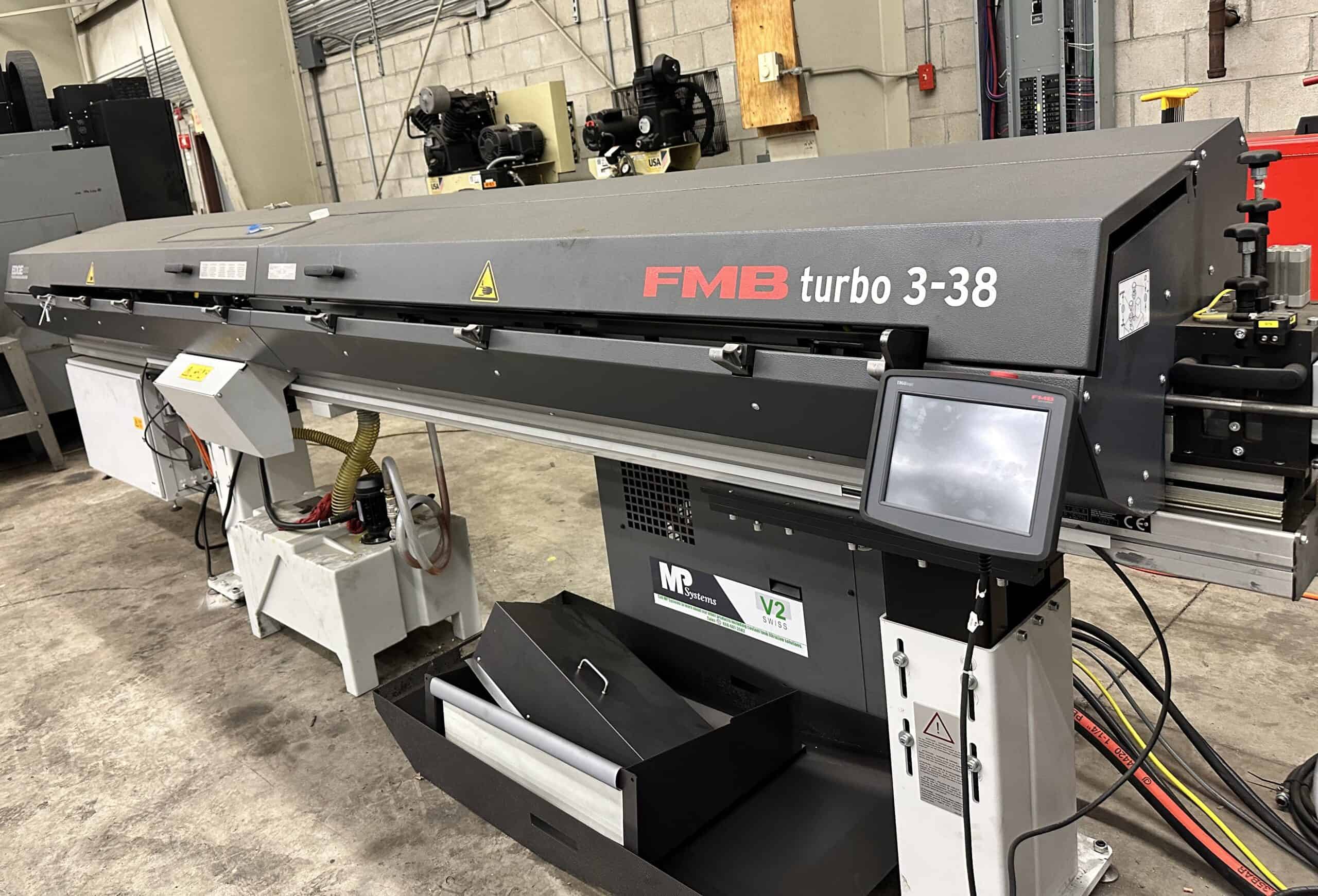

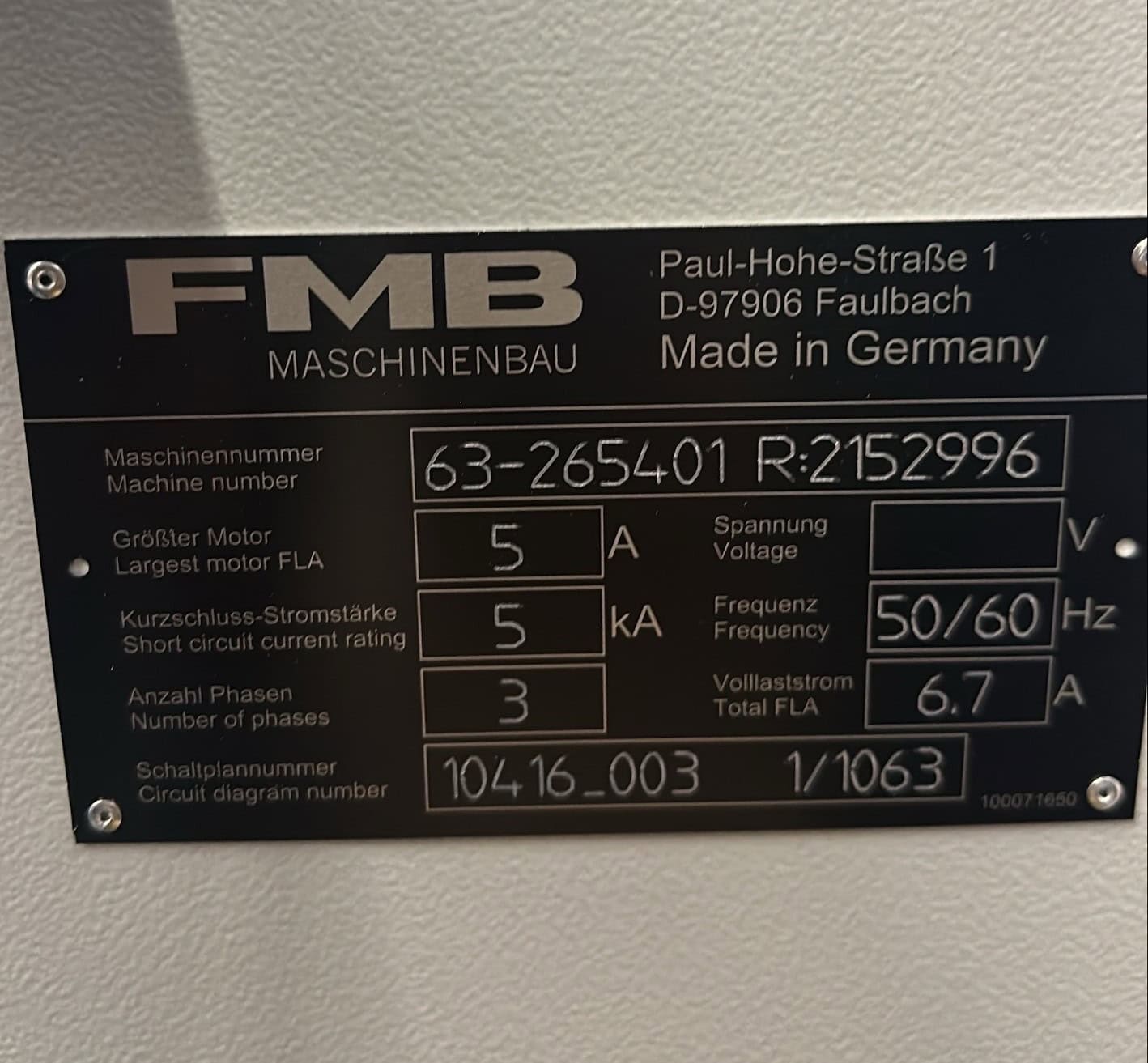

- Comes with FMB Turbo 3-38 Bar Feeder (Upgraded $55,850 value Included)

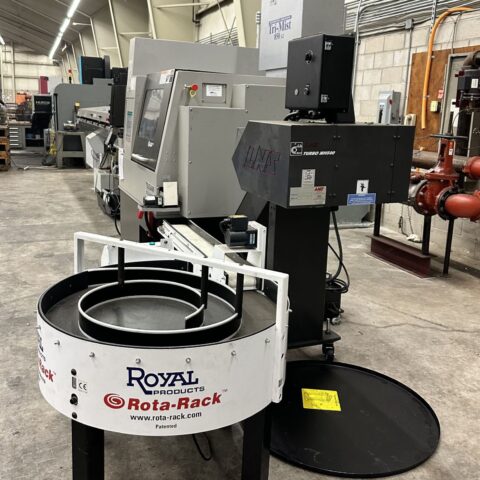

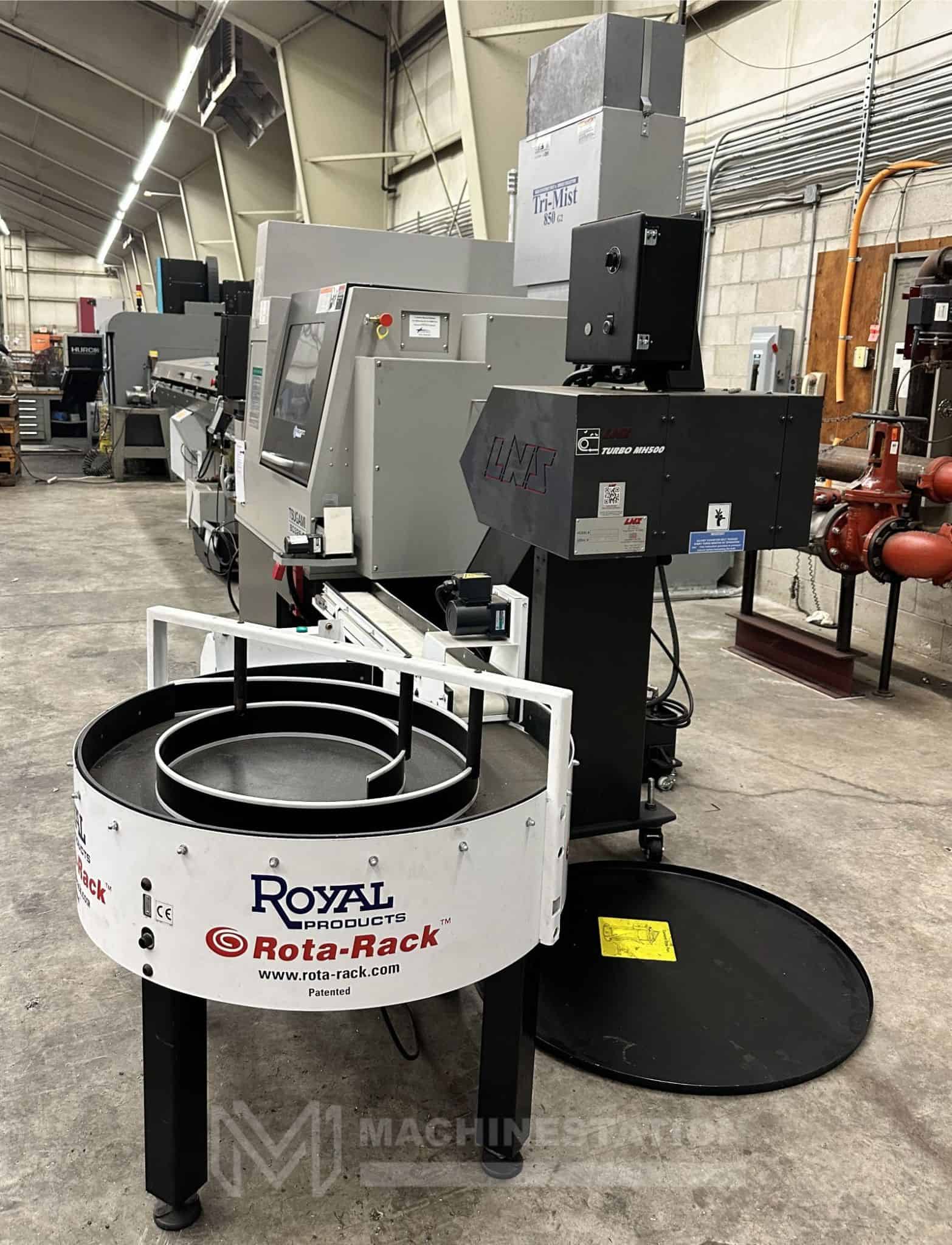

- Royal Rota-Rack
- Oscillation Cutting Function (X1/Z1 Axis) (Upgraded $15,000 value Included)
- Back Spindle
- Live Tools Capable
- Long Parts Capable
- C & Y Axis Capabilities
- MPG Control
- Main & Back Spindle Synchronization
- High Speed Rapid Travers: 1378 IPM
- High Speed Program Processing
- Absolute Position Detection

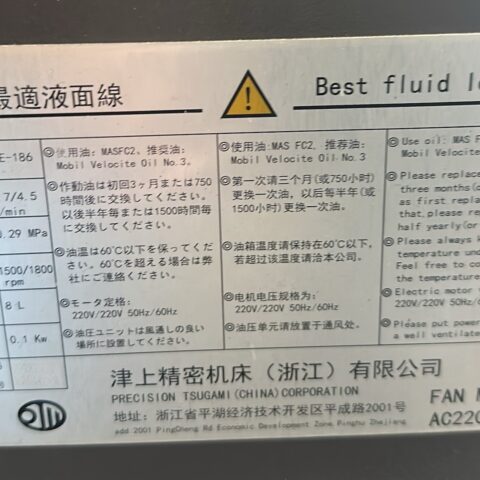

- Automatic Lubrication System

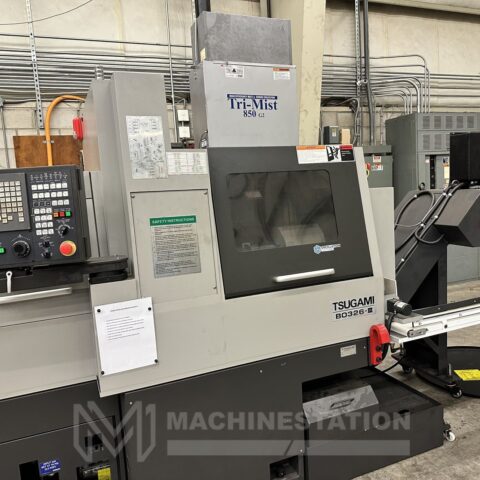

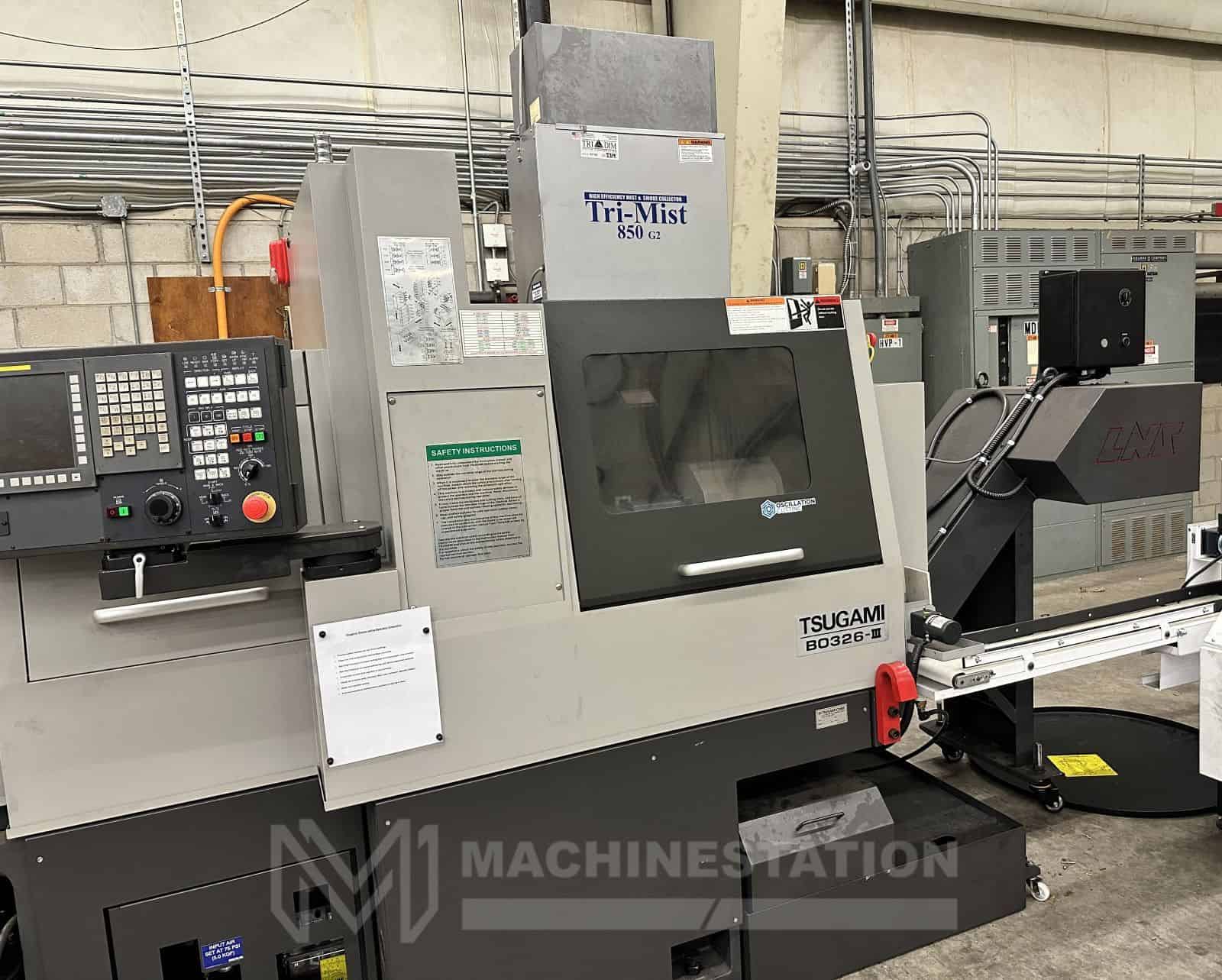

- Tri-Mist 850 G2 Mist Collector (Upgraded $3,600 value Included)
- Hepa Filter (Upgraded $400 value Included)
- Firetrace (Upgraded $6,990 value Included)
- Red/Yellow/Green Patrol Light System (Upgraded $850 value Included)
- MP 2000 PSI Coolant System W/8 Outs For Oil (Upgraded $16,600 value Included)

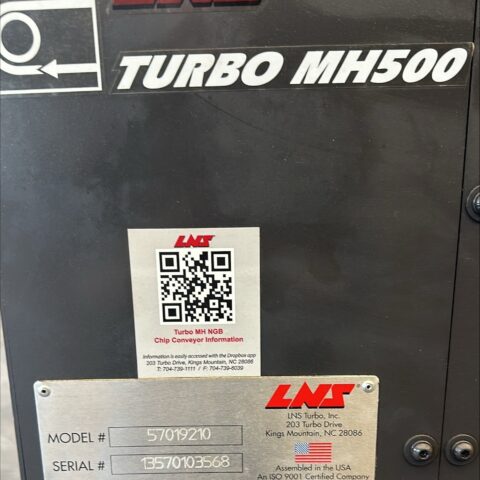

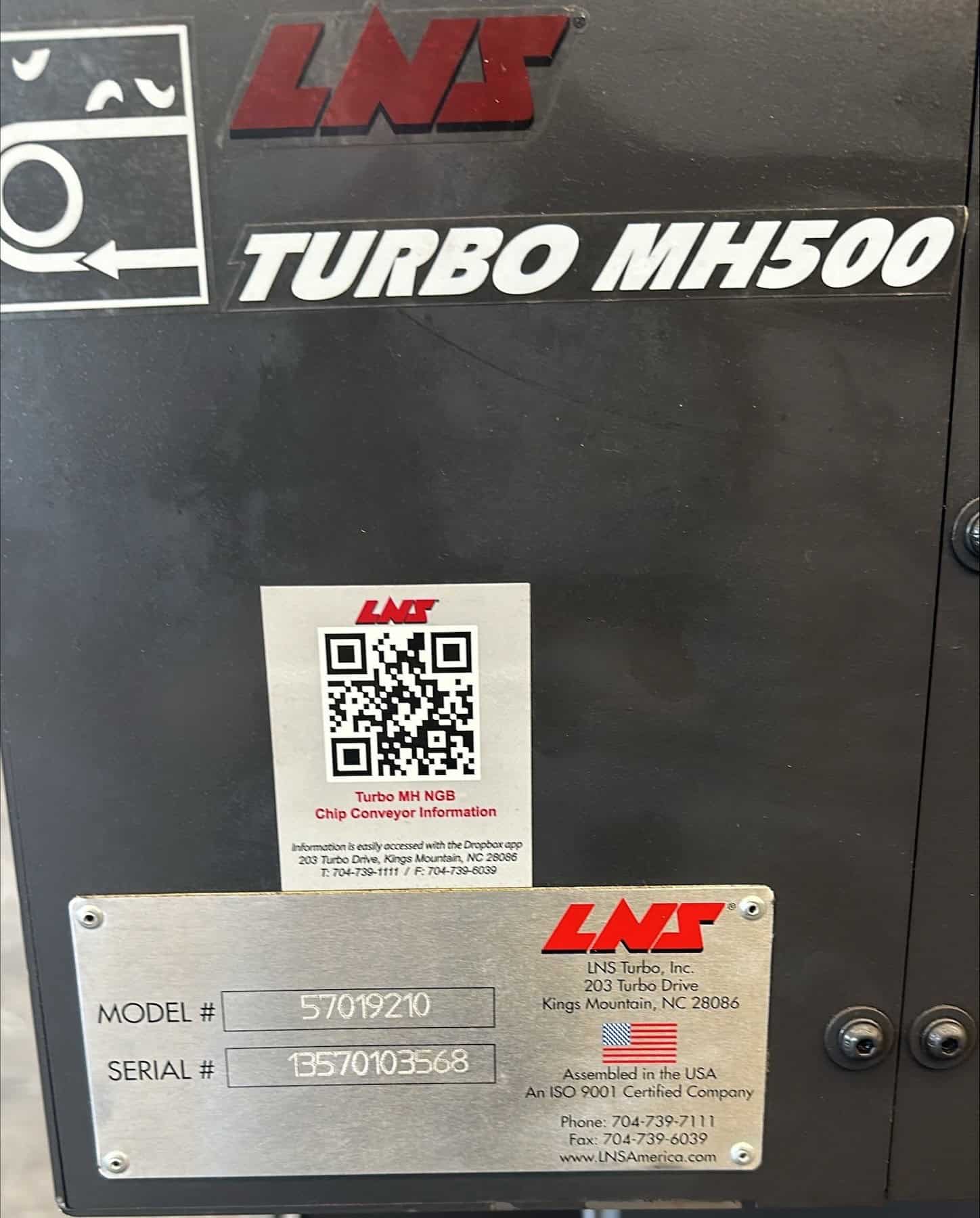

- LNS Turbo MH-500 Chip Conveyor (Upgraded $12,100 value Included)
|
| Capacity: |
- Max Machining Diameter : 1.26″ (32 mm)
- Max Machining Length with Guide Bushing: 12.99″ (330mm)
- Max Machining Length without Guide Bushing: 2.76″ (70mm)
- Max Bar Capacity: 1.26″ (32 mm)
- Max Tool Positions (Standard): 34
- Max. Drilling Diameter: 0.47″ (12 mm)
- Max. Tapping Diameter: M10
- Max. Back Spindle Chucking Diameter: 1.26″ (32 mm)
- Max. Back Spindle Drilling Diameter: 0.39″ (10 mm)
- Max. Back Spindle Tapping Diameter: M8
- Max. Tool Spindle Drilling Diameter: 0.31 ( 8 mm)
- Max. Tool Spindle Tapping Diameter: M6 (Front) M8 (Rear)
- Max. Tool Spindle Slotting Cutter Diameter: 1.77 (45 mm)
|
| Spindle: |
- Main Spindle Indexing: 360° (Full C-Axis)
- Main Spindle Speed: 200 – 8,000 RPM
- Main Spindle Motor: 7.5 HP
- Back Spindle Indexing: 360° (Full C-Axis)
- Back Spindle Speed: 200 – 8,000 RPM
- Back Spindle Motor: 7.5 HP
|
| Standard Tools: |
- Gang Tool Post (Turning): 7
- Front Drilling: 5
- Front Drilling Deep Hole: 2
- Back Drilling: 13
|
| Power Driven Tools Attachment: |
- Gang Tool Post (Live): 7
- Driven Tool Speed: 200 – 6,000 RPM
- Driven Tool Motor: 1.87 HP
|
| General: |

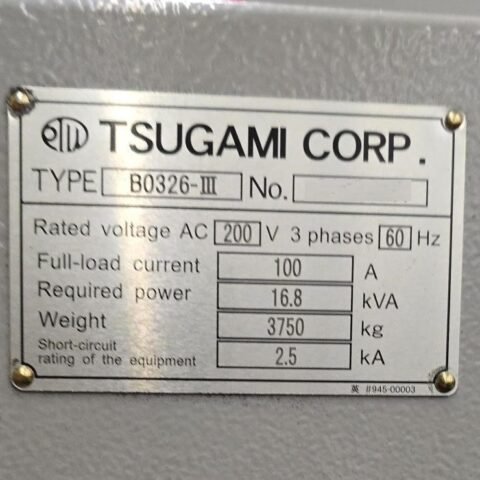

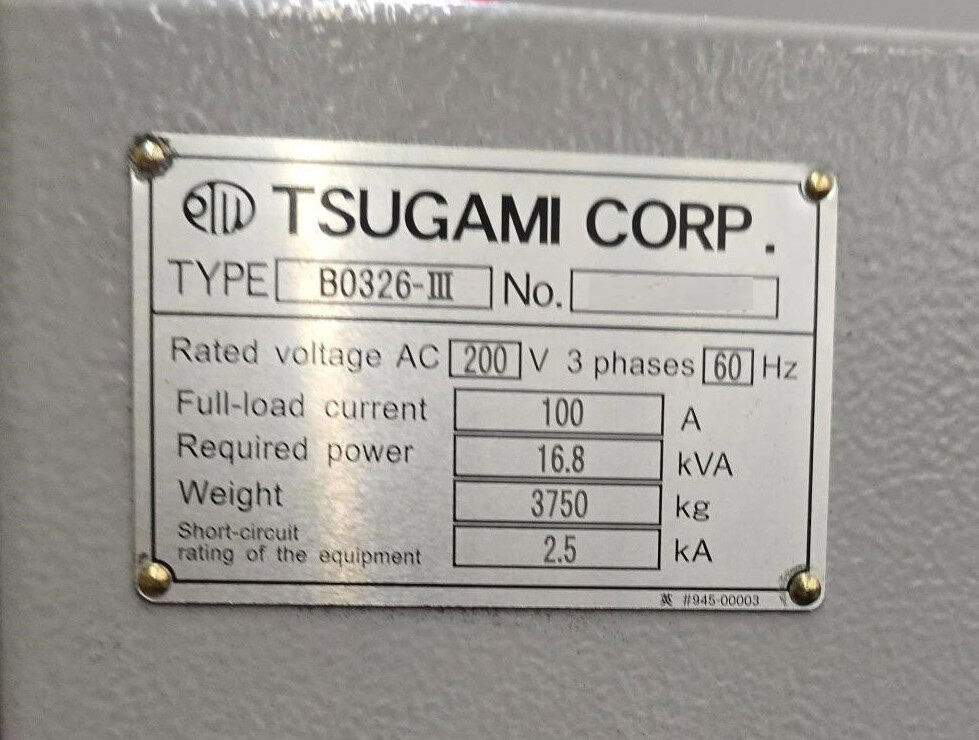

- Power Source: AC 200v / 3-Phase /60 Hz
- Power Requirement: 16.8 kva
- Overall Dimensions: 103.5″ X 50.4″ X 77.5″ High without Bar Feeder
- Weight: 8,267 lbs. Approx.
|
