*All specifications are approximations and are subject to verification. Comes as shown in the images. Additionally, please give us a call if you have any questions before purchasing. All sales are final.*

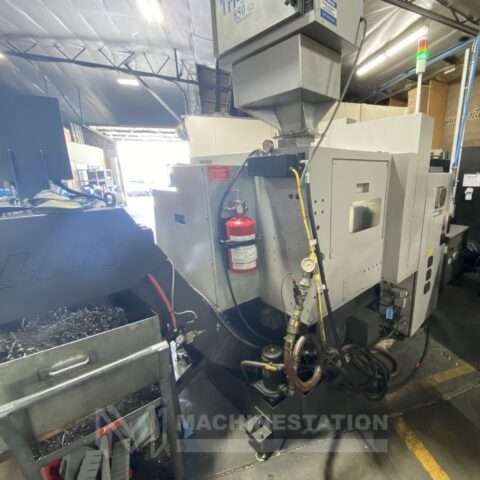

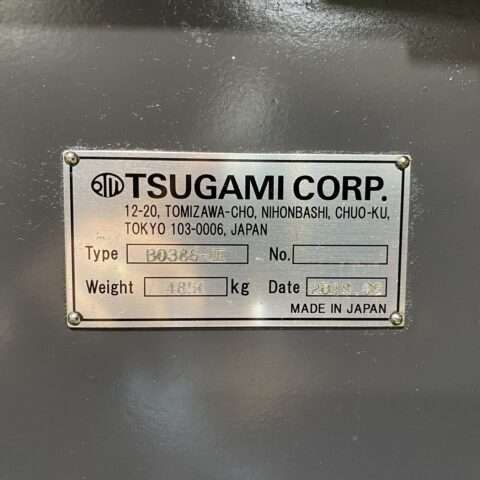

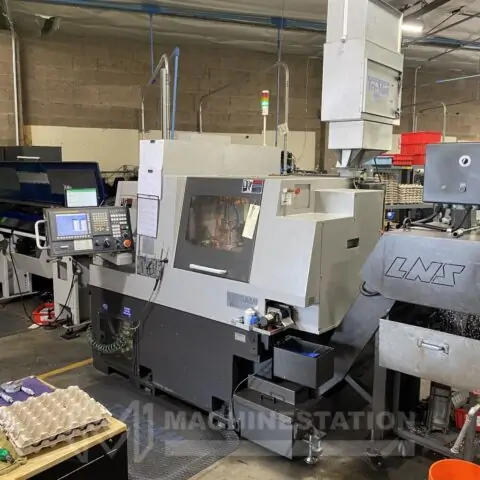

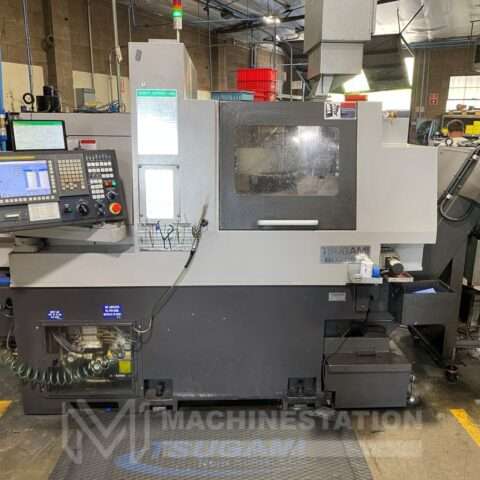

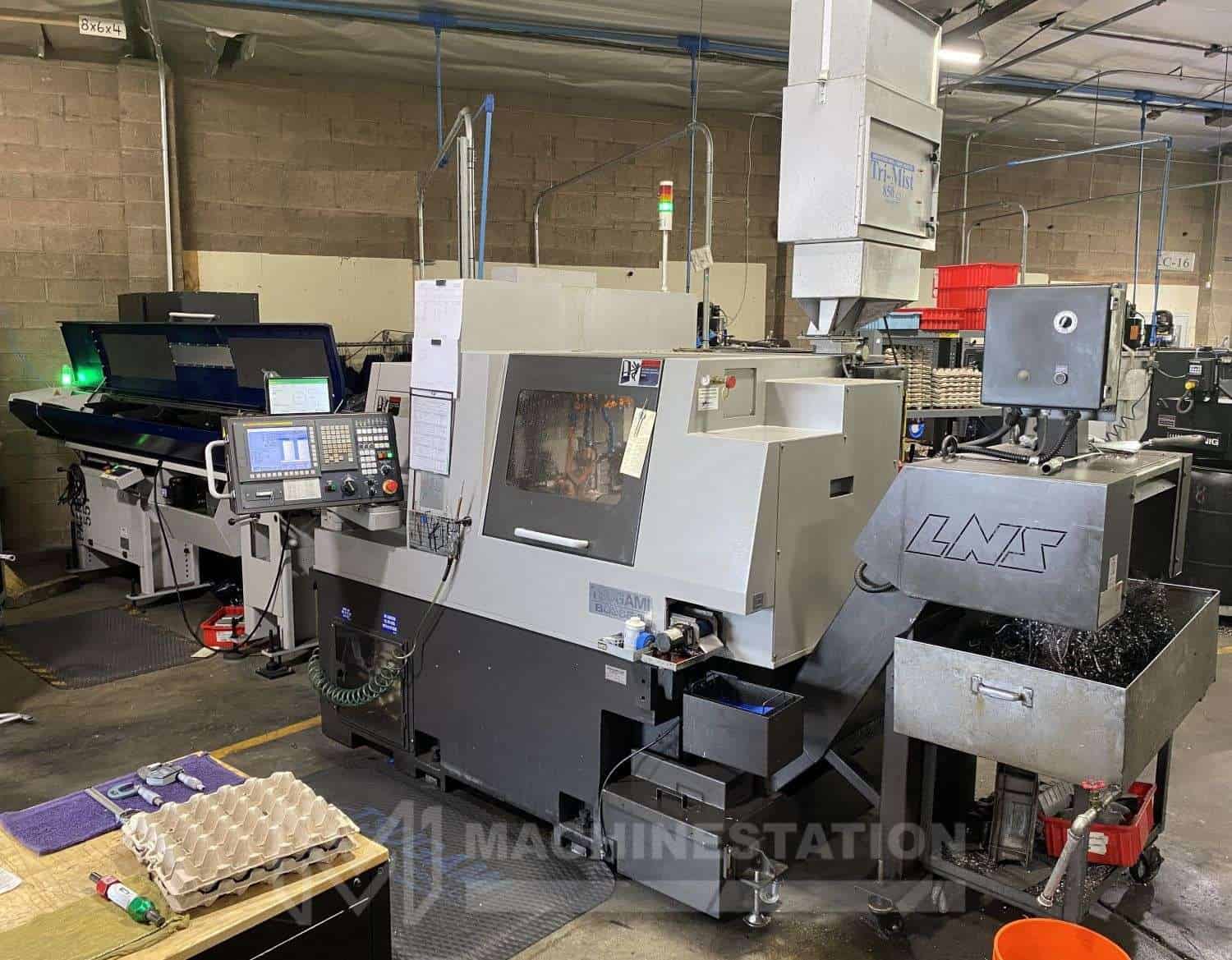

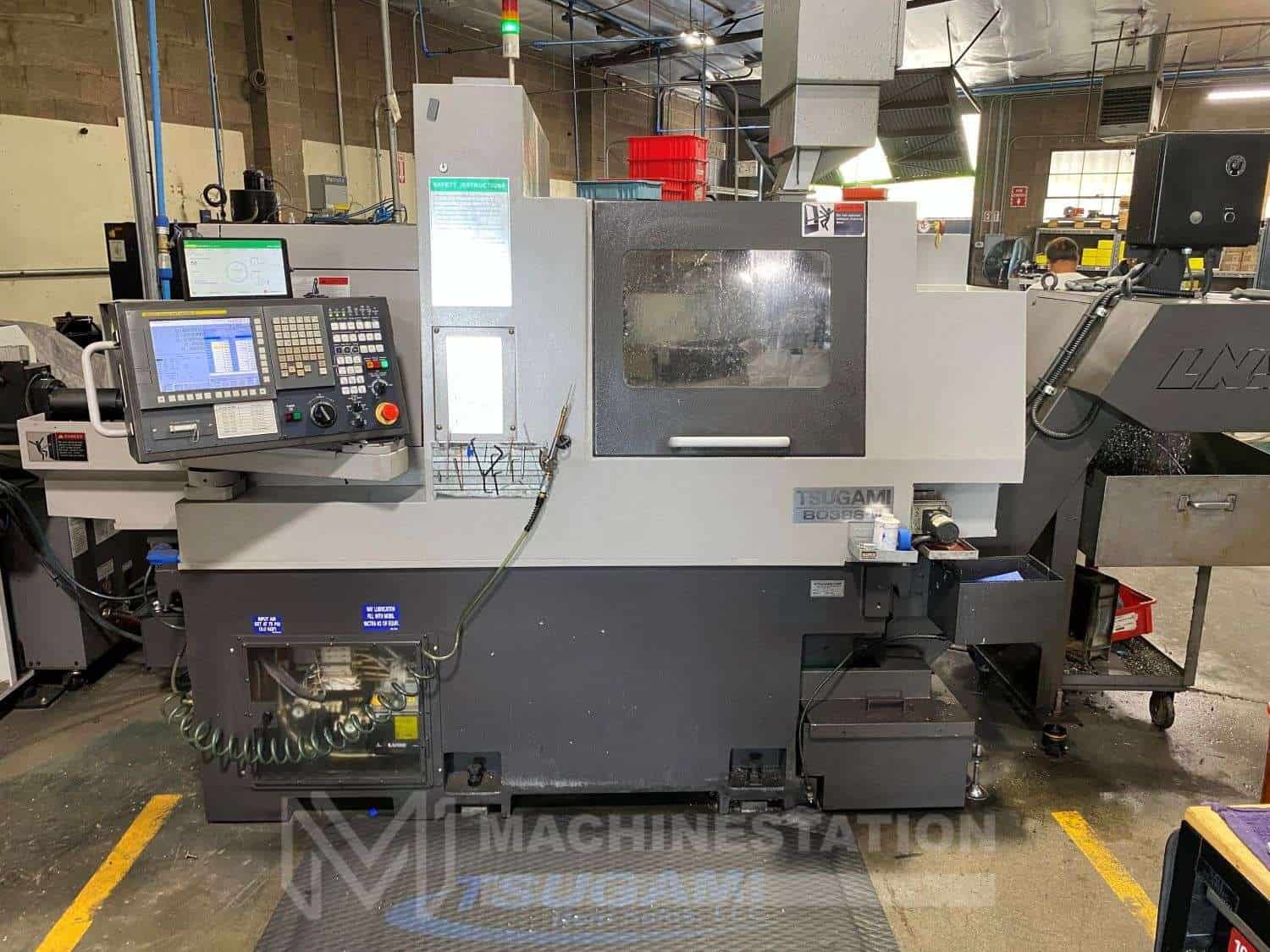

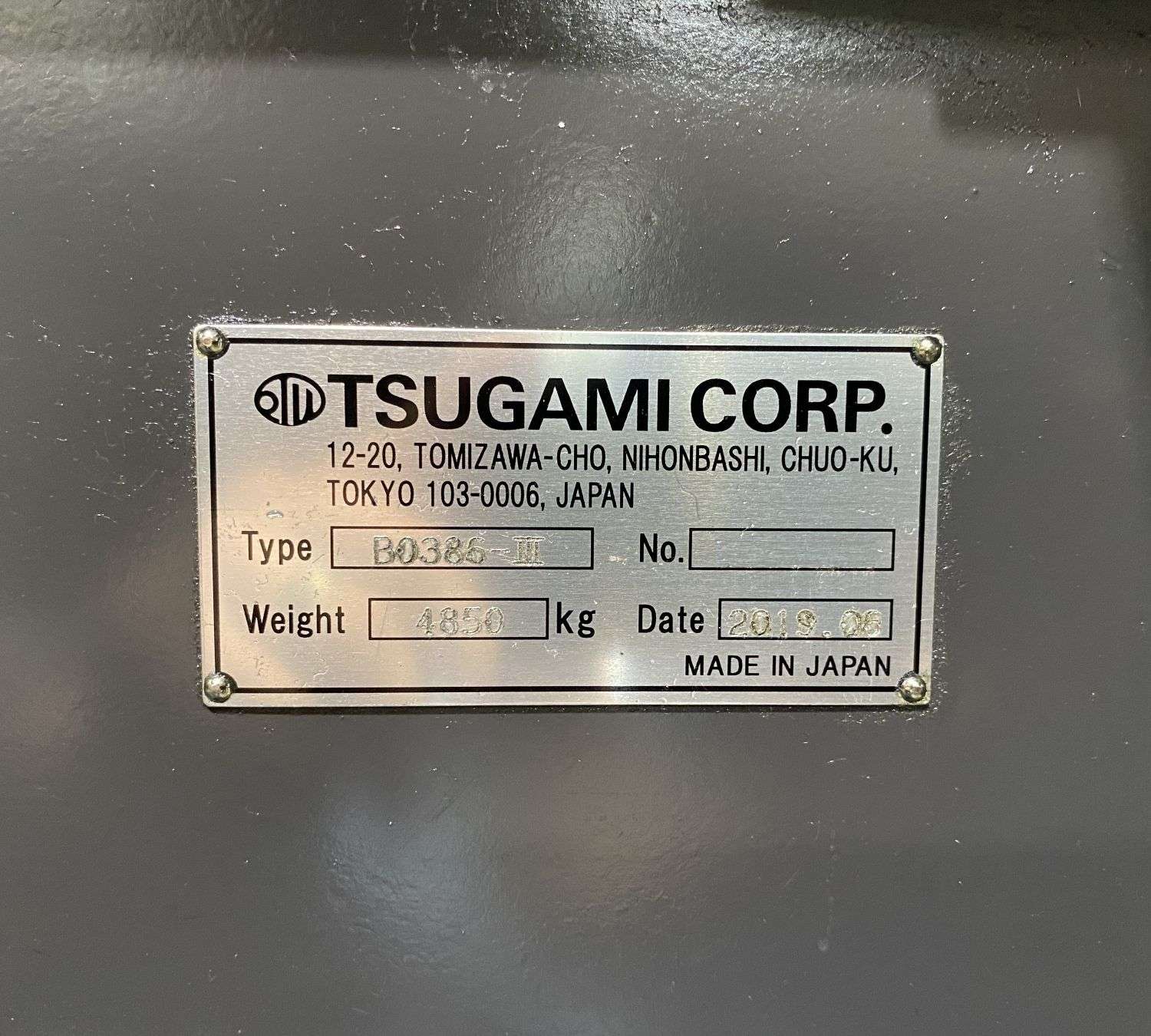

| Make: | TSUGAMI |
| Model: | B0386-III |
| Year: | 2019 |
| Condition: | Used – Excellent |
| Equipped With: |
|---|

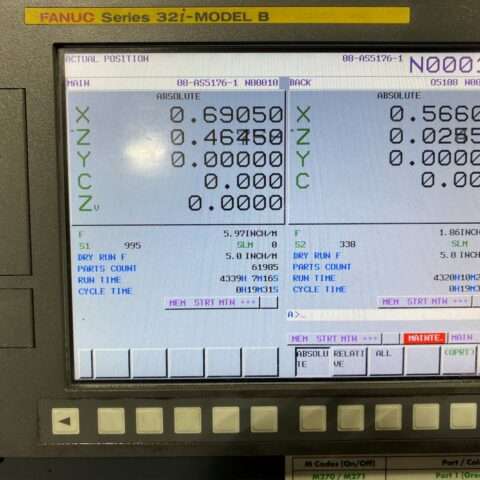

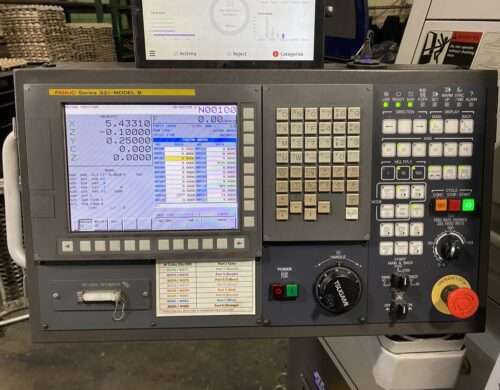

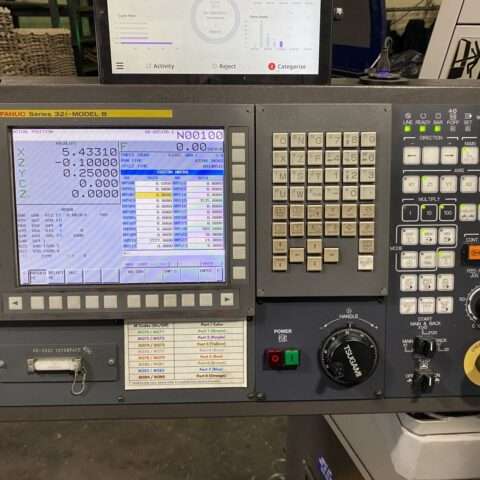

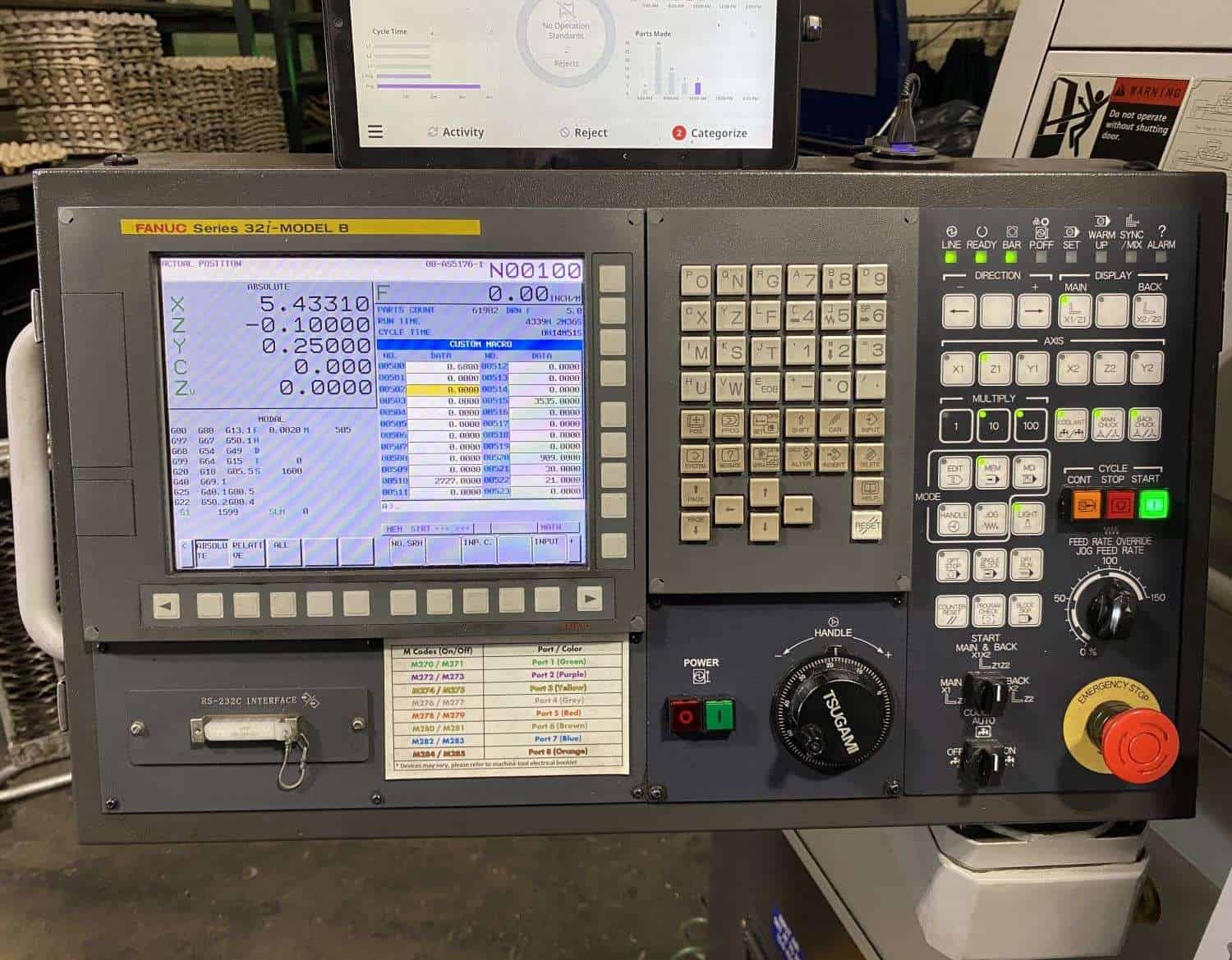

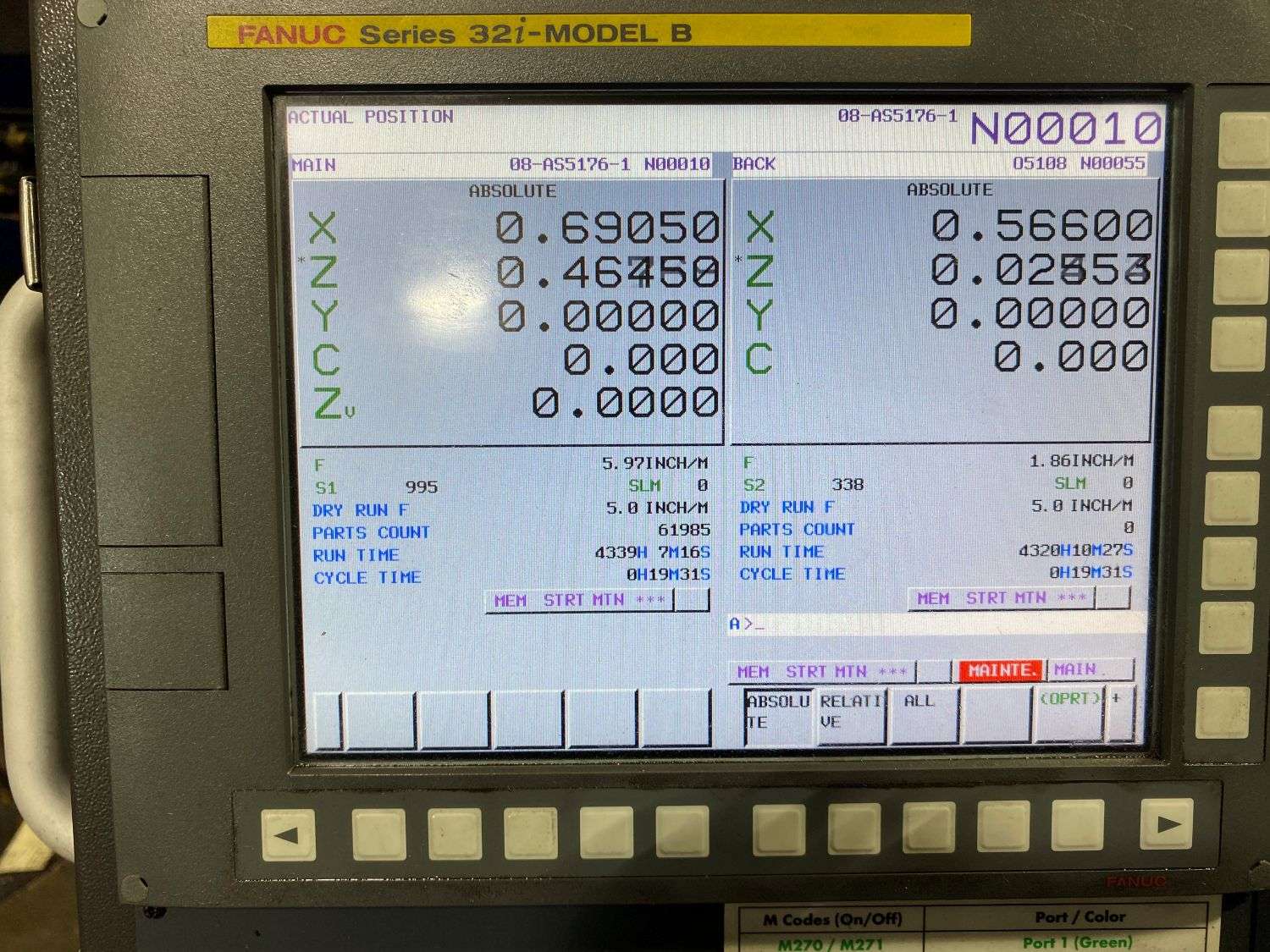

| Fanuc 32i-MB CNC Control |
| Controlled Axes (Liner Axes) X1, X2, Y1, Y2, Z1, Z2 |

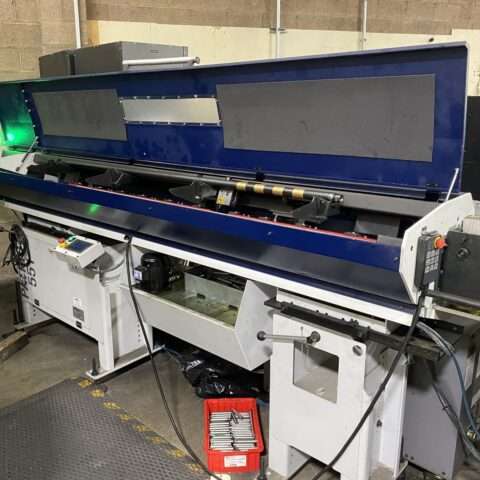

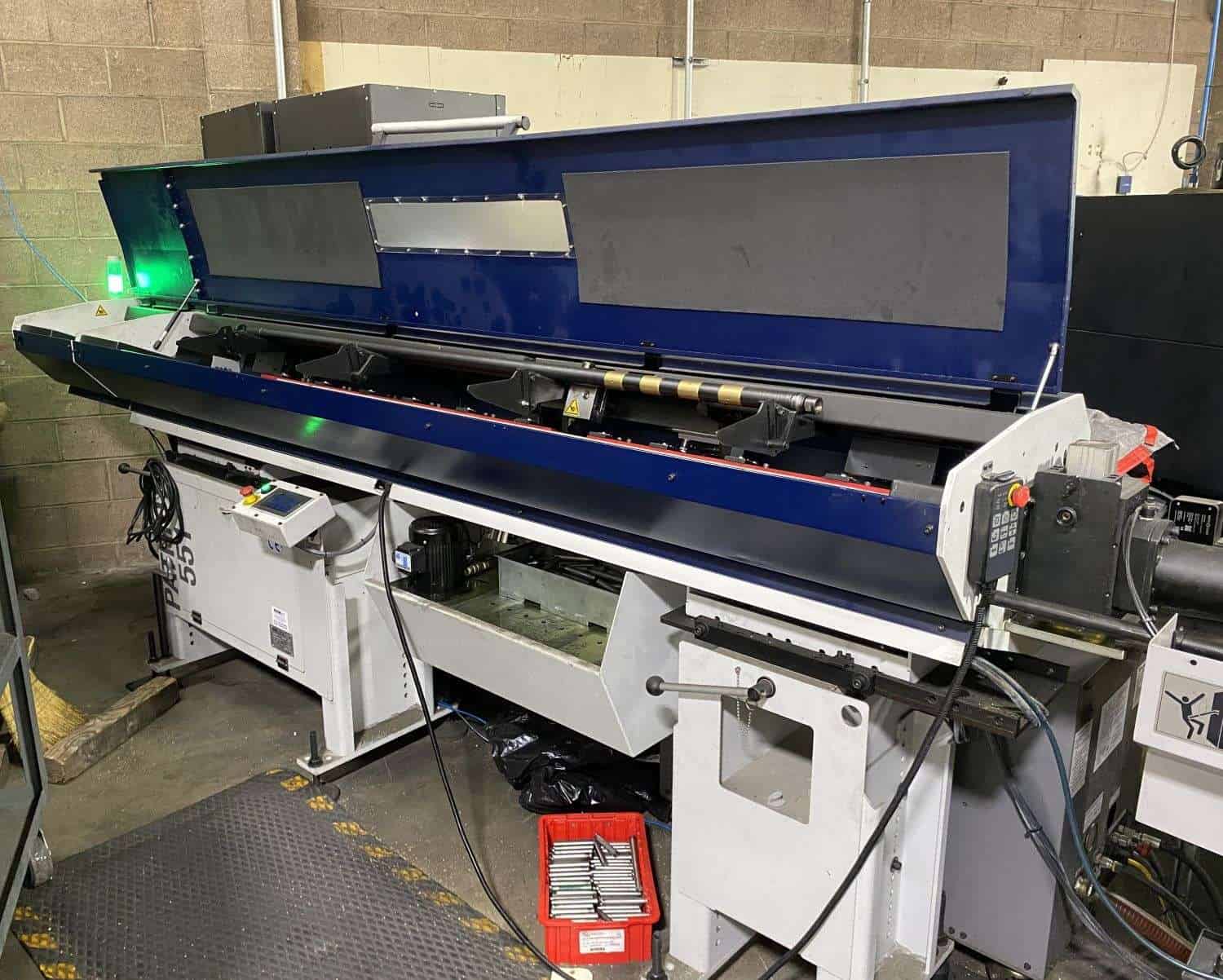

| Comes with Edge Technologies Patriot 551 Bar Feeder |
| Back Spindle |
| Live Tools Capable |
| Long Parts Capable |
| C & Y Axis Capabilities |
| MPG Control |
| Main & Back Spindle Synchronization |
| High Speed Rapid Travers: 1260 IPM |
| High Speed Program Processing |
| Absolute Position Detection |
| Automatic Lubrication System |

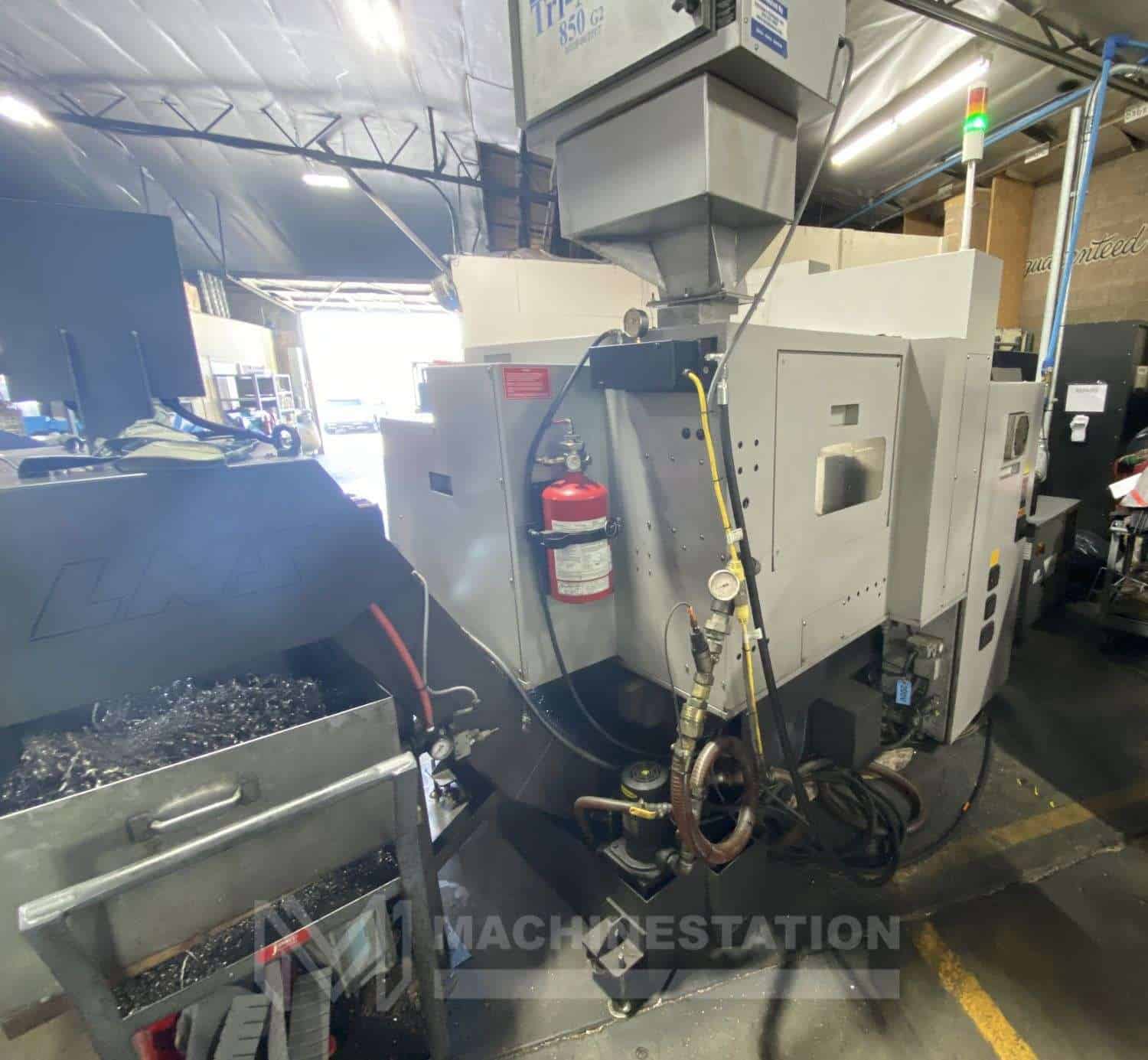

| Tri-Mist 850 G2 Mist Collector |

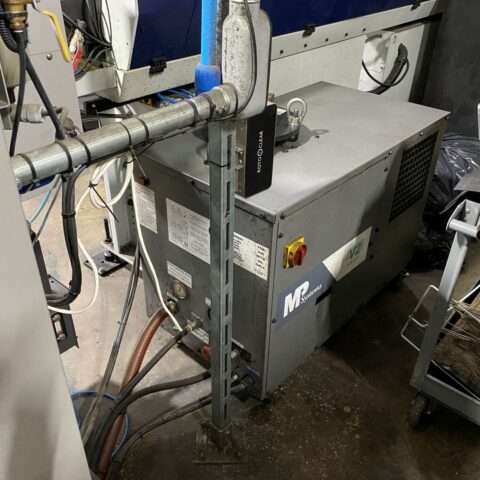

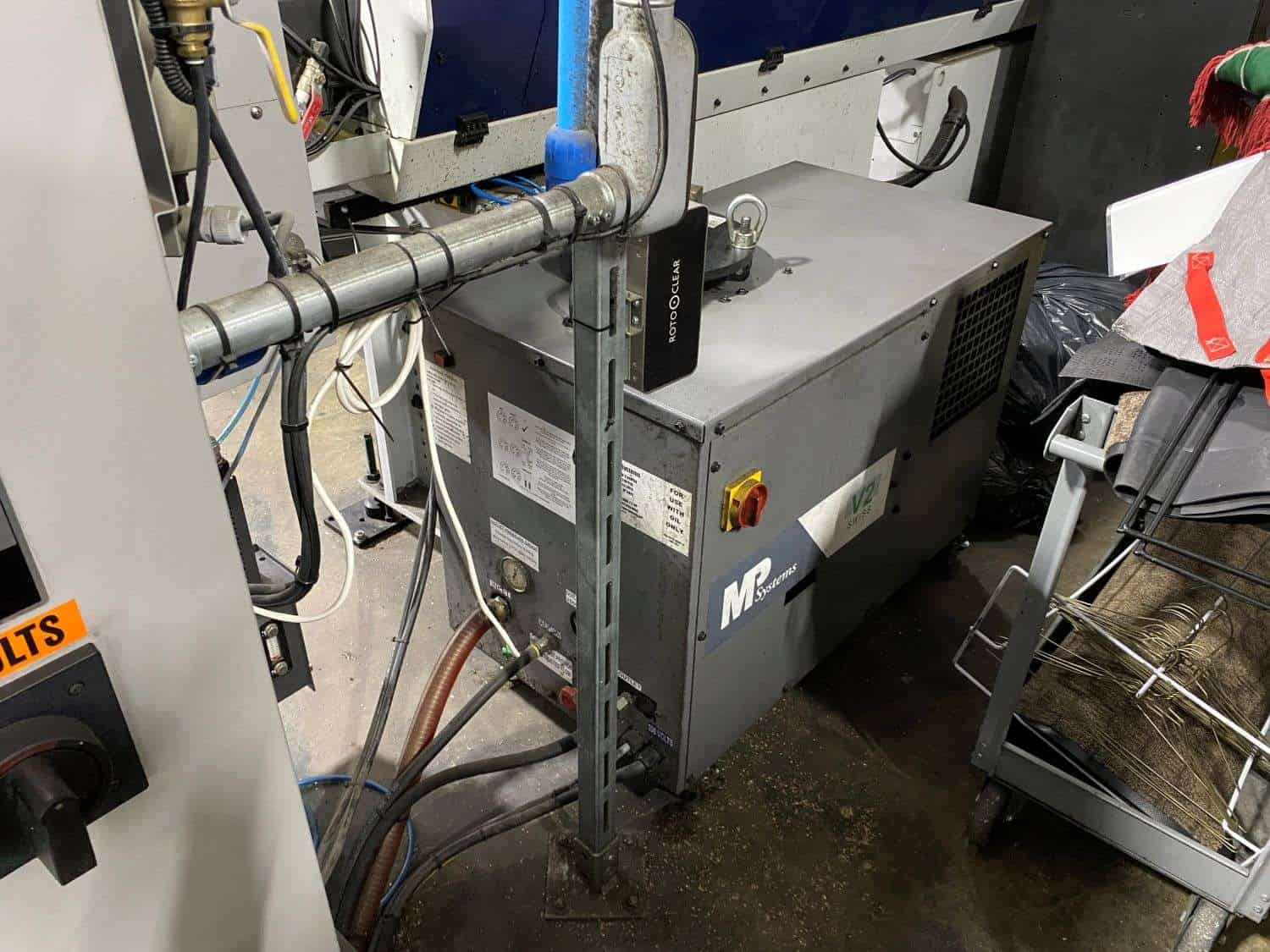

| MP Systems V2 Swiss High Pressure Coolant System |
| LNS Chip Conveyor |
| Capacity: |
|---|
| Max Machining Diameter with Guide Bushing: 1.5″ (38 mm) |
| Max Machining Diameter without Guide Bushing: 1.65″ (42 mm) |
| Max Machining Length without Guide Bushing: 12.6″ (320mm) |
| Max Machining Length without Guide Bushing: 2.75″ (70mm) |
| Max Bar Capacity: 1.5″ (38 mm) |
| Max Tool Positions: 29 |
| Max. Drilling Diameter: 0.511″ (13 mm) |
| Max. Tapping Diameter: M12 |
| Max. Back Spindle Chucking Barstock Diameter: 1.5″ (38 mm) |
| Max. Back Spindle Drilling Diameter: 0.472″ (12 mm) |
| Max. Back Spindle Tapping Diameter: M12 |
| Max. Tool Spindle Drilling Diameter: 0.393 ( 10 mm) |
| Max. Tool Spindle Tapping Diameter: M8 |
| Max. Tool Spindle Slotting Cutter Diameter: T4 (45 mm) |
| Spindle: |
|---|
| Main Spindle Indexing: 360° (Full C-Axis) |
| Main Spindle Speed: 200 – 6.000 RPM |
| Main Spindle Motor: 11 kw |
| Back Spindle Indexing: 360° (Full C-Axis) |
| Back Spindle Speed: 200 – 7,000 RPM |
| Back Spindle Motor: 5.5 kw |

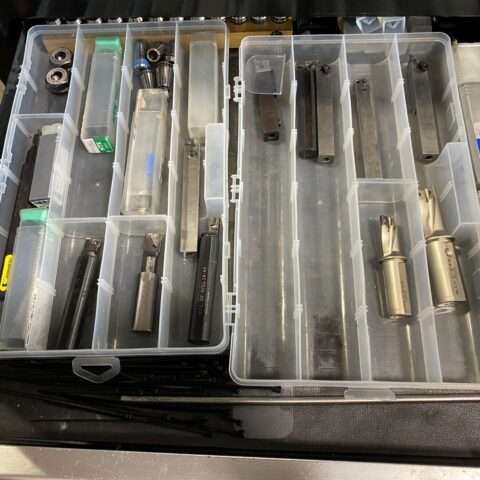

| Standard Tools: |
|---|
| Front Turning Stations: 5 |
| Back Turning Stations: 5 |
| Front Drilling Head Stations: 5 |
| Turning Stations: 2 |
| Power Driven Tools Attachment: |
|---|
| Live Cross Mill Stations: 4 |
| Live Sub Milling Stations: 8 |
| Driven Tool Speed: 200 – 6,000 RPM |
| Driven Tool Motor: 1.4 kw |
| General: |
|---|
| Power Source: AC 220v / 3-Phase /60 Hz |
| Power Requirement: 22.4 kva |
| Overall Dimensions: 88″ X 60″ X 81″ High without Bar Feeder |
| Weight: 10,694 lbs. Approx. |
