*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Tsugami |
| Model No.: | SS207-II-5AX |
| Year of Manufacture: | 2017 |
| Condition: | Used – Good |
| Machine Type: | CNC Swiss-Type Lathe |
| CNC Control: | Fanuc 31i-B5 |
| Country of Origin: | Japan |
| Equipped With: |
|---|
| Sliding Headstock |
| Guide Bushing |
| Chucker Capability (Guide Bushing Removable) |

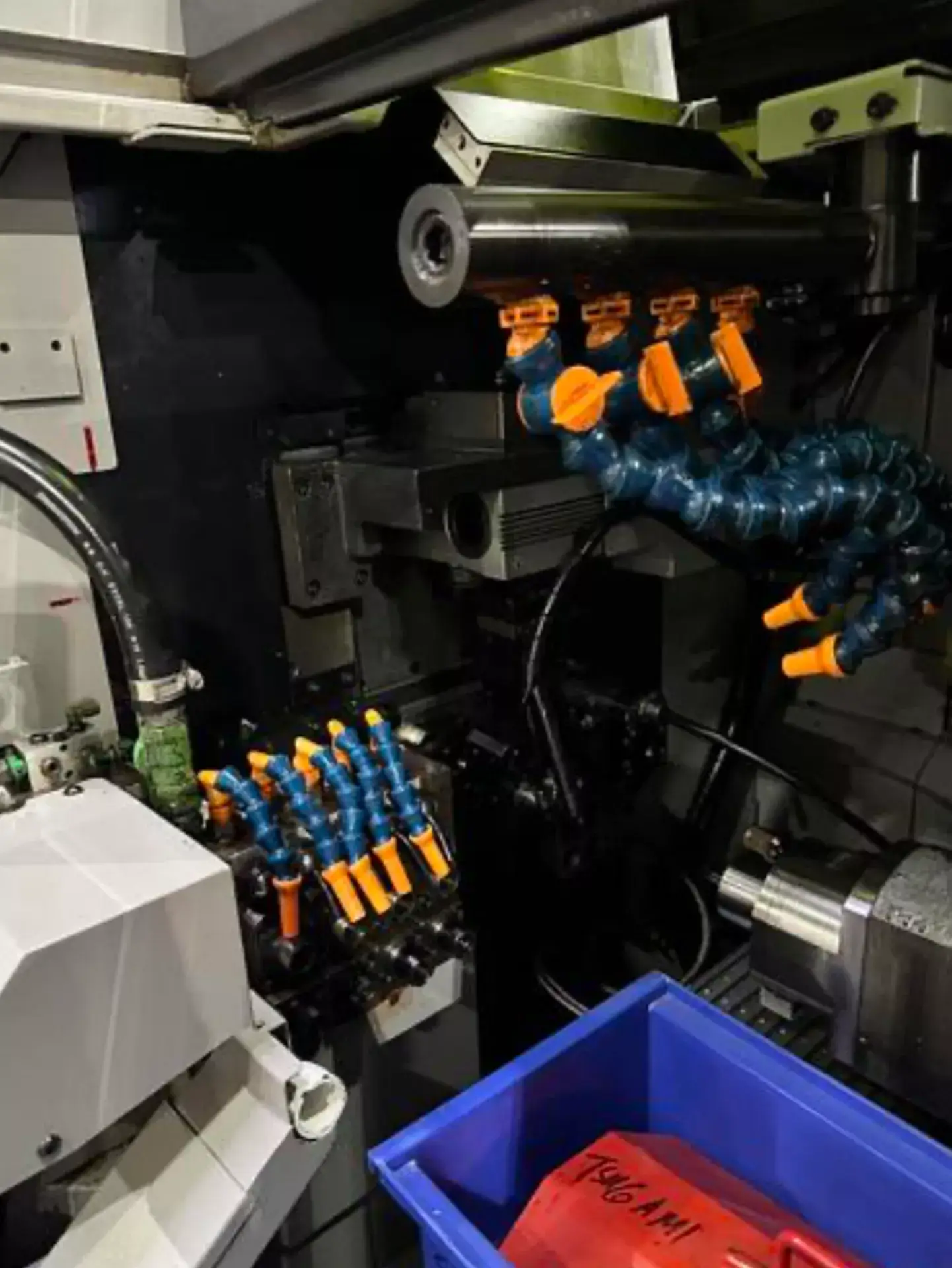

| Live Tooling |
| Sub Spindle |
| 7-Axis Configuration |
| Coolant System |
| Bar Feed Ready |
| Full Enclosure |
| Capacity: |
|---|
| Maximum Bar Capacity: 20 mm (0.79″) |
| Travels / Stroke: |
|---|
| Max Headstock Stroke (w/ Guide Bushing): 8.65″ |
| Max Headstock Stroke (w/o Guide Bushing): 1.77″ |
| Tooling: |
|---|
| Total Tool Positions: 37 |
| Live Tool Positions: 13 (Up to 15 Max) |
| Spindle: |
|---|
| Main Spindle Speed: 200 – 10,000 RPM |
| Sub Spindle Speed: 200 – 10,000 RPM |
| Main Spindle Motor: 3 / 5 HP (2.2 / 3.7 kW) |
| General: |
|---|
| Power Source: AC 200 V, Three Phase, 50/60 Hz |
| Machine Dimensions (W x D x H): 91.54″ x 50″ x 79.13″ |
| Machine Weight: 8,267 lbs |
