*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

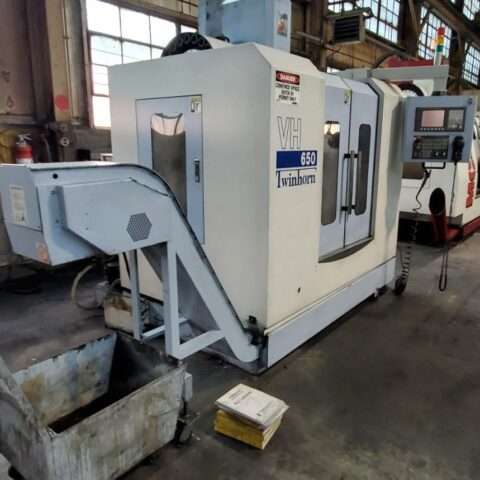

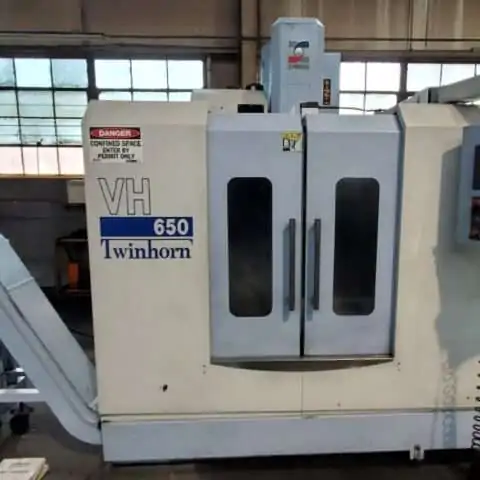

| SKU: | 2150 |

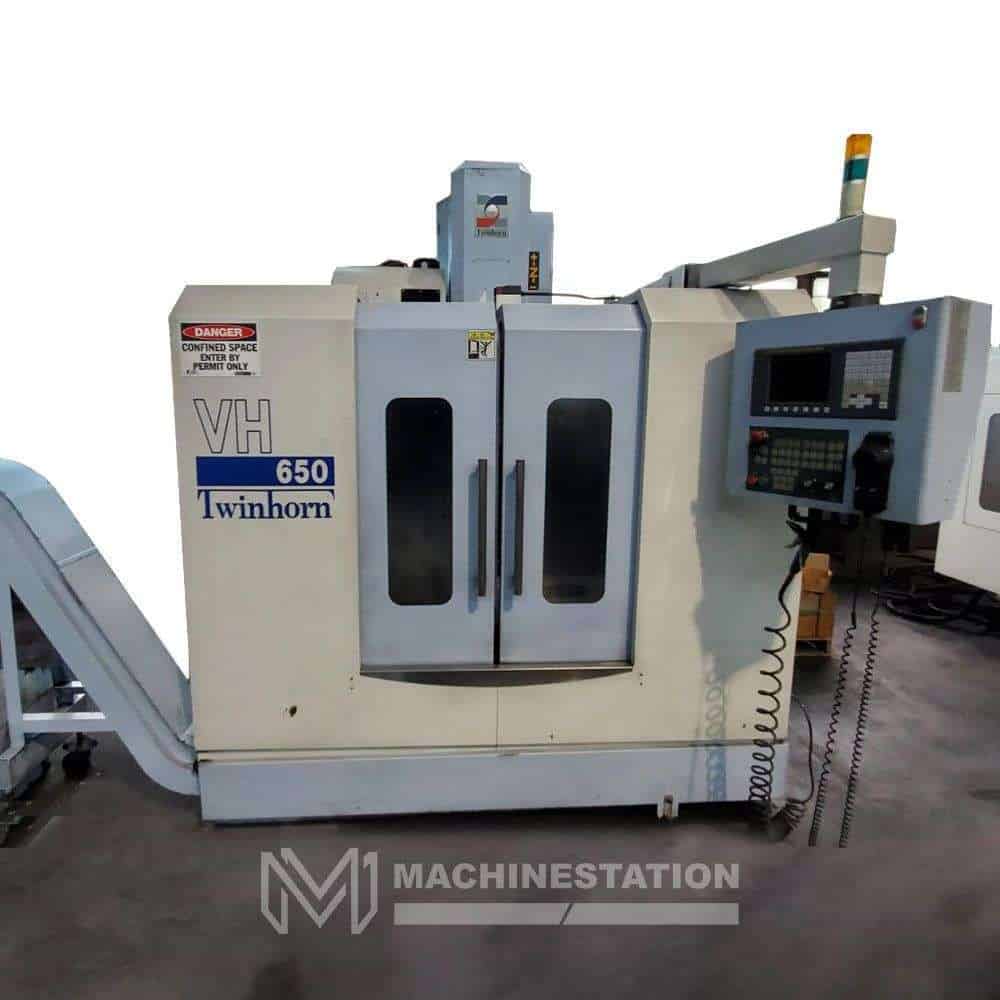

| Make:Twinhorn | Twinhorn |
| Model No.: | VH-650 |
| Year of Manufacture: | 2011 |
| Cutting Hours: | * Hours |
| Equipped With: |
|---|

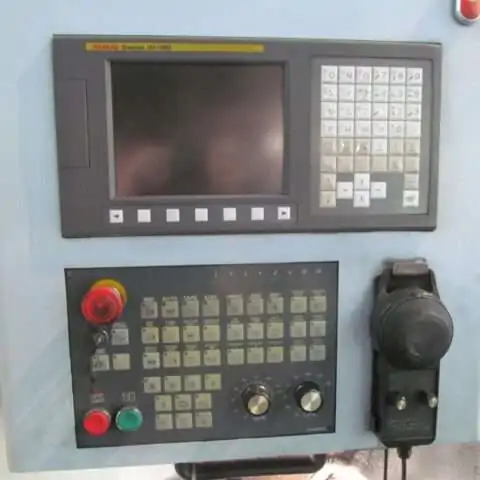

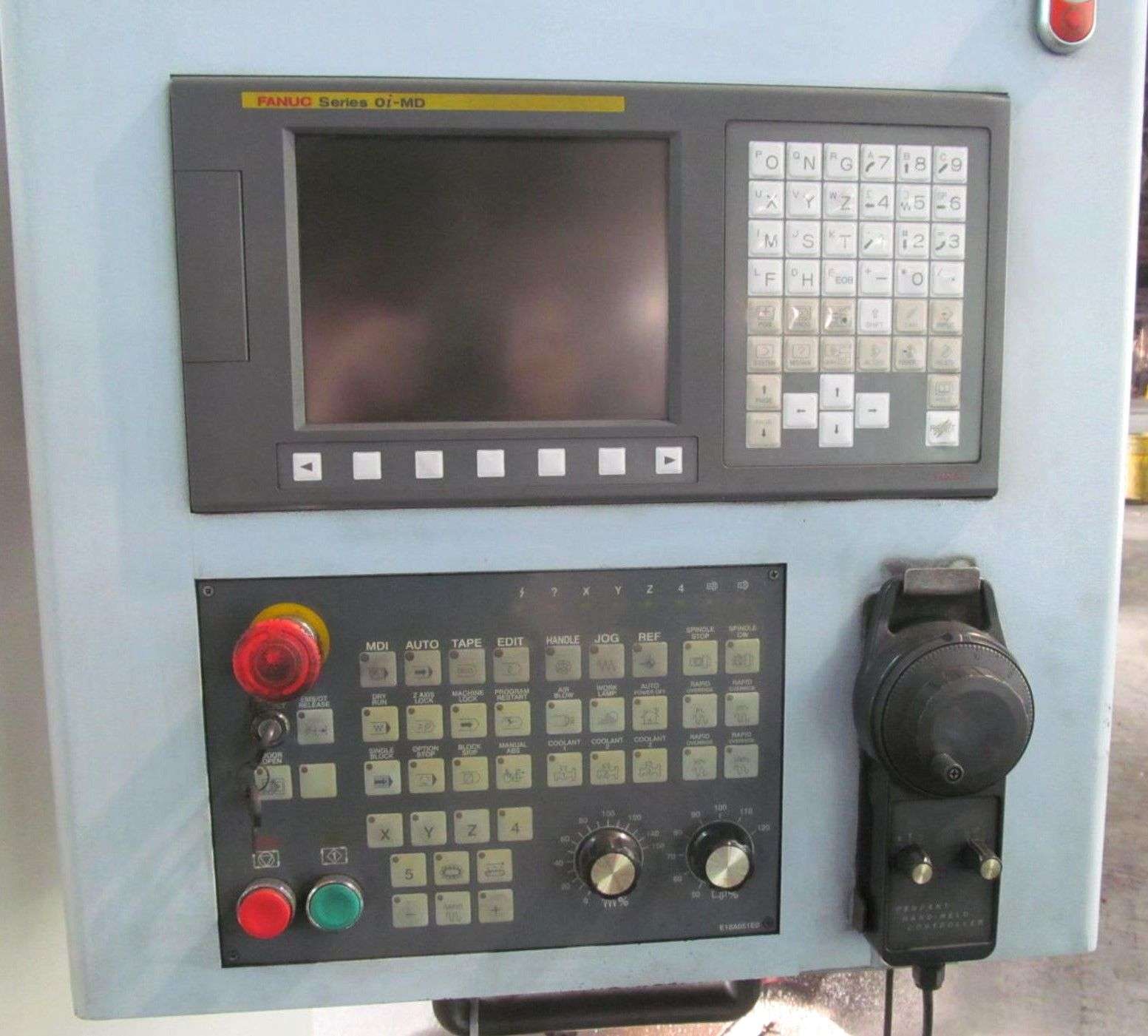

| Fanuc Oi-MD CNC Control |
| 12,000 High RPM Spindle |

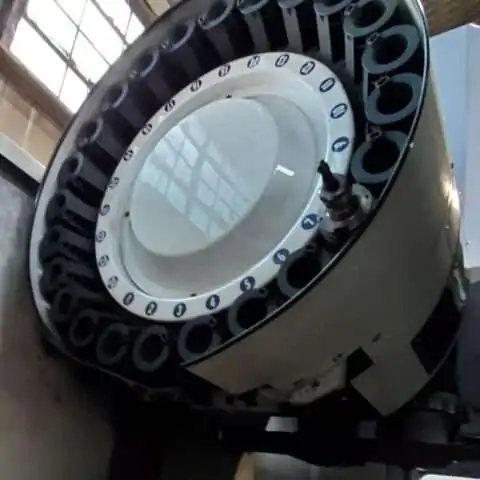

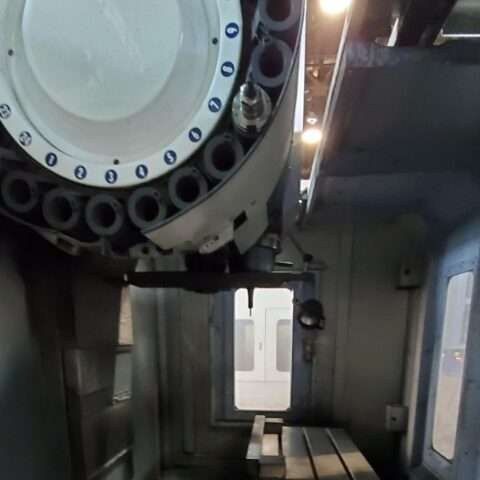

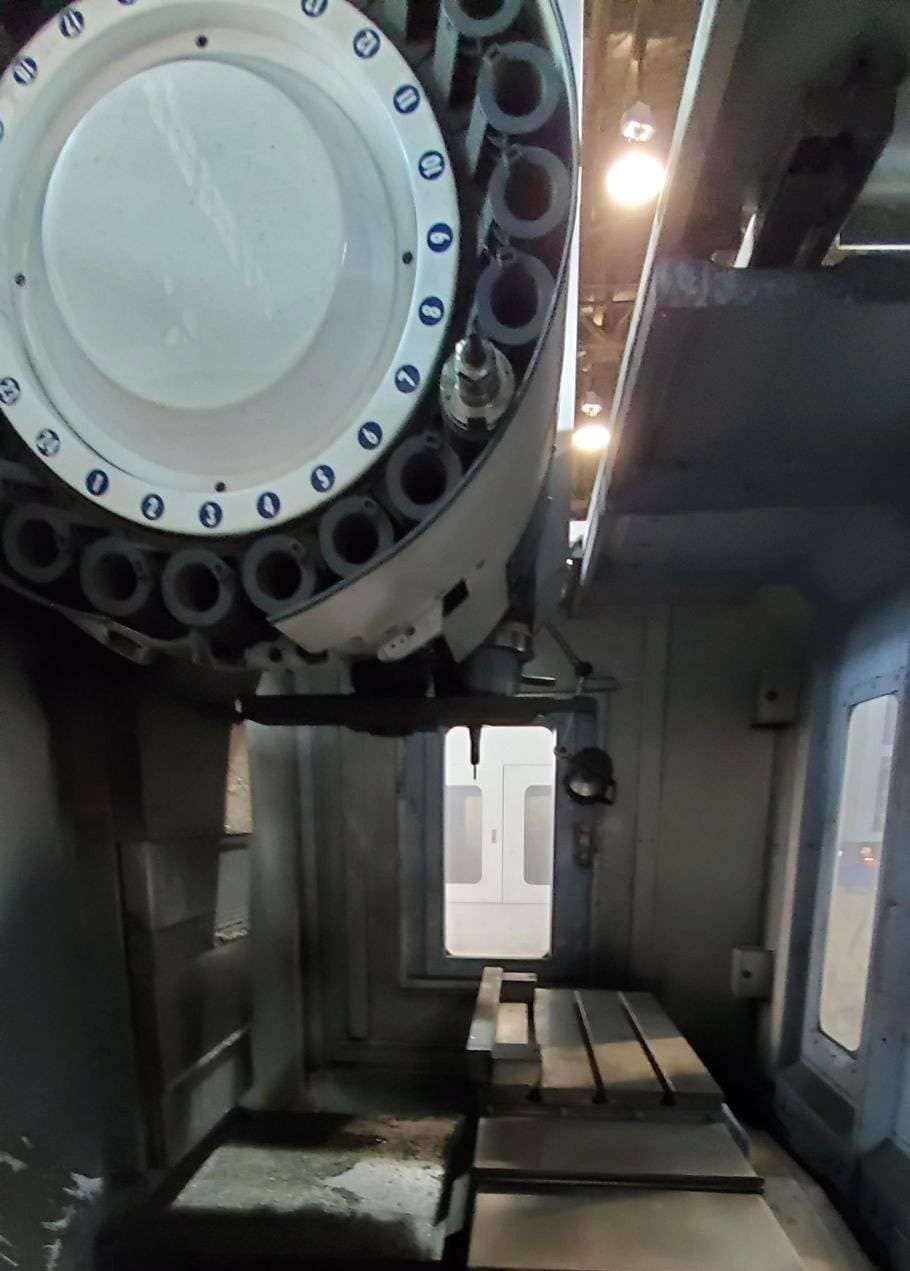

| 24 Station Side Mounted Tool Changer |
| 40 Taper |
| MPG Control |
| PCIMA Card Slot |
| Spindle Orientation |
| Rigid Tapping |

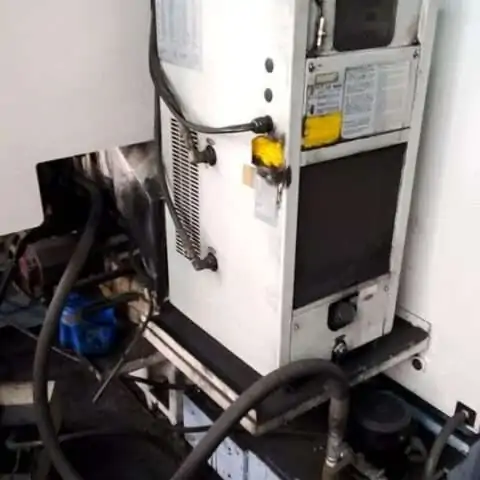

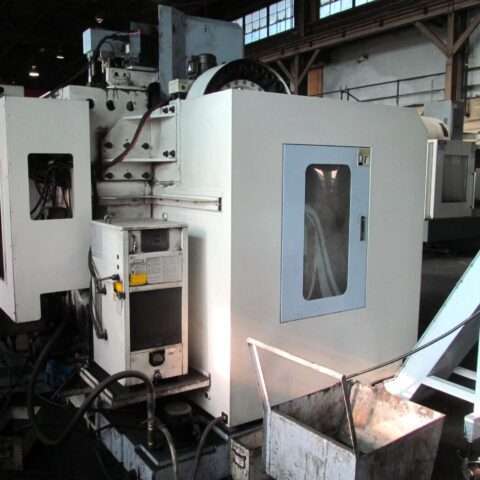

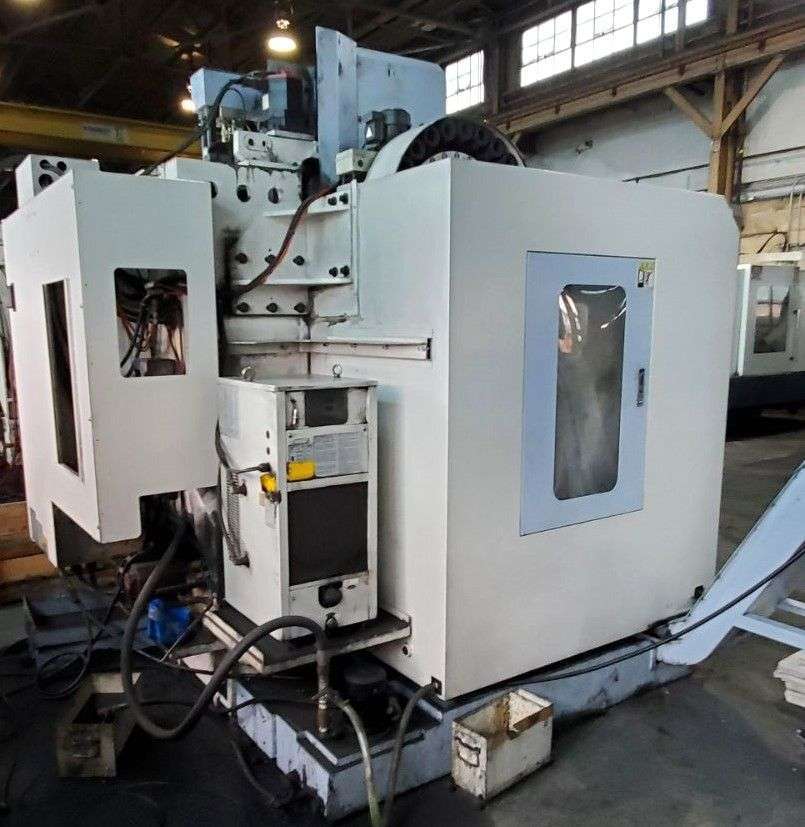

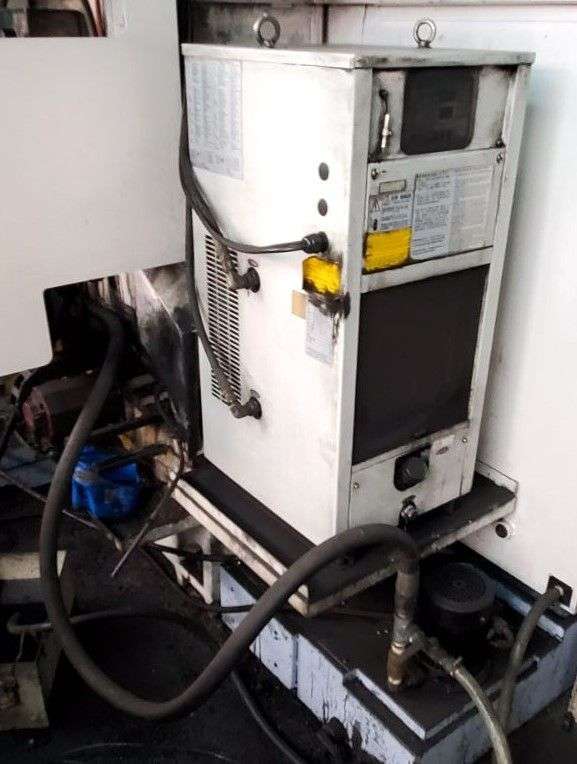

| Oil Chiller Unit |
| Coolant System with tank |
| Books & Manuals |
| Travel: |
|---|
| X-Axis: 25.59″ |
| Y-Axis: 19.68″ |
| Z-Axis: 20.47″ |
| Spindle Nose to Table (Min.- Max.): 4.72″ – 25.19″ |

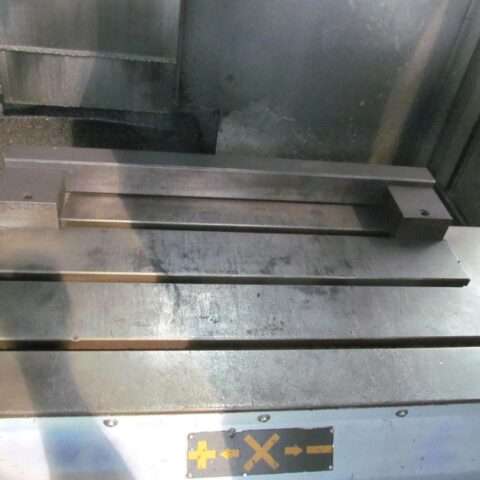

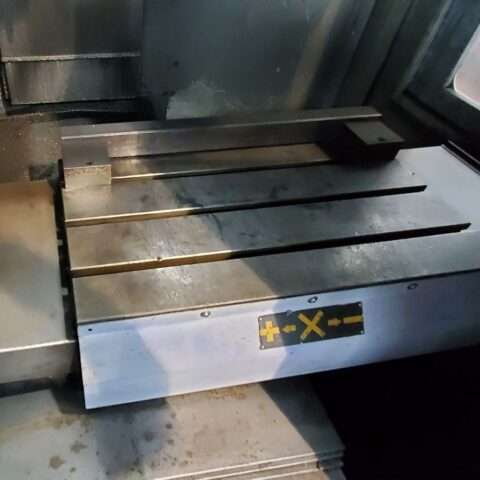

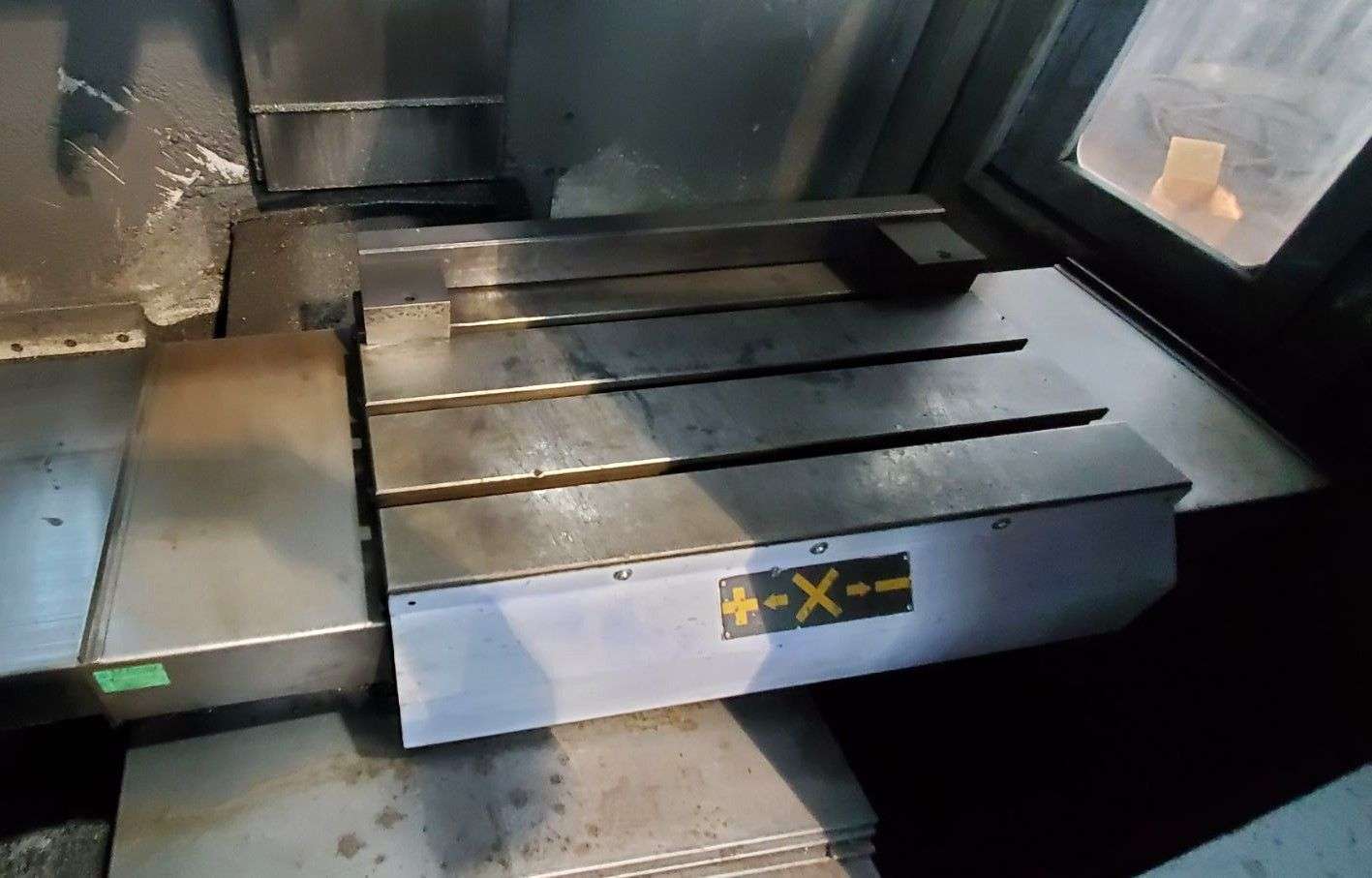

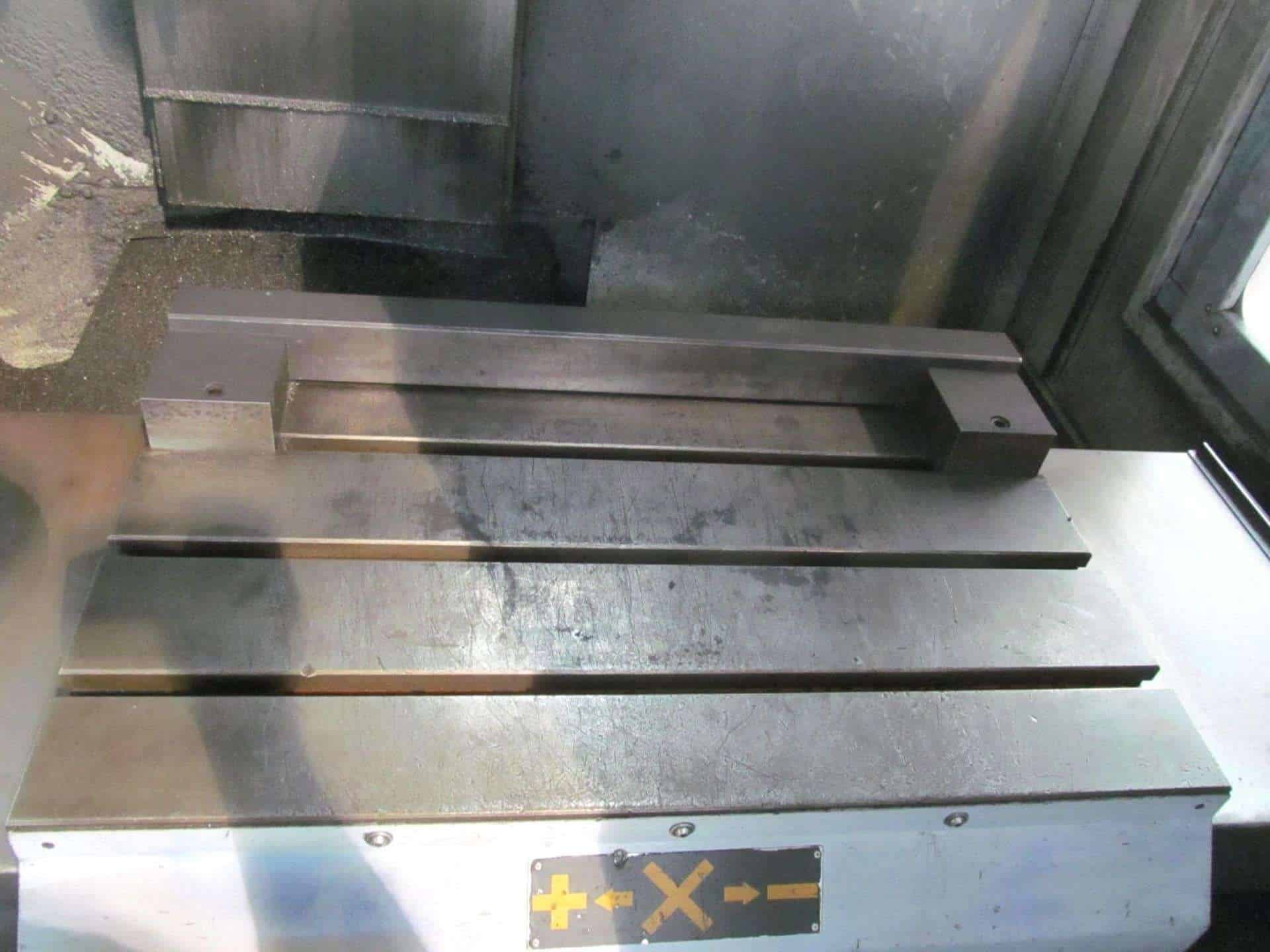

| Table: |
|---|
| Length: 31.49″ |
| Width: 17.71″ |
| Max Weight on Table: 1011 lbs |

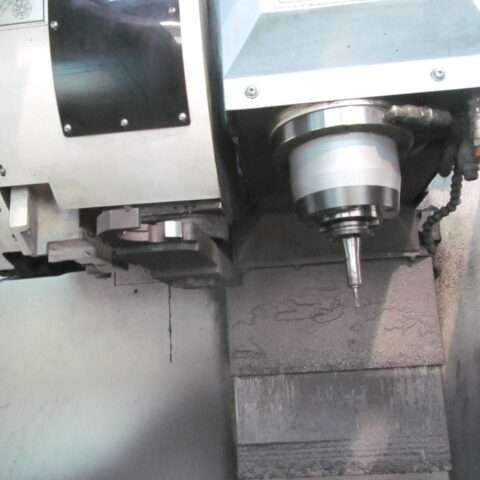

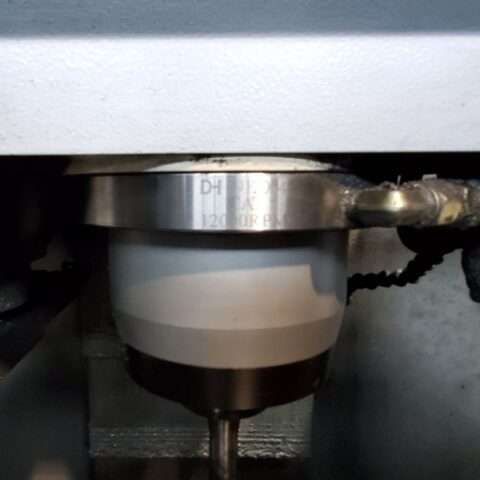

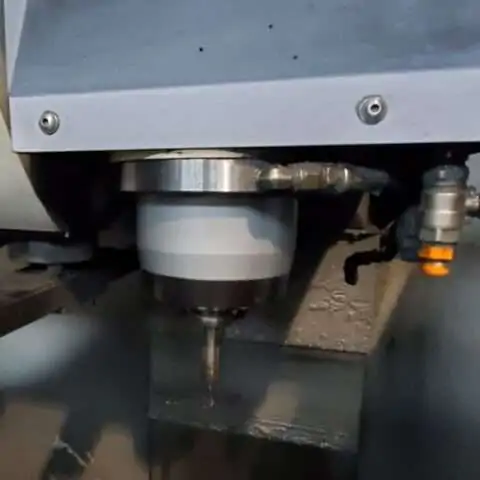

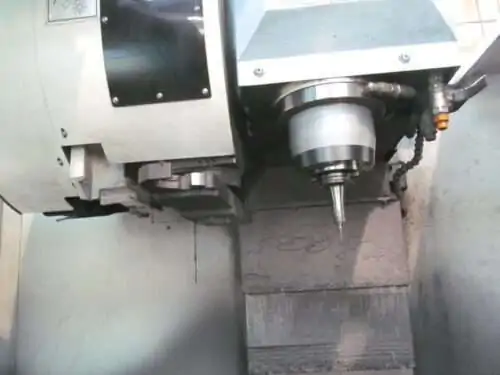

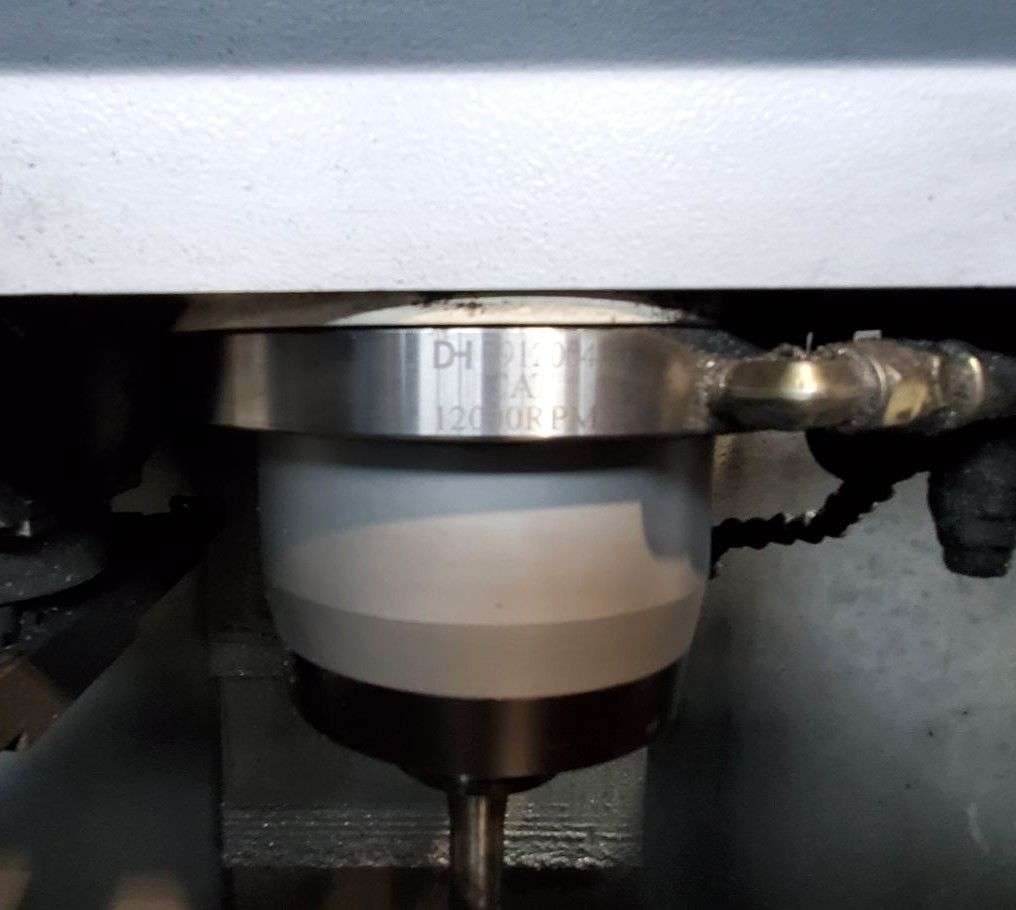

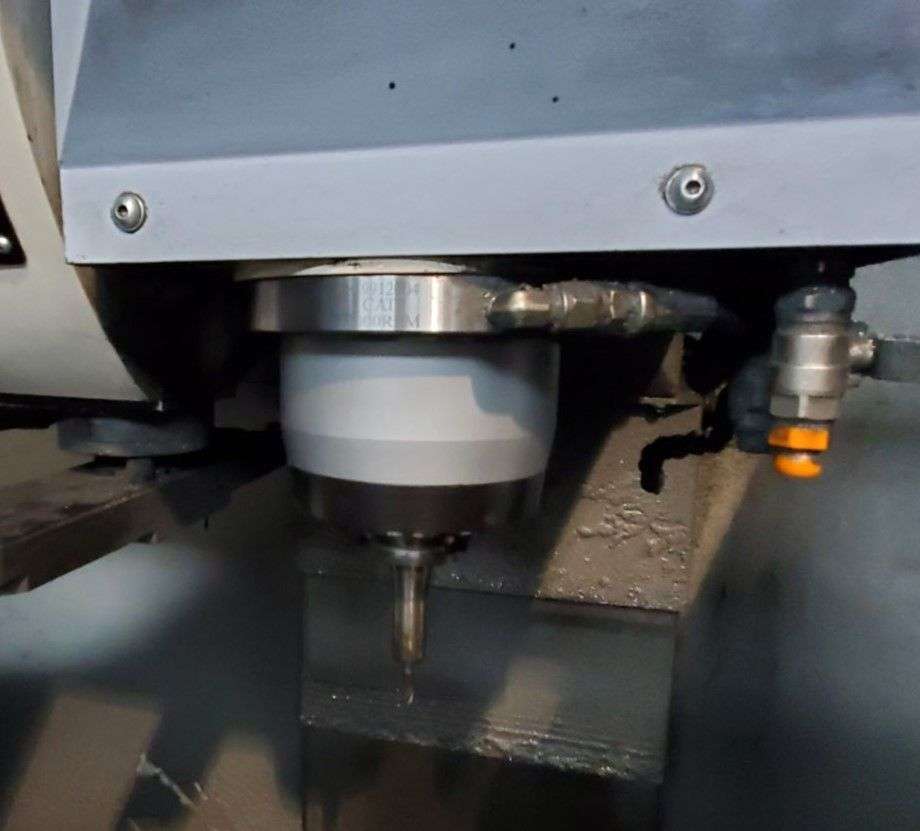

| Spindle: |
|---|
| Taper Size: BT-40 |
| Speed Range: 12,000 RPM |
| Spindle Power: 15 HP |
| Feed Rate: |
|---|
| Rapid X, Y & Z: 787 IPM |
| Cutting Feed rate: 315 IPM |

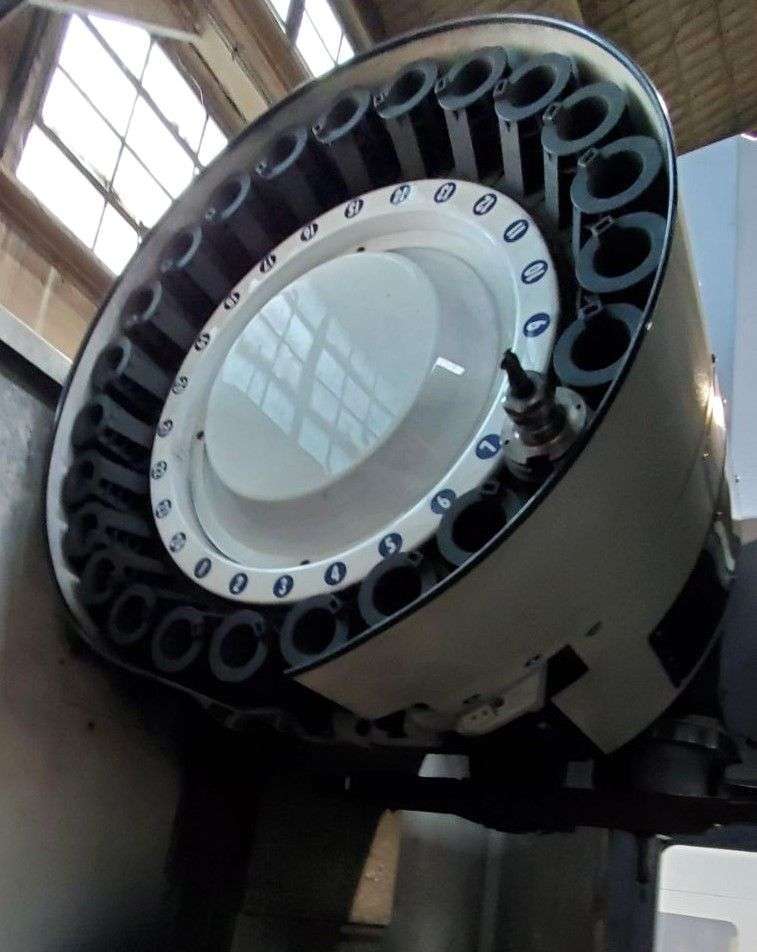

| Automatic Tool Changer: |
|---|
| Taper: 40 |
| Capacity: 24 |
| Max Tool Weight: 15 lbs |
| Max Tool Length: 11.8″ |
| Max Tool Dia: 4.9″ |
| General: |
|---|
| Air Required: 80 psi, 4 scfm |
| Power: 205-220v / 66FLA / 3-Phase |
| Overall Dimensions: 143.7″ L X 114.1″ W X 106.2″ High |
| Weight: 11023 lbs |
*Unable To Be Determined At Inspection
