*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Union |
| Model: | KC 150 |
| Year: | 2004 |
| Machine Type: | CNC Table Type Horizontal Boring Mill |

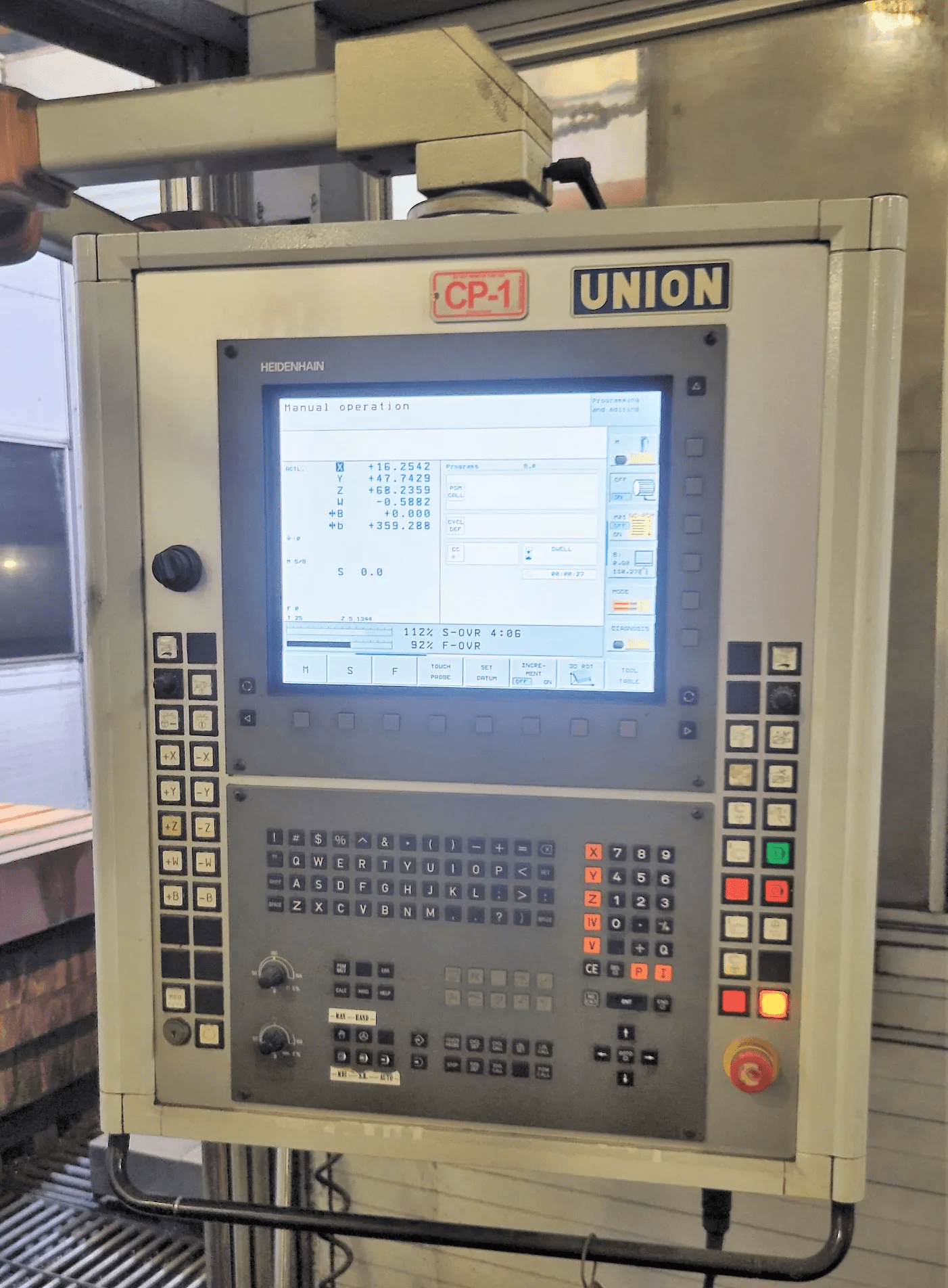

| Control: | Heidenhain iTNC 530 CNC Control |
| Country of Origin: | Germany |
| Equipped With: |
|---|
| Heidenhain iTNC 530 CNC Control |
| 120-Position Automatic Tool Changer |
| Automatic Pallet Shuttle System |
| (2) 63″ x 78.7″ Pallets |
| B-Axis Rotary Table |
| .001 Degree Table Indexing |
| CAT 50 Taper Spindle |
| Heidenhain Linear Scales |
| Full Enclosure |
| Chip Conveyor |
| 80 HP Spindle Motor |
| Automatic Tool Changer |
| Travels: |
|---|
| X-Axis Travel: 125″ |
| Y-Axis Travel: 98.4″ |
| Z-Axis Travel: 29.5″ |
| W-Axis Travel: 59″ |
| B-Axis: Full Rotary Table |
| Table: |
|---|

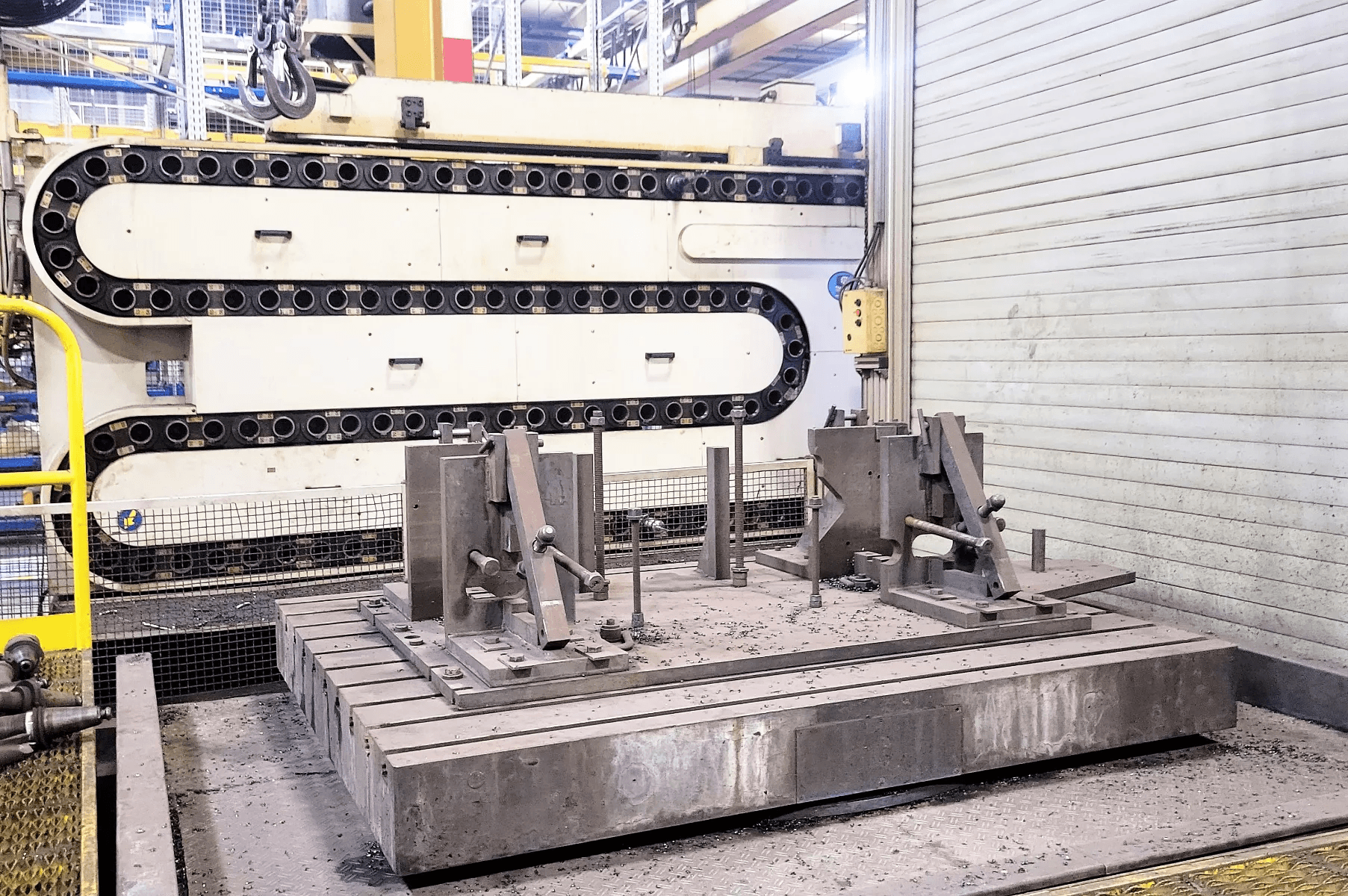

| Pallet Size: 63″ x 78.7″ |
| Number of Pallets: 2 |
| Table Indexing: .001 Degree |
| Pallet Change System: Automatic Shuttle |
| Table Load Capacity: Approx. 22,000 LBS |

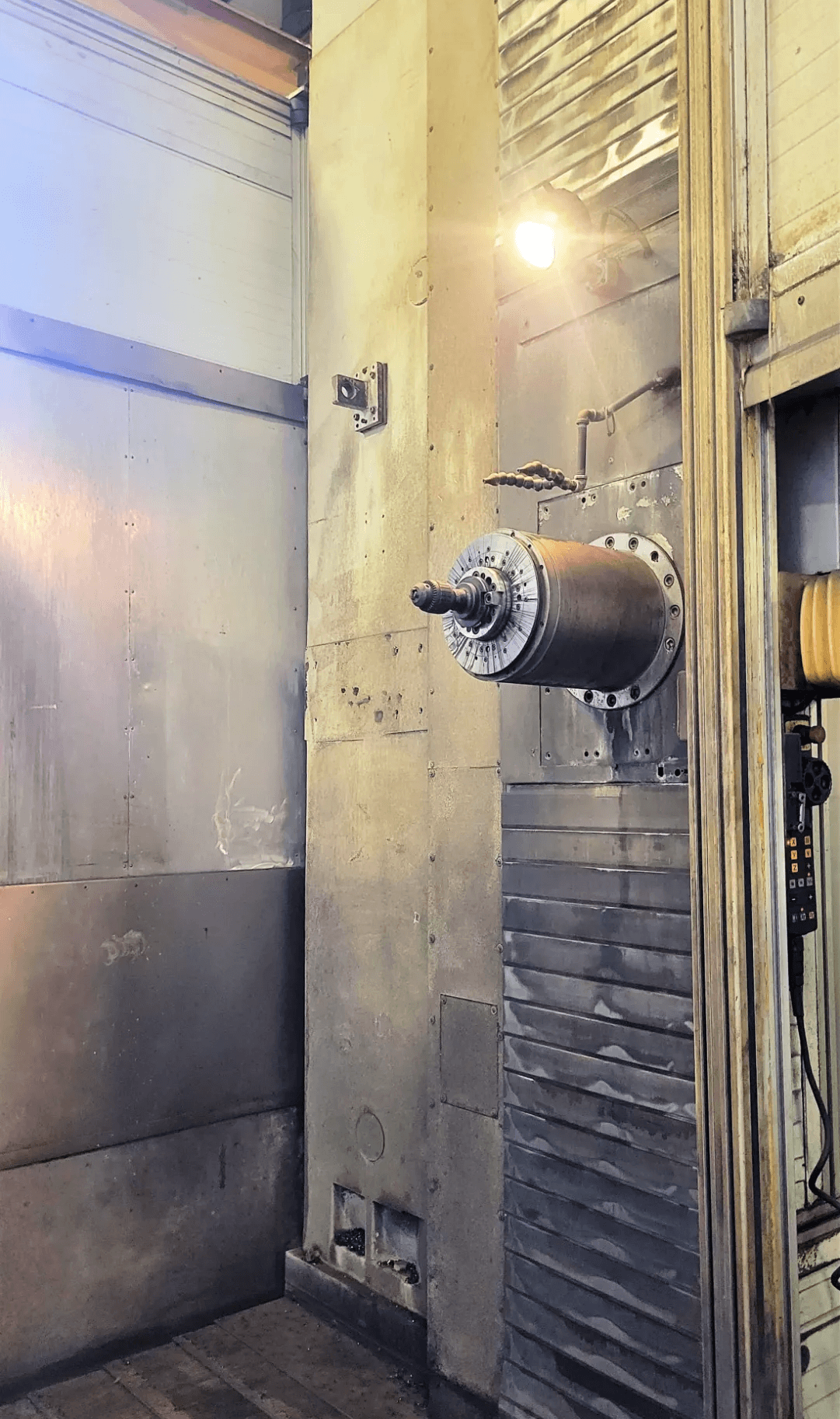

| Spindle: |
|---|
| Spindle Diameter: 5.9″ |
| Spindle Speed Range: Up to 3,000 RPM |
| Spindle Taper: CAT 50 |
| Spindle Motor: 80 HP |
| Spindle Type: Horizontal Boring Spindle |
| Automatic Tool Changer: |
|---|
| ATC Capacity: 120 Positions |
| Tool Change Type: Automatic |
| Tool Holders Included: Yes |
| Automatic Tool Changer: Included |
| General: |
|---|
| Total Power Requirement: 90 KVA |
| Machine Weight: Approx. 110,000 LBS |
| Machine Dimensions: Approx. 480″ x 360″ x 240″ |
