Model #: FTV-1
Serial #: SE-15351
Country of Origin: Spain
- Hardened Ways.
- 8-Speed Step-Pulley Spindle.
- Coolant System.

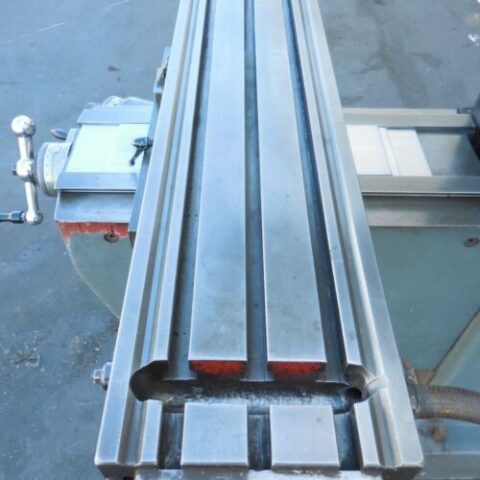

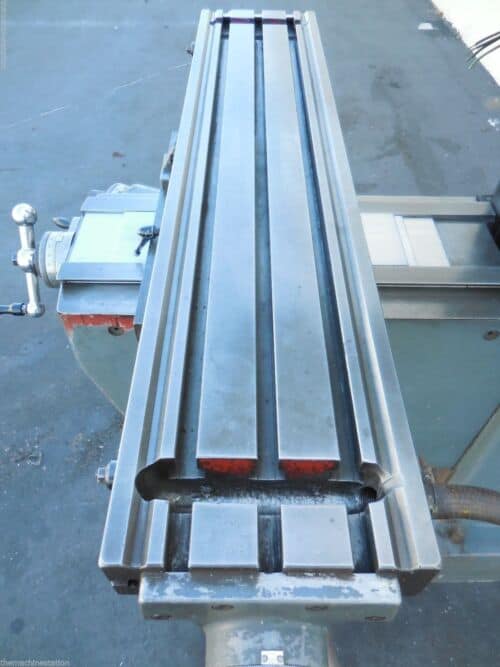

Surface Area: 42″ x 9″
T-Slot Center Distance: 3 @ 2.5″ centers
T-Slot Sizes: 0.625″
Maximum Weight of Workpiece: 750 lbs.
X-Axis Table Travel: 30″ (26″ with power feed)
Y-Axis Table Travel: 16″
Z-Axis Table Travel (knee): 16″
Quill Travel: 5″
Ram Travel: 22-3/16″
Spindle Taper: R8
Spindle Diameter: 1.875″
Quill Diameter: 3.375″
Distance Spindle to Table (maximum): 18″
Distance Spindle to Column (minimum / maximum): 5″ to 27″
Speeds (8): 55-100-170-310-540-930-1,600-2,940 RPM
Power Quill Feed: 0.0015″/rev, 0.003″/rev & 0.006″/rev
Motor: 2 Horsepower, 220 / 440 Volt, 1,700 RPM, 6.2 / 3.1 Amps, 60 Hz
Head Swivel: 90 degrees
Head Cant: 45 degrees
Head Tilt: 90 degrees
Electrical: 220 / 440 Volt, Three Phase
Overall Dimensions: 60″ x 76″ x 90″ tall
USED-Lagun Vertical Milling Machine Model FTV-1 and Comes as shown in pictures.
