All specifications are approximations and are subject to verification.
| Make | Vanguard |
| Model No. | GBM 1225 |
| Year | 2009 |
| Serial # | 70502 |
| Condition | Very Good |
-

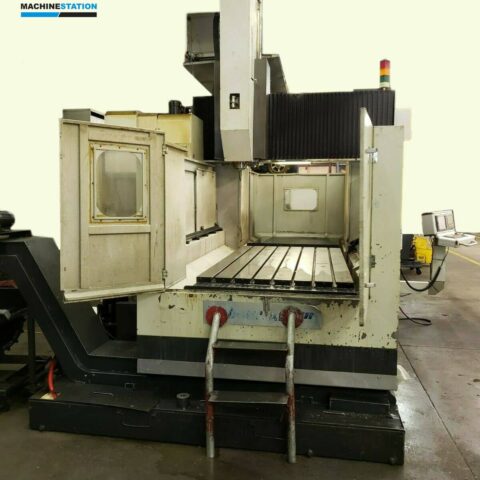

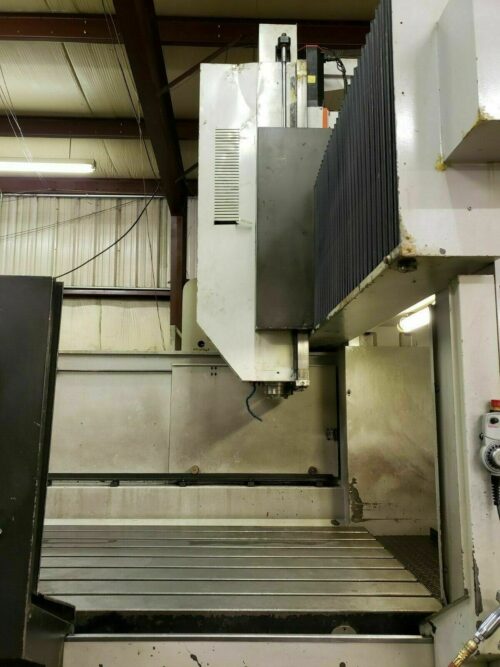

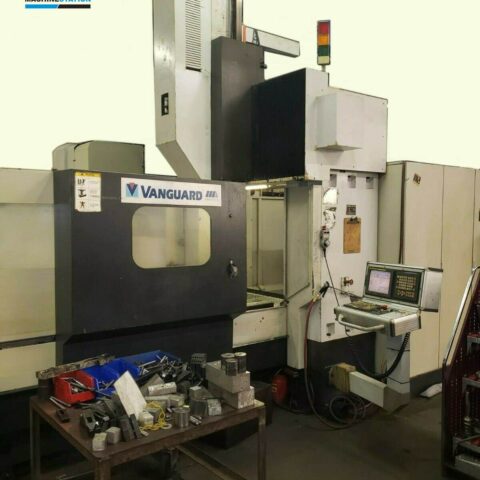

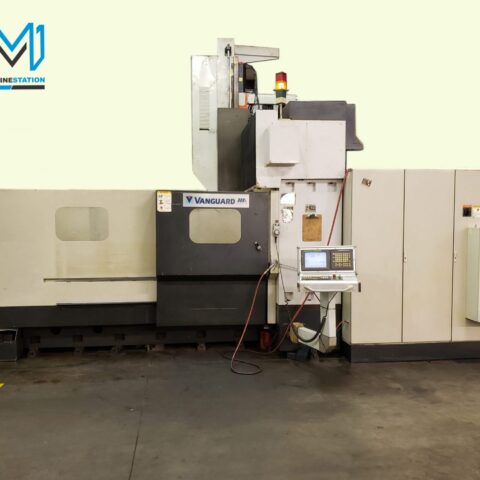

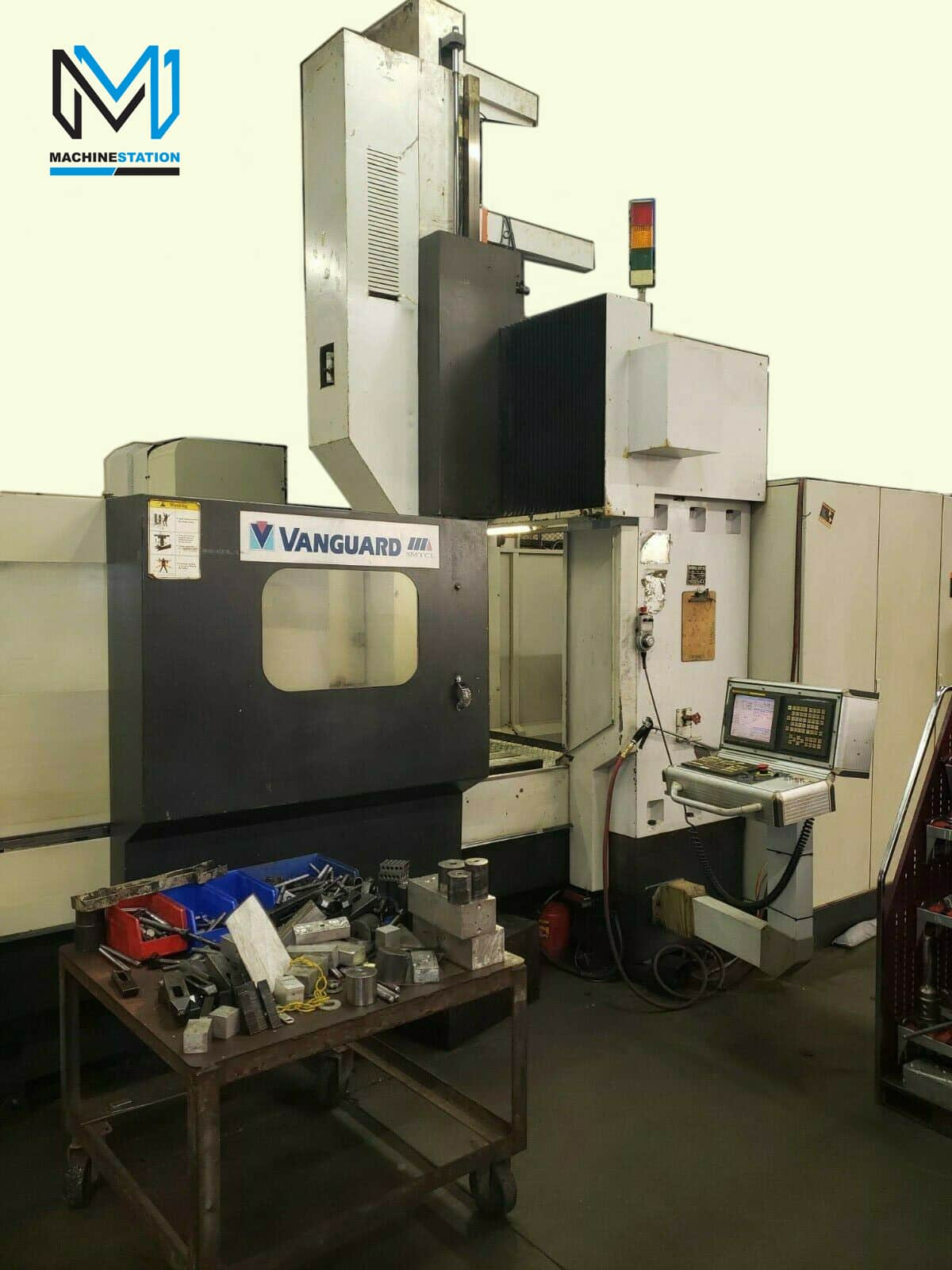

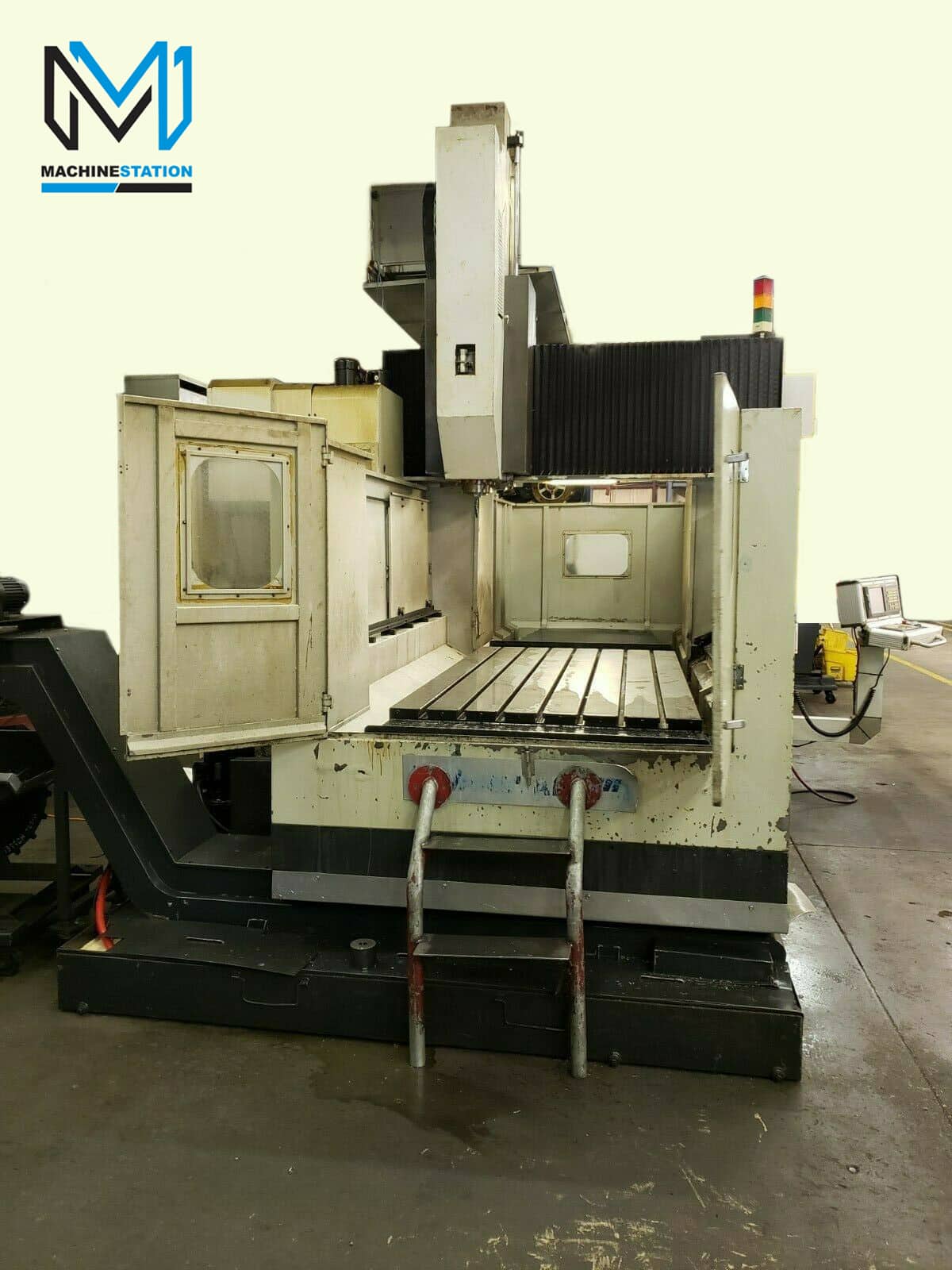

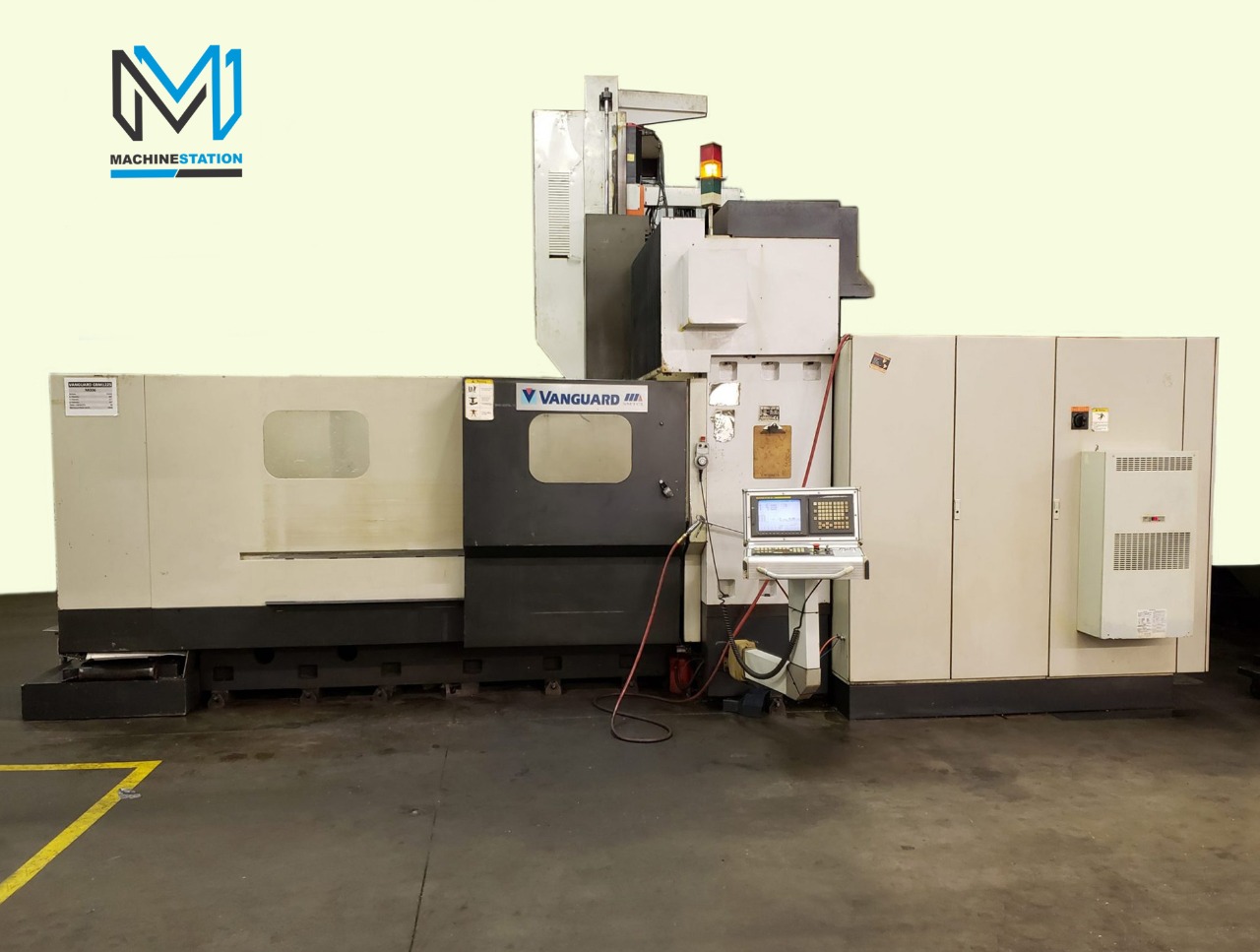

Vanguard GBM 1225 Equipped With:

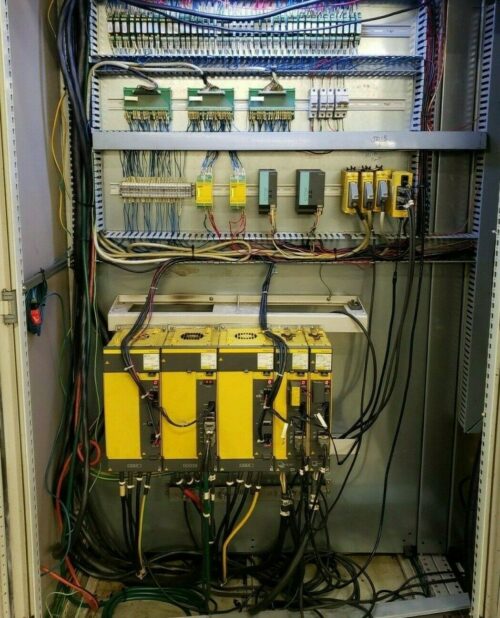

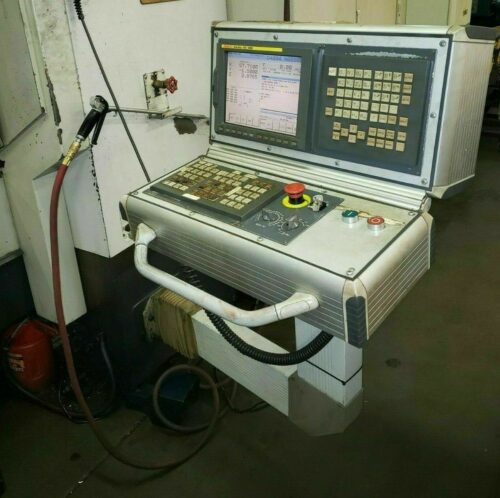

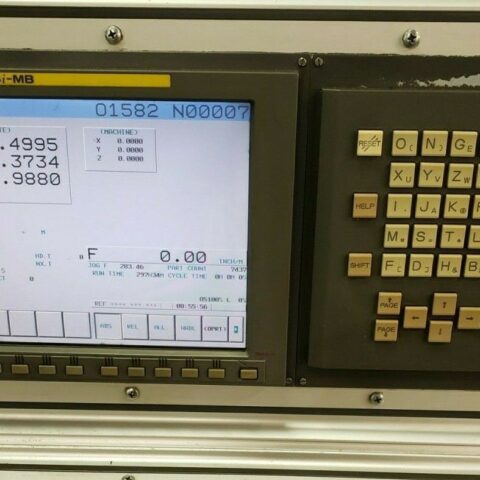

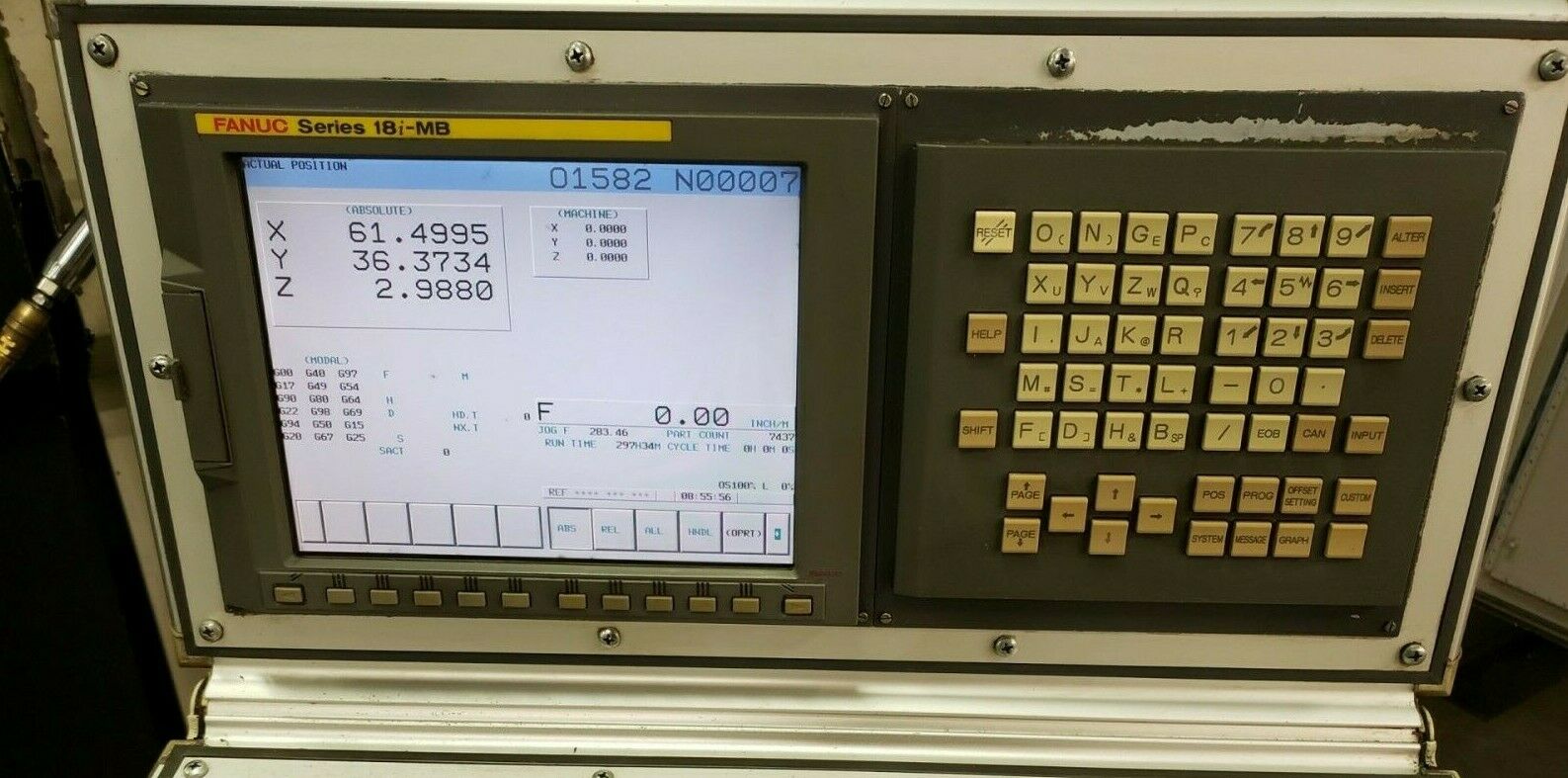

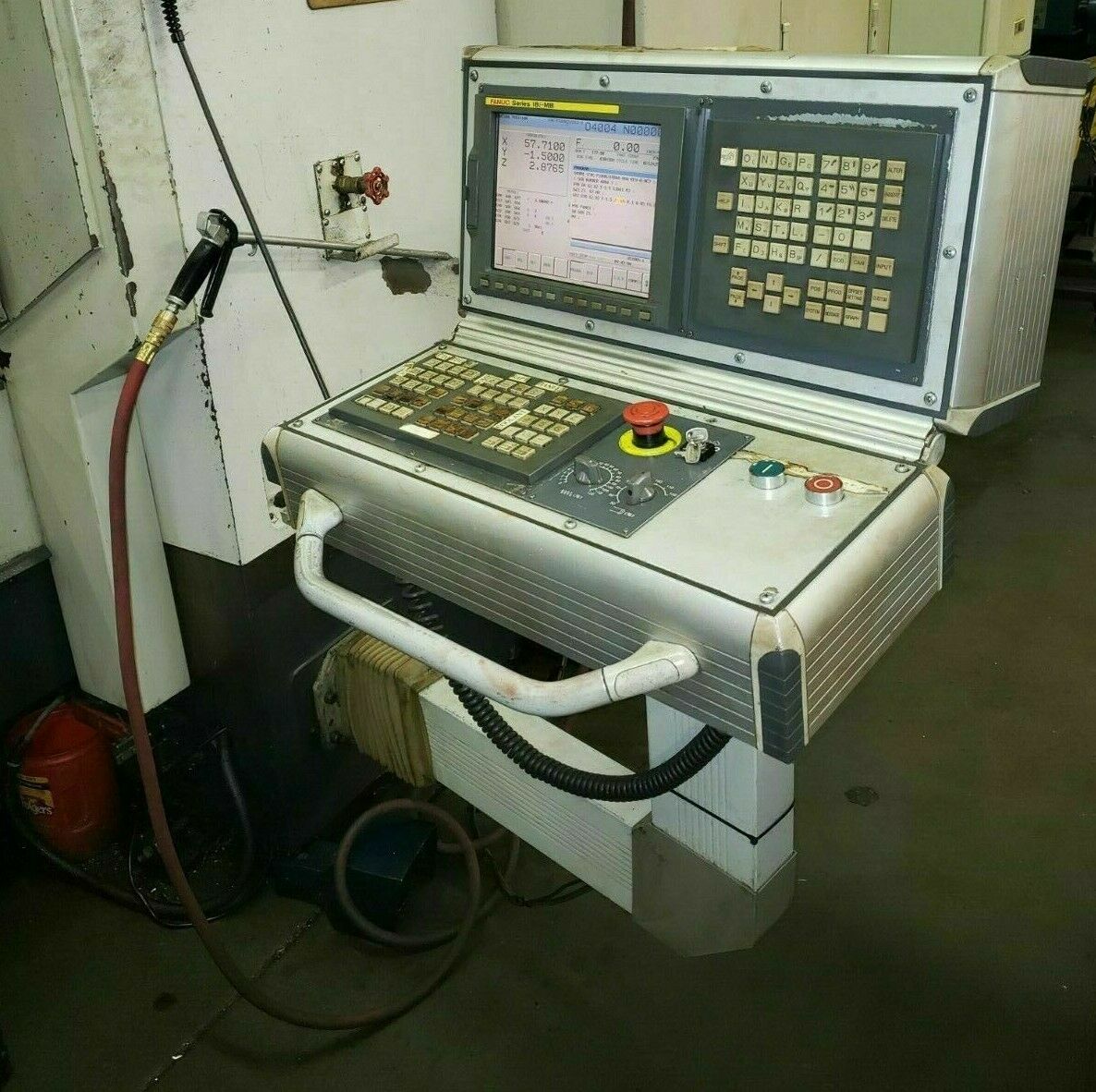

- Fanuc 18iMB CNC Control
- Thru Spindle Coolant
- 30 Station Side Mount Tool Changer
- 50 Taper Geared Head 6000 RPM Spindle
- Powerful 30 HP high torque spindle motor
- Flood coolant
- Chip Conveyor
- Books and Manuals
-
Vanguard GBM 1225 Specifications:
- Travels:
- X-Axis: 98″
- Y-Axis: 57″
- Z-Axis: 30″
- Distance Between Columns: 60.9″
- Spindle Nose to Table (Min.- Max.): ″- ″
-

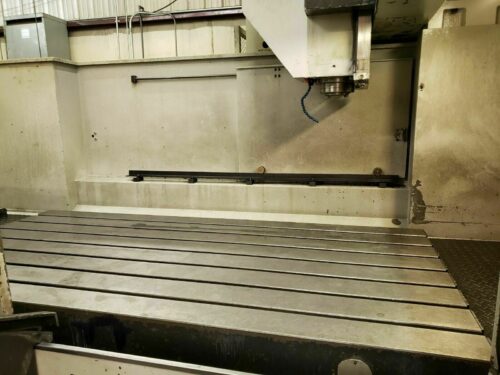

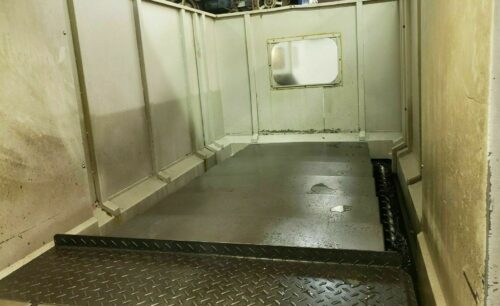

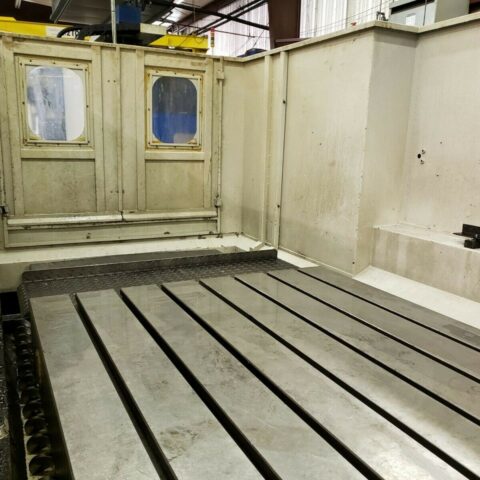

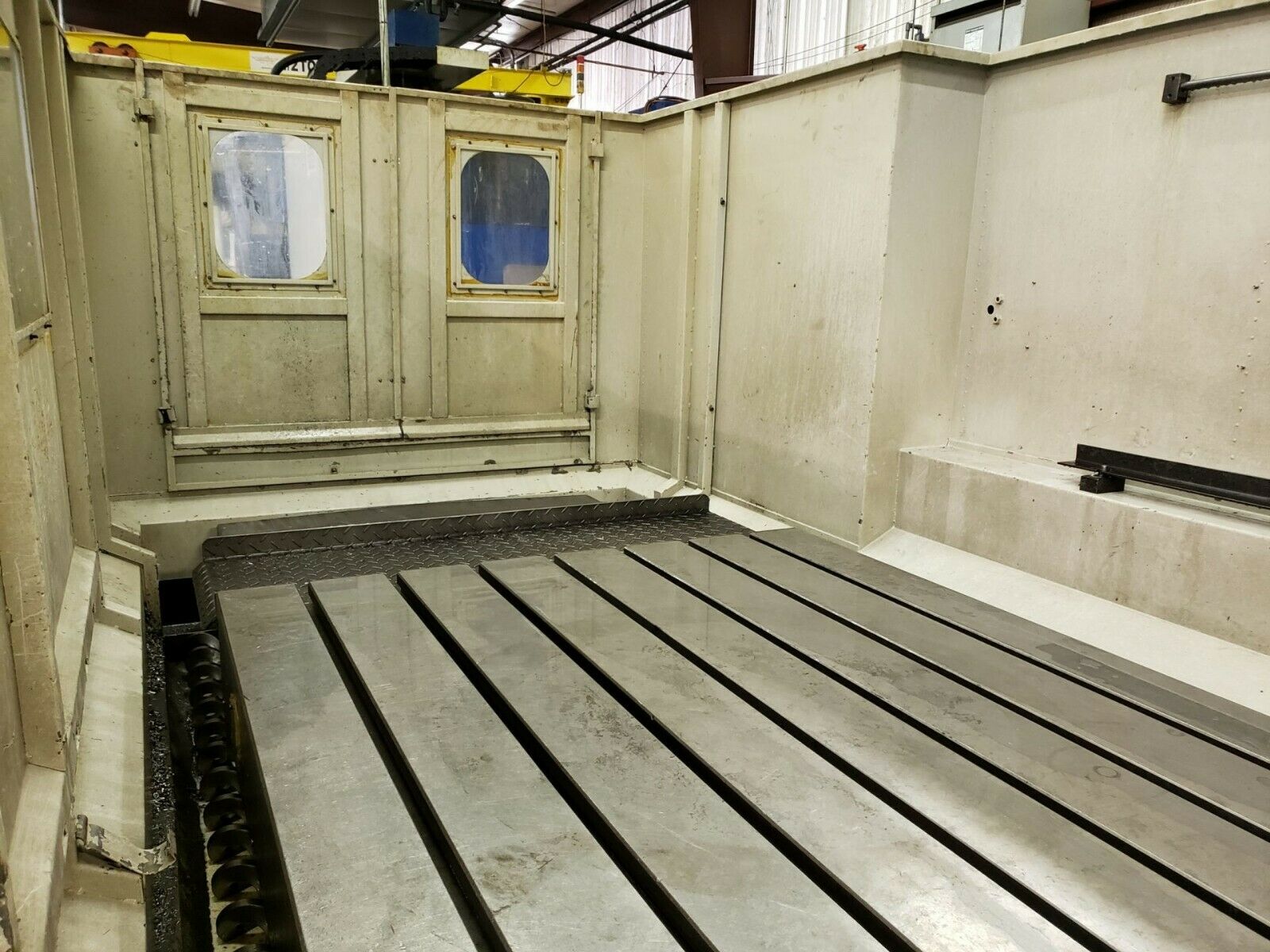

Table:
- Length: ″
- Width: ″
- T-Slot: ″ Wide X X ″
- Max Weight on Table: lbs
-
Spindle:
- Taper Size: 50
- Speed Range: 6000 RPM
- Spindle Power: 30 HP
-
Feed rates:
- Rapid X,Y & Z: inch/P.M
- Cutting Feedrate: ″ – ″ inch/ P.M
-
Automatic Arm Type Tool Changer:
- Taper:Cat 50
- Capacity: 30
- Max Tool Weight:
- Max Tool Length:
- Max Tool Dia:
-
General:
- Air Required: 100 psi, 4 scfm
- Power: 205-235v / 66FLA / 3-Phase, 40 Kva
- Overall Dimensions: ″ x ″ x ″ High
- Shipping Dimensions: change upon Dismantling before removal
- Accessory: Chip Conveyor Extra
- Weight: lbs.
