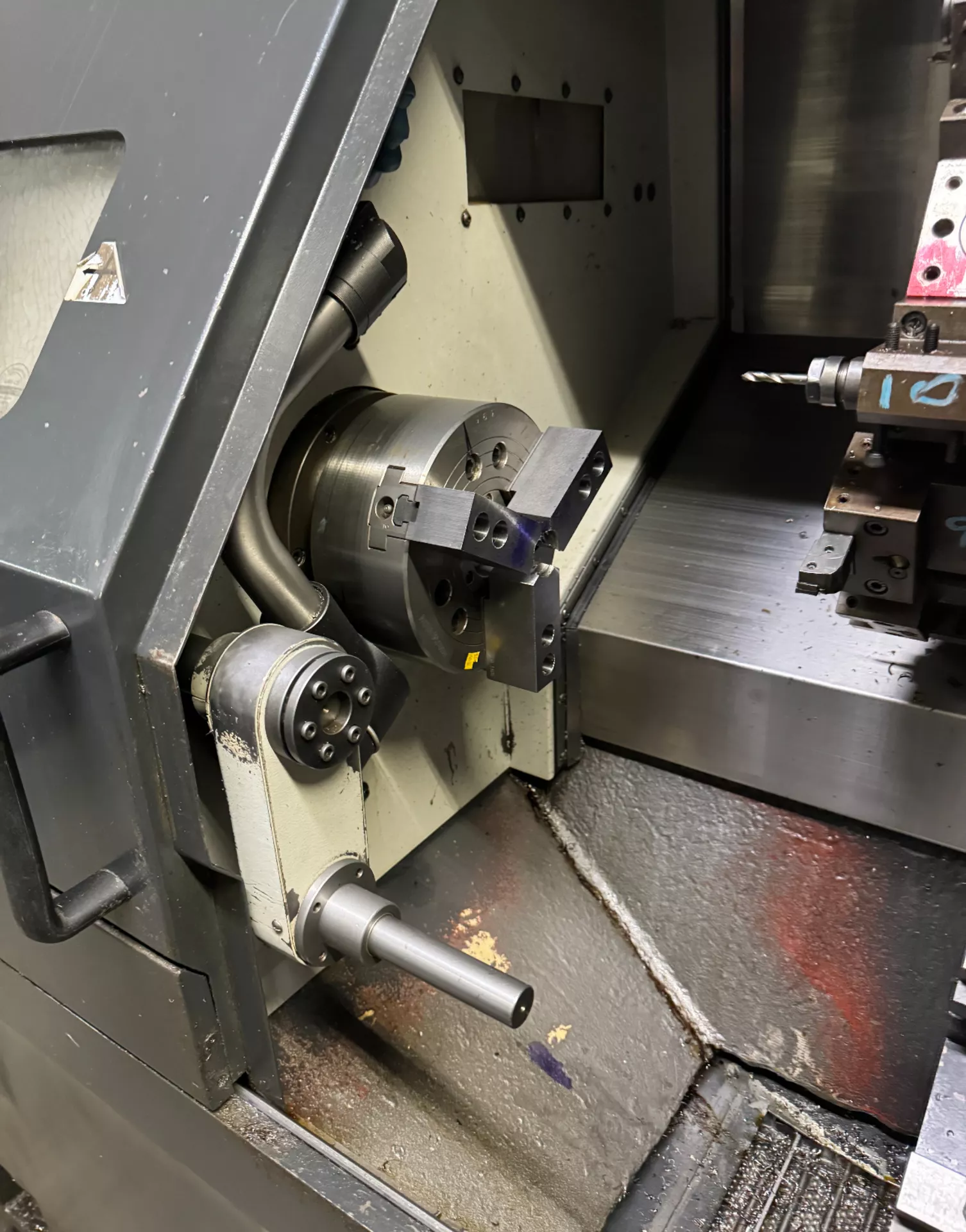

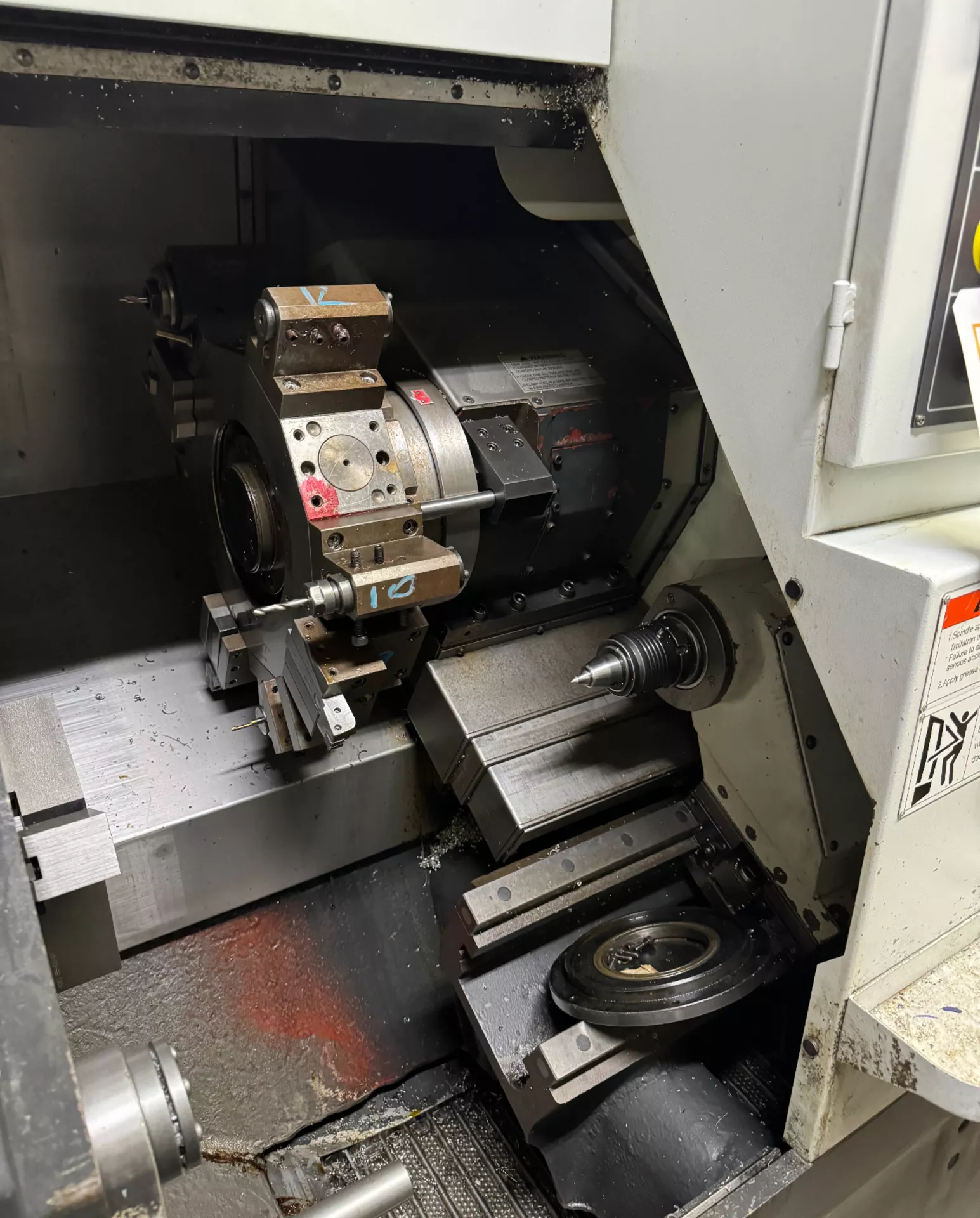

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Yama Seiki |
| Model: | GLS-200M |
| Year: | 2015 |
| EQUIPPED WITH: |
|---|
| Fanuc Series 0i-TD CNC Control |
| 12-Station Live Tooling Turret |
| 8″ Hydraulic Chuck |
| Tailstock |
| Parts Catcher |
| Live Tooling |
| Chip Conveyor |
| Automatic Lubrication |
| Coolant System |
| Work Light |
| Hydraulic Unit |
| Capacity: |
|---|
| Max Turning Diameter: 11.8″ |
| Max Turning Length: 20″ |
| Bar Capacity: 2.05″ |
| Chuck Size: 8″ |
| Axis Travel: |
|---|
| X-Axis Travel: 8.3″ |
| Z-Axis Travel: 21.7″ |
| Spindle: |
|---|
| Spindle Speed: 3,000 RPM |
| Spindle Motor: 20 HP |
| Spindle Nose: A2-6 |
| Bar Capacity: 2.05″ |
| Turret: |
|---|
| Turret Capacity: 12 Stations |
| Turret Type: Live Tooling |
| Live Tooling Speed: 4,000 RPM |
| Tool Shank Size: 1″ |
| Boring Bar Capacity: 1.57″ |
| Tailstock: |
|---|
| Tailstock: Yes |
| Quill Diameter: 2.8″ |
| Quill Travel: 3.9″ |
| Electrical: |
|---|
| Power Requirement: 220 Volt |
| Phase: 3 Phase |
| Frequency: 50/60 Hz |
| Rated Capacity: 65 kVA |
| General: |
|---|
| Machine Dimensions (Approx.): 110″ × 70″ × 74″ |
| Machine Weight (Approx.): 7,055 lbs |
