*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

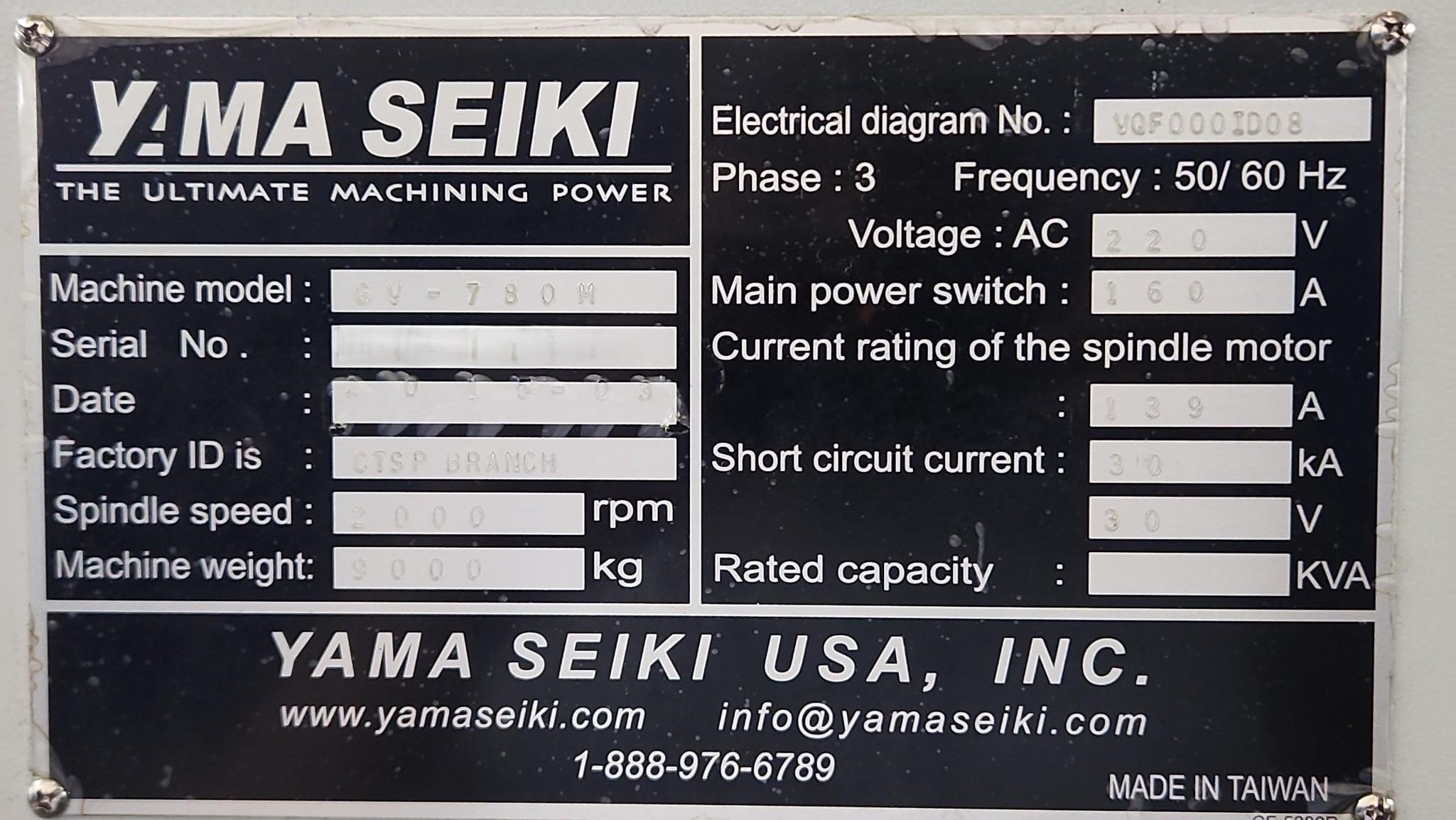

| Make: | YAMA SEIKI |
| Model: | GV-780M |
| Year: | 2015 |
| Machine Type: | CNC Vertical Turning Center |
| CNC Control: | FANUC Oi-TD |
| Equipped With: |
|---|
| FANUC Oi-TD CNC Control |
| Manual Guide |
| Rigid Tapping |
| FANUC AC Alpha Series Spindle |
| FANUC Alpha 30 (30137M) Spindle Motor |
| Solid 18″ 34AWS Hydraulic Chuck |
| Hydraulic Solid Cylinder |
| Roller Linear Guideways |
| Chip Conveyor with Auto Timer |
| Grundfos 100 PSI Coolant Pump |
| Roll-Out Coolant Tank |
| Advanced Automatic Lubrication System |
| Fully Enclosed Machine Guarding |
| Turning Capacity: |
|---|
| Maximum Swing Diameter: 33.46″ |
| Maximum Turning Diameter: 32.28″ |
| Standard Turning Diameter: 15.35″ |
| Maximum Turning Height: 25.98″ |
| Swing Over Saddle: 25.98″ |
| Hydraulic Chuck: 18″ 34AWS |
| Spindle: |
|---|
| Maximum Spindle Speed: 2,000 RPM |
| Spindle Configuration: 2-Speed |
| Gearbox: ZF Gearbox |
| Spindle Nose: A2-11 |
| Travels: |
|---|
| X-Axis Travel: 19.6″ |
| Z-Axis Travel: 26.3″ |
| X/Z-Axis Rapid Traverse: 788 IPM |
| Turret: |
|---|
| Turret Type: 12-Station |
| Live Tool Holder: ER-32 |
| Live Tooling Drive: Servo Driven |
| General: |
|---|
| Power Source: 220V / 3-Phase / 50/60 Hz |
| Machine Dimensions (Approx.): 74″ L × 132″ W × 141″ H |
| Machine Weight (Approx.): 19,800 LBS |
