*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Yang |
| Model No.: | ML-350 |
| Year of Manufacture: | 2012 |
| Condition: | Used – Good |
| Machine Type: | CNC Turning Center |

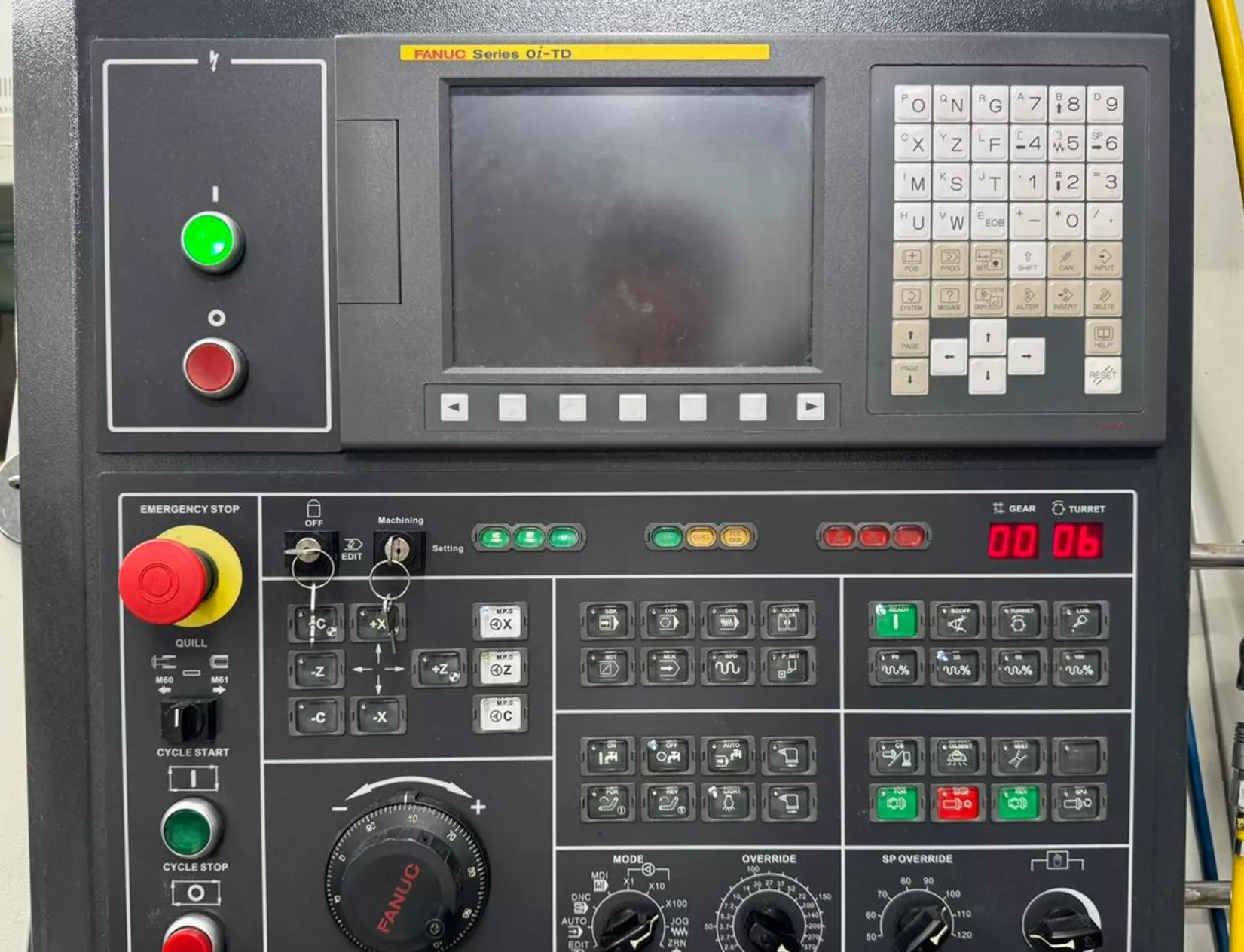

| CNC Control: | Fanuc Series Oi-TD |
| Equipped With: |
|---|
| Fanuc Series Oi-TD CNC Control |

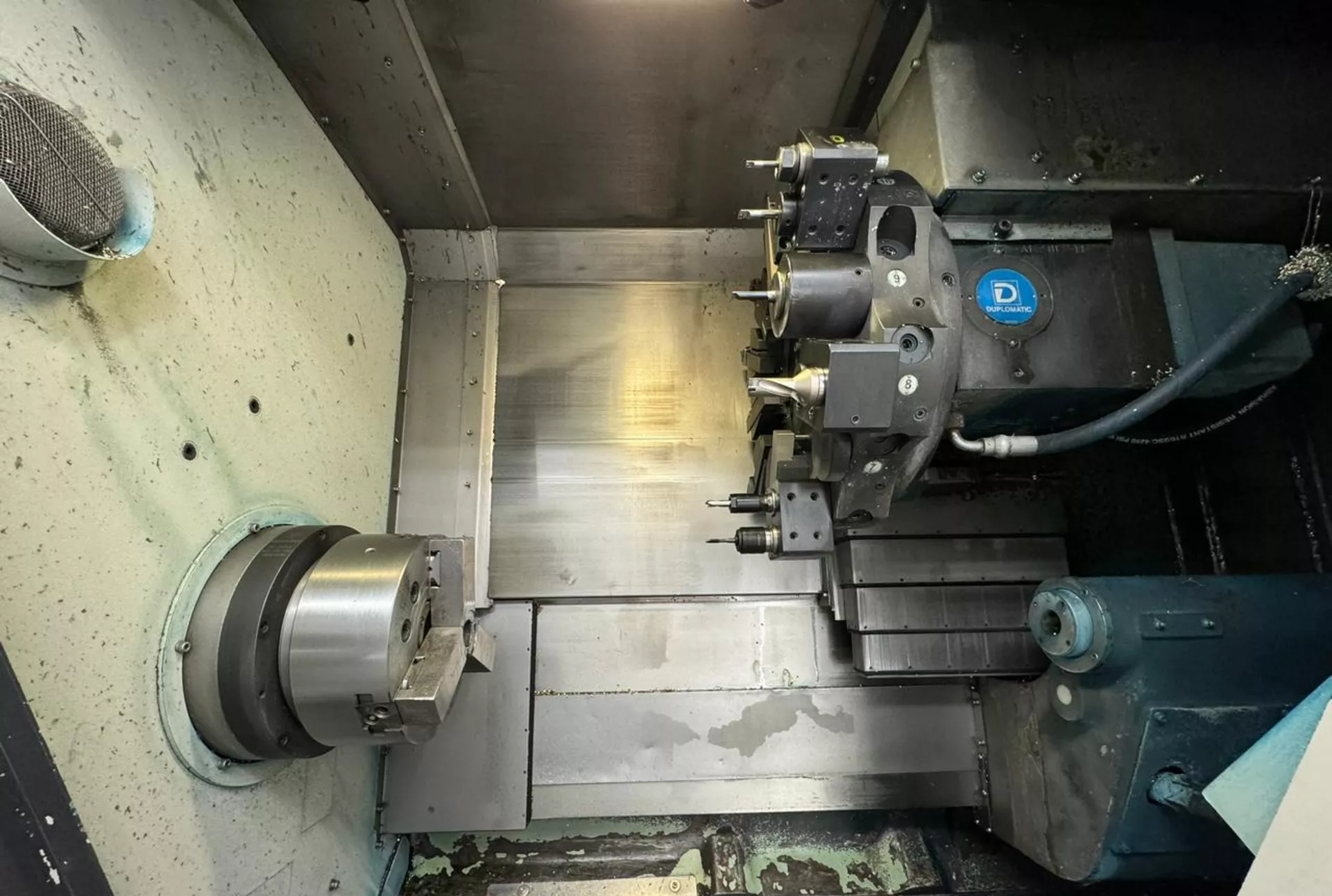

| 10″ Kitagawa QB310 Hydraulic Chuck |
| 12-Station Turret |
| Hydraulic Tailstock |
| Chip Conveyor |
| Coolant System |
| Automatic Lubrication System |
| Slant Bed Design |
| Foot Pedal Chuck Control |
| Work Light |
| Capacity: |
|---|
| Swing Over Bed: 22.83″ (580 mm) |
| Maximum Turning Diameter: 16.15″ (410 mm) |
| Maximum Turning Length: 27.56″ (700 mm) |
| Standard Turning Diameter: 13.78″ (350 mm) |
| Spindle: |
|---|
| Spindle Speed: Up to 3,500 RPM |
| Spindle Motor Power: 20 – 25 HP (15 – 18.5 kW) |
| Spindle Nose: A2-8 |
| Chuck Size: 10″ Hydraulic Chuck |
| Turret: |
|---|
| Number of Tool Stations: 12 |
| Turret Type: Automatic Indexing Turret |
| Boring Bar Capacity: Approx. 40 mm |
| Travel: |
|---|
| X-Axis Travel: Approx. 9.8″ (250 mm) |
| Z-Axis Travel: Approx. 28″ (720 mm) |
| Feedrates: |
|---|
| Rapid Traverse (X-Axis): Approx. 20 m/min |
| Rapid Traverse (Z-Axis): Approx. 24 m/min |
| Tailstock: |
|---|
| Hydraulic Programmable Tailstock |
| Tailstock Quill Travel: Approx. 100 mm |
| Center Taper: MT-4 / MT-5 |
| Electrical: |
|---|
| Power Requirement: 3-Phase Industrial Power |
| Voltage: 220 / 380 / 440 V (Depending on Configuration) |
| General: |
|---|
| Machine Dimensions (L × W × H): Approx. 3,200 × 1,800 × 1,900 mm |
| Machine Weight: Approx. 9,900 lbs (4,500 kg) |
| Features: |
|---|
| Heavy-Duty Slant Bed Construction for High Rigidity |
| Fanuc CNC Control for Reliable Operation |
| 12-Station Turret for Fast Tool Indexing |
| Hydraulic Chuck and Tailstock for Efficient Workholding |
| High-Speed Spindle up to 3,500 RPM |
| Chip Conveyor and Coolant System for Continuous Production |
| Designed for Precision Turning, Drilling, and Tapping Operations |
