*All specifications are approximations and are subject to verification. Comes as shown in the images.
Please give us a call if you have any questions before purchasing. All sales are final.*

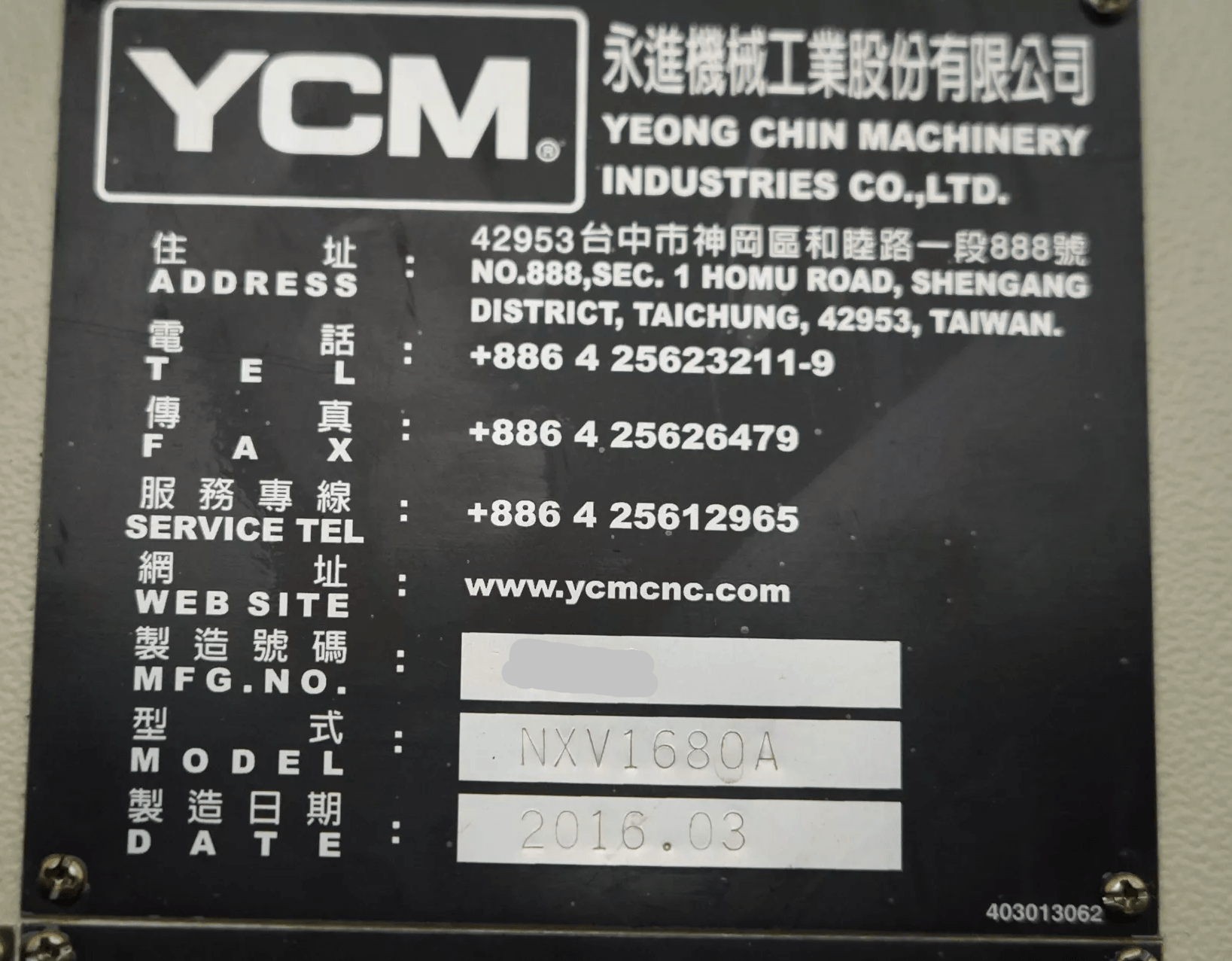

| Make: |
YCM (Yeong Chin Machinery) |
| Model No.: |
NXV 1680A |
| Year of Manufacture: |
2016 |
| Condition: |
Used – Good |

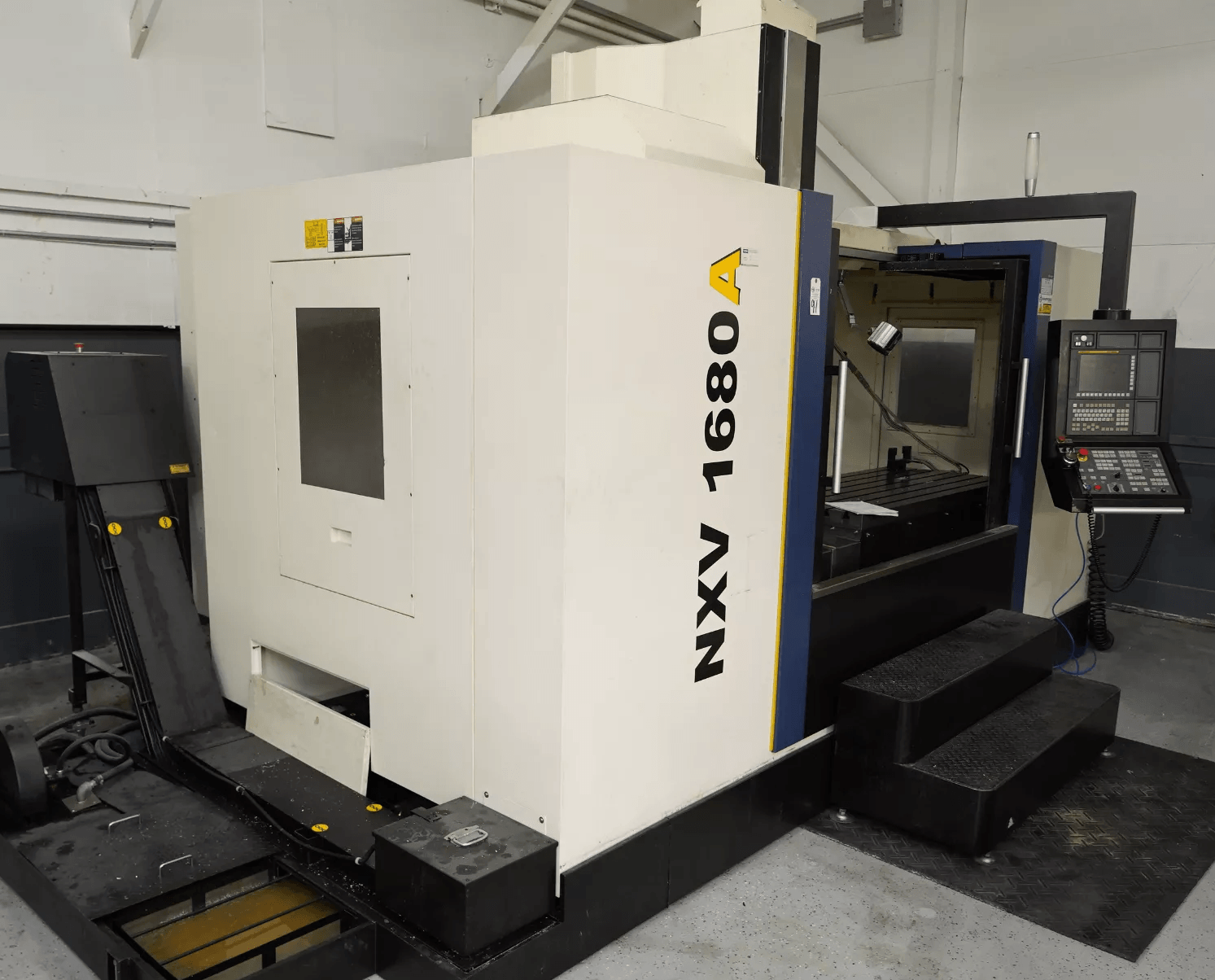

| Machine Type: |
CNC Vertical Machining Center (VMC) |
| CNC Control: |
Fanuc MXP-200FA CNC Control |
| Equipped With: |
| Fanuc MXP-200FA CNC Control |
| 24 Position Automatic Tool Changer (ATC) |
| 1000 PSI Through Spindle Coolant (TSC) |
| CoolJet High-Pressure Coolant Unit |
| Spindle Chiller |
| Chip Conveyor |
| Marposs Tool Probe |
| Marposs Tool Presetter |
| Automatic Lubrication System |
| Fully Enclosed Splash Guard |
| Transformer |
| Rigid Tapping Capability |
| Capacity: |
| Table Size: 1730 × 760 mm (68.1″ × 29.9″) |
| Max Table Load: 1,500 kg (3,307 lbs) |
| T-Slots: 7 × 18 mm (.71″) × 100 mm pitch (3.94″) |
| Spindle Nose to Table: 100 – 800 mm (3.94″ – 31.5″) |
| Travels: |
| X-Axis Travel: 1630 mm (64.2″) |
| Y-Axis Travel: 760 mm (30″) |
| Z-Axis Travel: 700 mm (27.6″) |
| Rapid Traverse (X/Y): 30 m/min (1,181 IPM approx.) |
| Rapid Traverse (Z): 24 m/min (945 IPM approx.) |
| Cutting Feed Rate: 0.04 – 787 IPM |
| Spindle: |
| Maximum Spindle Speed: 12,000 RPM |
| Spindle Motor Power: 25 / 50 HP (2-Speed Gear) |
| Spindle Taper: CAT 40 |
| Spindle Type: Belt / Gear Driven High Torque Spindle |
| Tool Changer: |
| Tool Changer Type: Arm Type ATC |
| Capacity: 24 Tools |
| Tool Change Time: Approx. 2.5 sec (tool-to-tool) |
| Max Tool Diameter: Approx. 3.1″ – 5.9″ (adjacent empty) |
| Max Tool Weight: Approx. 7 kg |
| Machine Construction: |
| Box Way / Linear Guideway Combination (High Rigidity Design) |
| Meehanite Cast Iron Structure |
| Wide Column Design for Stability |
| Heavy Duty Base for Large Workpieces |
| Designed for Mold, Die & Heavy Milling Applications |
| Electrical: |
| Power Requirement: 220V / 3 Phase / 50-60 Hz |
| High-Capacity Electrical Cabinet with Cooling |
| Transformer Included |
| General: |
| Machine Weight: Approx. 11,000 kg (24,251 lbs) |
| Large Work Envelope with Compact Footprint |
| Optional Features: |
| 4th Axis Rotary Table |
| 5th Axis Trunnion Table |
| Renishaw Probing System Upgrade |
| Tool Breakage Detection |
| Oil Skimmer |
| Mist Collector |
