*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

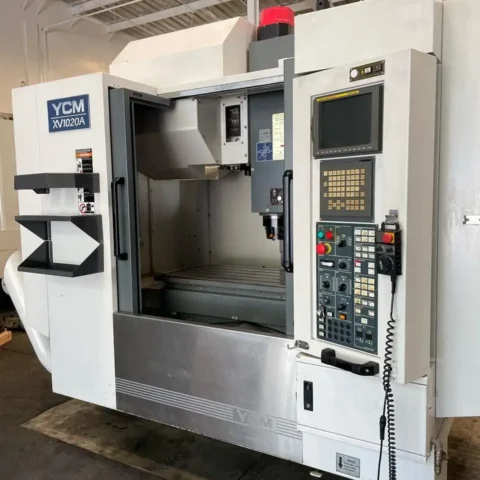

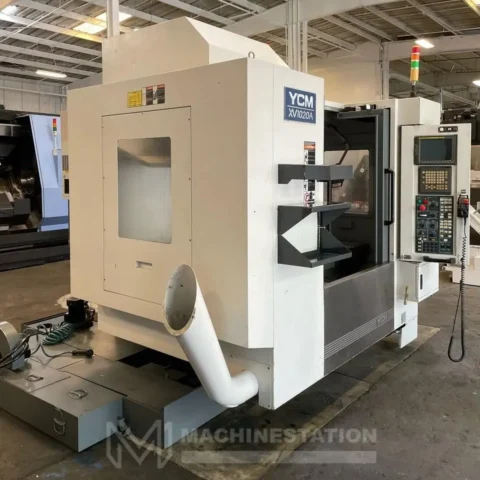

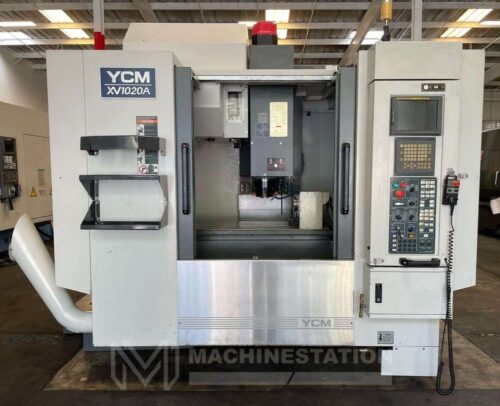

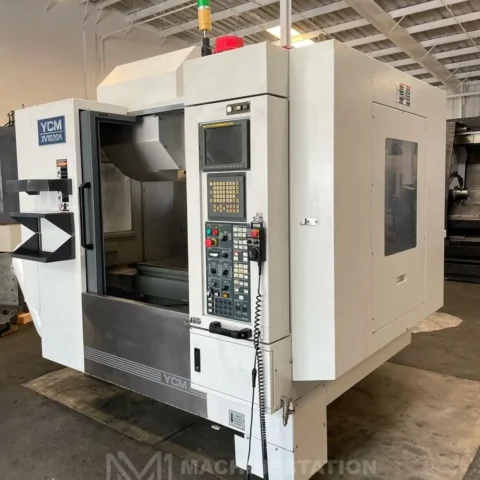

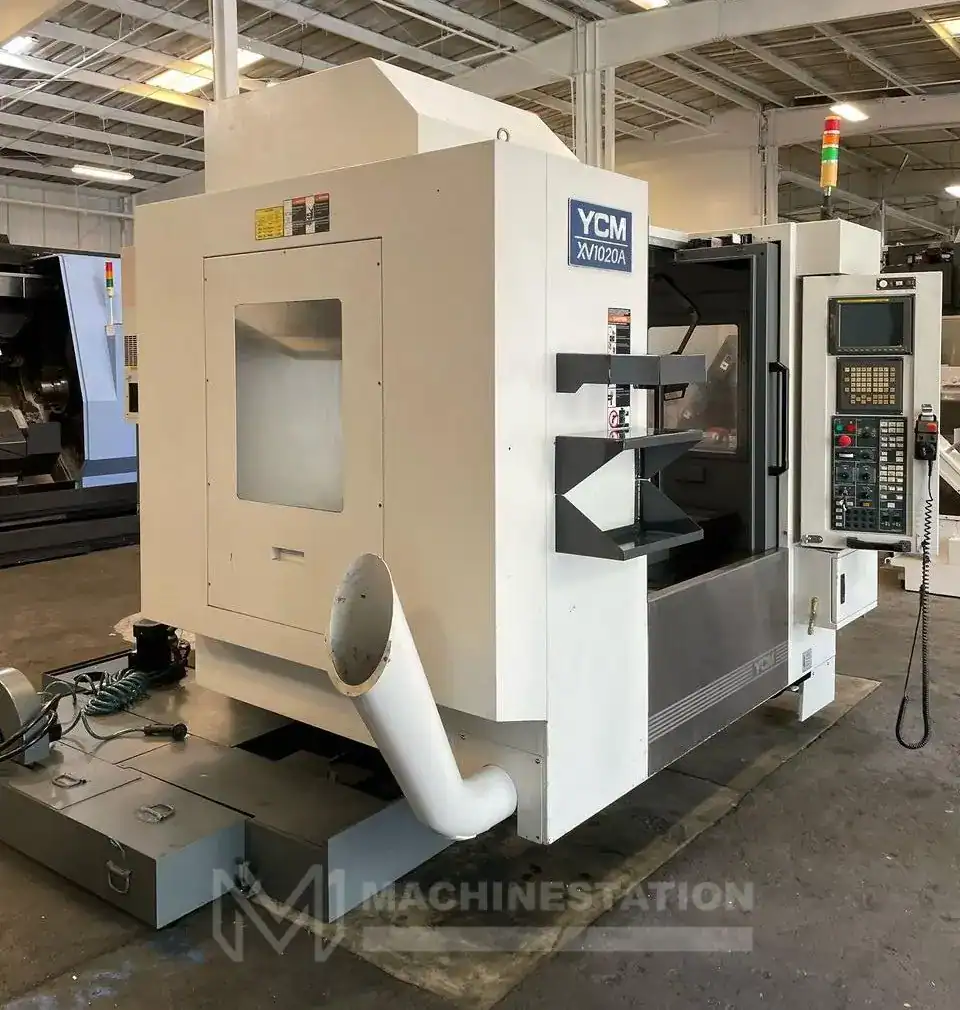

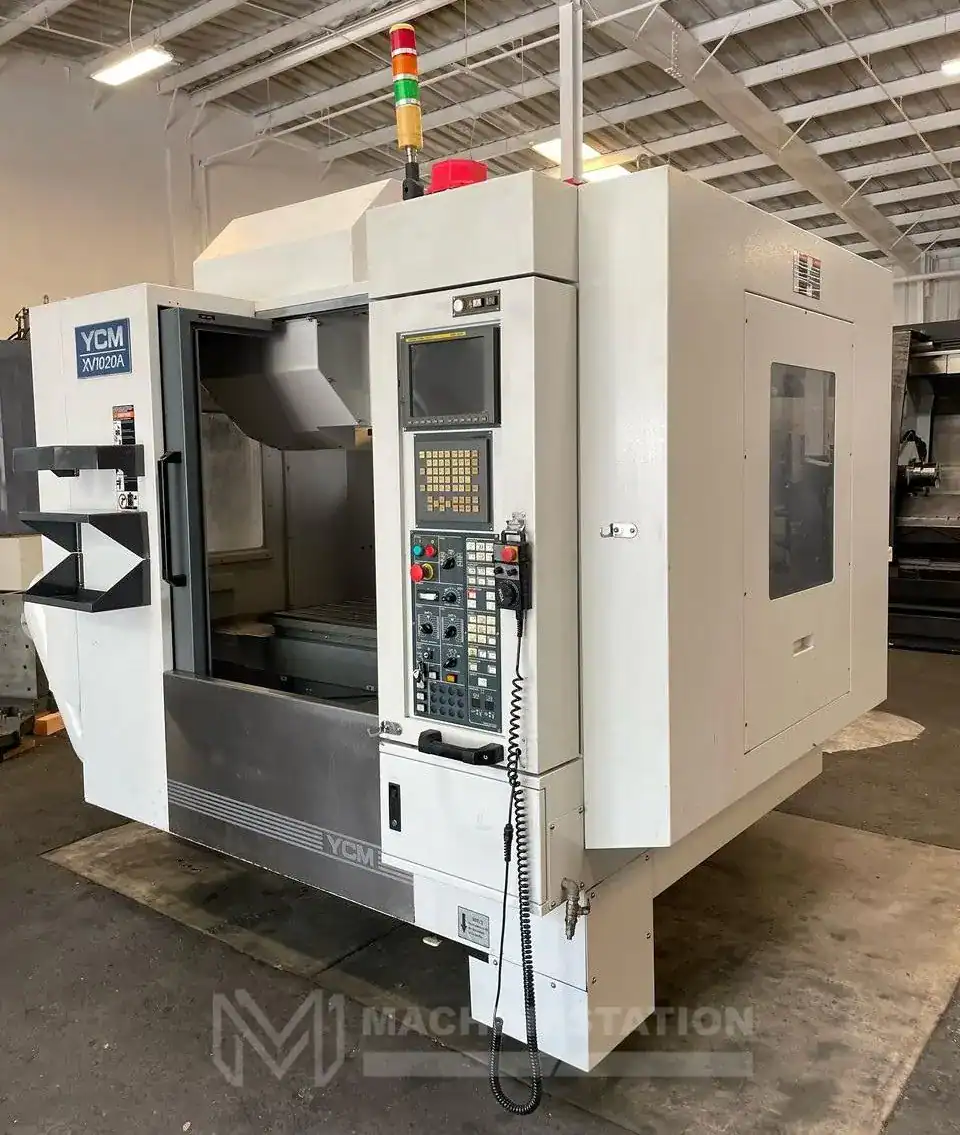

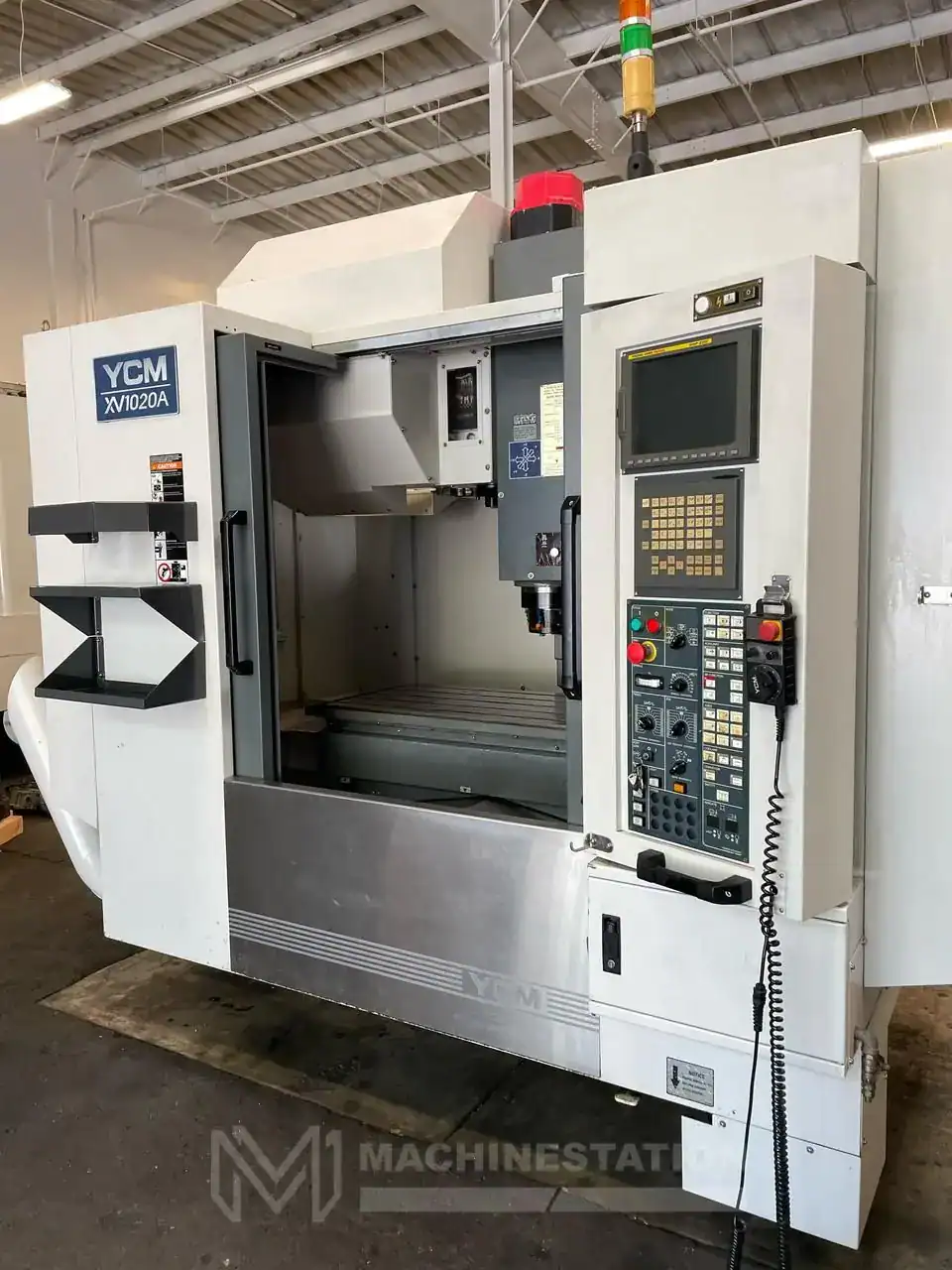

| Make: | YCM |
| Model: | XV1020A |
| Year: | 2010 |
| Features: |
|---|

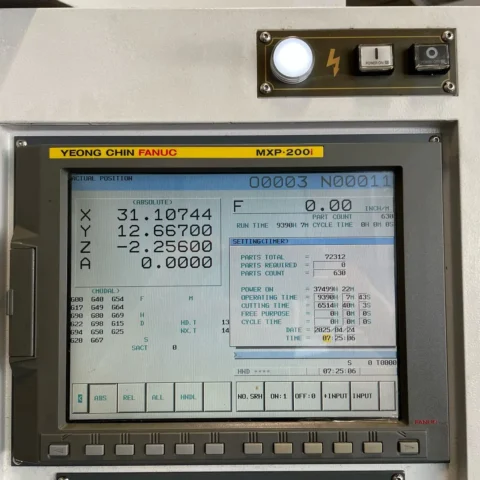

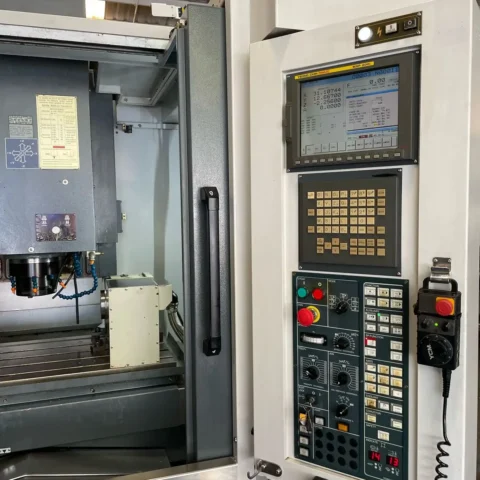

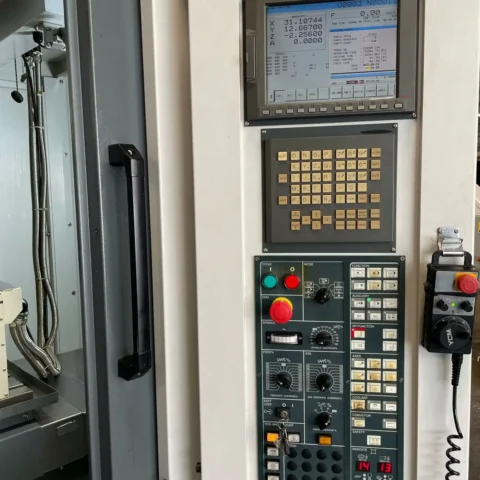

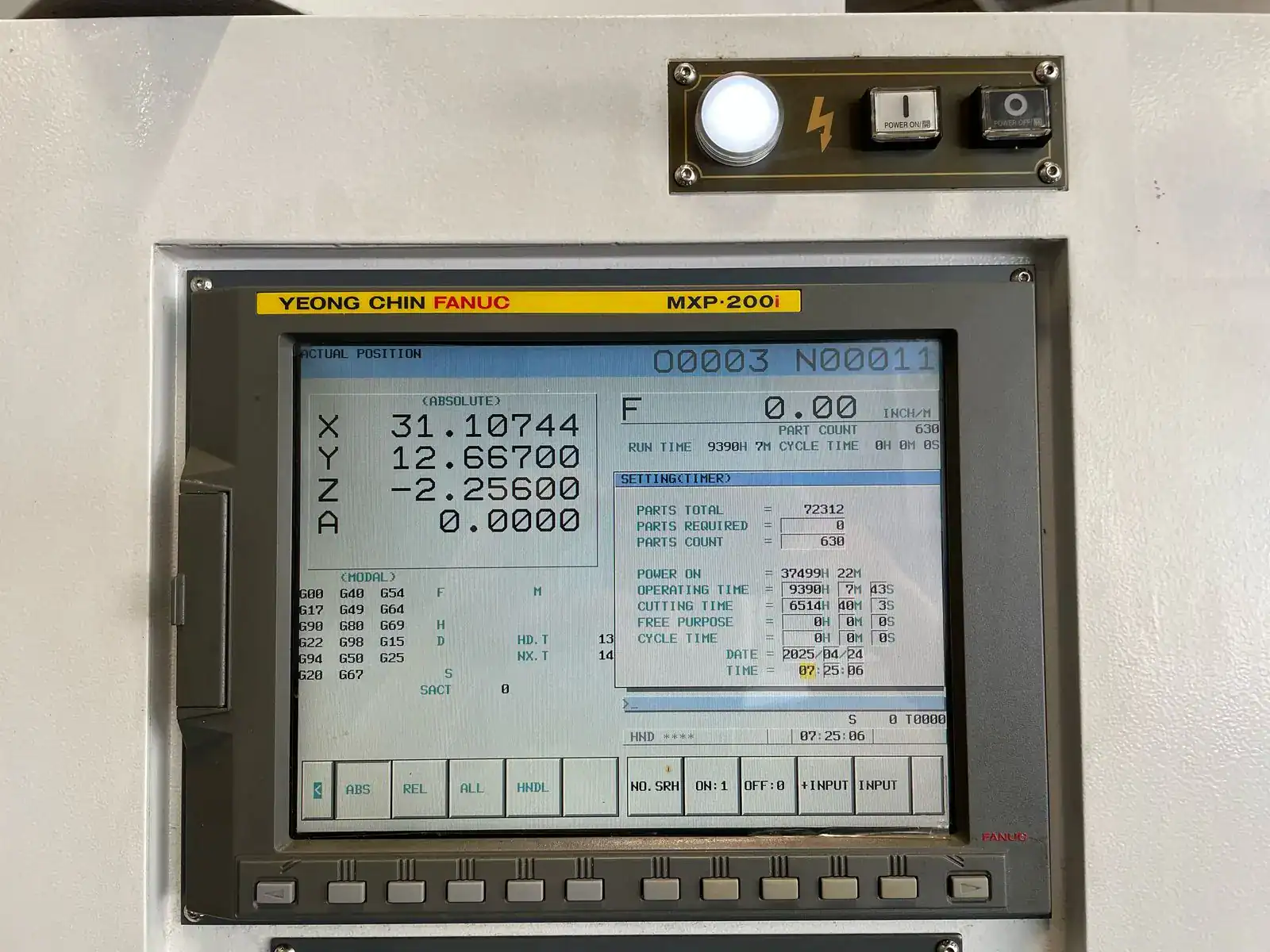

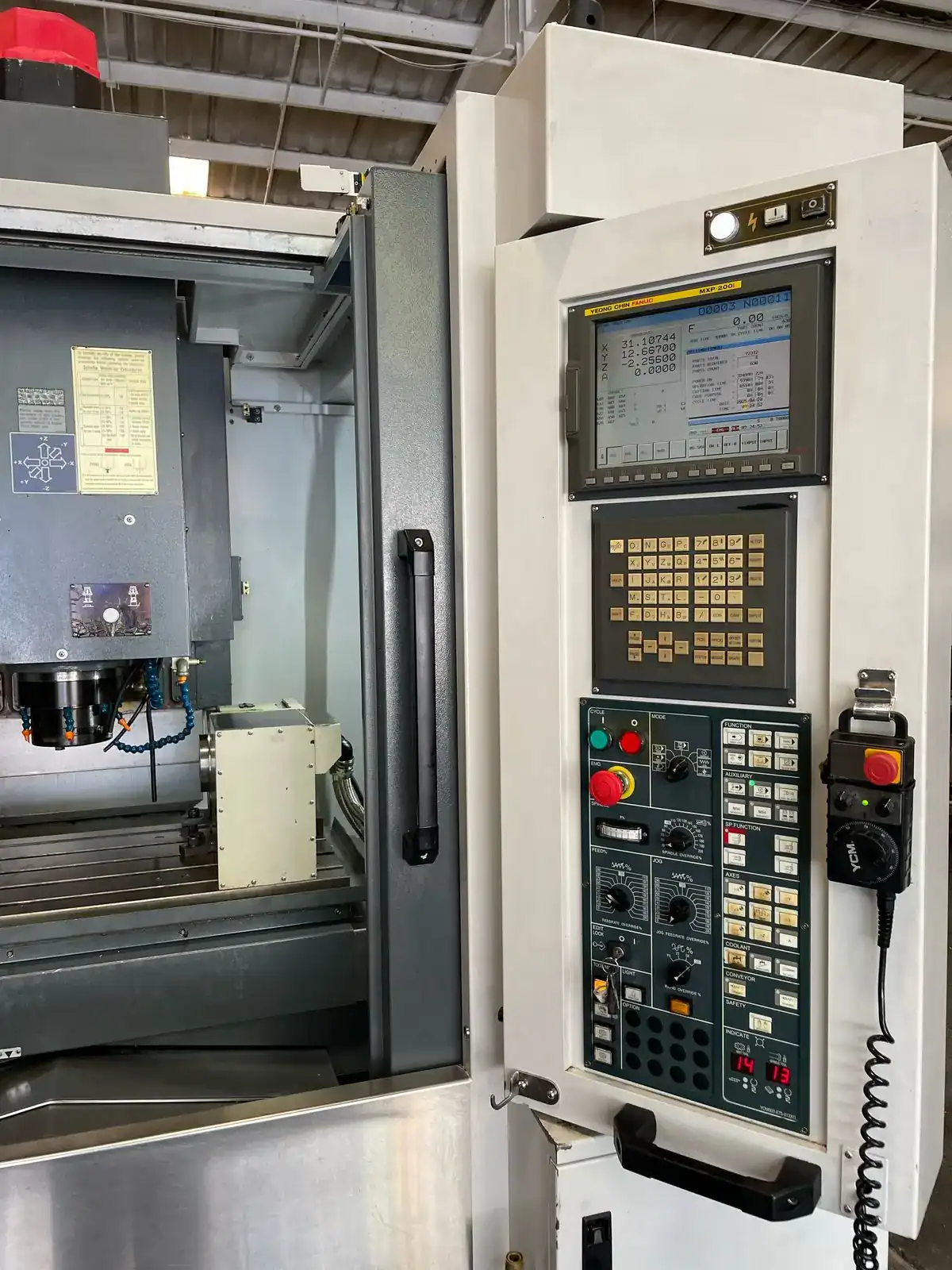

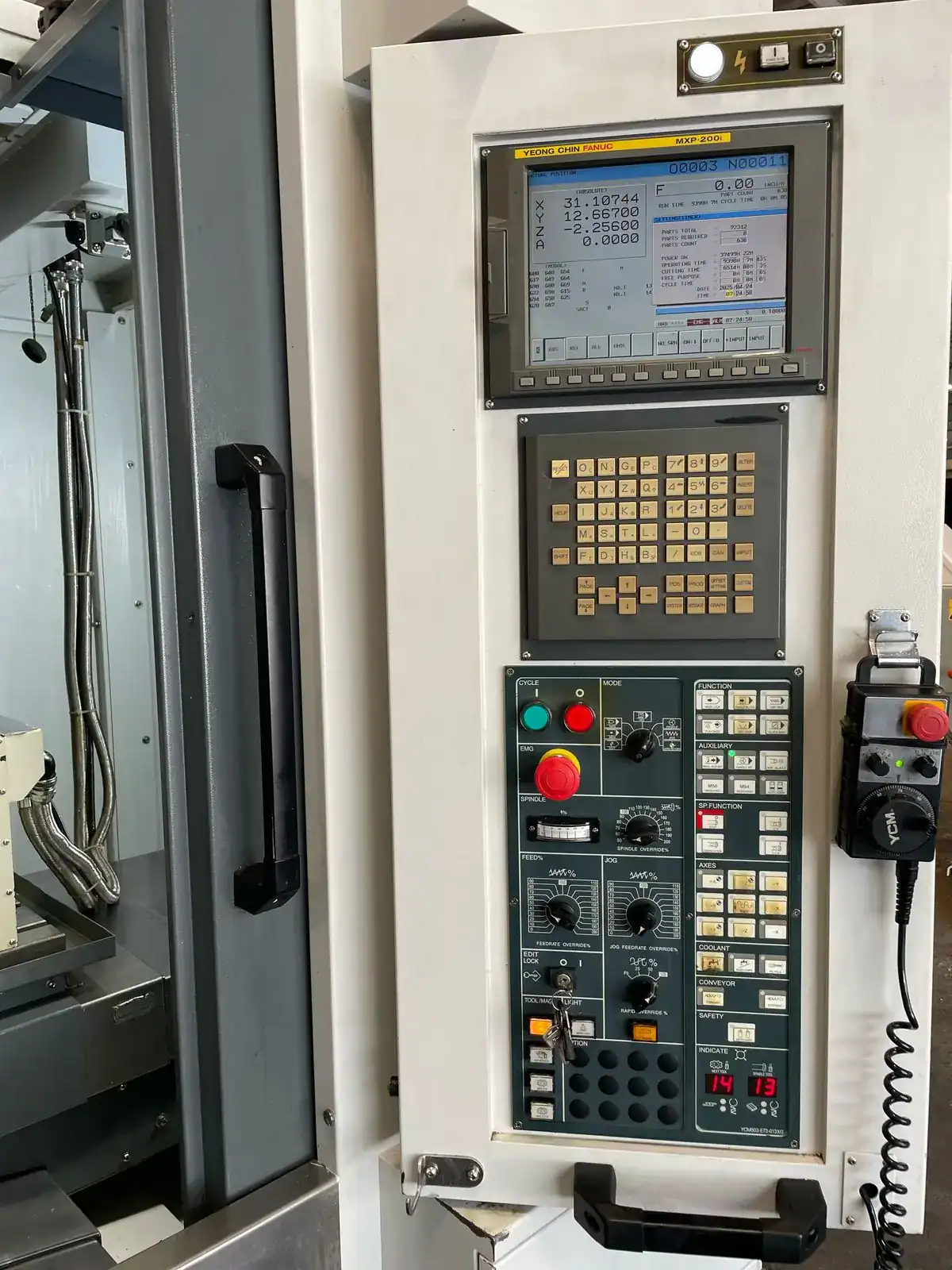

| Fanuc MXP-200i CNC Control |

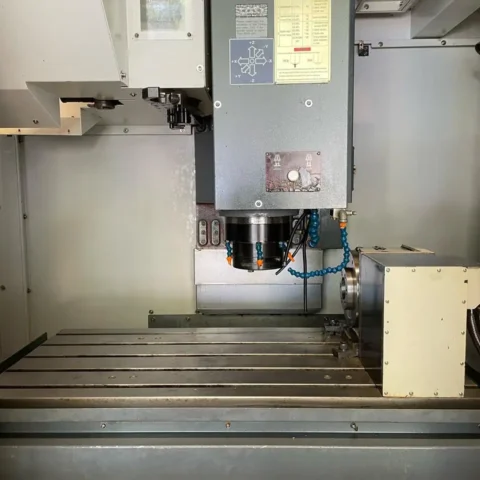

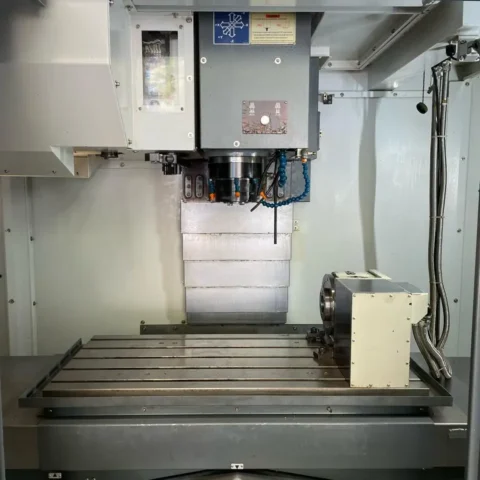

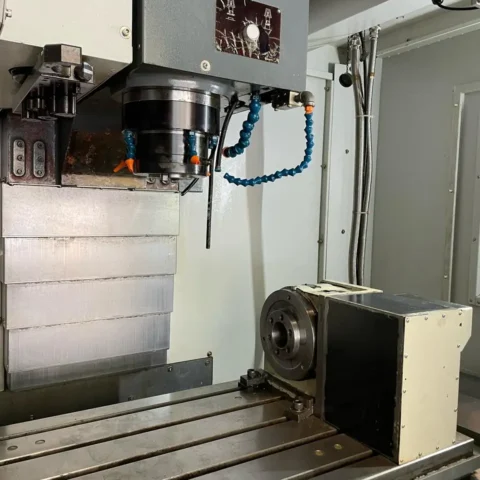

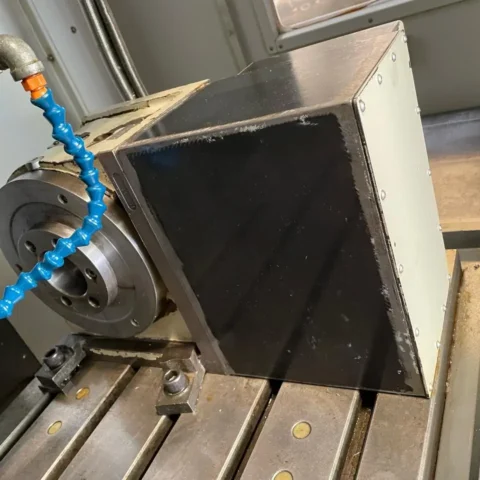

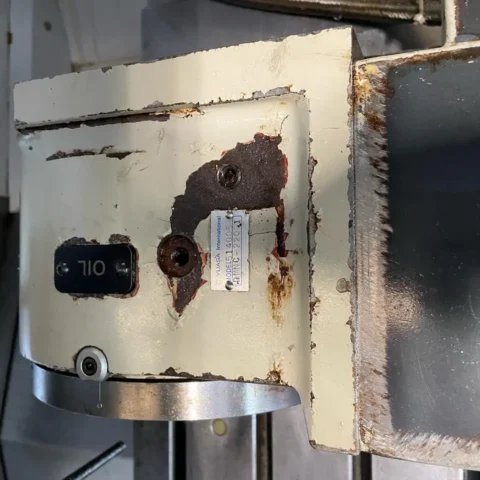

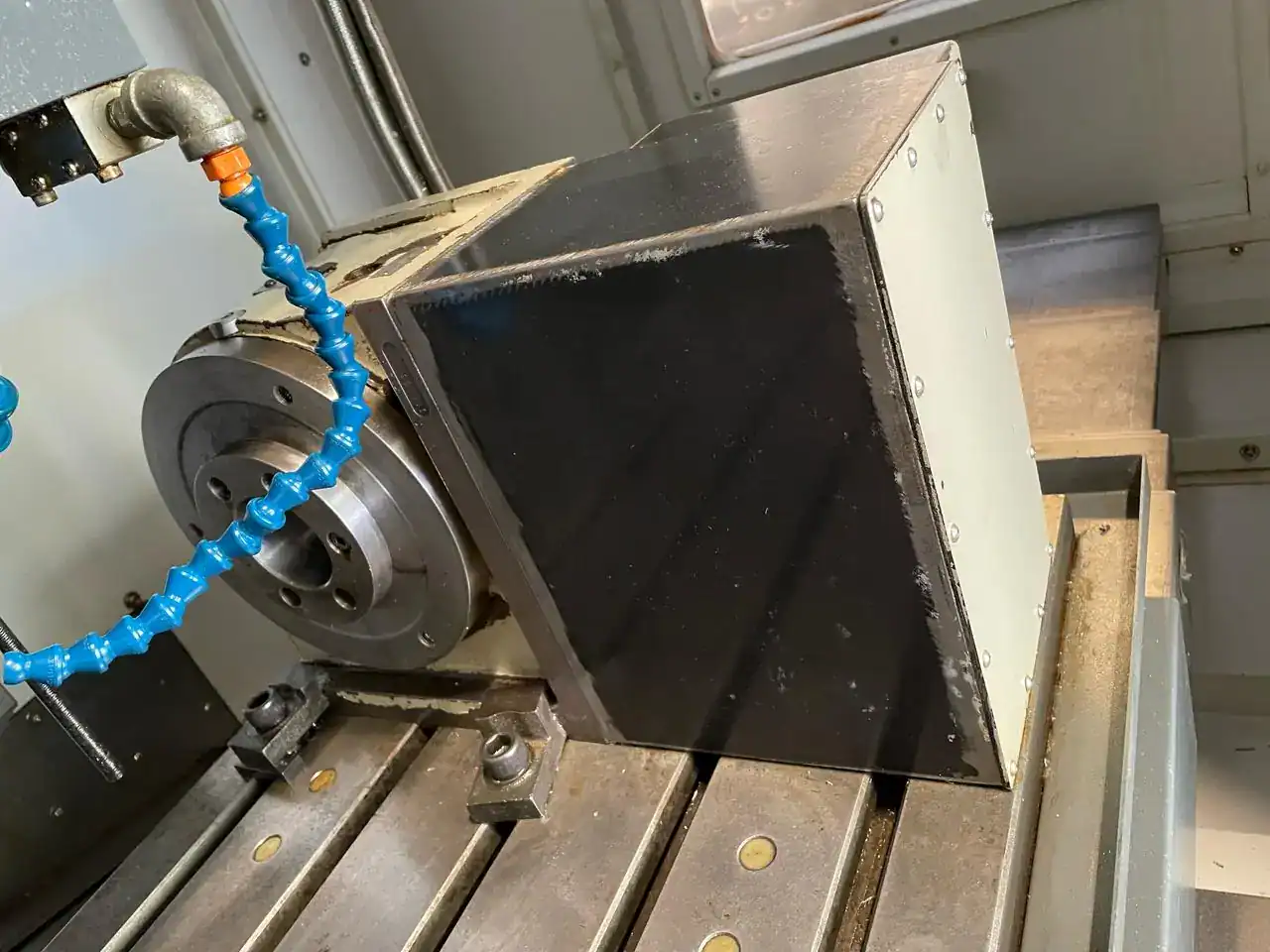

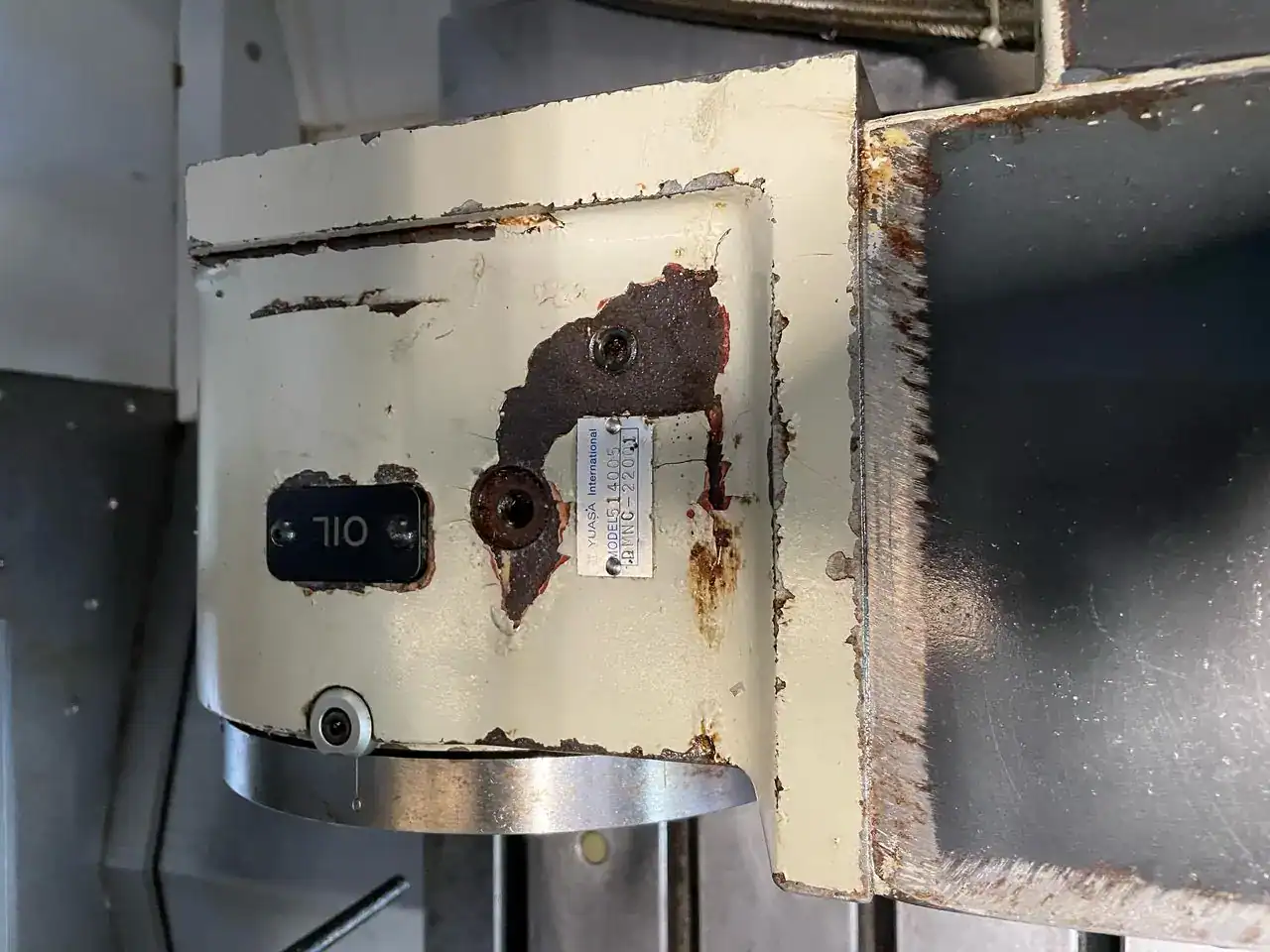

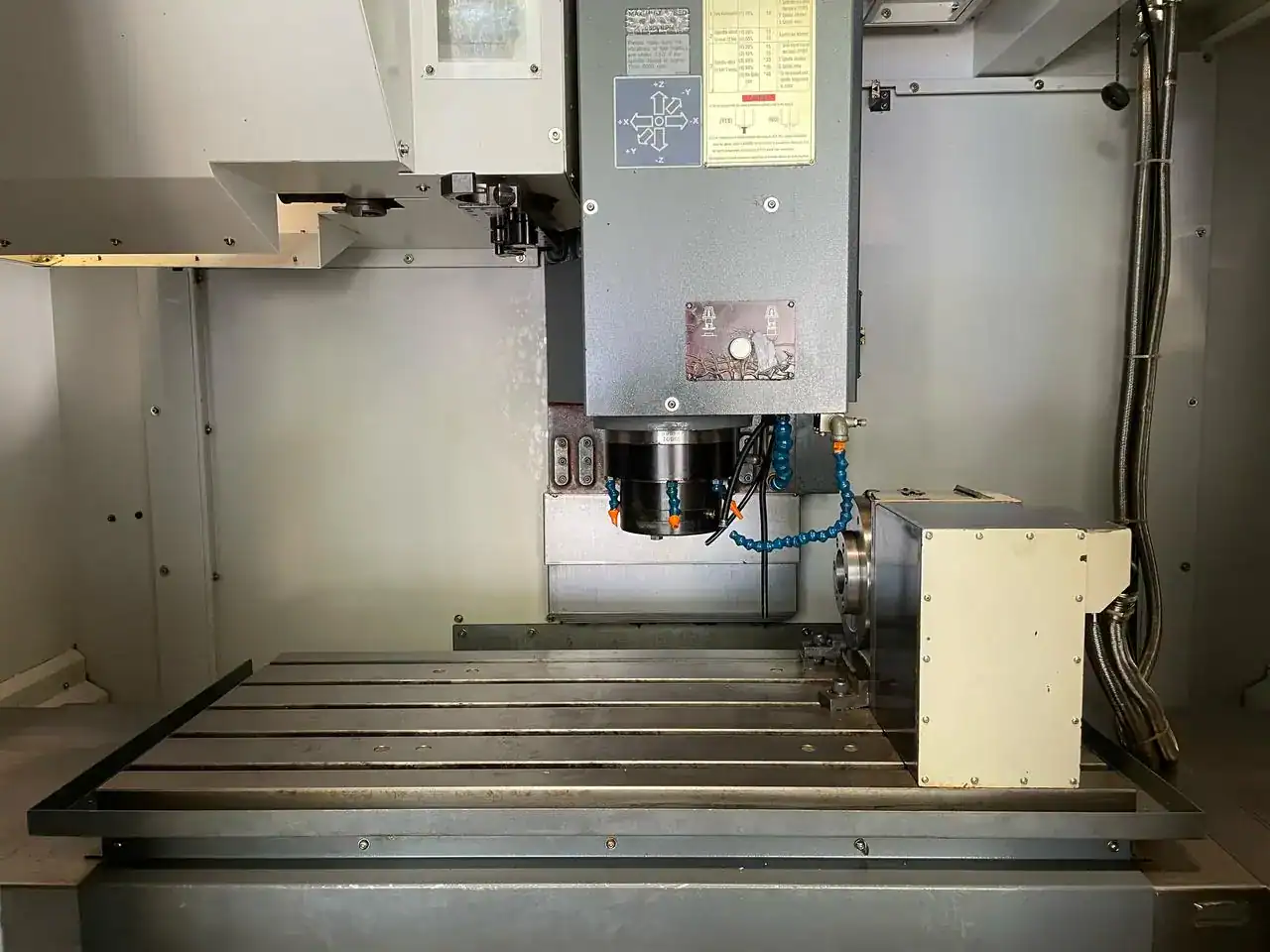

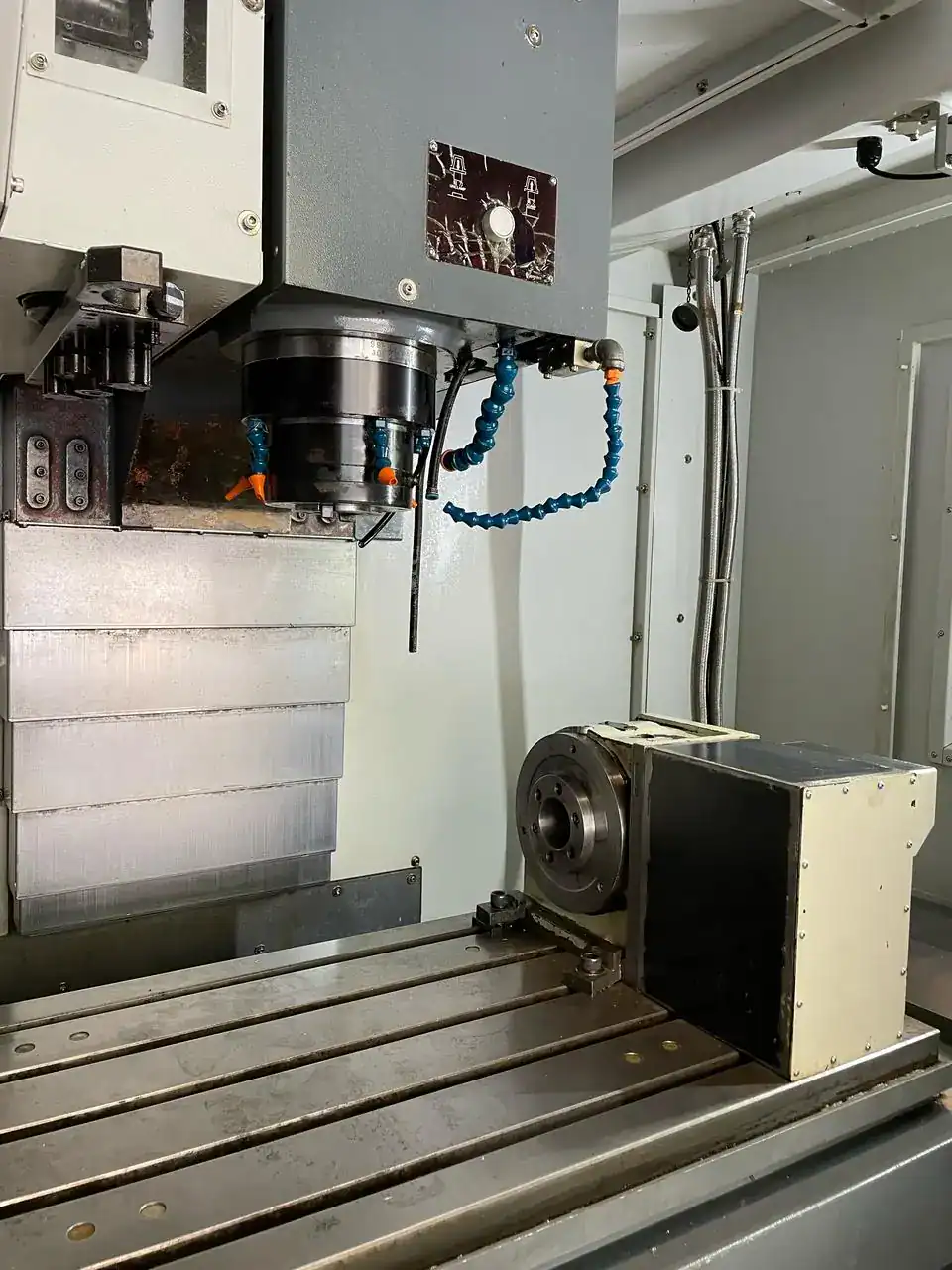

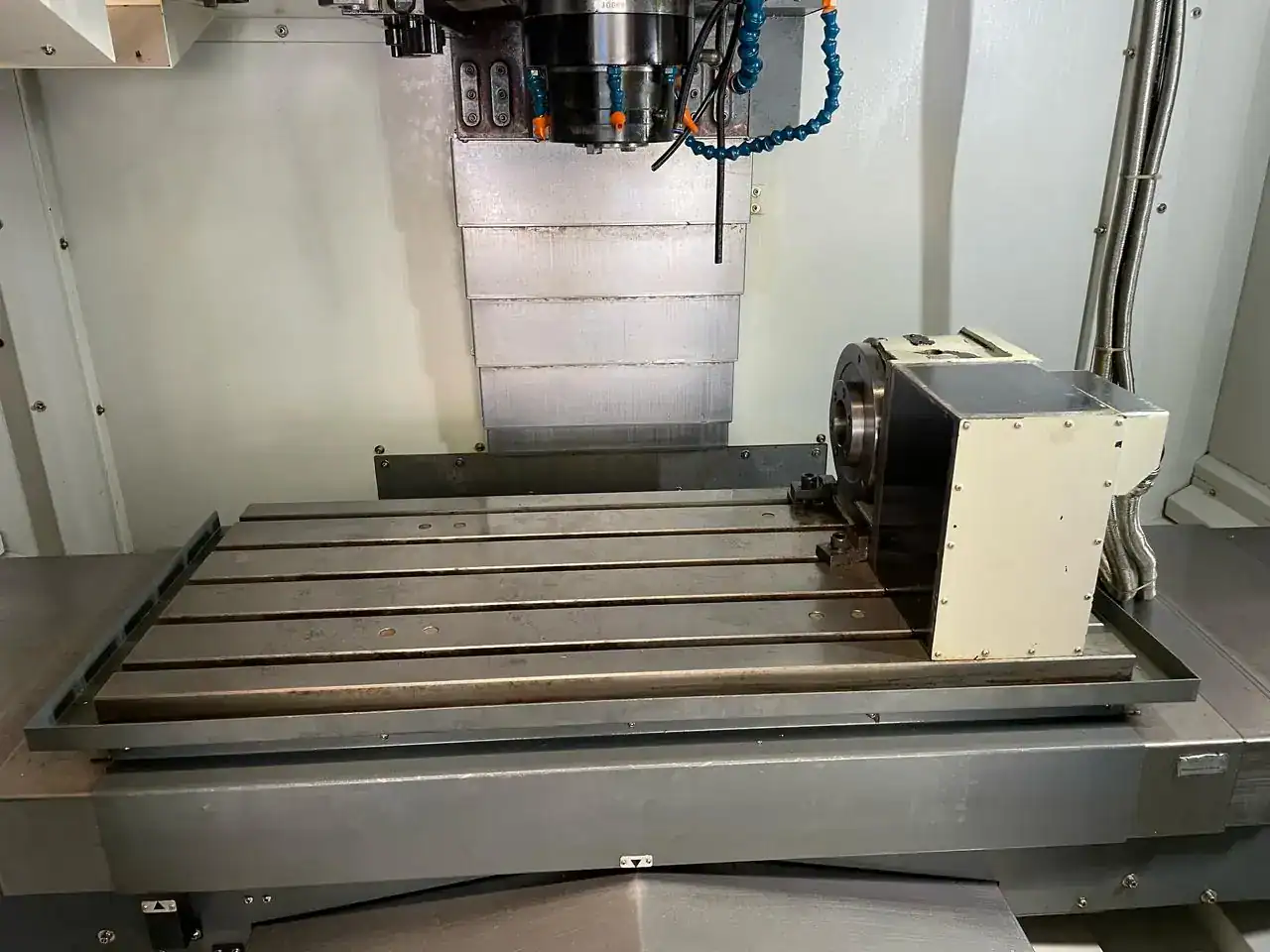

| 4th Axis Rotary Table |

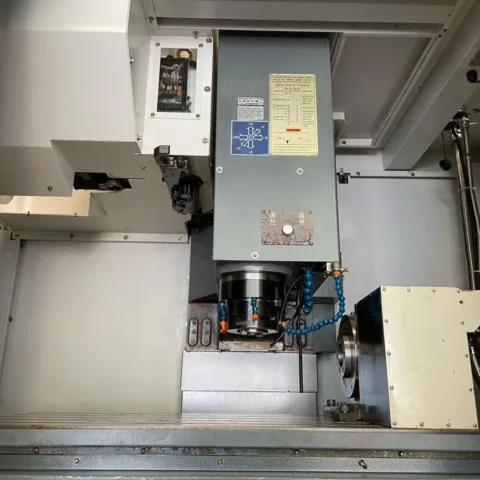

| 10,000 RPM High Speed Spindle |

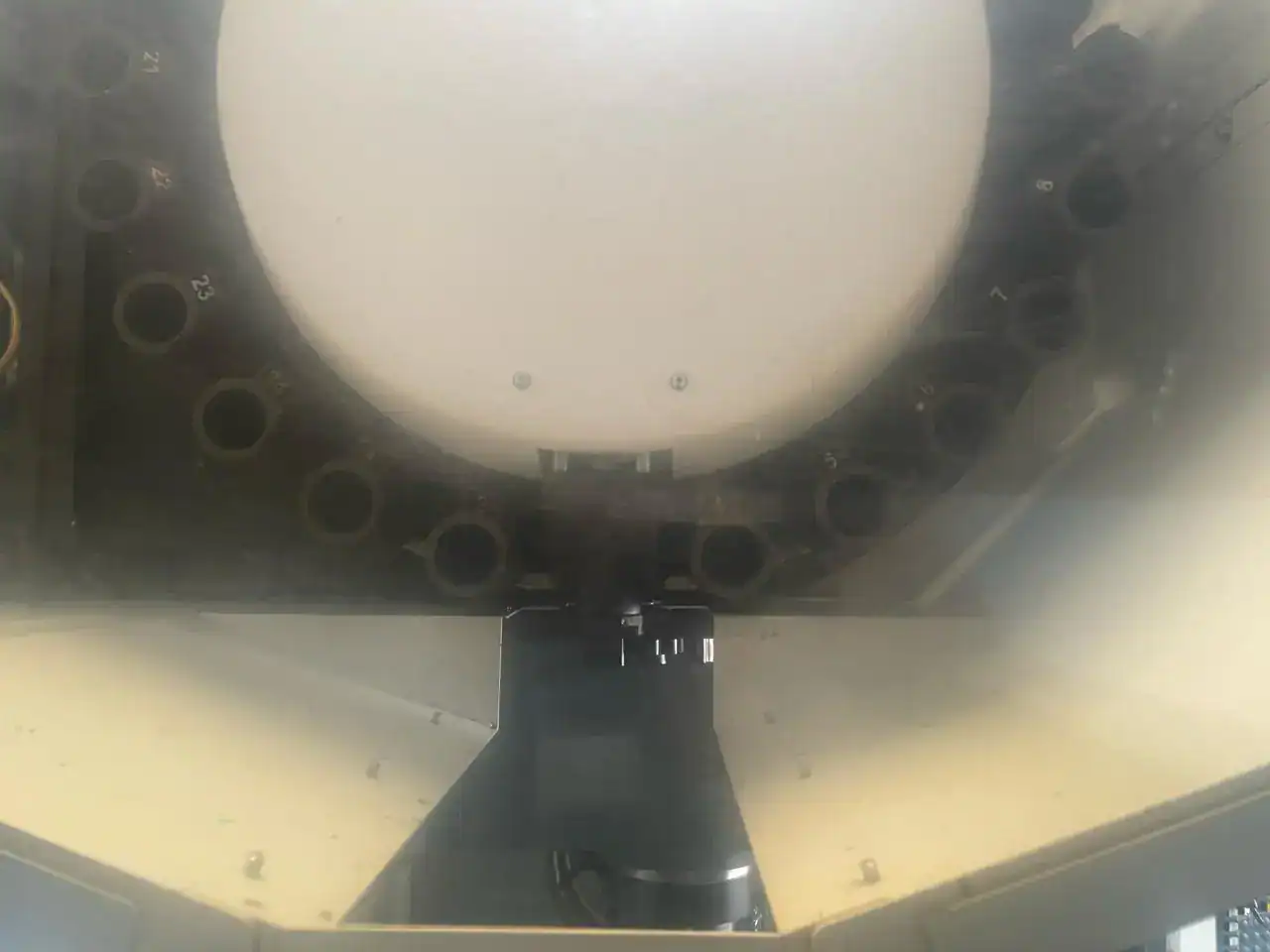

| 24 Station Automatic tool changer |

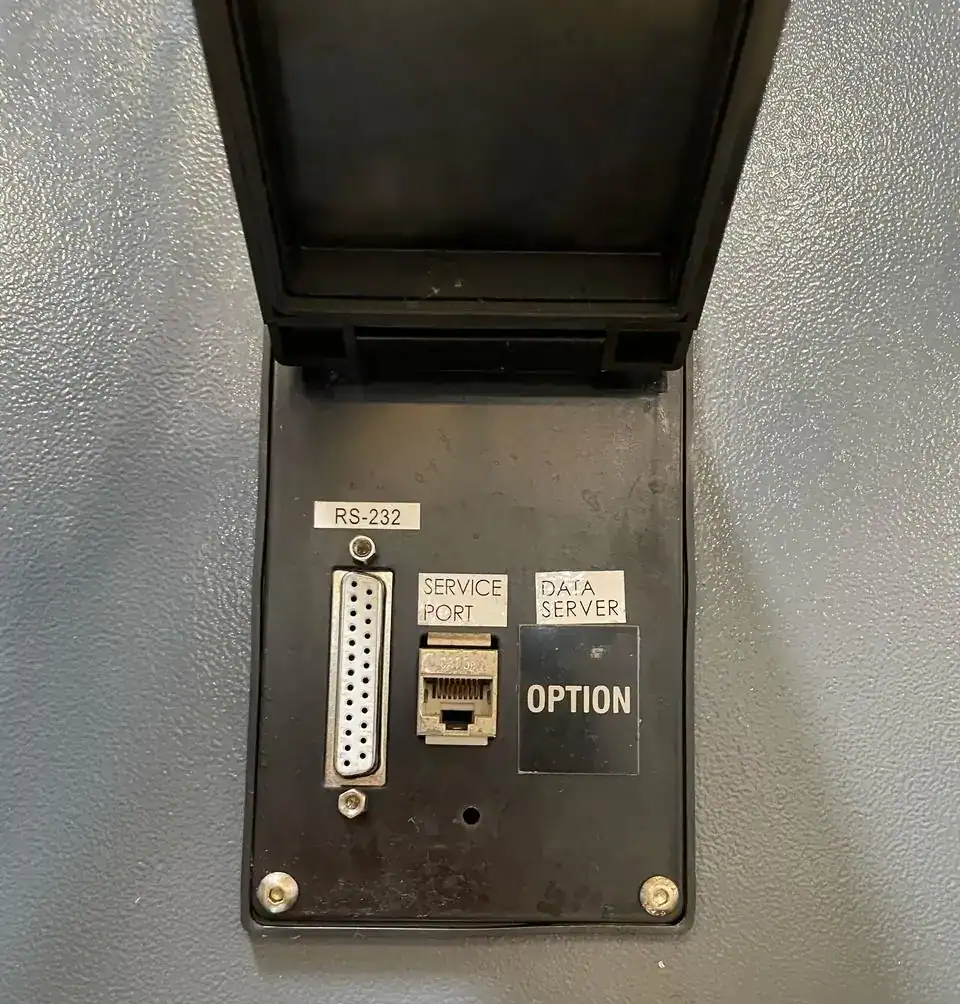

| RS-232 & Service Port |
| MPG Handwheel Control |
| Rigid Tapping |
| Telescopic way covers |

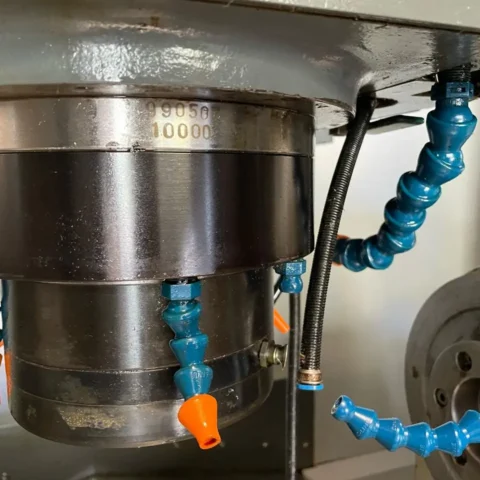

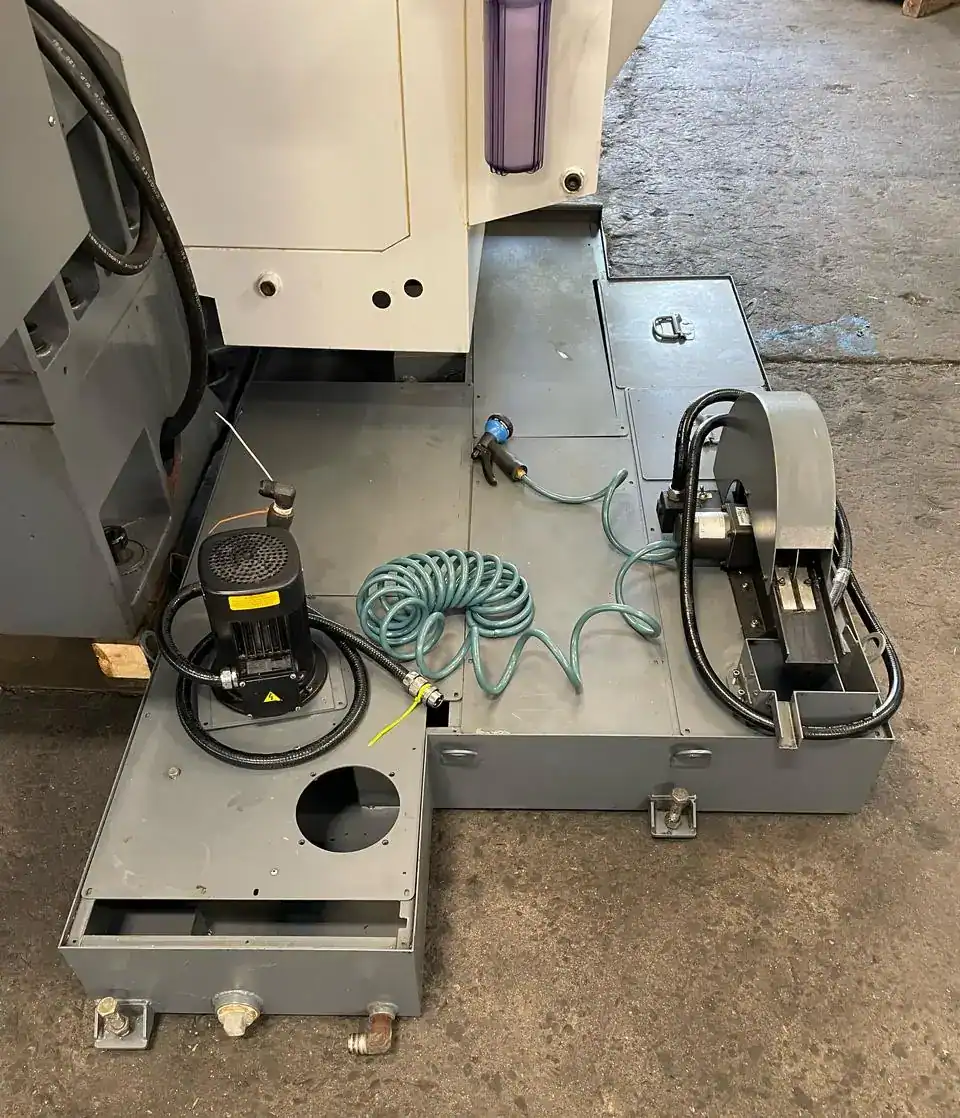

| Coolant system |

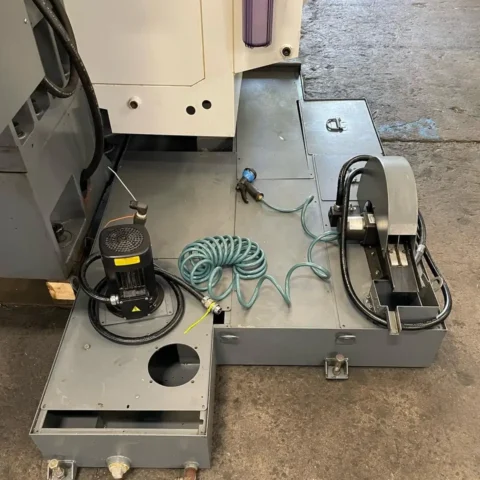

| Chip Auger |
| One Owner Machine, Comes with Original Paint, Used For Only Prototype Parts |
| Travels: |
|---|
| X-Axis: 40.0″ |
| Y-Axis: 20.4″ |
| Z-Axis: 21.2″ |
| Rapid Traverse Rates X Y Axis: 1491 Inch Per Minute |
| Rapid Traverse Rates Z Axis: 995 Inch Per Minute |
| Cutting Feed Rates: 394 Inch Per Minute |
| Spindle Nose to Table (Min.- Max.): 6.7″ – 27.9″ |

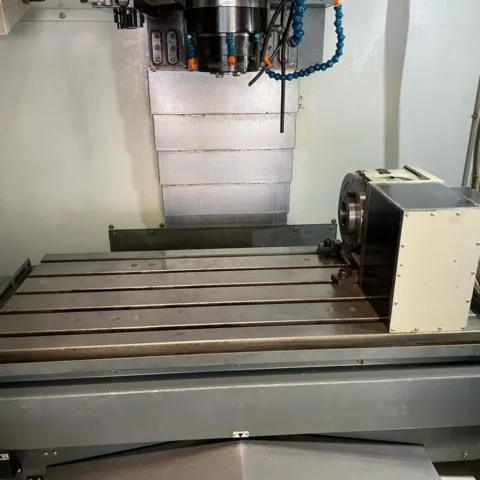

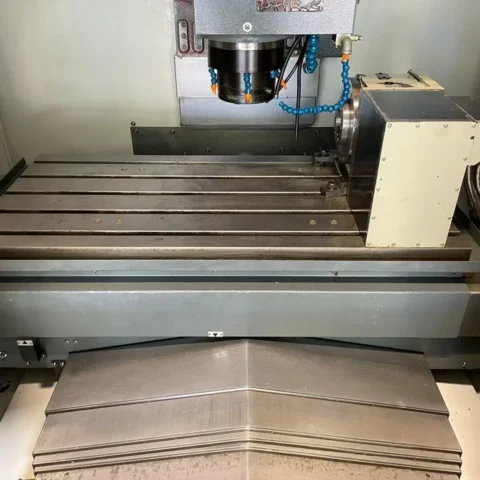

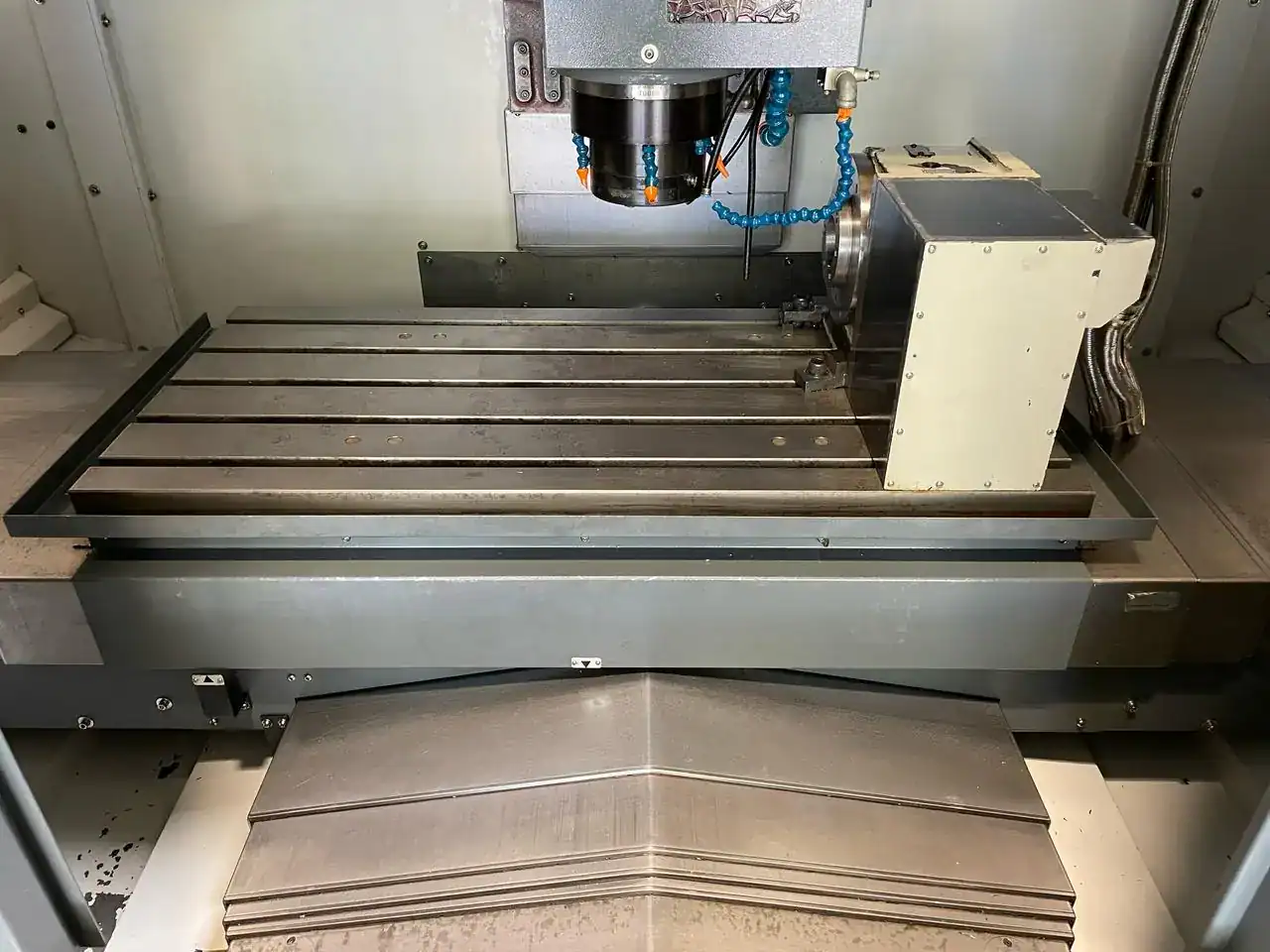

| Table: |
|---|
| Length: 40.0″ |
| Width: 20.4″ |
| Number of Std T-Slots: 5 |
| T-Slot Width: 5/8″ |
| Max Weight on Table: 1102 lbs |

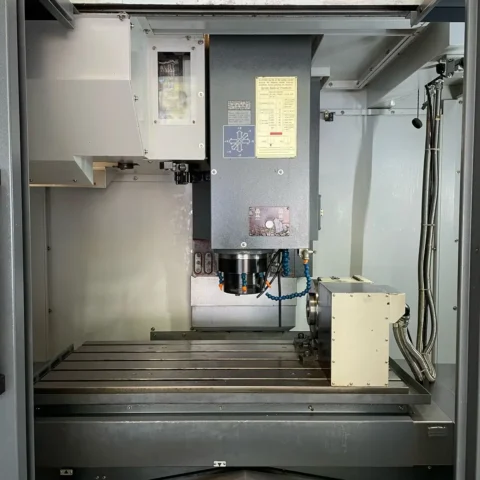

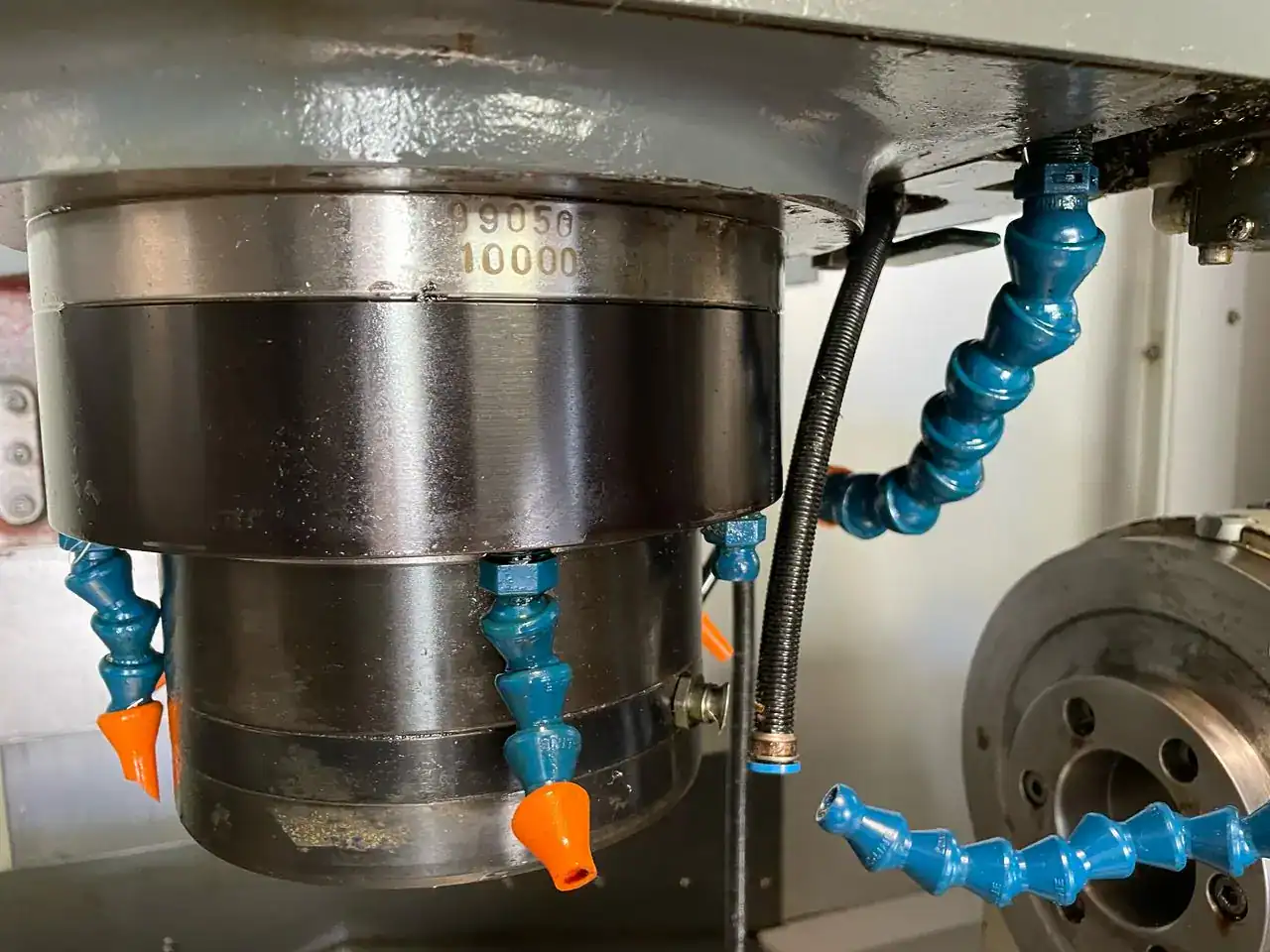

| Spindle: |
|---|
| Spindle: Taper Size: CAT-40 |
| Speed Range: 10,000 RPM |
| Spindle Power: 30 HP |
| Automatic Tool Changer: |
|---|
| Capacity: 24 Tools |
| Tool Weight: 13.2 lbs |
| Max Tool Dia: 3.15″ |
| Max Tool Length: 11.81″ |
| Tool Changing Time: 2.5 Seconds |
| General: |
|---|
| Air Required: 100 psi 4 scfm |

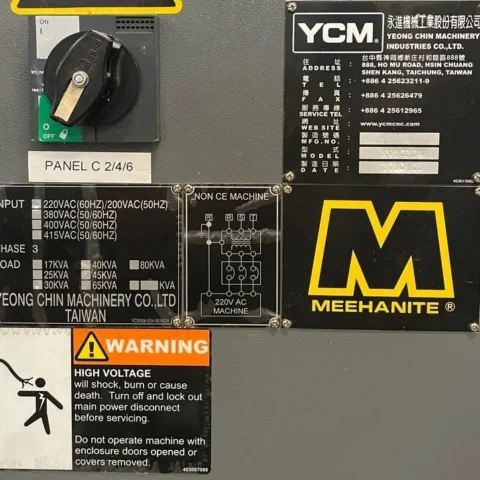

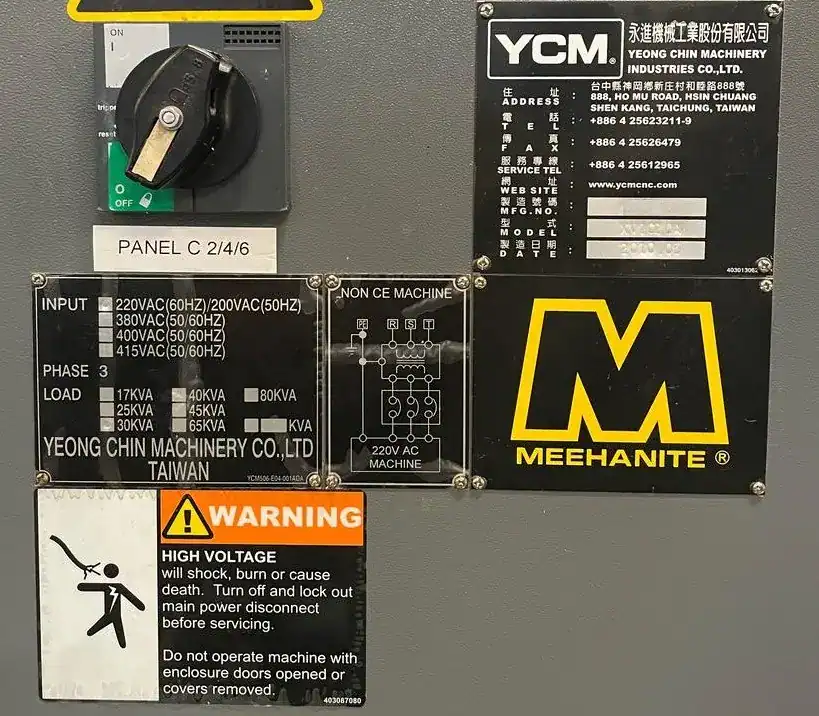

| Power: 220v / 60 Hz / 3-Phase |
| Overall Dimensions: 120″ x 112″ x 115″ High Approx. |
| Weight: 11,850 lbs Approx. |
