*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Akira Seiki |
| Model: | SR3A |
| Year: | 2019 |
| Features: |
|---|

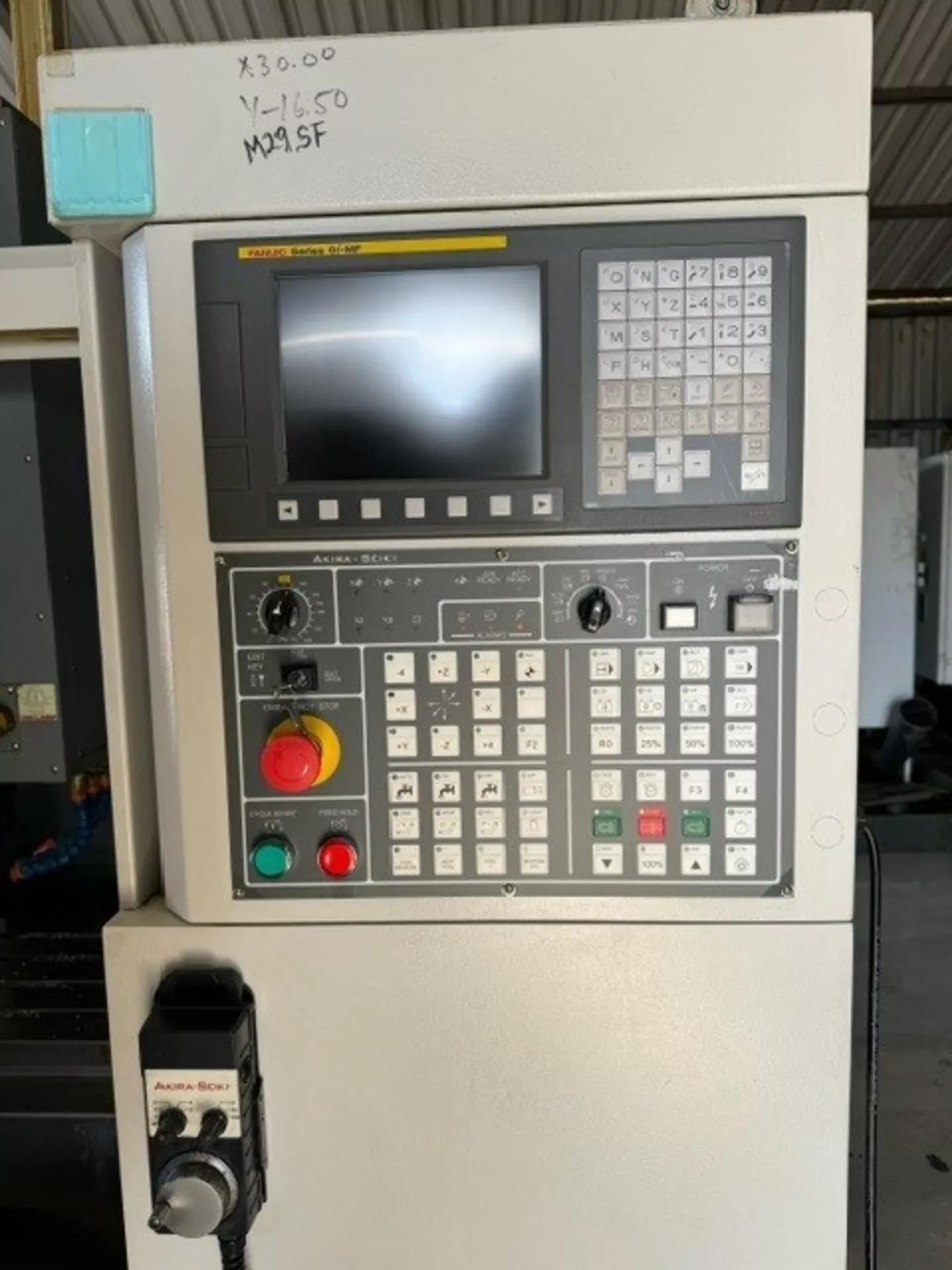

| Fanuc Series 0i-MF CNC Control |
| 11,000 RPM High-Speed Spindle |
| CAT-40 Spindle |
| 20-Position Automatic Tool Changer |
| Chip Auger |
| Flood Coolant System |
| Machine Enclosure |
| Remote MPG Handwheel Pendant |
| Rigid Tapping |
| Automatic Lubrication System |
| Work Light |
| Low Hours |
| TRAVELS: |
|---|
| X-Axis: 30.0″ |
| Y-Axis: 16.5″ |
| Z-Axis: 18.1″ |
| Spindle Nose to Table (Min.-Max.): 5.9″ – 23.8″ |
| Rapid Traverse Rates: 1,417 IPM |
| Feed Rates: 394 IPM |
| TABLE: |
|---|
| Length: 35.4″ |
| Width: 16.5″ |
| Max Weight on Table: 2,426 lbs |
| SPINDLE: |
|---|
| Taper Size: CAT-40 |
| Speed Range: 11,000 RPM |
| Spindle Power: 20 HP |
| AUTOMATIC TOOL CHANGER: |
|---|
| Capacity: 20 Tools |
| Max Tool Diameter: 3.15″ |
| Max Tool Length: 11.8″ |
| Max Tool Weight: 15.4 lbs |
| GENERAL: |
|---|
| Power: 220 Volt / 3 Phase |
| Overall Dimensions: 83″ W x 76″ D x 100″ H Approx. |
| Weight: 7,500 lbs Approx. |
