Used Amada HFT 220-4S 4 Axis CNC Press Brake

Amada HFT 220-4S 4 Axis CNC Press Brake

Location Houston, TX

SKU 2316

Make/Model Amada HFT 220-4S

Video No Video

Out of stock

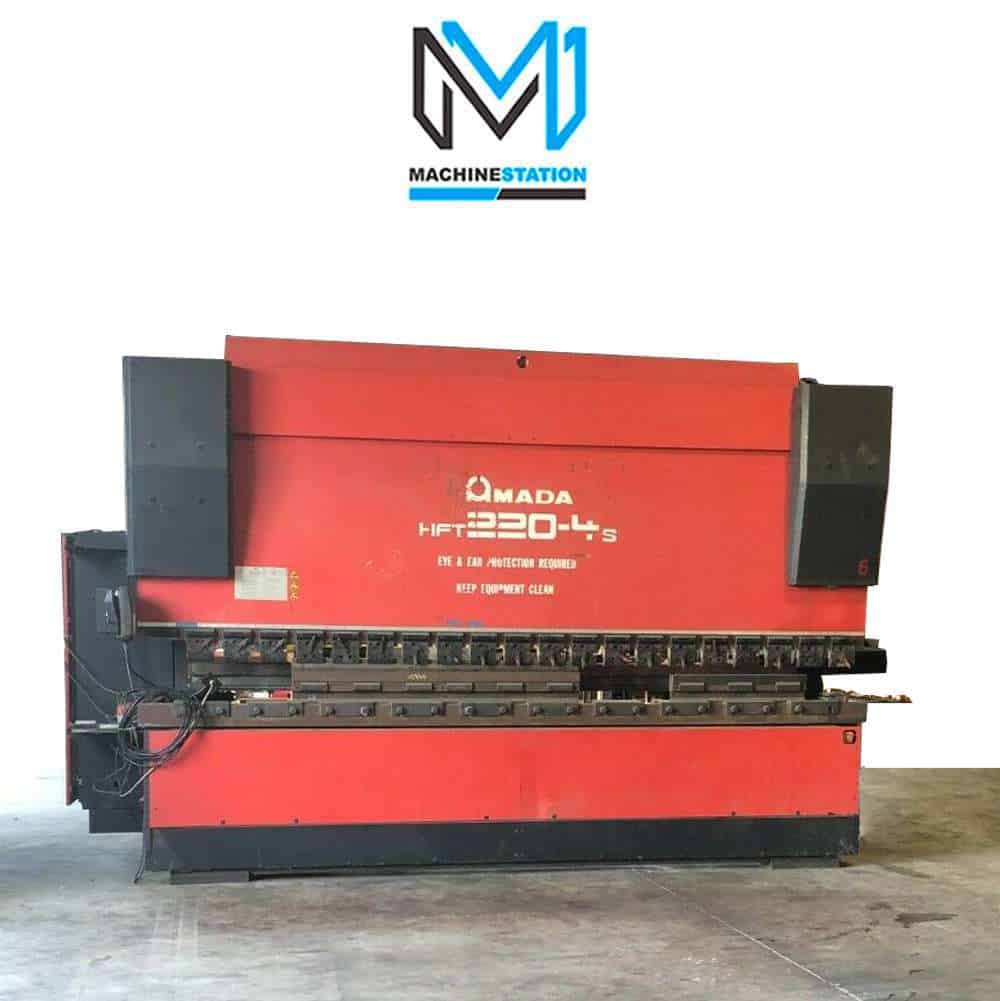

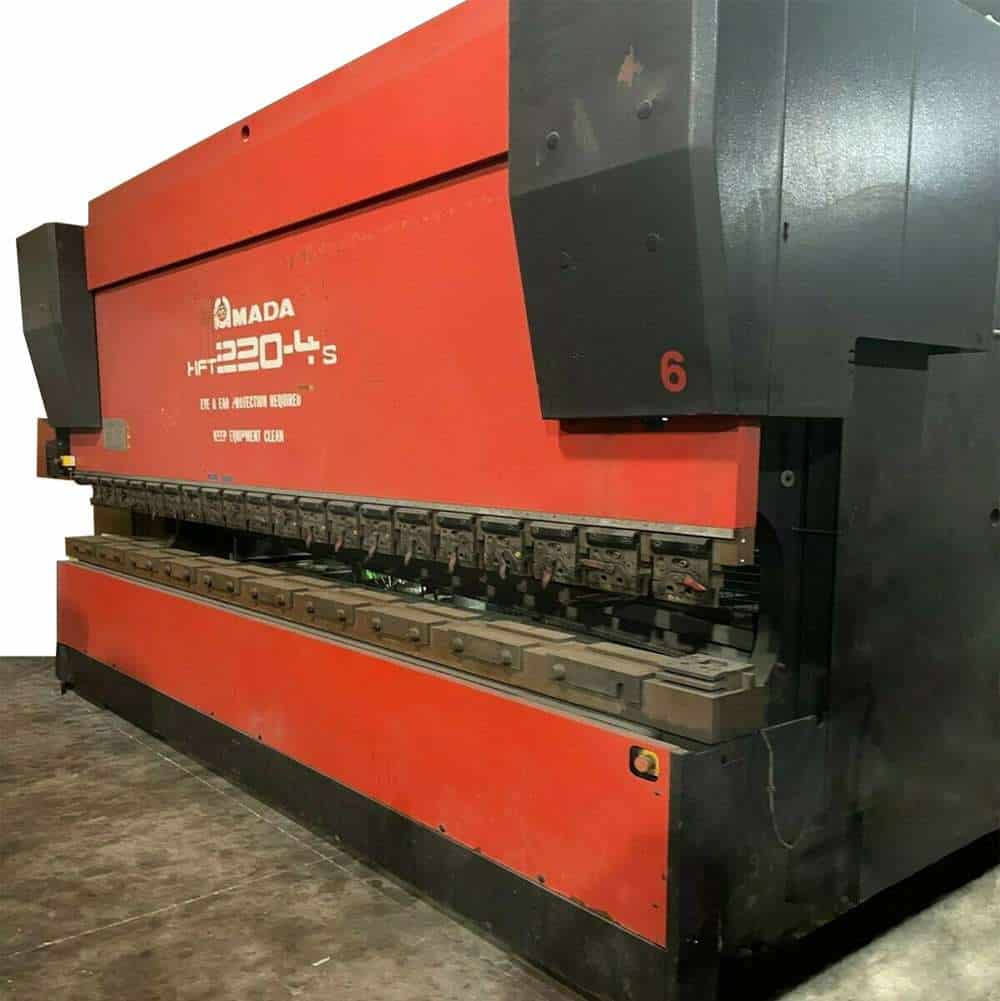

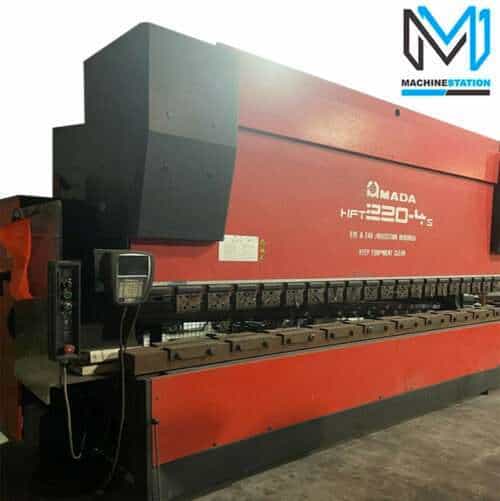

Used Amada HFT 220-4S 4 Axis CNC Press Brake for Sale.

Location:	Houston, TX
SKU:	2316
Make/Model:	Amada HFT 220-4S
Video:	No Video

SKU: 2316

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

SKU:	2316
Make:	Amada
Model:	HFT 220-4S
Year:	2003

Features:

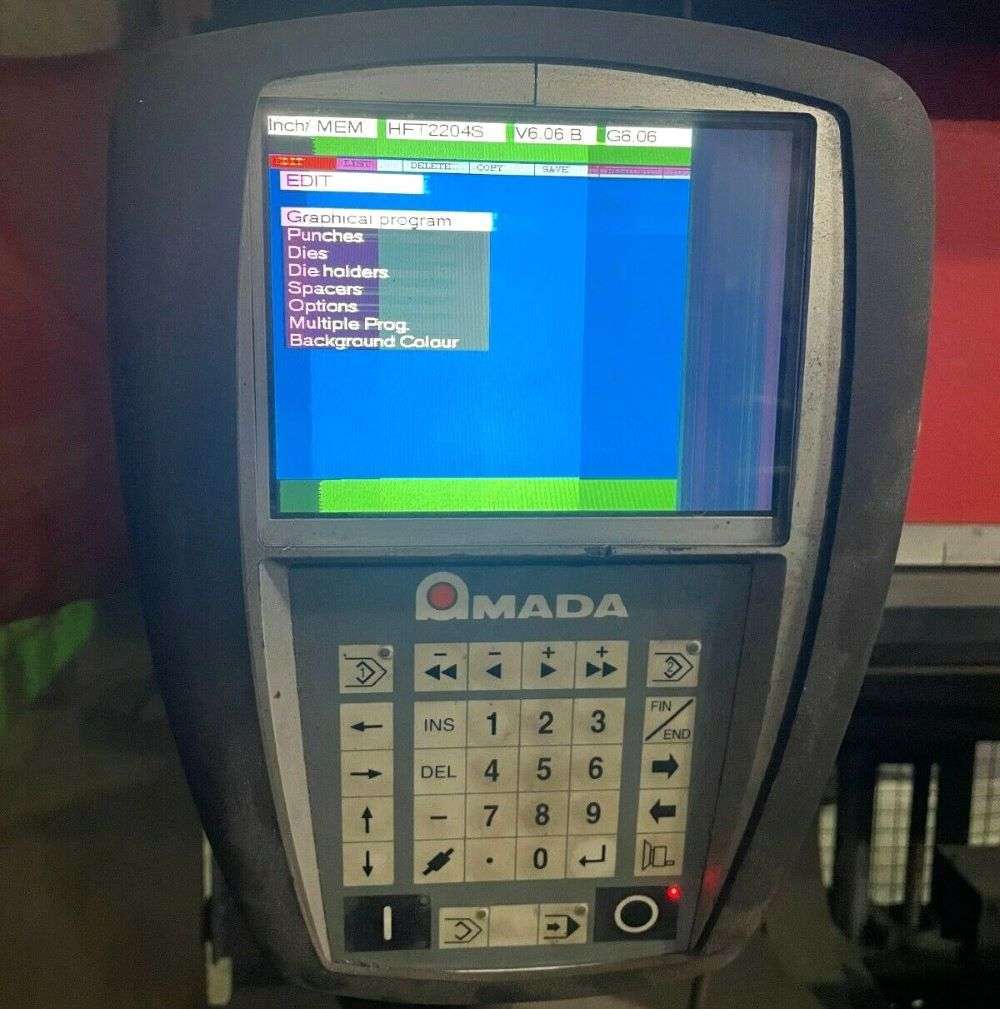

Amada CNC Control
4 Axis Control and Back Gauge
Controlled Axis Y1, Y2, X, R

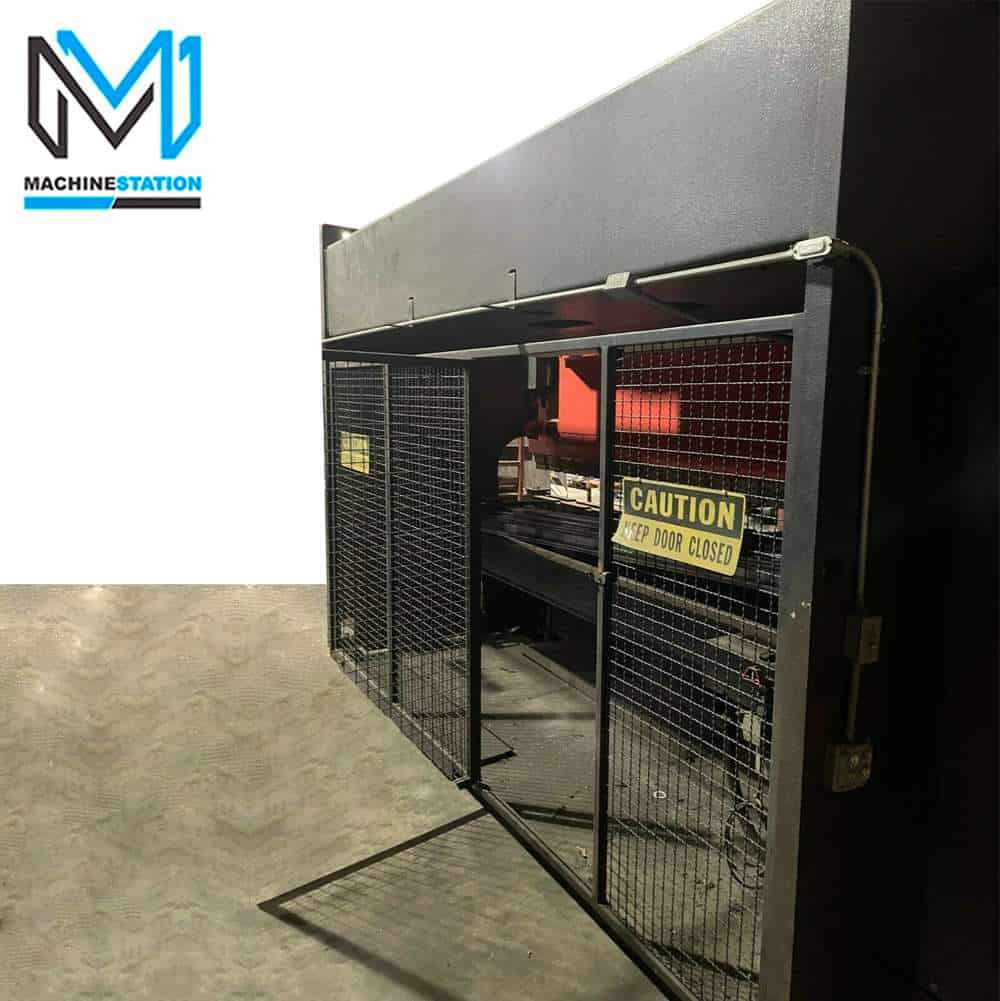

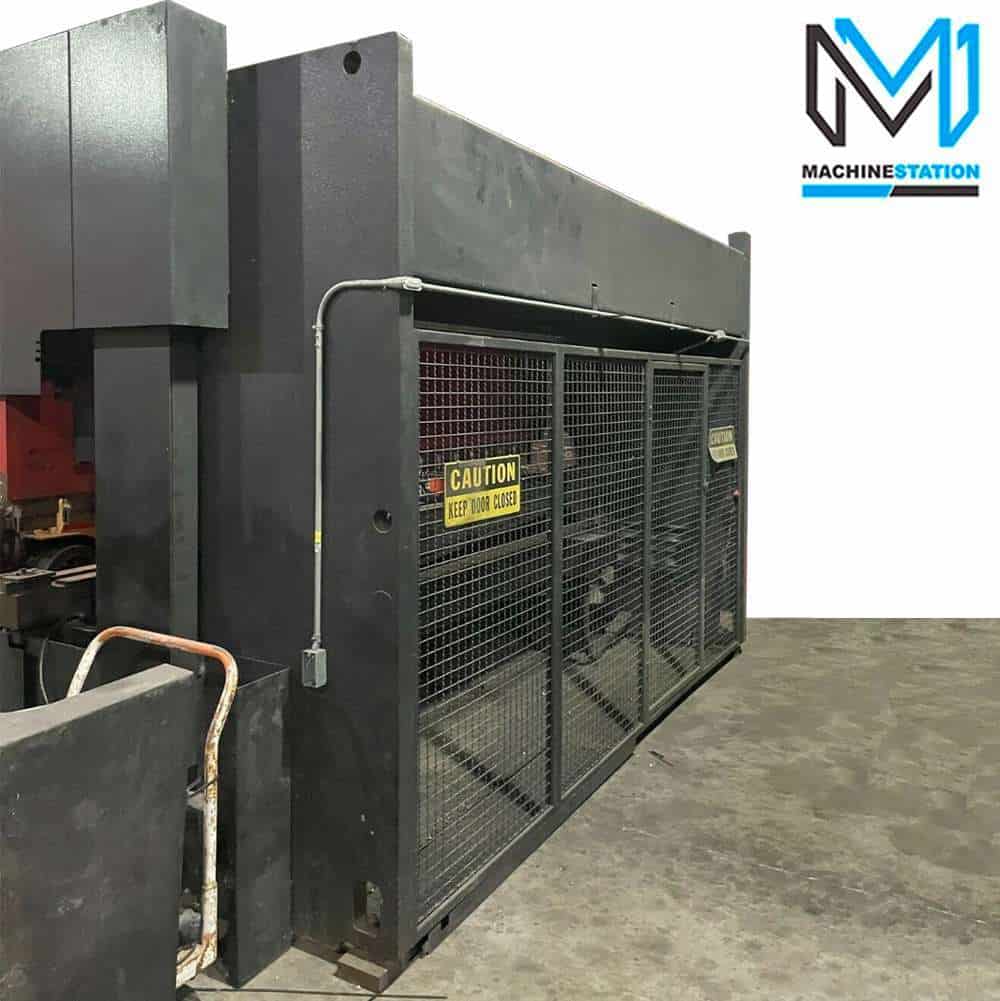

Side & Rear Safety Guards
Remote Control

Specifications:
Capacity: 220 Ton
Press Beam Length: 168″
Distance Between Frames: 148″
Length of Stroke: 10″
Open Height: 24.40″
Closed Height: 10.7″
Throat Depth: 16.5″
Bending Speed: 0.39” Per Second
Approach Speed: 3.93” Per Second
Return Speed: 3.93” Per Second

General:
Power Source: AC 460 V, Three Phase, 60 Hz
Overall Dimensions: 201.50″ X 79.50″ x 128.75″ High
Weight : 37,700 lbs Approx.

Specifications:
Capacity: 220 Ton
Press Beam Length: 4,267 mm
Distance Between Frames: 3,759 mm
Length of Stroke: 254 mm
Open Height: 620 mm
Closed Height: 272 mm
Throat Depth: 419 mm
Bending Speed: 0.39” Per Second
Approach Speed: 3.93” Per Second
Return Speed: 3.93” Per Second

General:
Power Source: AC 460 V, Three Phase, 60 Hz
Overall Dimensions: 5,118 mm X 2,019 mm x 3,270 mm High
Weight : 37,700 lbs Approx.

Make	Amada

Amada CNC Control
4 Axis Control and Back Gauge
Controlled Axis Y1, Y2, X, R
Side & Rear Safety Guards
Remote Control

Payment Terms

A booking deposit secures the machine, with the remaining balance due prior to loading or shipment. We accept bank transfer, wire transfer, and approved payment methods.
