New Arrival

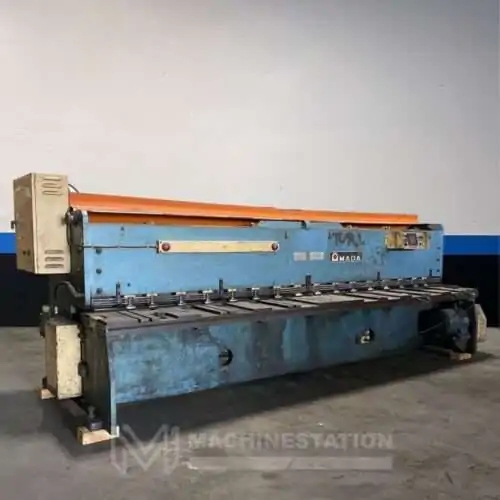

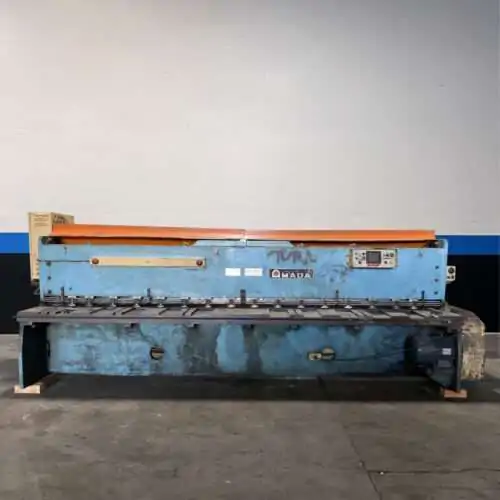

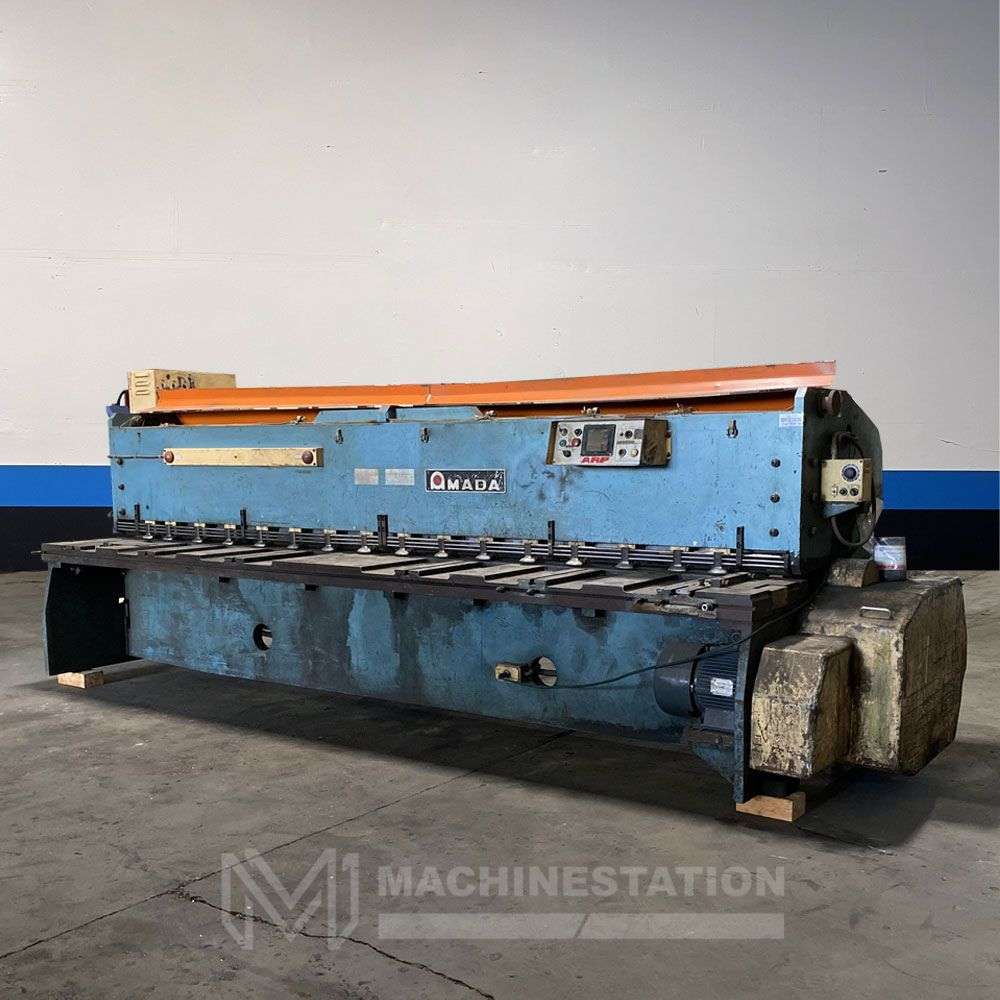

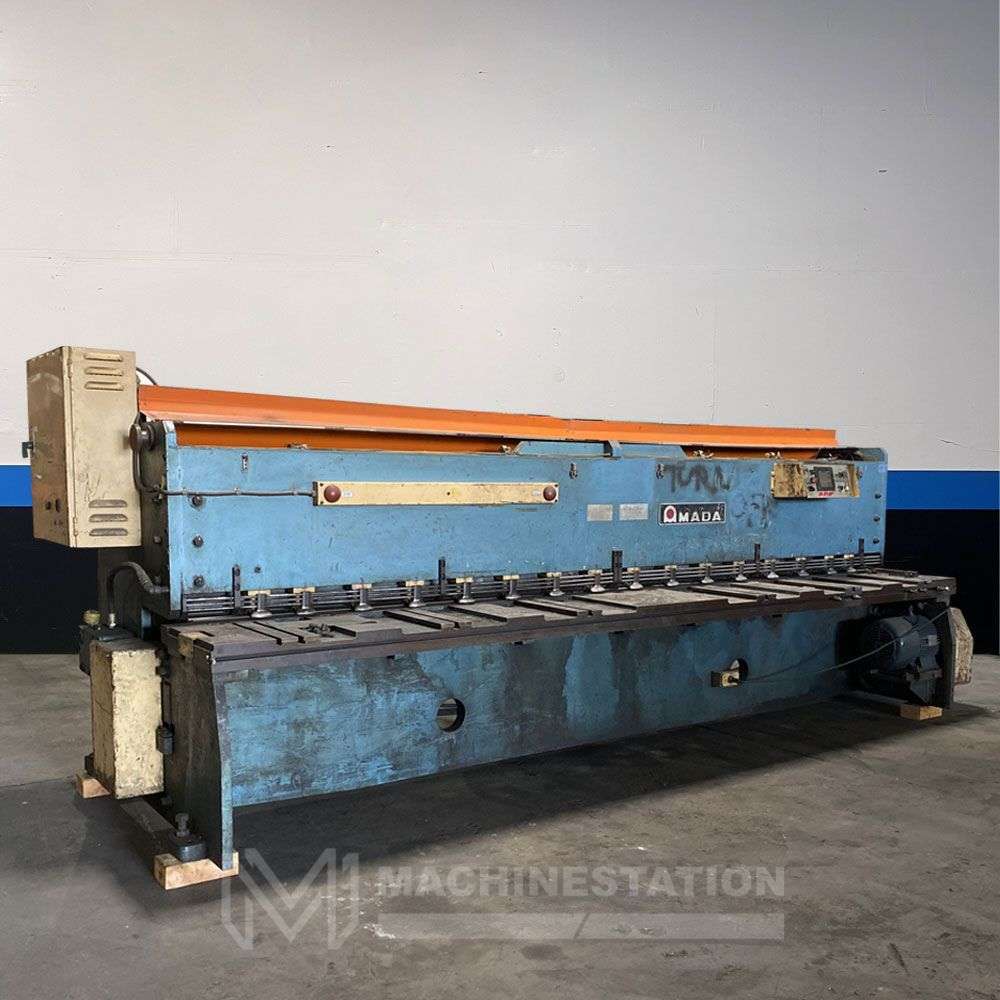

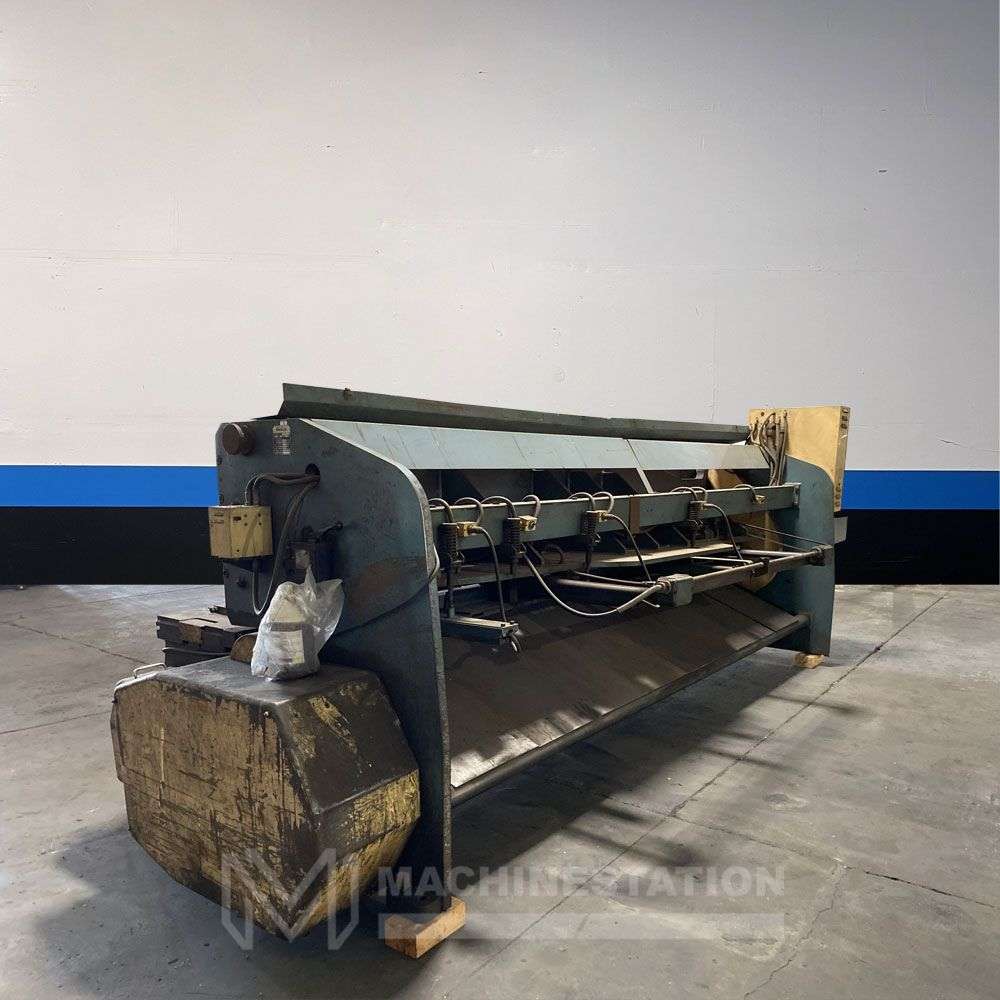

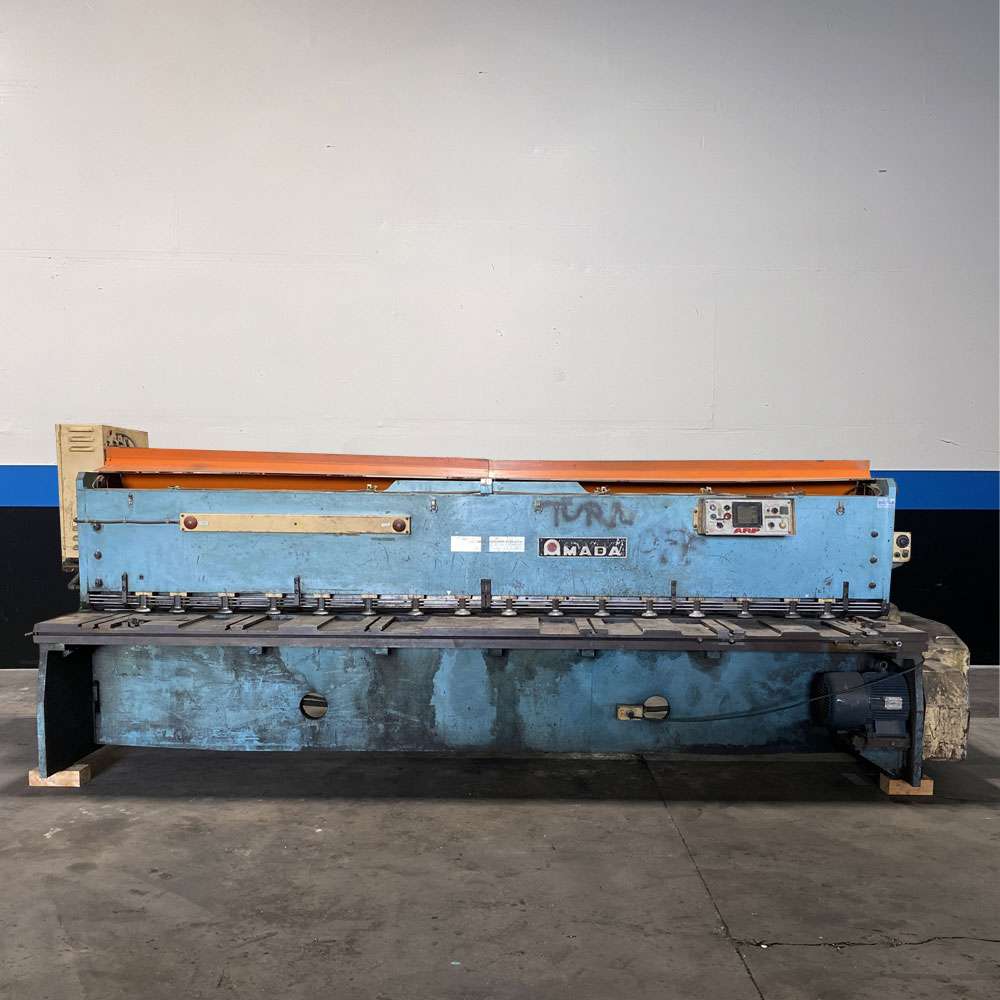

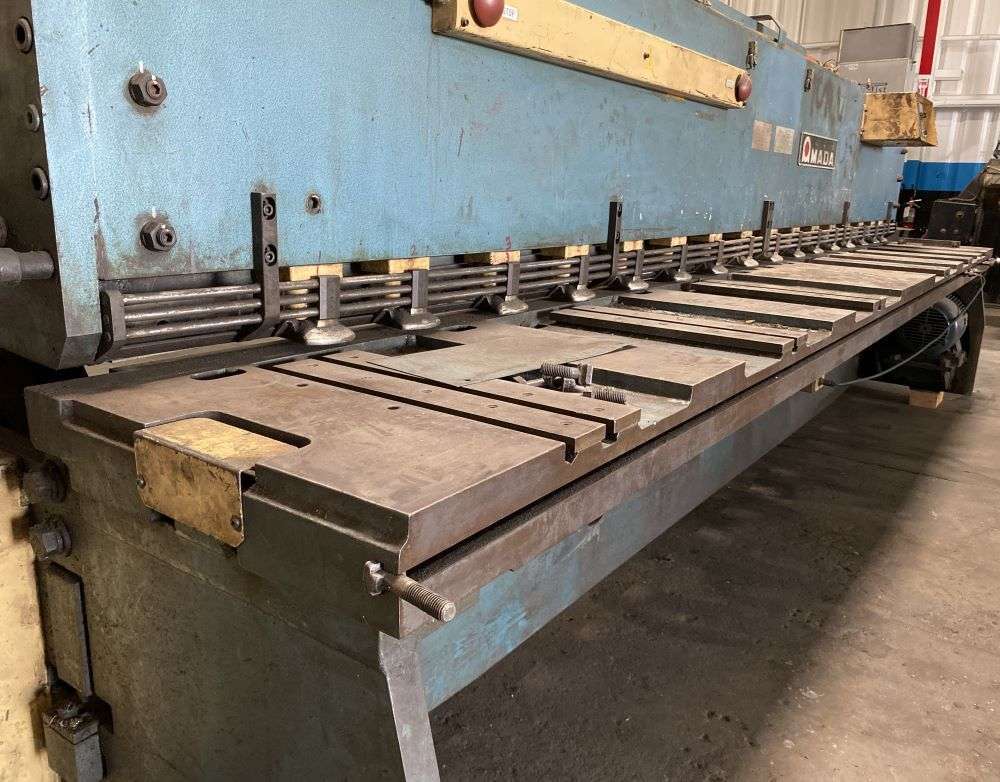

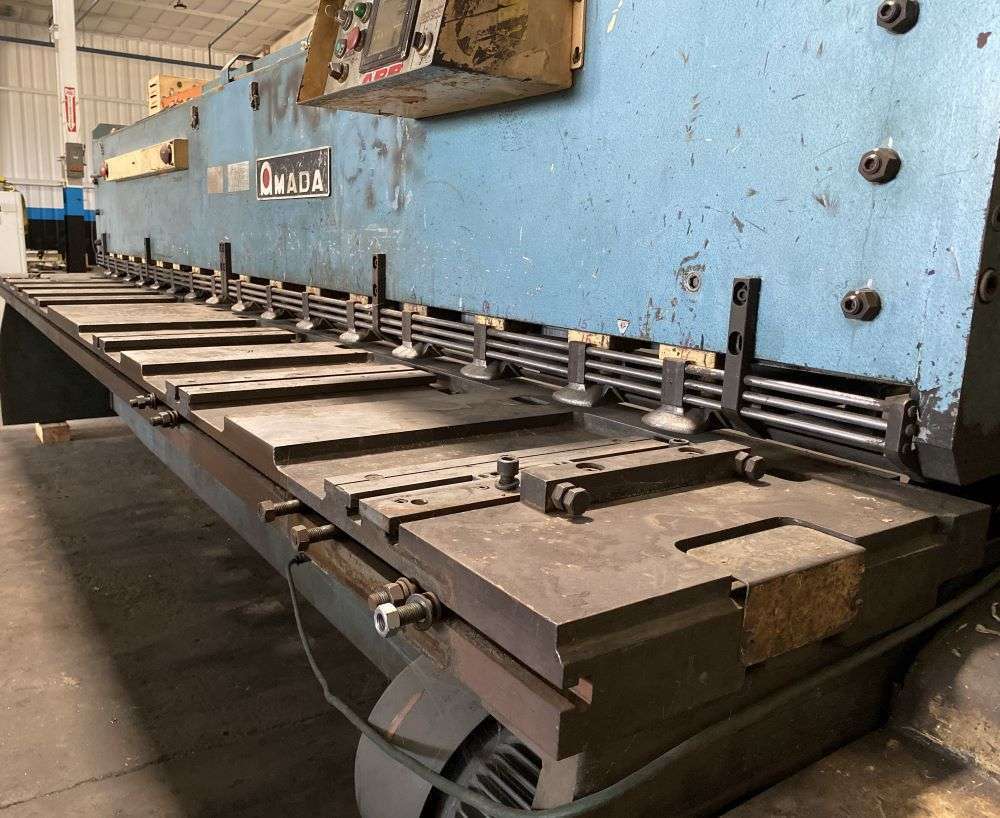

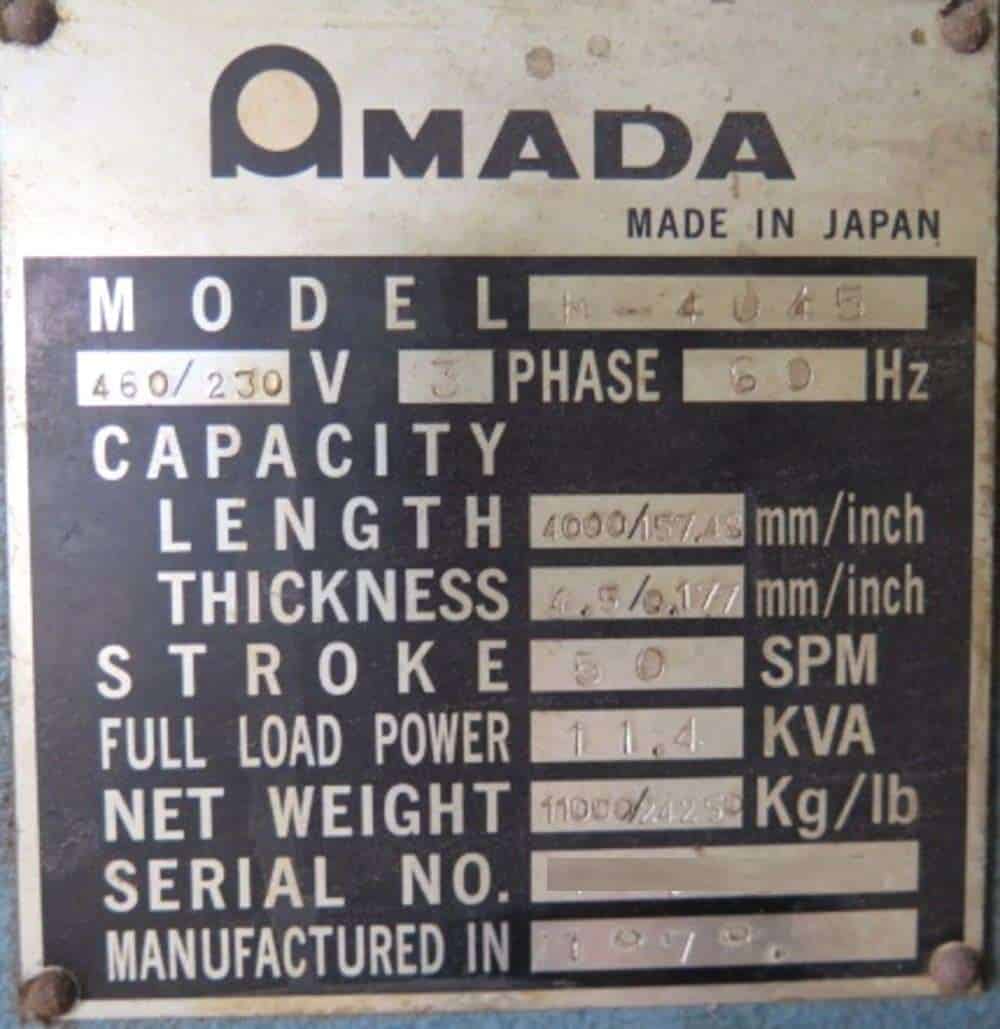

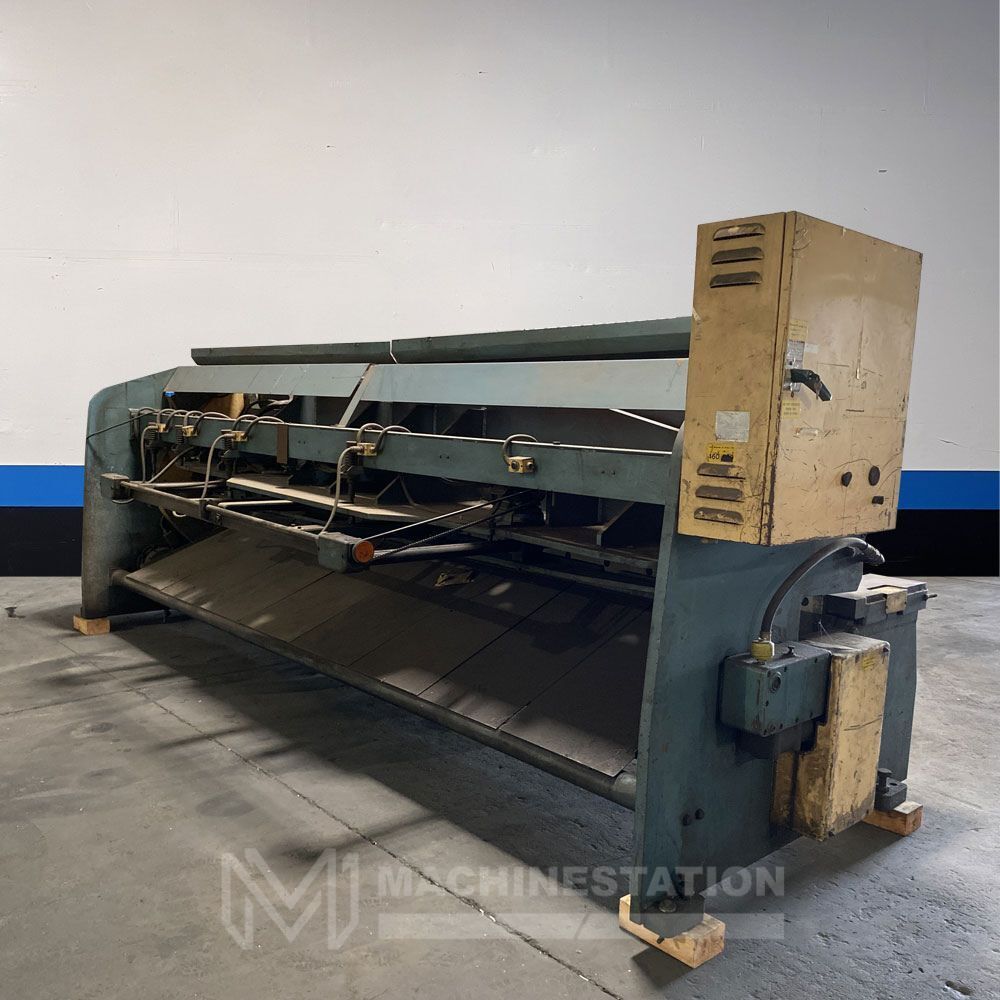

Amada M-4045 Power Squaring Shear

1 in stock
Location:Lake Elsinore, CA
SKU:112559
Make/Model:AMADA M-4045
Video:No Video
SKU: 112559

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

SKU:112559
Make:AMADA
Model:M-4045
Condition:Used – Good



Equipped With:

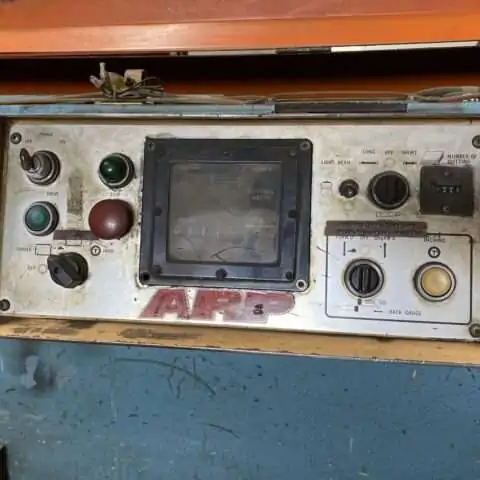

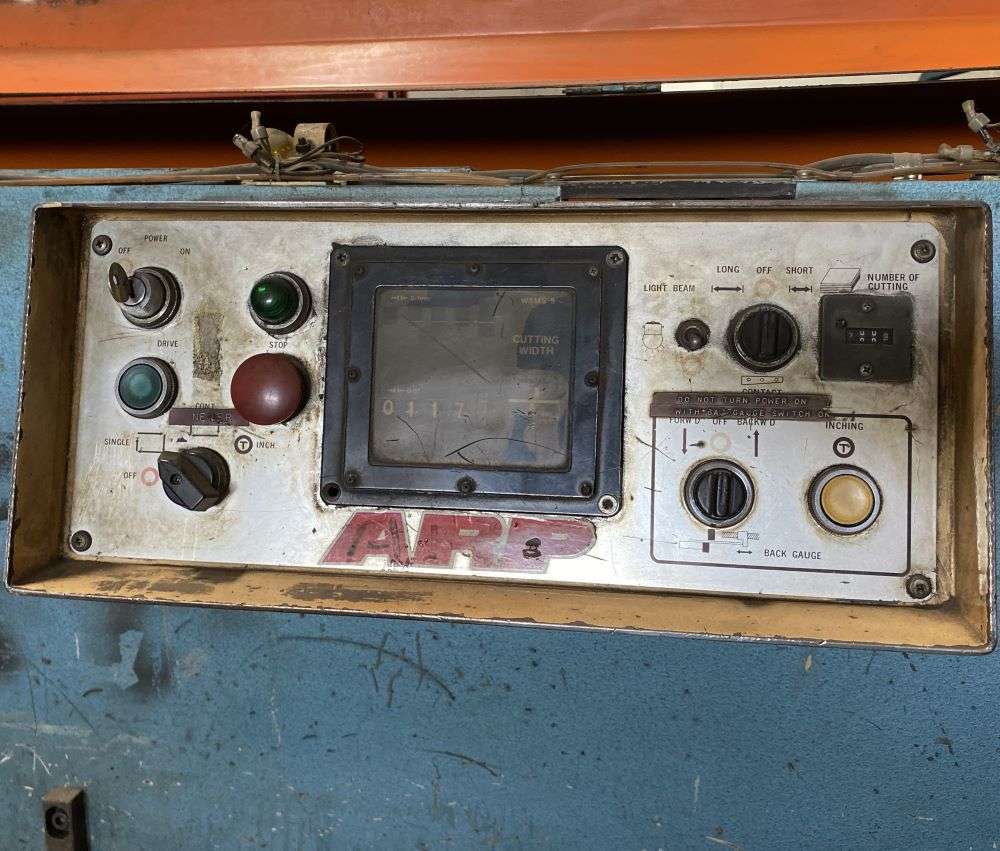

Amada Control
Back Gauging
Squiring Arm

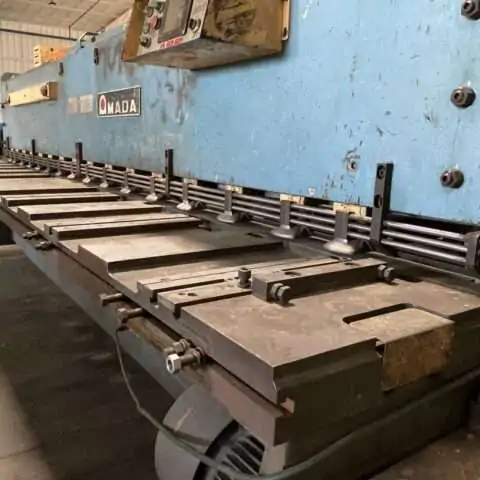

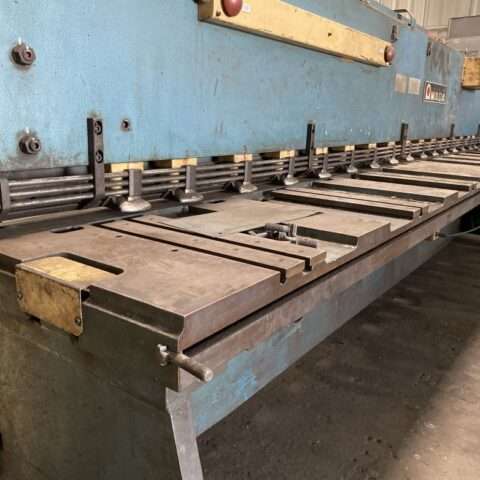

Front Supports
15 HP Motor
Foot Switch



Capacity:
Max Cutting Length: 157.48″
Max Cutting Thickness: 0.177″ (4.5 mm)
Back Gauge: 40″
Strokes : 50 SPM
Power : 15 HP



General:
Power: 460/220v / 3-Phase / 60 Hz / 11.4 kva
Overall Dimensions: 192″ x 72″ x 72″ High
Weight: 24,200 lbs
