*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Averex |
| Model No.: | HS-450i |
| Year of Manufacture: | 2012 |
| Condition: | Used – Good |
| Machine Type: | CNC Horizontal Machining Center (HMC) |
| CNC Control: | Averex-Fanuc MPro |
| Equipped With: |
|---|
| Fanuc CNC Control (Averex MPro Interface) |
| Automatic Pallet Changer (2-Pallet System) |
| Automatic Tool Changer |
| High-Speed Spindle |
| Through-Spindle Coolant Capability |
| Chip Conveyor |
| Coolant System |
| Automatic Lubrication System |
| Fully Enclosed Splash Guard |
| Work Light |
| Operator Pendant |
| Capacity: |
|---|
| Pallet Size: 15.7″ × 15.7″ |
| Maximum Workpiece Diameter: 30.9″ |
| Maximum Workpiece Height: 39.4″ |
| Maximum Pallet Load: 1,210 lbs |
| Travel: |
|---|
| X-Axis Travel: 25.2″ |
| Y-Axis Travel: 24″ |
| Z-Axis Travel: 26.8″ |
| Spindle: |
|---|
| Spindle Speed: Up to 15,000 RPM |
| Spindle Motor Power: Approx. 37 kW (50 HP) |
| Spindle Taper: CAT 40 / BBT40 Big-Plus |
| Tool Changer: |
|---|
| Tool Capacity: 40 Tools Standard |
| Optional Tool Capacity: 60 / 80 / 120 / 220 Tools |
| Tool-to-Tool Change Time: Approx. 1 sec |

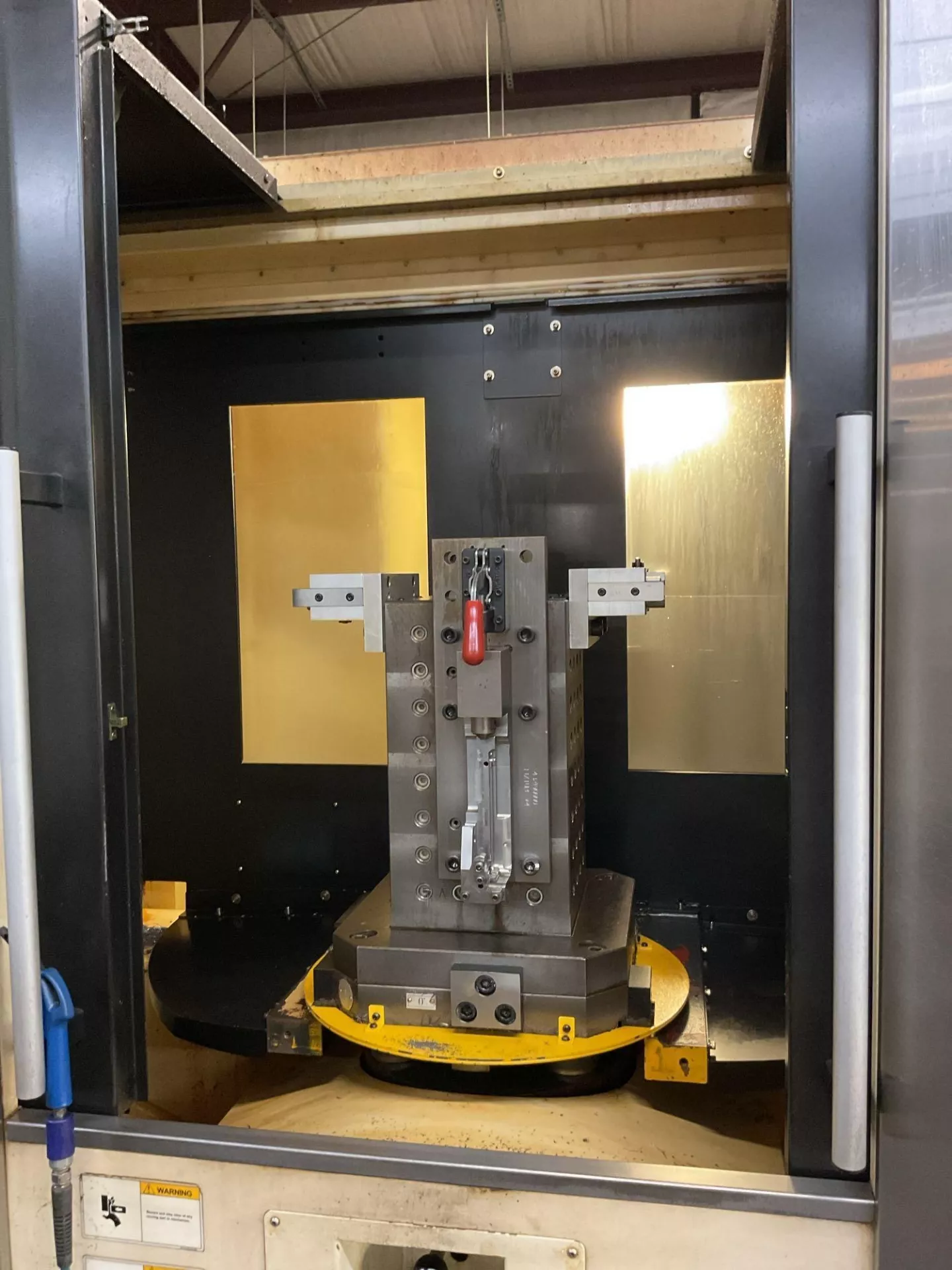

| Pallet System: |
|---|
| Automatic Pallet Changer: 2 Pallets |
| Pallet Change Time: Approx. 5 Seconds Rotation |
| Minimum Indexing: 0.001° |
| Feedrates: |
|---|
| Rapid Traverse (X / Y / Z): 60 m/min |

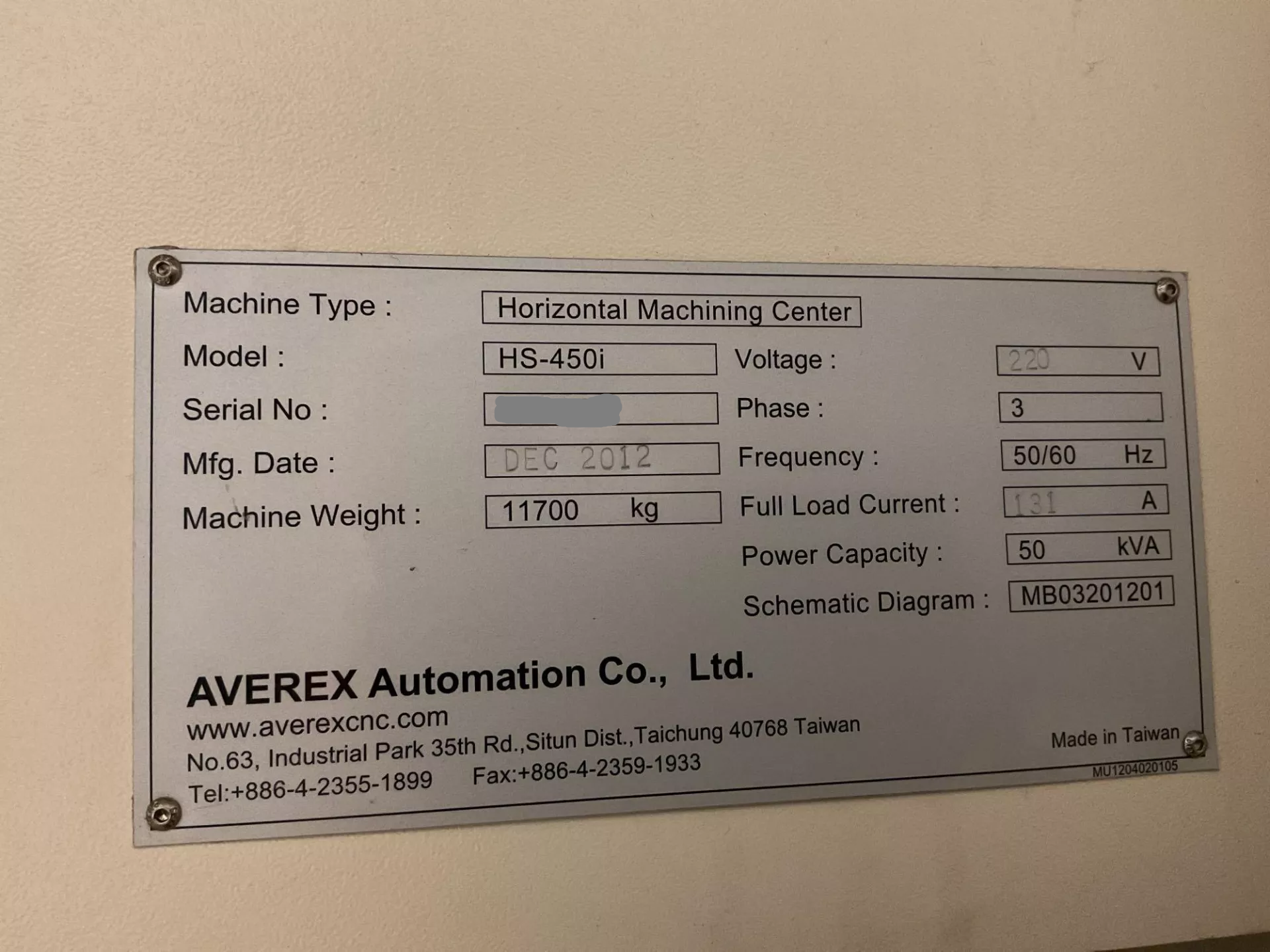

| Electrical: |
|---|
| Voltage: 220 V |
| Phase: 3 Phase |
| Frequency: 50 / 60 Hz |
| Power Capacity: 50 kVA |
| Full Load Current: 131 A |
| General: |
|---|
| Machine Weight: Approx. 25,700 lbs |
| Machine Footprint: Approx. 186″ × 89″ × 102″ |
