*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| SKU: | 113620 |
| Make: | Mazak |
| Model No.: | Variaxis 500-5X |
| Year of Manufacture: | 2005 |
| Condition: | Used – Good |
| Equipped With: |
|---|

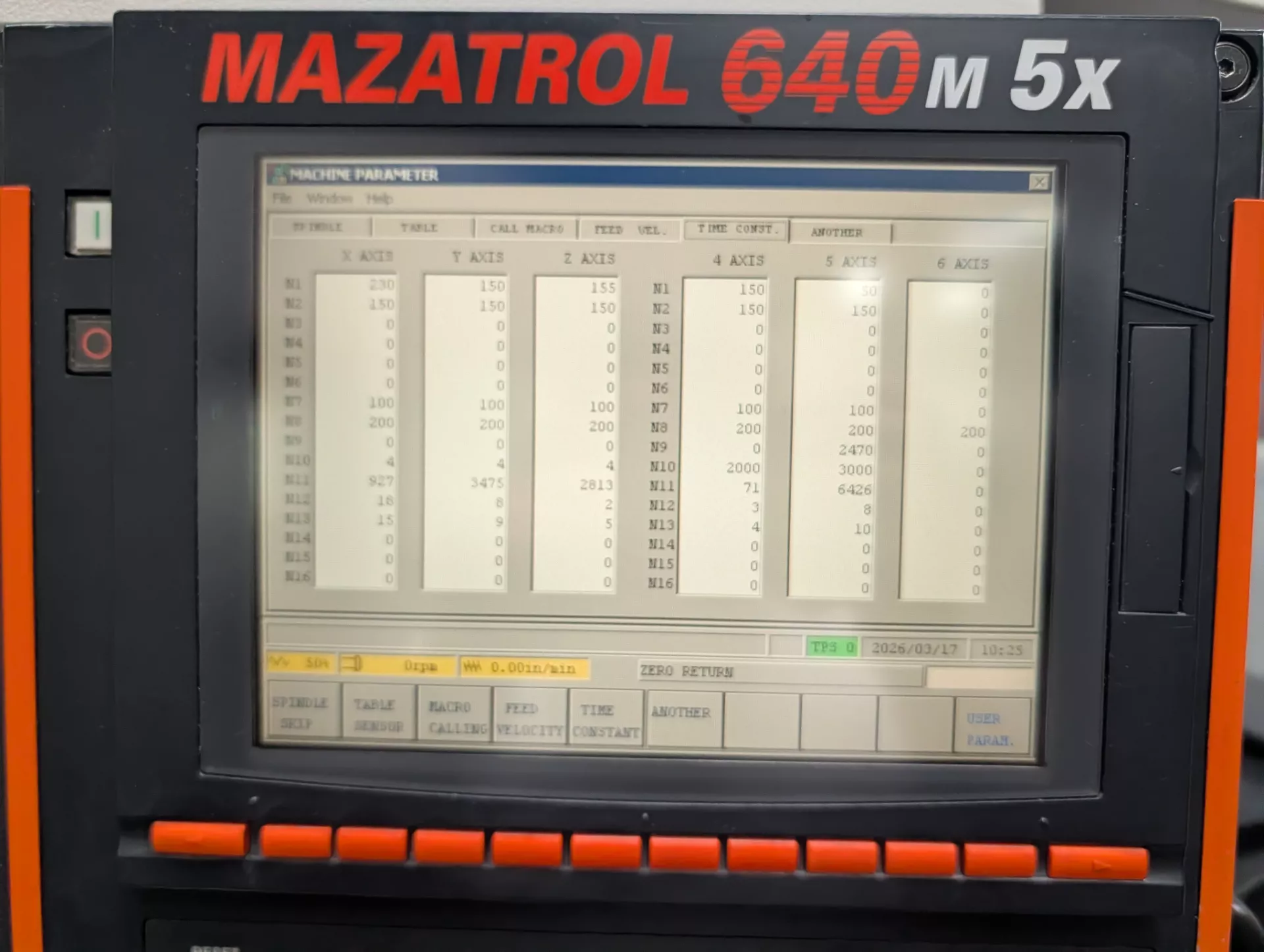

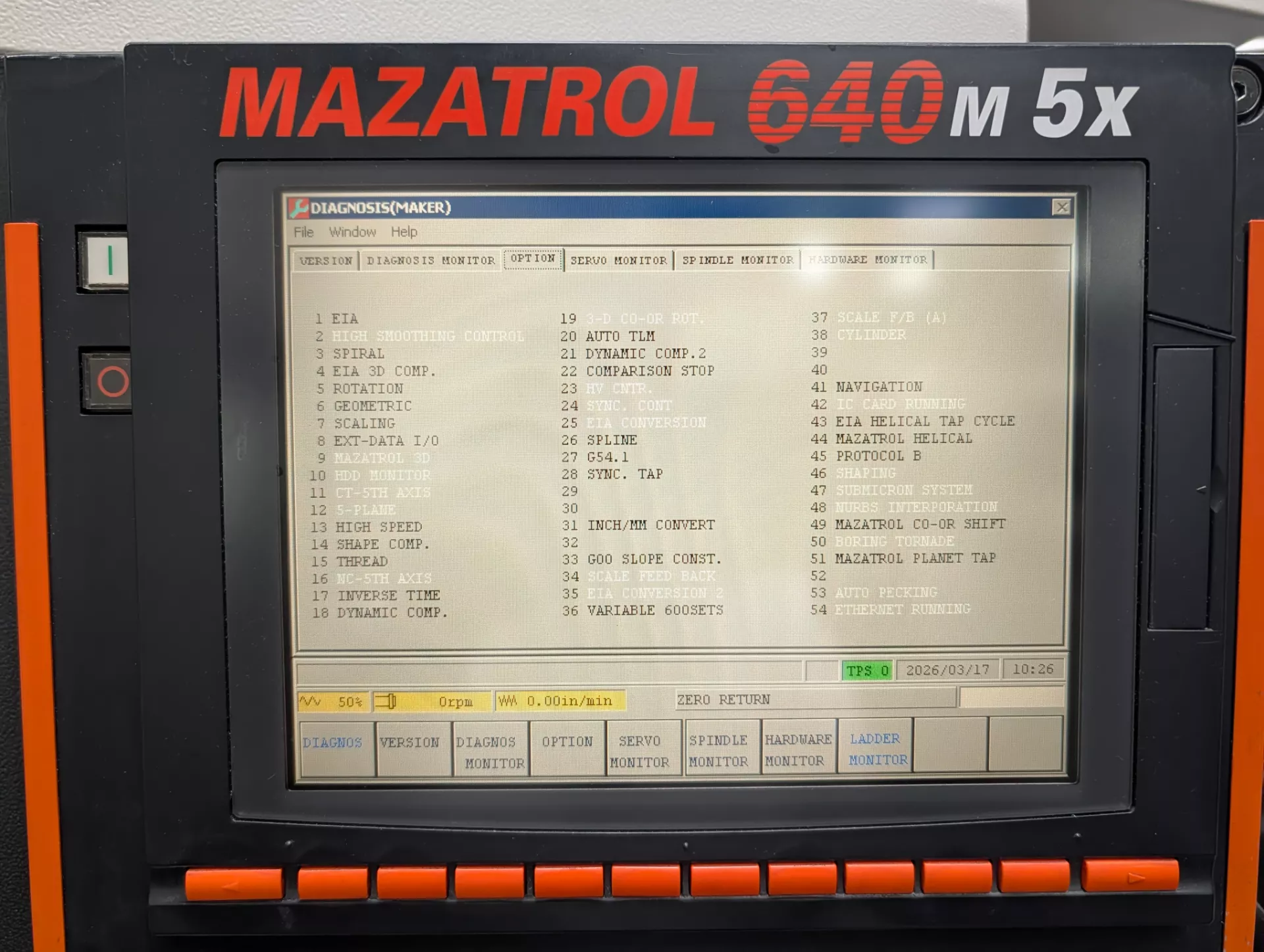

| Mazatrol 640M 5X CNC Control |
| Simultaneous 5 Axis Cutting |
| 19.68 x 15.72” Programmable Swiveling Trunnion Table |
| 12,000 RPM High Precision Spindle |
| 40 Station Automation Tool Changer |
| PCMCIA Card Slot |
| Helical Interpolation |

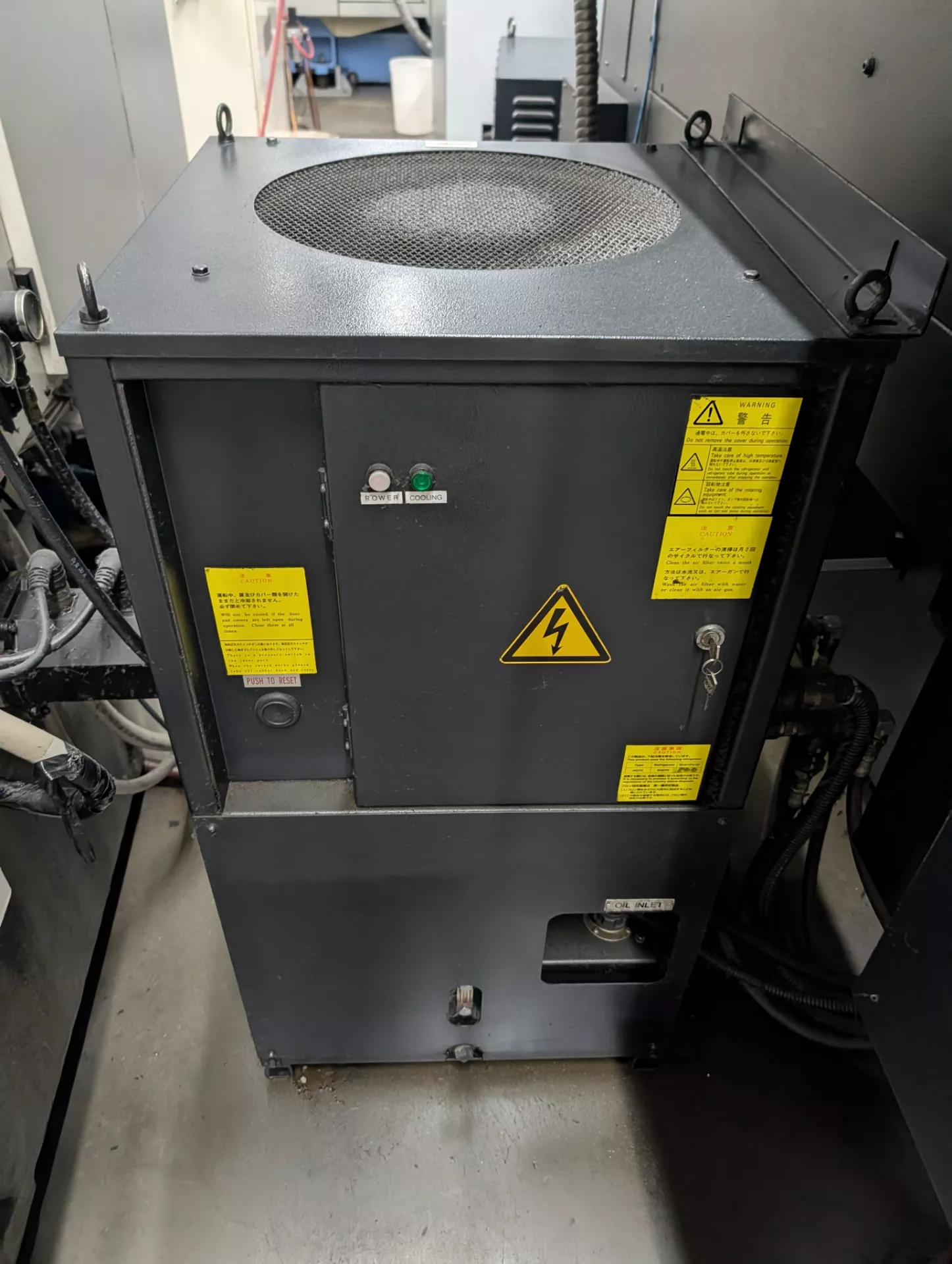

| Spindle Chiller |
| Spindle Orientation |
| Rigid Tapping |
| Absolute Incremental Programming |
| Coolant System |
| Chip Conveyor |

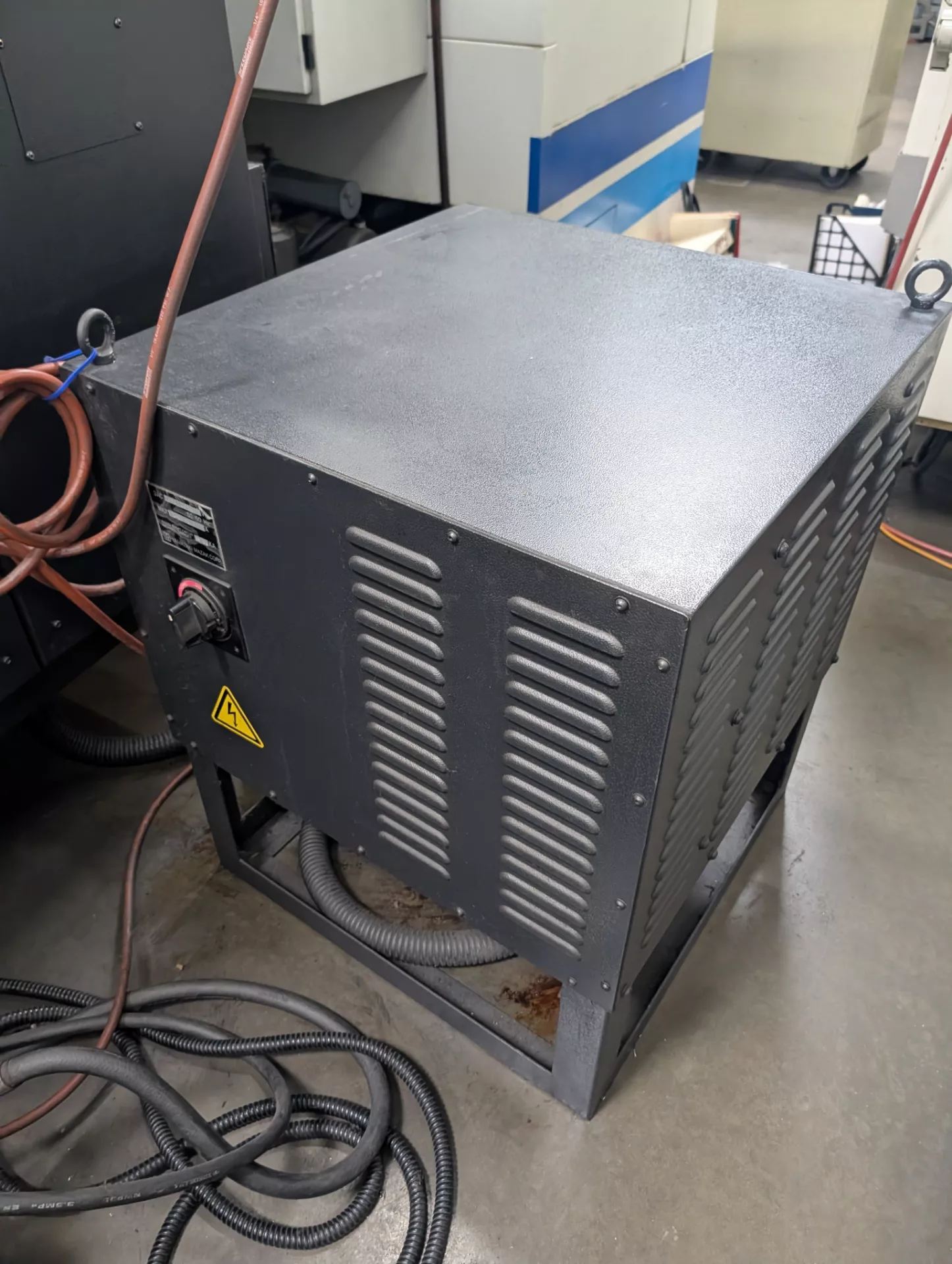

| Transformer |
| Books & Manuals |
| Travels: |
|---|
| X Axis: 20.07″ |
| Y Axis: 20.07″ |
| Z Axis: 18.11″ |
| A Axis: – 120° + 30° ( 150° Table Tilt ) |
| C Axis: 360° ( Table Rotate ) Min. Increment: 0.001° |

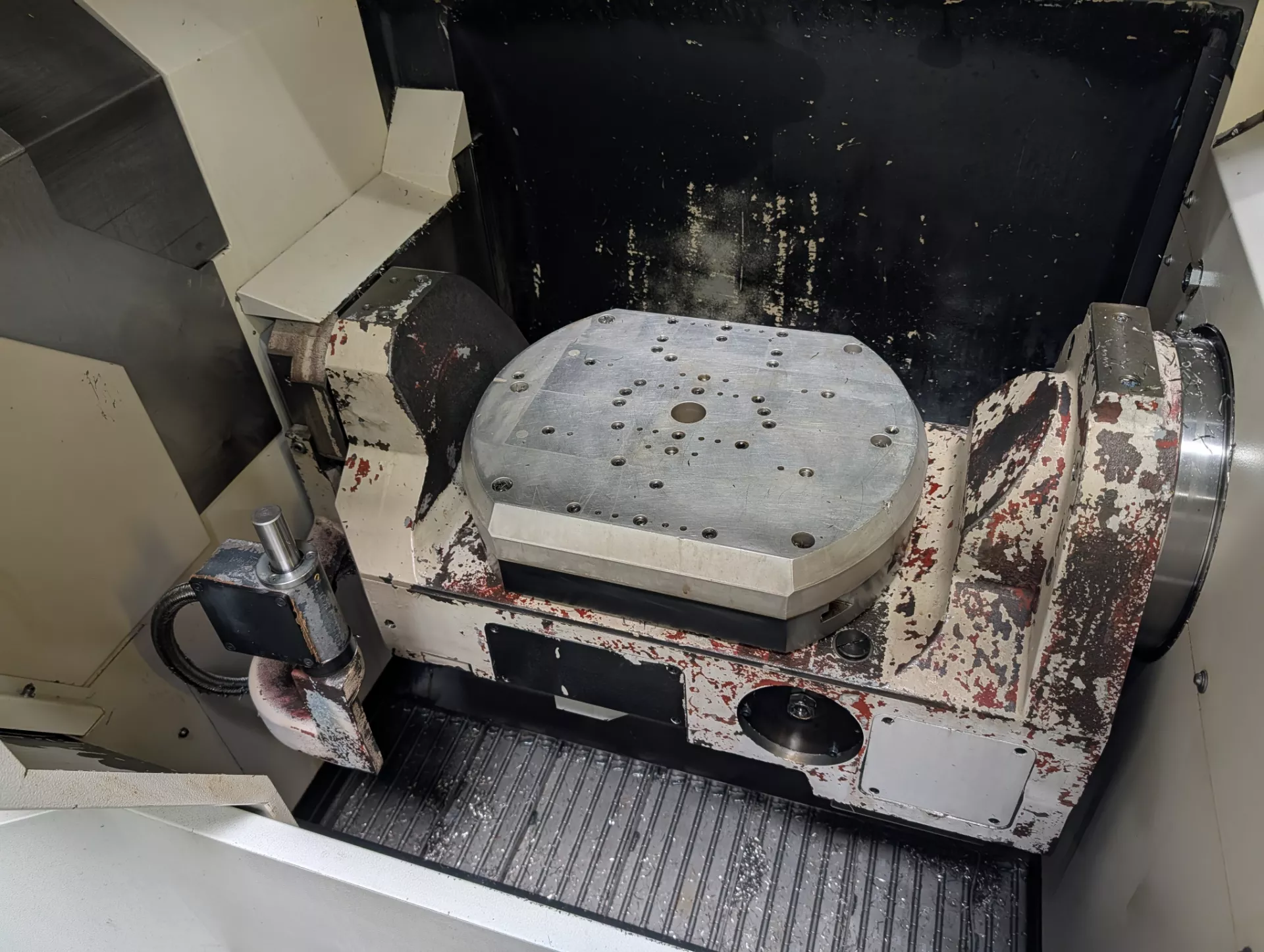

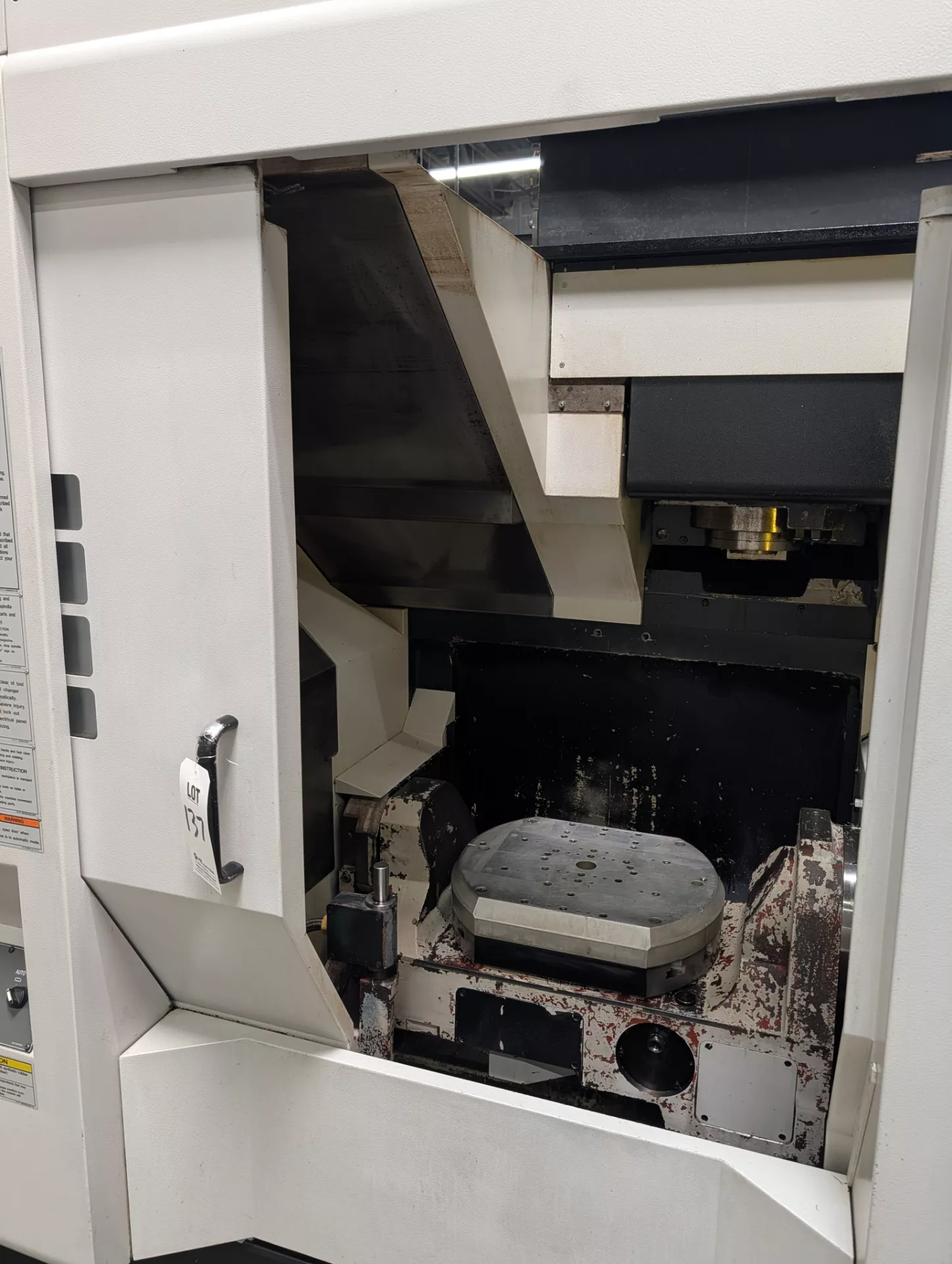

| Trunnion Table: |
|---|
| Length: 19.68″ |
| Width: 15.74″ |

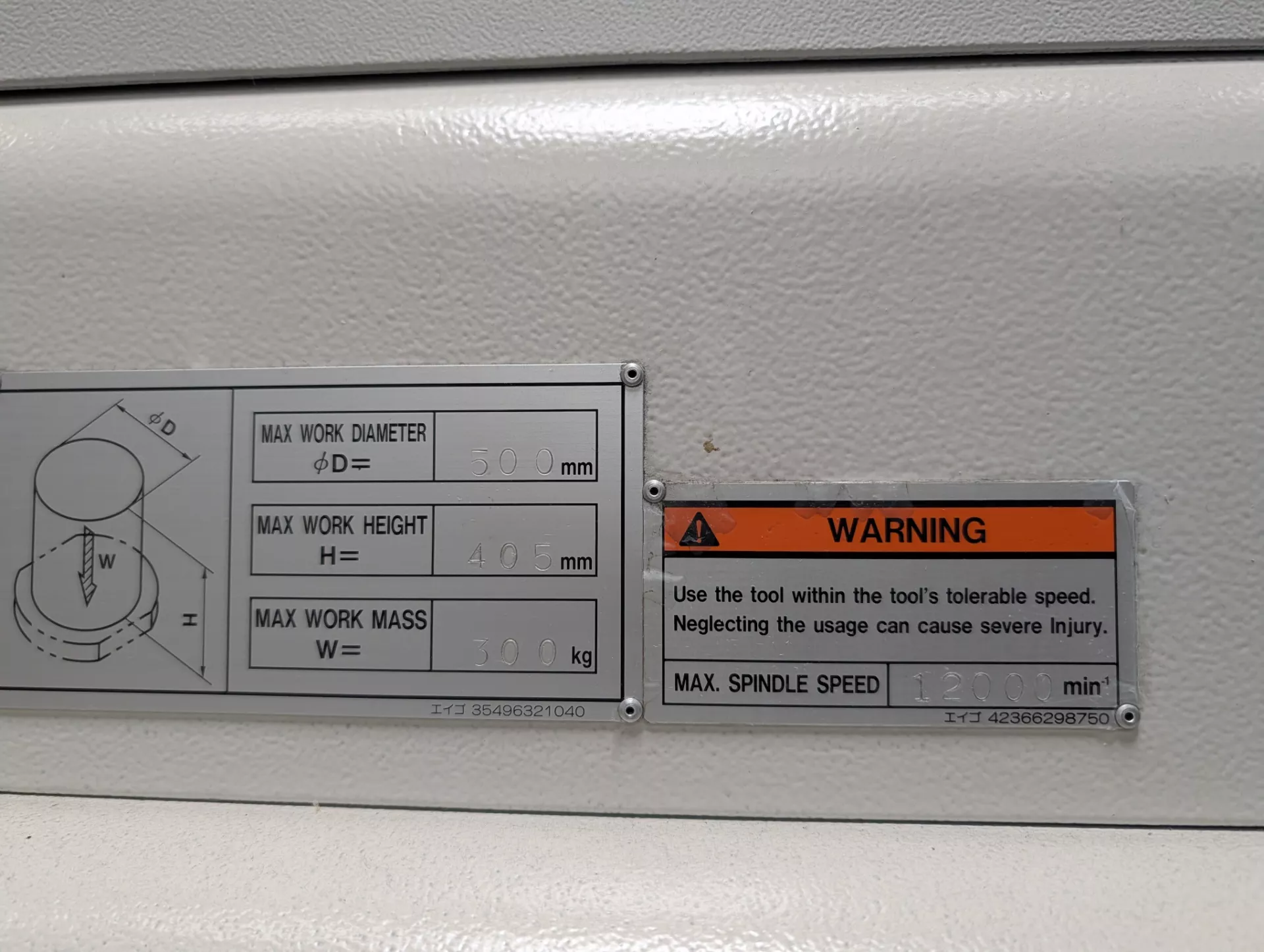

| Max Workpiece Diameter: 19.68″ |
| Max Workpiece Height: 15.94″ |
| Max Weight on Table: 661 lbs |

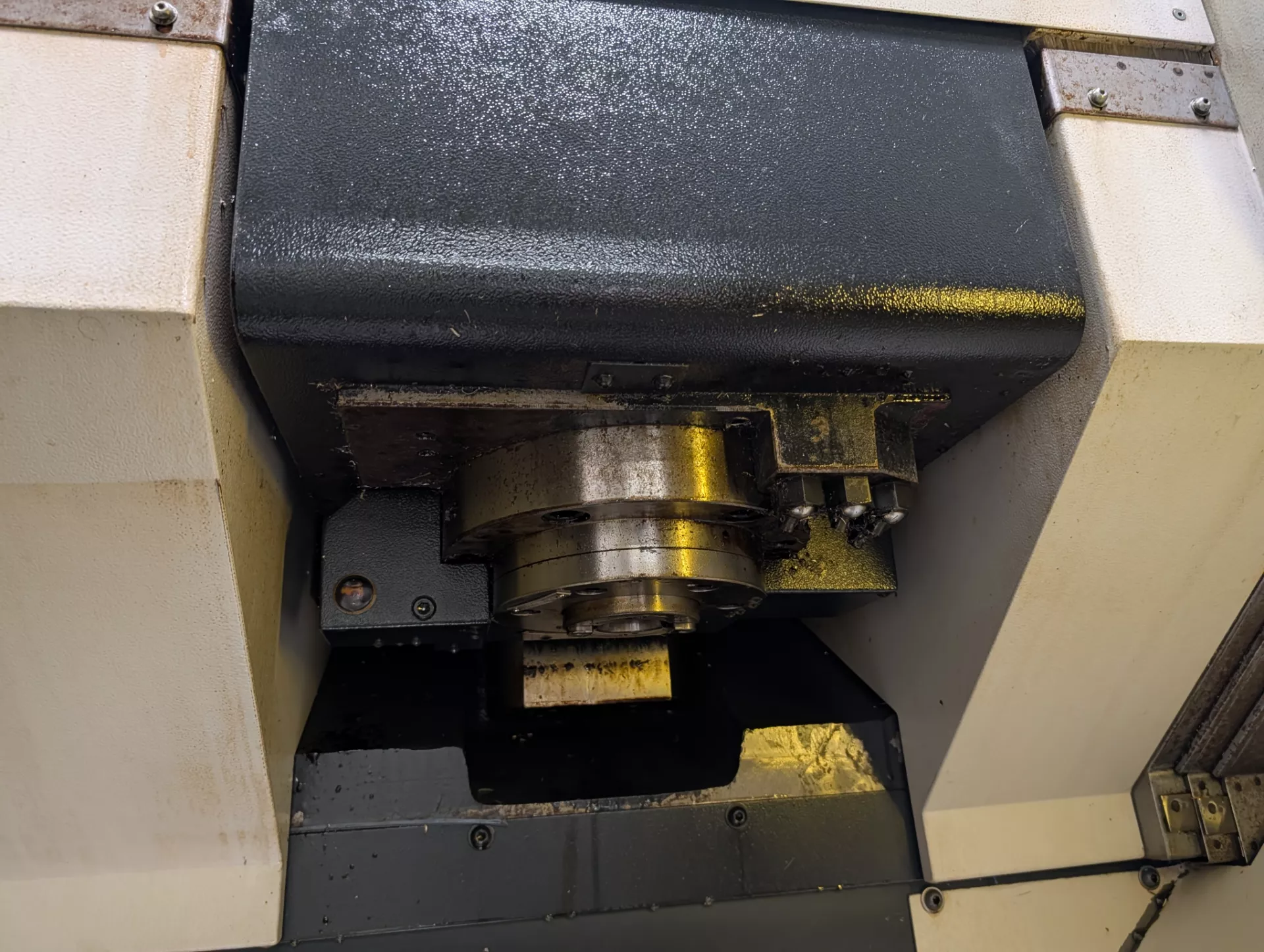

| Spindle: |
|---|
| Taper Size: CAT-40 |
| Max. Speed: 12,000 RPM |
| Power: 30 HP |
| Feed rates: |
|---|
| Rapid X, Y & Z : 1969 Inch Per Minute |
| Cutting Feedrate: 1574 Inch Per Minute |

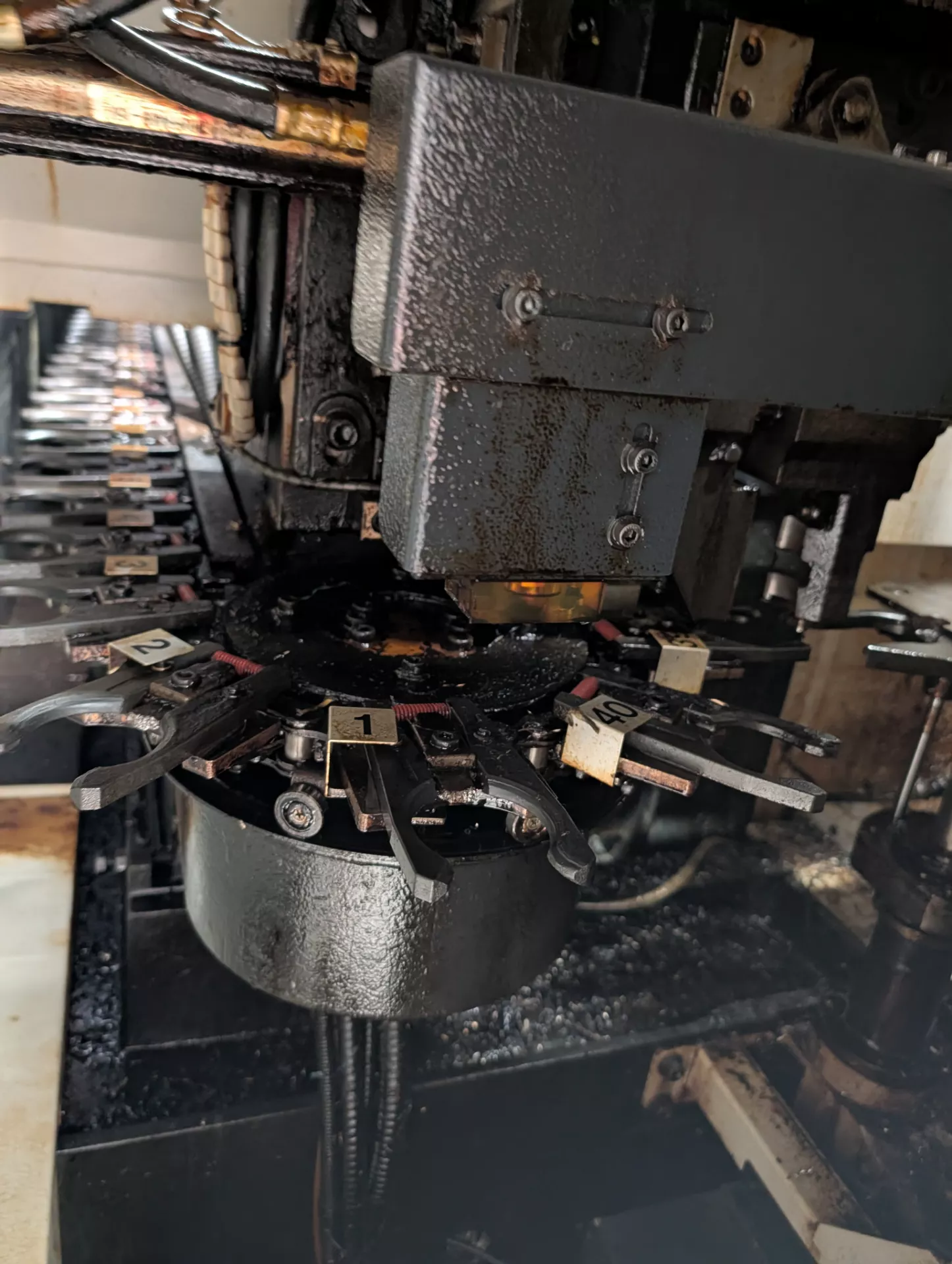

| Tool changer: |
|---|
| Capacity: 40 Station |
| Taper: CAT-40 |
| Max Tool Size: 3.14″ – 4.92″ |
| Max Tool Length: 11.81″ |
| Max Tool Weight: 17.63 lbs. |
| Tool Change Time: 4.5 Second |
| General: |
|---|
| Air Required: 100 psi, 4 scfm |

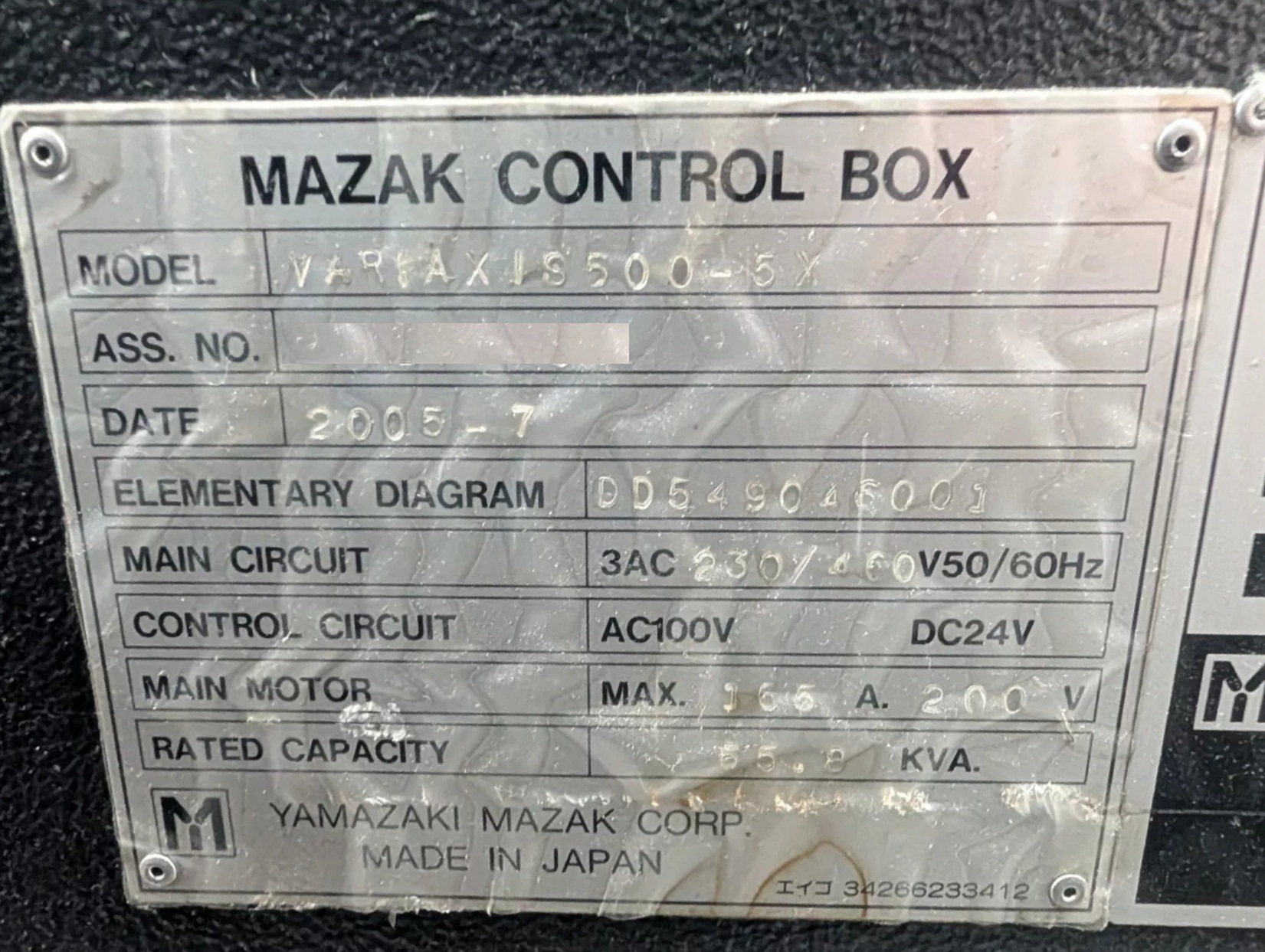

| Power: 55.8kva / 230v-460v / 3-Phase |
| Shipping Dimension: 110″ X 114″ x 110″ High Approx. |

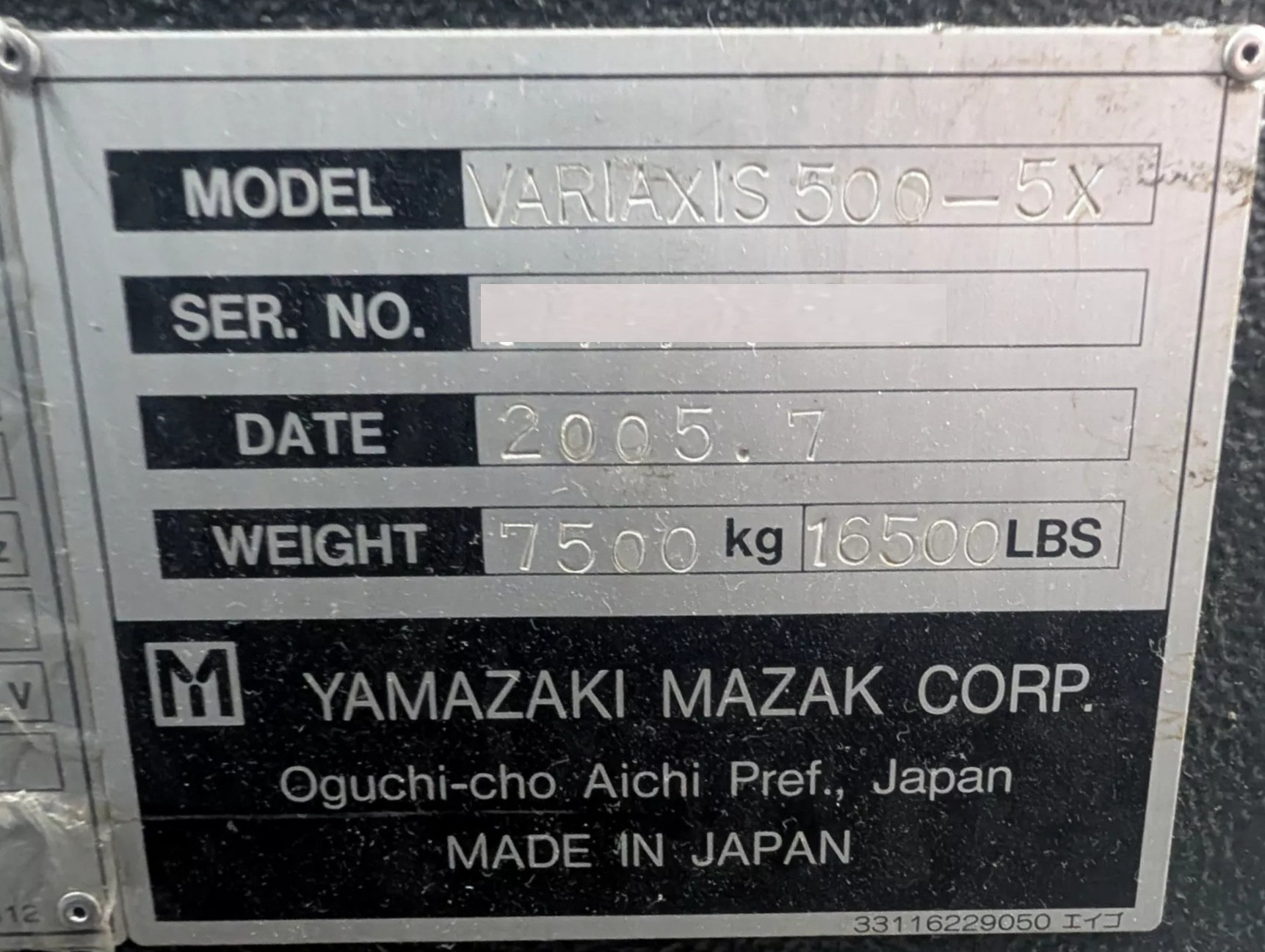

| Weight: 16,535 lbs Approx. |
