All specifications are approximations and are subject to verification.

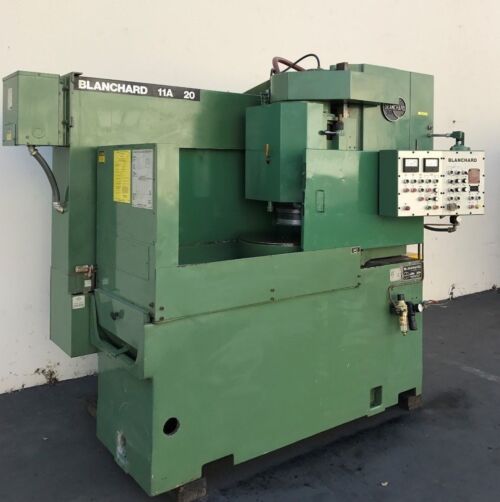

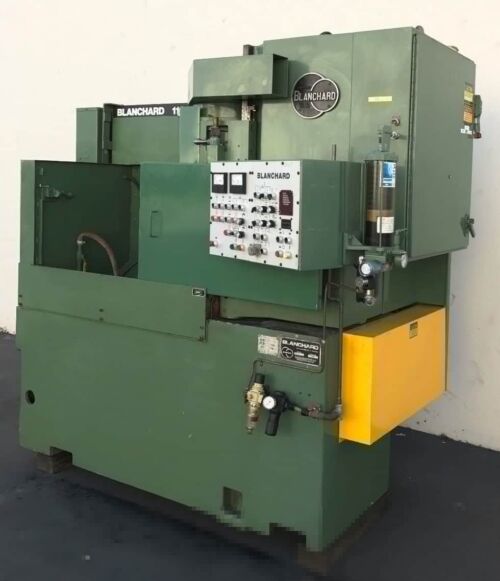

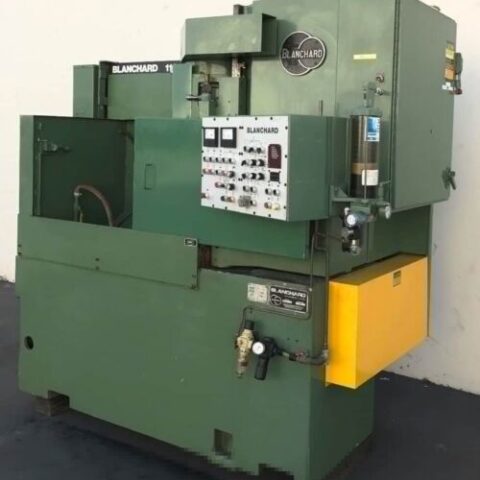

“This All Electric Model Blanchard Grinder has 20″ Table and many more features. On our Floor now, fully powered / tested & is in Great working condition.”
BLANCHARD 20 Features:

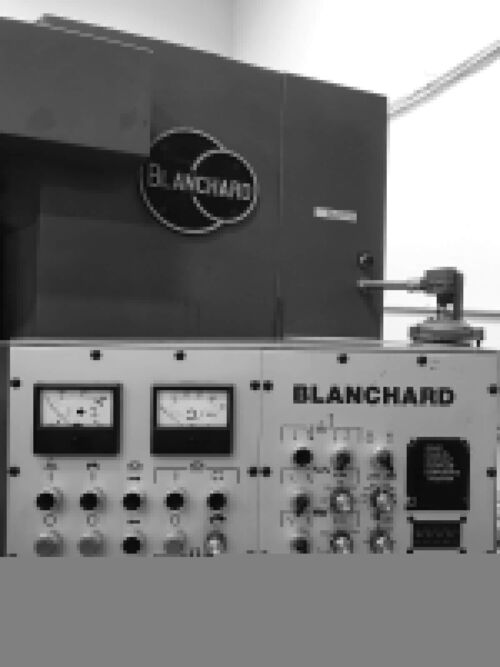

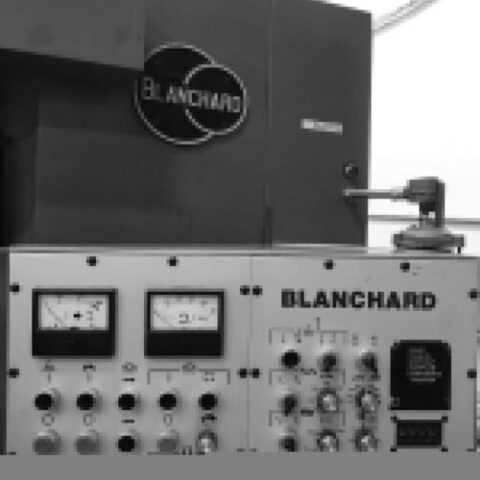

- All Electric Model with Pendant Control
- Geared Grinding Head
- 20″ Magnetic Chuck Control with Potentiometer
- Lubrication System
- Coolant System with Splash Guards
- Comes with All Available Manuals and Electrical Drawings etc.
General:

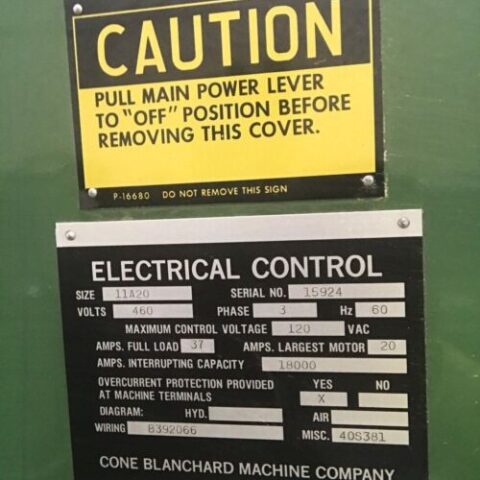

- Power Requirement: 30KVA
- Overall Dimensions: 90″ x 55″ x 99″
- Weight: 7500 lbs
BLANCHARD 20 Specifications:
- Maximum Swing: 21″
- Maximum Grinding Dia.: 21″
- Maximum Grinding Height: 12″
- Maximum Work Load: 500lbs
- Chuck Diameter: 20″
- Chuck Thickness (Life) : 3/4″
- Chuck Speed: 15-75 RPM
- Grinding Wheel Diameter: 11″
- Grinding Wheel Size: 11″ X 5″ X 9″
- Grinding Wheel Speed: 1500 RPM
Feed:
- Rapid Traverse Rate: 20″ IPM
- Wheel Head Jog Rate: 0.100 IPM
- Coarse Feed Rate: .001″-.100″ IPM
Motors:
- Grinding Wheel: 15HP
- Chuck Rotation: 2 HP
- Head Feed: (DC) 5.8lb-ft
- Table Traverse with Brake: .25HP
