*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Brother |
| Model No.: | Speedio M140X1 |
| Year of Manufacture: | 2014 |

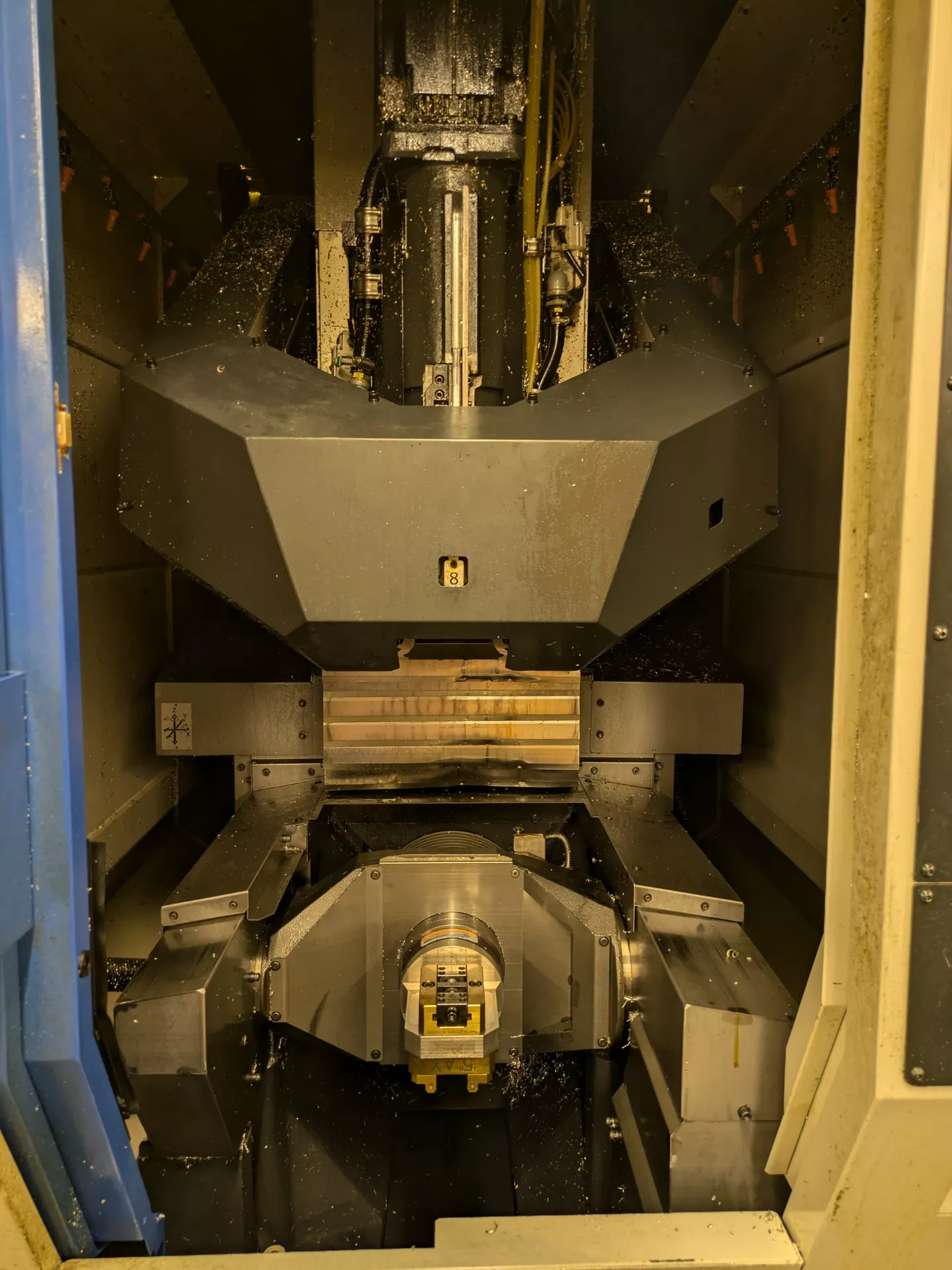

| Machine Type: | CNC Vertical Machining Center |

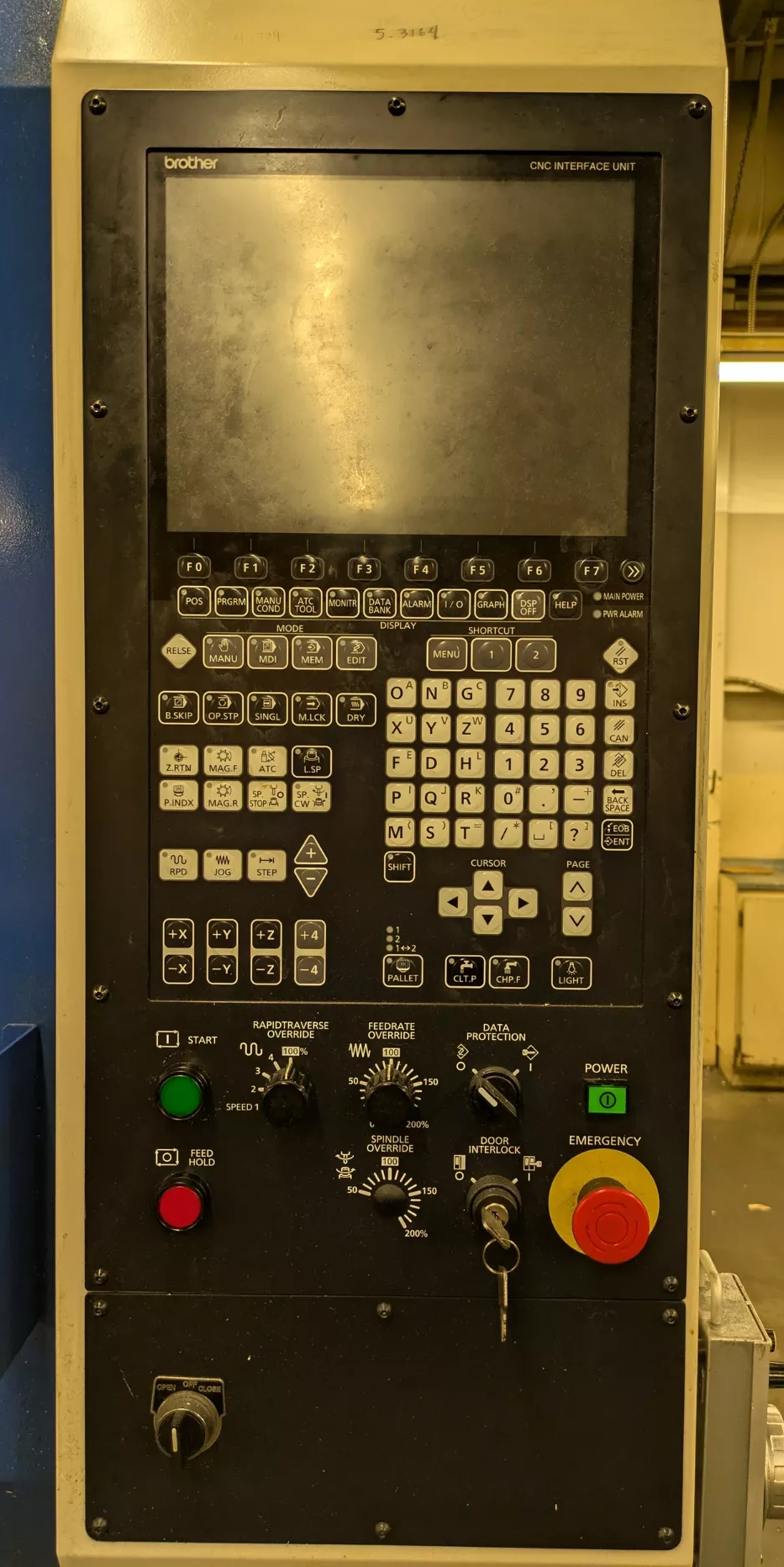

| CNC Control: | Brother CNC-C00 |
| Number of Axes: | 5 (X, Y, Z, A, C) |
| Equipped With: |
|---|
| Brother CNC-C00 Control with Built-in PLC |
| Full 5-Axis Machining Capability |
| Drill-Tap-Turn Multitasking Capability |
| 12.1″ Color LCD Monitor |
| Ethernet, USB, and RS-232 Communication |
| High-Speed Spindle Acceleration (~0.2 sec Start/Stop) |
| High-Speed Non-Stop ATC System |
| Torque Waveform Display for Cutting Load Monitoring |
| Heat Expansion Compensation System |
| Program Storage up to Approx. 100 MB |
| Production Monitoring and Networking Functions |
| Operation Log and Maintenance Monitoring |
| Capacity: |
|---|

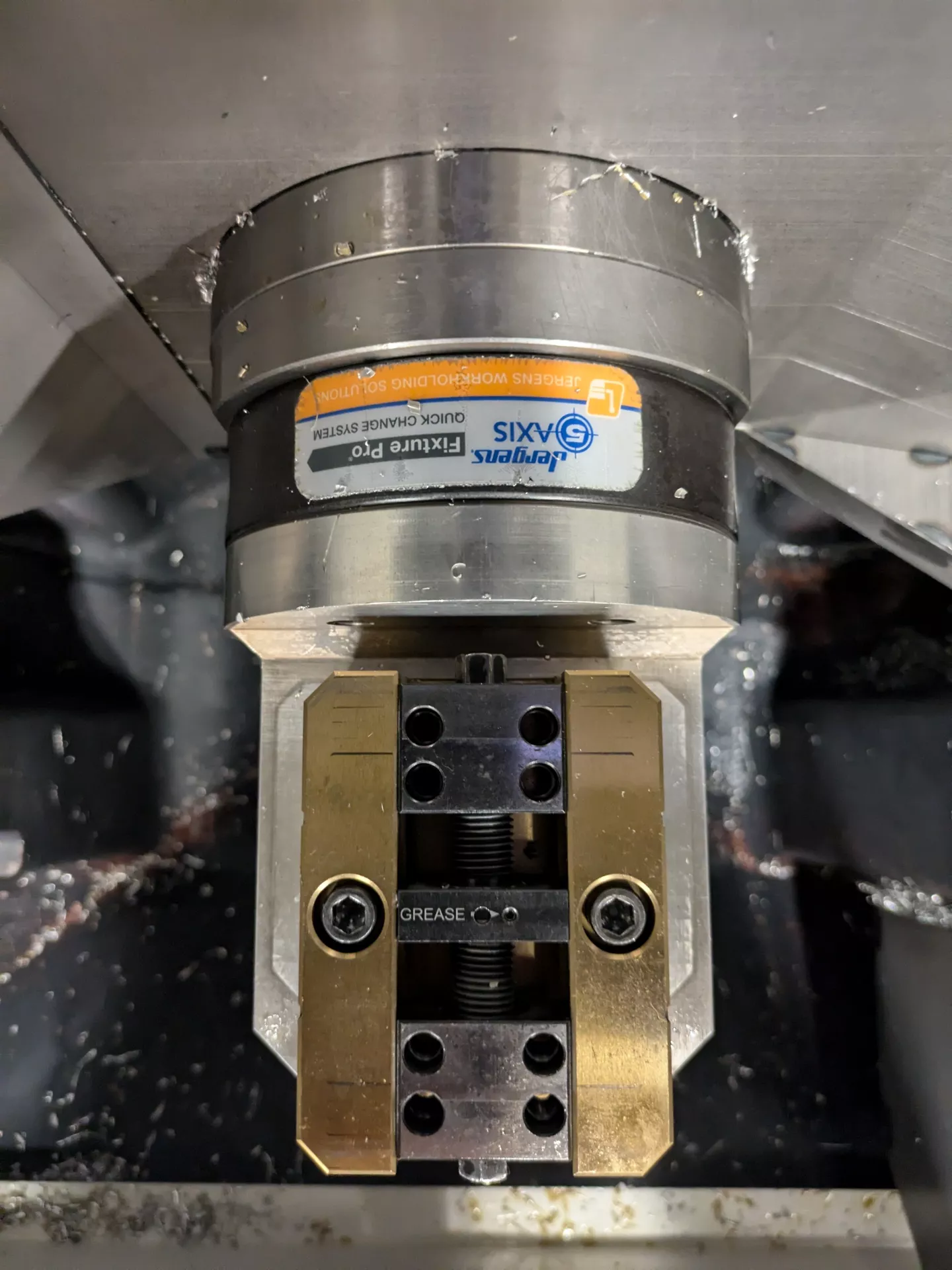

| Table Diameter: 5.5″ (140 mm) |
| Maximum Table Load: 88 lbs (40 kg) |
| Maximum Tool Length: 7.9″ (200 mm) |
| Maximum Tool Diameter: 3.1″ (80 mm) |
| Maximum Tool Weight: 6.6 lbs (3 kg) |
| Travel: |
|---|
| X-Axis Travel: 7.9″ (200 mm) |
| Y-Axis Travel: 17.3″ (440 mm) |
| Z-Axis Travel: 12.0″ (305 mm) |
| A-Axis Tilt: +5° to −95° |
| C-Axis Rotation: 360° |
| Spindle: |
|---|
| Spindle Speed: 10 – 10,000 RPM |
| Optional Spindle Speed: 16,000 RPM |
| Spindle Motor Power: Approx. 10.1 kW (13.5 HP) |
| Spindle Taper: BT-30 |
| Tapping Speed: Up to 6,000 RPM |
| Turning / C-Axis: |
|---|
| C-Axis Turning Speed: Up to 2,000 RPM |
| C-Axis Motor Power: Approx. 4.2 kW |
| Allows Milling and Turning in One Setup |
| Feedrates: |
|---|
| Rapid Traverse (X/Y/Z): 1,969 IPM (50 m/min) |
| Cutting Feed Rate (X/Y): 1 – 10,000 mm/min |
| Cutting Feed Rate (Z): 1 – 20,000 mm/min |
| A-Axis Indexing Feed Rate: 60 min⁻¹ |
| C-Axis Indexing Feed Rate: 200 min⁻¹ |
| Automatic Tool Changer: |
|---|
| Tool Magazine Capacity: 22 Tools |
| Tool Selection Method: Random |
| Tool-to-Tool Time: 0.9 Seconds |
| Chip-to-Chip Time: 1.4 Seconds |
| Accuracy: |
|---|
| Positioning Accuracy: 0.006 – 0.020 mm |
| Repeatability: < 0.004 mm |

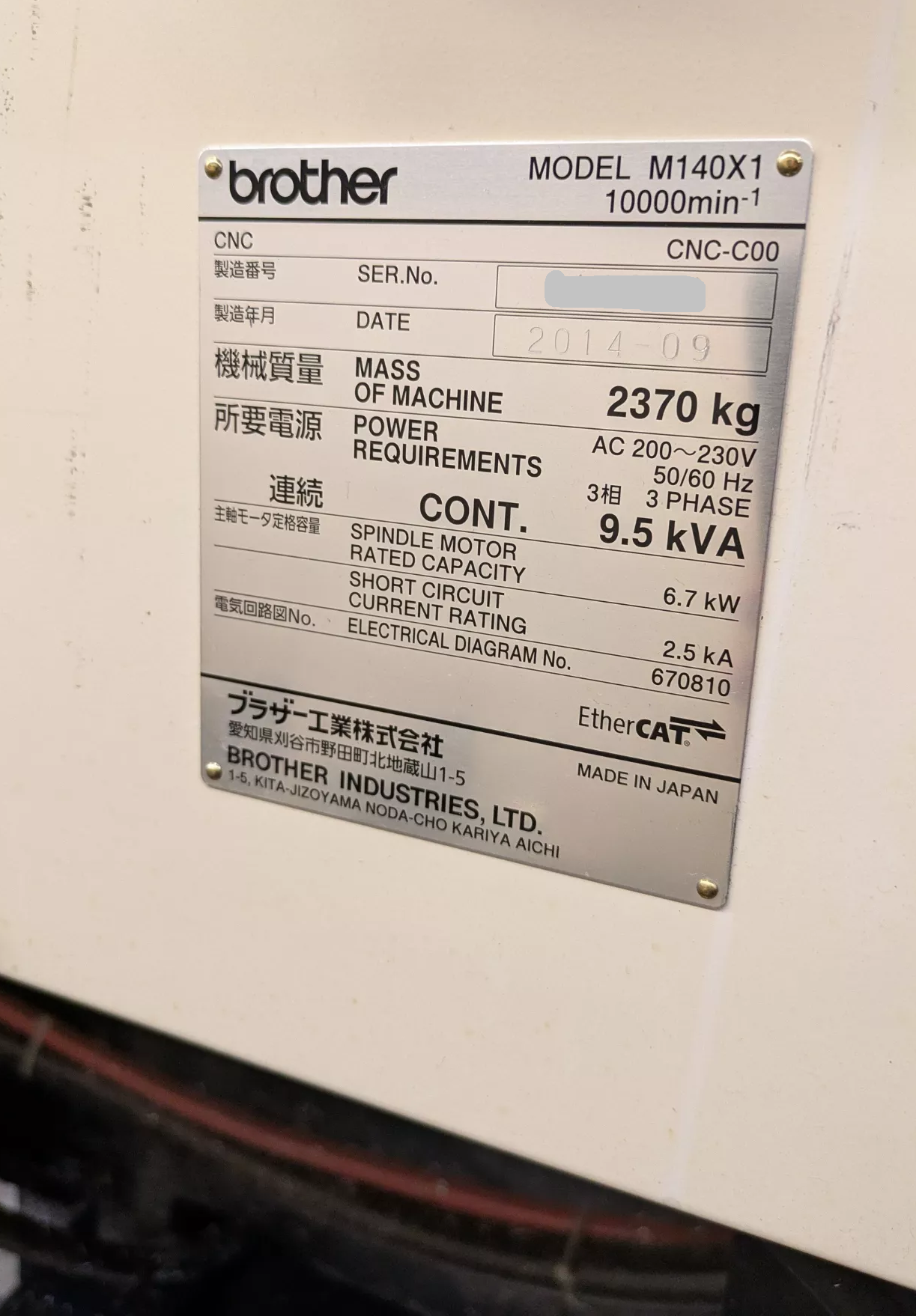

| Electrical: |
|---|
| Power Requirement: AC ±10%, 50/60 Hz |
| Power Capacity: Approx. 9.5 kVA |
| Air Pressure Required: 0.4 – 0.6 MPa |
| General: |
|---|
| Floor Space: 50.4″ × 144.7″ (1,280 × 3,641 mm) |
| Machine Height: 98.9″ (2,513 mm) |
| Machine Weight: Approx. 5,226 lbs (2,370 kg) |
| Optional Features: |
|---|
| Through-Spindle Coolant (CTS) |
| High-Pressure Coolant System |
| Chip Conveyor |
| External Coolant Filtration System |
| Hydraulic Table Clamping |
| Probe Preparation (Wired for Probe) |
| 6″ Chuck / Workholding Options |
