*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

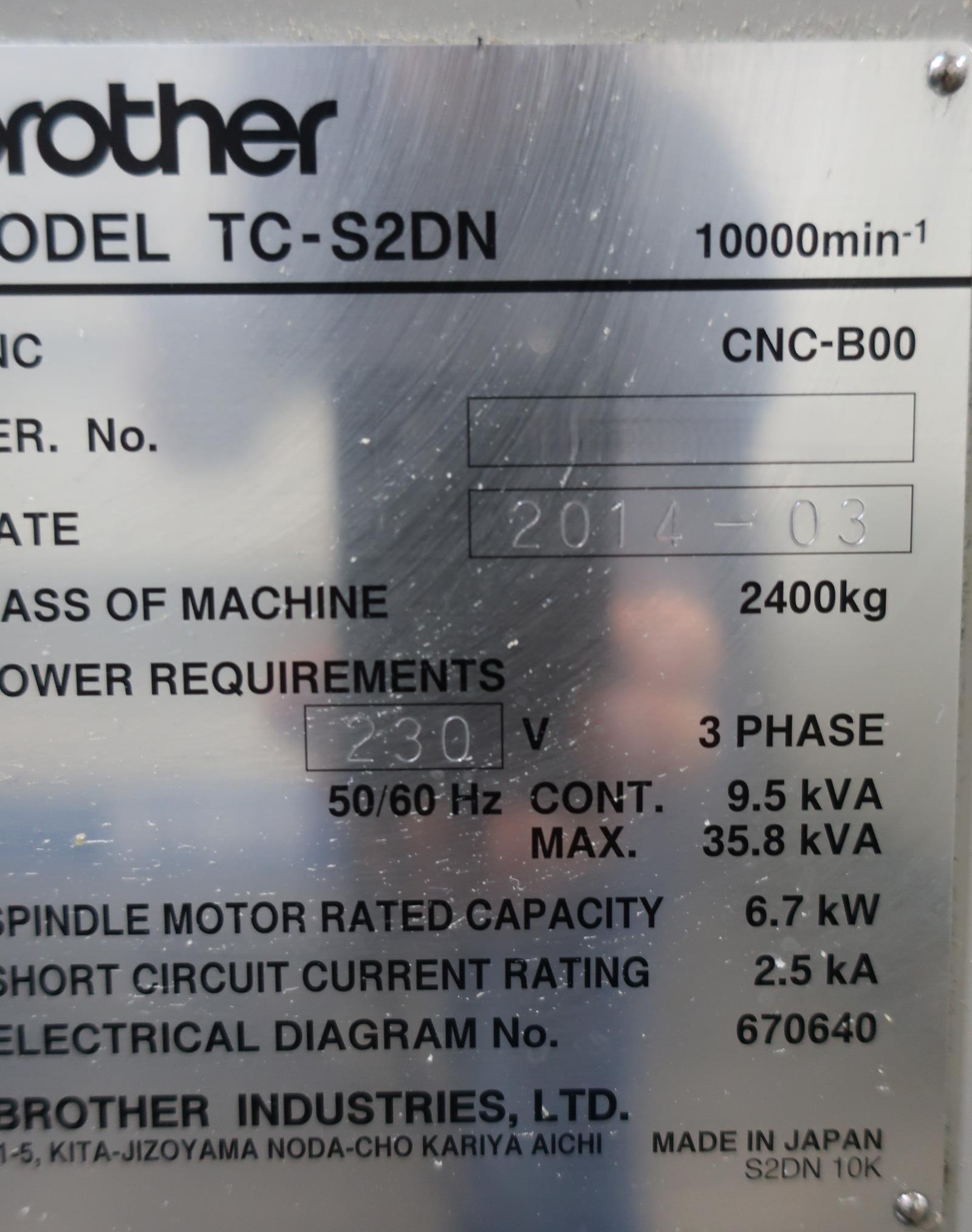

| Make: | Brother |
| Model: | TC-S2DN |
| Year: | 2014 |
| Machine Type: | 3-Axis CNC Drill Tap Vertical Machining Center |
| Control: | Brother CNC-B00 |
| Features: |
|---|
| Brother CNC-B00 Controls |
| Misc. Tool Holders |
| Coolant System |
| 10,000 RPM Spindle |
| 14 Position ATC |
| Travels: |
|---|
| X-Axis Travel: 19.7″ |
| Y-Axis Travel: 15.7″ |
| Z-Axis Travel: 11.8″ |
| Distance Between Spindle Nose: 7.1″ – 18.9″ |
| Rapid Traverse Rate X/Y/Z: 1,969 IPM |
| Cutting Feed Rate X/Y: 0.04 – 394 IPM |
| Cutting Feed Rate Z: 0.04 – 787 IPM |
| Table: |
|---|
| Table Size: 23.6″ × 15.7″ |
| Maximum Table Load Capacity: 551 lbs. |
| Spindle: |
|---|
| Spindle Speed: 10 – 10,000 RPM |
| Speed During Tapping: 6,000 RPM |
| Spindle Taper: BT-30 |
| Spindle Motor Rated Capacity: 6.7 kW |
| Automatic Tool Changer: |
|---|
| Tool Storage Capacity: 14 Stations |
| Tool Shank Type: MAS-BT30 |
| Maximum Tool Length: 7.9″ |
| Maximum Tool Weight: 6.6 lbs. |
| General: |
|---|
| Power Source: 230v / 3-Phase / 50/60 Hz |
| Machine Weight (Approx.): 5,300 lbs. |
| Machine Dimensions (Approx.): 81″ × 87″ × 112″ H |
