*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

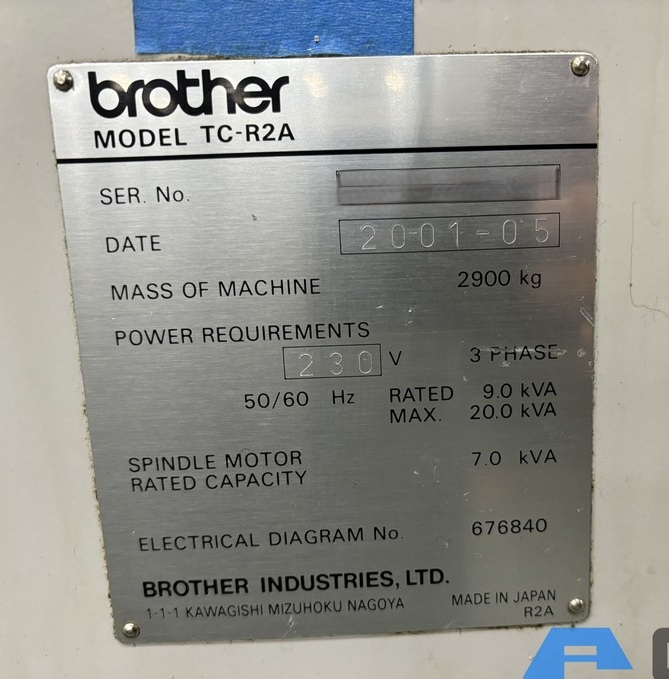

| Make: | Brother |
| Model: | TC-R2A |
| Year: | 2001 |
| Machine Type: | CNC Drilling and Tapping Center |
| CNC Control: | BROTHER CNC Control |
| Features: |
|---|
| BROTHER CNC Control |
| Dual-Pallet System |
| (2) 12″ × 19″ Pallets |
| 30-Taper Spindle |
| 14-Position Tool Turret |
| Fully Enclosed Machining Area |
| Coolant System |
| Chip Collection Tray |
| Pallet System: |
|---|
| Number of Pallets: 2 |
| Pallet Size: 19.69″ × 11.81″ |
| Travels: |
|---|
| X-Axis Travel: 16.54″ |
| Y-Axis Travel: 12.60″ |
| Z-Axis Travel: 10.63″ |
| Spindle: |
|---|
| Spindle Taper: BT-30 |
| Maximum Spindle Speed: 10,000 RPM |
| Spindle Motor Rated Capacity: 7.0 kVA |
| Automatic Tool Changer: |
|---|
| Tool Storage Capacity: 14 Positions |
| Tool Changer Type: Turret-Style Tool Magazine |
| Feed Rates: |
|---|
| X-Axis Rapid Traverse: 1,181 IPM |
| Y-Axis Rapid Traverse: 1,181 IPM |
| Z-Axis Rapid Traverse: 1,969 IPM |
| General: |
|---|
| Machine Weight: 6,393 lbs. |
| Electrical: |
|---|
| Voltage: 230V |
| Phase: 3-Phase |
| Frequency: 50–60 Hz |
