*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Brother |
| Model: | TC-32A |
| Year: | 2000 |
| Machine Type: | CNC Vertical Machining Center |
| CNC Control: | Brother CNC-A00 |
| Features: |
|---|
| Brother CNC-A00 CNC Control |
| 26-Station Automatic Tool Changer |
| Automatic Tool Changer |
| Coolant System |
| Enclosed Work Area |
| CNC Tapping Capability |
| High-Speed Spindle |
| Capacity: |
|---|
| Table Working Surface: 21.7″ × 13.8″ |
| Table Load Capacity: 176 lbs. |
| Machining Type: Drilling, Tapping & Milling |
| Travels: |
|---|
| X-Axis Travel: 17.7″ |
| Y-Axis Travel: 12.6″ |
| Z-Axis Travel: 16.1″ |
| Rapid Traverse Rate: 2,756 IPM |
| Spindle: |
|---|
| Maximum Spindle Speed: 16,000 RPM |
| Spindle Taper: No. 30 |
| Spindle Motor Capacity: 7.6 kVA |
| Spindle Type: High-Speed Vertical Spindle |

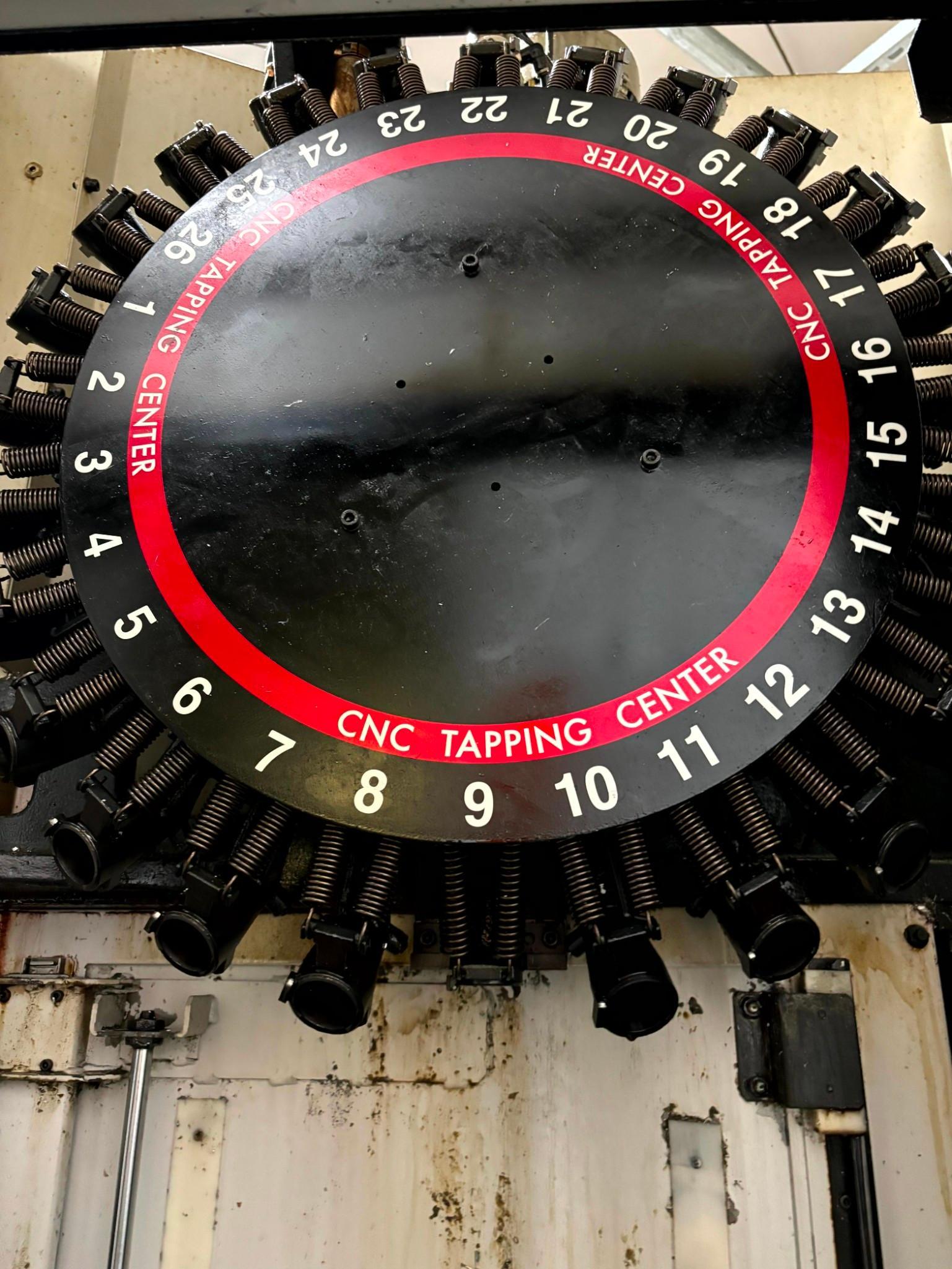

| Automatic Tool Changer: |
|---|
| Tool Changer Type: Automatic Tool Changer |
| ATC Capacity: 26 Stations |
| Tool Change: Dual-Arm Automatic Tool Changer |
| General: |
|---|

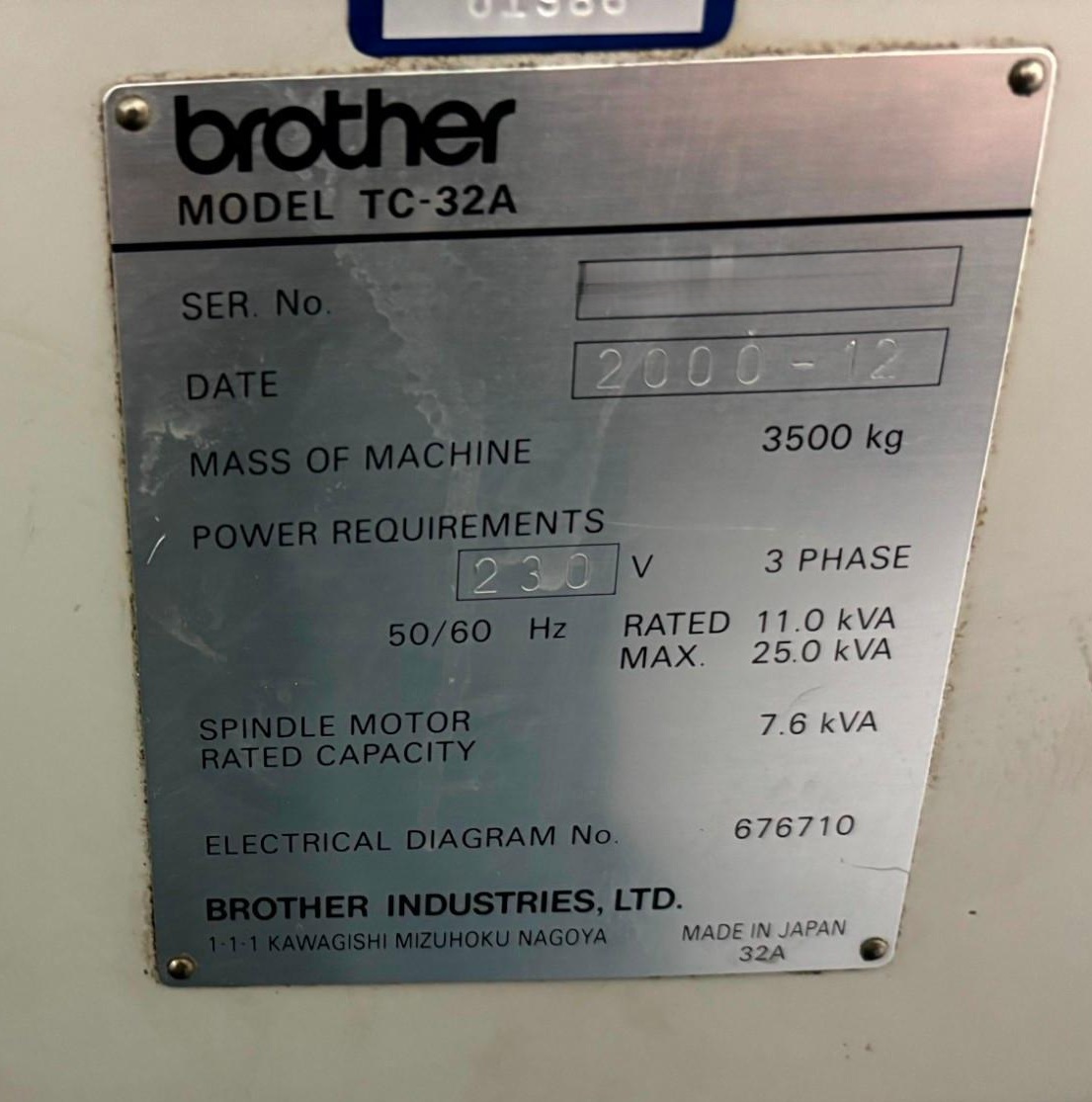

| Power Source: 230V / 3-Phase / 50/60 Hz |
| Machine Dimensions (Approx.): 130″ W × 70″ D × 93″ H |
| Machine Weight (Approx.): 7,700 lbs. |
