*All specifications are approximations and are subject to verification. Comes as shown in the images. Please call us if you have any questions before making a purchase. All sales are final.*
| Make: | Brother |

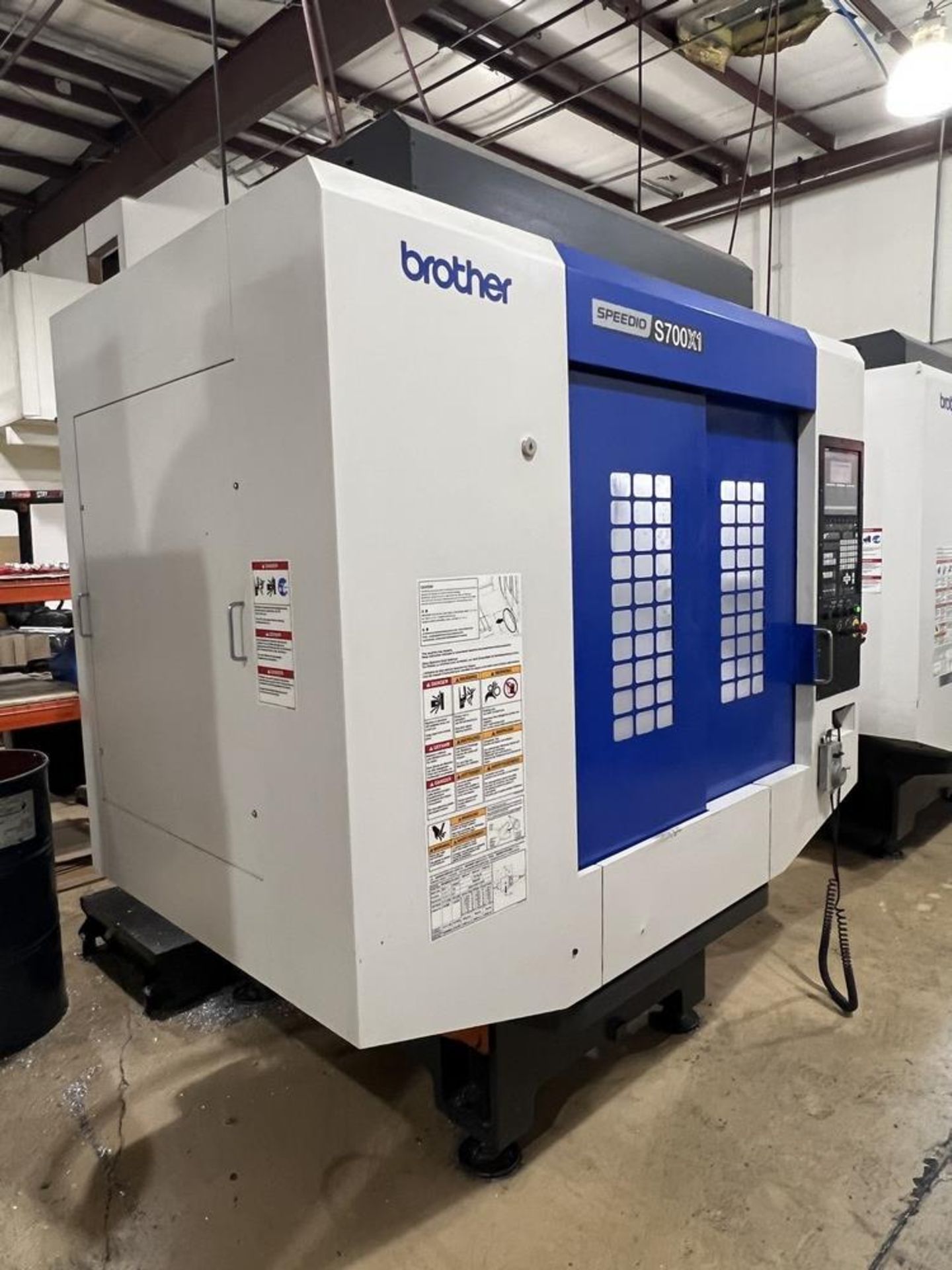

| Model: | SPEEDIO S700X1 |
| Condition: | Used |
| Equipped With: |
|---|

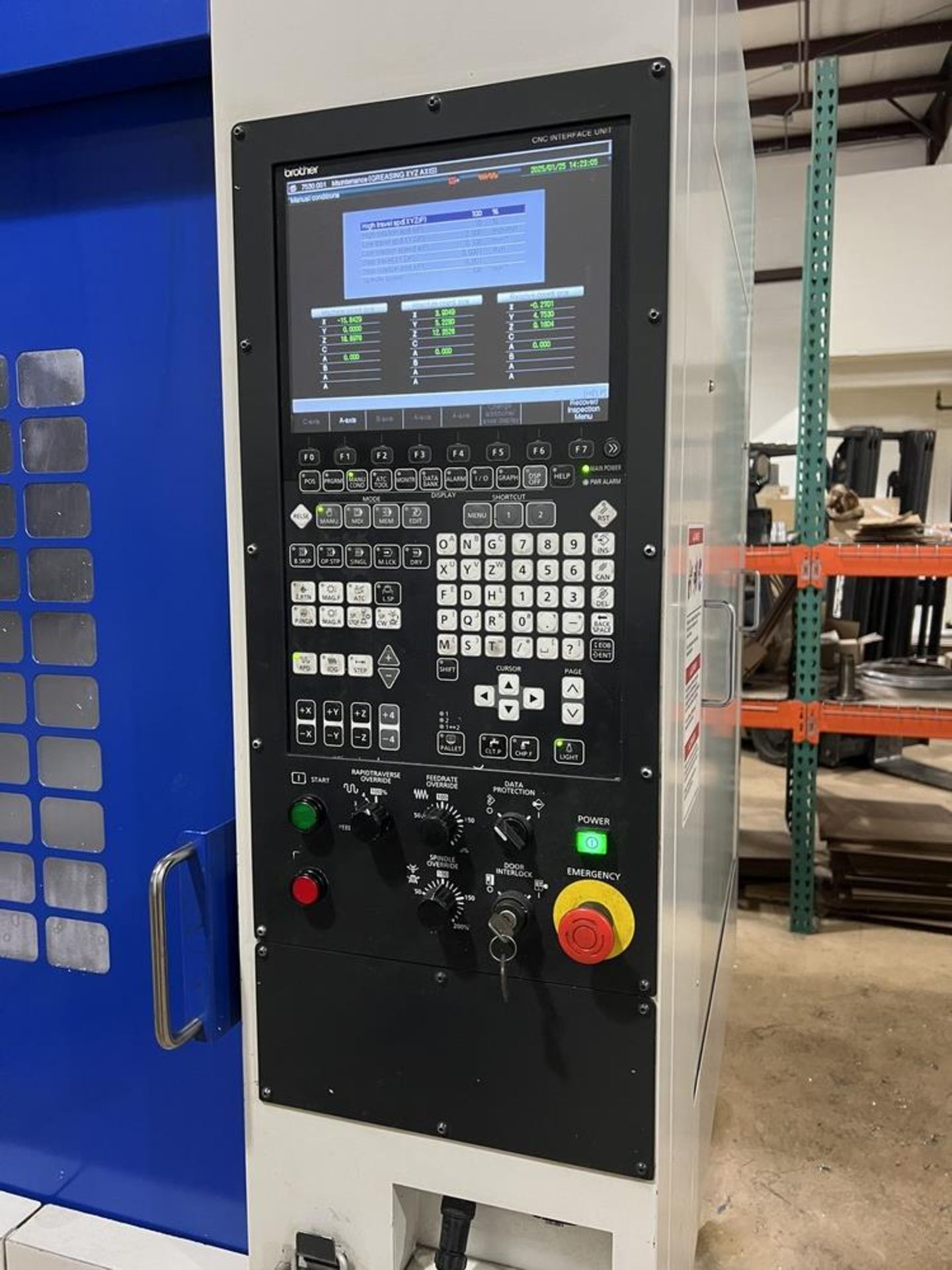

| Brother CNC Control |
| High-Speed Rigid Tapping |
| Ultra-Fast Tool Change System |
| Linear Guideway Construction |
| Automatic Tool Changer |
| Coolant System |
| Full Enclosure |
| Work Light |
| Travels: |
|---|
| X-Axis Travel: 27.6″ |
| Y-Axis Travel: 15.7″ |
| Z-Axis Travel: 11.8″ |
| Spindle Nose to Table: 5.1″ – 16.9″ |
| Table: |
|---|
| Table Size: 31.5″ × 15.7″ |
| Max Table Load: 1,323 lbs |
| Spindle: |
|---|
| Spindle Taper: BT-30 |
| Spindle Speed: 10,000 RPM |
| Spindle Motor: 10 HP |
| Direct Drive Spindle |
| Feedrates: |
|---|
| Rapid Traverse X/Y/Z: 1,969 IPM |
| Cutting Feedrate: 0 – 787 IPM |
| Automatic Tool Changer: |
|---|
| Tool Capacity: 14 Tools |
| Optional Tool Capacity: 21 Tools |
| Tool Change Time (Tool-to-Tool): 0.8 sec |
| General: |
|---|
| Power Requirement: 220V / 3-Phase |
| Machine Dimensions (Approx.): 82″ × 79″ × 90″ |
| Machine Weight (Approx.): 6,200 lbs |
