*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Brother |
| Model: | TC-R2B |
| Year: | 2010 |
| Features: |
|---|
| Brother CNC-B00 CNC Control |
| 180° Automatic Dual Pallet Changer |

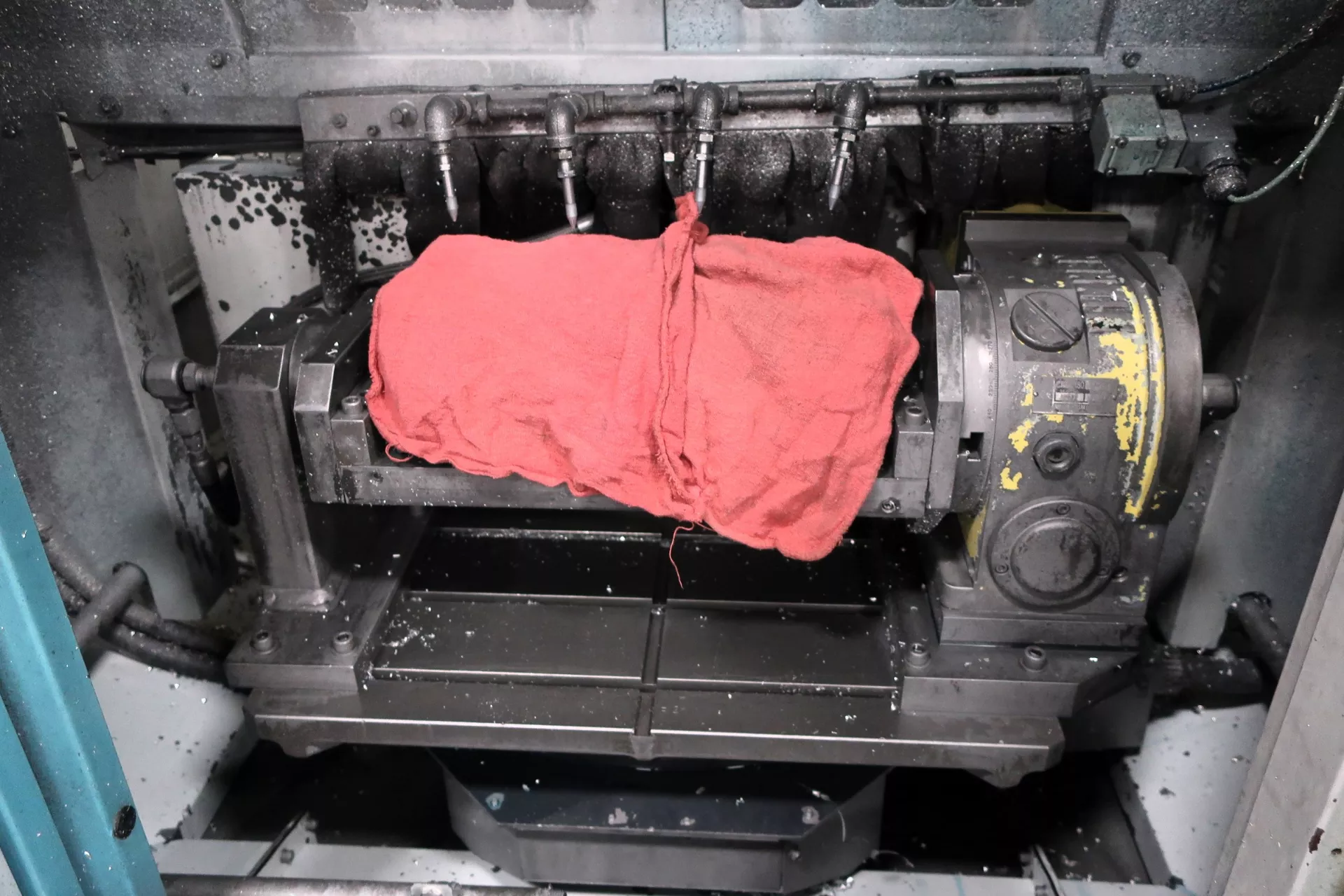

| Two Nikken CNC 180 4th Axis Rotary Tables |
| BT30 High-Speed Spindle |

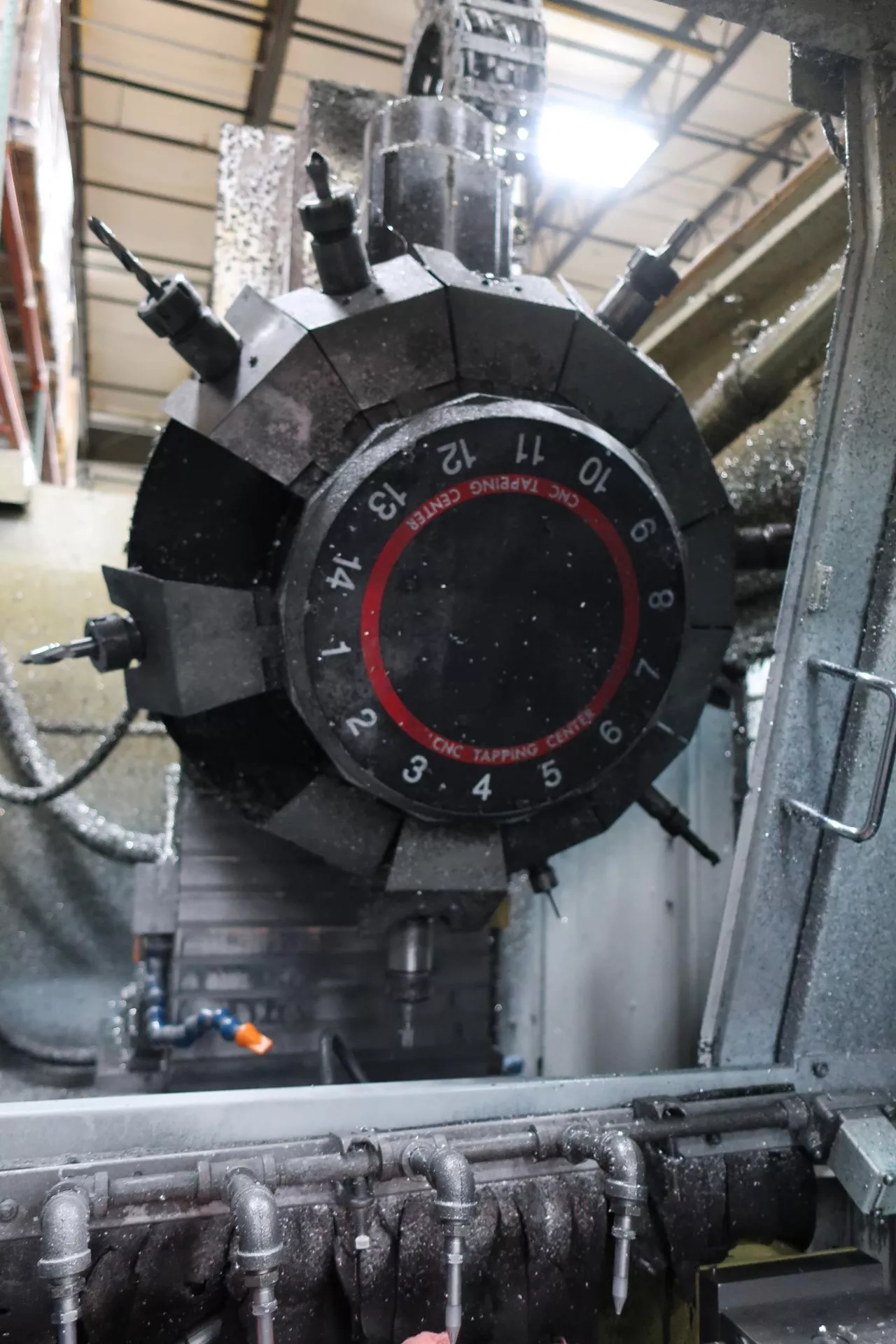

| 14-Position Automatic Tool Changer |
| Chip Conveyor |
| Flood Coolant System |
| Full Splash Enclosure |
| Random Tool Selection |
| High-Speed Drill & Tap Machining |
| TRAVELS: |
|---|
| X-Axis: 16.5″ |
| Y-Axis: 12.6″ |
| Z-Axis: 12.0″ |
| Spindle Nose to Table (Min.-Max.): 8″ – 20″ |
| Rapid Traverse Rates: X/Y/Z – 1,969 IPM |
| Feed Rates: 394 IPM (X/Y), 787 IPM (Z) |
| TABLE: |
|---|
| Table Size (Each Pallet): 23.6″ x 11.8″ |
| Maximum Table Load: 265 lbs |
| Pallet Change Time: 2.9 Seconds (180°) |
| SPINDLE: |
|---|
| Taper Size: BT30 |
| Speed Range: 10 – 10,000 RPM |
| Maximum Tapping Speed: 6,000 RPM |
| Spindle Power: (Approx. 13.5 HP / 9 HP) |
| AUTOMATIC TOOL CHANGER: |
|---|
| Capacity: 14 Tools |
| Maximum Tool Diameter: 3.15″ Full / 1.57″ |
| Maximum Tool Length: 7.87″ |
| Maximum Tool Weight: 6.6 lbs |
| Tool-to-Tool Time: 0.9 Seconds |
| GENERAL: |
|---|

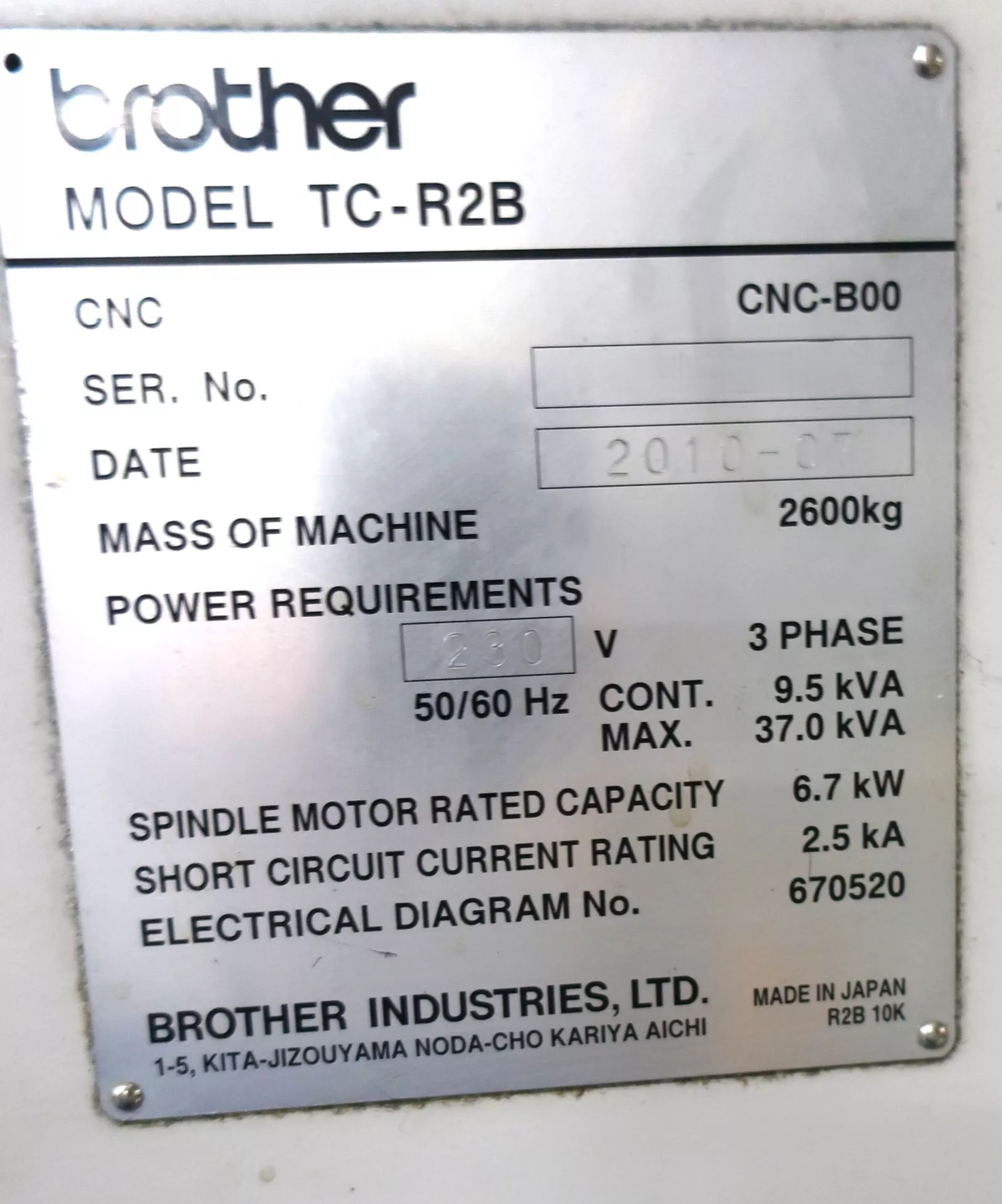

| Power: 220V / 3-Phase / 50-60 Hz. |
| Floor Space Approx : 101.9″ x 63.7″ x 104.6″ |
| Machine Weight Approx: 5,732 lbs |
