*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Charmilles |
| Model: | Roboform 31 |
| Year: | 1998 |
| Features: |
|---|

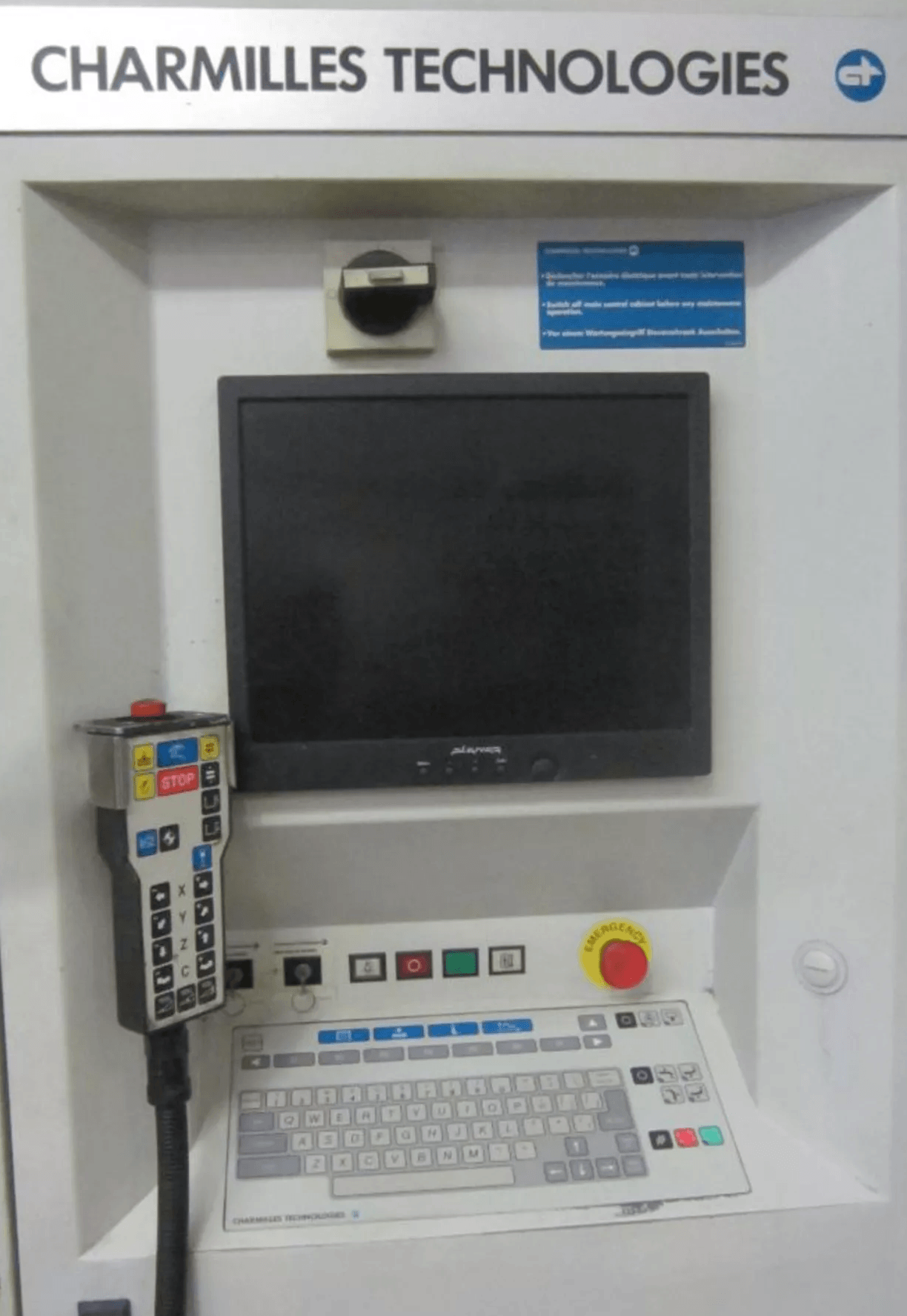

| Charmilles CNC Control |
| 32 Amp Generator |
| C-Axis Spindle |
| Automatic Tool Changer / Electrode Changer |
| Dielectric Filtration System |
| Work Tank |
| Handheld Remote Pendant |
| Automatic Lubrication System |
| Travels: |
|---|
| X-Axis Travel: 14.00″ |
| Y-Axis Travel: 10.00″ |
| Z-Axis Travel: 12.00″ |
| Work Tank / Table: |
|---|
| Table Size: Approx. 23.6″ × 15.7″ |
| Maximum Workpiece Weight: Approx. 1,100 lbs. |
| Dielectric Work Tank |
| Generator: |
|---|
| Generator Capacity: 32 Amp |
| CNC Controlled EDM Generator |
| Tool Changer: |
|---|

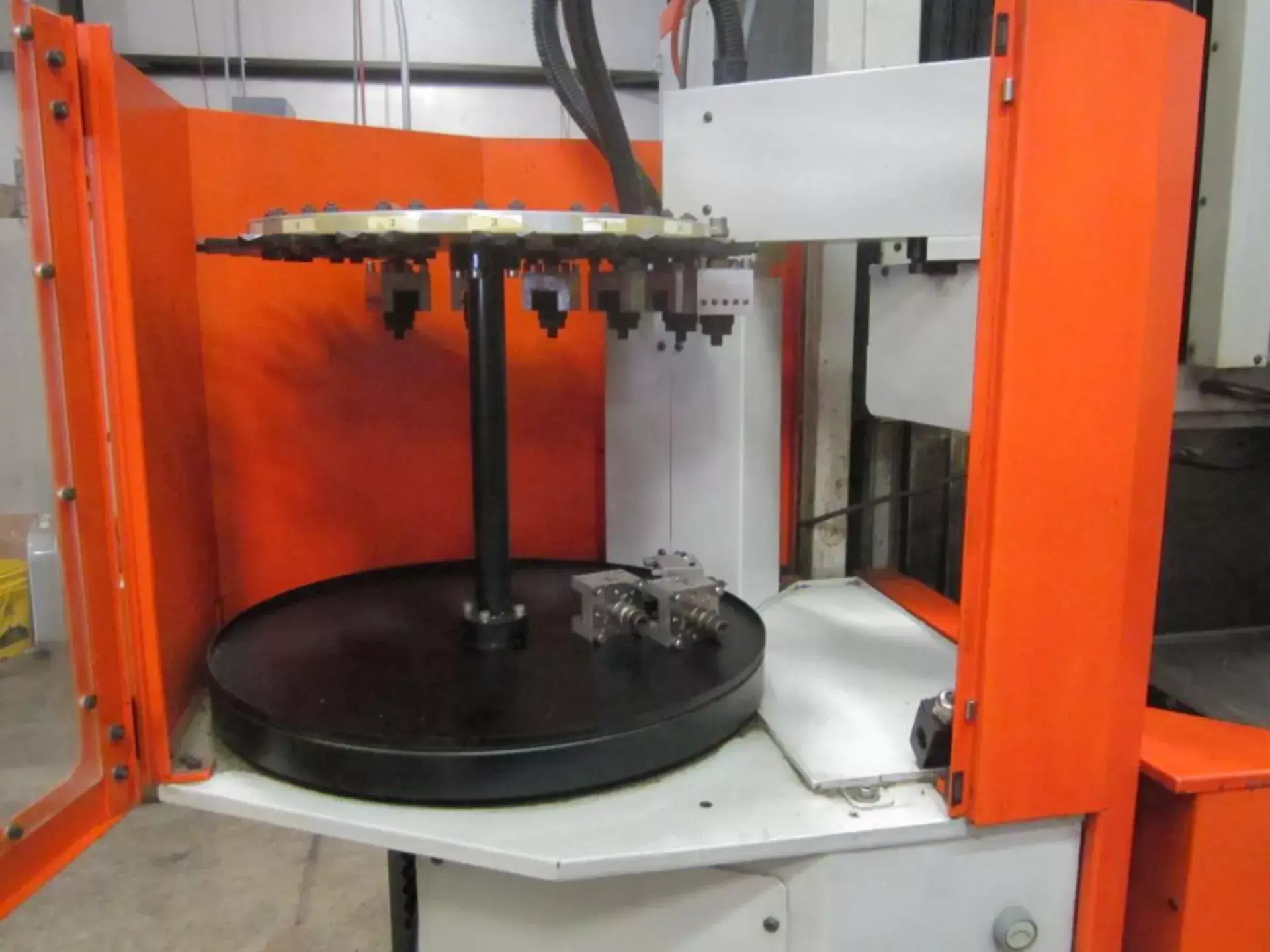

| Automatic Electrode Changer |
| Electrode Carousel Magazine |
| General: |
|---|
| Power Requirement: 380V / 3 Phase / 60 Hz |
| Machine Dimensions (Approx.): 84″ × 72″ × 98″ |
| Machine Weight (Approx.): 5,500 lbs. |
