*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: |
Dalian DMTG |
| Model: |
CDS26120C |
| Year: |
2007 |
| Equipped With: |
| SDS2L 2-Axis Digital Readout (DRO) |

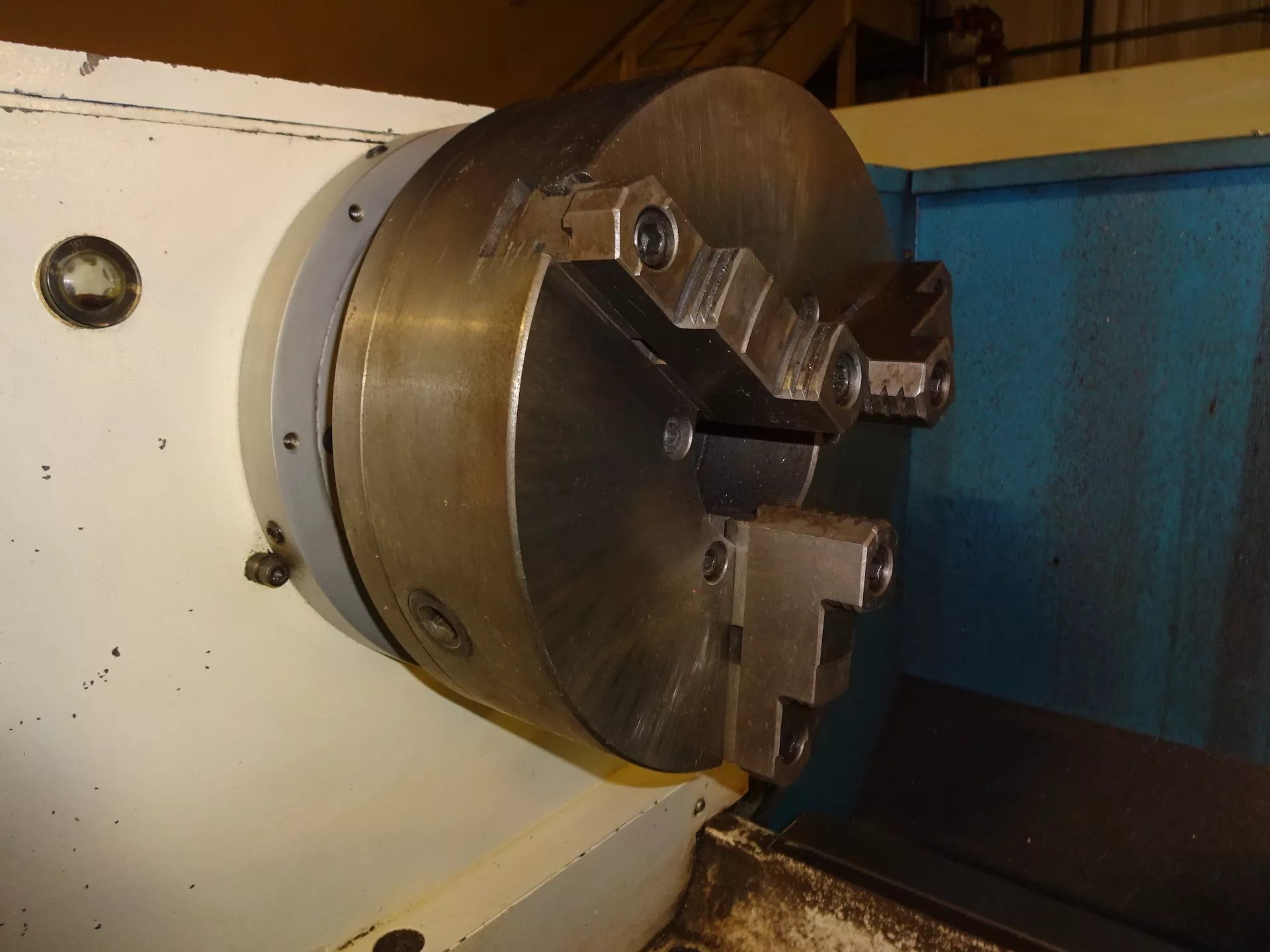

| 15″ 4-Jaw Independent Chuck |
| 12″ 3-Jaw Chuck |
| Tailstock |
| (2) Steady Rests |
| 4-Way Tool Post |
| Inch / Metric Threading |
| Coolant System |
| Work Light |
| Full Splash Guard |
| Capacity: |
| Swing Over Bed: 26.00″ |
| Distance Between Centers: 120.00″ |
| Spindle Bore: 4.125″ |
| Spindle Speed Range: 26 – 1700 RPM |
| Spindle Nose: D1-8 Camlock |
| Swing Over Cross Slide: 16.50″ |
| Swing Over Gap: 34.00″ |
| Spindle: |
| Spindle Bore: 4.125″ |
| Spindle Nose: D1-8 Camlock |
| Spindle Speed Range: 26 – 1700 RPM |
| Number of Spindle Speeds: 12 |
| Tailstock: |
| Tailstock |
| Tailstock Quill Travel: 6.00″ |
| Tailstock Taper: MT-5 |
| General: |
| Machine Dimensions (Approx.): 177″ × 45″ × 57″ |
| Machine Weight (Approx.): 8,600 lbs |
