*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

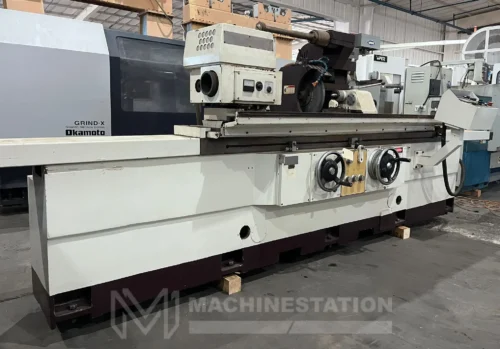

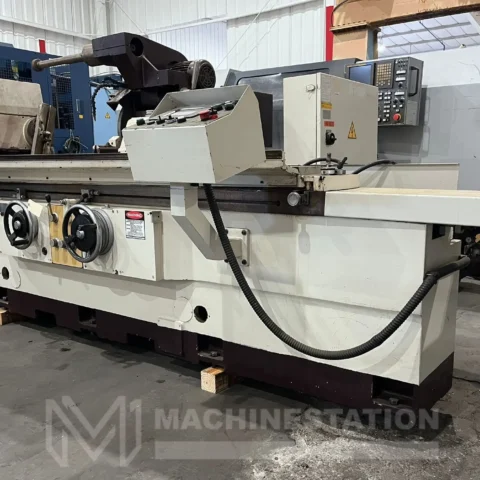

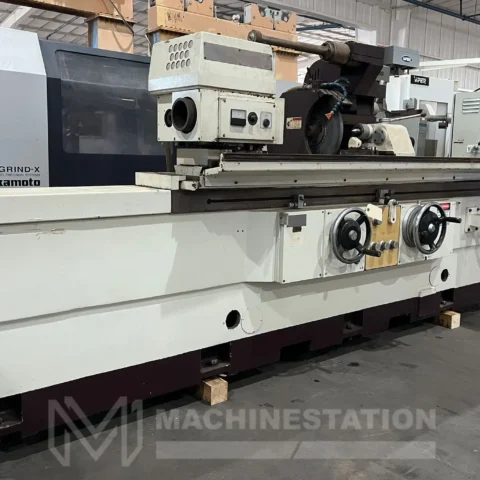

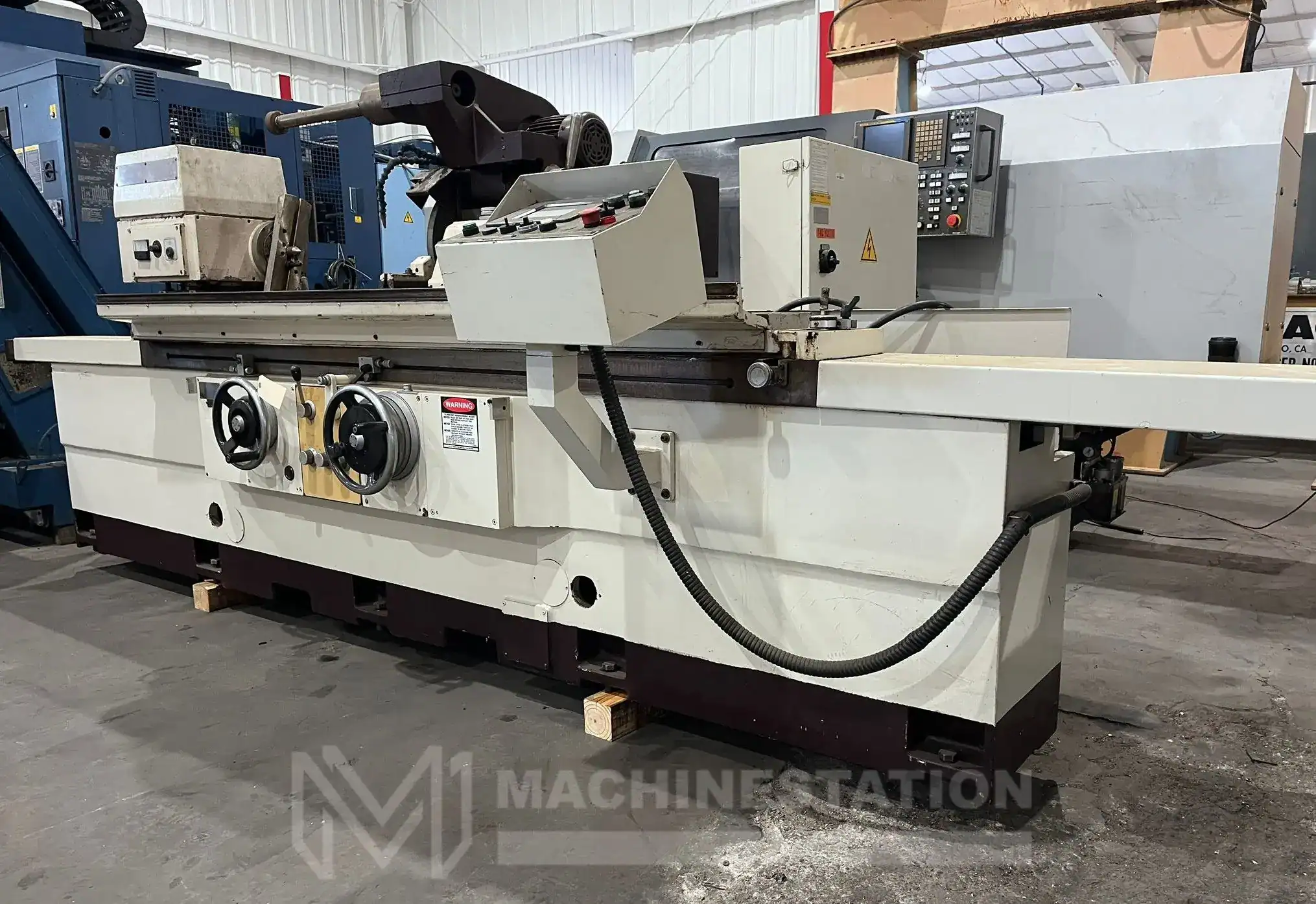

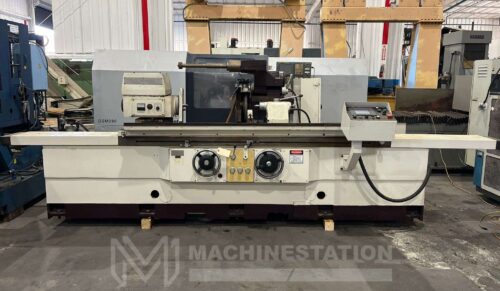

| Make: | Chevalier |

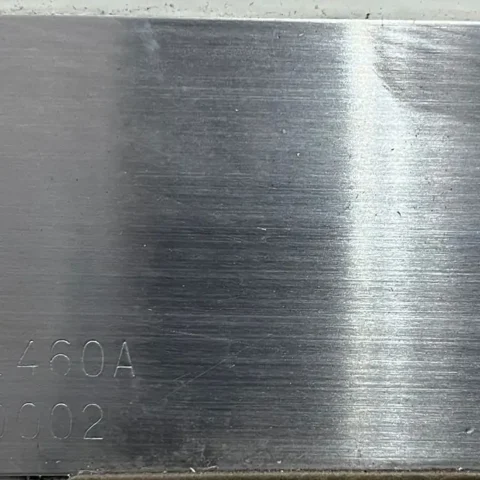

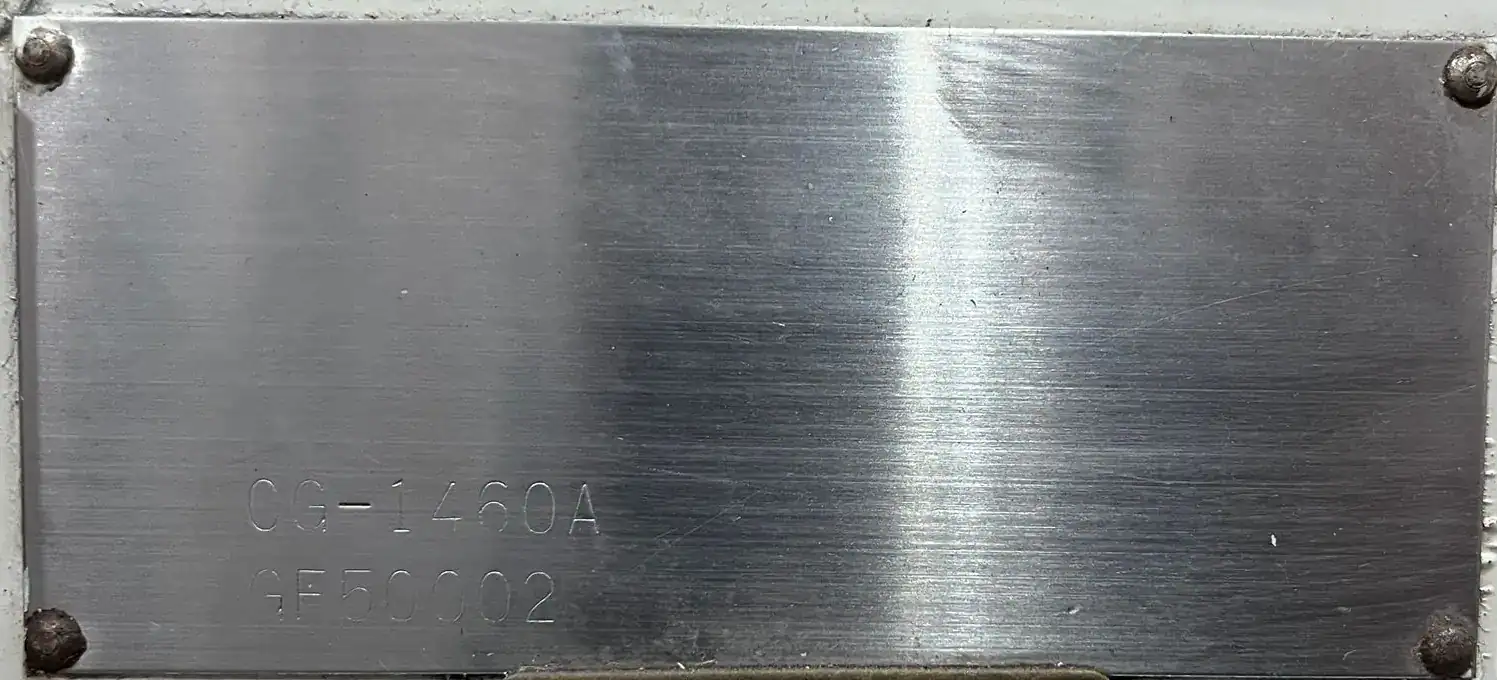

| Model: | CG-1460A |
| Year: | 2000 |
| Equipped With: |
|---|

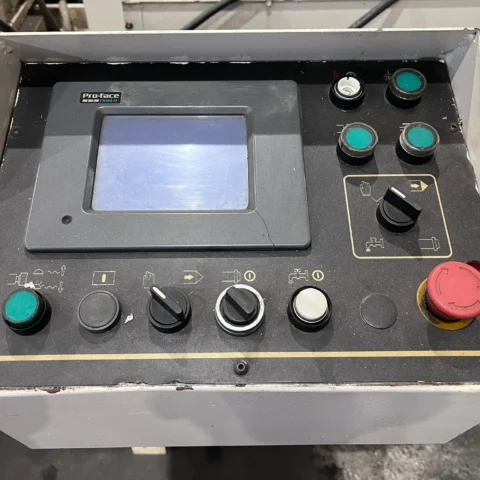

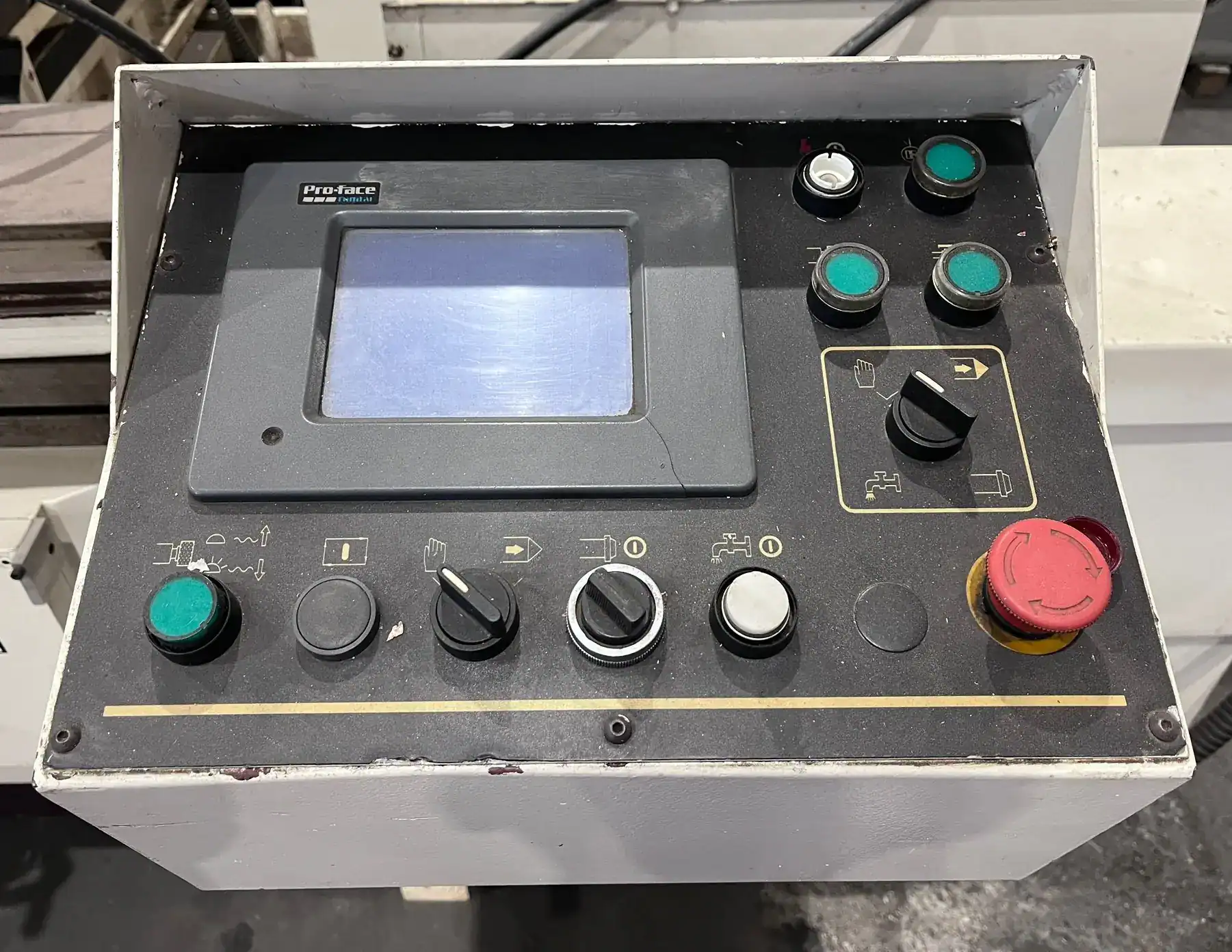

| Pro-Face PLC Control |
| Automatic Grinder Cycle (Rough Grind, Fine Grind, Spark out, Return) |

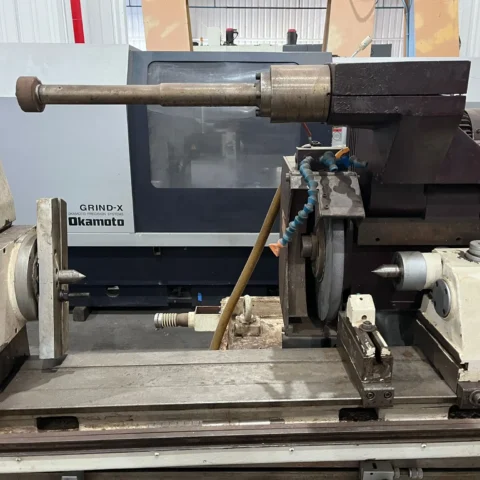

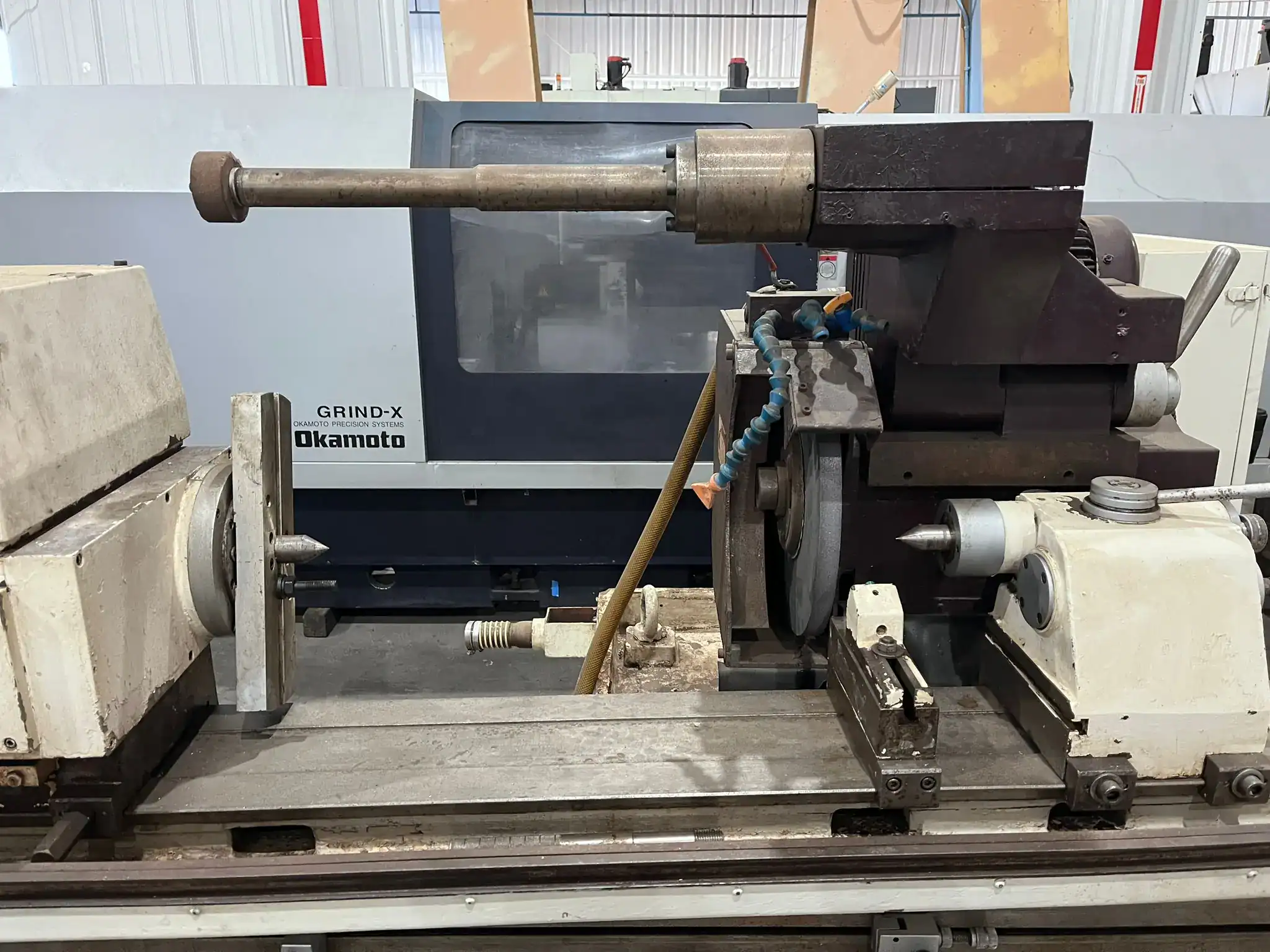

| Swing Down Internal Attachment |

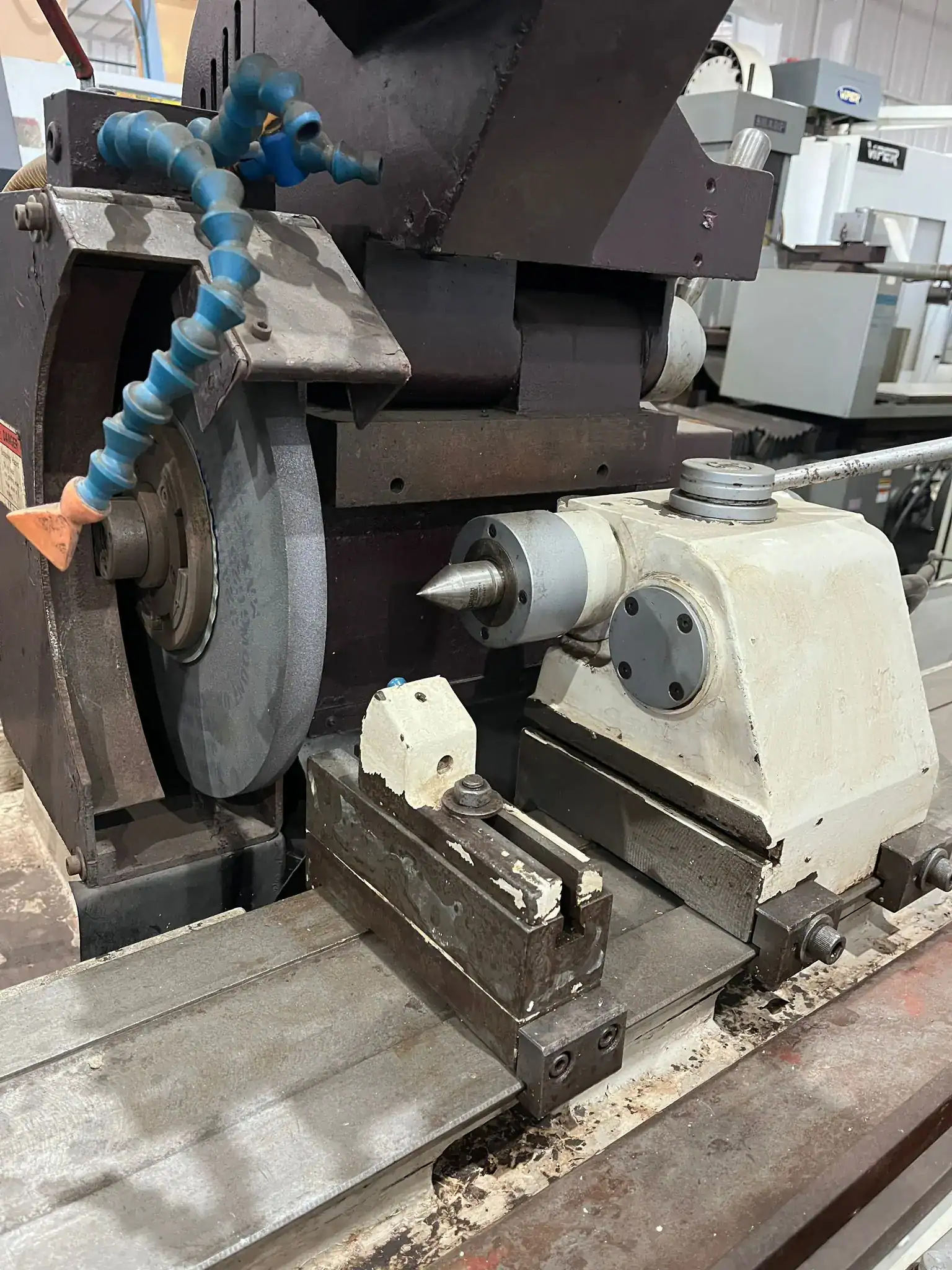

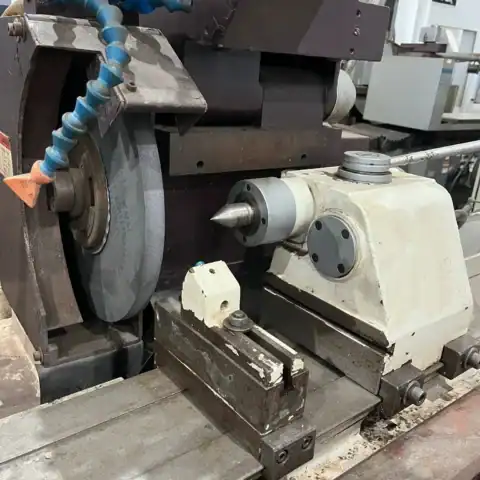

| Tailstock Mounted Dresser |
| Coolant System with Magnetic Separator |
| Hydraulic Unit |
| Capacity: |
|---|
| Max Grinding Diameter: 14.17″ |
| Max Grinding Length: 59.0″ |
| Max load Capacity: 330 lbs |
| Swing Over Bed: 14.9″ |
| Distance Between Centers: 60.0″ |
| Wheelhead: |
|---|
| Grinding wheel Size: 16″ X 2″ X 5″ |
| Speed: 1650 RPM |
| Wheelhead Motor Power: 5 HP |
| Maximum Infeed Travel: 9.64″ |

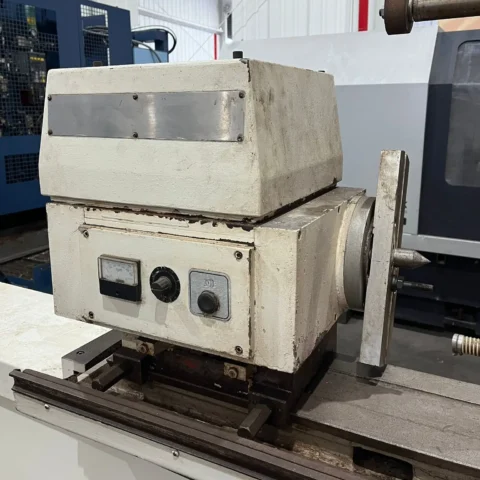

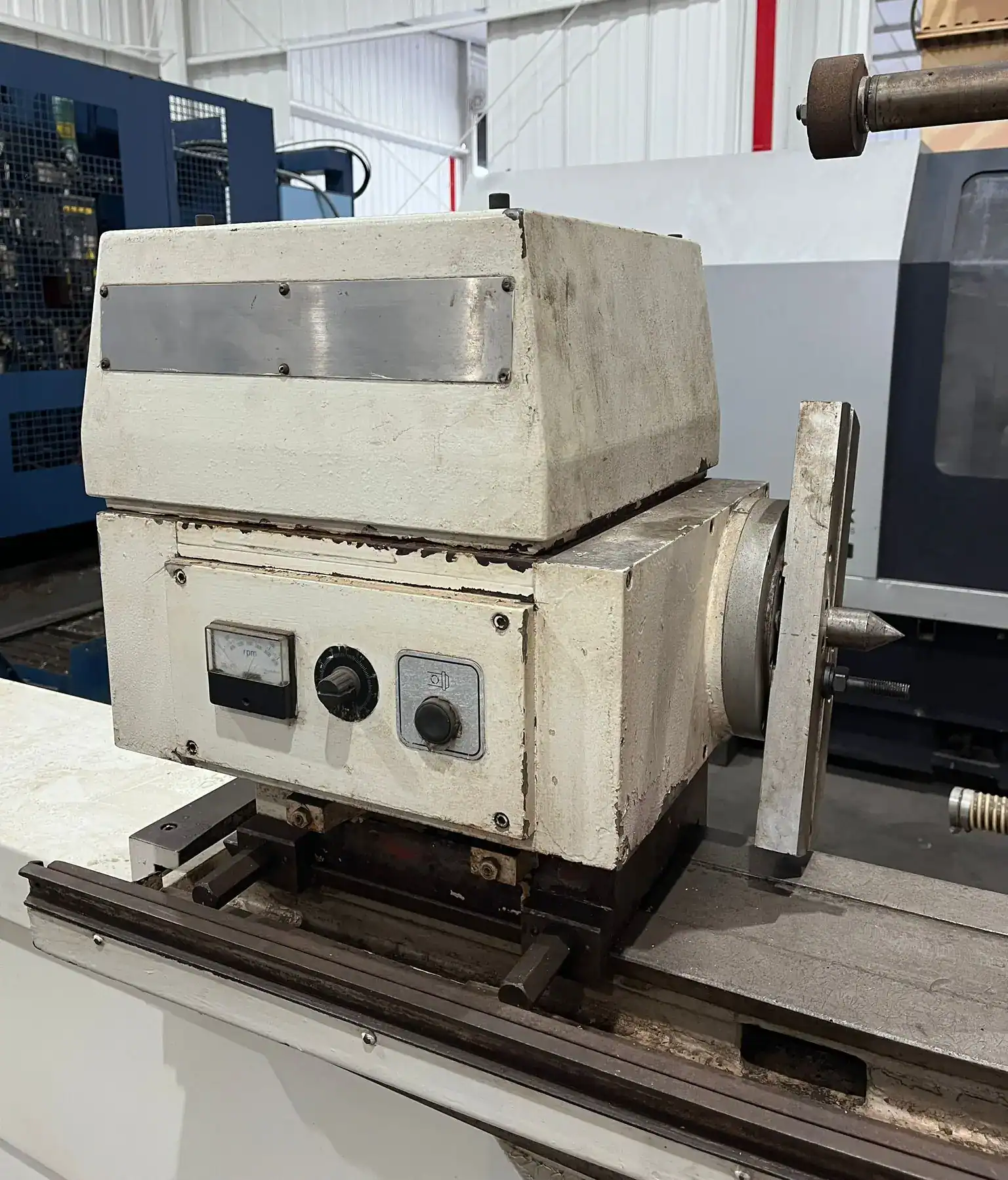

| Workhead: |
|---|
| Spindle Speeds: 25 to 350 RPM |
| Spindle Center/Rotation: MT#4 / Dead & Live |
| Swiveling Angle: 90 degrees CCW |

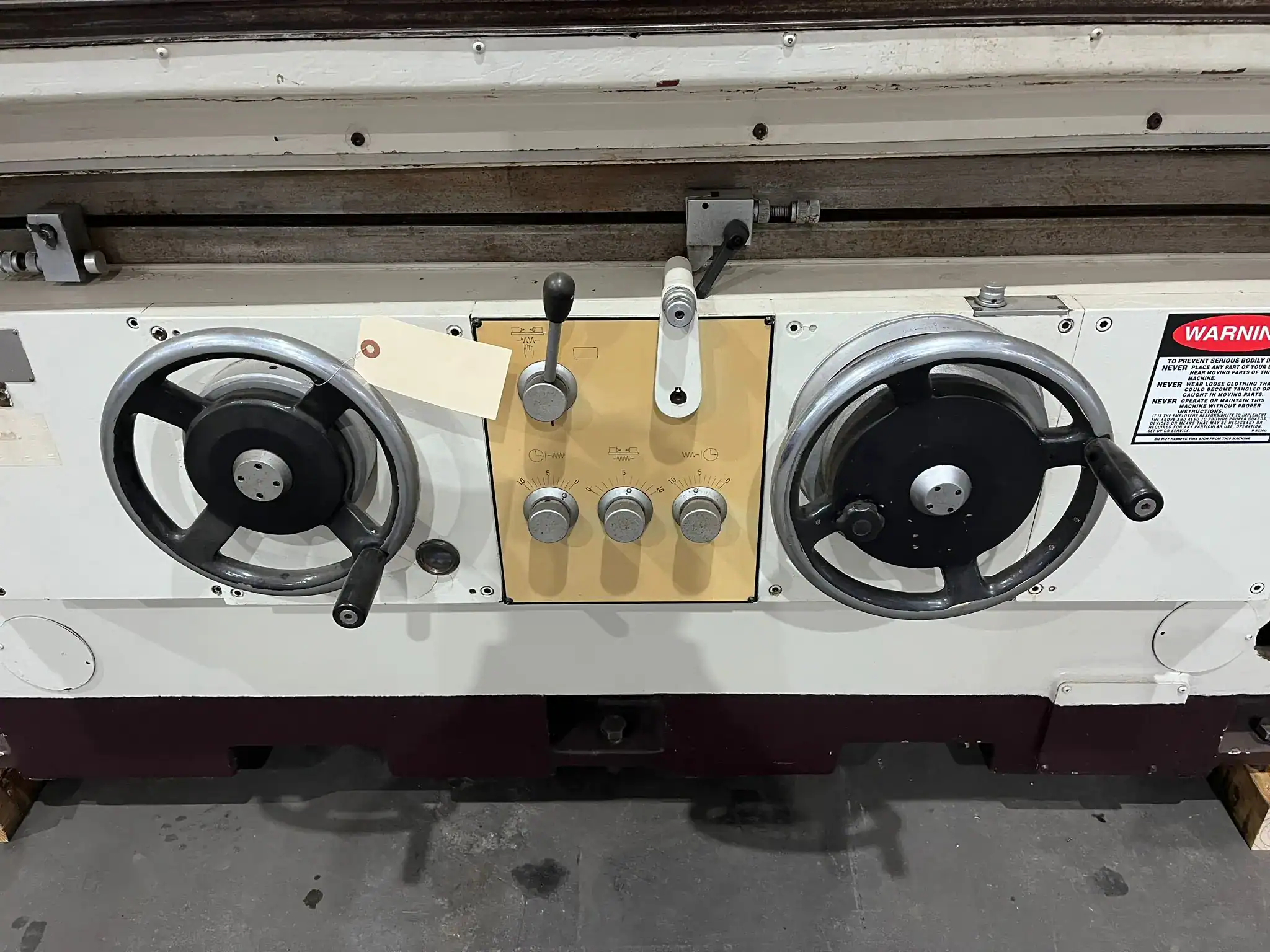

| Table: |
|---|
| Table Speed: 2 to 118 IPM |
| Table Swivel Angle (CCW/CW): +5° /- 5° |
| Table Handwheel per Revolution: 0.39″ |
| Table Minimum Traverse Length: 0.3″ |
| Tailstock: |
|---|
| Tailstock Quill Stroke: 1.0″ |
| Tailstock Taper: MT-4 |
| General: |
|---|

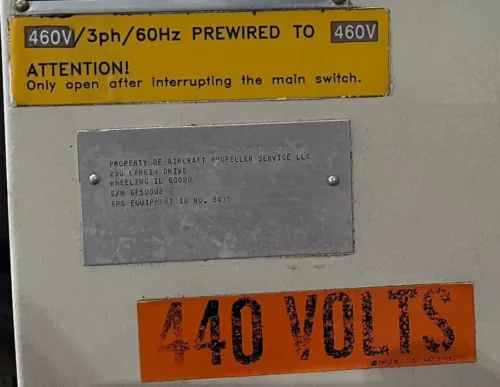

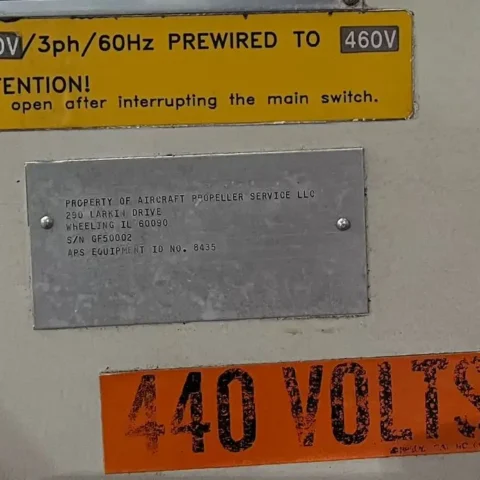

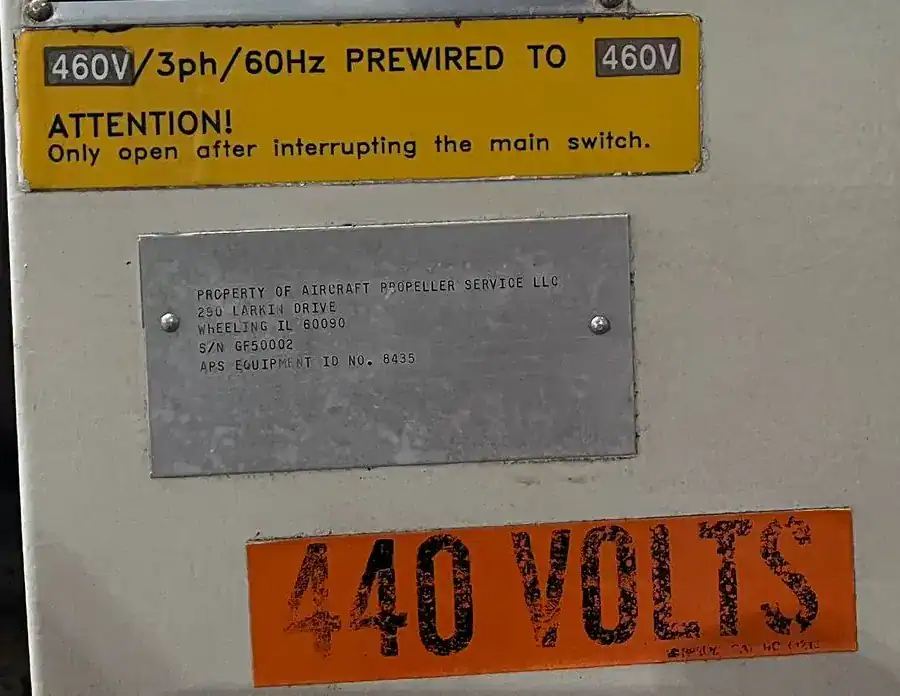

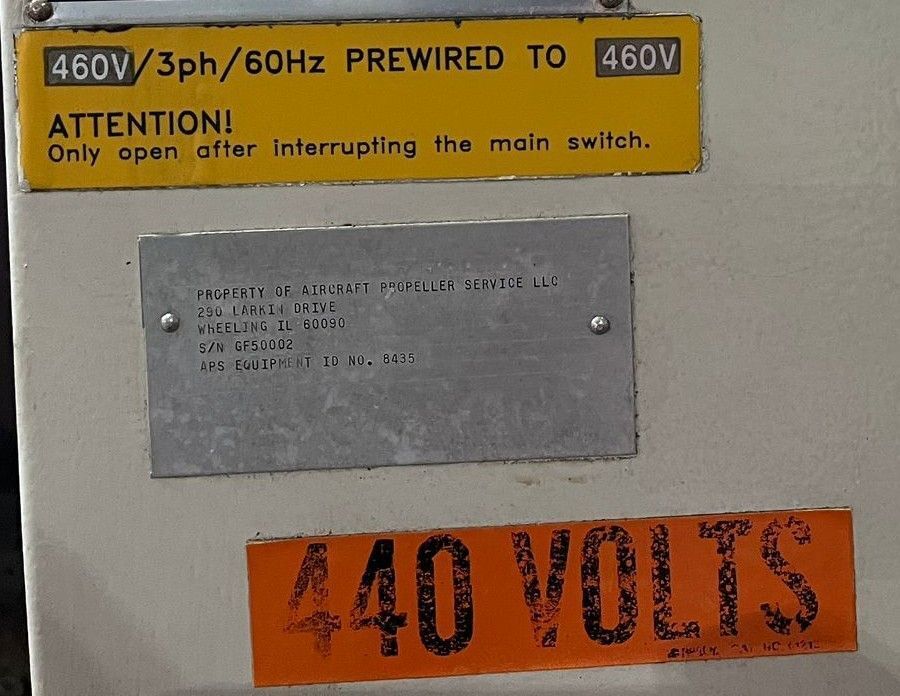

| Power Source: AC 460 V Three Phase 60 Hz |
| Overall Dimensions: 196″ x 90″ x 66″ High Approx. |
| Weight : 12,100 lbs Approx. |
