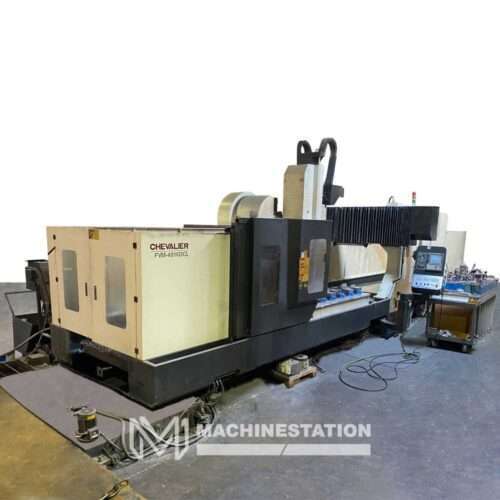

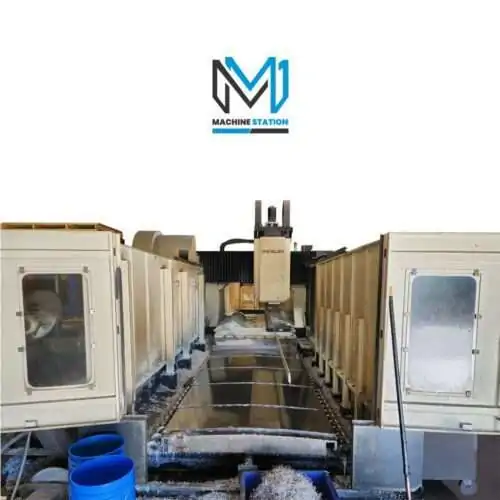

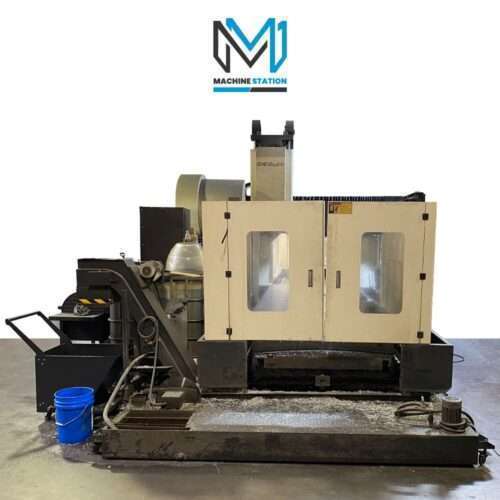

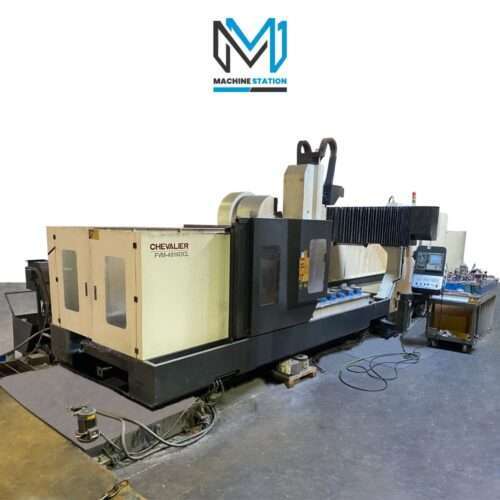

Chevalier FVM-4016DCL CNC Vertical Bridge Mill

SKU 7025
Make/Model Chevalier FVM-4016DCL
Video No Video
Out of stock

Used Chevalier FVM-4016DCL CNC Vertical Bridge Mill For Sale

SKU: 7025
Make/Model: Chevalier FVM-4016DCL
Video: No Video
SKU: 7025

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

Make: Chevalier
Model: FVM-4016DCL
Year: 2013
Condition: Used – Good
Equipped With:

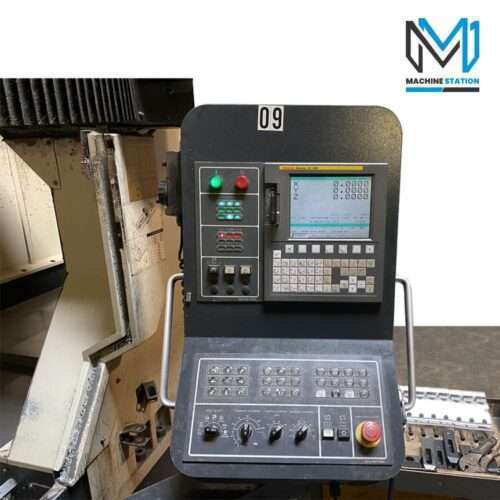

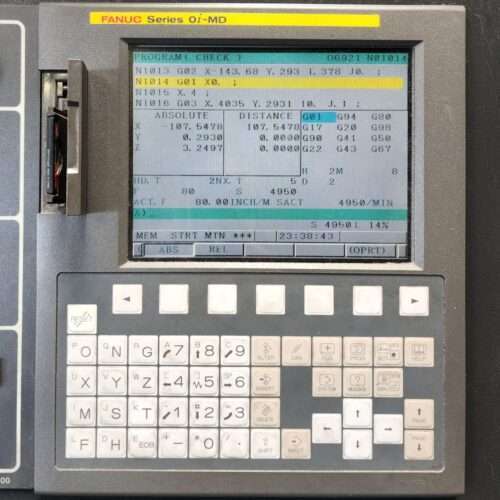

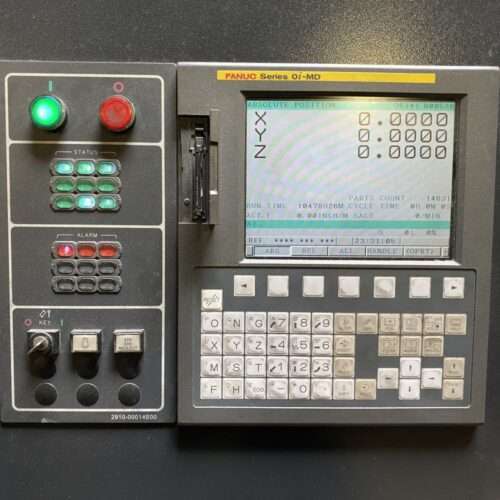

Fanuc Oi-MD CNC Control
161.4″ X 57″ Table

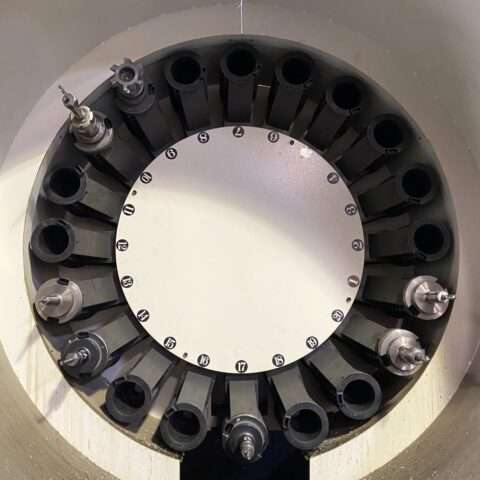

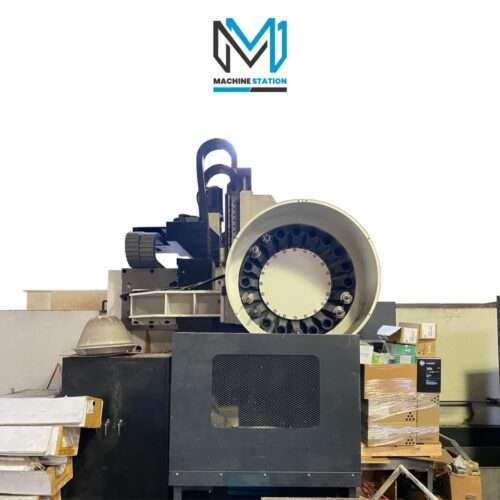

20 Station Side Mount Tool Changer

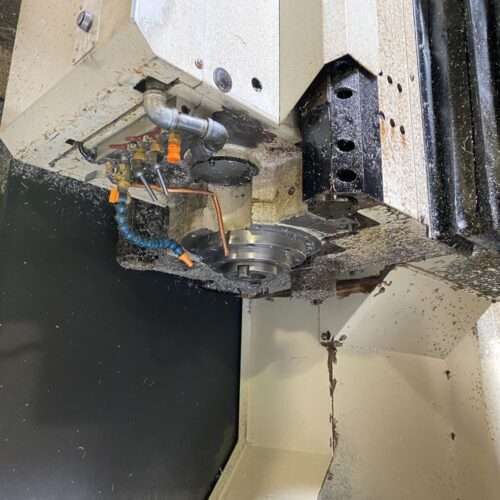

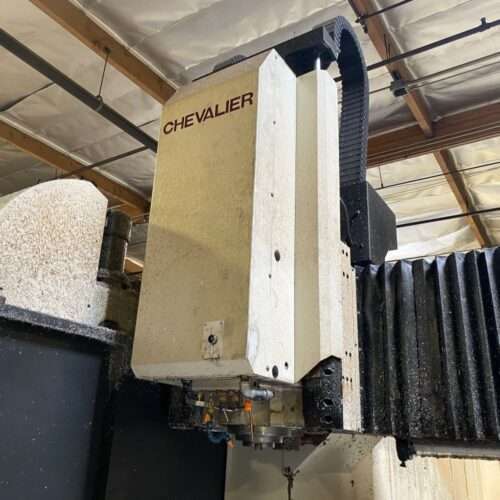

50 Taper Gear Head 6000 RPM Spindle
Powerful 30 HP high torque spindle motor
PCMCIA Card Slot
RS-232 Port
Rigid Tapping
Spindle Orientation
Box Way Construction
Coolant System

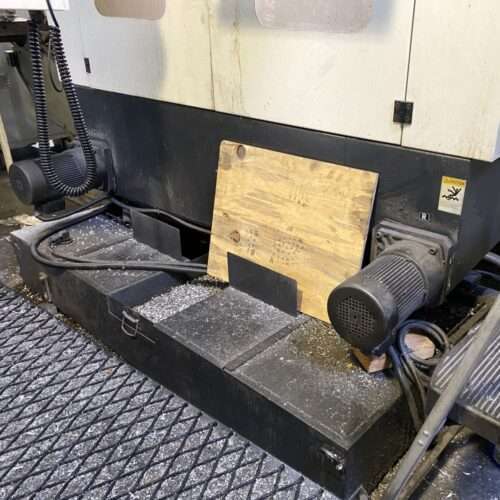

Screw Type Chip Conveyor on X Axis

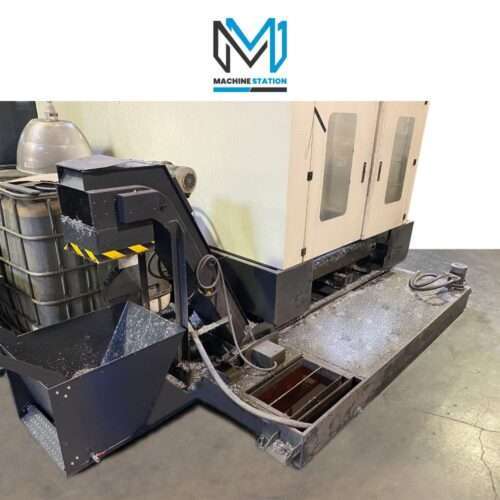

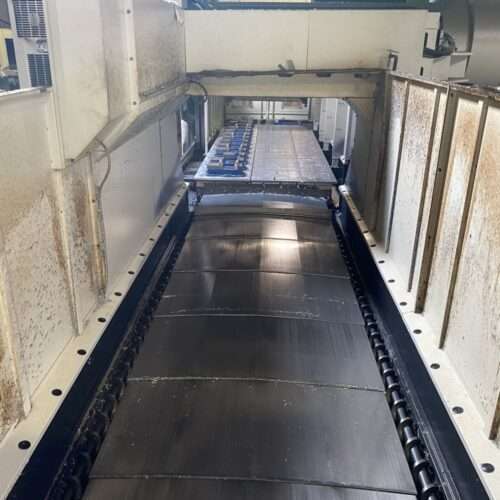

Chain Type Chip Conveyor on Y Axis
Travels:
X-Axis: 161.4″
Y-Axis: 59.0″
Z-Axis: 26.7″
Distance Between Columns: 66.0″
Spindle Nose to Table (Min.- Max.): 7.87″- 34.60″
Rapid Feedrate X Y & Z: 590 IPM
Cutting Feedrate: .04″ – 276″ IPM

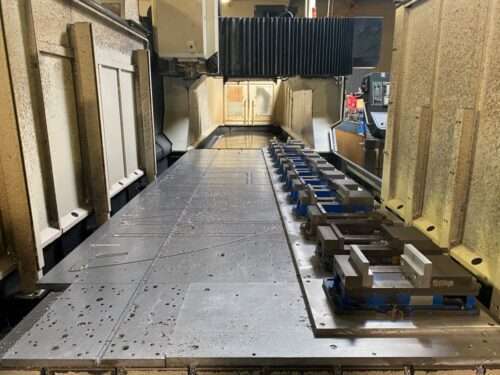

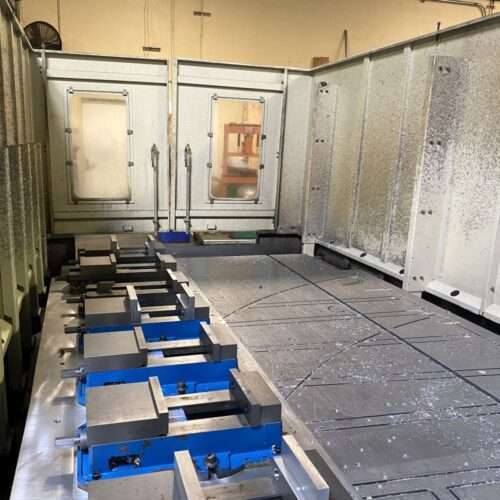

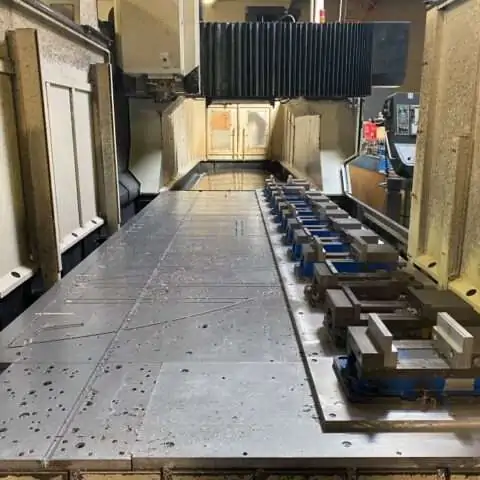

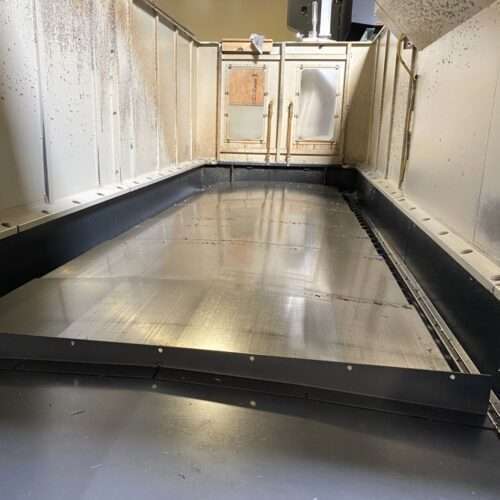

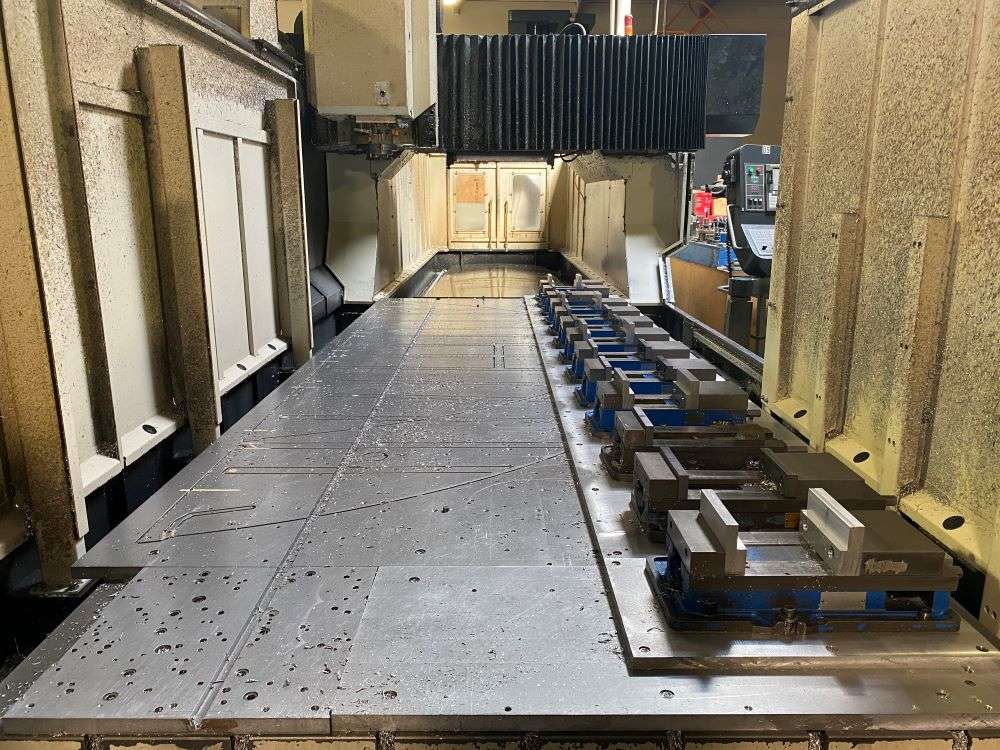

Table:
Length: 161.4″
Width: 57.0″
T-Slot: 0.87″ Wide x 7.08  x 0.27″
Max Weight on Table: 17600 lbs
Spindle:
Taper Size: 50
Speed Range: 6000 RPM
Spindle Power: 30 HP

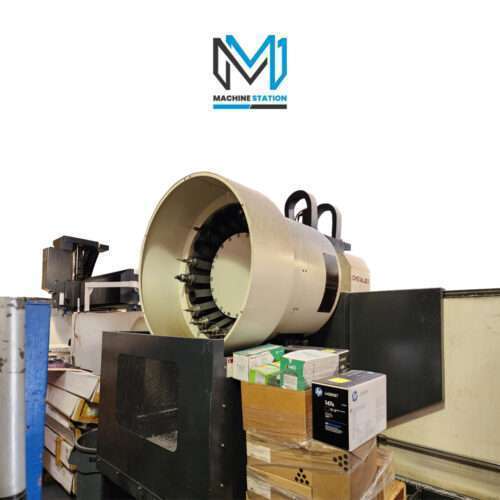

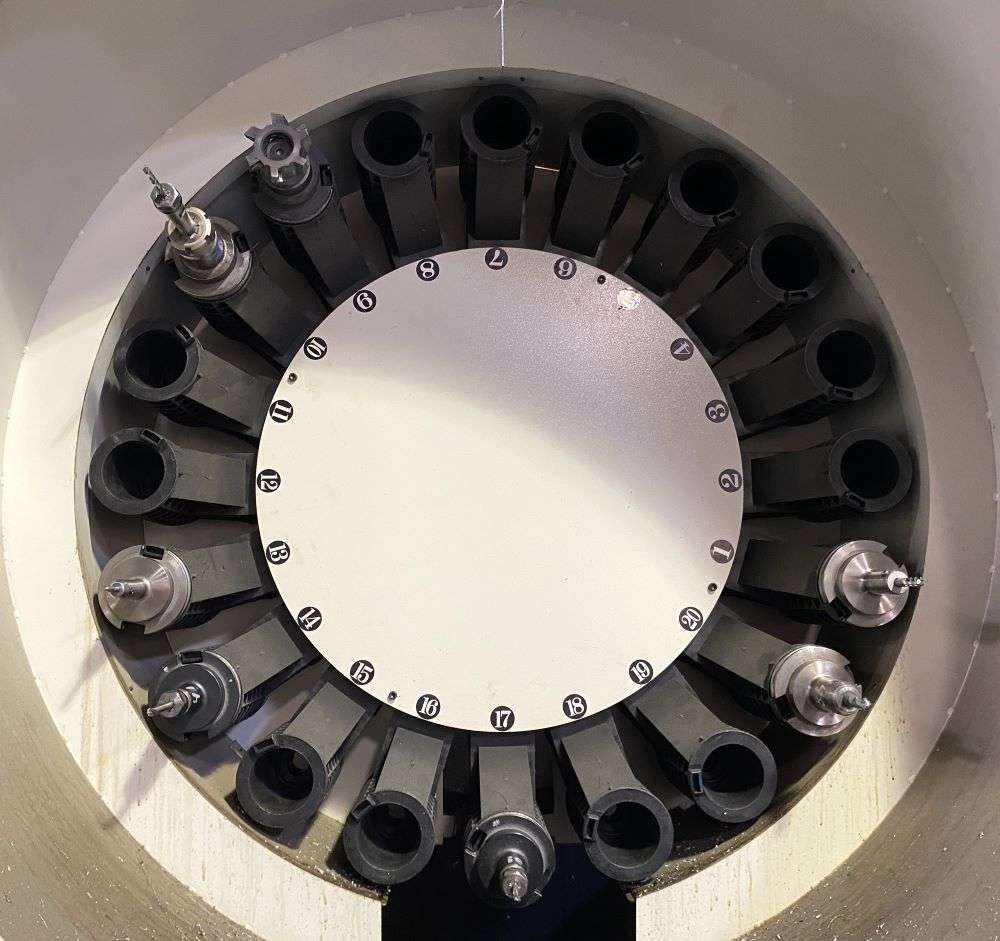

Automatic Tool Changer:
50 Taper
Capacity: 20
Max Tool Weight: 33 lbs
Max Tool Length: 11.81″
Max Tool Dia.: 4.92″

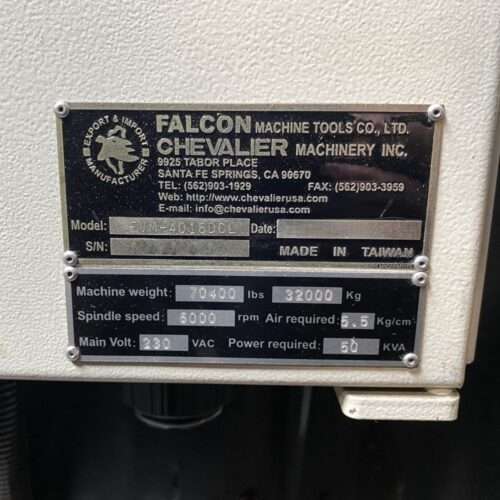

General:
Air Required: 100 psi 4 scfm
Power: 230v / 66FLA / 3-Phase 50 Kva
Overall Shipping Dimensions: 470″ x 178.5″ x 160″ High
Weight: 70400 lbs.
Equipped With:
Fanuc Oi-MD CNC Control
4,100 mm X 1,448 mm Table
20 Station Side Mount Tool Changer
50 Taper Gear Head 6000 RPM Spindle
Powerful 30 HP high torque spindle motor
PCMCIA Card Slot
RS-232 Port
Rigid Tapping
Spindle Orientation
Box Way Construction
Coolant System
Screw Type Chip Conveyor on X Axis
Chain Type Chip Conveyor on Y Axis
Travels:
X-Axis: 4,100 mm
Y-Axis: 1,499 mm
Z-Axis: 678 mm
Distance Between Columns: 1,676 mm
Spindle Nose to Table (Min.- Max.): 200 mm- 879 mm
Rapid Feedrate X Y & Z: 590 IPM
Cutting Feedrate: .102 mm – 7,010 mm IPM
Table:
Length: 4,100 mm
Width: 1,448 mm
T-Slot: 22 mm Wide x 7.08  x 7 mm
Max Weight on Table: 17600 lbs
Spindle:
Taper Size: 50
Speed Range: 6000 RPM
Spindle Power: 30 HP
Automatic Tool Changer:
50 Taper
Capacity: 20
Max Tool Weight: 33 lbs
Max Tool Length: 300 mm
Max Tool Dia.: 125 mm
General:
Air Required: 100 psi 4 scfm
Power: 230v / 66FLA / 3-Phase 50 Kva
Overall Shipping Dimensions: 11,938 mm x 4,534 mm x 4,064 mm High
Weight: 70400 lbs.
