*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

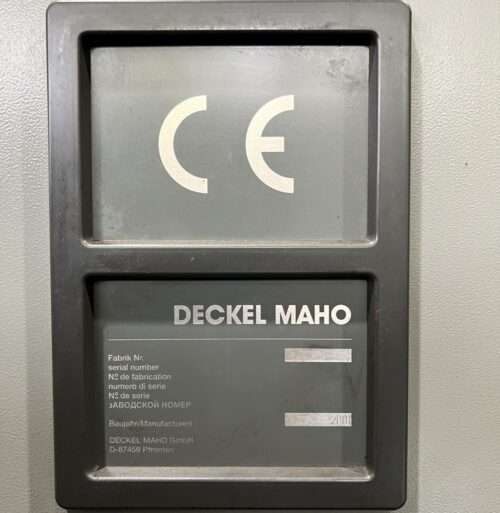

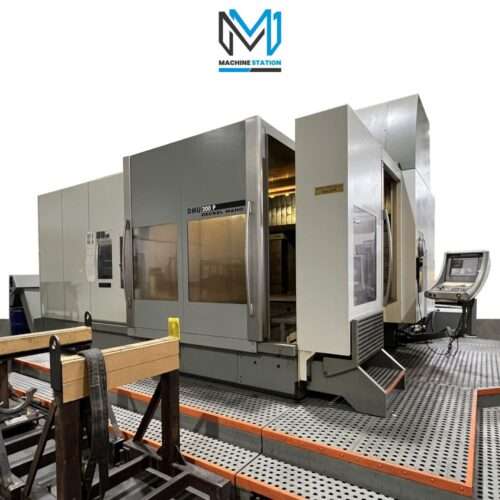

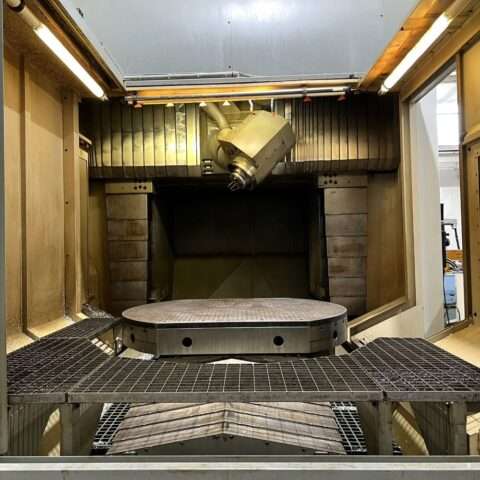

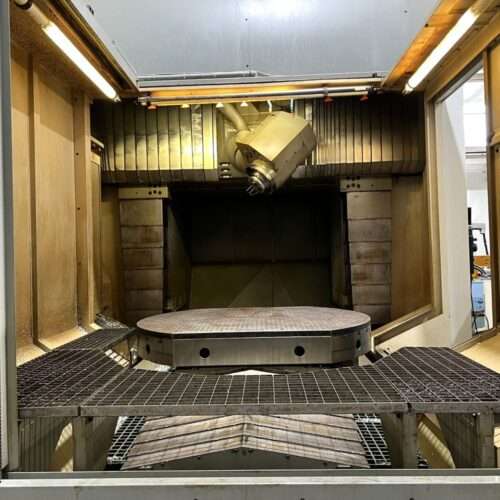

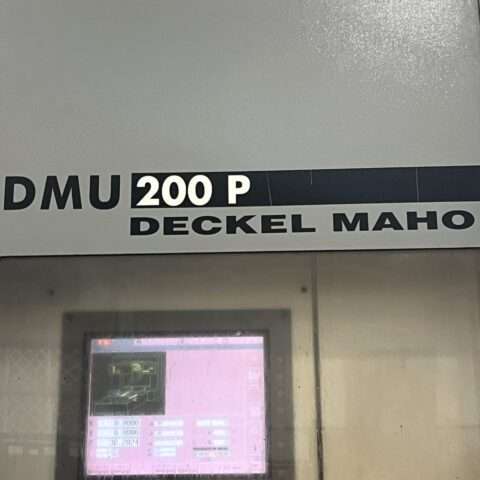

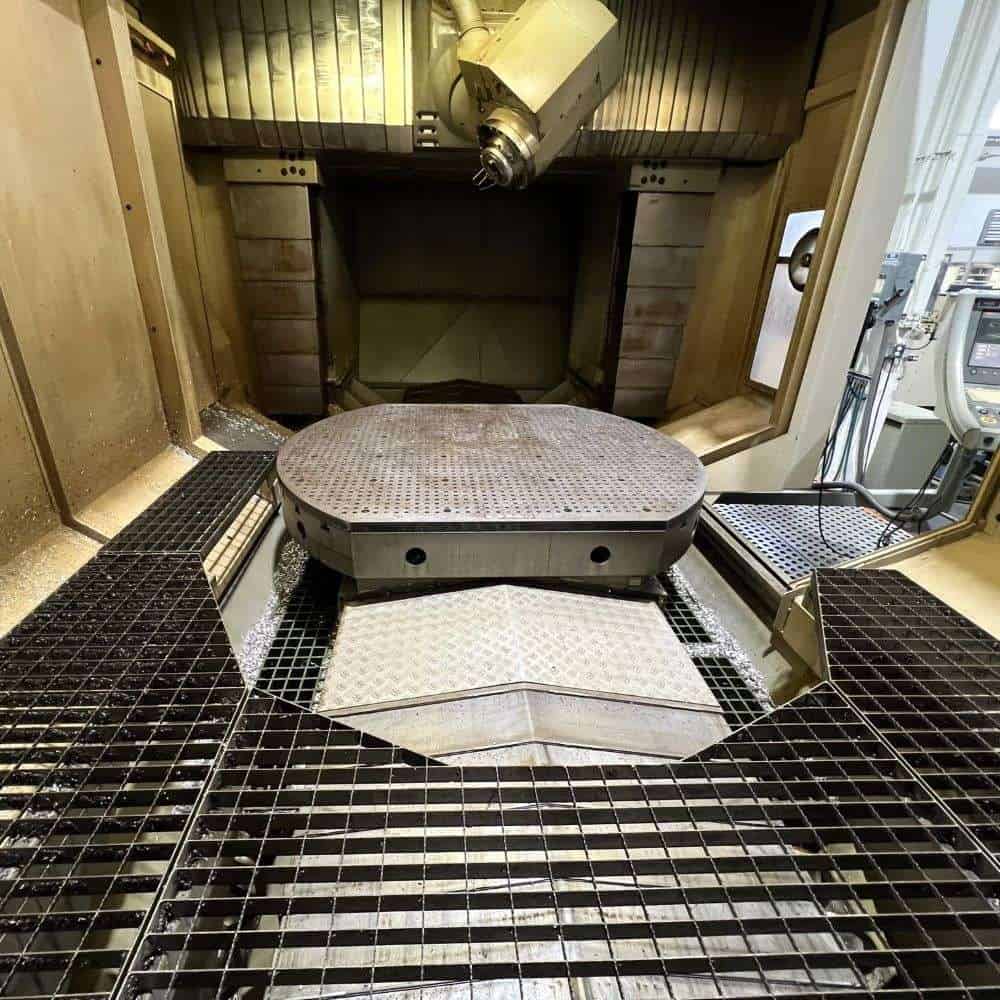

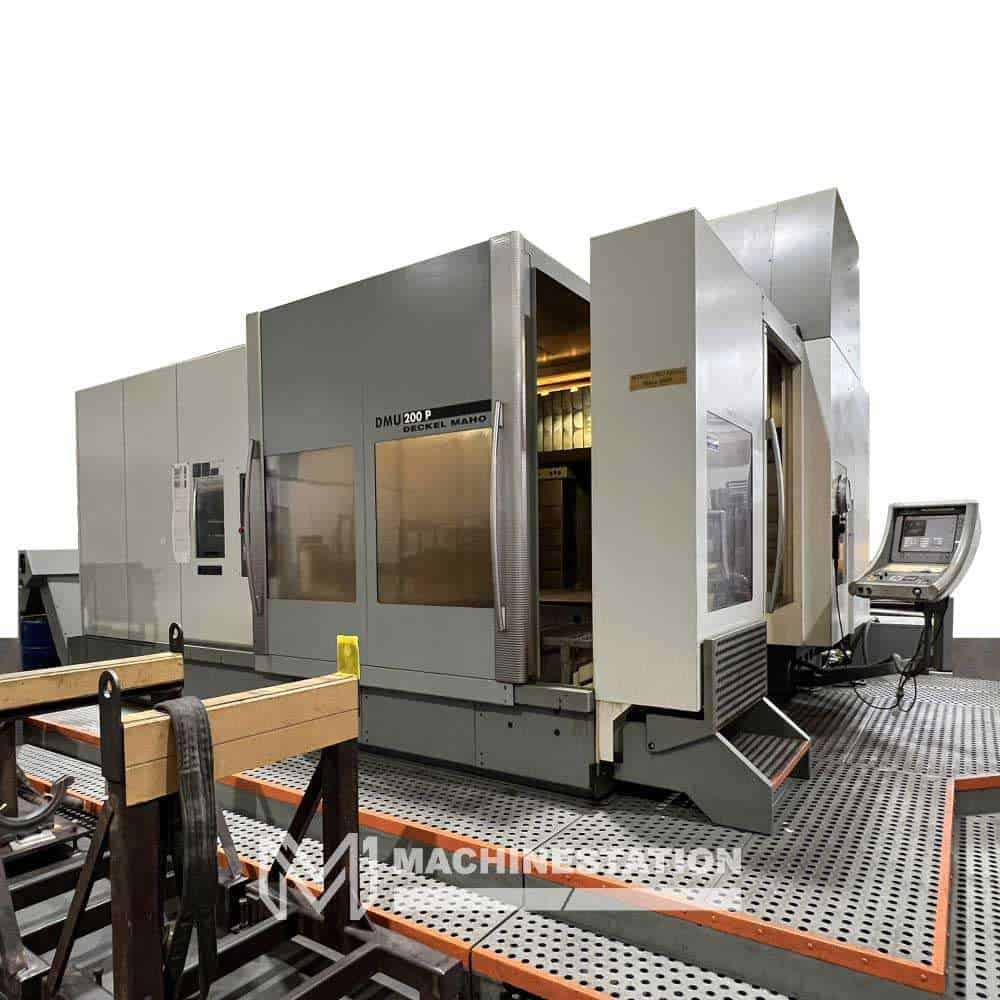

| Make: | DECKEL MAHO |
| Model: | DMU 200P |
| Year: | 2001 |
| Condition: | Used – Good |
| Features: |
|---|

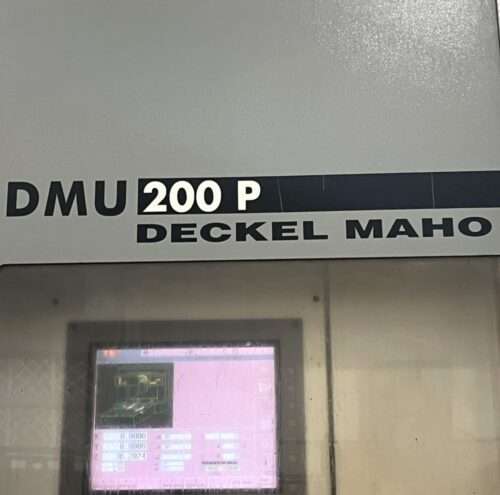

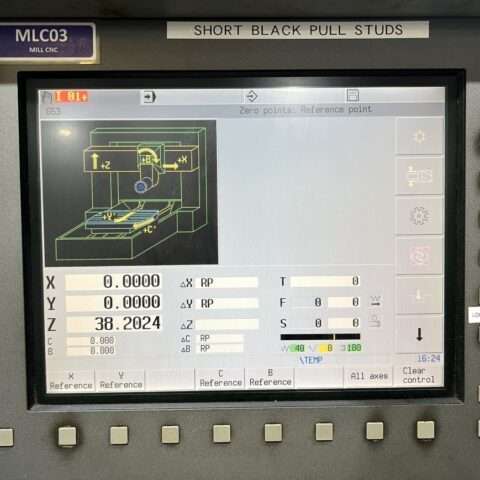

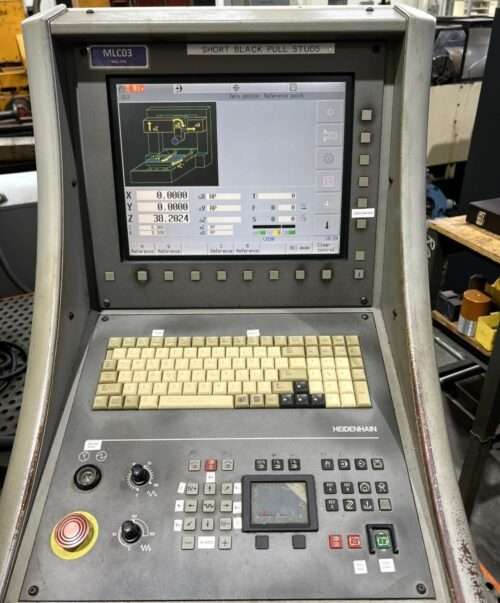

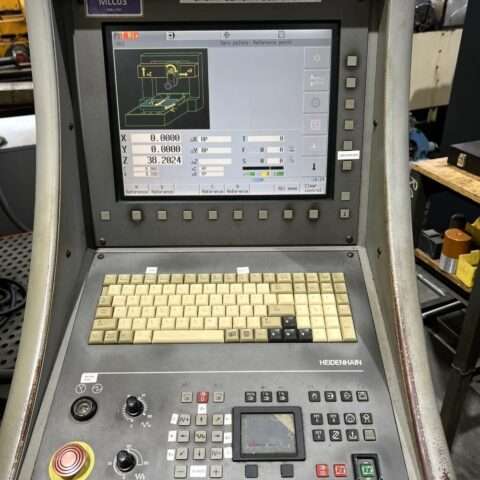

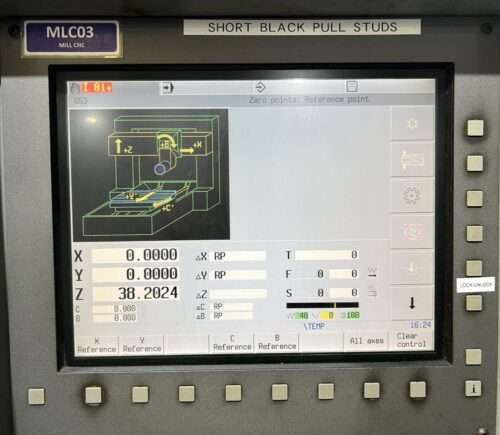

| Heidenhain CNC Control |

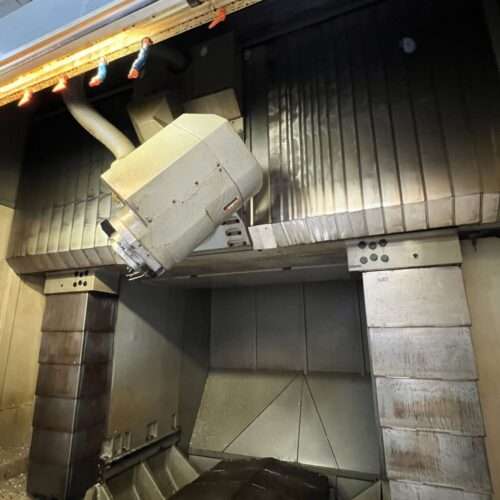

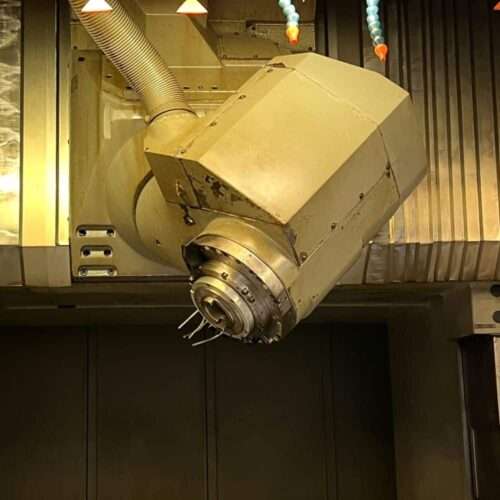

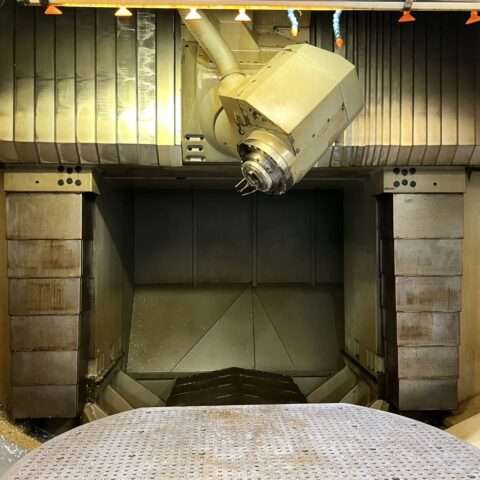

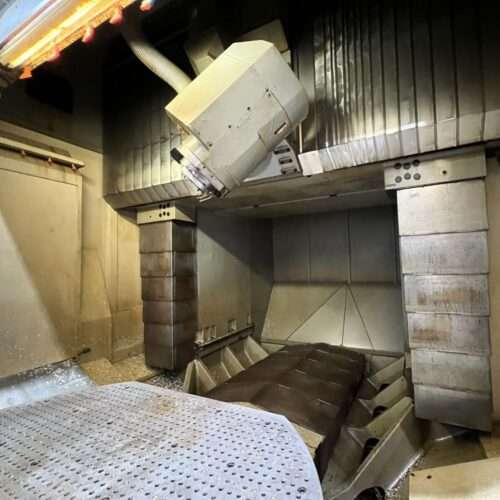

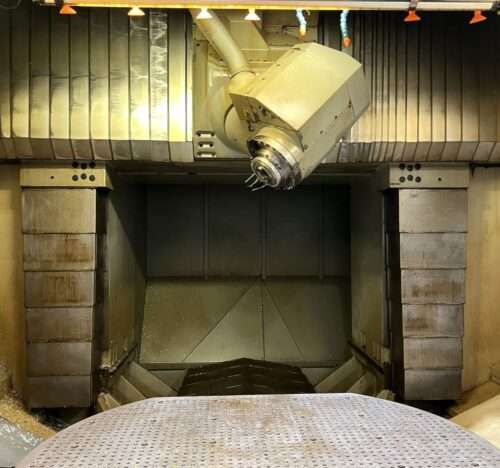

| Swivel Milling Head Horizontal/Vertical (B Axis Controlled) |
| 360° (0.001°) Rotary Table Positioning |
| 10,000 RPM High Precision Spindle |

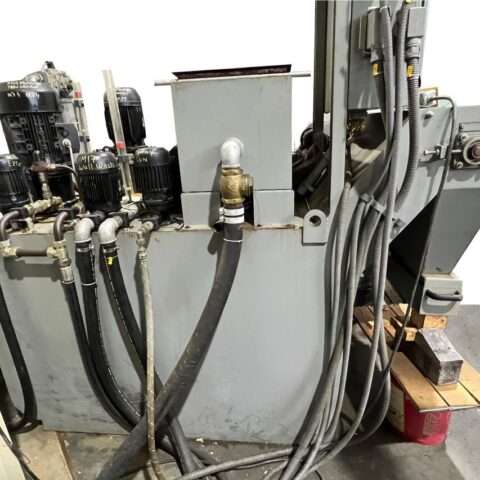

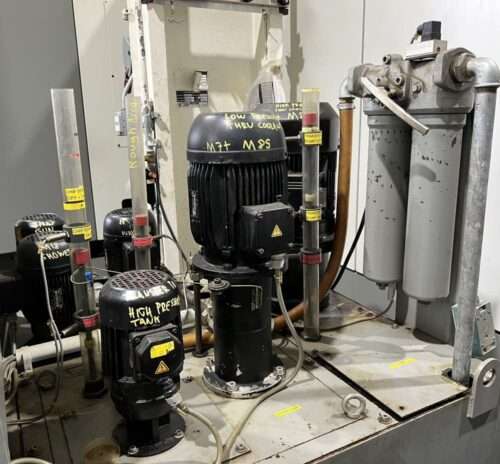

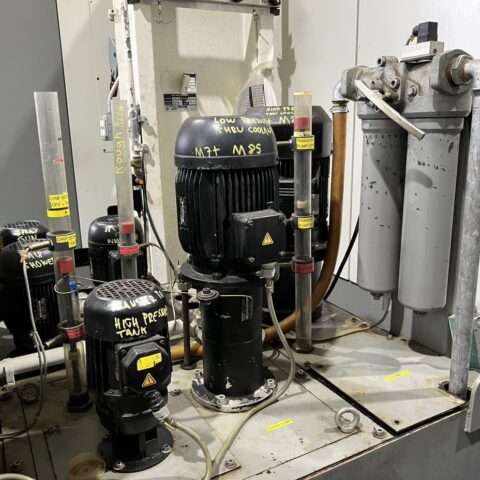

| High Pressure Through Spindle Coolant |
| 180 Station Automation Tool Changer |

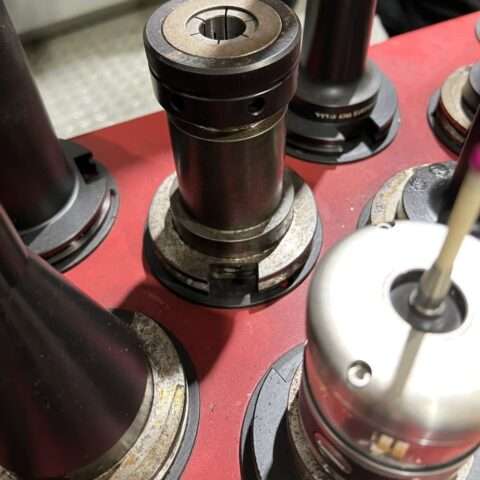

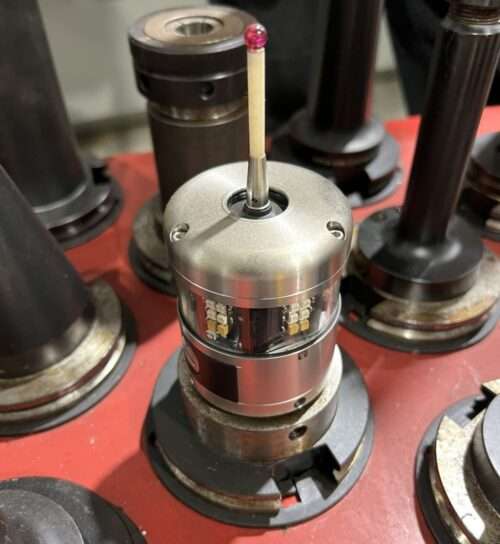

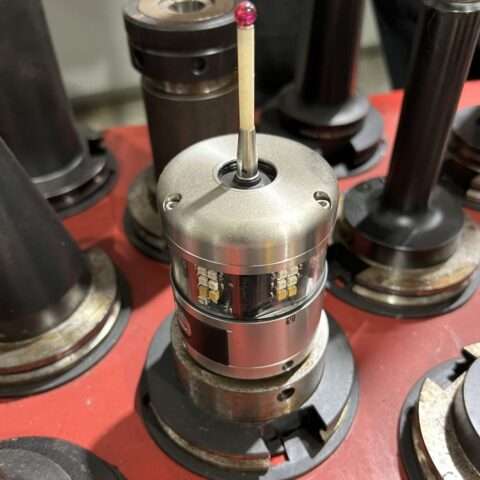

| Renishaw Probing System |
| 40 HP High Torque Spindle Motor |
| Spindle Orientation |
| Rigid Tapping |
| Blum Laser Tool Pre-setter |

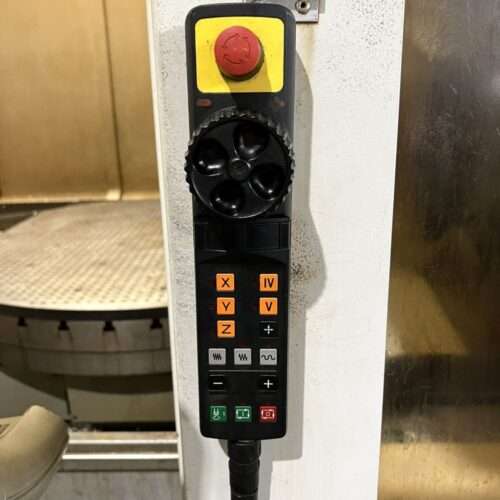

| MPG Handwheel Control |
| RS-232 Port |

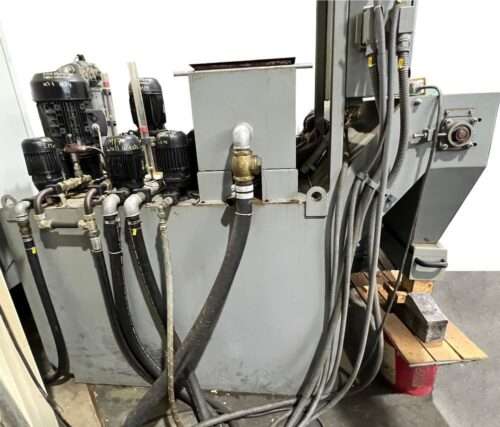

| Coolant System |

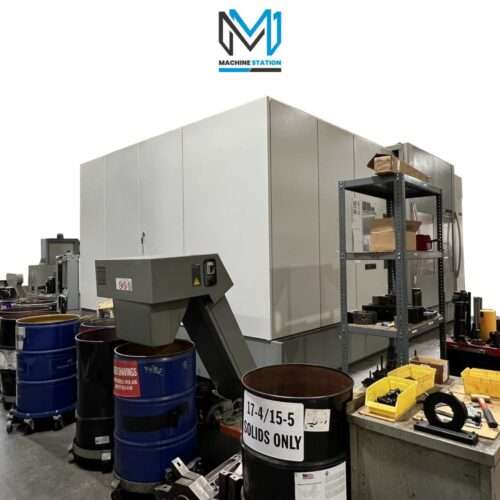

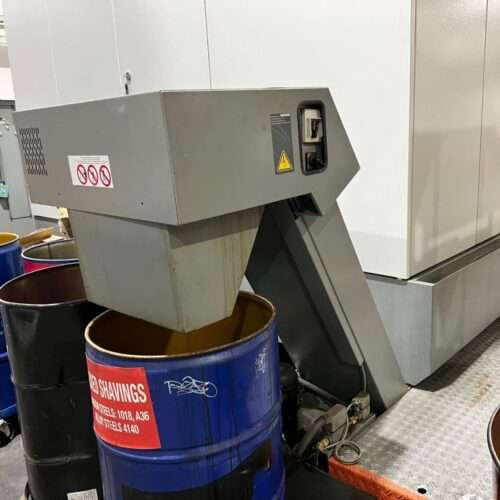

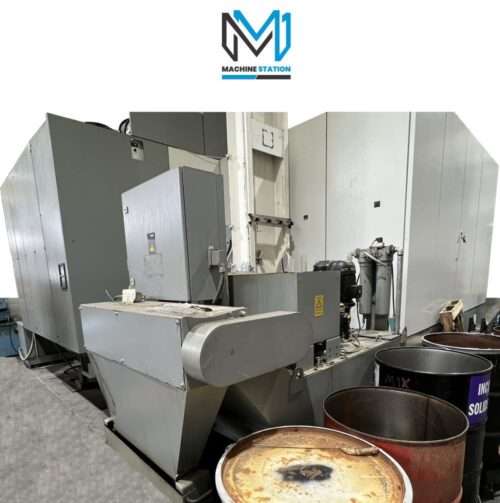

| Chip Conveyor |
| Work light |
| Travels: |
|---|
| X Axis: 70.86″ |
| Y Axis: 78.74″ |
| Z Axis: 43.30″ |
| B Axis (Swivel Milling Head): -7° / +180° (0.001°) |

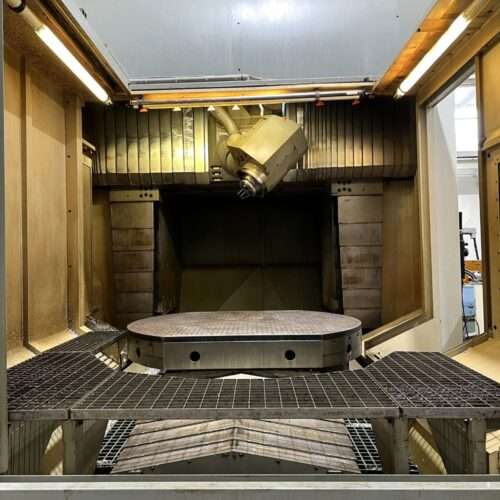

| C Axis (Table Rotation): 360° (0.001°) |

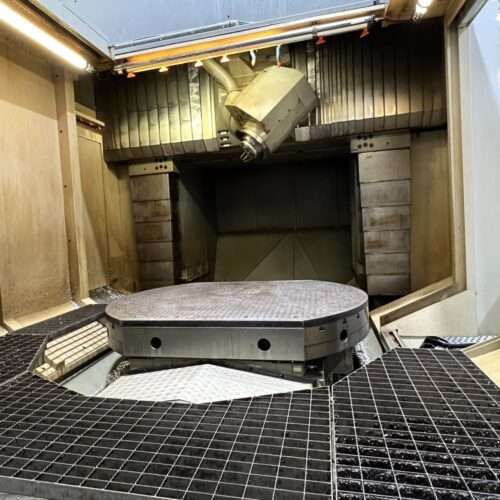

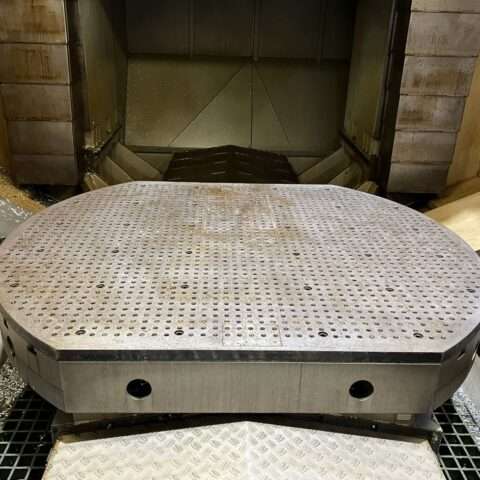

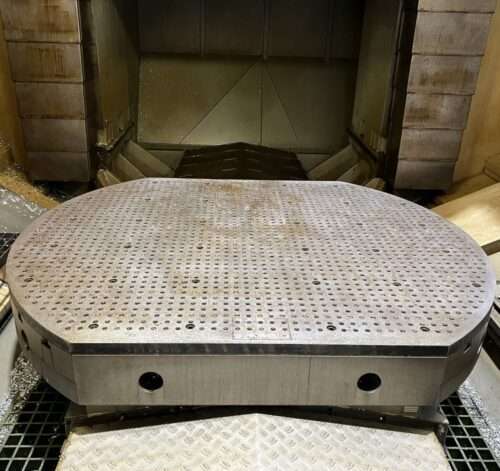

| Table: |
|---|
| Length: 66.92″ |
| Width: 55.11″ |
| Max Weight on Table: 11,023 lbs |
| Spindle: |
|---|
| Taper Size: CAT 50 |
| Max. Speed: 10,000 RPM |
| Power: 40 HP |
| Feed rates: |
|---|
| Rapid X Y & Z : 1574 Inch Per Minute |
| Cutting Feedrate: 590 Inch Per Minute |

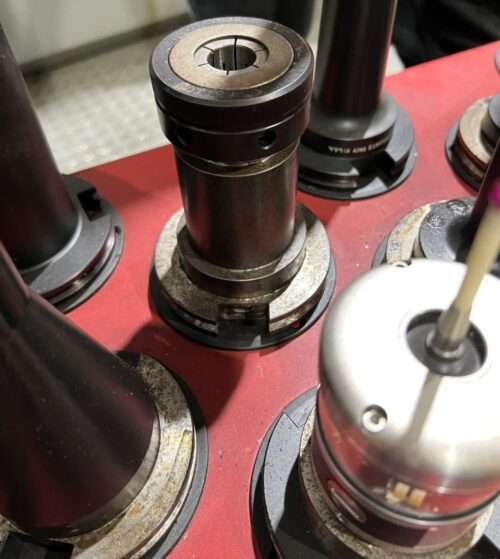

| Automatic Tool changer: |
|---|
| Capacity: 180 Station |
| Taper: CAT 50 |
| General: |
|---|
| Air Required: 100 psi 4 scfm |

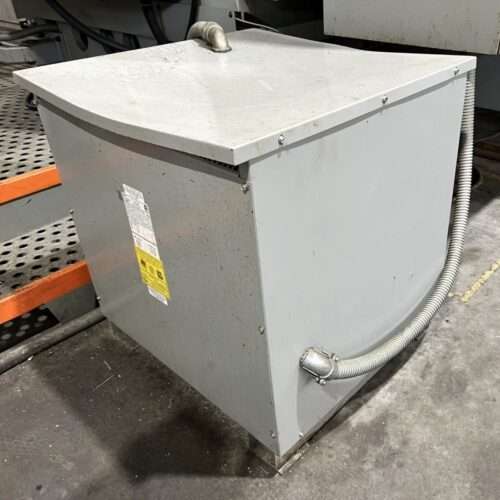

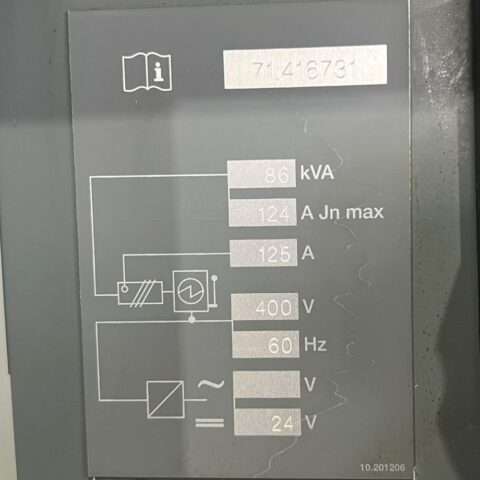

| Power: 86 kva / 400v / 3-Phase |
| Shipping Dimension: 268.3″ X 230″ X 164.3″ High |
| Weight: lbs |
