*All specifications are approximations and are subject to verification. Comes as shown in the images.
Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: |
DMG |
| Model: |
DMU 100 |
| Year of Manufacture: |
2011 |
| Condition: |
Used – Good |
| Machine Type: |
5-Axis Universal CNC Machining Center |

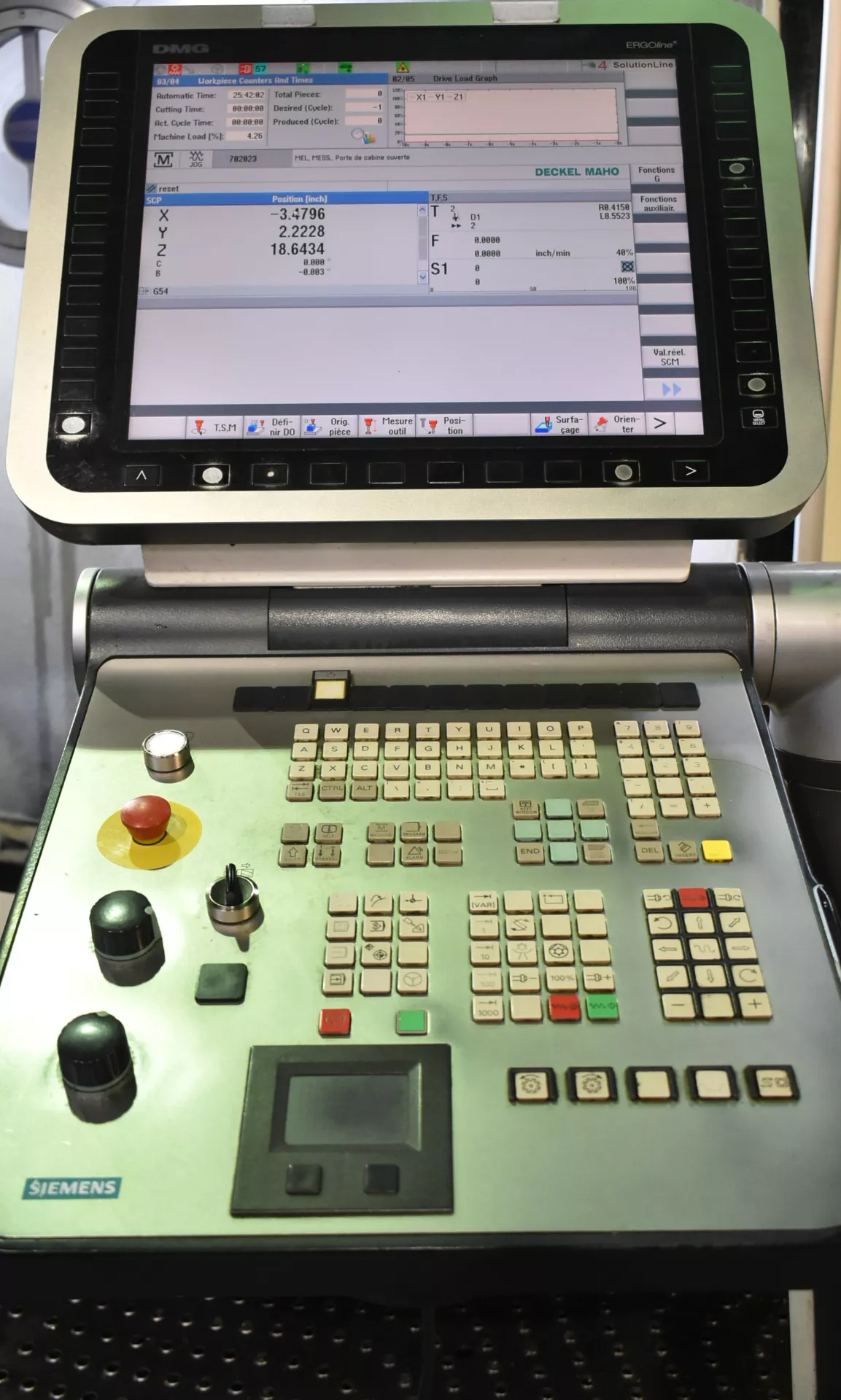

| CNC Control: |
Siemens 840D Solutionline CNC Control |
| Equipped With: |
| Siemens 840D CNC Control with ERGOline Interface |
| Full 5-Axis Simultaneous Machining |
| Swivel Rotary Table (A/C Axis) |
| Motorized Milling Head |
| Automatic Tool Changer (ATC) |
| Through Spindle Coolant (TSC) |
| Renishaw / Blum Tool Measurement System |
| Renishaw Workpiece Probing System |
| Chip Conveyor |
| Coolant Filtration System |
| Spindle Chiller |
| Automatic Lubrication System |
| Fully Enclosed Splash Guard |
| Electronic Handwheel (MPG) |

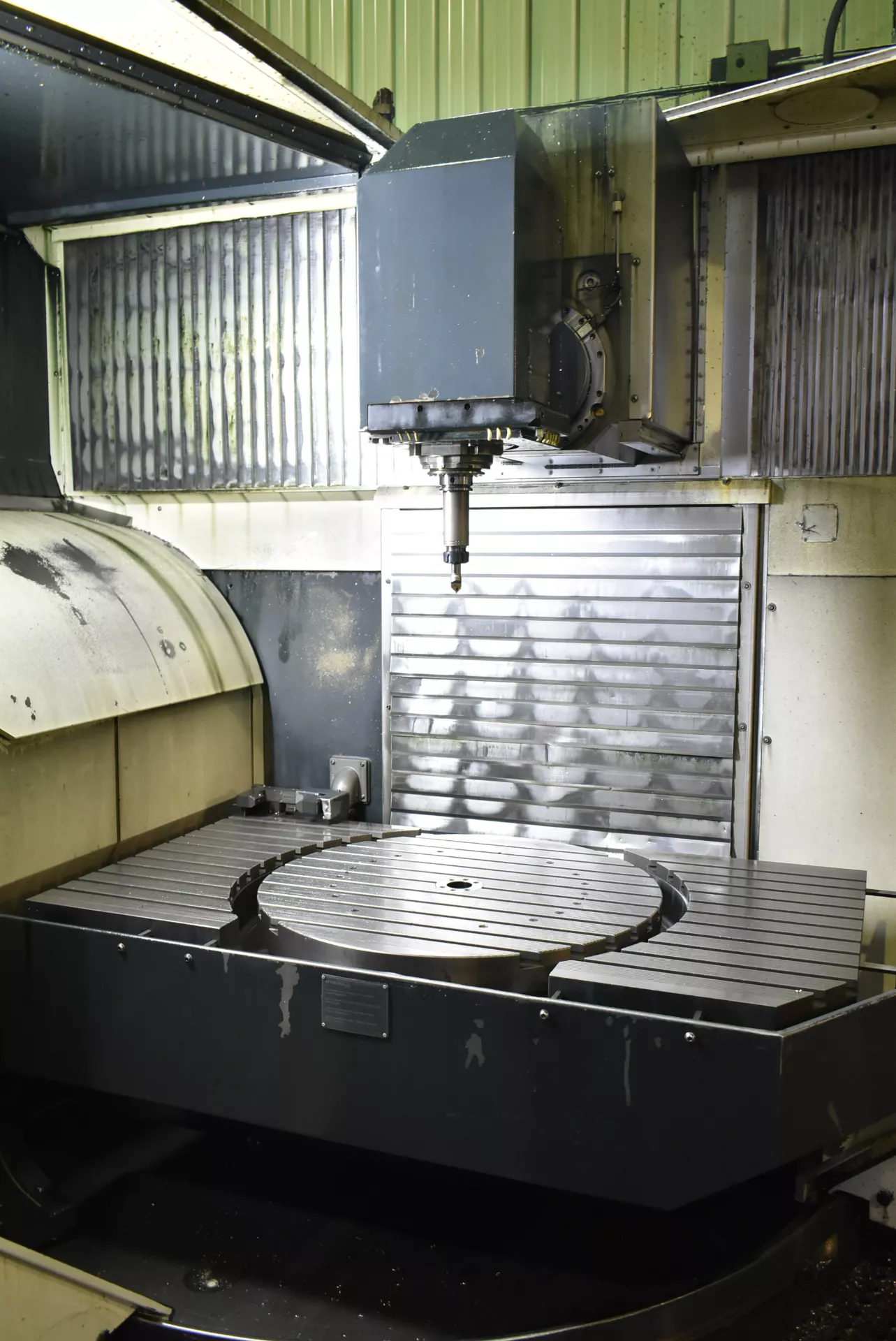

| Capacity: |
| Table Size: 59″ × 31.5″ |
| Max Table Load: 2,645 lbs |
| Max Workpiece Diameter: 39.4″ |
| Max Workpiece Height: 29.5″ |
| Distance Spindle Nose to Table: Approx. 150 – 850 mm |
| Travels: |
| X-Axis Travel:39.4″ |
| Y-Axis Travel: 31.5″ |
| Z-Axis Travel: 28″ |
| A-Axis (Table Tilt): -5° to +110° |
| C-Axis (Table Rotation): 360° Continuous |
| Rapid Traverse (X/Y/Z): 40 / 40 / 40 m/min |
| Cutting Feed Rate: Up to 20 m/min |
| Spindle: |
| Maximum Spindle Speed: 12,000 RPM |
| Spindle Motor Power: 33 – 47 HP |
| Spindle Torque: Approx. 200 – 300 Nm |
| Spindle Taper: HSK-A63 |
|
|

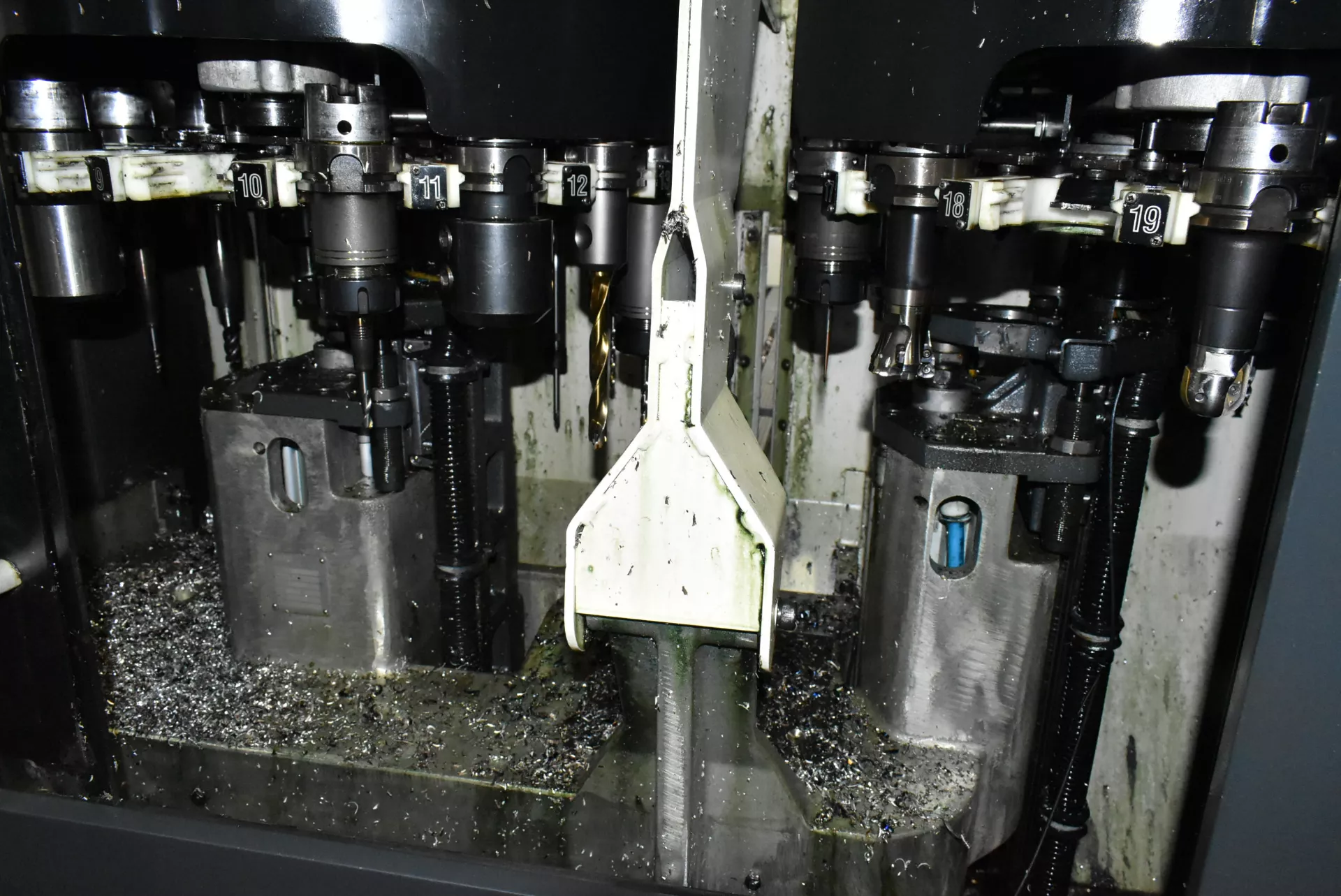

| Tool Changer: |
| Tool Changer Type: Automatic Tool Changer |
| Tool Capacity: 30 / 60 Tools (Configurable) |
| Tool-to-Tool Time: Approx. 2.5 sec |
| Chip-to-Chip Time: Approx. 5 sec |
| Max Tool Diameter: 80 mm (adjacent) / 130 mm (without adjacent) |
| Max Tool Length: 300 mm |
| Max Tool Weight: 8 kg |
| Electrical: |
| Power Requirement: 400V / 3 Phase / 50-60 Hz |
| Connected Load: Approx. 60 – 80 kVA |
| Control Voltage: 24V DC |
| General: |
| Machine Weight: Approx. 33,000 lbs |
| Machine Dimensions: Approx. 4.5m × 3.5m × 3m |
|
