*All specifications are approximations and are subject to verification. Comes as shown in the images.
Please give us a call if you have any questions before purchasing. All sales are final.*

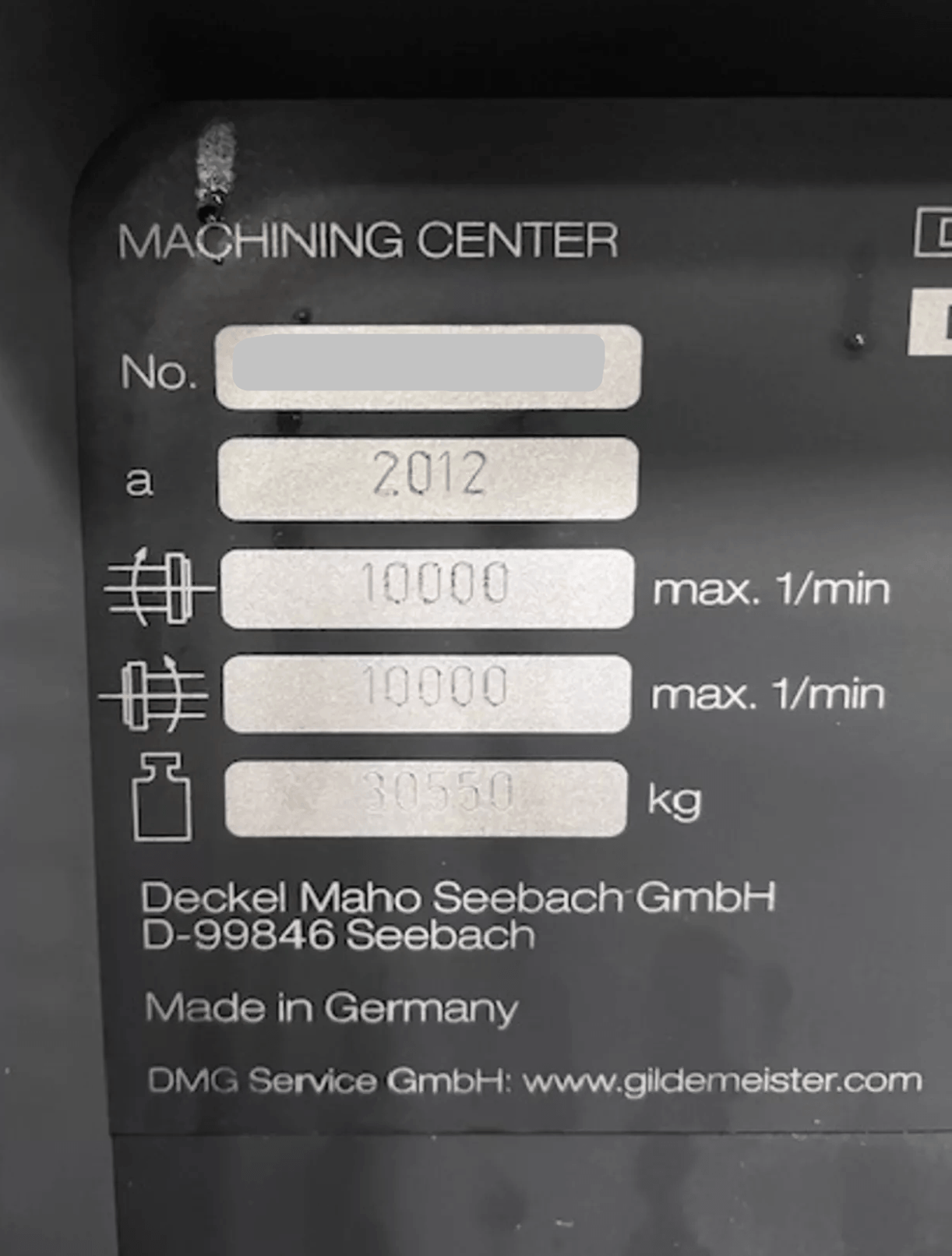

| Make: |
DMG |
| Model No.: |
DMF 360 |
| Year of Manufacture: |
2012 |
| Machine Type: |
CNC Universal Machining Center (5-Axis) |
| CNC Control: |

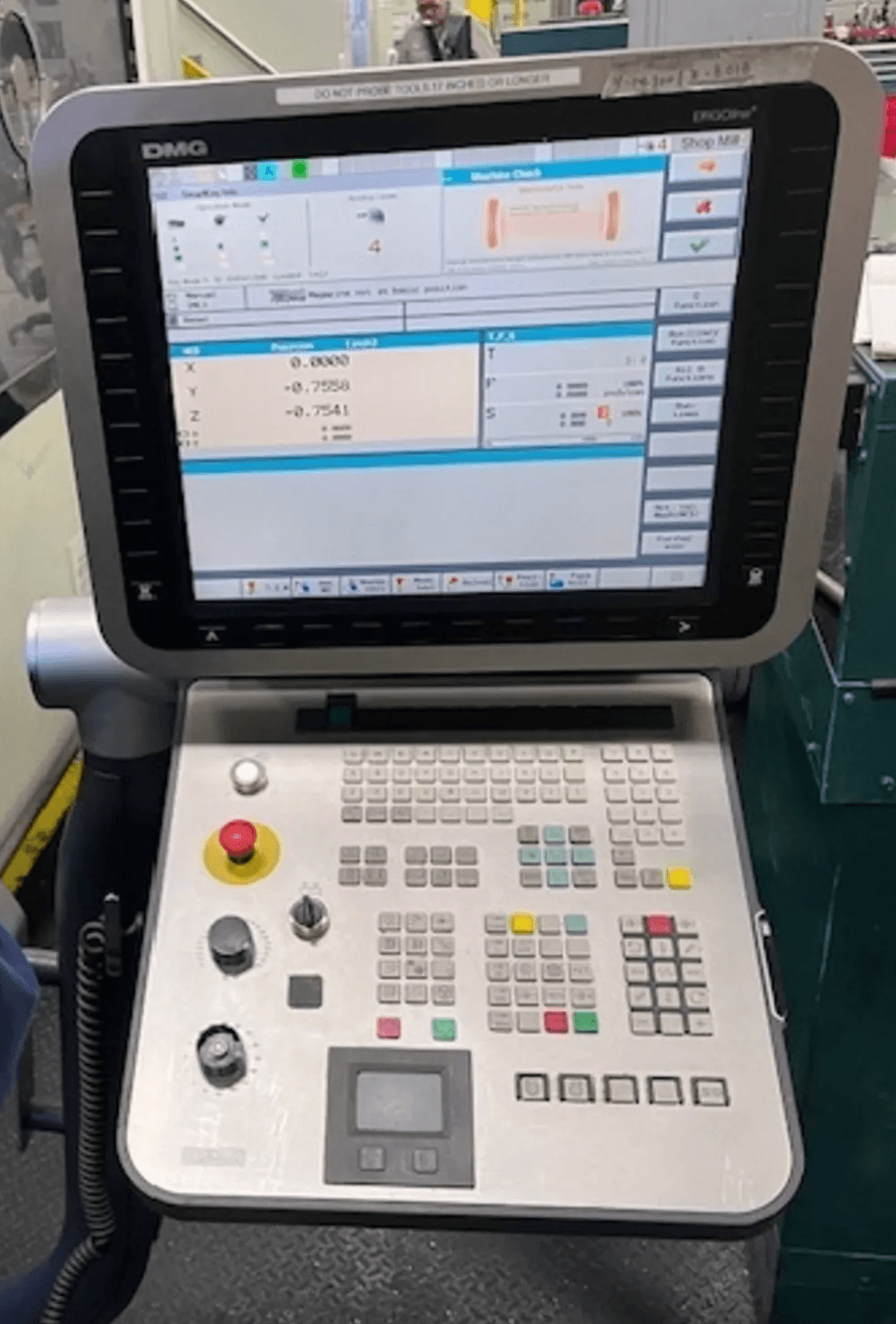

Siemens 840D CNC Control |
| Country of Origin: |
Germany |
| Equipped With: |
| Siemens 840D CNC Control |
| Full 5-Axis Simultaneous Machining |
| Traveling Column Design |
| Nikken 18″ Rotary Table |
| 8–9″ Table Through Hole |
| 120-Position Automatic Tool Changer |
| CAT 50 Spindle |
| Blum Laser Tool Measurement System |
| High Pressure Coolant (HPC) |
| Chip Conveyor |
| Full Enclosure |
| Capacity: |
| Table Size: 18″ Rotary Table (Nikken) |
| Table Type: Rotary (4th/5th Axis Integrated) |
| Max Workpiece Capacity: Large Format (Verify) |
| Travels: |
| X-Axis Travel: 141.7″ |
| Y-Axis Travel: 43.3″ |
| Z-Axis Travel: 35.4″ |
| Spindle: |
| Spindle Speed: Up to 10,000 RPM |
| Spindle Motor: 59 HP |
| Spindle Taper: CAT 50 |
| Spindle Type: Inline / Gear Driven |
| Feed Rates: |
| Feed Rate: Programmable (CNC Controlled) |
| Rapid Traverse: High-Speed Linear Motion (Verify) |
| Tool Changer: |
| Tool Capacity: 120 Tools |
| Type: Automatic Tool Changer (ATC) |
| Tool Holder Type: CAT 50 |
| Electrical: |
| Voltage: 400V / 480V (Verify) |
| Phase: 3 Phase |
| Frequency: 50/60 Hz |
| Power Requirement: High-Capacity System |
