*All specifications are approximations and are subject to verification. Comes as shown in the images.
Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: |
DMG |
| Model No.: |
DMU 210P |
| Year of Manufacture: |
2012 |
| Condition: |
Used – Good |
| Machine Type: |
5-Axis Universal CNC Machining Center |
| CNC Control: |
Siemens 840D Solutionline with ERGOline |
| Equipped With: |
| Siemens 840D Solutionline CNC Control |

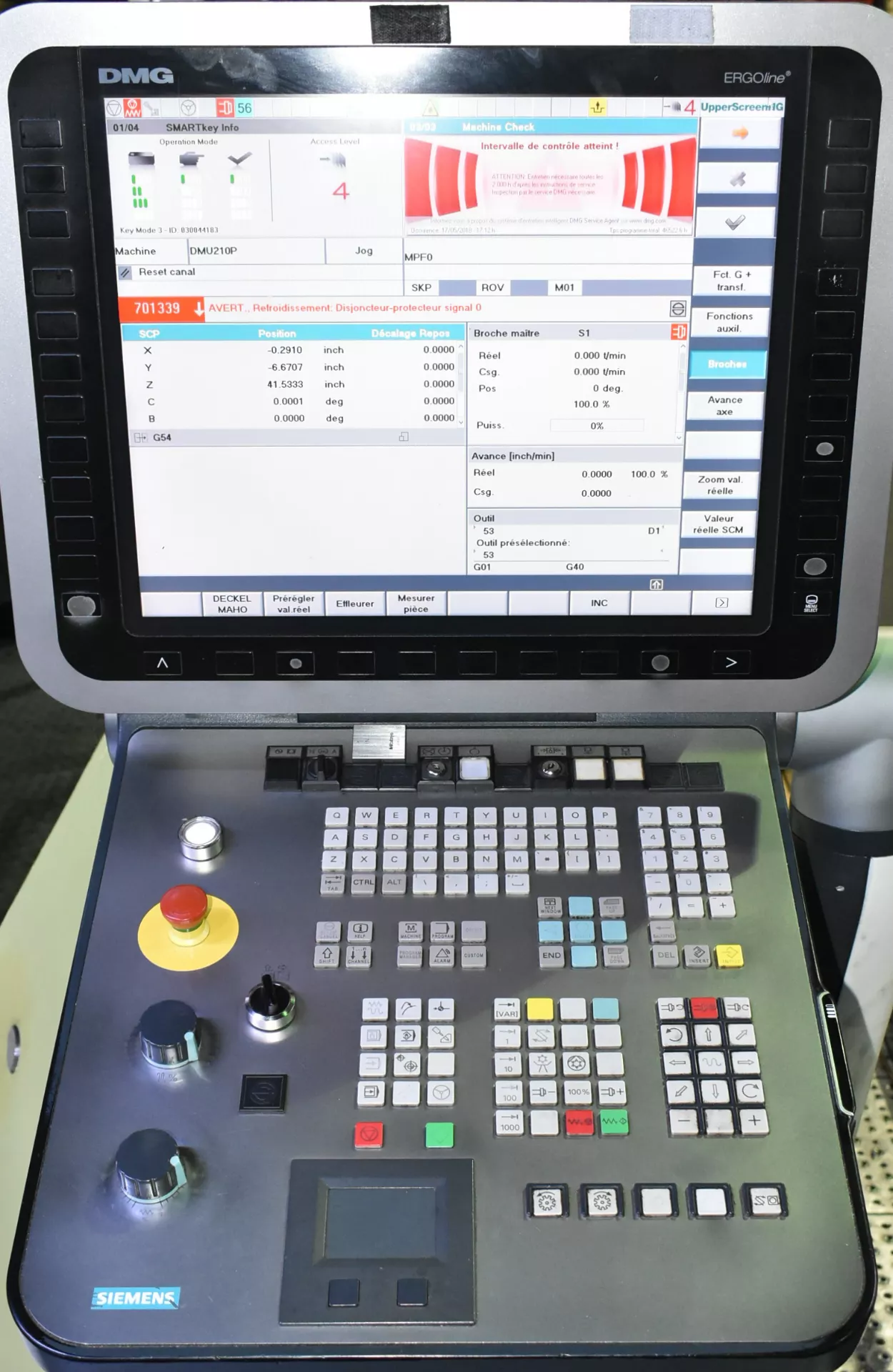

| ERGOline Control Panel |
| Full 5-Axis Simultaneous Machining |
| Motorized Swivel Milling Head |
| NC Rotary Table (C-Axis) |

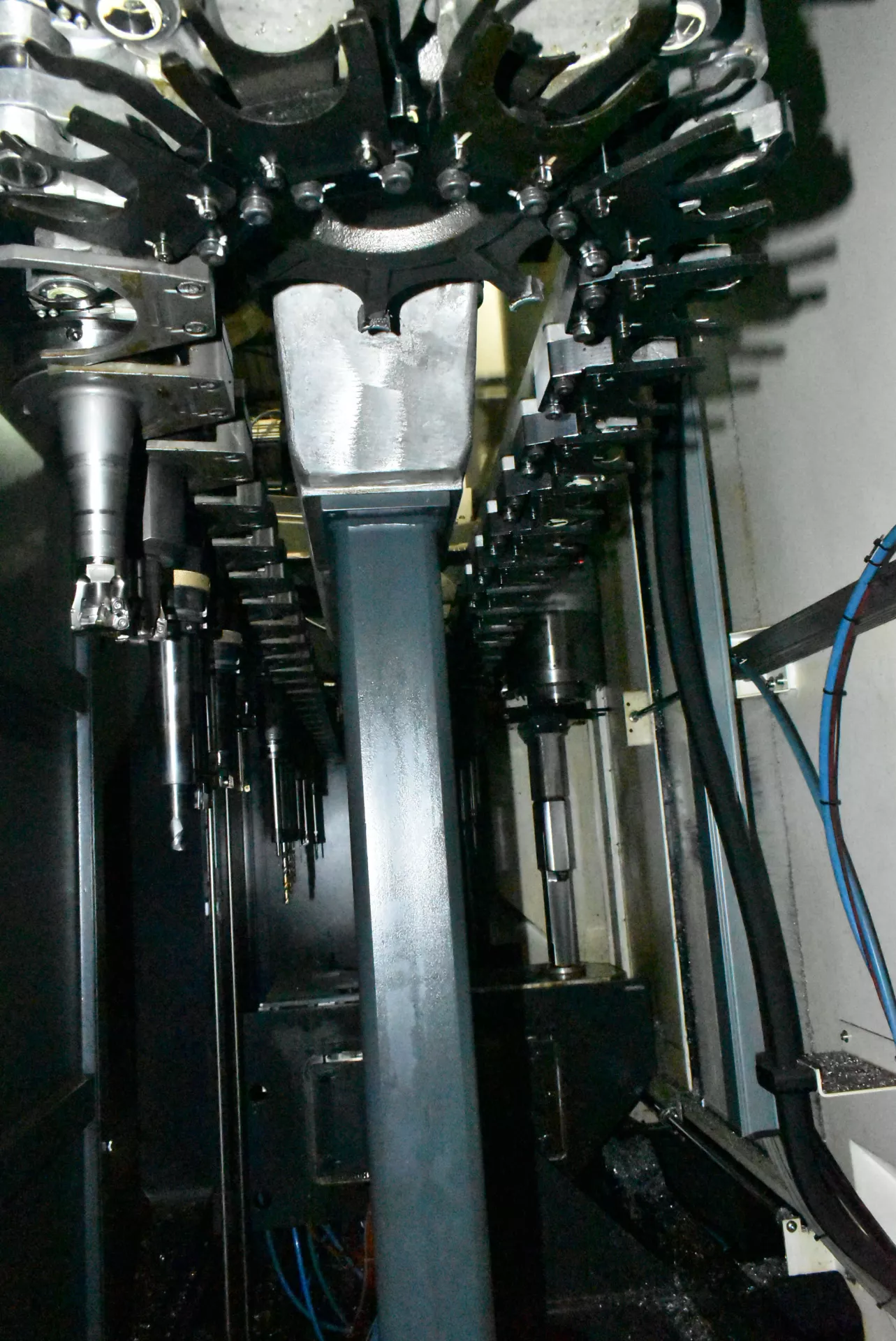

| Automatic Tool Changer (ATC) |
| Large Capacity Tool Magazine |
| Through Spindle Coolant (TSC) |
| Tool Measurement System (Blum / Renishaw) |
| Workpiece Probing System |
| Chip Conveyor |
| Coolant Filtration System |
| Spindle Chiller |
| Automatic Lubrication System |
| Fully Enclosed Cabin |
| Electronic Handwheel (MPG) |
| Capacity: |
| Table Size: Approx. 82.6″ × 70.8″ |
| Max Table Load: Approx. 17,600 lbs |
| Max Workpiece Diameter: 98.4″ |
| Max Workpiece Height: 63″ |
| Distance Spindle Nose to Table: 250 – 1,600 mm |
| Travels: |
| X-Axis Travel: 82.6″ |
| Y-Axis Travel: 70.8″ |
| Z-Axis Travel: 49.2″ |
| A-Axis (Head Swivel): ±120° |
| C-Axis (Table): 360° Continuous |
| Rapid Traverse (X/Y/Z): 60 / 60 / 60 m/min |
| Cutting Feed Rate: Up to 30 m/min |
| Spindle: |
| Maximum Spindle Speed: 12,000 RPM |
| Spindle Motor Power: 47 – 67 HP |
| Spindle Torque: Approx. 300 – 500 Nm |
| Spindle Taper: HSK-A100 |
|
|
| Tool Changer: |
| Tool Changer Type: Automatic Tool Changer |
| Tool Capacity: 60 / 90 / 120 Tools |
| Tool-to-Tool Time: Approx. 6–8 sec |
| Chip-to-Chip Time: 10–12 sec |
| Max Tool Diameter: 125 mm (adjacent) / 250 mm (without adjacent) |
| Max Tool Length: 400 mm |
| Max Tool Weight: 15–20 kg |
| Electrical: |
| Power Requirement: 400V / 3 Phase / 50-60 Hz |
| Connected Load: Approx. 100 – 130 kVA |
| Control Voltage: 24V DC |
| General: |
| Machine Weight: Approx. 165,000 lbs |
| Machine Dimensions: Approx. 8m × 6m × 4.5m |
