*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| SKU: | 112839 |

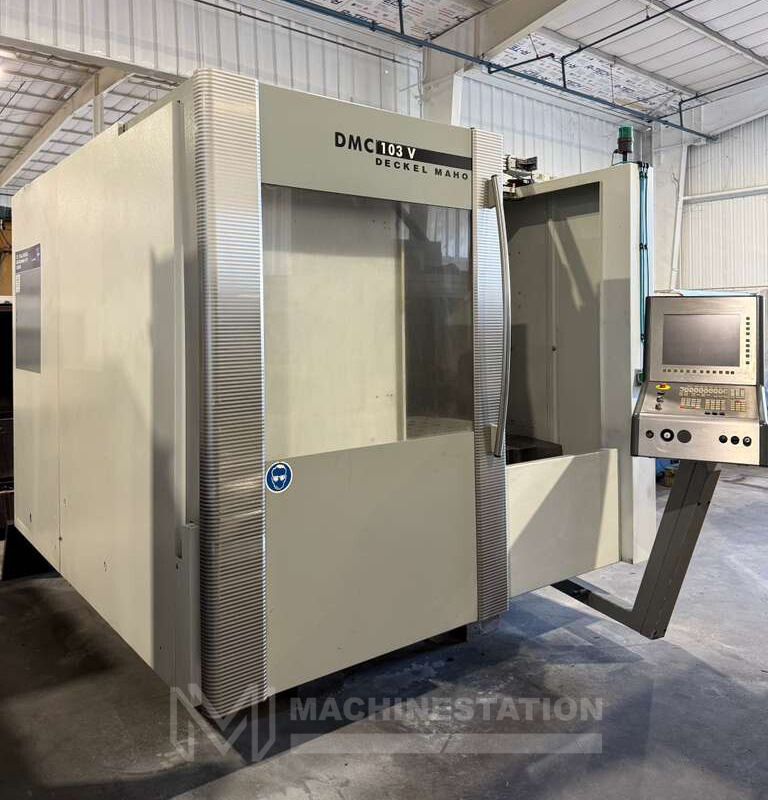

| Make: | DMG |
| Model No.: | DMC 103V |
| Year of Manufacture: | 2006 |
| Condition | Used – Good |
| Equipped With: |
|---|

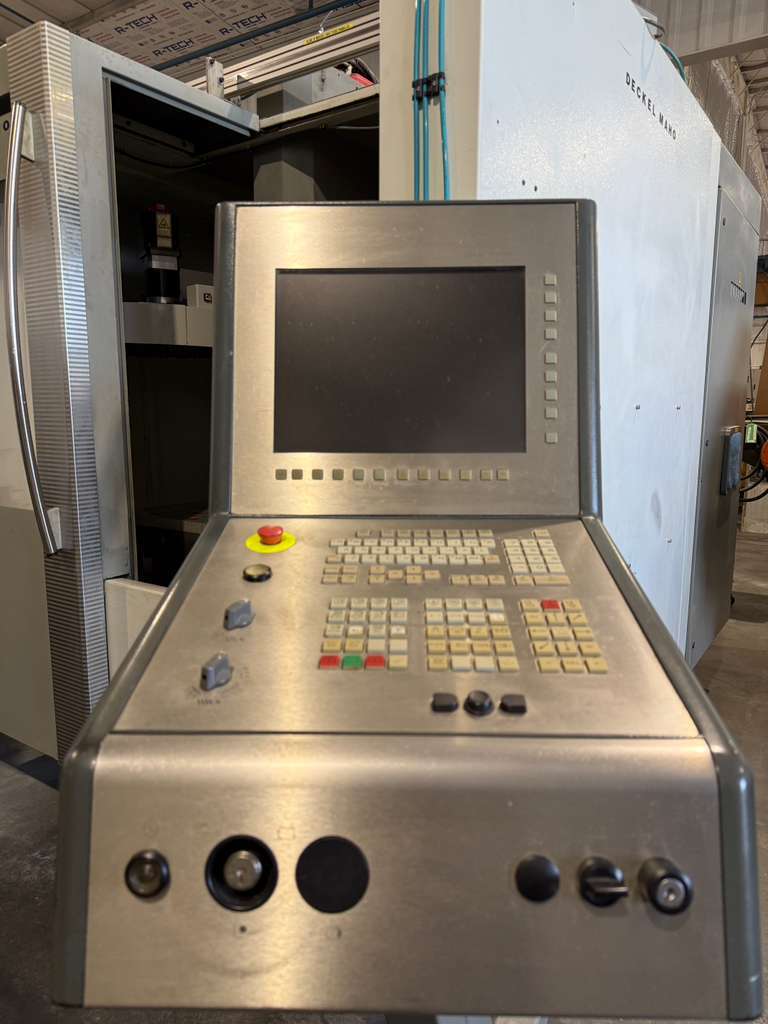

| Fanuc 180i Series CNC Control |
| 10,000 RPM Spindle |
| Through Spindle Coolant |
| 24 Station Automatic Tool Changer |
| 40 Taper Spindle |
| Rigid Tapping |

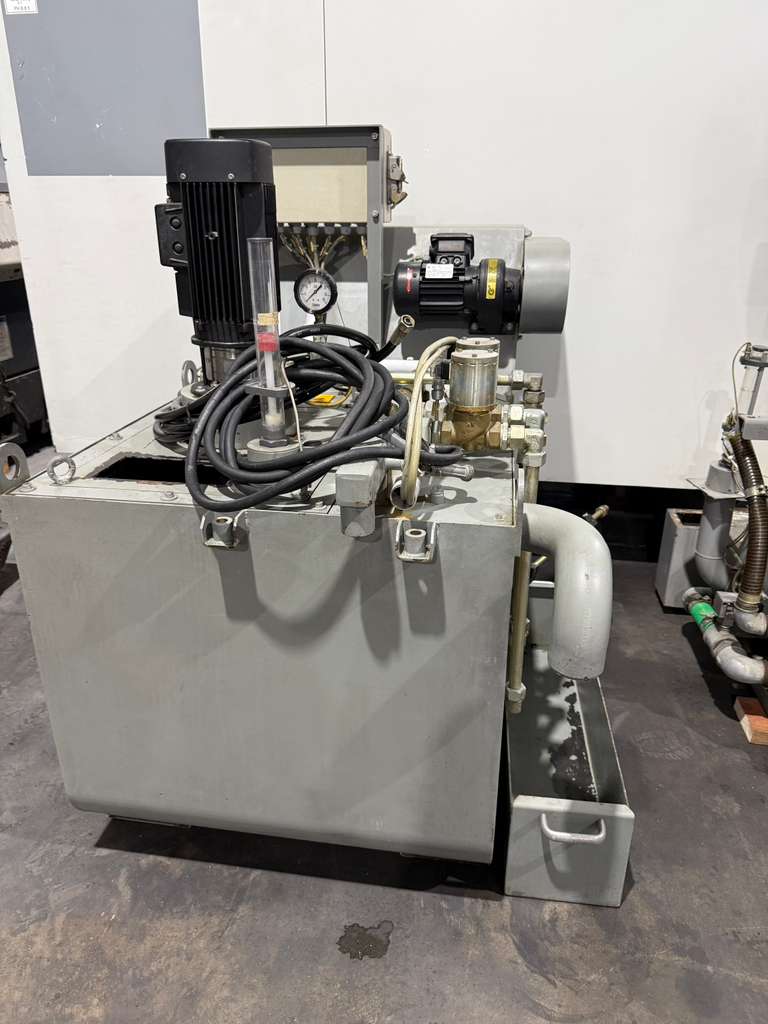

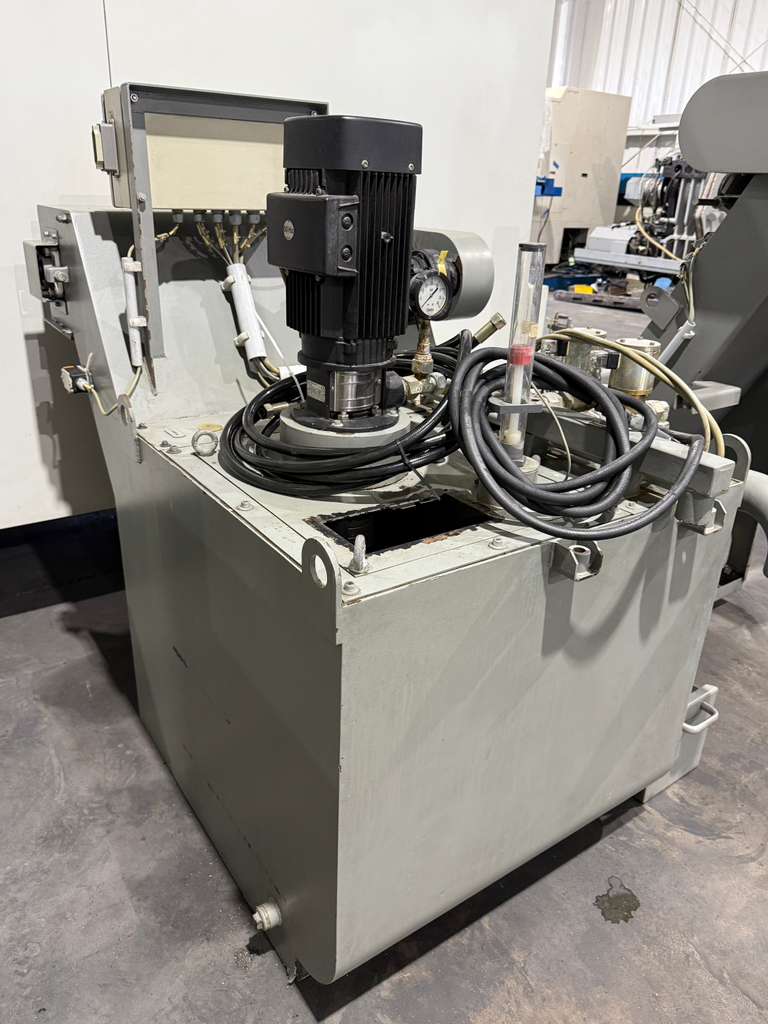

| Coolant system |

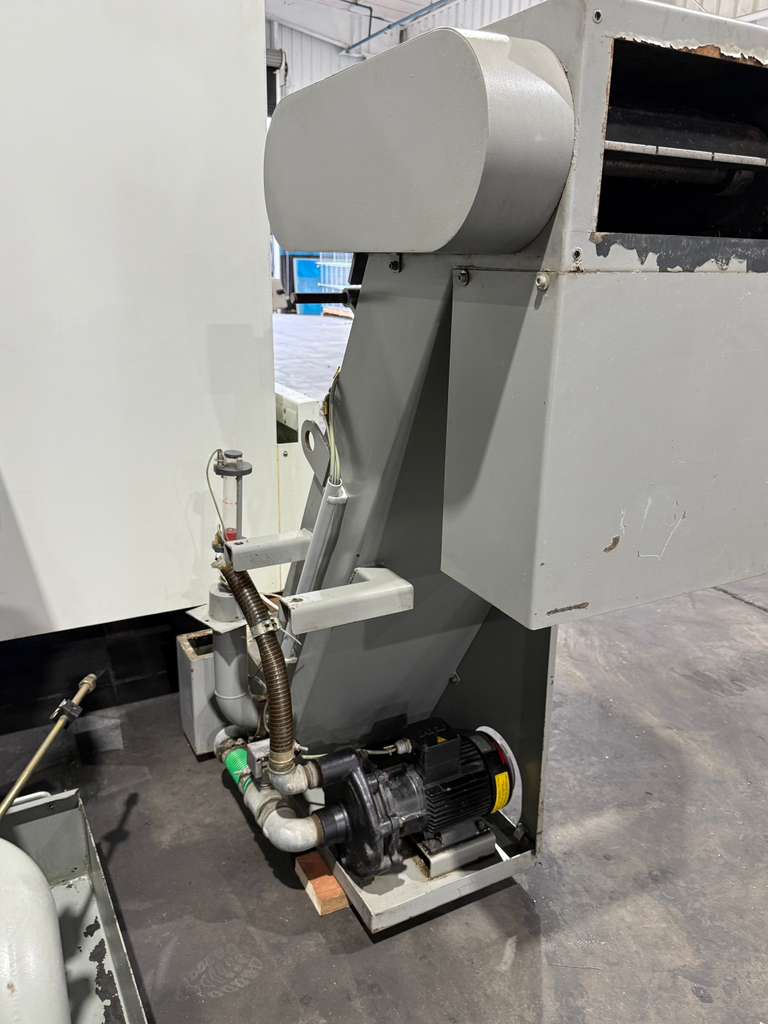

| Chip Conveyor |
| Travels: |
|---|
| X-Axis: 39.37″ |
| Y-Axis: 23.62″ |
| Z-Axis: 23.62″ |
| Rapid Traverse Rates: 1181 Inch Per Minute |

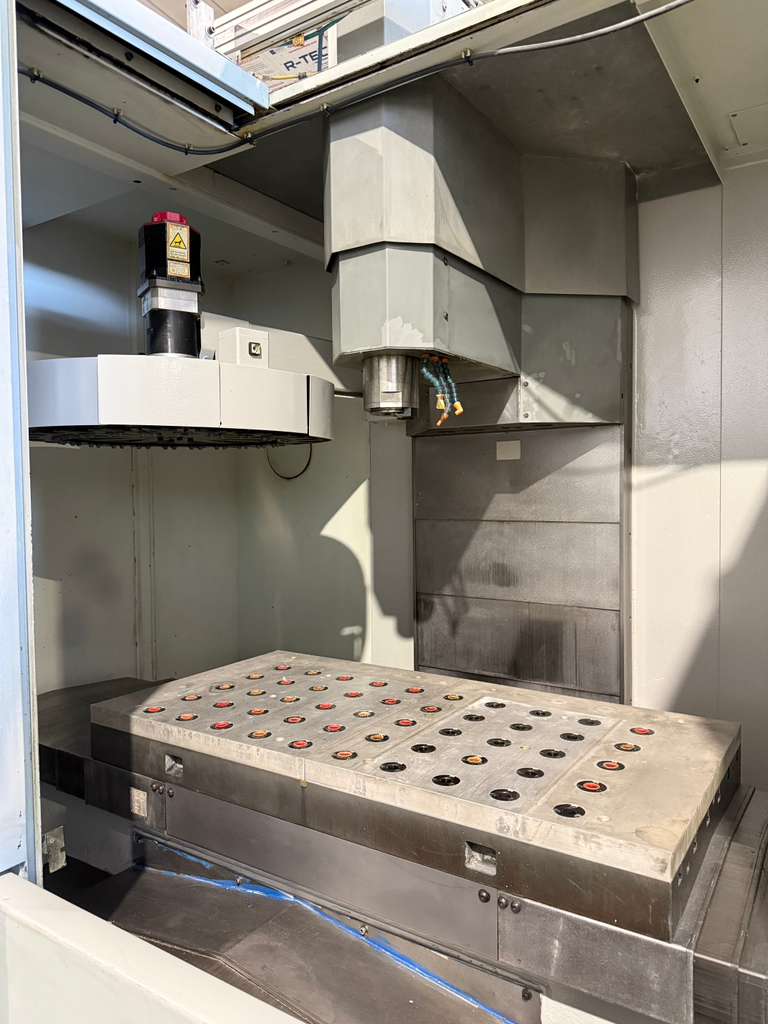

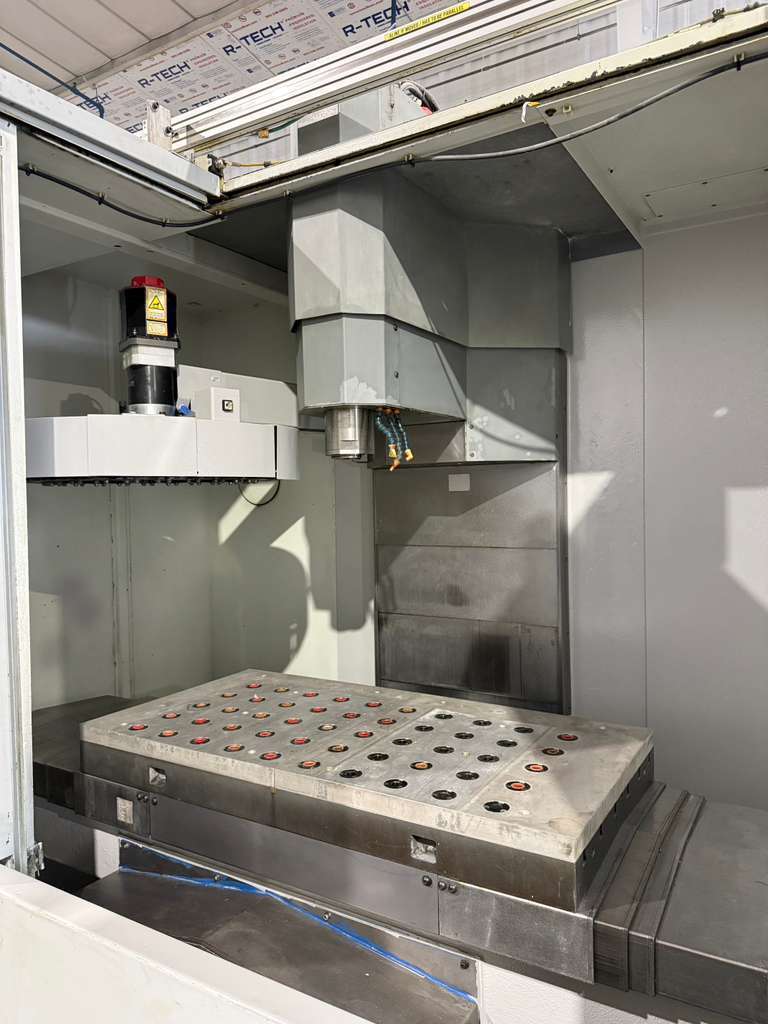

| Table: |
|---|
| Length: 47.24″ |
| Width: 23.62″ |
| Max Weight on Table: 1103 lbs |
| Spindle: |
|---|
| Taper Size: 40 |
| Speed Range: 10,000 RPM |
| Spindle Power: 20 HP |

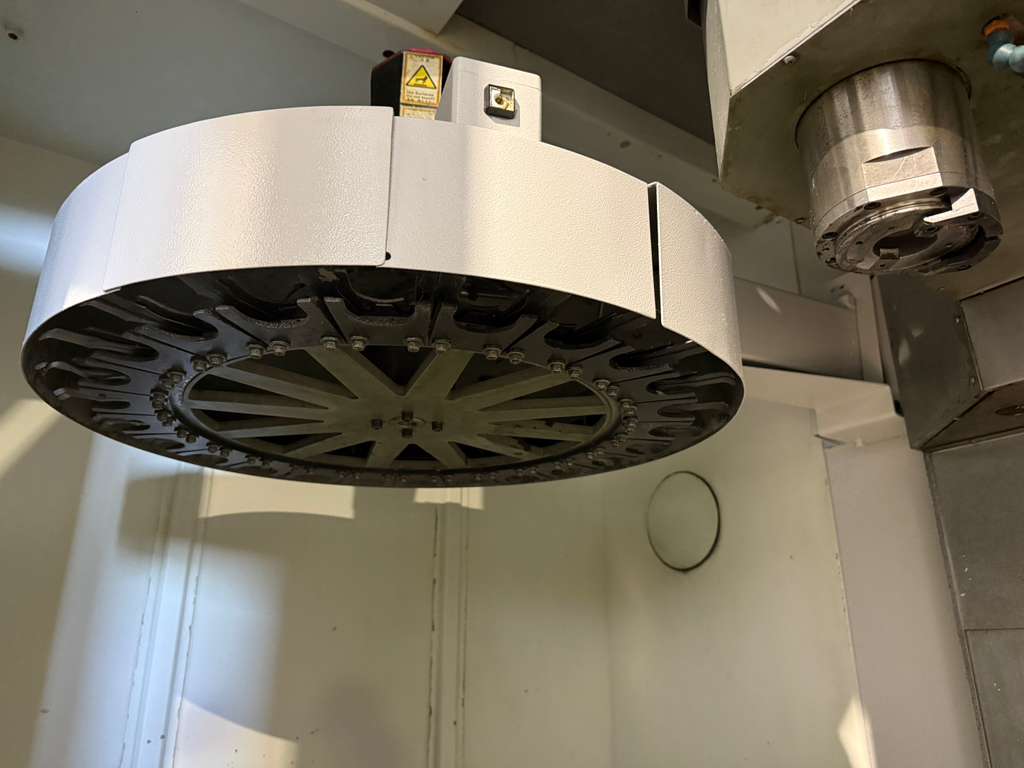

| Automatic Tool Changer: |
|---|
| Capacity: 24 Station |
| Tool Weight: 15.43 lbs |
| Max Tool Dia: 3.14″ |
| General: |
|---|
| Air Required: 80 psi 4 scfm |
| Power: 400v / 30 kva / 3-Phase / 50/60 Hz |
| Overall Dimensions: 118″ x 102″ x 110″ High Approx. |
| Weight: 14,330 lbs Approx. |
