*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

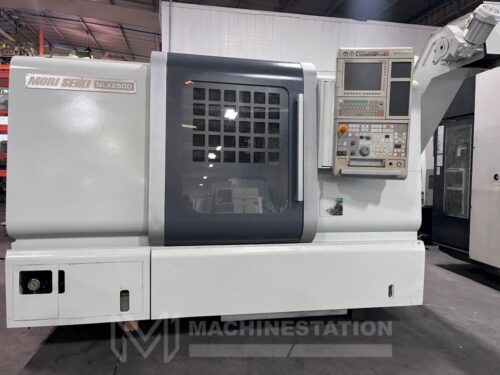

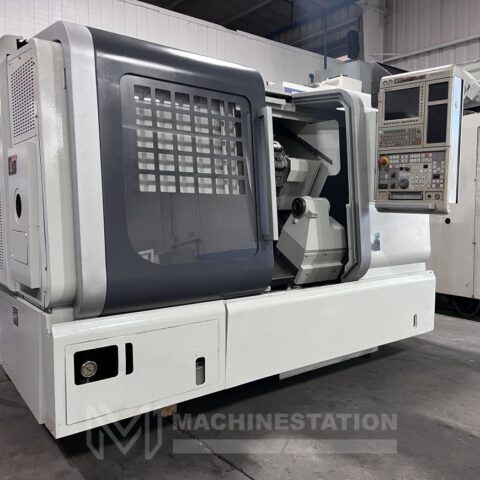

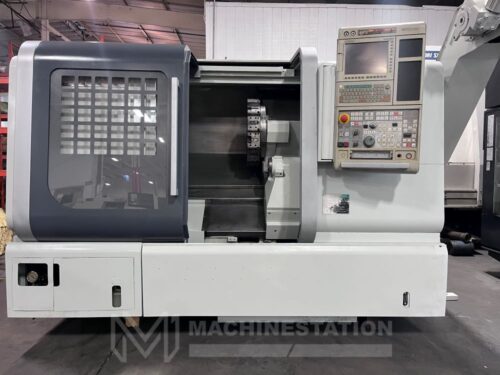

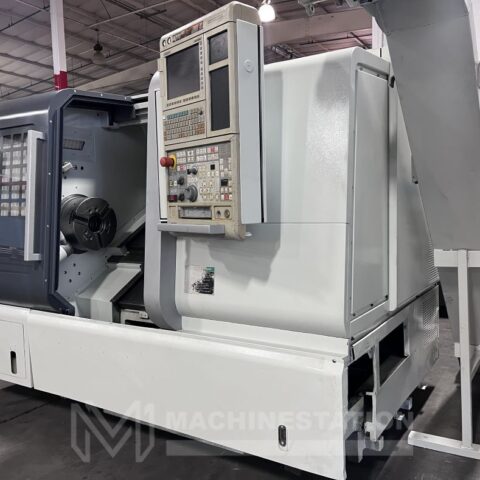

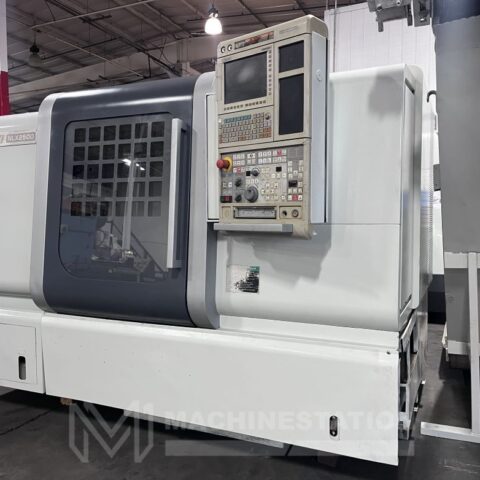

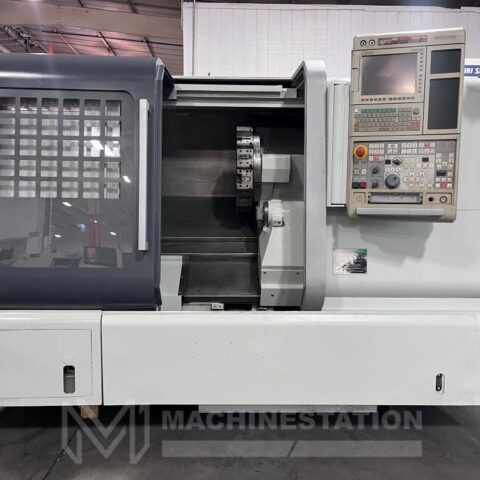

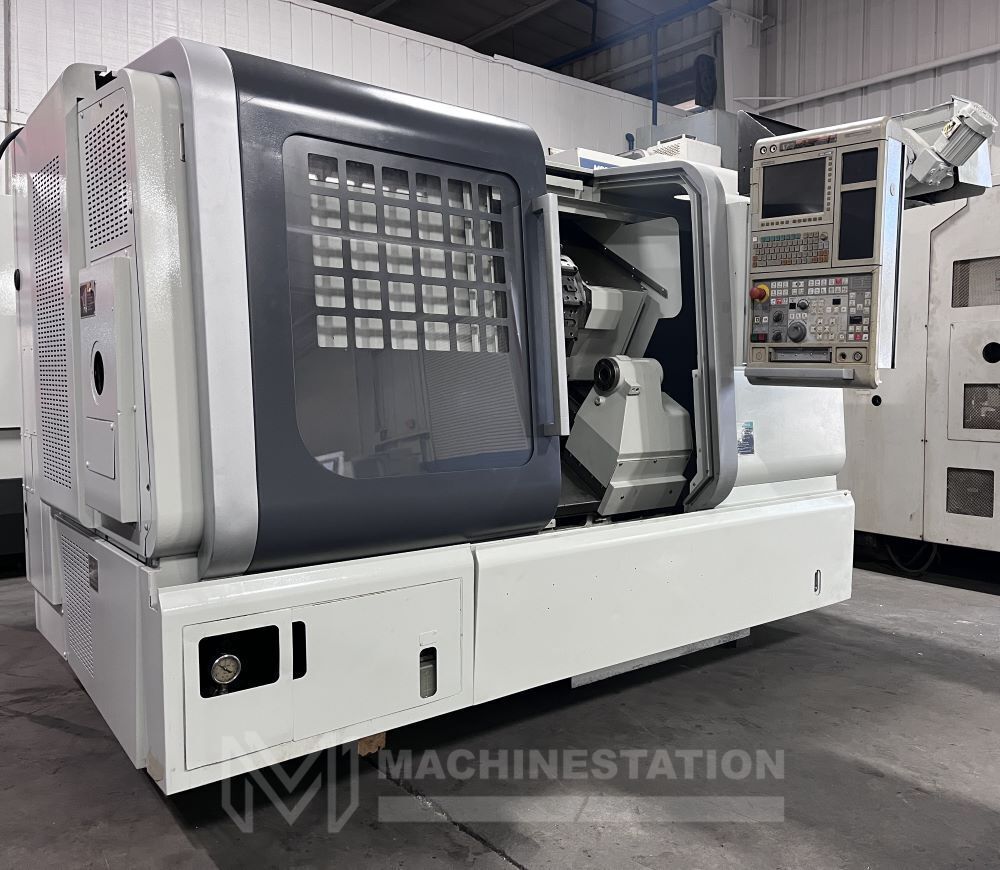

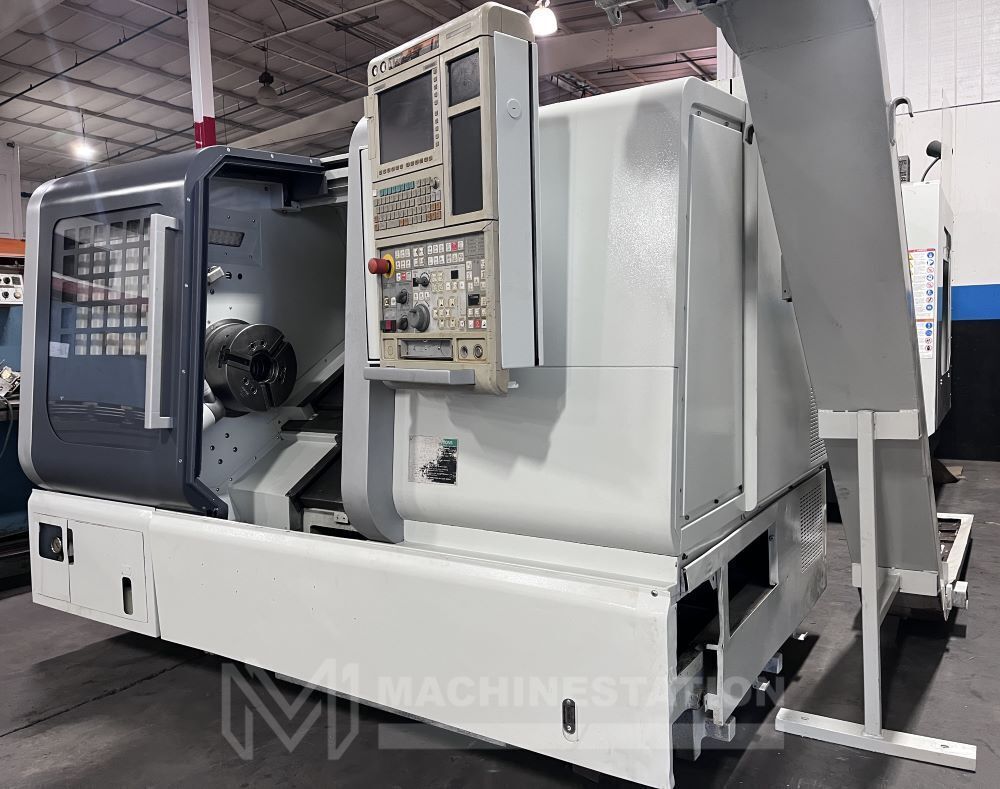

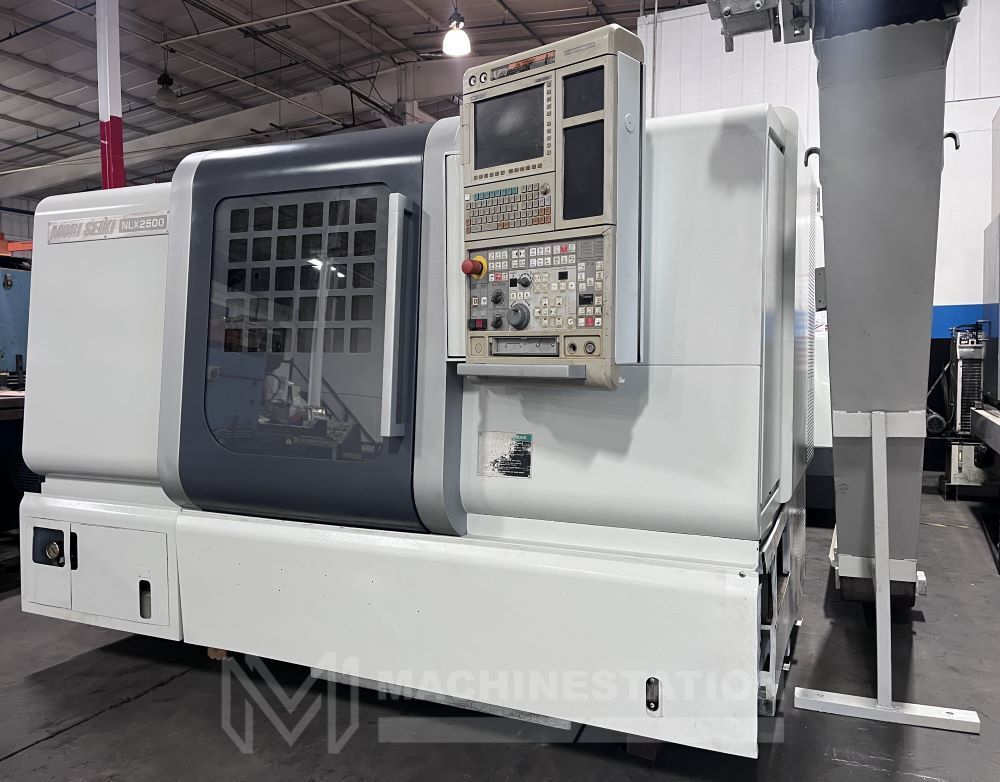

| Make: | MORI SEIKI |
| Model: | NLX2500/700 |
| Year: | 2011 |
| Condition: | Used – Good |
| DMG Mori Seiki NLX2500/700 Equipped With: |
|---|

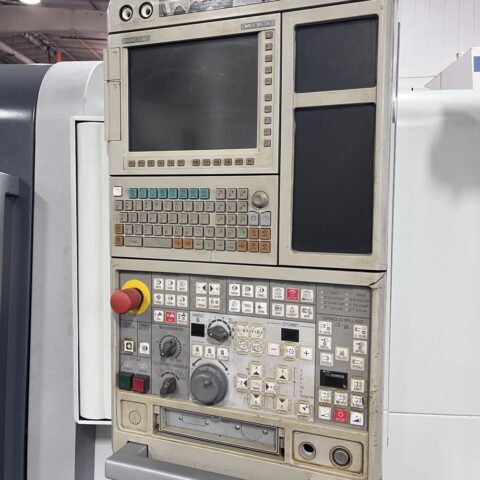

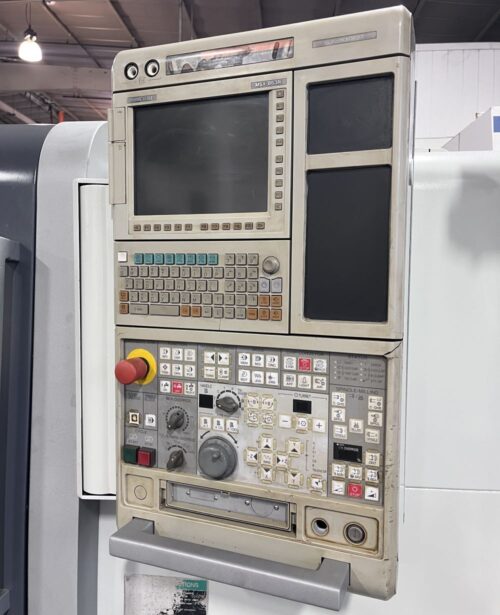

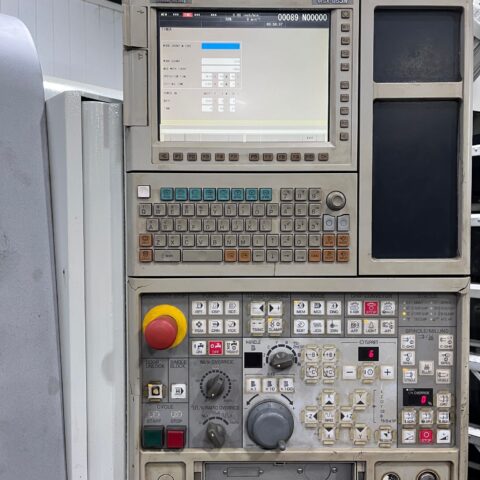

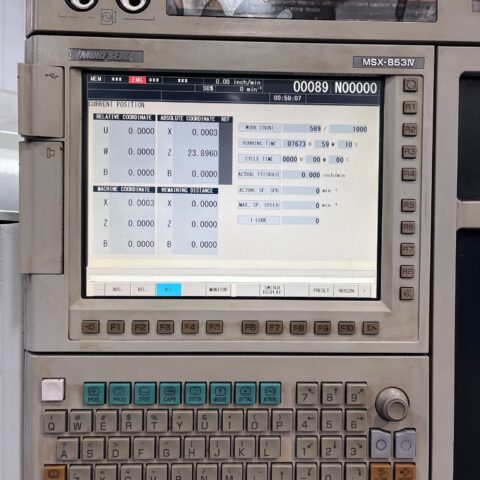

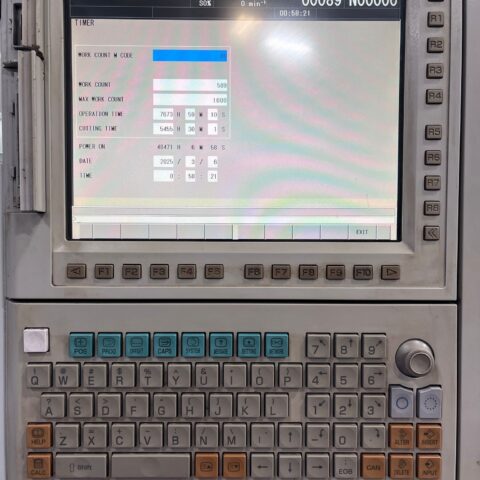

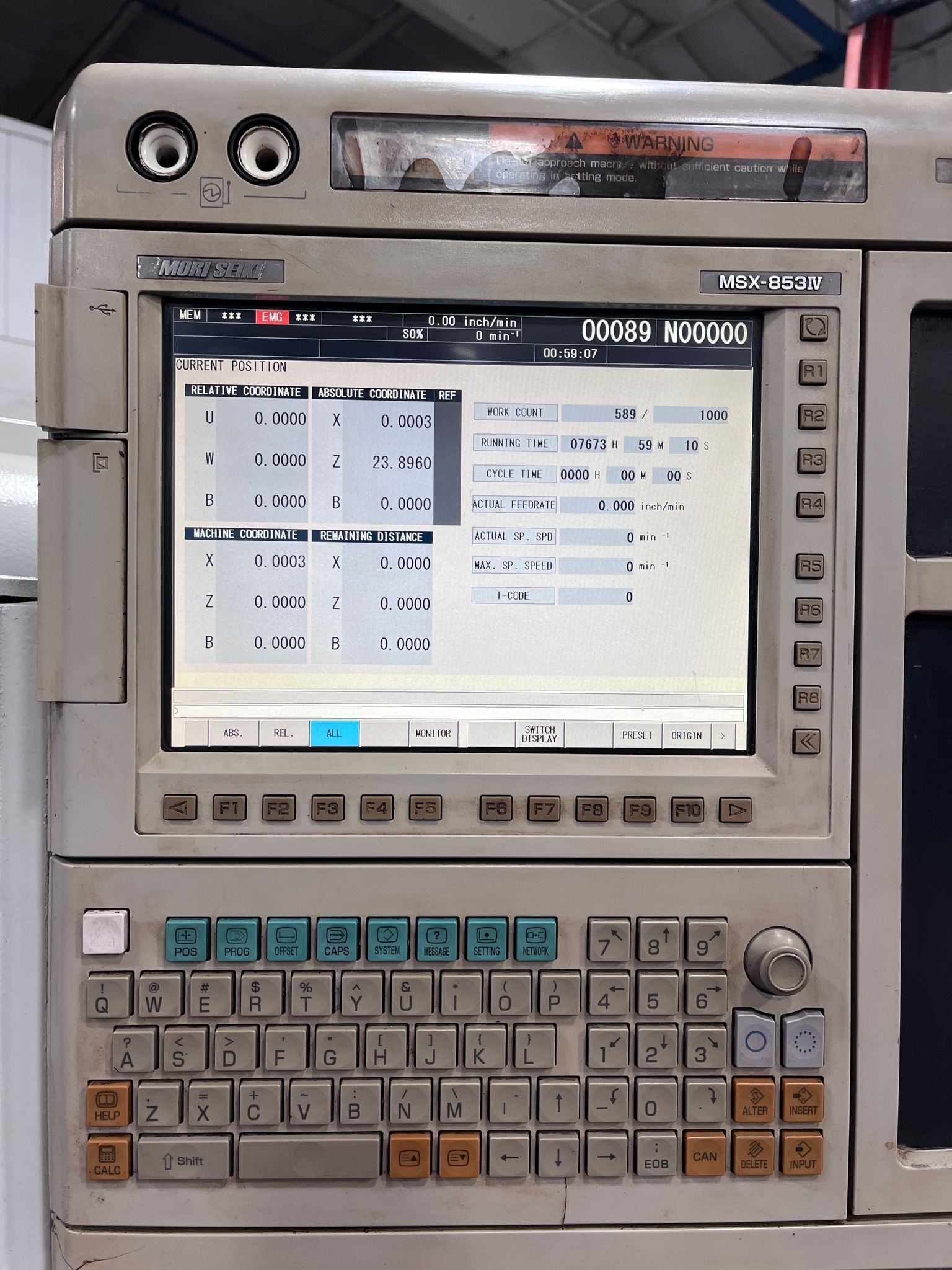

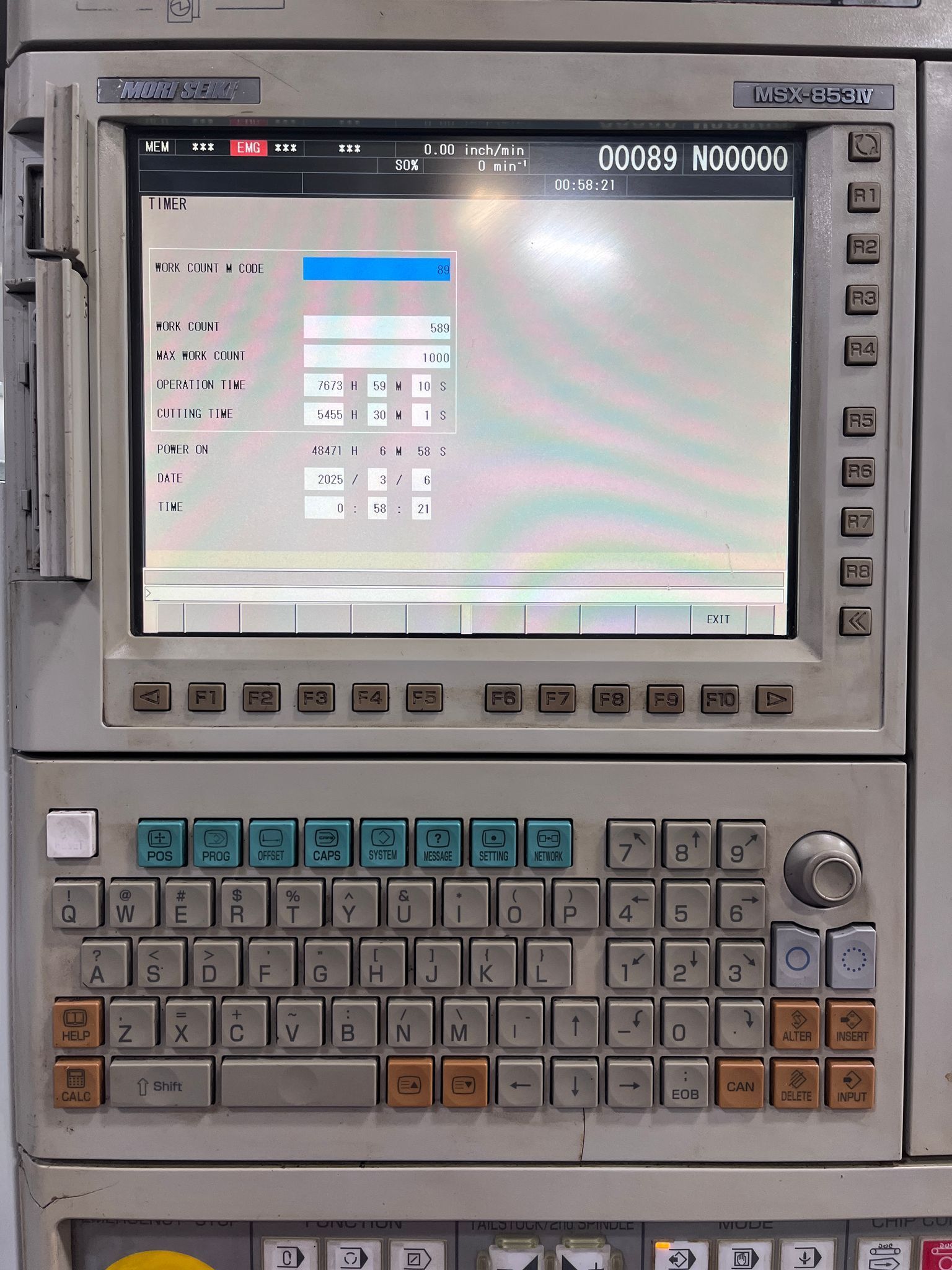

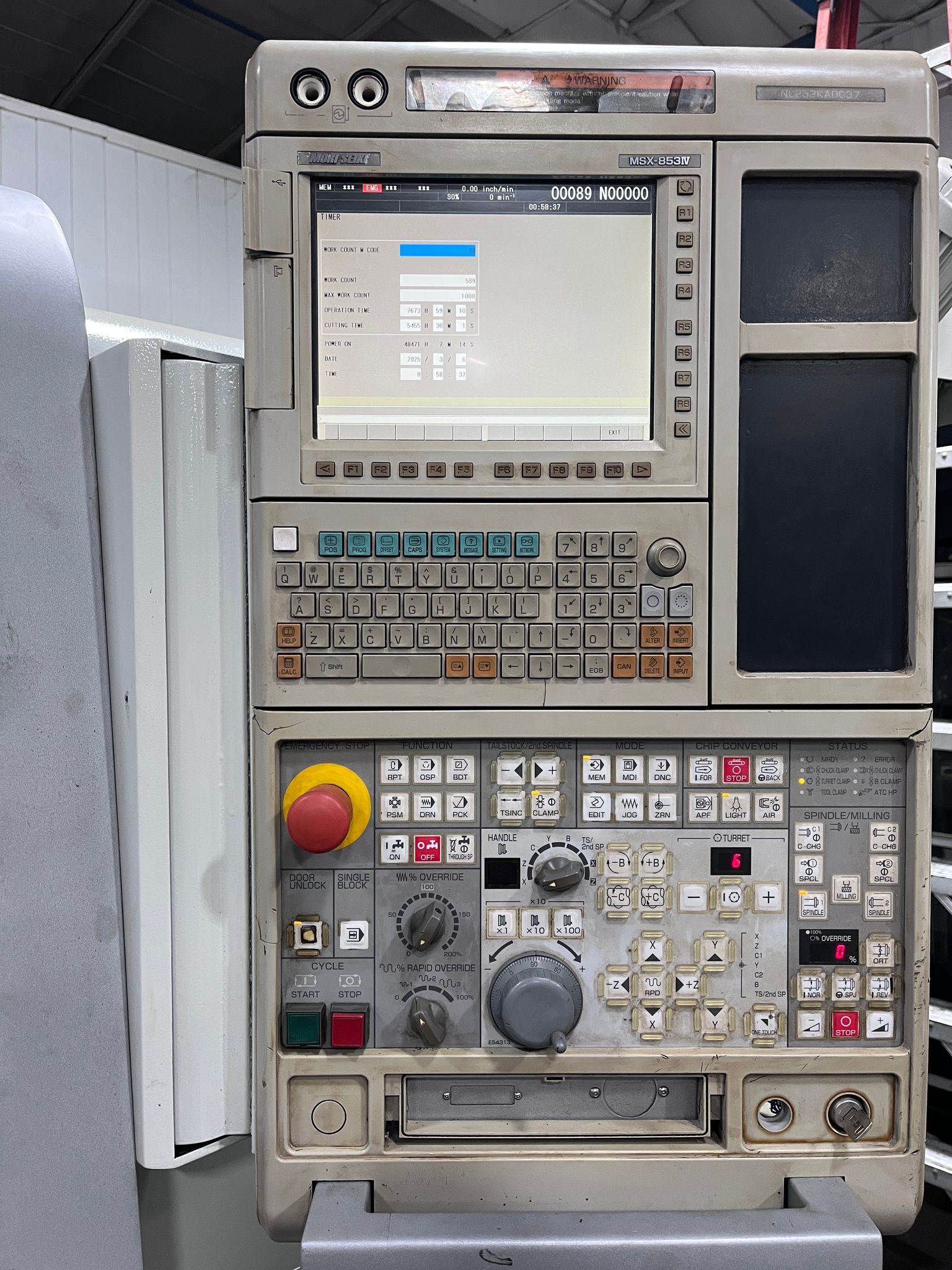

| Mori Seiki MSX-853IV CNC Control |

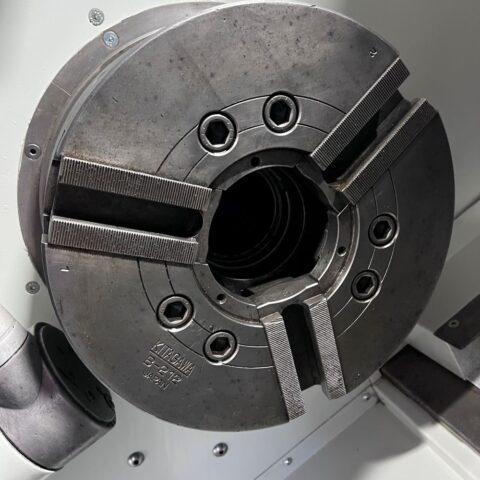

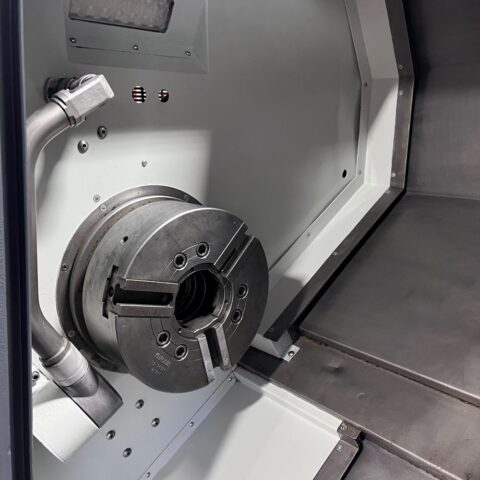

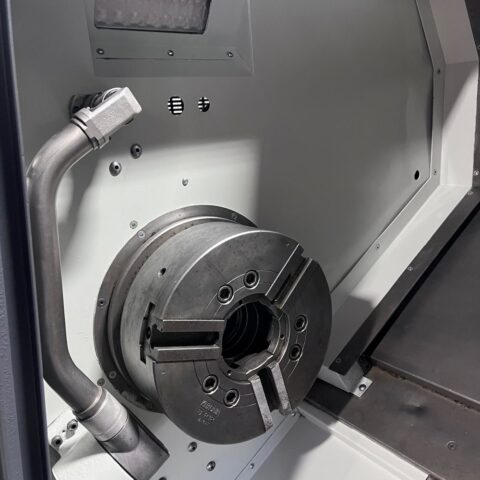

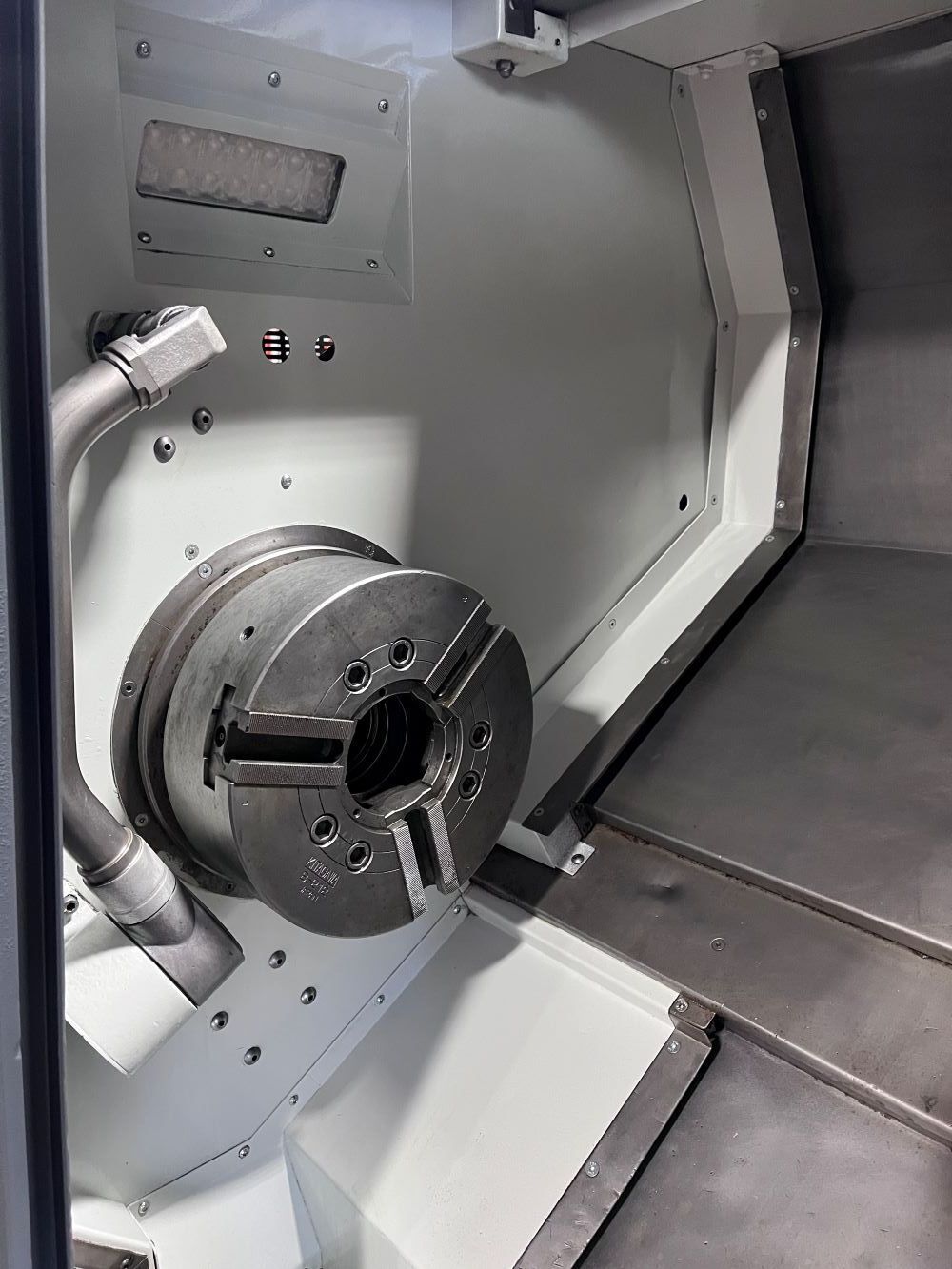

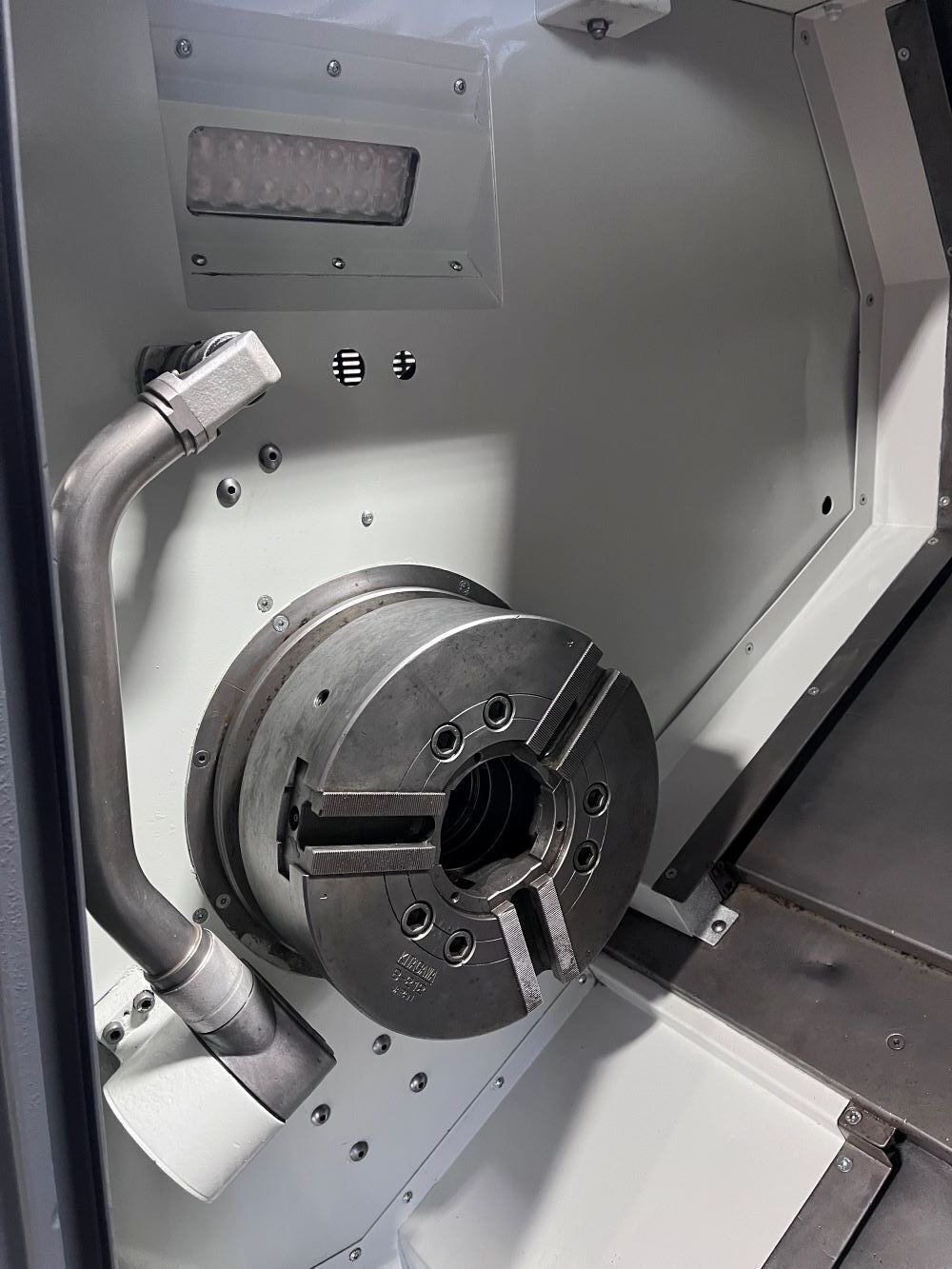

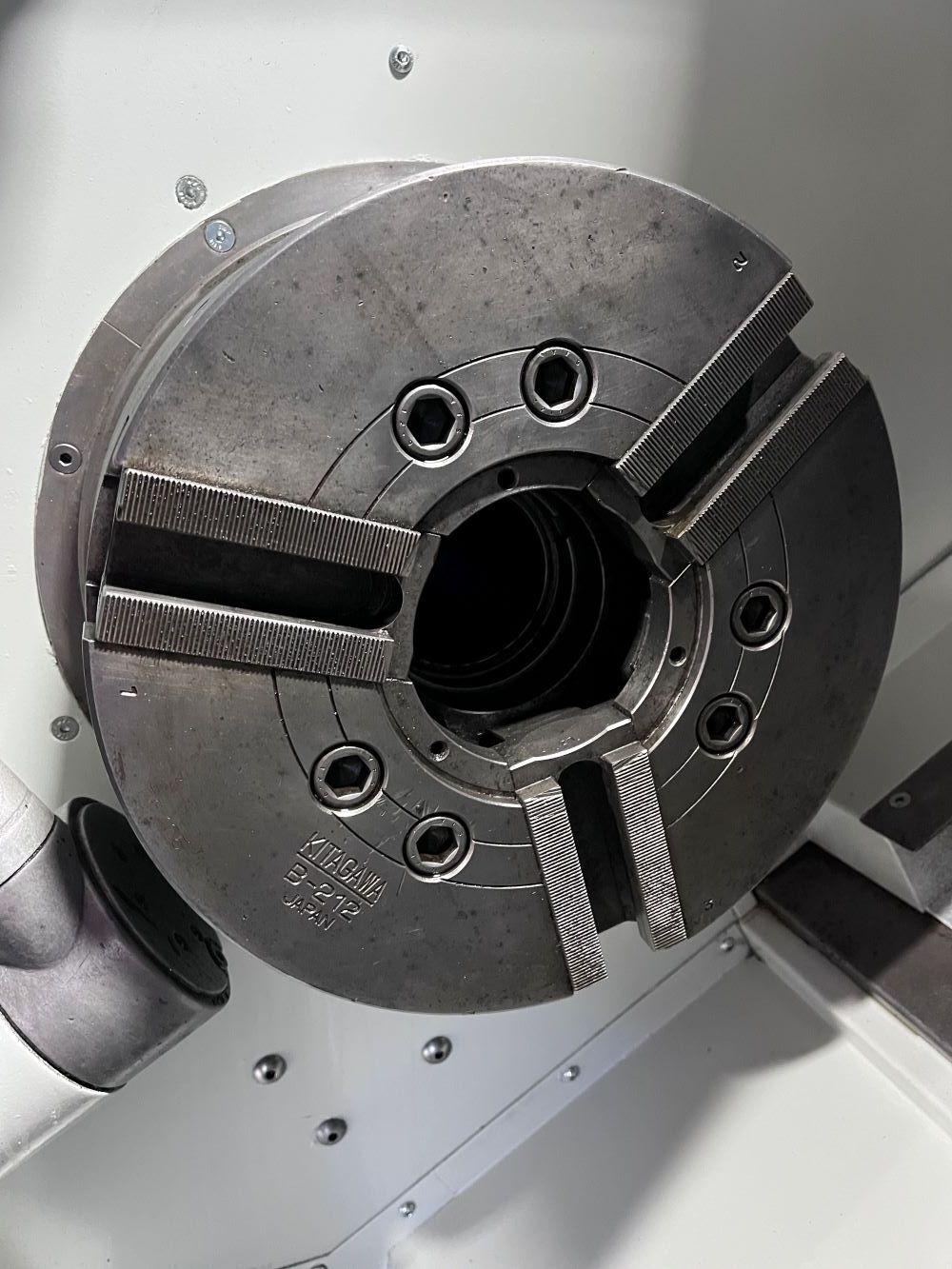

| 12″ 3 Jaw Hydraulic Chuck |

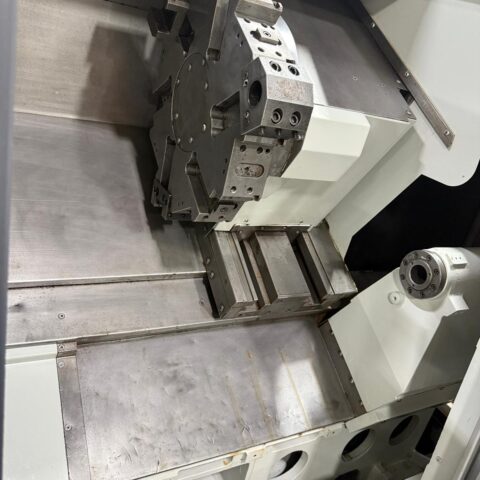

| 12 Station High Speed Turret |
| 25 HP Spindle Power |
| Tool Presetter |
| PCMCIA Card Slot |
| Programmable Tailstock |
| Rigid Tapping |
| Coolant System |
| Chip Conveyor |

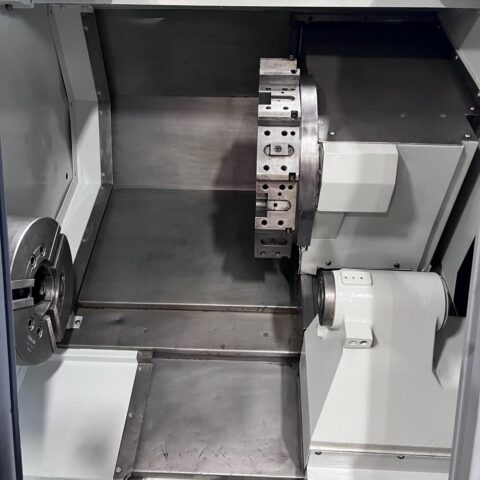

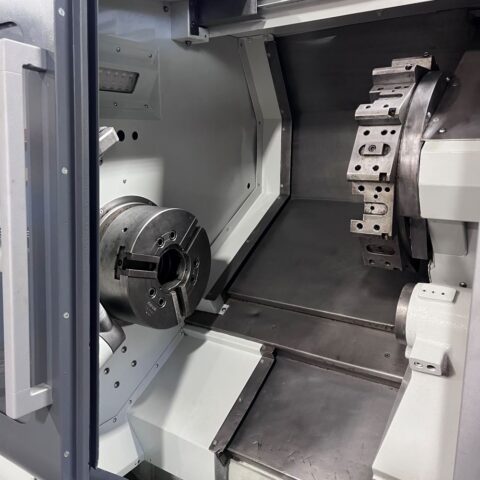

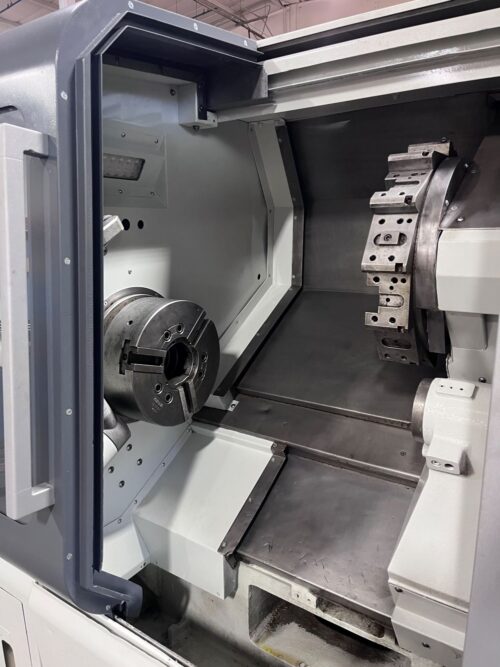

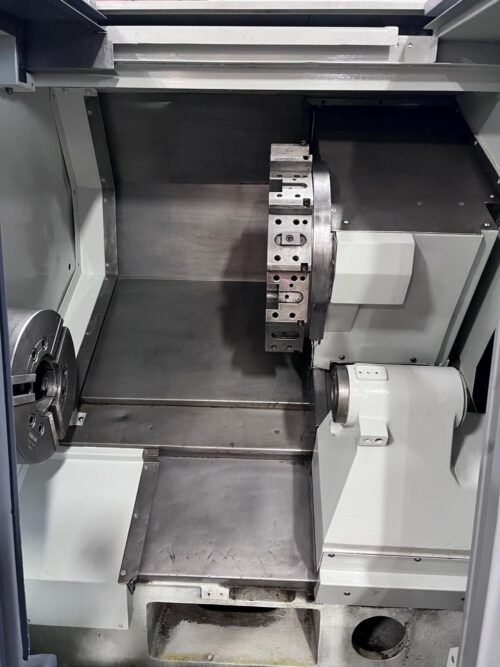

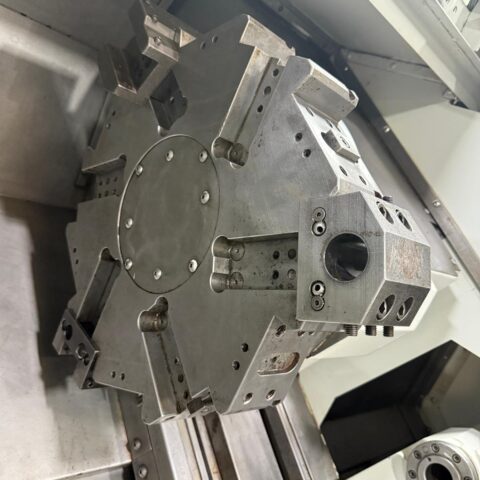

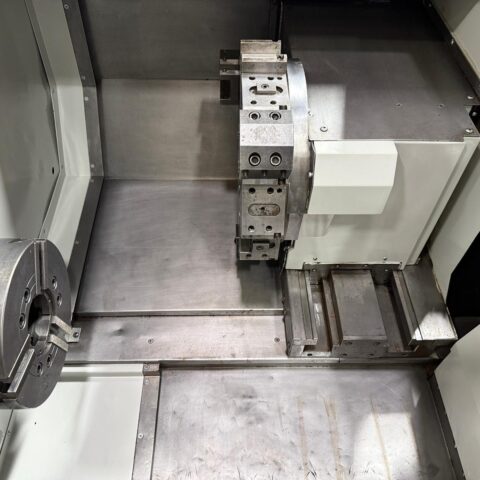

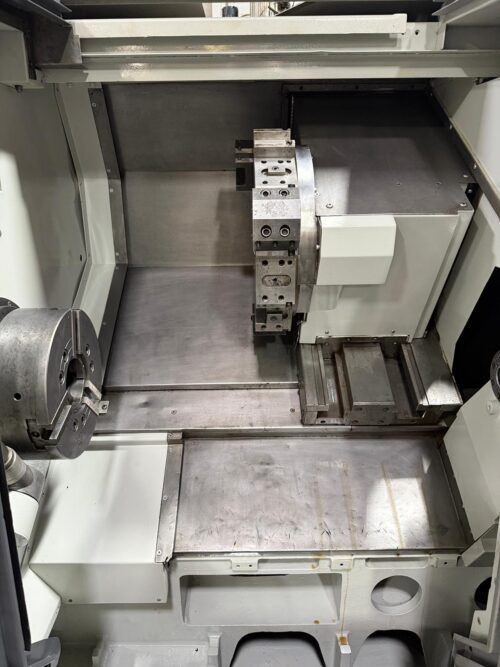

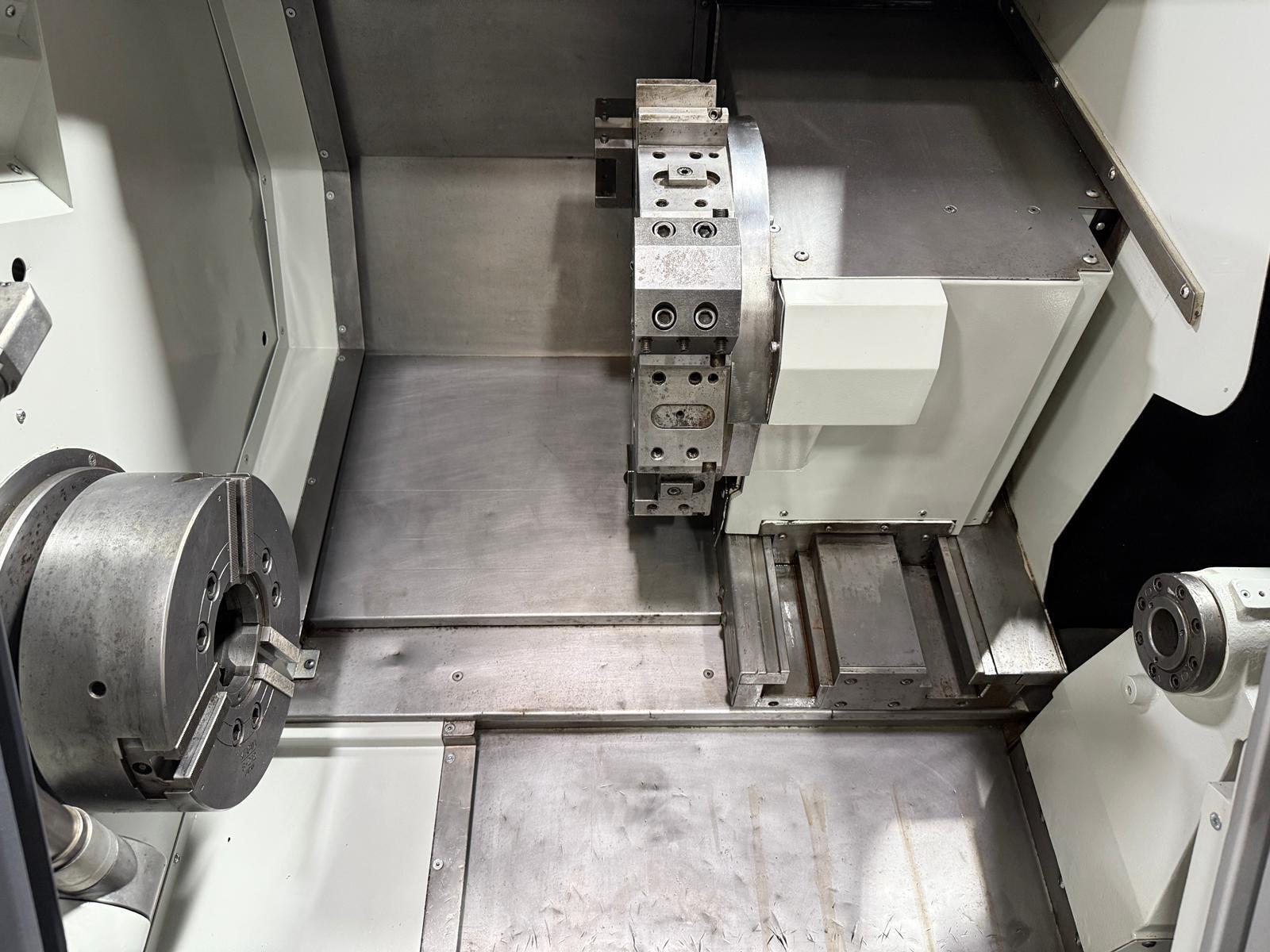

| (2) Turning Tool Holders, (1) Boring Tool Holder are equipped on Turret (As shwon in the images) |
| Capacity: |
|---|
| Max Turning Diameter: 14.4″ |
| Max Turning Length: 27.7″ |
| Max Bar Capacity: 3.1″ |
| Swing Over Bed: 23.2″ |
| Distance Between Centers: 31.5″ |
| Travels: |
|---|
| X Axis Travel: 10.2″ |
| Z Axis Travel: 31.2″ |
| Rapid Traverse X Axis: 1181 IPM |
| Rapid Traverse Z Axis: 1181 IPM |
| Spindle: |
|---|
| Spindle Nose: A2-8 |
| Spindle Bore: 3.5″ |
| Spindle Speed: 4000 RPM |
| Spindle Motor: 25 HP |

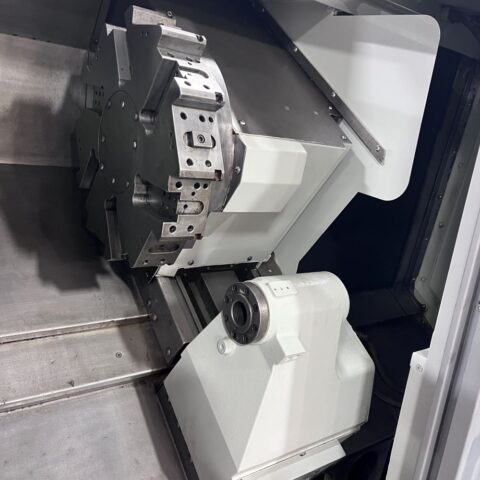

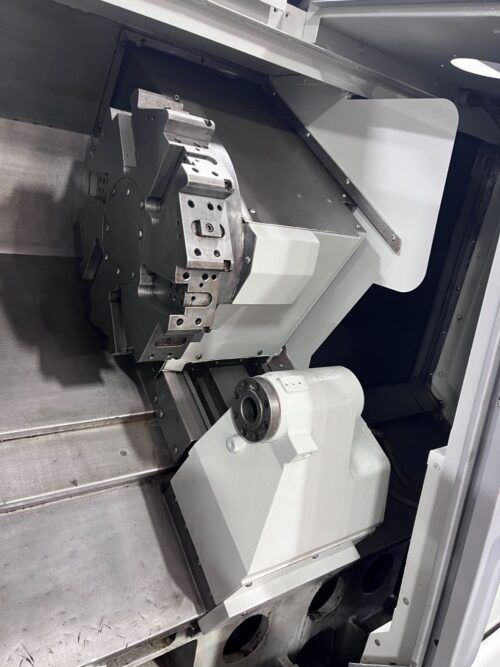

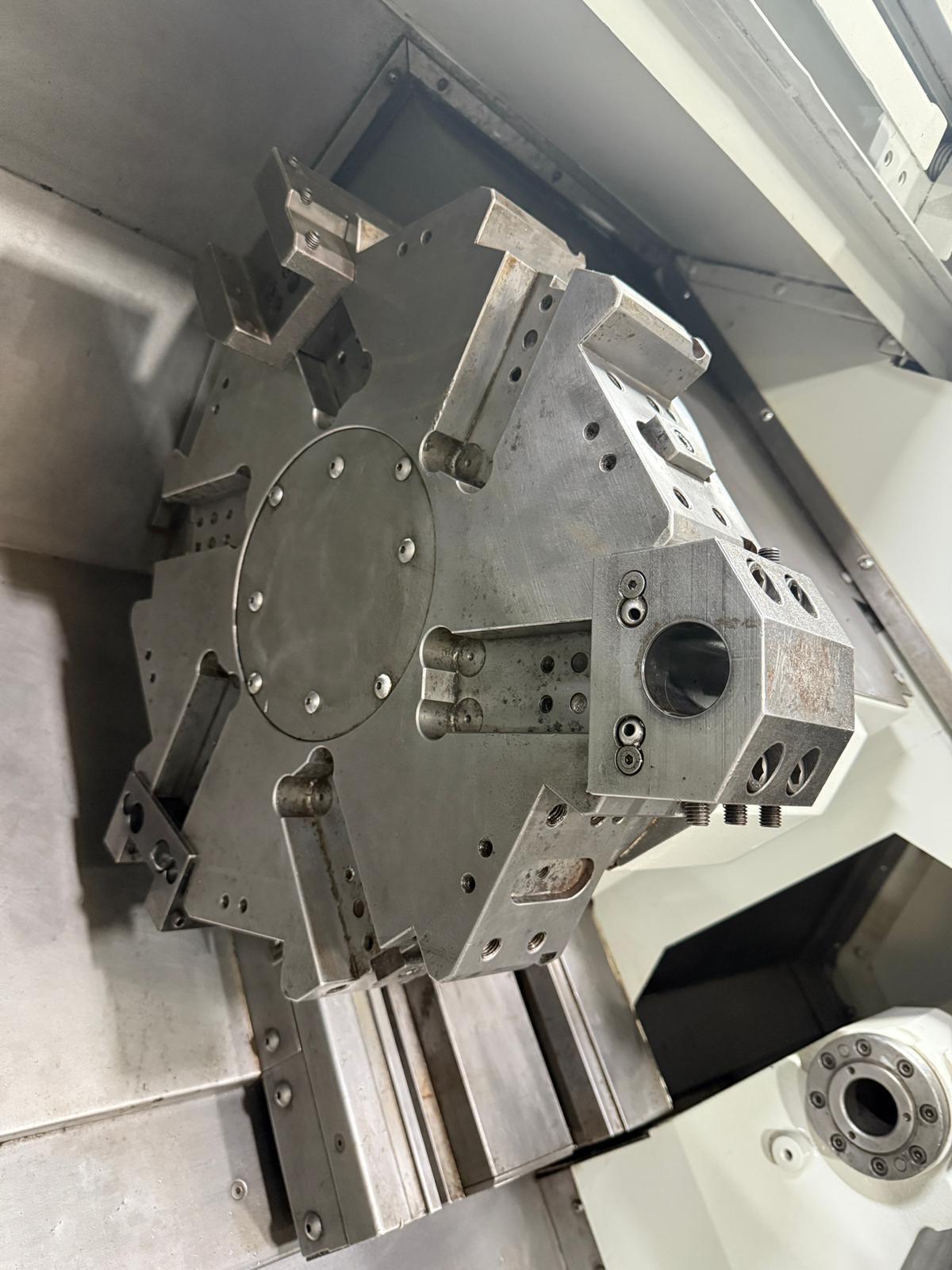

| Turret: |
|---|
| Turret Capacity: 12 Stations |
| Turret Index Time: 0.5 Second |
| Tool Holders Type: BMT |
| Tailstock: |
|---|
| Tailstock Body Travel: 25.5″ |
| Tailstock Quill Dia.: 3.34″ |
| Tailstock Quill Stroke: 3.1″ |
| Tailstock Taper: MT-4 |
| General: |
|---|

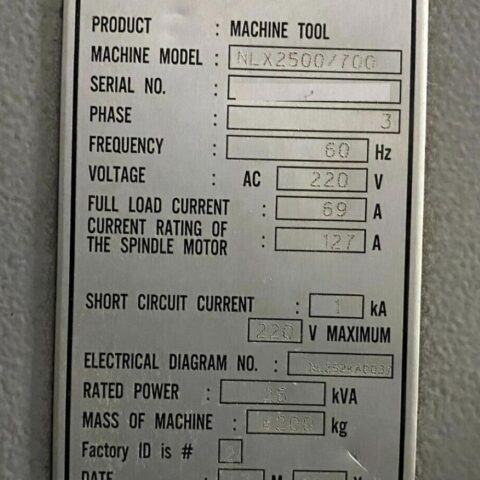

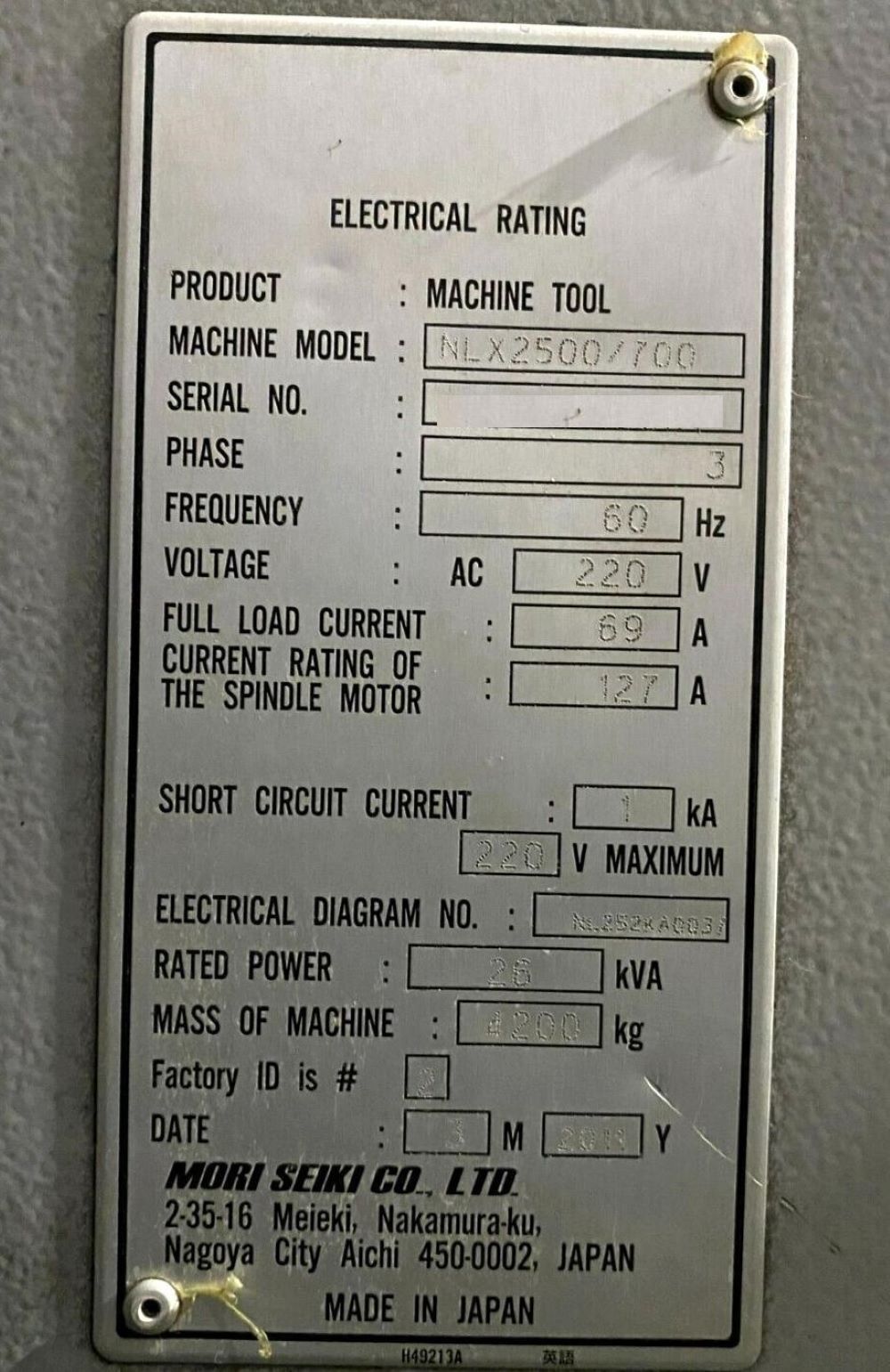

| Power Source: AC 220 V, Three Phase, 60 Hz |
| Power Requirement: 26 kva |
| Overall Dimensions: 103″ x 75 ″ x 72″ High |
| Weight : 9,900 lbs Approx. |
