*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

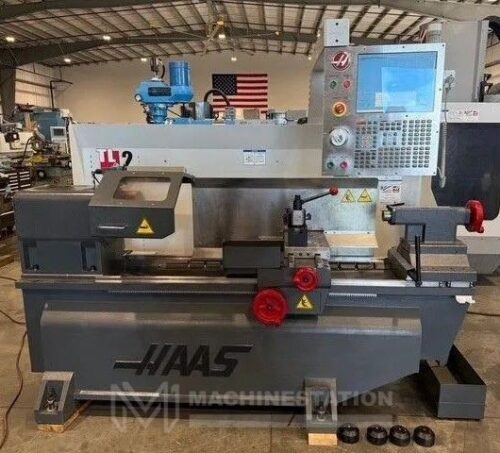

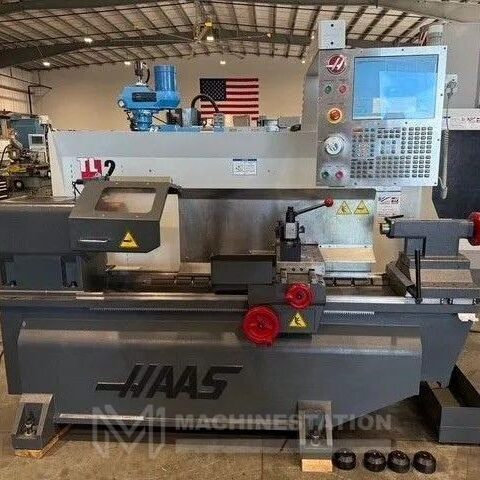

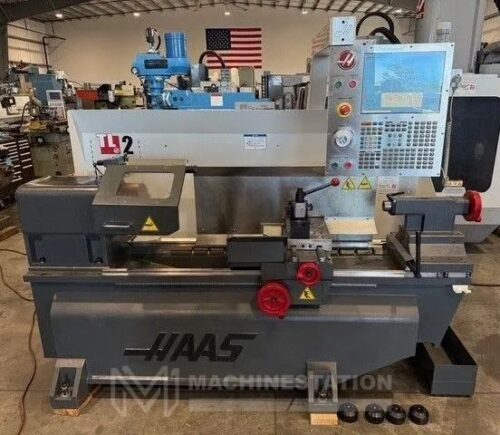

| Make: | Haas |
| Model: | TL2 |
| Year: | 2011 |
| Equipped With: |
|---|

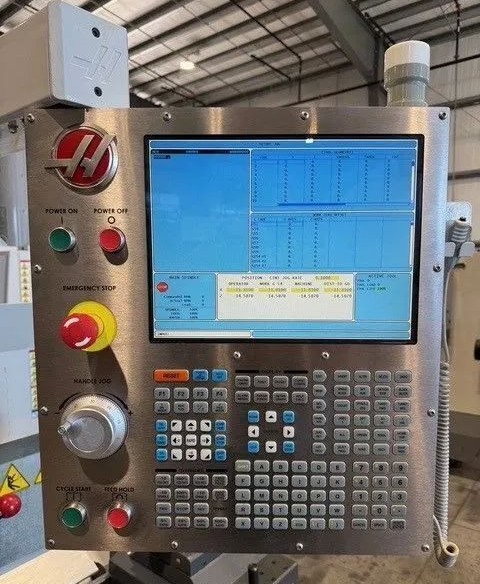

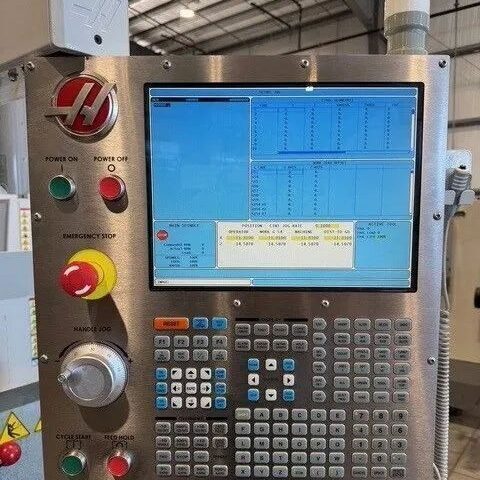

| Haas CNC Control |

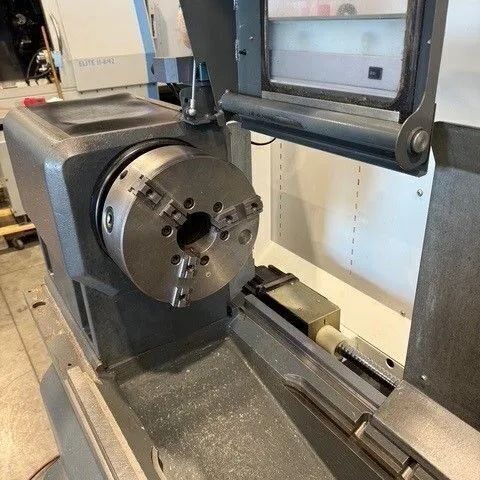

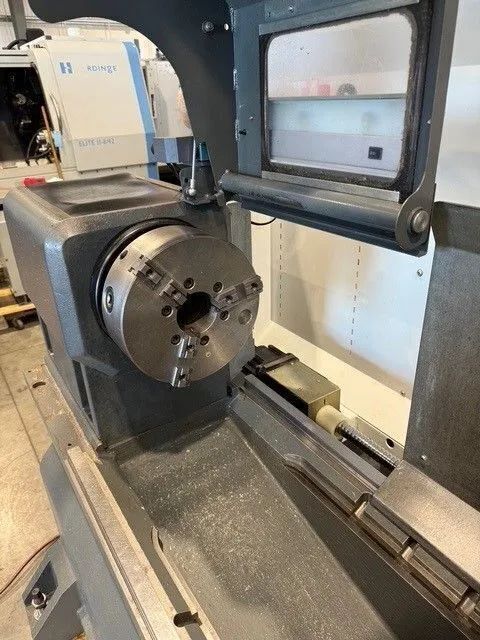

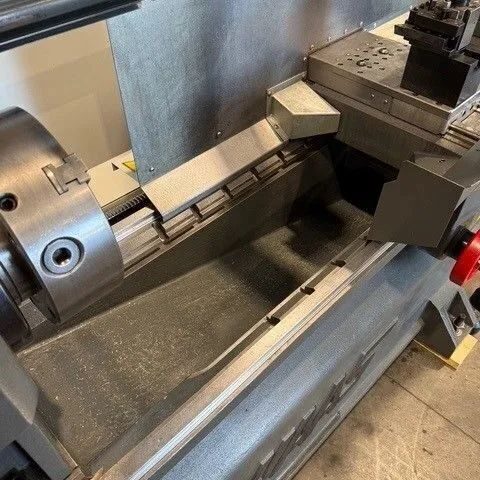

| 10″ 3-Jaw Chuck |
| 2000 RPM, A2-5 Spindle |
| 10 HP Spindle Drive |
| Quick Code |
| DNC |
| Brushless Barfeeder Interface |

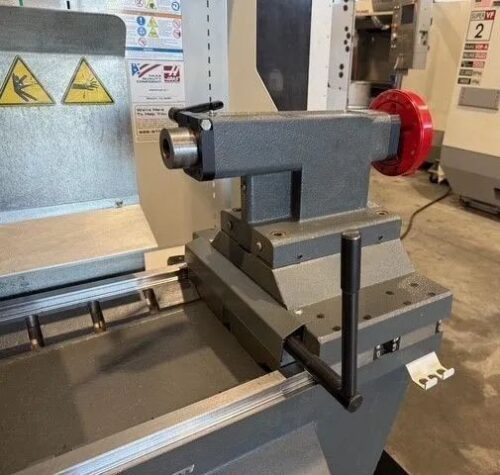

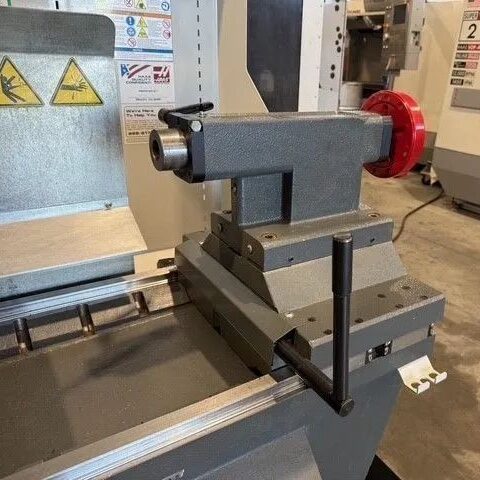

| Manual Tailstock |

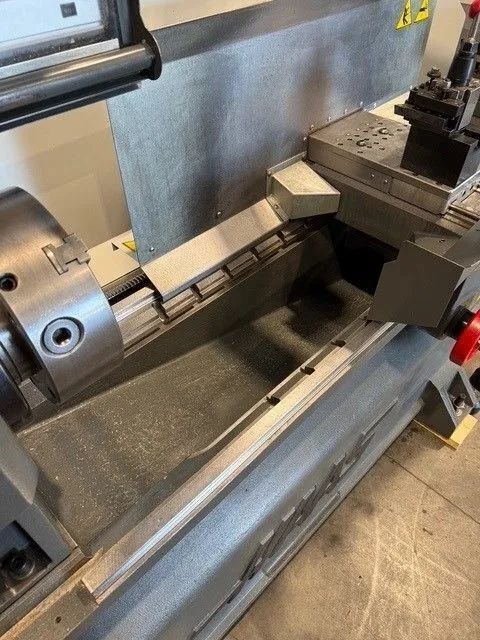

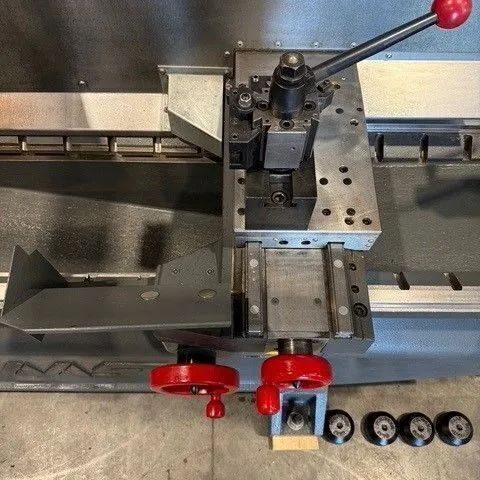

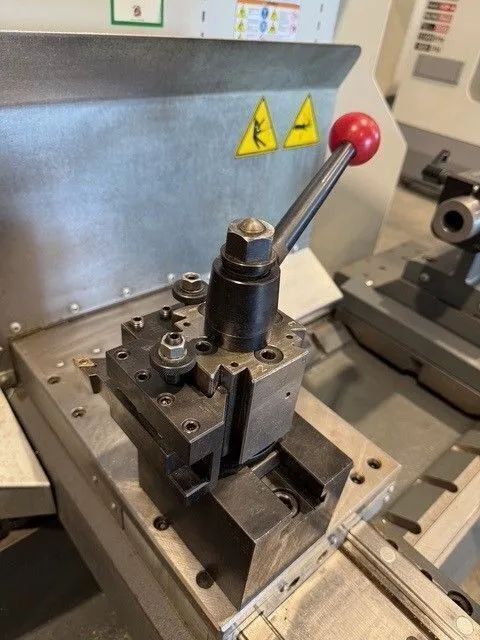

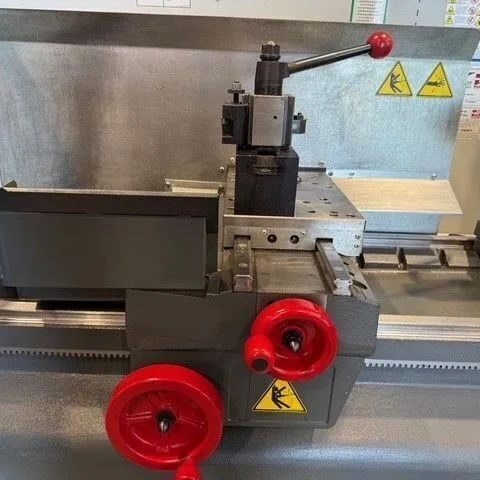

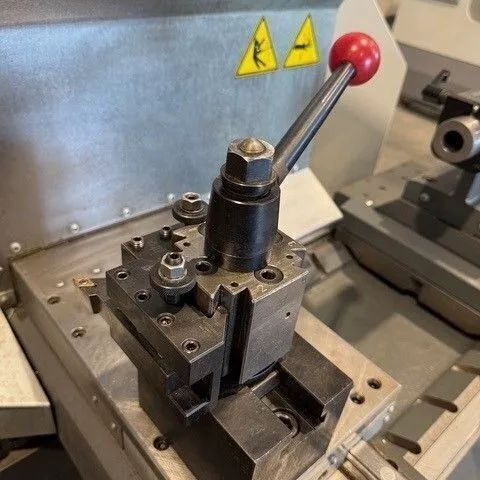

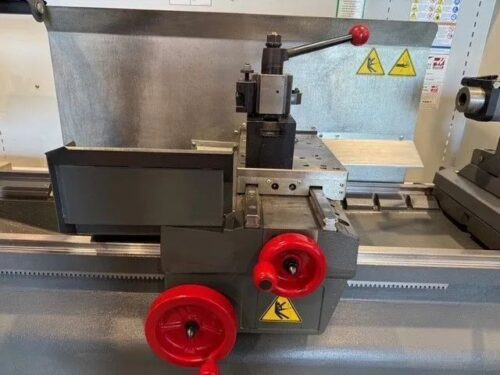

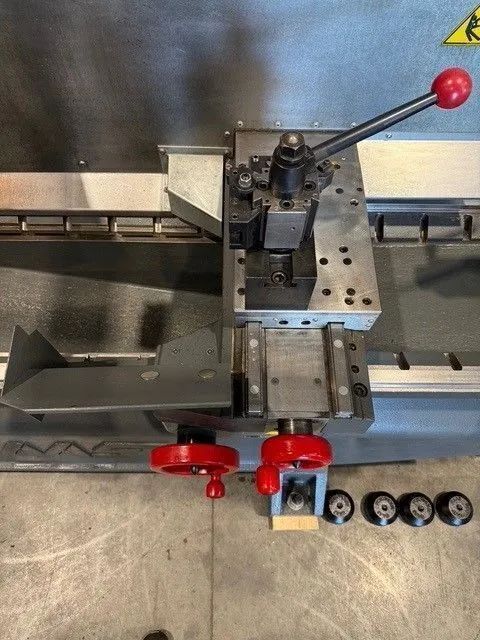

| Dorian Tool Post Indexable Type & (2) Holders |

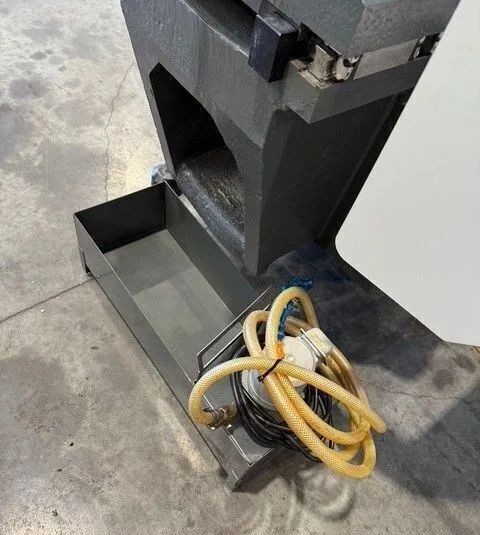

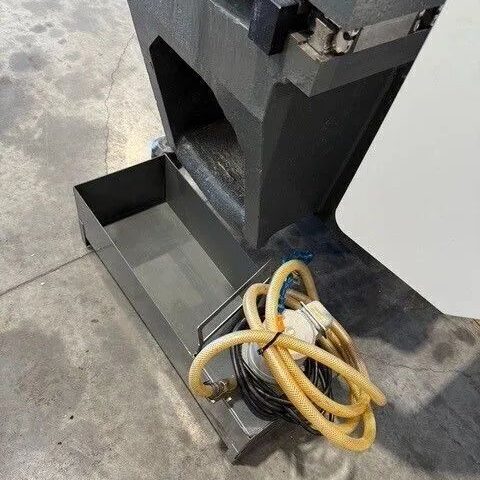

| Coolant Tank & Pump |
| (4) Leveling pads |
| Capacity: |
|---|
| Chuck Size : 10.0″ |
| Max Turning Diameter (with tool post) : 16.0″ |
| Max Turning Length (with tool post) : 48.0″ |
| Max Over Front Apron : 20.0″ |
| Max Over Cross Slide : 11.0″ |
| Distance Between Centers : 48.0″ |
| Travels: |
|---|
| X Axis Travel : 8.0″ |
| Z1 Axis Travel : 48.0″ |
| Feedrate: |
|---|
| Rapid Traverse X Axis: 450 IPM |
| Rapid Traverse Z Axis: 450 IPM |
| Spindle: |
|---|
| Spindle Nose: A2-5 |
| Spindle Bore: 3.00″ |
| Spindle Speed: 2000 RPM |
| Spindle Motor: 10 HP |
| Tailstock: |
|---|
| Tailstock Type: Manual |
| Taper: MT-4 |
| General: |
|---|
| Air Requirement: 4 scfm @ 80 psi |
| Machine Dimensions: 108.5″ x 68.5″ x 83.0″ High |
| Machine Weight: 5000 lbs. Approx. |
