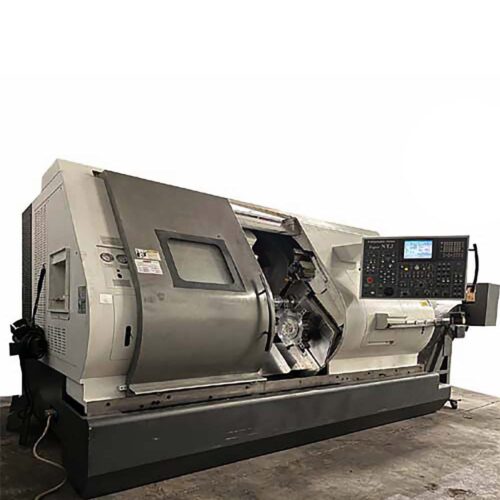

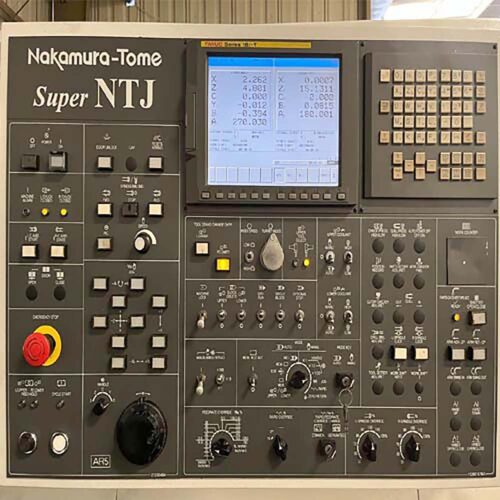

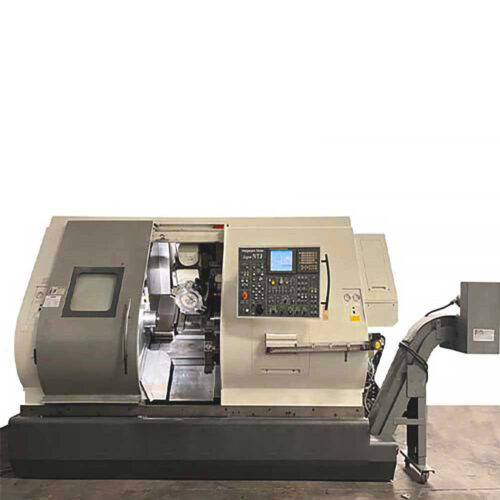

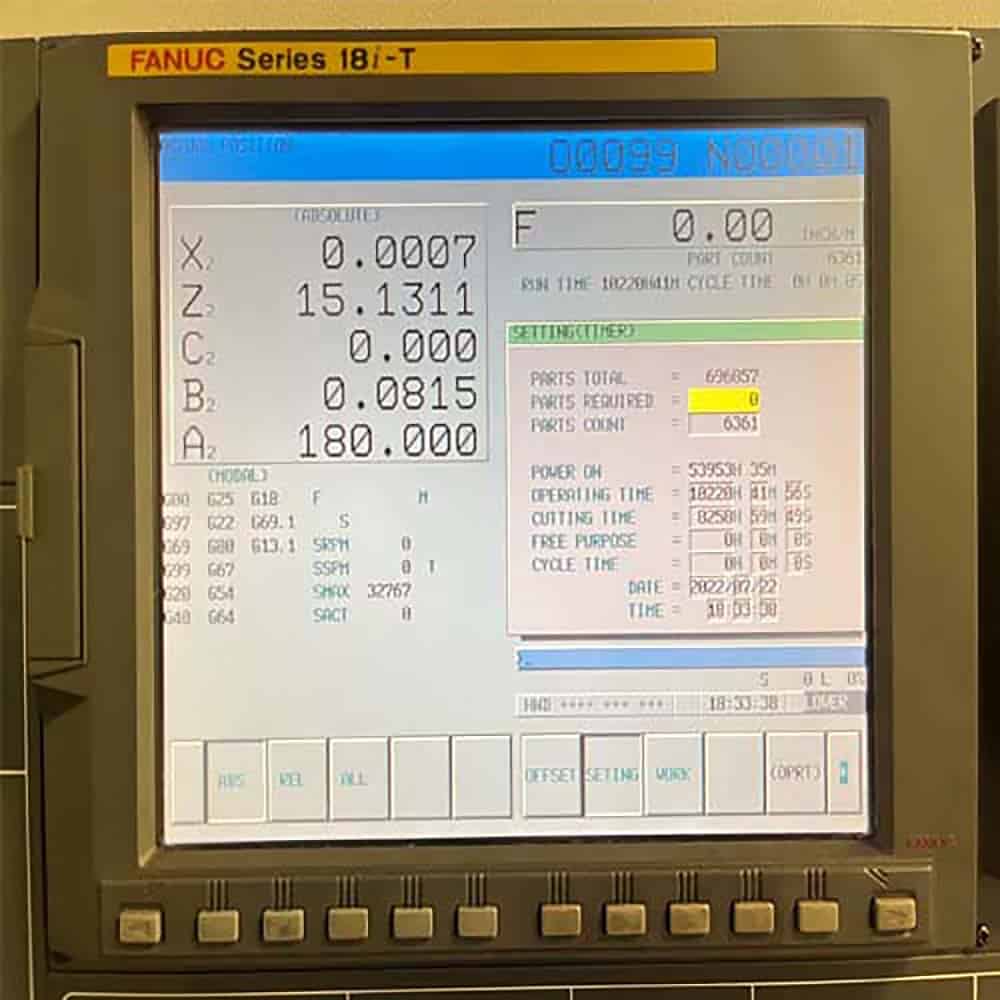

The Nakamura Tome Super NTJ multi axis CNC Mill is the perfect machine for any shop looking to increase its production capabilities. It comes equipped with a powerful Fanuc 18i-T CNC Control and twin turrets, each featuring radial and axial live tooling. With both spindles achieving full C-Axis servo control as well as synchronization, you’ll be able to complete complex jobs quickly and accurately.

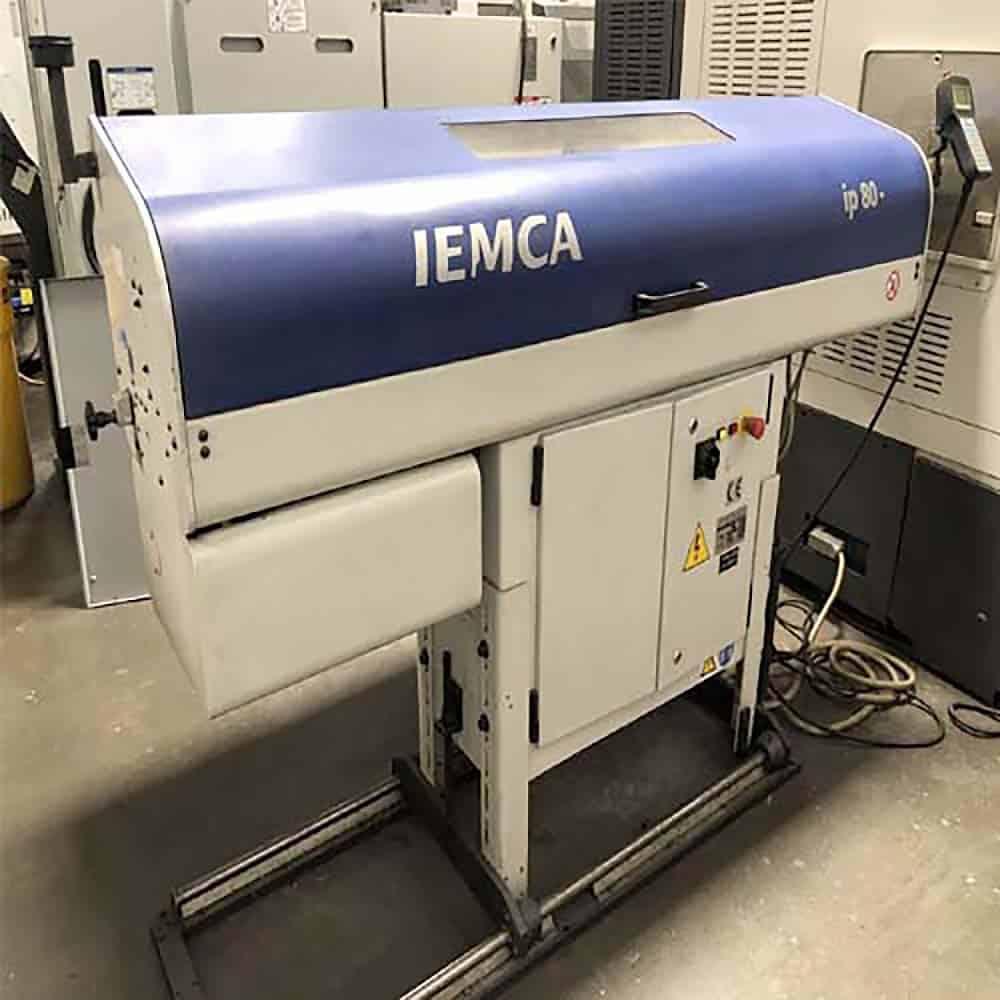

The mill also has Y Axis capability on the upper turret, an IEMCA VIP-80E Bar Feeder for easy loading of stock material and 24 station turrets both top and bottom. Additionally, high pressure coolant system with foot switches make operation even easier without sacrificing precision or accuracy. The mill is also outfitted with a chip conveyor and parts conveyor, plus a coolant tank.
This mill is powered by AC 220v / 3-Phase / 60 Hz, with a power requirement of kva. The bar feeder measures 93″ X 48″ X 59″ in height while the chip conveyor and coolant tank measure 200″ X 63″ X 66″ in height. The high pressure pump measures 45″X2.
| SKU: | 112338 |
| Make: | Nakamura Tome |
| Model: | Super NTJ |
| Condition: | Used – Good |
| Features: |
|---|
| Fanuc 18i-T CNC Control |

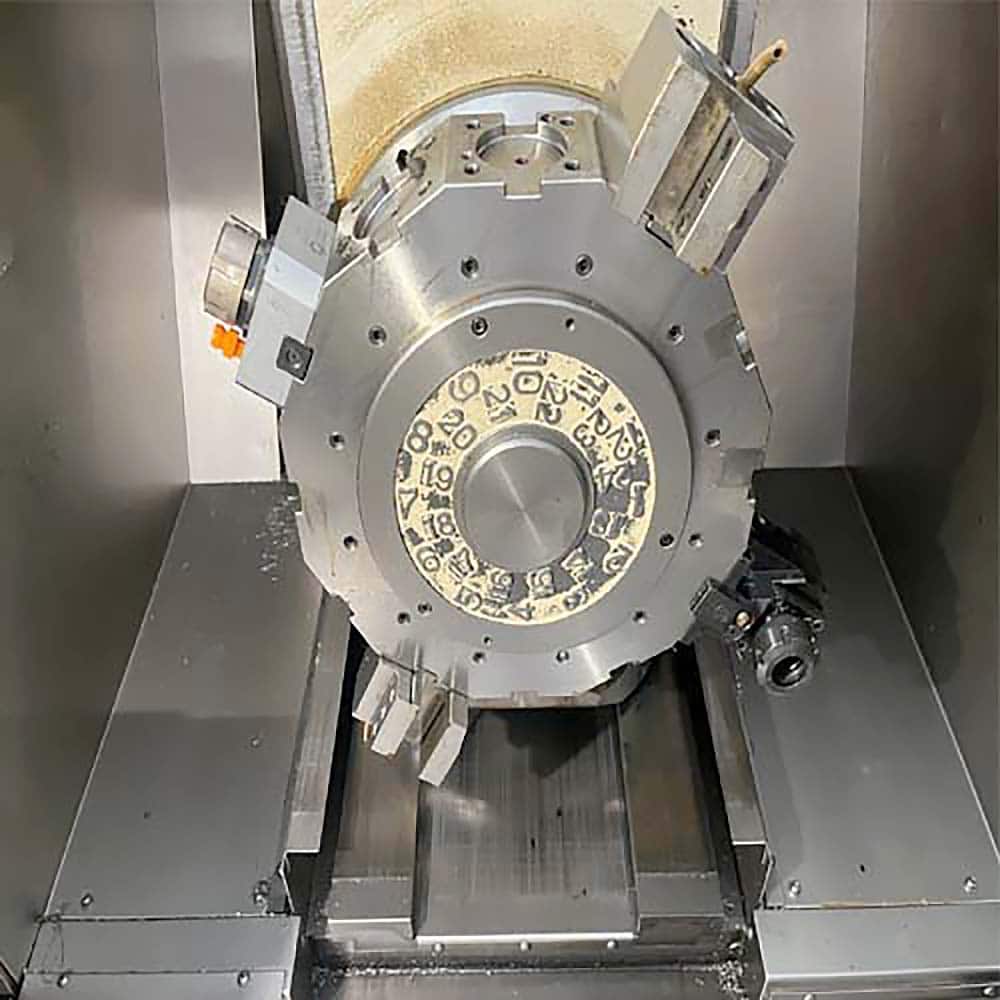

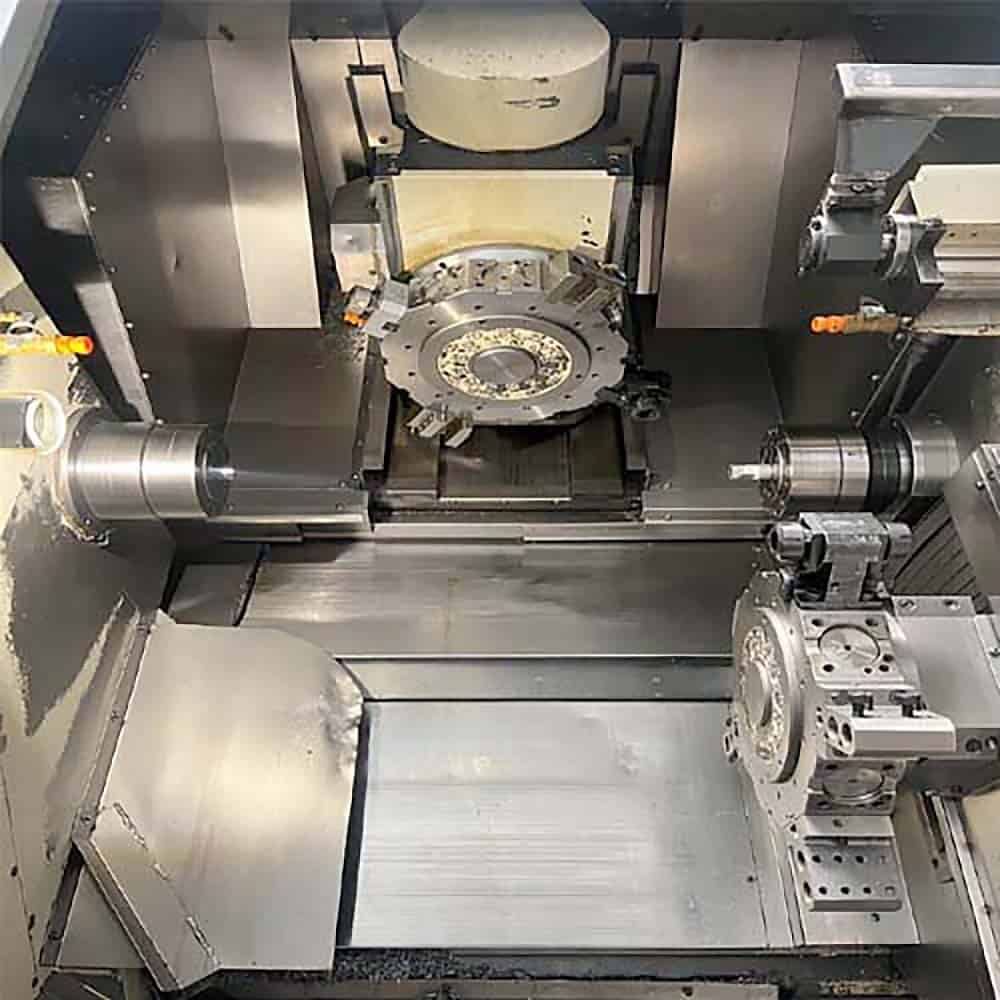

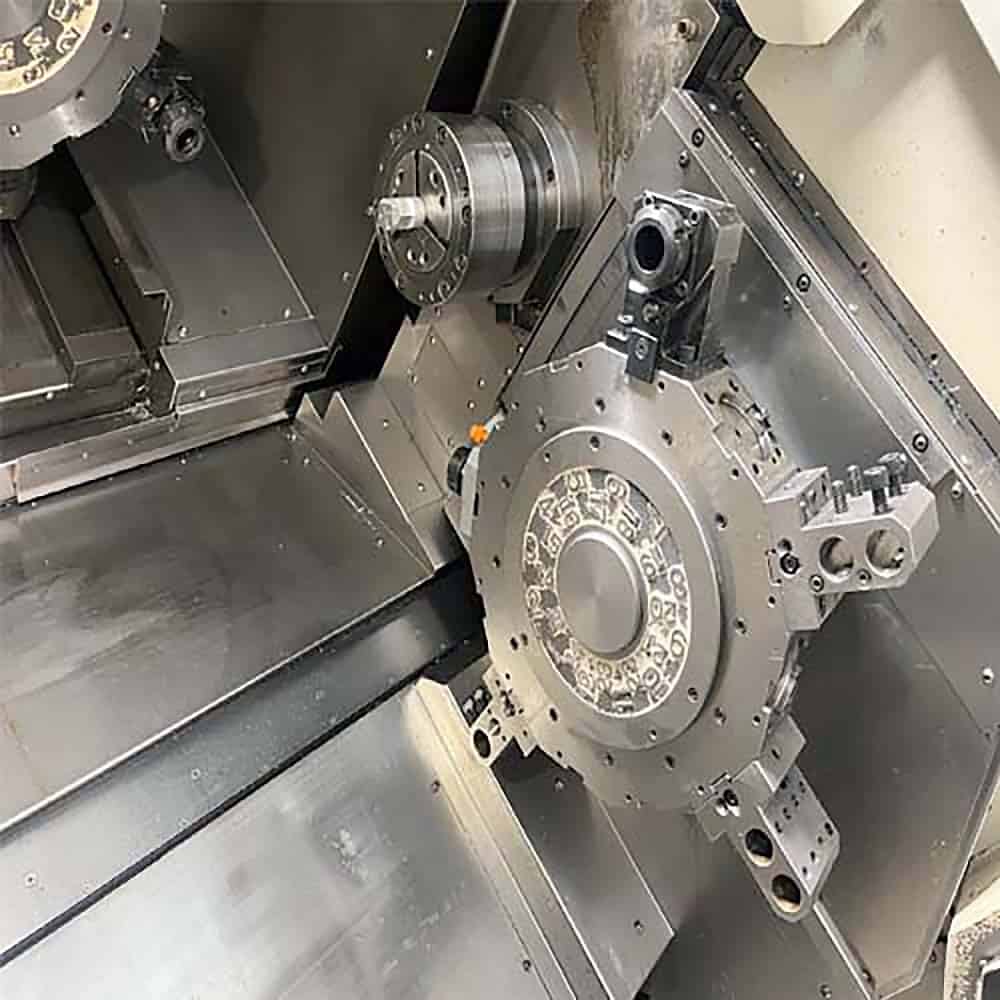

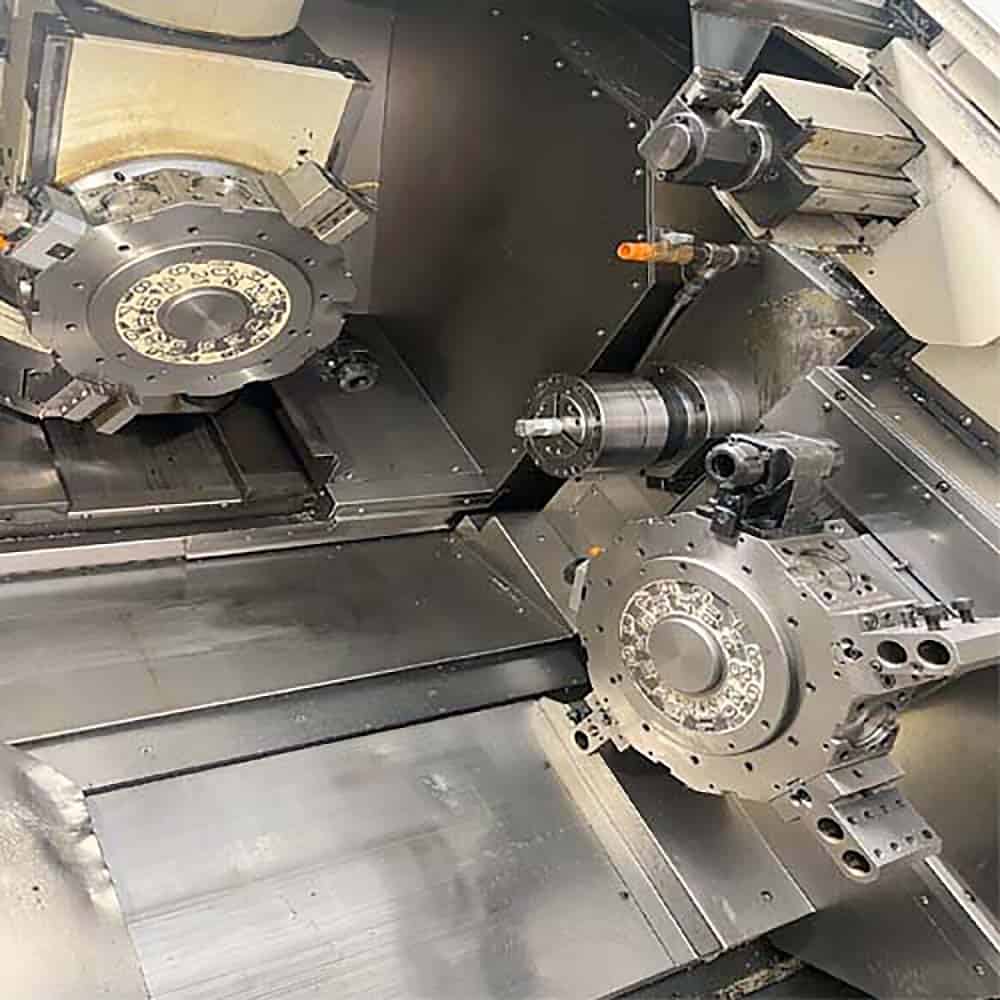

| Twin Turrets with Live Tools |
| Radial and Axial Live Tooling on Both Turrets |
| Servo Controlled Full C-Axis on Both Spindles |
| Comes with IEMCA VIP-80E Bar Feeder |
| 24 Station Upper Turret |
| 24 Station Lower Turret/span> |
| Y Axis Capability on Upper Turret |
| Both Spindle Synchronization |
| Auto Parts Catcher |
| High Pressure Coolant System |
| Foot Switches |
| Chip Conveyor |
| Parts Conveyor |
| Coolant Tank |
| Books and Manuals |
| Misc. Tool Holders (Mounted on Turrets as shown in the images) |
| Capacity: |
|---|
| Max Turning Diameter Upper Turret : 7.48″ |
| Max Turning Diameter Lower Turret : 7.48″ |
| Max Swing : 26.0″ |
| Max Swing with Y Axis : ” |
| Max Swing with Cross Slide: |
| Max Turning Length: 24.41″ |
| Max Bar Capacity Main Spindle : 2.56″ |
| Max Bar Capacity Sub Spindle : 2.56″ |
| Distance Between Spindle Centers: 8.27″ – 38.19″ |
| Travels: |
|---|
| X Axis Travel : 9.1″ |
| Z Axis Travel : 27.6″ |
| Y Axis Travel: 4.3″( +/- 2.15″) |
| C Axis: 360° (0.001°) |
| Feedrate: Rapid Traverse |
| X Axis: 945 IPM Rapid Traverse |
| Z Axis: 945 IPM Rapid Traverse |
| Y Axis: 787 IPM Rapid Traverse |
| Spindle: |
|---|
| Main Spindle Bore: 3.15″ |
| Sub Spindle Bore: 3.15″ |
| Main Spindle Nose: A2-6 |
| Sub Spindle Nose: A2-6 |
| Main Spindle Speed: 50-5000 RPM |
| Sub Spindle Speed: 50-5000 RPM |
| Main Spindle Power: 20 HP |
| Sub Spindle Power: 15 HP |
| Turret: |
|---|
| Upper Turret Capacity: 12 Stations |
| Lower Turret Capacity: 12 Stations |
| Live Milling Speed: 6000 RPM /span> |
| Live Milling Motor: 7.5 HP |
| Turret Index Time (Tool to Tool): 0.2 sec |
| Tool Holders Type: BMT |
| General: |
|---|

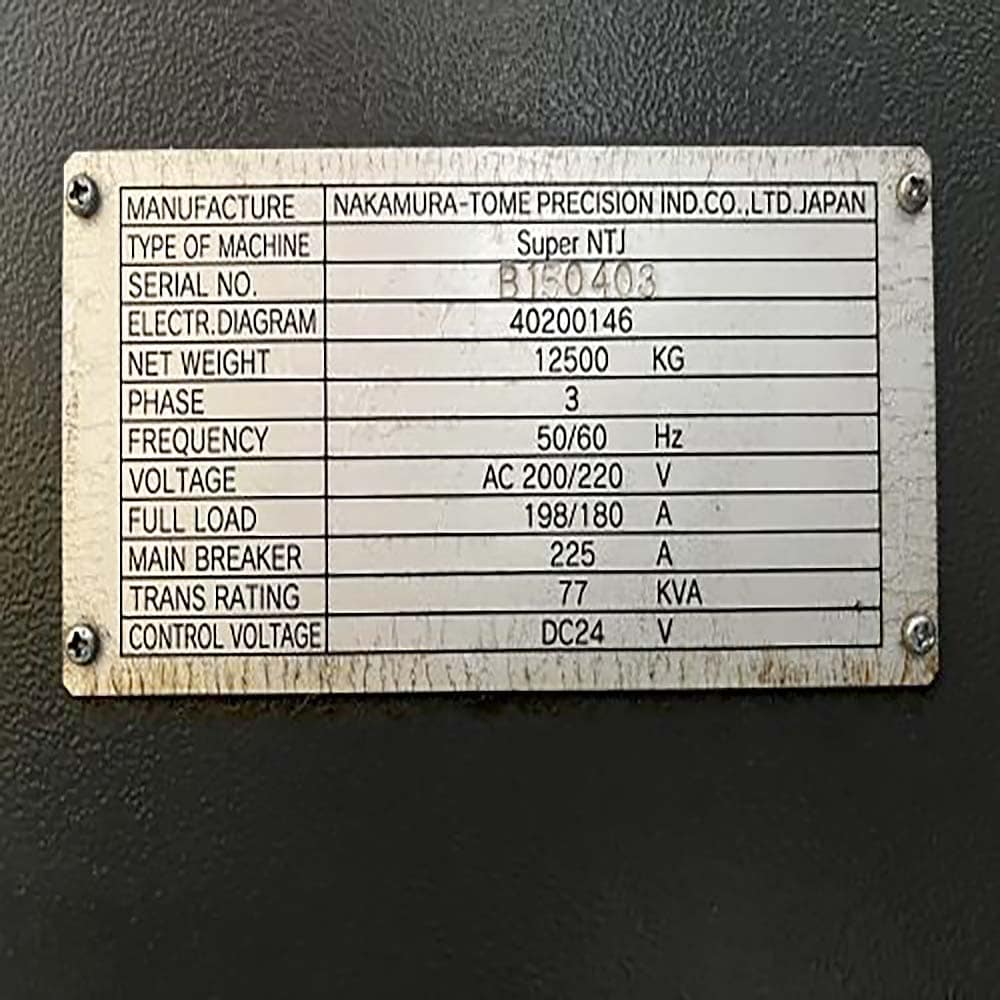

| Power Source: AC 220v / 3-Phase / 60 Hz |
| Power Requirement: kva |
| Bar Feeder: 93″ X 48″ X 59″ Height |
| Chip Conveyor & Coolant Tank: 200″ X 63″ X 66″ Height |
| High Pressure Pump: 45″ X 24″ X 40″ |
| Machine Dimensions: 156″ x 94″ x 89″ Height |
| Machine Weight: 27,500 lbs Approx |
