*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | DMG MORI SEIKI |
| Model: | NT4250/1500SZ |
| Year: | 2014 |
| Condition: | Used – Good |
| Machine Type: | Multi-Tasking CNC Turn-Mill Center |
| Control: | MORI F31iA5 CNC Control |
| Equipped With: |
|---|

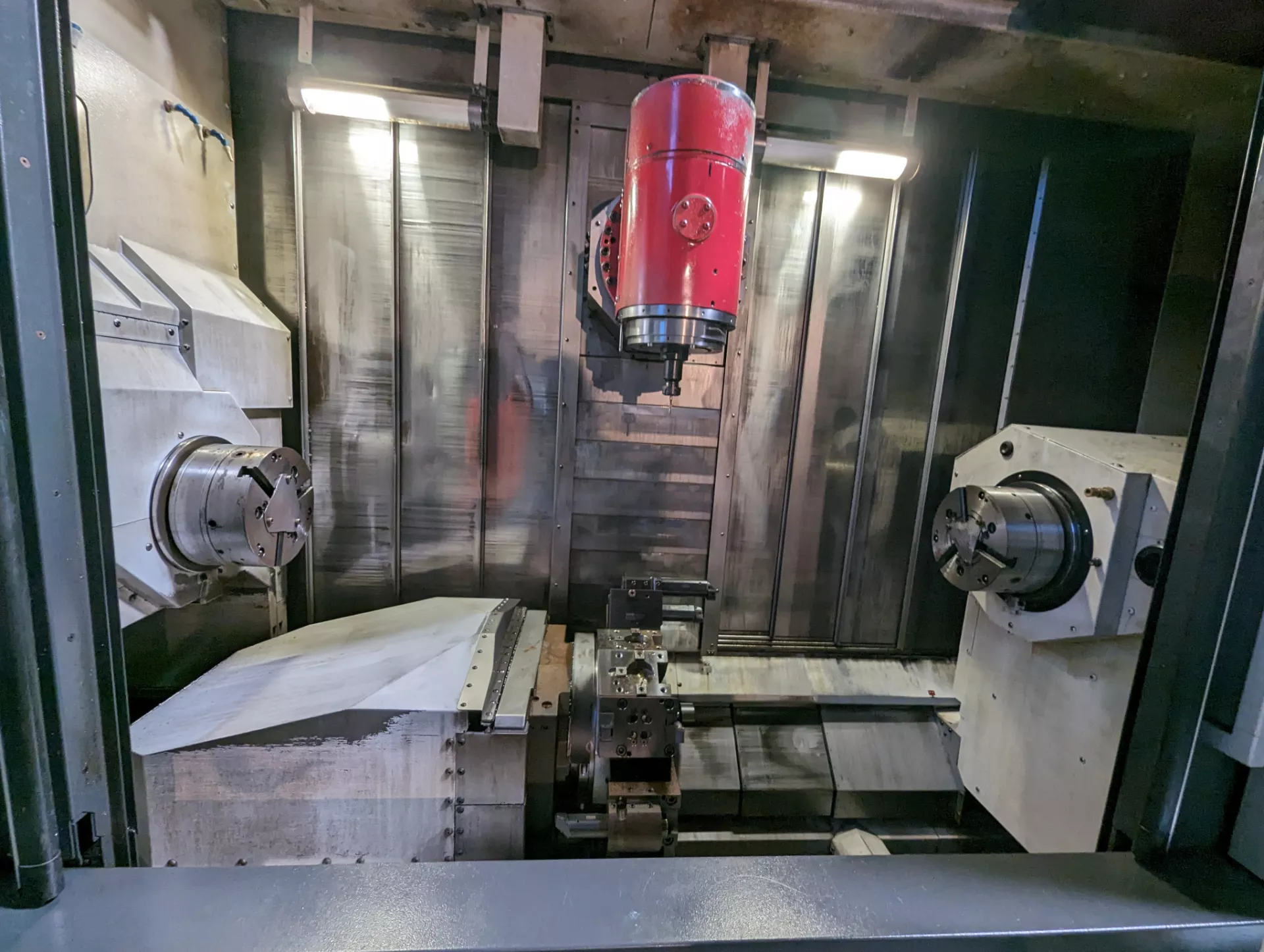

| Full B-Axis Milling Head |
| Main & Sub Spindles |

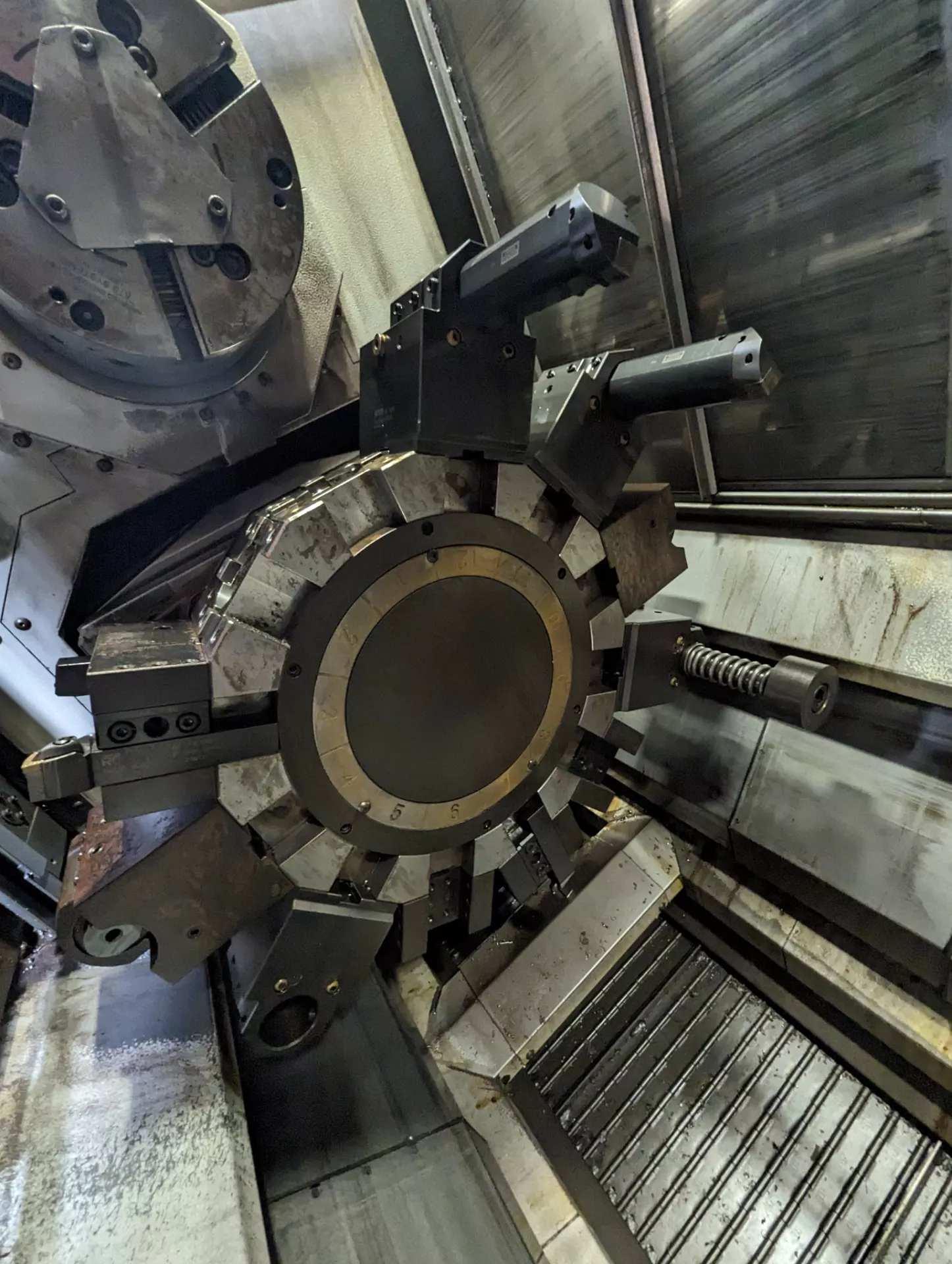

| Lower 12-Station Turret |
| 100+1 Position Automatic Tool Changer |
| HSK-63 Tooling System |
| Renishaw Inspection Probe |
| Renishaw Part Setter |
| CoolJet High-Pressure Coolant System (2014) |
| Mayfran Chip Conveyor |
| MistBuster Mist Collection System |
| Oil Cooling Unit |
| Sub-Spindle Parts Catch Capability |
| C-Axis Main & Sub Spindles |
| Live Milling Capability |
| Capacity: |
|---|
| Main Chuck Size: 10″ |
| Distance Between Centers: 60″ |
| Main & Sub Spindle Configuration |
| Travels: |
|---|
| X-Axis Travel: Approx. 29.5″ |
| Y-Axis Travel: Approx. 12.2″ |
| Z-Axis Travel: Approx. 61.4″ |
| B-Axis Rotation: 240° |
| Feedrate: |
|---|
| Rapid Traverse (X/Y/Z): 1,575 IPM |
| B-Axis Rapid Traverse: 18,000 Deg/Min |
| Spindle: |
|---|
| Main Spindle Speed: 4,000 RPM |
| Sub Spindle Speed: 4,000 RPM |
| Milling Spindle Speed: 12,000 RPM |
| Milling Spindle Taper: HSK-63 |
| Milling Spindle Motor: 40 HP |
| Turret: |
|---|
| Lower Turret Capacity: 12 Stations |
| Live Tool Capability |
| General: |
|---|

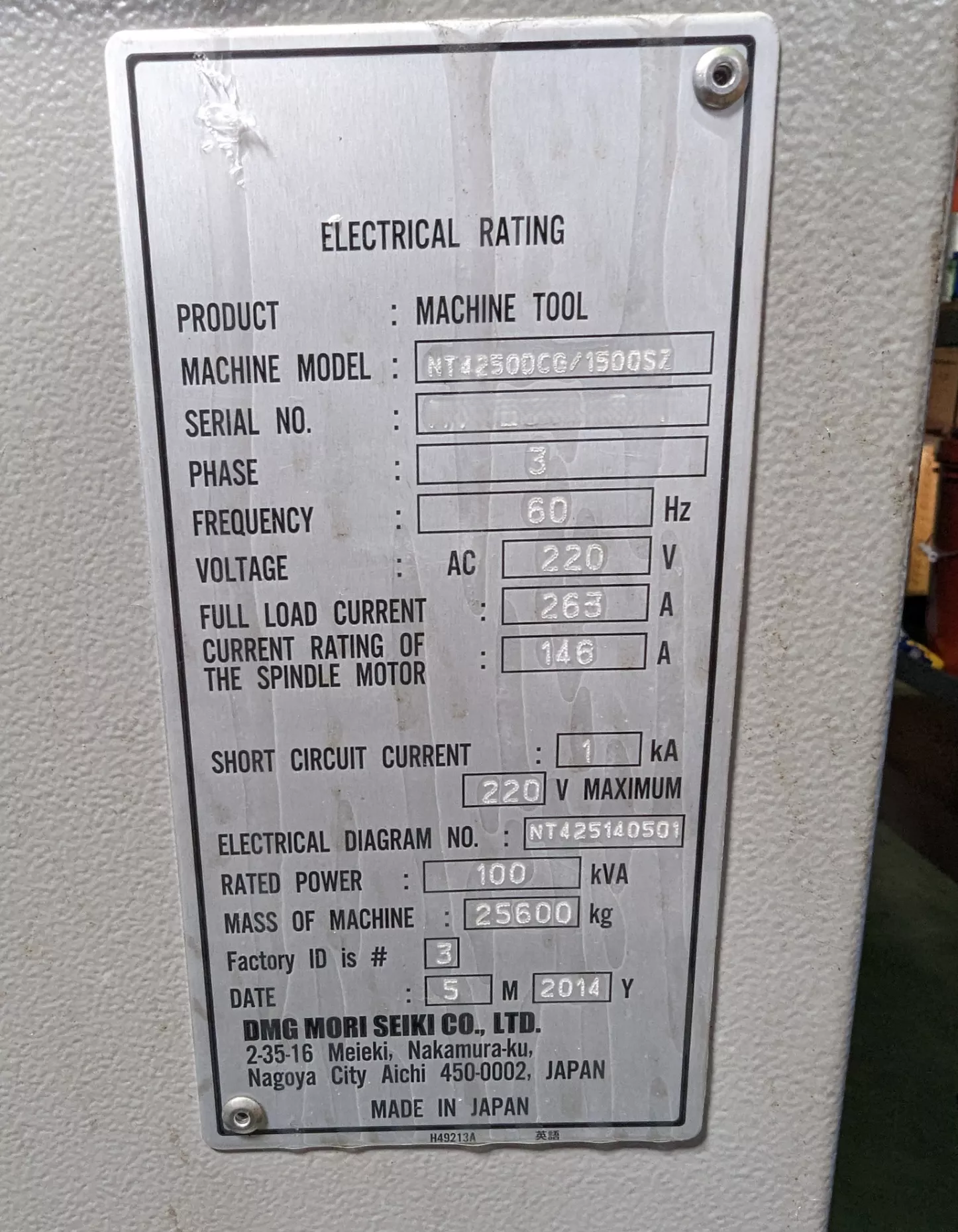

| Power: 220V / 60 Hz / 3 Phase / 100 KVA |
| Overall Dimensions: Approx. 282″ L x 118″ W x 130″ H |
| Machine Weight: Approx. 56,440 Lbs |
