*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

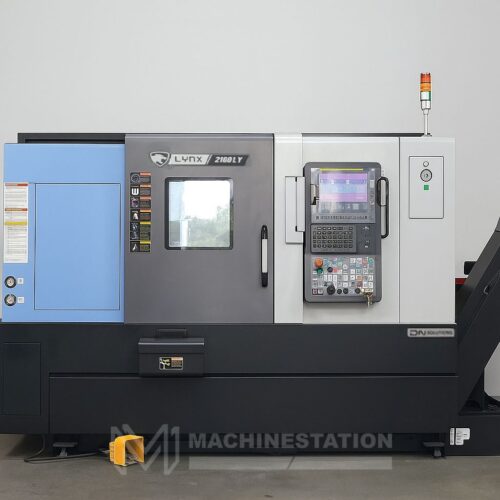

| Make: | DN Solutions Doosan |
| Model: | Lynx 2100LYB |
| Year: | 2024 |
| Equipped With: |
|---|
| Fanuc i series CNC Control |

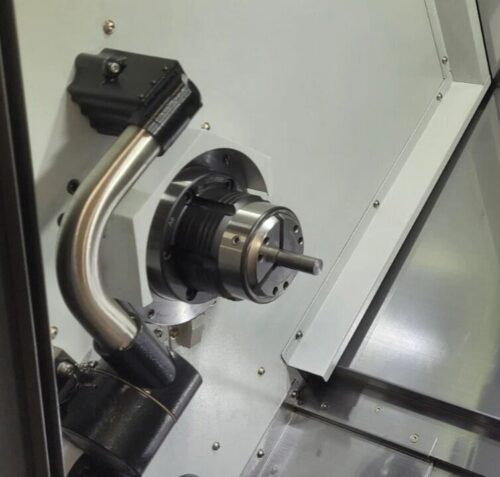

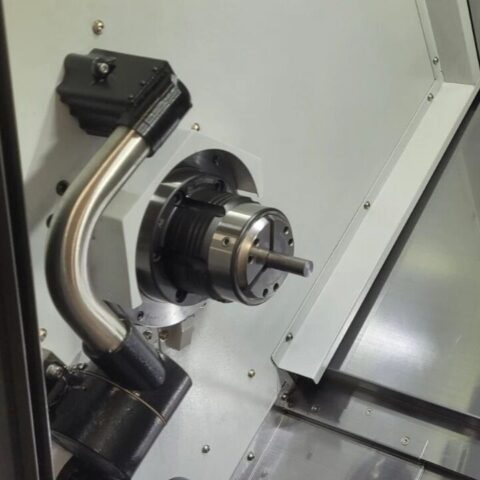

| Collet Chuck (Capable 8″ Chuck) |

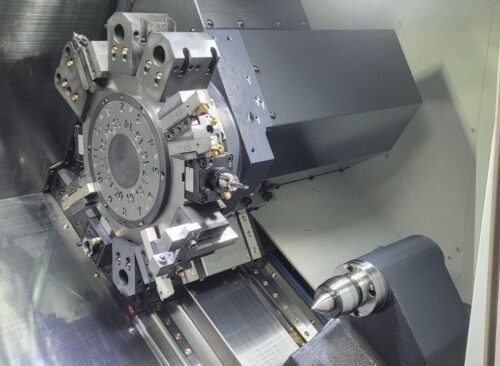

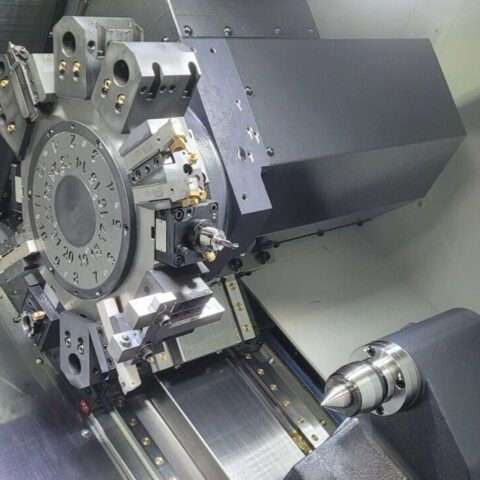

| 12 Station Automatic Live Tool Turret – 24 Positions |
| C & Y Axis Capable |
| Programmable Tailstock |
| Tool Presetter |
| Part Catcher |
| Bar Feeder Interface |
| PCMCIA Card Interface |
| USB Port |
| Foot Switch |
| Coolant System |
| LNS Chip Conveyor |
| Misc. Tool Holders are Mounted on Turret (As shown in the images) |
| Capacity: |
|---|
| Max Turning Diameter: 11.81″ |
| Max Turning Length: 20.10″ |
| Max Bar Capacity: 2.55″ |
| Swing Over Bed: 23.60″ |
| Swing Over saddle: 15.70″ |
| Travels: |
|---|
| X Axis Travel: 8.07″ |
| Z Axis Travel: 22.04″ |
| Y Axis Travel: 4.1″ |
| C Axis: 0.001 Degree |
| Rapid Traverse X Axis: 1181 IPM |
| Rapid Traverse Z Axis: 1417 IPM |
| Rapid Traverse Y Axis: 394 IPM |
| Spindle: |
|---|
| Spindle Nose: A2-6 |
| Spindle Bore: 3.0″ |
| Spindle Speed: 4500 RPM |
| Spindle Motor: 15 HP |
| Turret: |
|---|
| Turret Capacity: 12 Stations – 24 Positions |
| Turret Index Time: 0.11 Second |
| Live Tool Speed: 6000 RPM |
| Live Tool Motor: 5 HP |
| Max OD Tool Size: 0.75″ x 0.75″ |
| Tool Holders Type: BMT |
| Tailstock: |
|---|
| Quill Diameter: 2.56″ |
| Quill Travel: 3.15″ |
| Taper Size: MT#4 |
| General: |
|---|

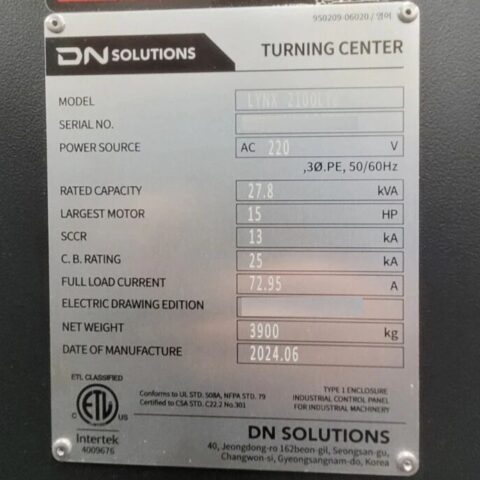

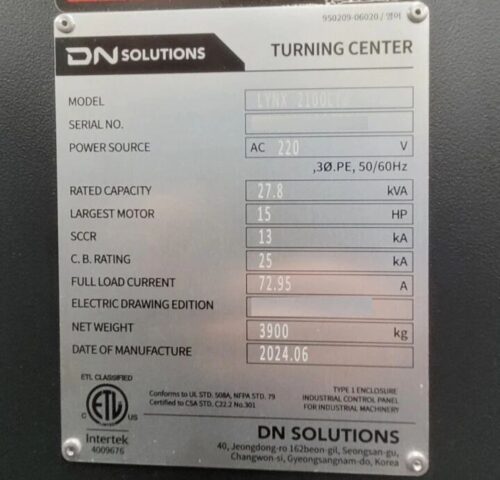

| Power: 27.8 kva, 220v / 3-Phase |
| Overall Dimensions: 113″ x 76″ x 67″ High Approx. |
| Weight: 8,598 lbs. Approx. |
