*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

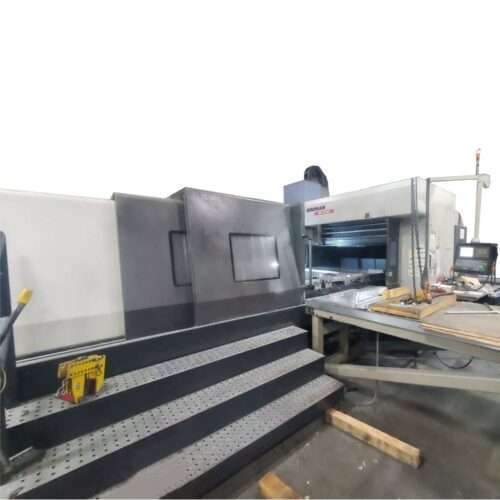

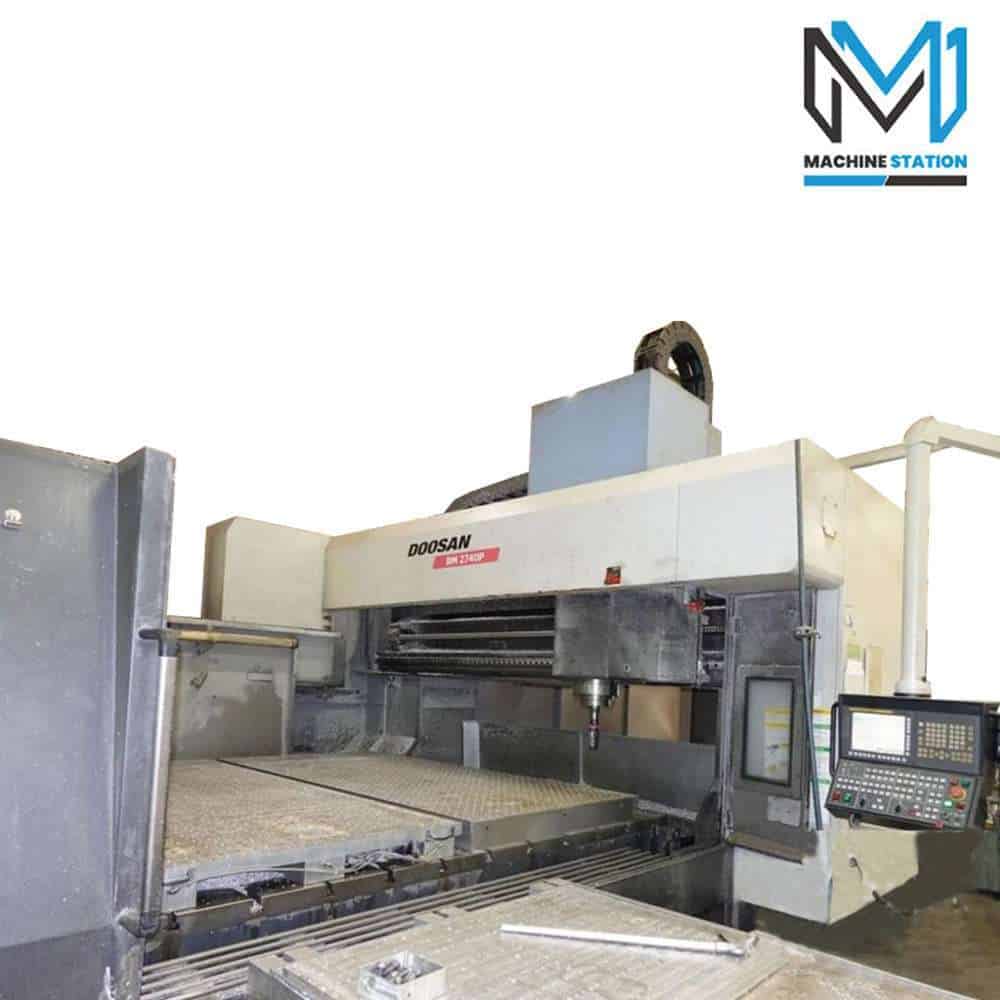

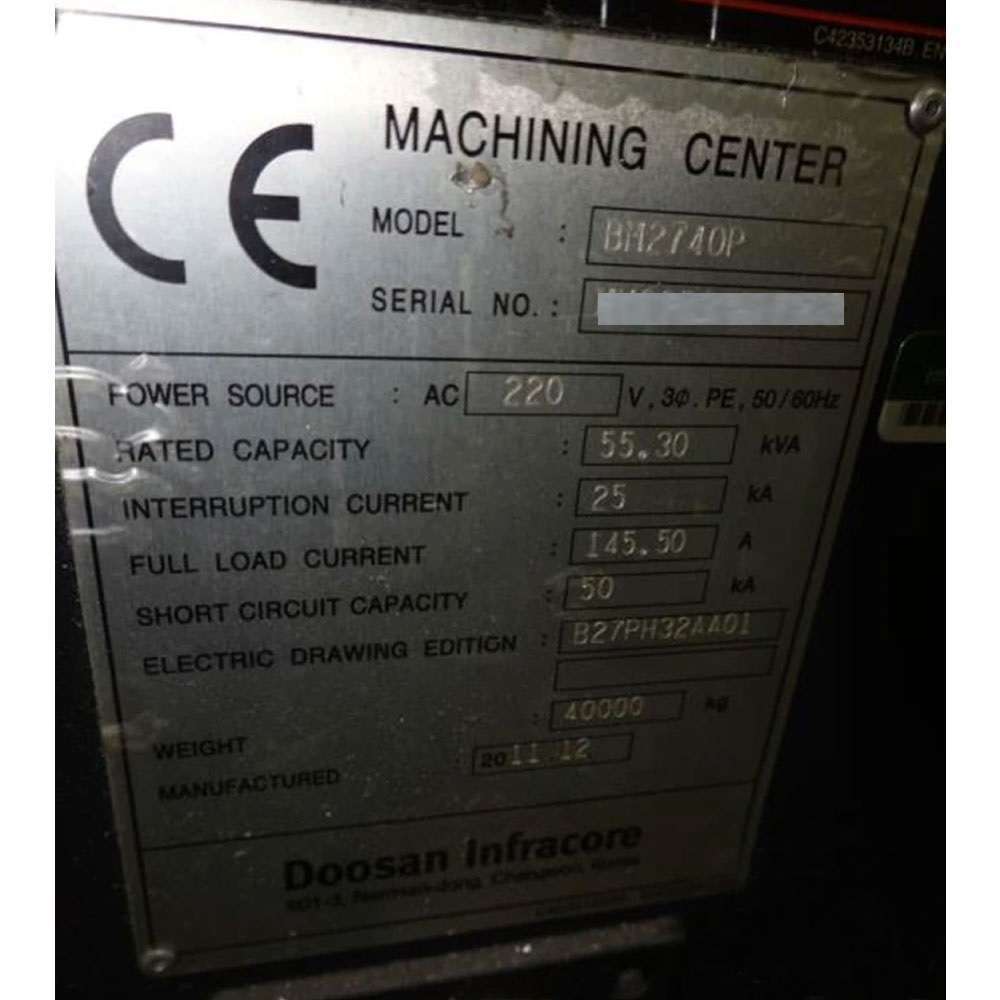

| Make: | Doosan |
| Model: | BM-2470P |
| Year: | 2011 |
| Condition: | Used – Good |
| Equipped With: |
|---|

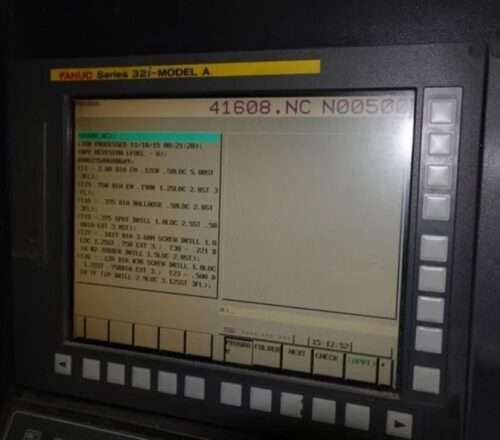

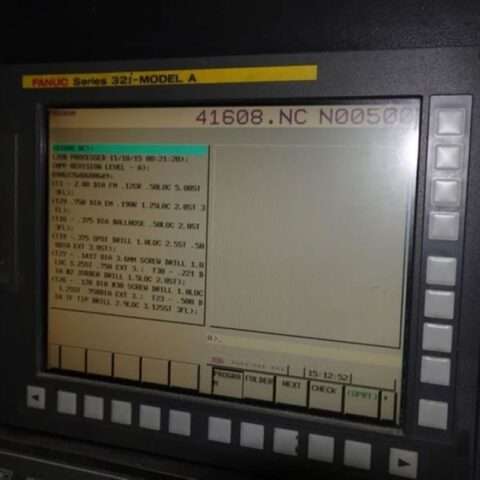

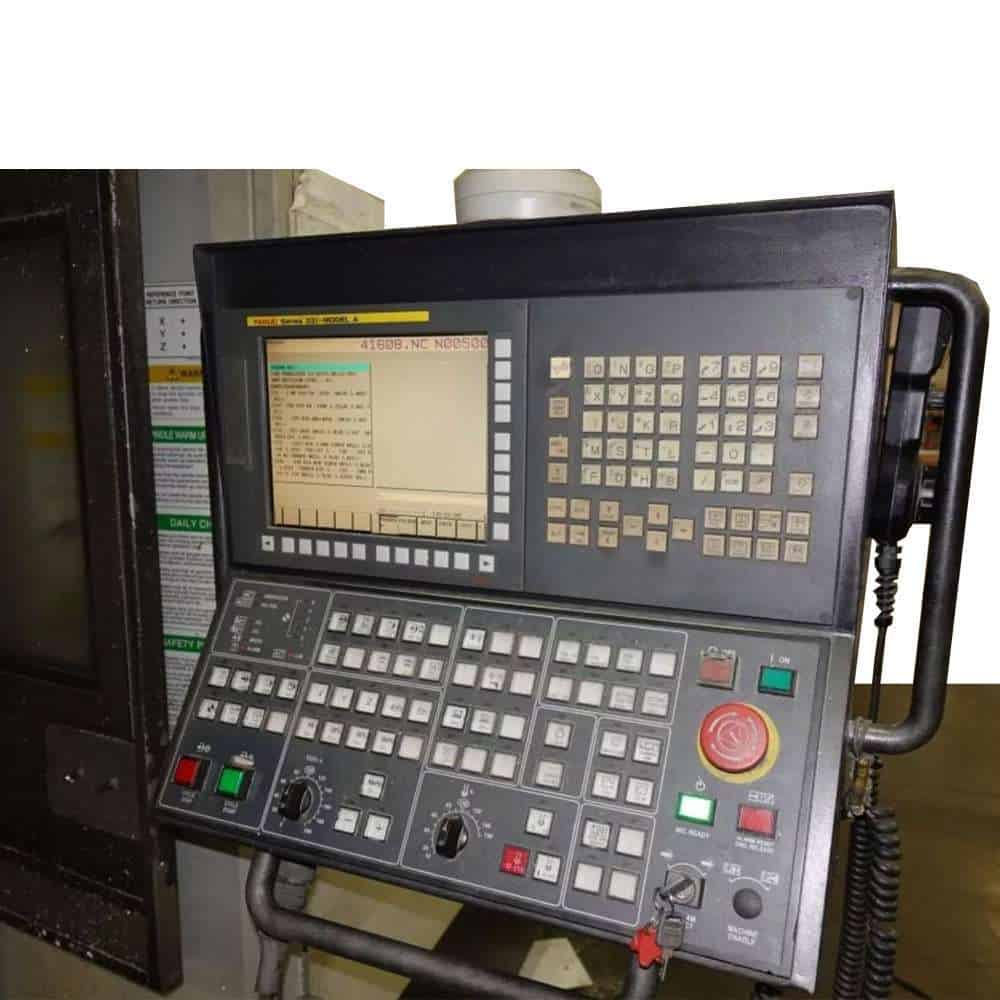

| Fanuc 32i-MA CNC Control |
| 157.5″ X 98.4″ Table |
| 40 Station Side Mount Tool Changer |

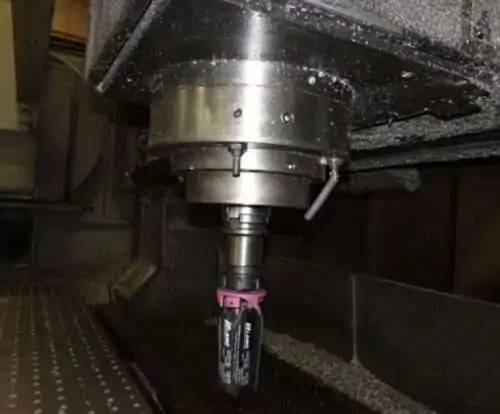

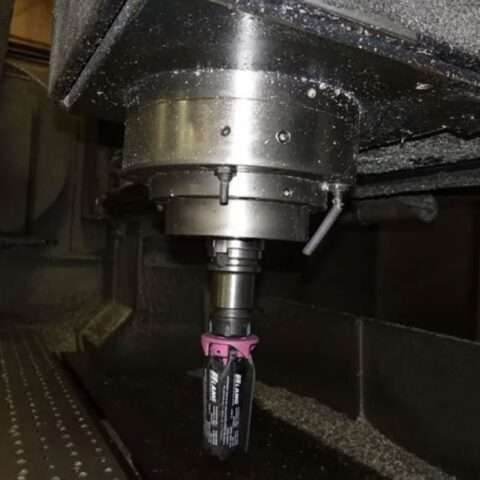

| BT-40 Big Plus Taper 12,000 RPM Spindle |
| Powerful 25 HP high torque spindle motor |
| Coolant Through Spindle |
| PCMCIA Card Slot |
| RS-232 Port |
| Spindle Orientation |
| Remote Jog Control |
| Coolant System |
| LNS Turbo MF2 Chip Conveyor |
| Spindle Chiller Unit |
| Travels: |
|---|
| X-Axis: 157.5″ |
| Y-Axis: 106.3″ |
| Z-Axis: 19.7″ |
| Distance Between Columns: 106.3″ |
| Spindle Nose to Table (Min.- Max.): 3.1″- 22.8″ |
| Rapid Feedrate X Axis: 629.9 IPM |
| Rapid Feedrate Y Axis: 944.9 IPM |
| Rapid Feedrate Z Axis: 1417.3 IPM |

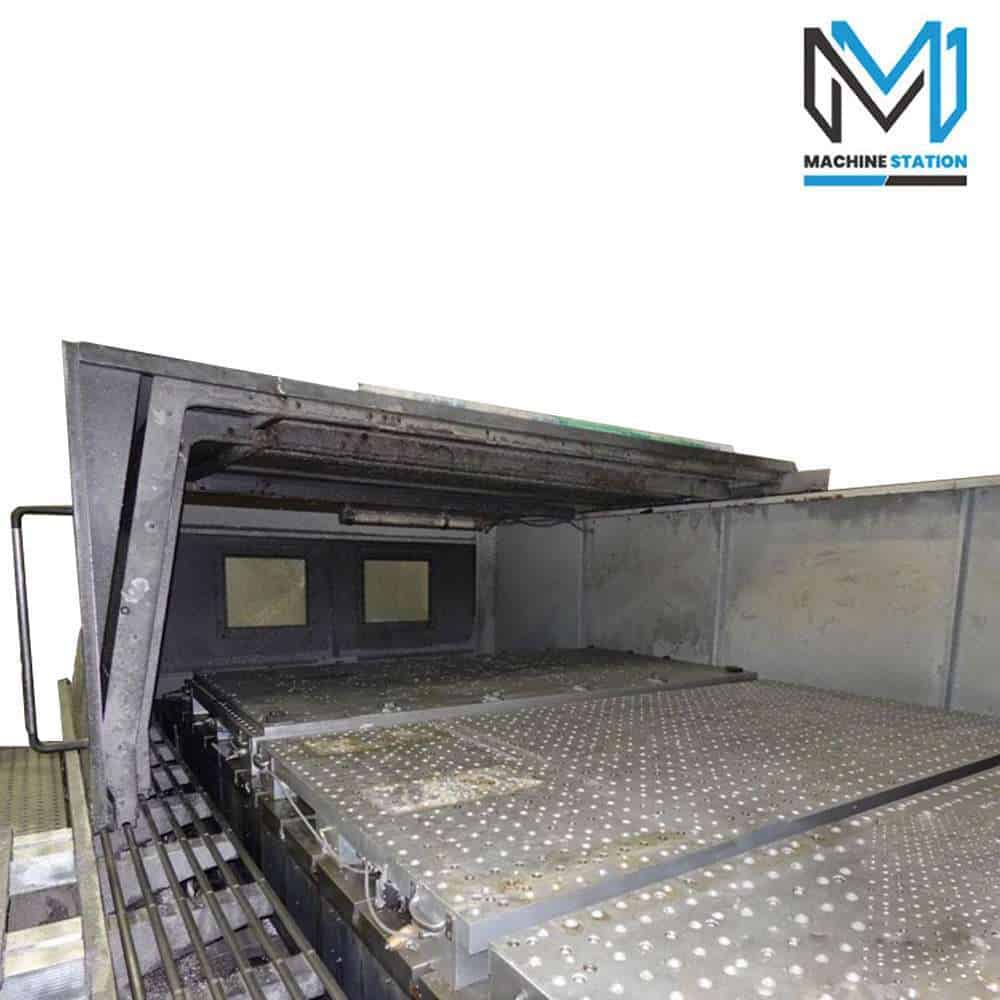

| Table: |
|---|
| Length: 157.5″ |
| Width: 98.4″ |
| Max Weight on Table: 6613.8 lbs |
| Spindle: |
|---|
| Taper Size: BT-40 Big Plus |
| Speed Range: 12,000 RPM |
| Spindle Power: 25 HP |
| Automatic Tool Changer: |
|---|
| Capacity: 40 Tools |
| Max Tool Weight: 17.6 lbs |
| Max Tool Length: 11.8″ |
| Max Tool Dia.: 4.9″ |
| General: |
|---|
| Air Required: 100 psi 4 scfm |
| Power: 205-235v / 66FLA / 3-Phase 55.30 Kva |
| Overall Shipping Dimensions: 426″ x 225″ x 148″ High |
| Weight: 88,184 lbs. |
