Doosan DMP500/2SP CNC Vertical Machining Center – 2019

SKU 11080
Make/Model Doosan DMP 500/2SP
Year 2019
Condition Used - Good
Video On Request
Out of stock
SKU: 11080
Make/Model: Doosan DMP 500/2SP
Year: 2019
Condition: Used – Good
Video: On Request
SKU: 11080

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please call us if you have any questions before making a purchase. All sales are final.*

Make: Doosan
Model: DMP 500/2SP
Machine Type: 2-Spindle Vertical Machining Center
Year: 2019
Condition: Used
  • Features:

  • Dual-Spindle Vertical Machining Center
  • Simultaneous Machining on Both Spindles
  • Rigid Column & Base Construction
  • Roller-Type Linear Guideways on All Axes
  • Grease-Lubricated Linear Motion System
  • W-Axis for Dual-Spindle Tool Length Adjustment
  • Single Control with Dual Output Capability
  • Reduced Floor Space & Tooling Duplication
  • Travels:

  • X-Axis Travel: 40.9″
  • Y-Axis Travel: 20.5″
  • Z-Axis Travel: 23.6″
  • W-Axis Travel: 0.8″
  • Distance Between Spindles: 15.7″ (17.3″ Optional)
  • Spindle Nose to Table: 5.9″ – 29.5″
  • Table:

  • Table Size: 47.2″ × 20.5″
  • Max Table Load: 1,764 lbs
  • T-Slots: 4 × 0.7″
  • T-Slot Spacing: 4.9″

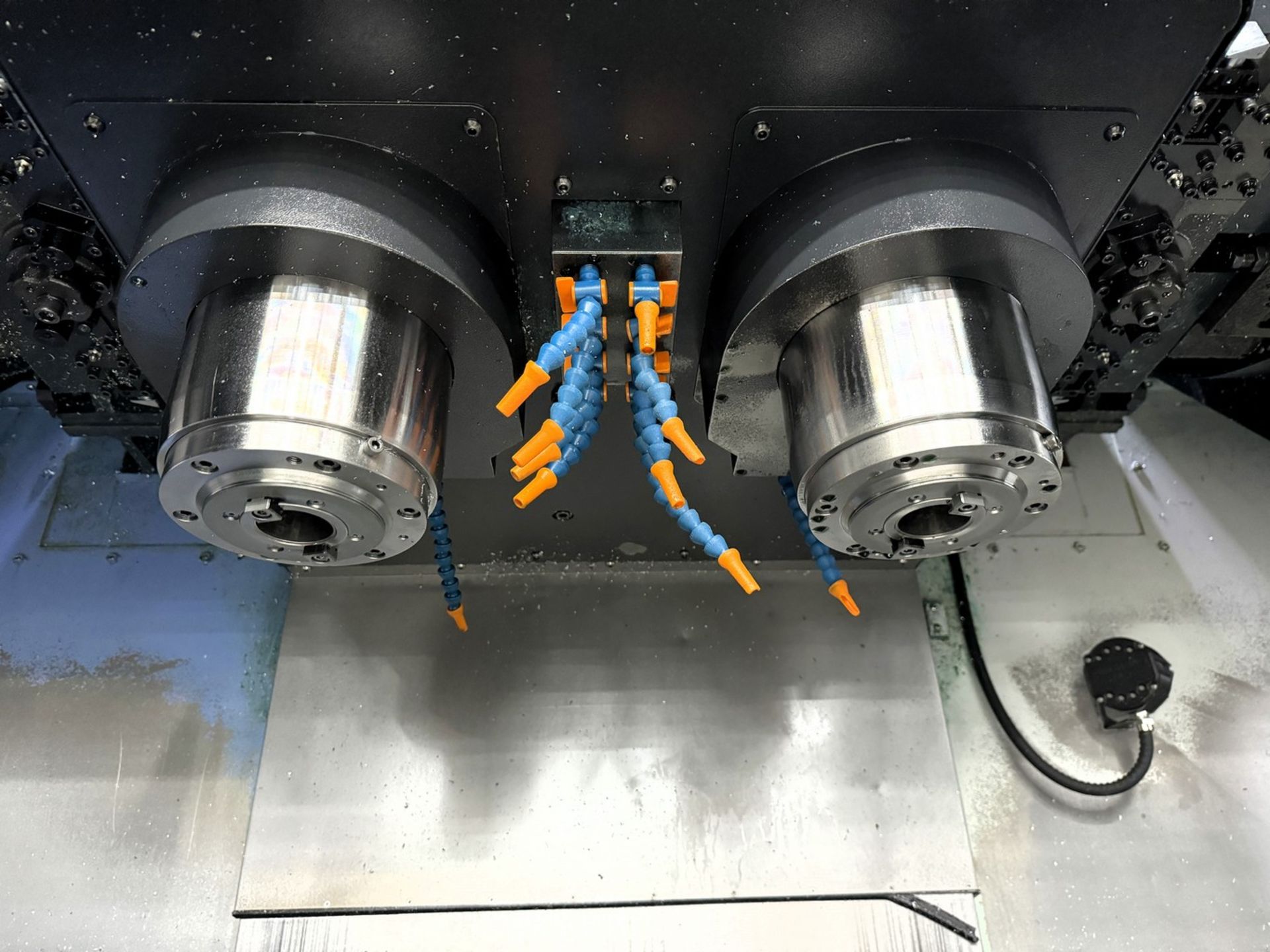

  • Spindle (Dual):

  • Spindle Type: Direct-Coupled (2 Spindles)
  • Spindle Speed: 12,000 RPM (8,000 RPM Optional)
  • Spindle Taper: BT40 BIG-PLUS
  • Spindle Power: 24.8 HP (S3 15%) / 14.8 HP Continuous
  • Max Torque (S3 15%): 86.9 ft-lb
  • Automatic Tool Changer:

  • Dual Independent ATCs (One per Spindle)
  • Tool Capacity: 2 × 24 Tools (Standard)
  • Optional Tool Capacity: 2 × 30 / 2 × 40 Tools
  • Tool-to-Tool Time: 1.7 Seconds
  • Chip-to-Chip Time: 3.5 Seconds
  • Max Tool Diameter (Adjacent): 3.5″
  • Max Tool Diameter (No Adjacent): 5.9″
  • Max Tool Length: 11.8″
  • Max Tool Weight: 17.6 lbs
  • Feedrates:

  • Rapid Traverse X-Axis: 1,575 IPM
  • Rapid Traverse Y-Axis: 1,575 IPM
  • Rapid Traverse Z-Axis: 1,417 IPM

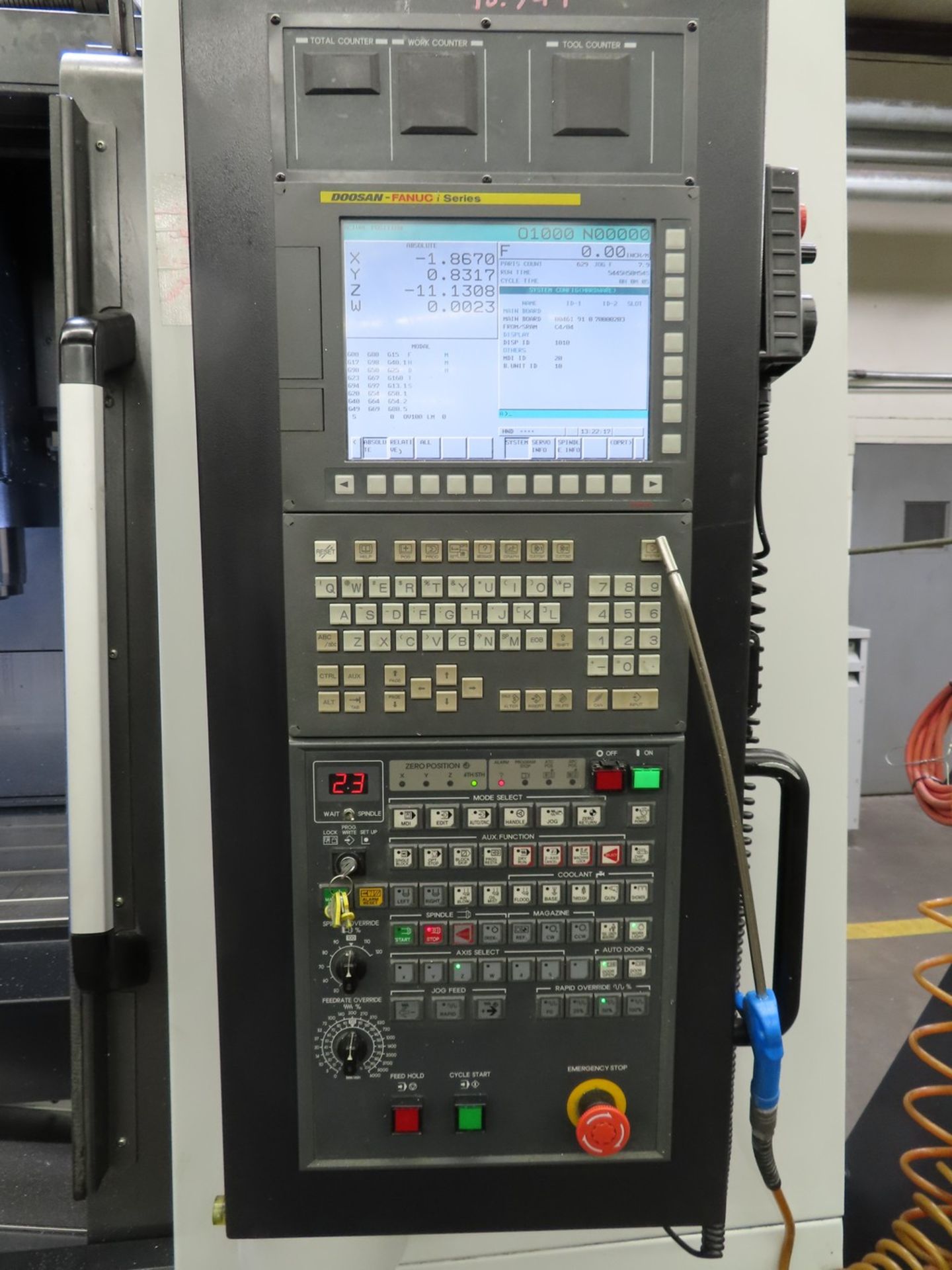

  • Control:

  • DN Solutions FANUC i PLUS CNC Control
  • 15″ Color LCD Display
  • EZ Guide i Conversational Programming
  • AI Contour Control
  • USB, Ethernet, MTConnect, OPC UA
  • Tool Management & ATC Recovery Guidance
  • Thermal Compensation (Standard)
  • EZ WORK Productivity Software
  • Coolant & Chip Management:

  • Flood Coolant System
  • Through-Spindle Coolant (Optional – 2 / 7 MPa)
  • Coolant Tank Capacity: 79 Gallons
  • Chip Conveyor Options Available
  • Mist Collector (Optional)

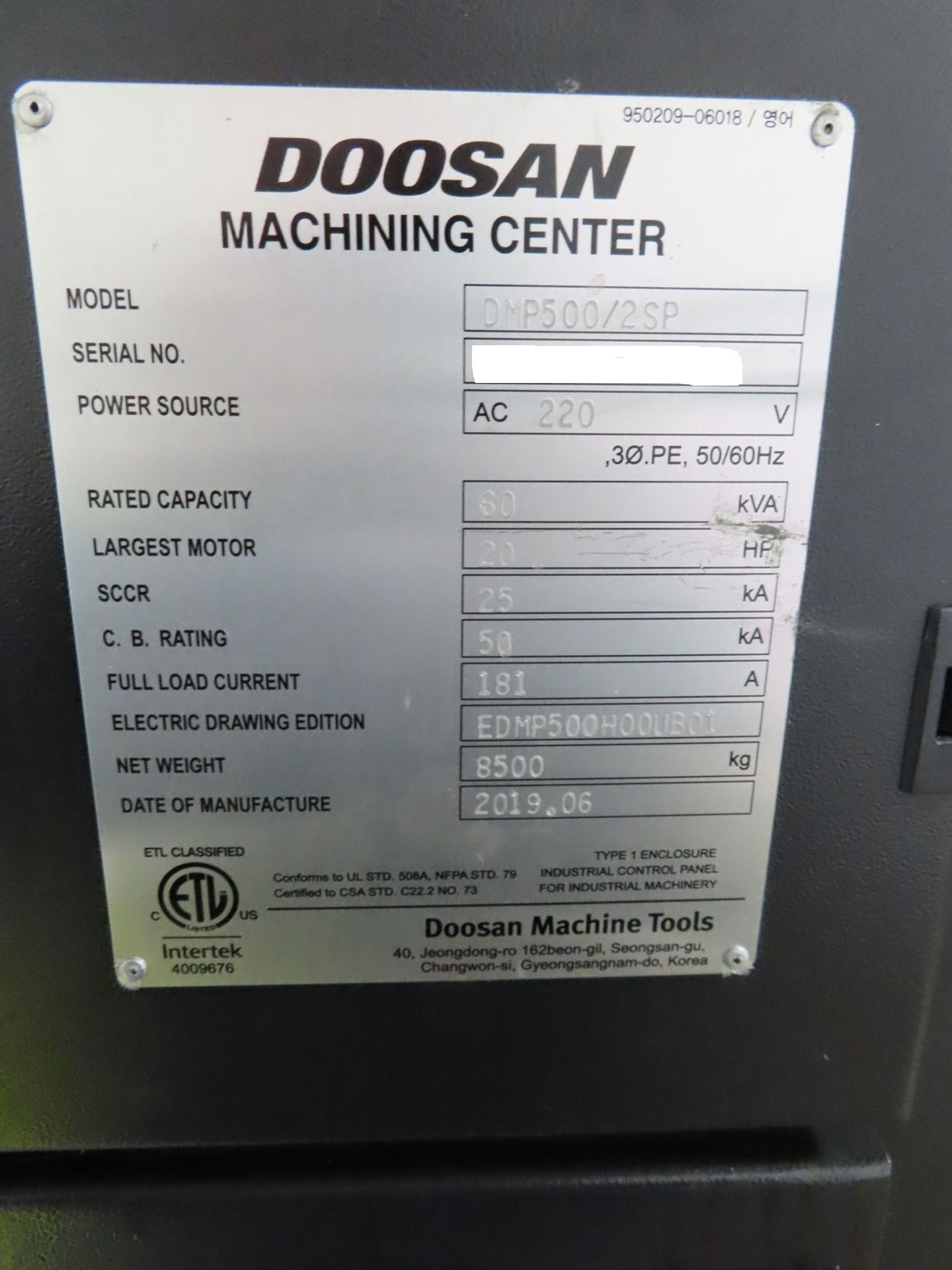

  • Electrical:

  • Power Supply: AC 220V
  • Phase: 3-Phase
  • Frequency: 50 / 60 Hz
  • Rated Capacity: 60 kVA
  • Largest Motor: 20 HP
  • Full Load Current: 181 Amps
  • SCCR: 25 kA
  • Circuit Breaker Rating: 50 kA
  • General:

  • Machine Dimensions (Approx.): 94.5″ L × 108.7″ W × 138.2″ H
  • Machine Weight: 18,739 lbs

No detailed specifications listed for this machine yet — call us for full specs.
