All specifications are approximations and are subject to verification.
| SKU | 105049 |
| Make | Doosan |

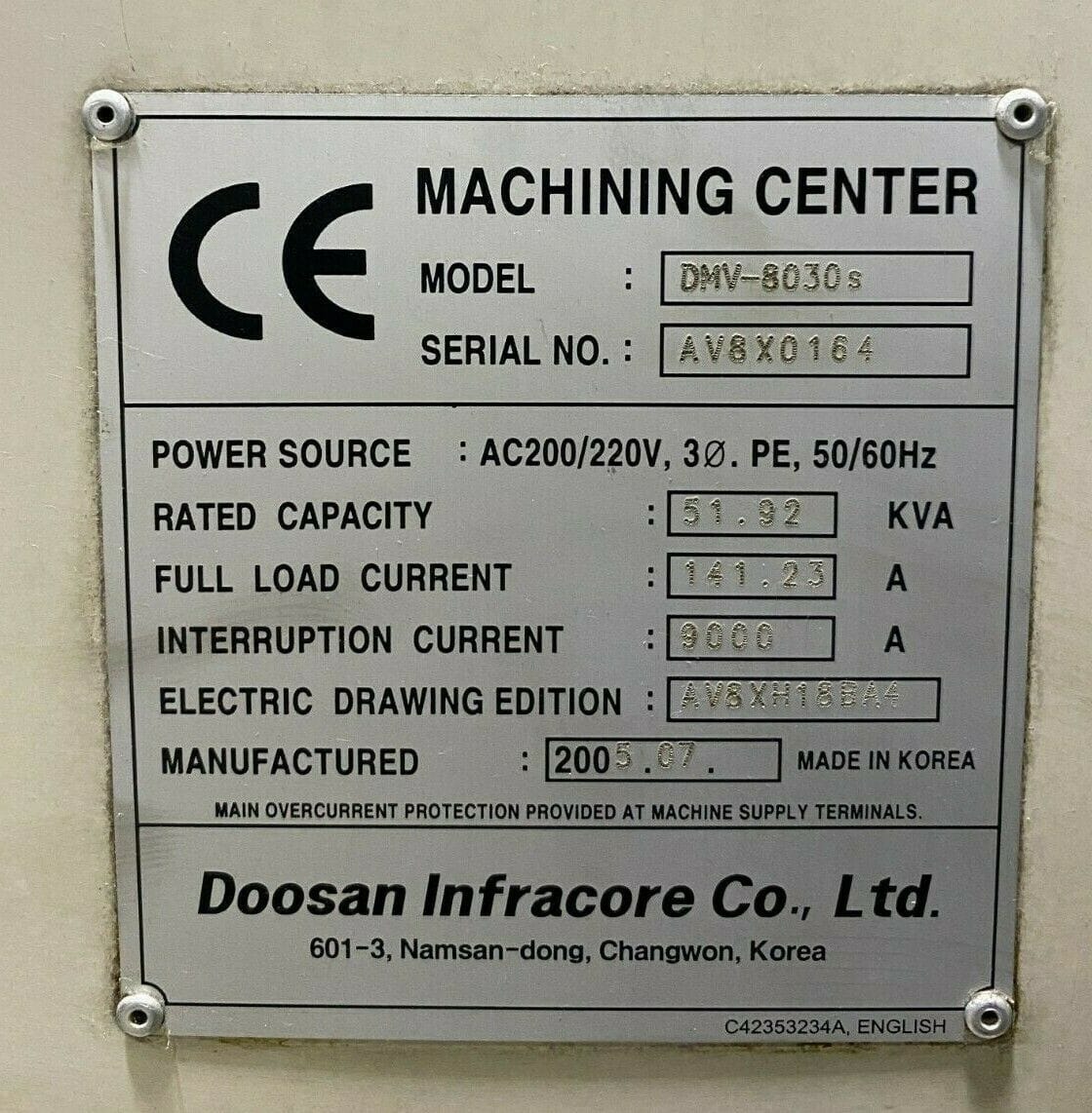

| Model No. | DMV-8030S |
| Year | 2005/07 |
| Doosan DMV-8030S Equipped With: |
|---|
| Box Way Construction |

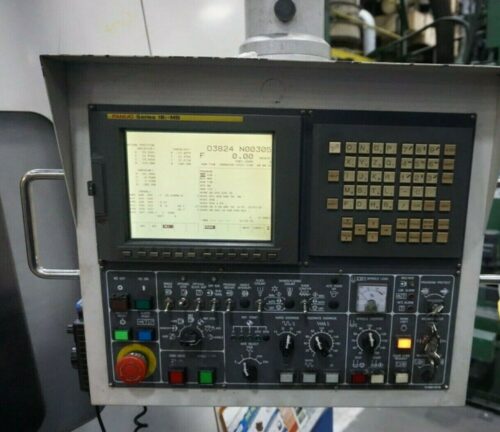

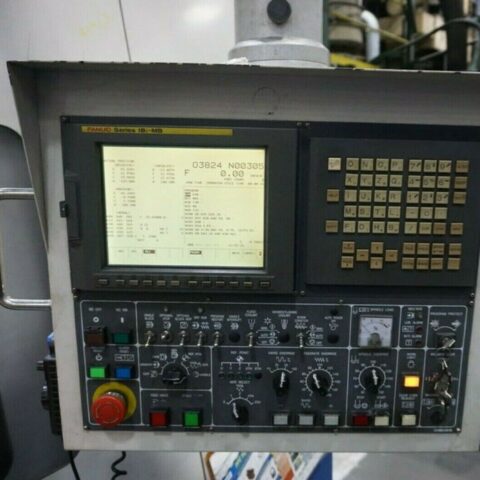

| Fanuc 18iM CNC Control |
| 50 Taper Gear Head Spindle |
| Through Spindle coolant |

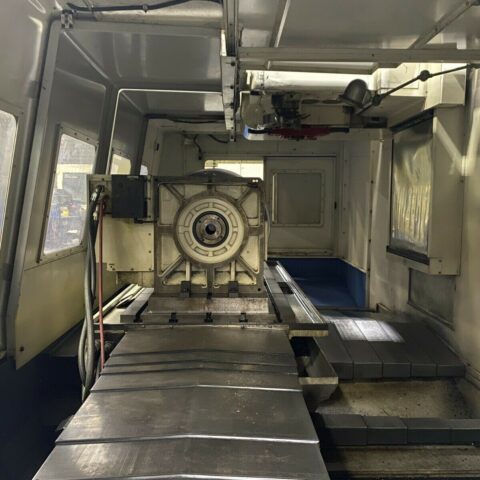

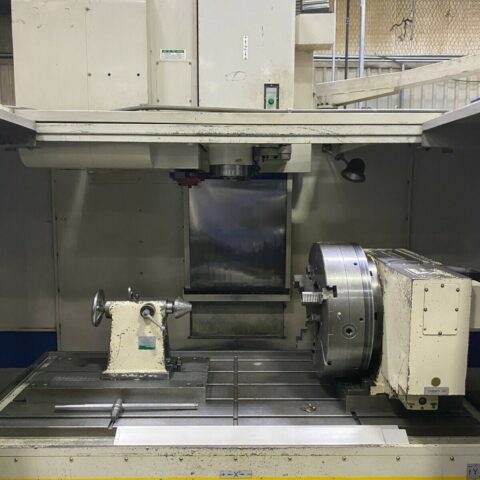

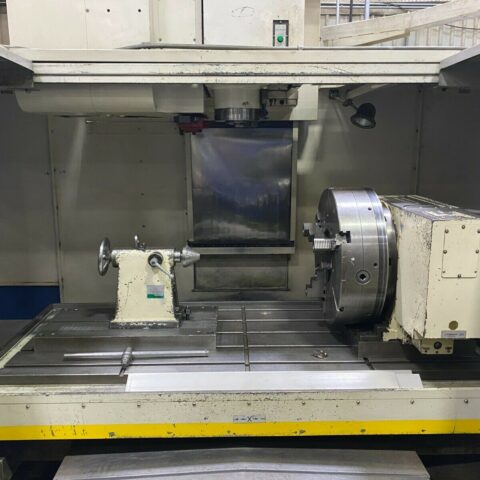

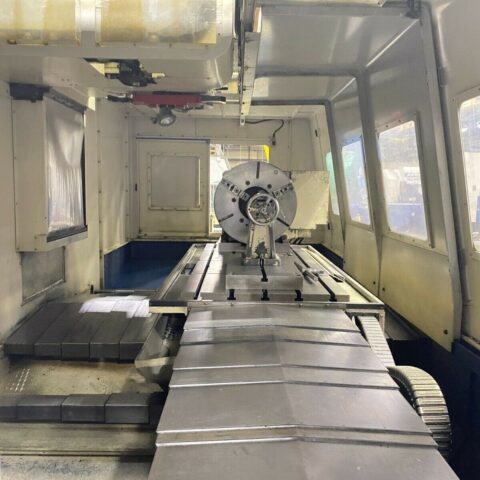

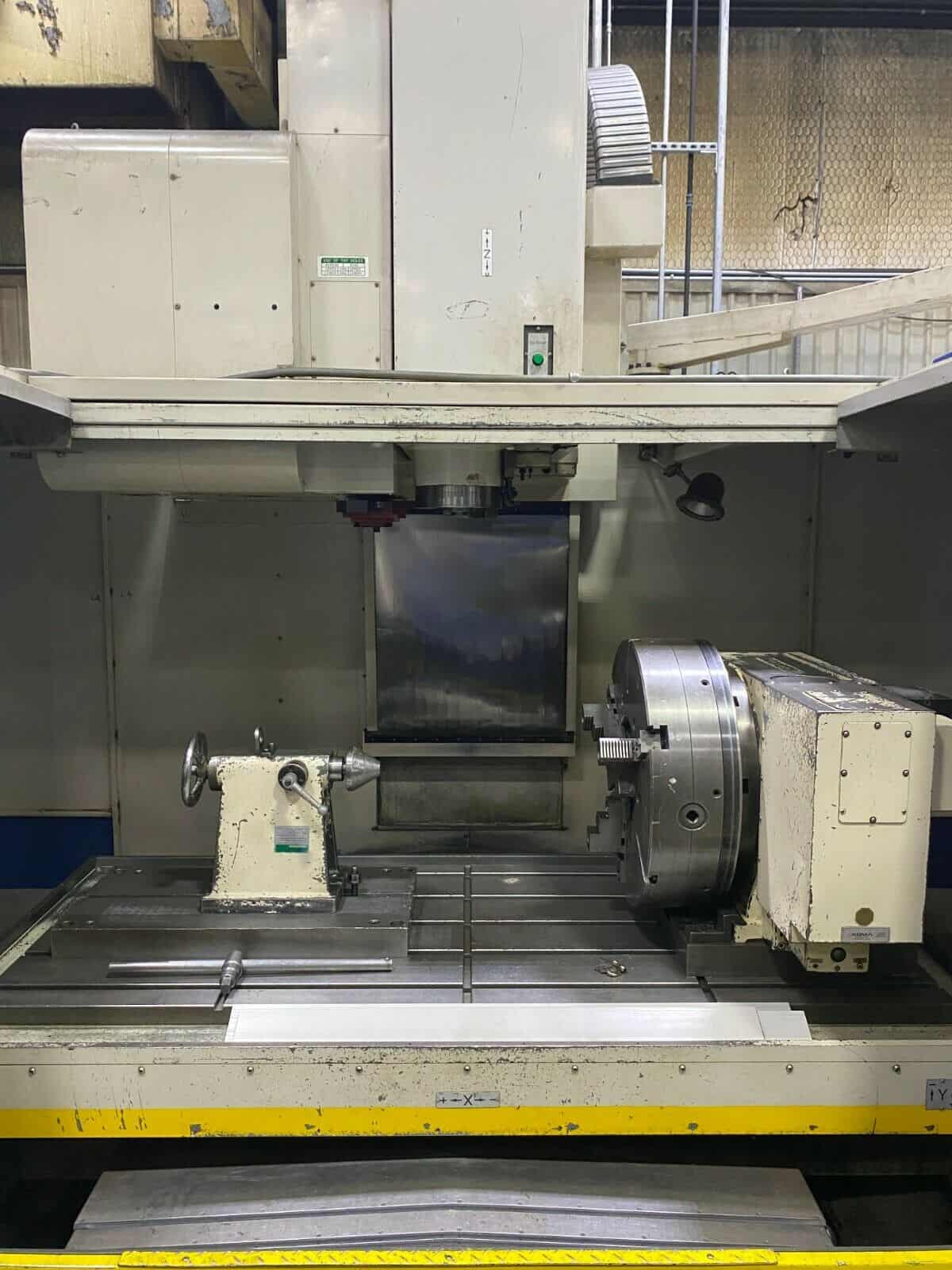

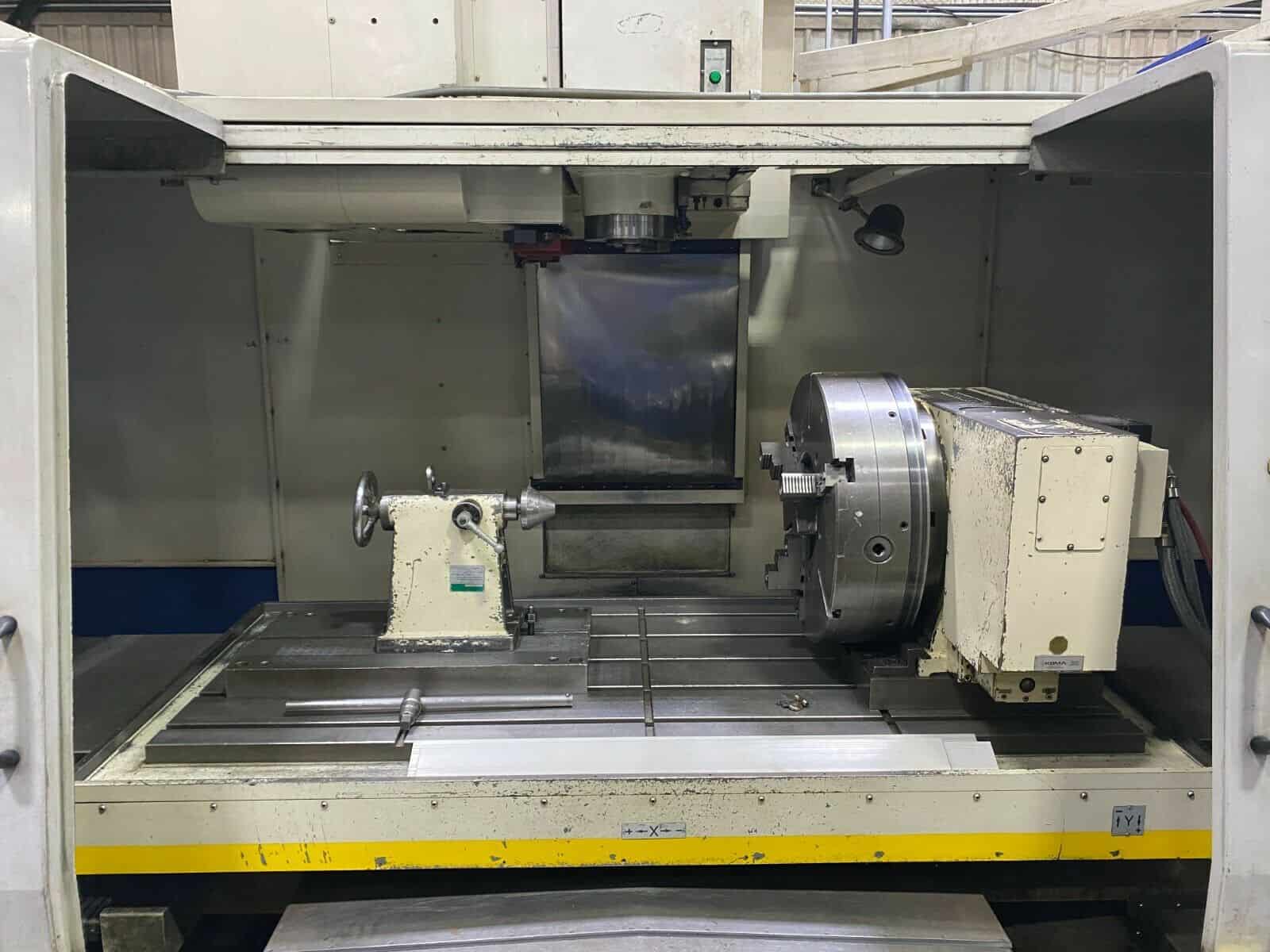

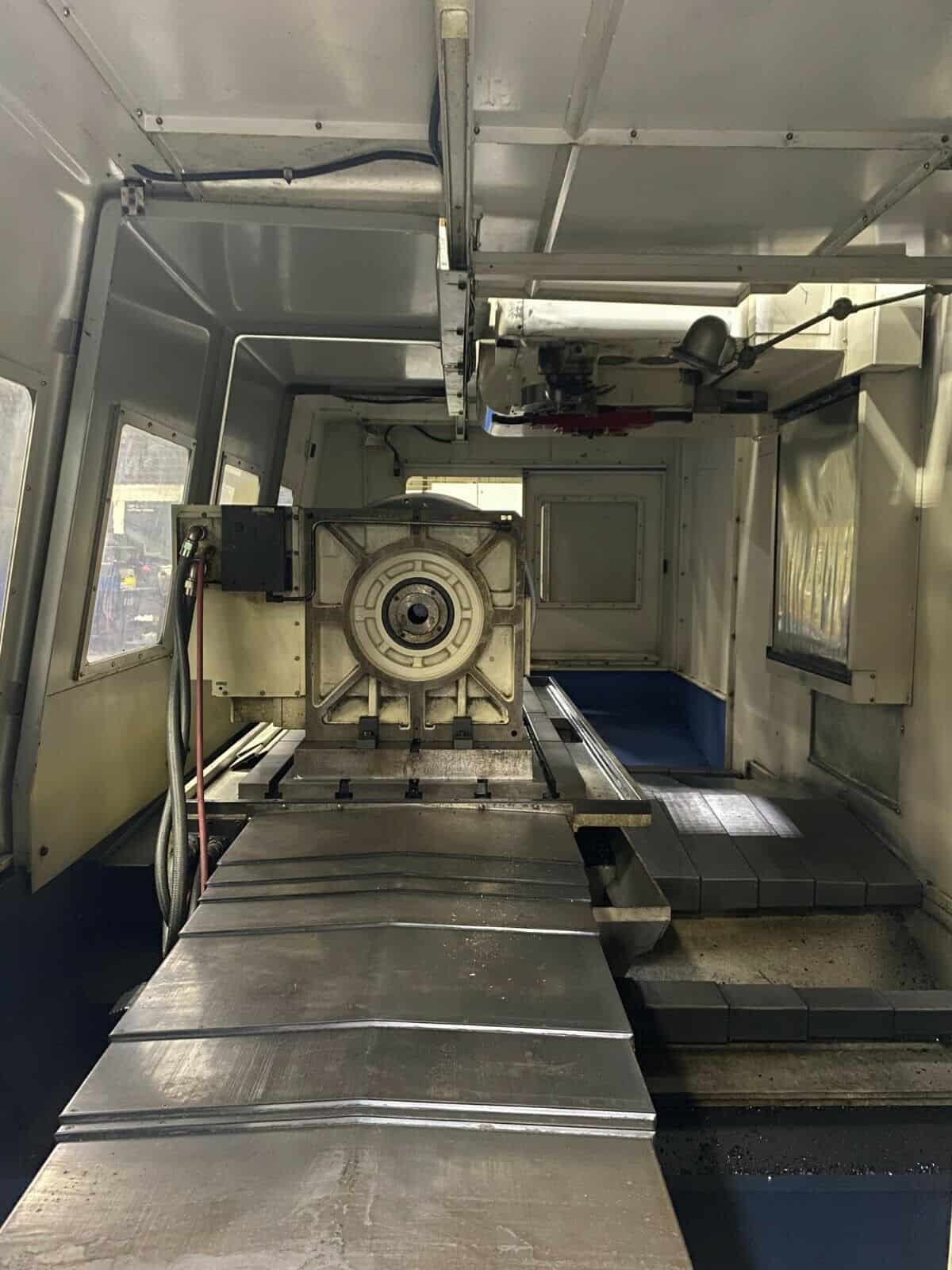

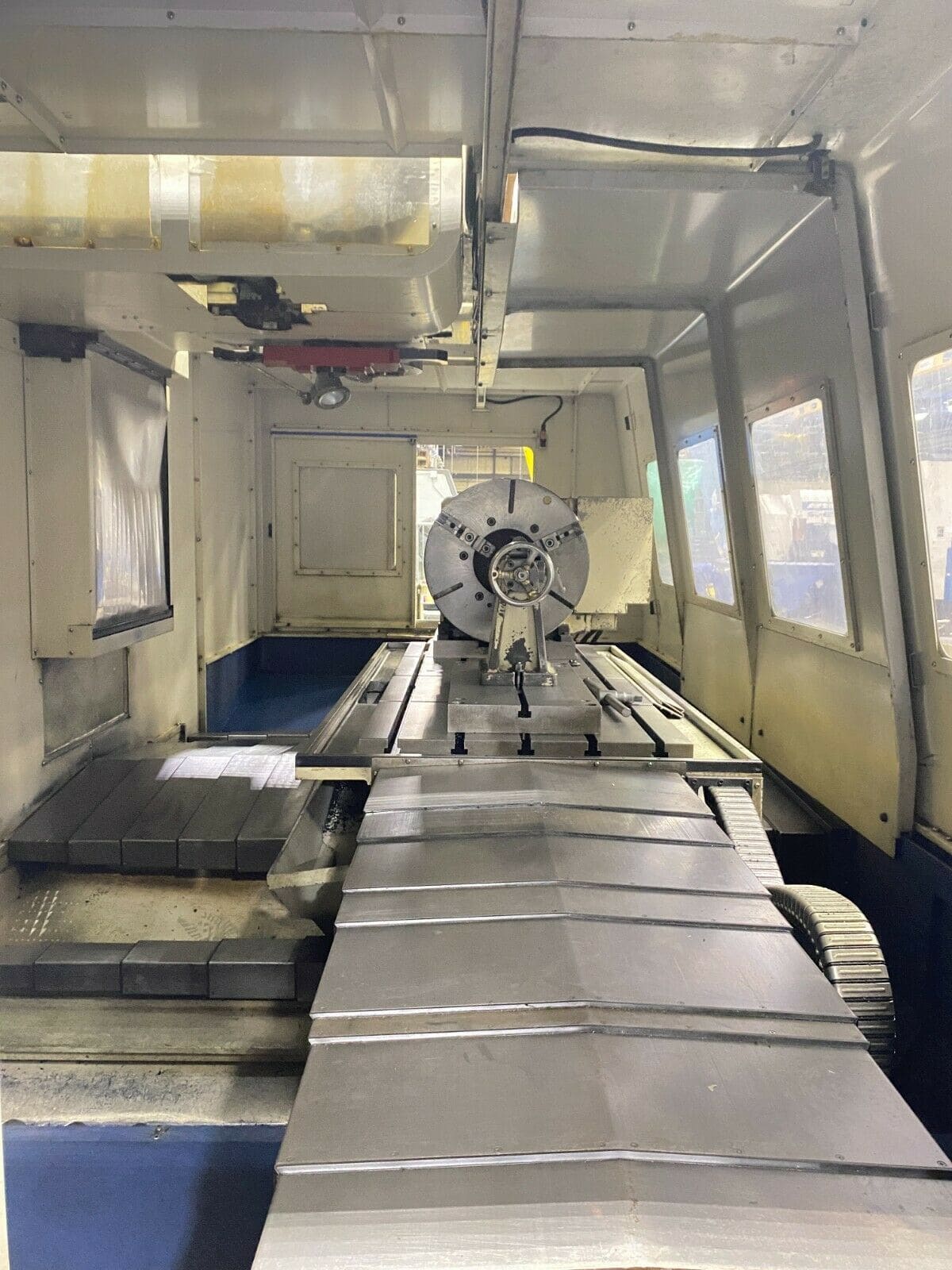

| 4th Axis Table with Tailstock |
| PCMCIA Card Slot |
| MPG Control |
| Rigid Tapping |
| Spindle Orientation |
| Brushless servo drive motors on all axis |
| 30 Automatic high speed tool changer |
| Telescopic way covers |
| Spindle Chiller Unit |
| Flood Coolant system |
| Chip Conveyor |
| Manuals & Books |
| Travels: |
|---|
| X-Axis: 80.2″ |
| Y-Axis: 30.0″ |
| Z-Axis: 30.2″ |
| Rapid Traverse Rates: 1181″ Per Minute |
| Feed Rates: 593″ Per Minute |
| Spindle Nose to Table (Min.- Max.): 5.9″ – 26.0″ |
| Table: |
|---|
| Length: 84.2″ |
| Width: 33.7″ |
| Number of Std T-Slots: 5 |
| T-Slot Width: 5/8″ |
| Max Weight on Table: 3800 lbs |
| Spindle: |
|---|
| Spindle: Taper Size: 50 |
| Speed Range: 0 – 8,000 RPM |
| Spindle Type: Gear Head |
| Spindle Power: 40 HP |
| Automatic Tool Changer: |
|---|
| Capacity: 30 |
| Tool Weight: 17.6 lbs |
| Max Tool Dia: 5.9″ |
| Max Tool Length: 11.8″ |
| Tool Changing Time: 1.5 Seconds |
| General: |
|---|
| Air Required: 80 psi, 4 scfm |
| Power: 220v / 66FLA / 3-Phase |
| Overall Dimensions: High |
| Overall Dimensions: High W/Chip Conveyor |
| Weight: 36500 lbs |
“No Charges for loading at list Price”

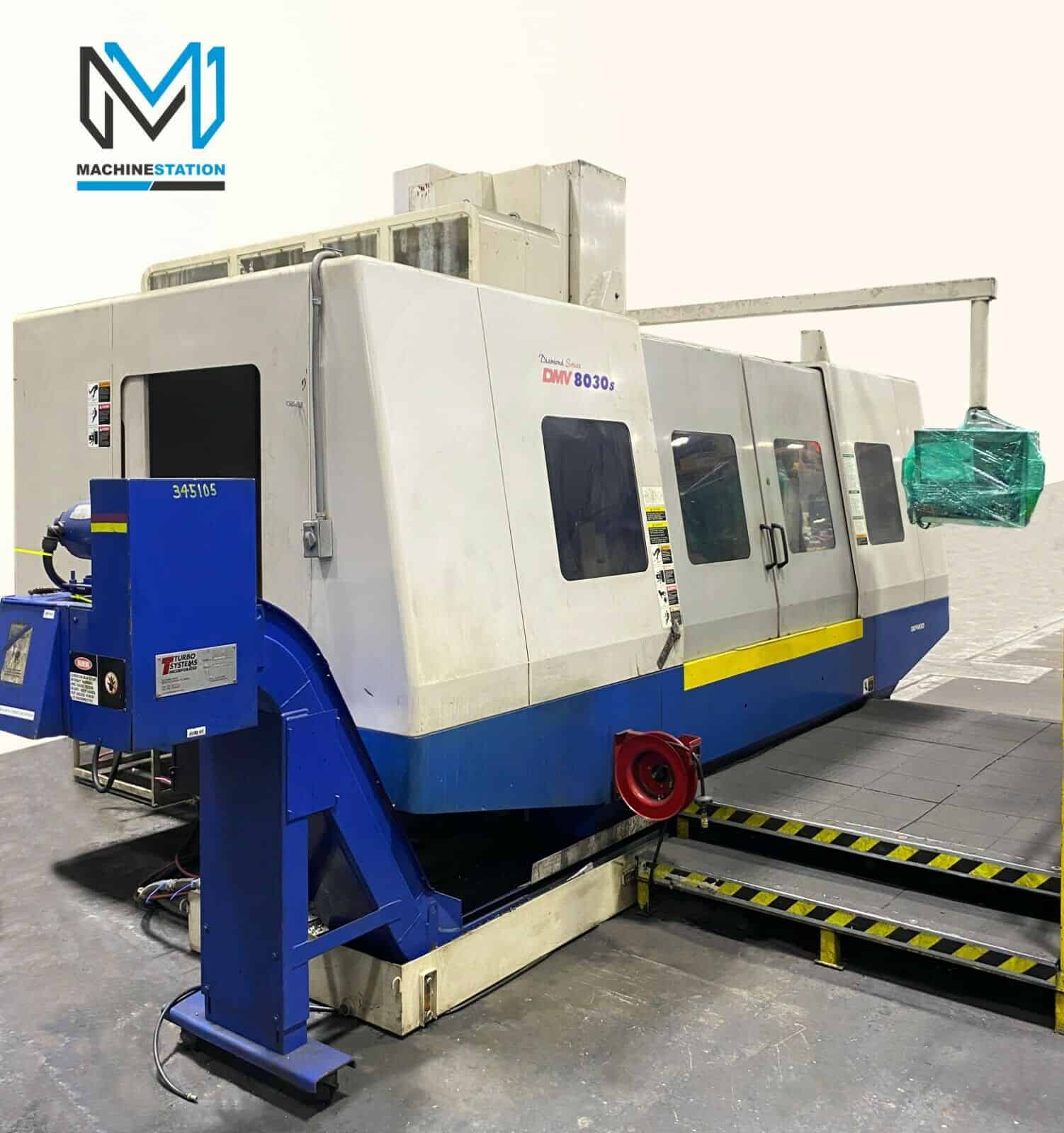

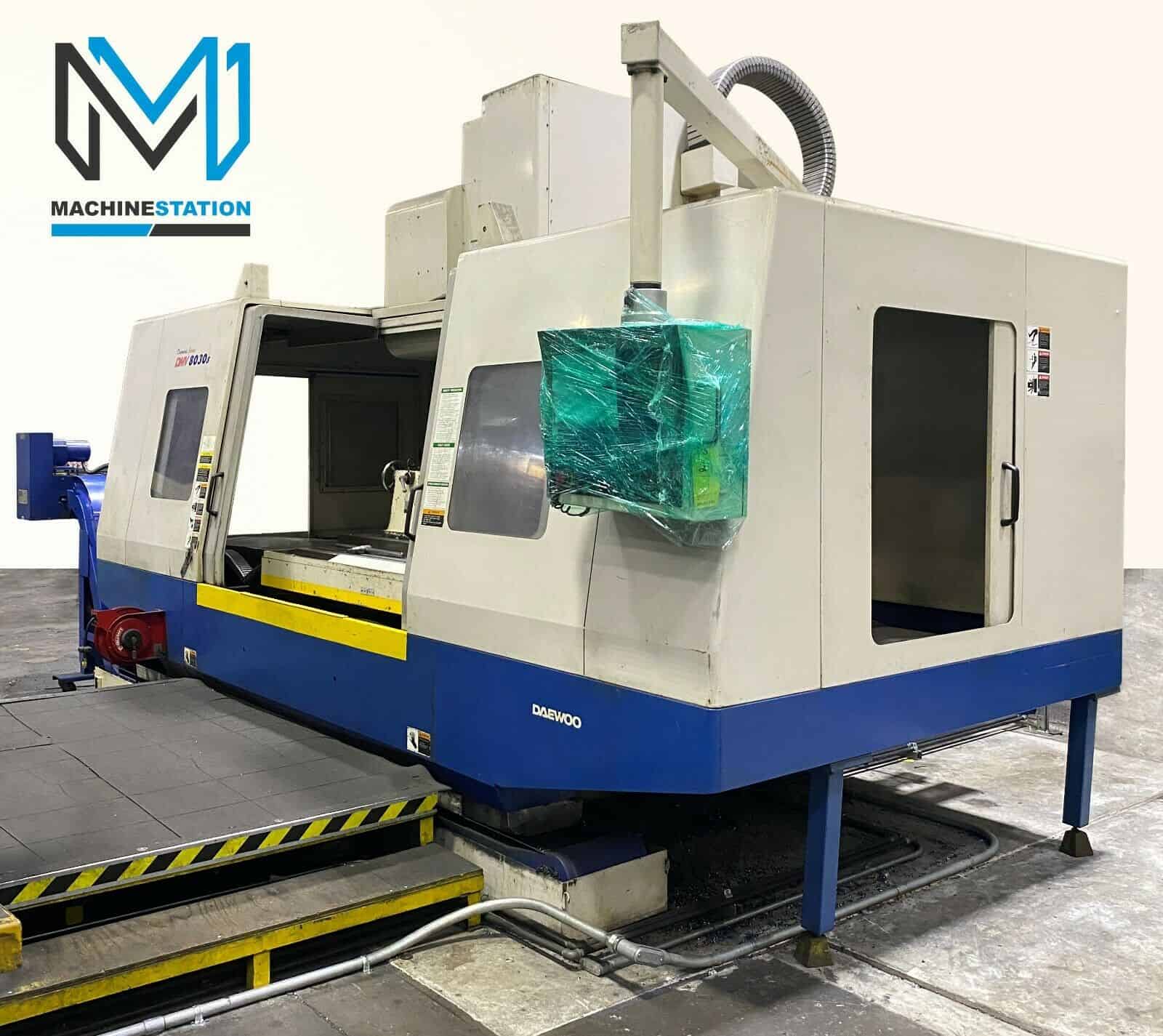

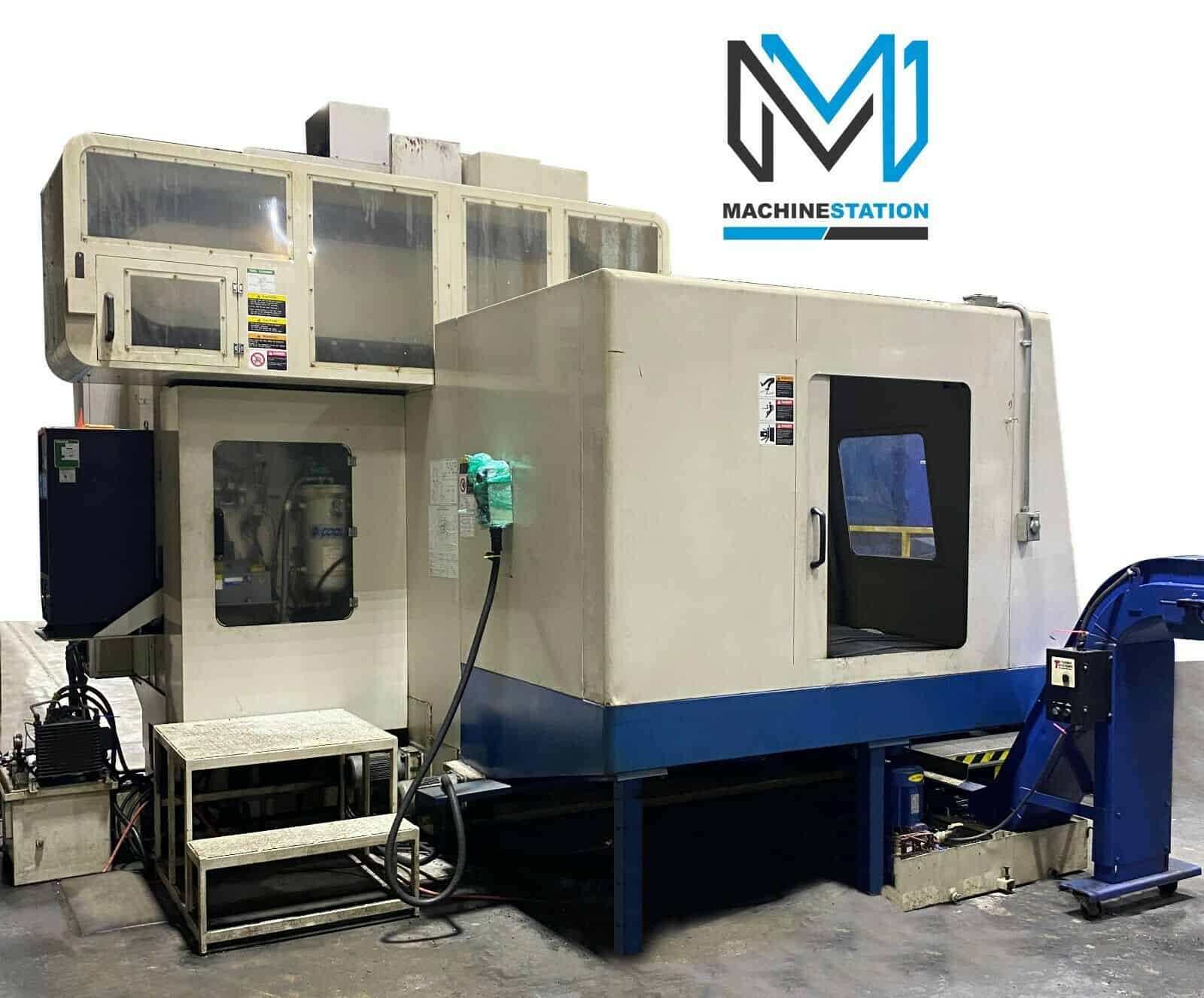

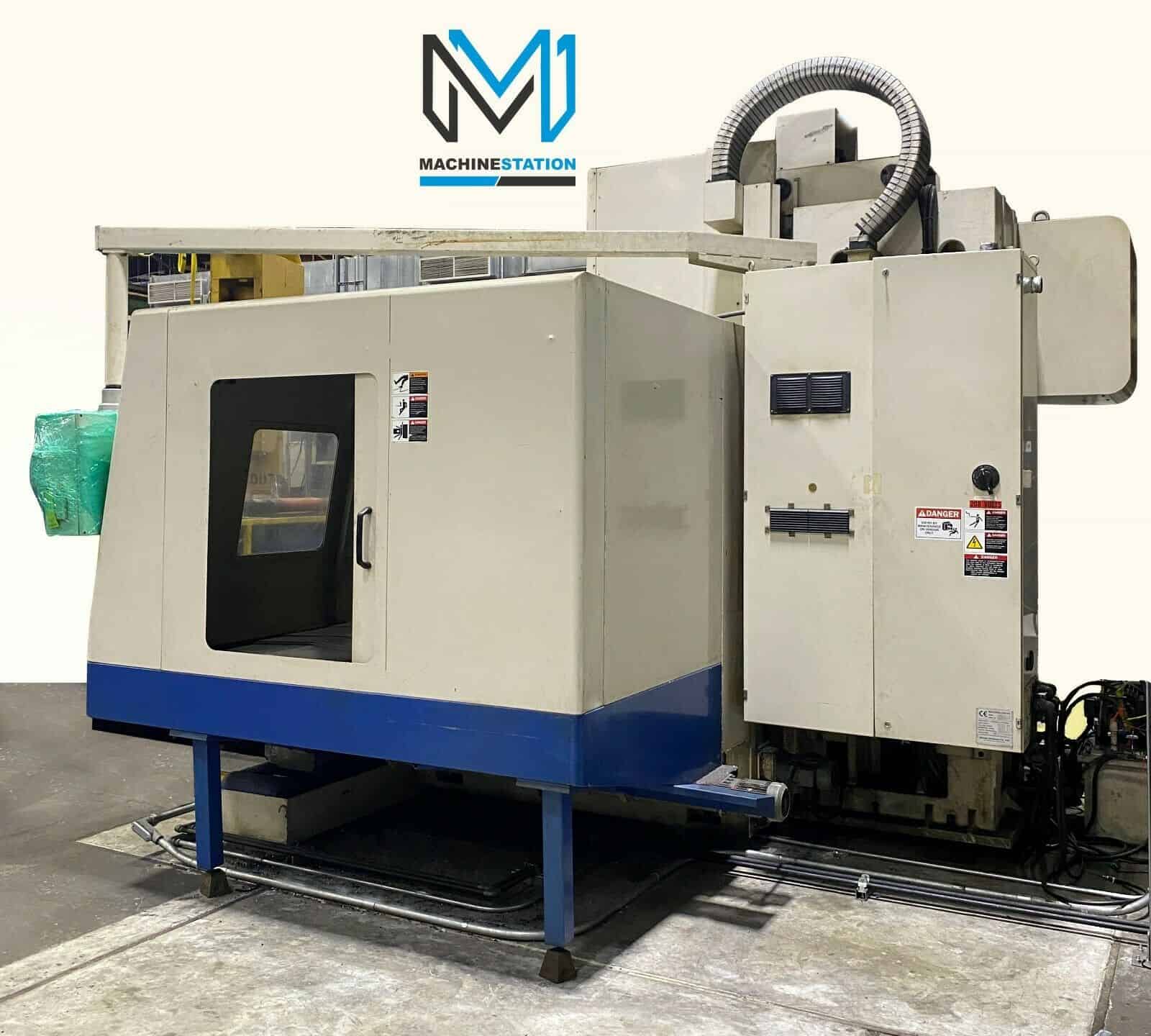

Comes as shown in pictures….
