*All specifications are approximations and subject to verification. The machine is sold as is. Please call with any questions before purchase. All sales are final.*
| Make: | Doosan |
| Model: | DNM 4500 |
| Year: | 2017 |
| Condition: | Used |
| Machine Type: | CNC Vertical Machining Center |

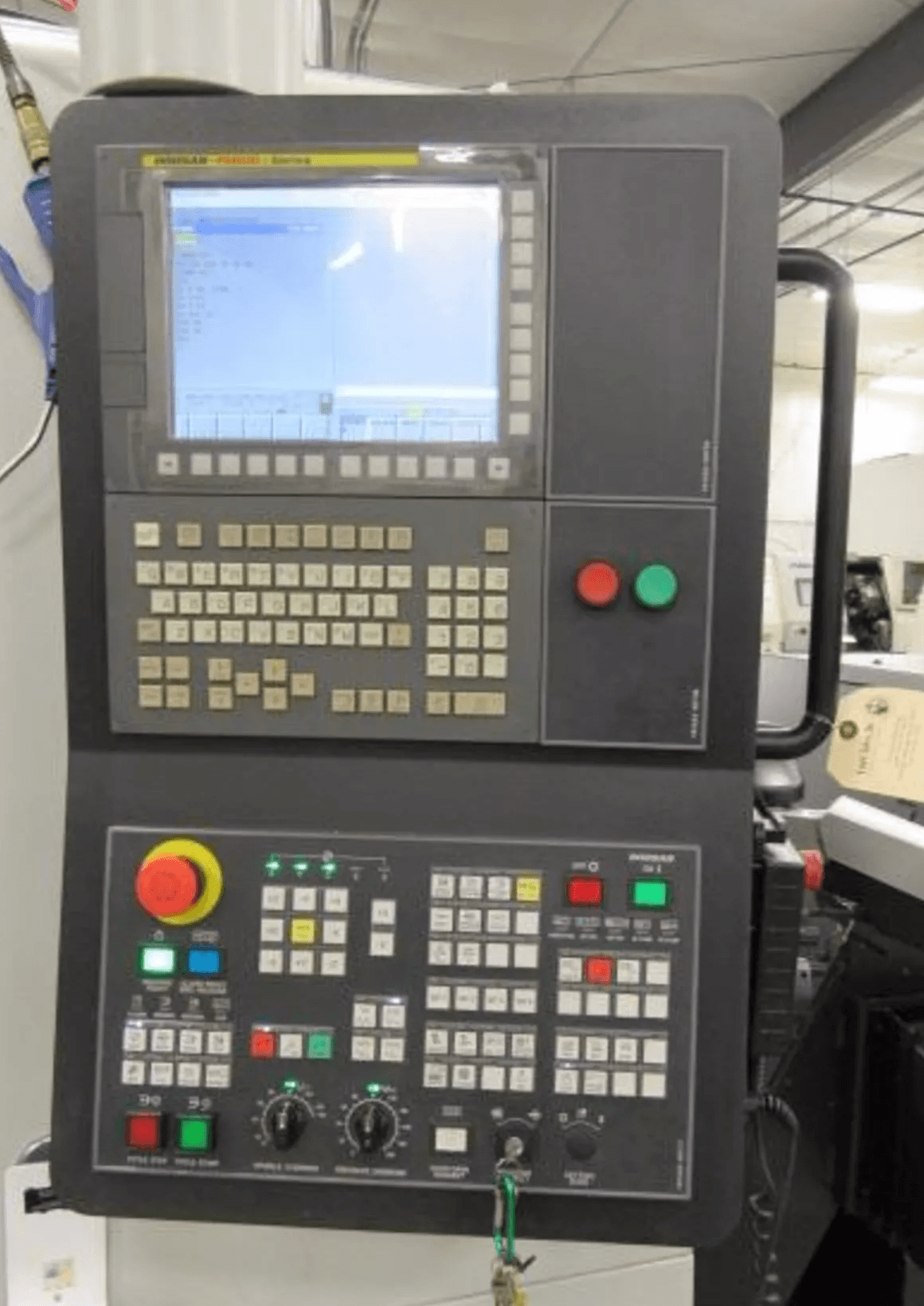

| Control: | Fanuc i-Series CNC Control |
| Country of Origin: | South Korea |
| Equipped With: |
|---|
| Fanuc i-Series CNC Control |
| 30 Tool Automatic Tool Changer |
| 12,000 RPM Direct Drive Spindle |
| Rigid Tapping |
| Coolant System |
| Full Enclosure |
| Work Light |
| Travels: |
|---|
| X-Axis Travel: 31.5″ |
| Y-Axis Travel: 17.7″ |
| Z-Axis Travel: 20.1″ |
| Table: |
|---|
| Table Size: 39.4″ x 17.7″ |
| Max Table Load: 1,320 lbs |
| T-Slots: 3 Slots |
| T-Slot Size: 0.71″ |
| T-Slot Pitch: 4.92″ |

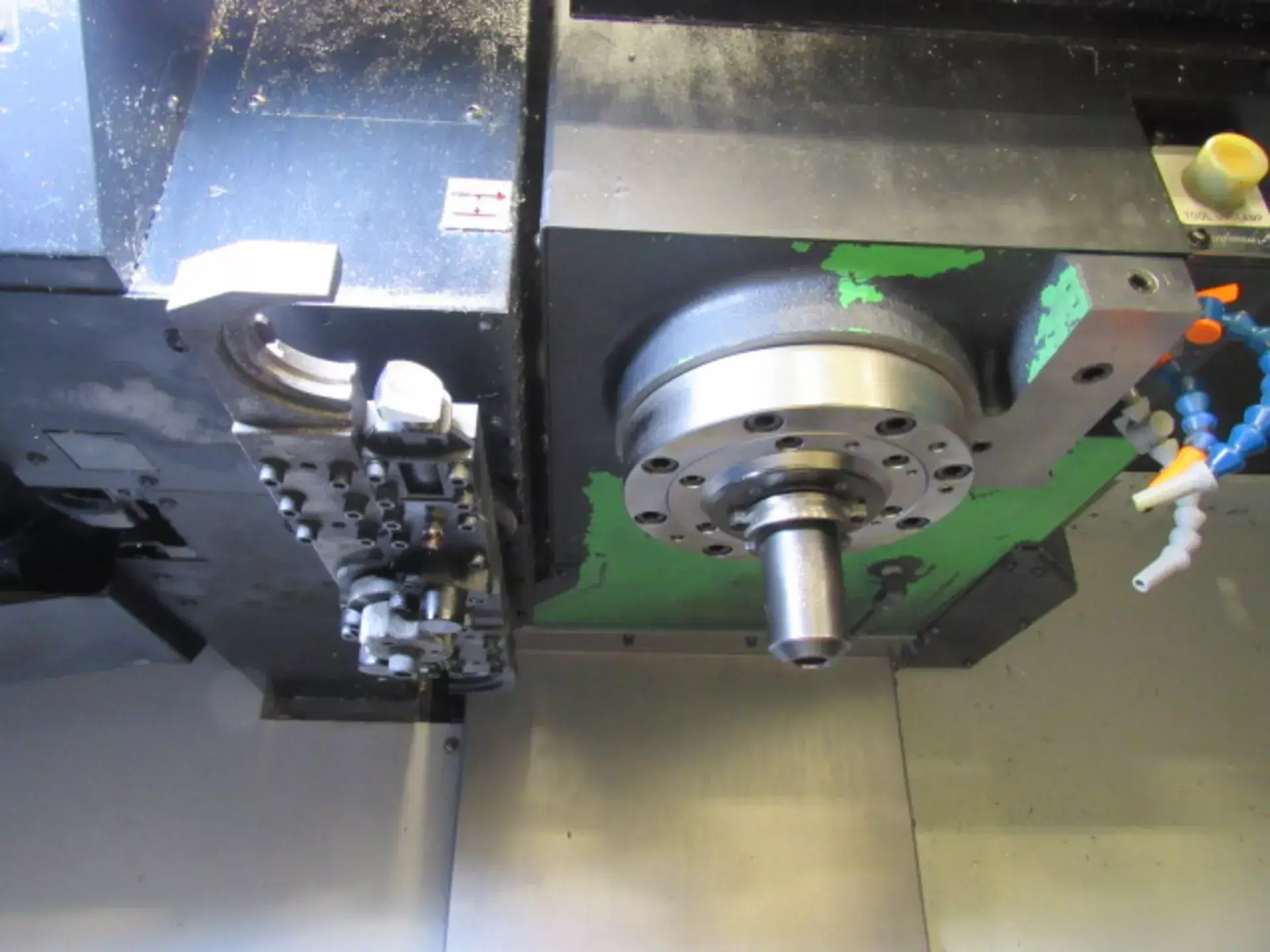

| Spindle: |
|---|
| Spindle Speed: 12,000 RPM |
| Spindle Taper: BT40 |
| Spindle Motor: 15 HP |
| Drive Type: Direct Drive |
| Feed Rates: |
|---|
| Rapid Traverse (X/Y/Z): 1,417 / 1,417 / 1,181 IPM |
| Cutting Feed Rate: Up to 394 IPM |
| Tool Changer: |
|---|
| Tool Capacity: 30 ATC |
| Tool Change Type: Twin Arm |
| Max Tool Diameter: 3.1″ (6.3″ w/ adjacent empty) |
| Max Tool Length: 11.8″ |
| Max Tool Weight: 17.6 lbs |
| Tool Change Time: Approx. 1.2 sec |
| Accuracy: |
|---|
| Positioning Accuracy: ±0.0002″ |
| Repeatability: ±0.00012″ |

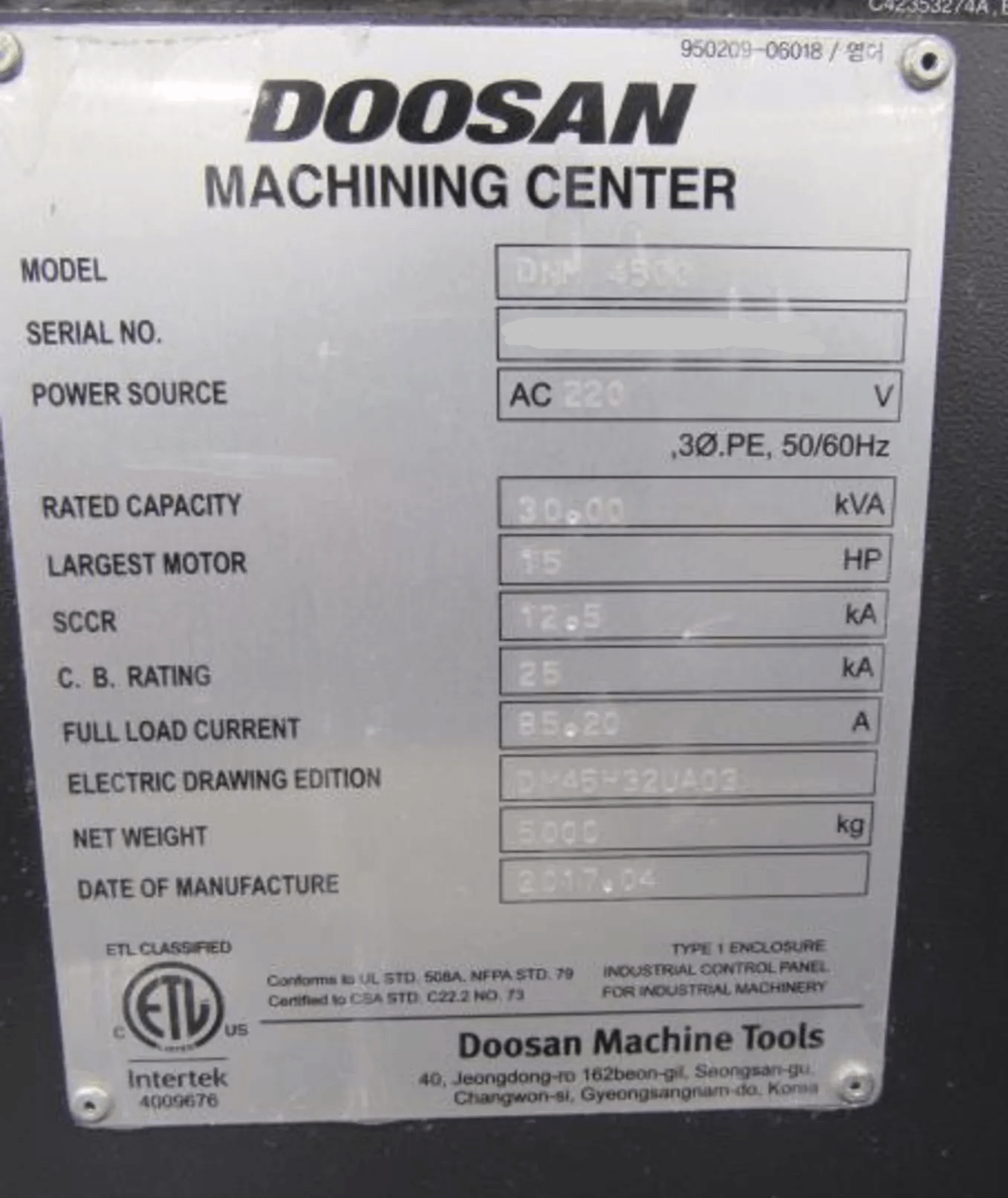

| Electrical: |
|---|
| Voltage: AC 220V |
| Phase: 3 |
| Frequency: 50/60 Hz |
| Rated Capacity: 30 kVA |
| Full Load Current: 85.2 A |
| Largest Motor: 15 HP |
| General: |
|---|
| Machine Weight: 11,000 lbs (Approx.) |
| Machine Dimensions (L x W x H): 102″ x 90″ x 105″ |
| Machine Height: 105″ |
| Shipping Weight: 12,500 lbs (Approx.) |
