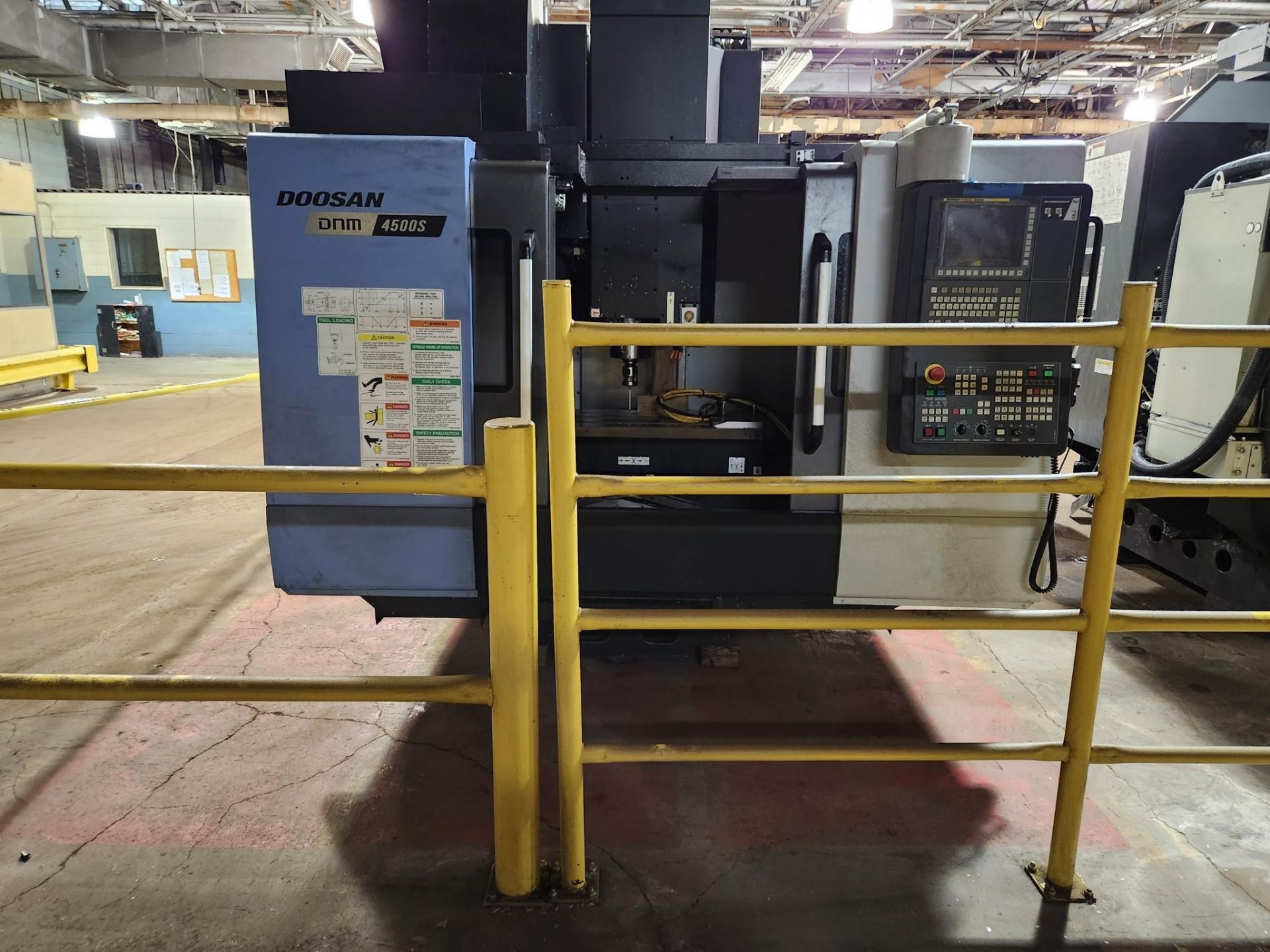

Doosan DNM 4500S CNC Vertical Machining Center – 2019

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please call us if you have any questions before making a purchase. All sales are final.*

• Equipped With:

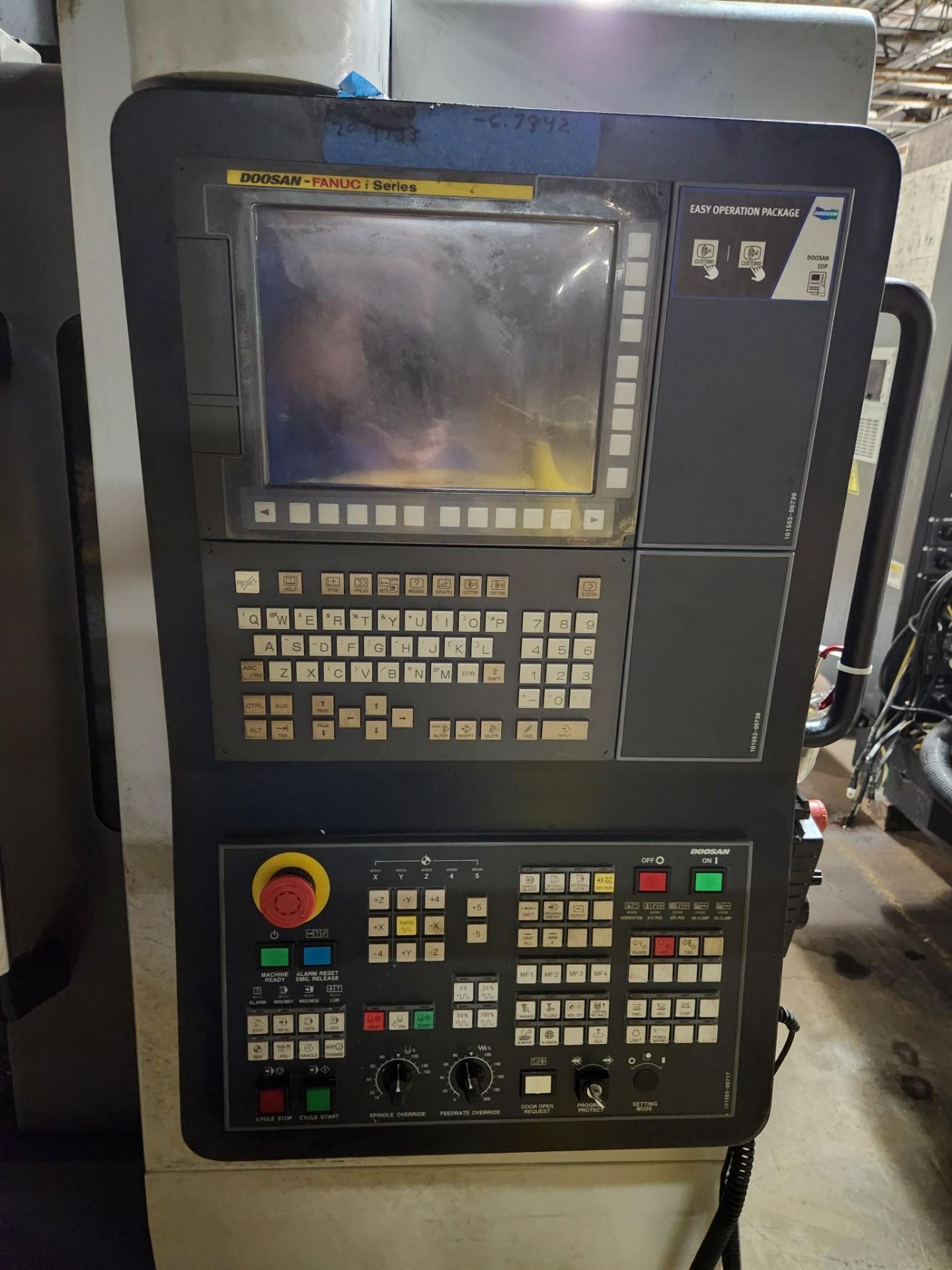

• Fanuc i-Series CNC Control
• High-Speed Linear Guideways
• Rigid Tapping
• Automatic Tool Changer
• Coolant System
• Chip Conveyor Ready
• Automatic Lubrication System
• Full Enclosure

• Capacity:

• Table Size: 39.4″ × 17.7″
• Max Table Load: 1,323 lbs
• Spindle Nose to Table: 5.9″ – 25.6″

• Travels:

• X-Axis Travel: 31.5″
• Y-Axis Travel: 17.7″
• Z-Axis Travel: 20.5″

• Spindle:

• Spindle Taper: CAT-40
• Spindle Speed: 8,000 RPM
• Spindle Motor: 20 HP
• Direct-Coupled Spindle

• Feedrates:

• Rapid Traverse X/Y/Z: 1,181 IPM
• Cutting Feedrate: 0 – 472 IPM

• Automatic Tool Changer:

• Tool Capacity: 24 Tools
• Max Tool Diameter: 3.15″ (6.3″ Adjacent Empty)
• Max Tool Length: 11.8″
• Max Tool Weight: 17.6 lbs

• General:

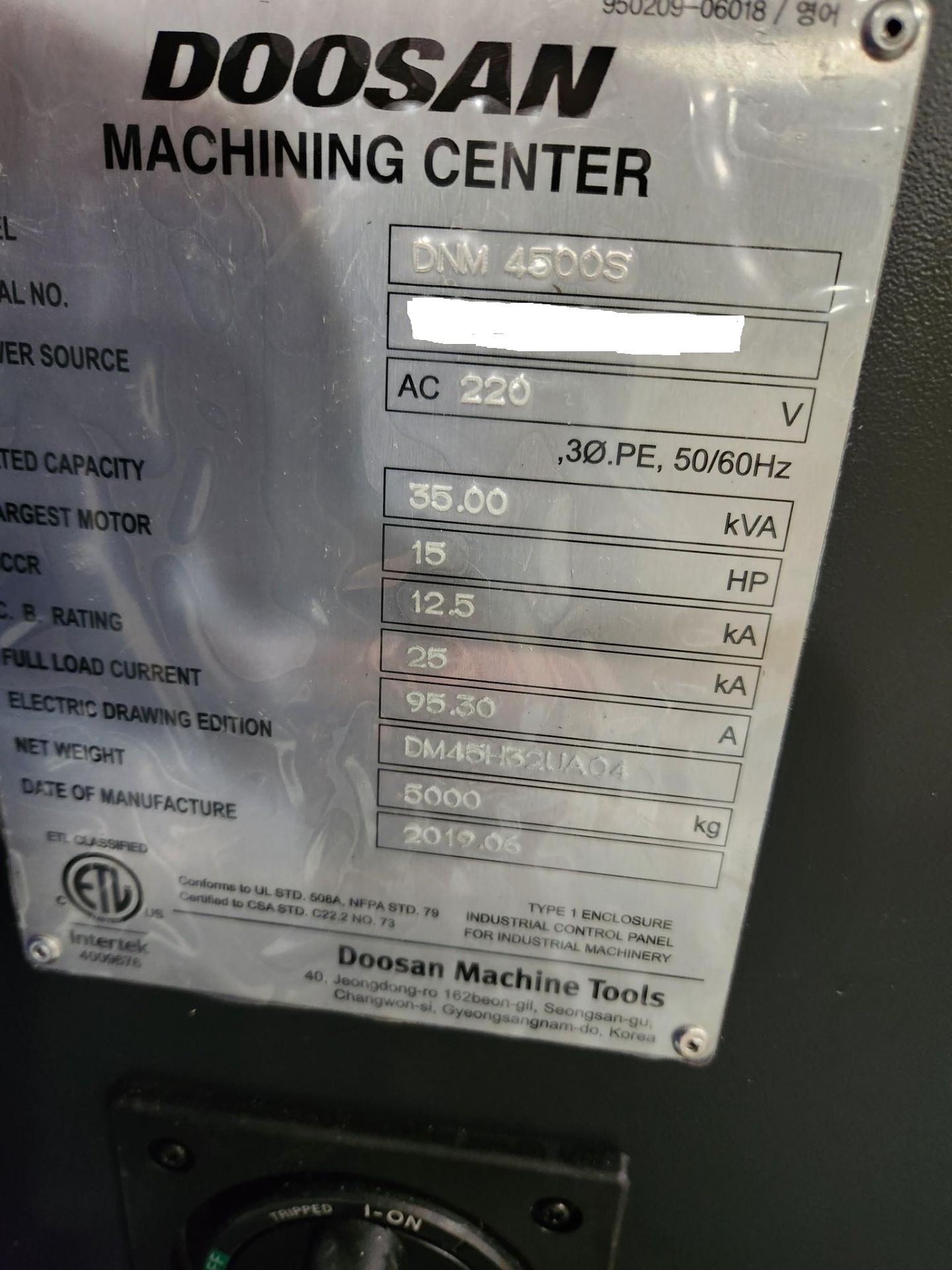

• Power Requirement: 220V / 3-Phase
• Machine Weight (Approx.): 11,900 lbs
• Overall Dimensions (Approx.): 102″ × 91″ × 110″
