Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

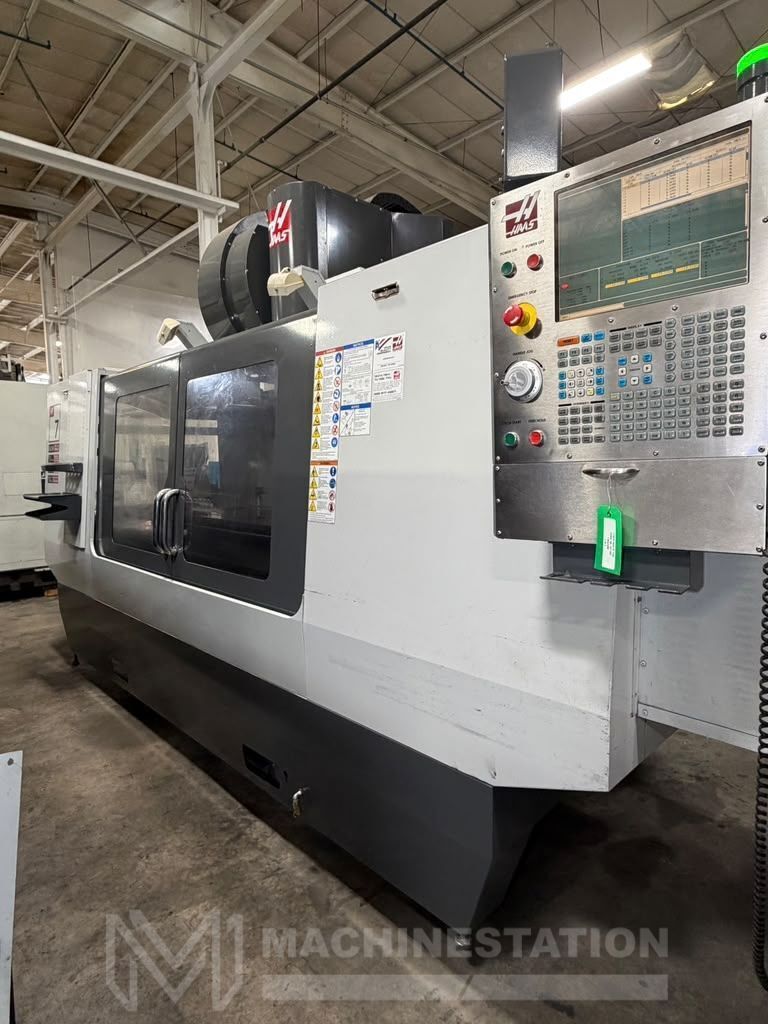

| Make: | Haas |
| Model: | VF-7/40 |
| Year: | 2008 |
| Equipped With: |
|---|

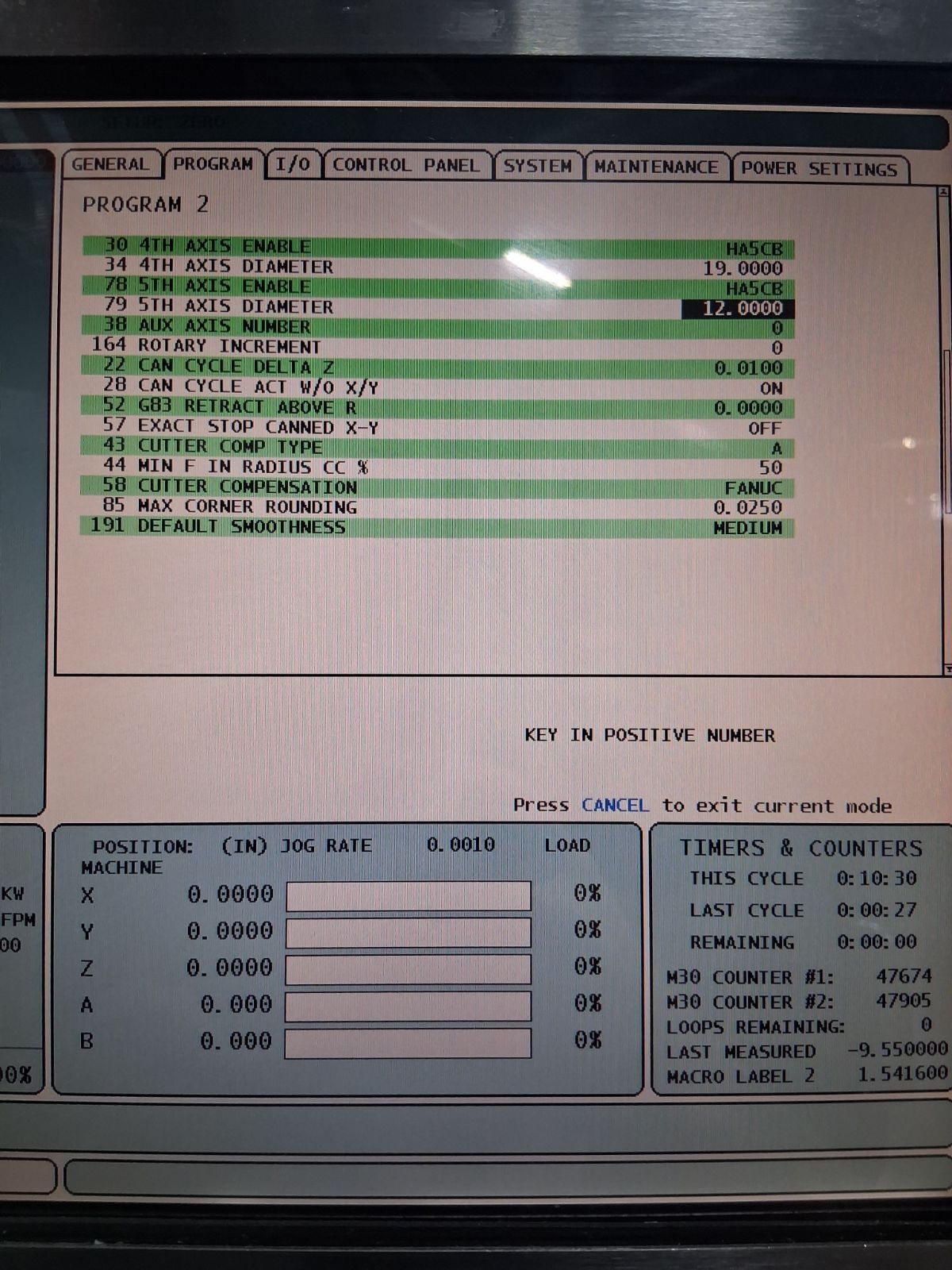

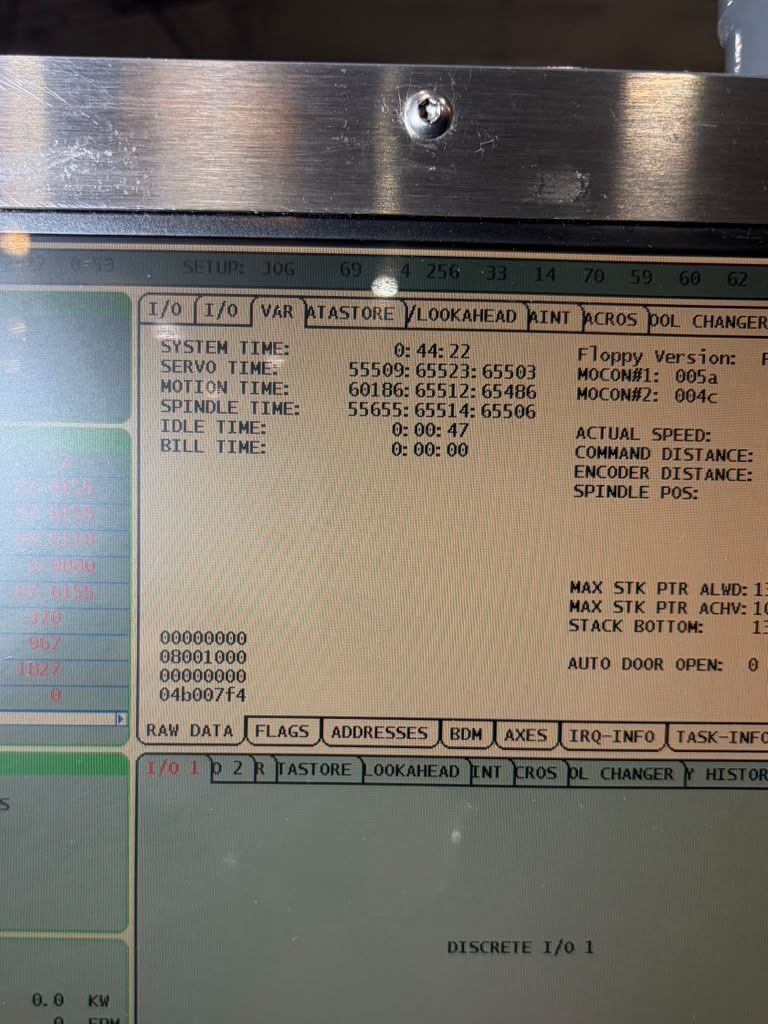

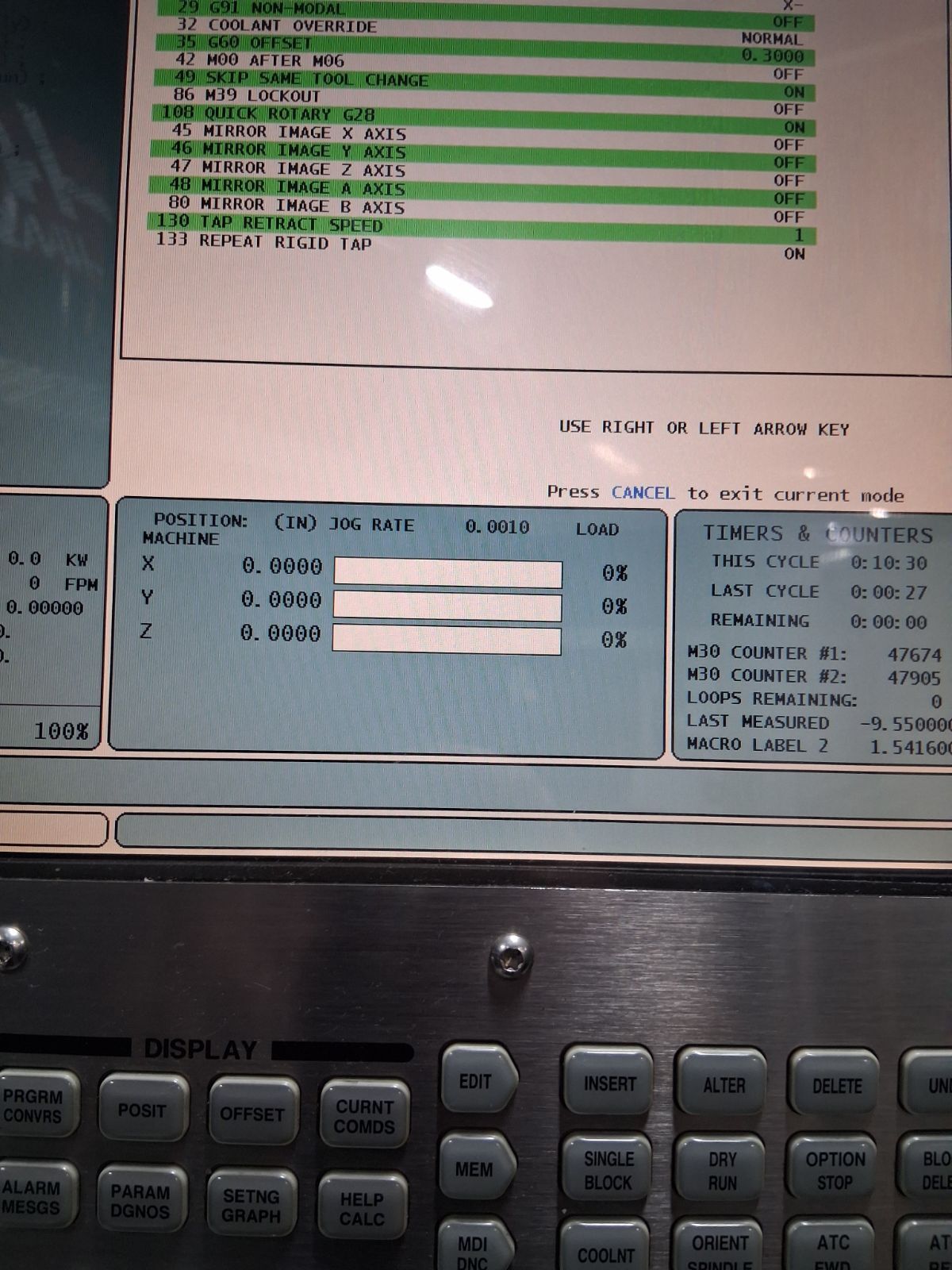

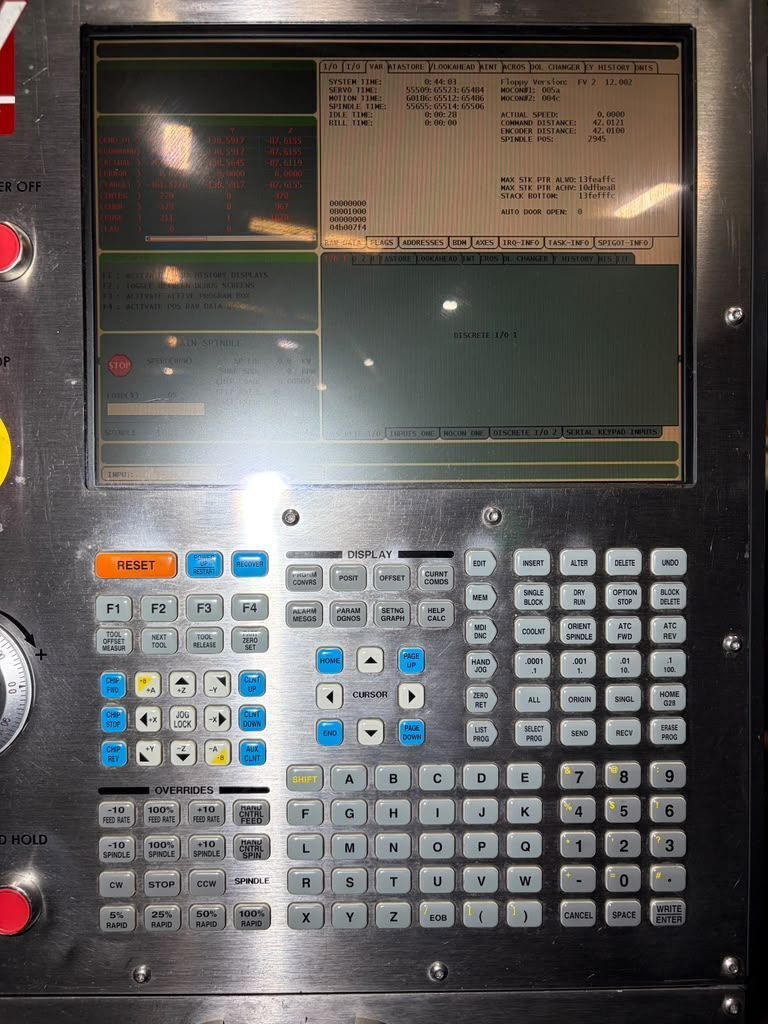

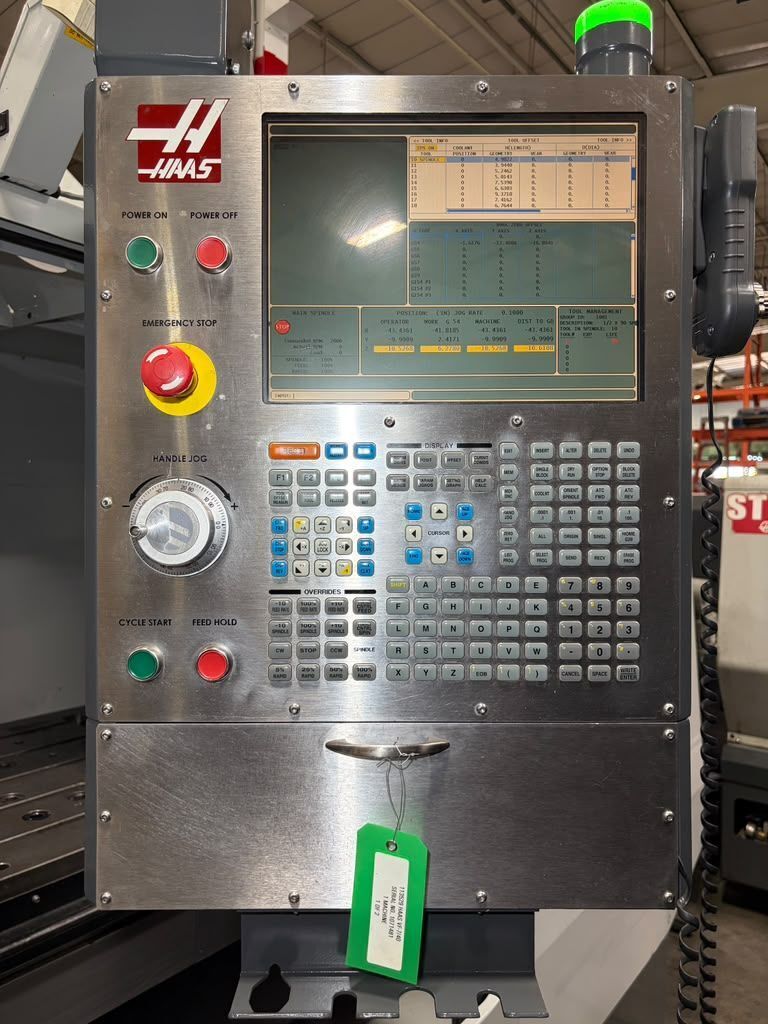

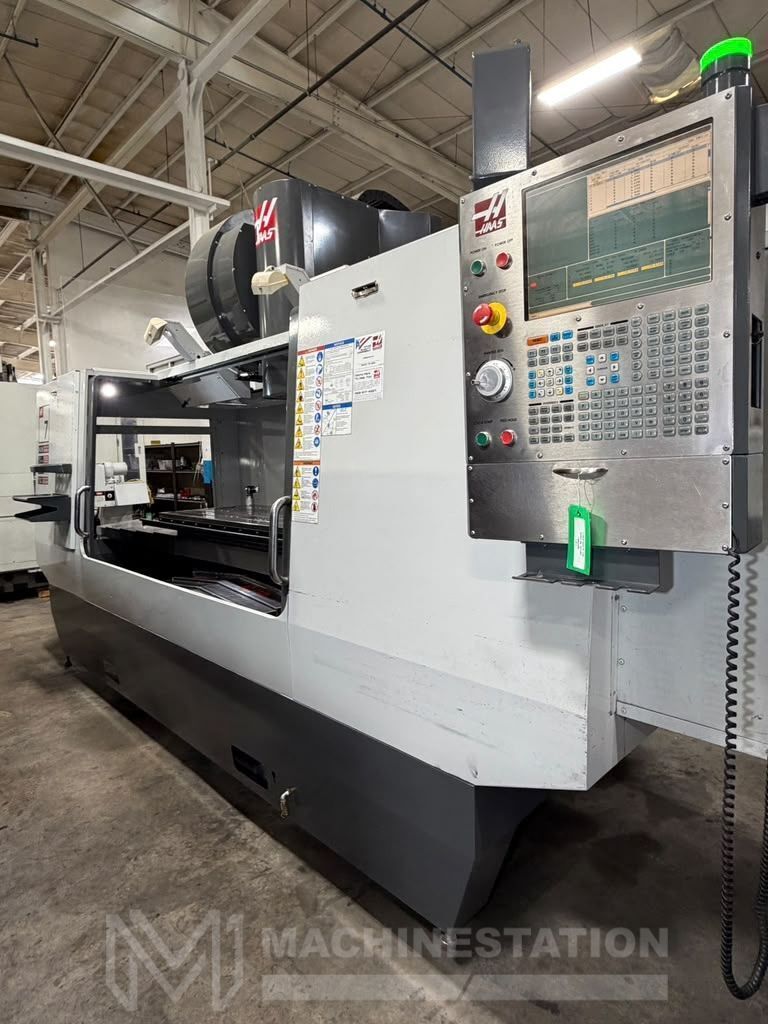

| Haas CNC Control |

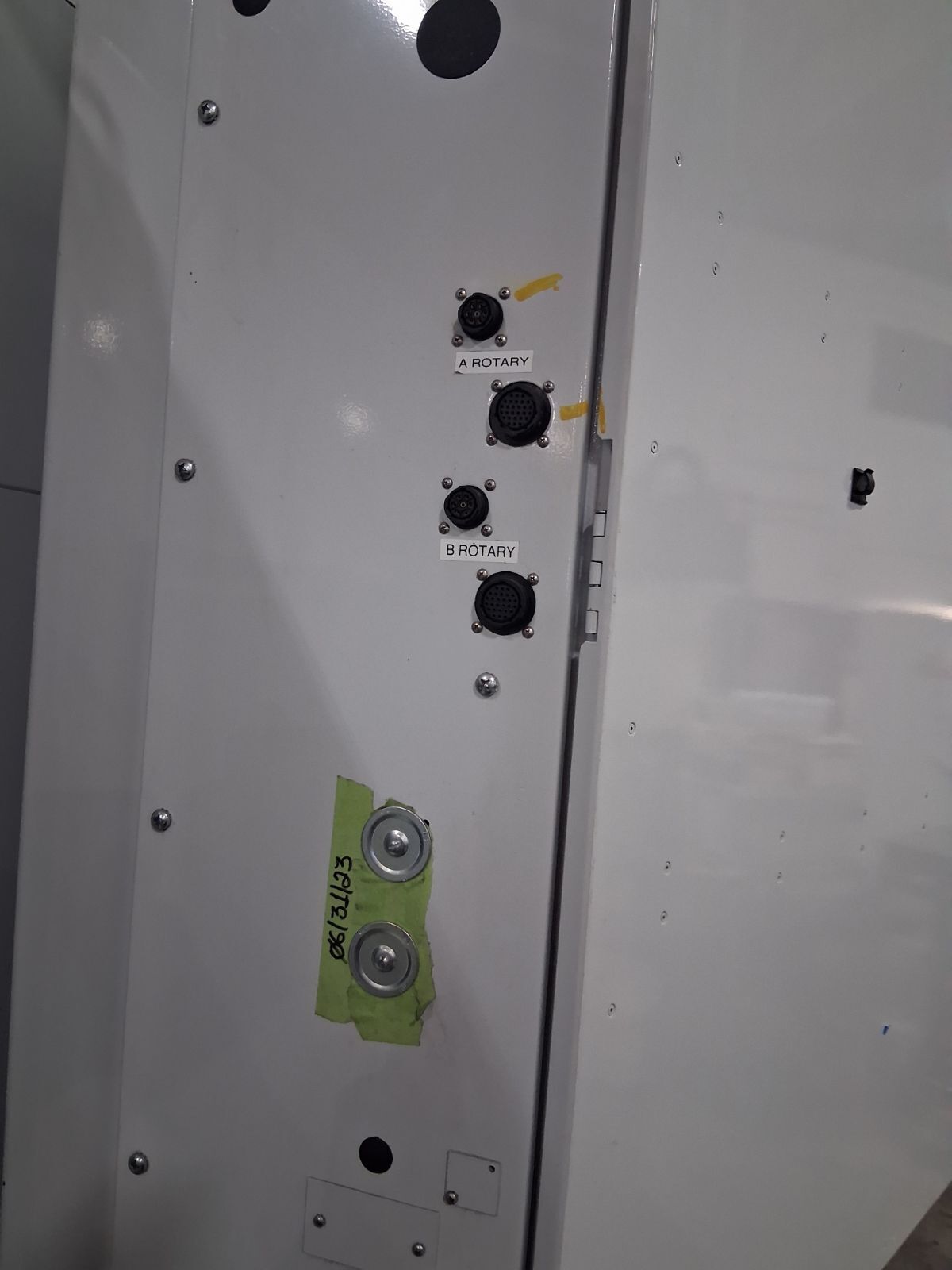

| 4th Axis Drive and Wiring |

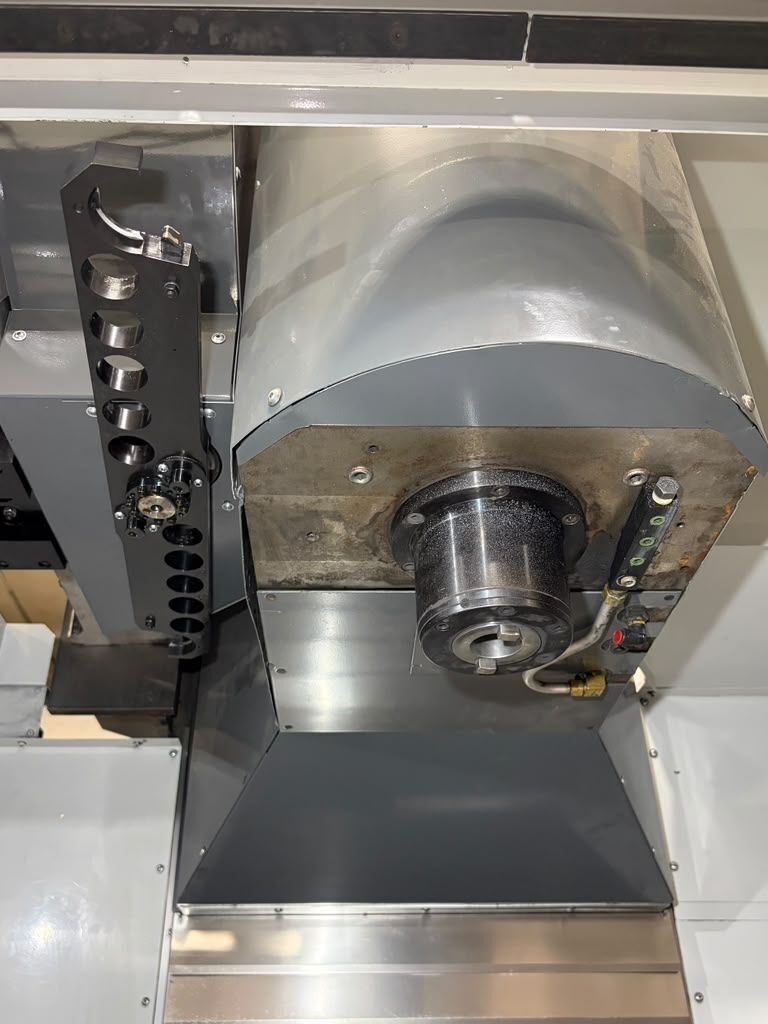

| 12,000 RPM High-Speed Spindle |
| 40-Station High-Speed Tool Changer |
| Through-Spindle Coolant |
| Inline Direct Drive Spindle |

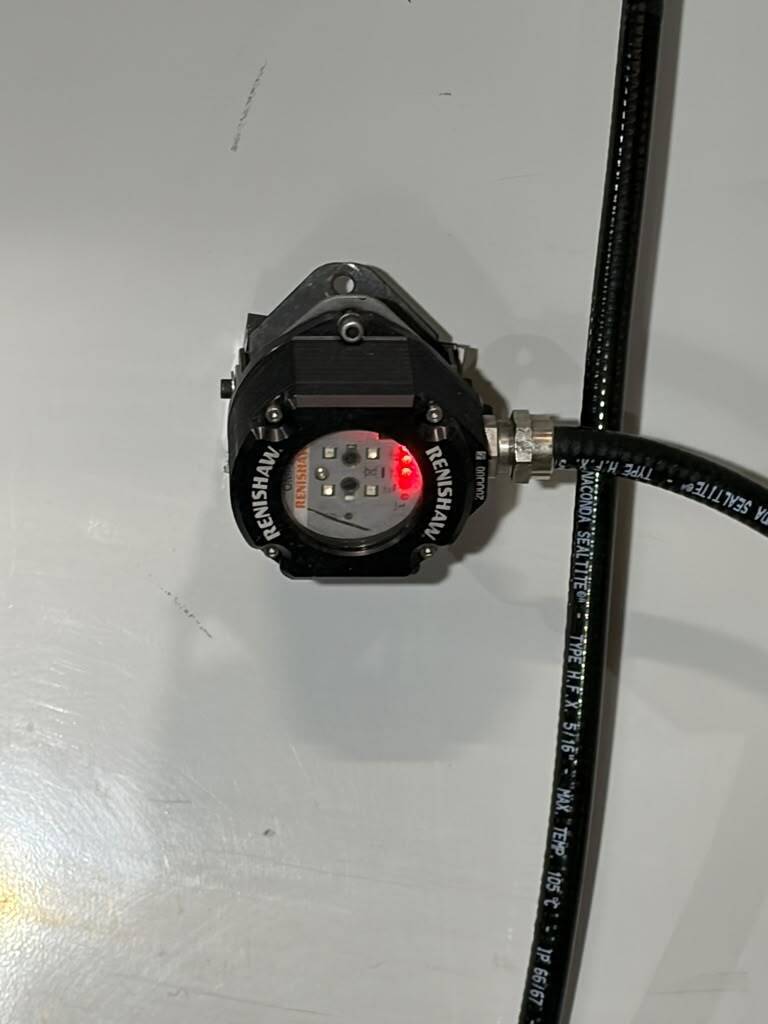

| Renishaw Receiver Installed |

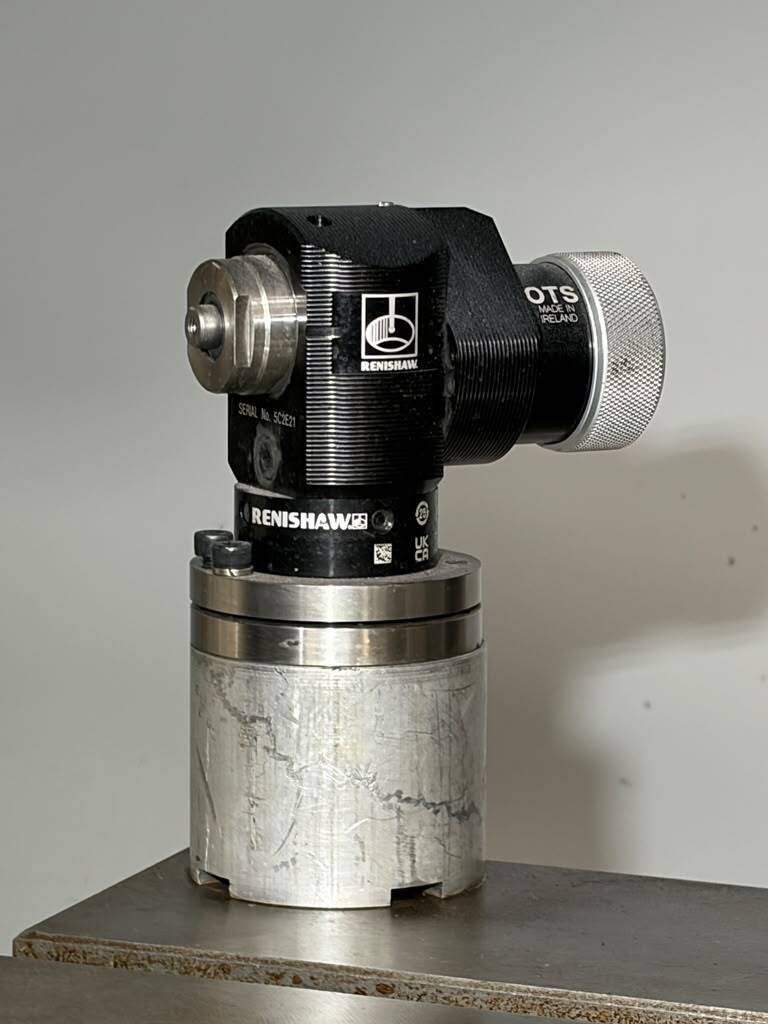

| Tool Presetter |
| Remote Jog Handle |
| Rigid Tapping |

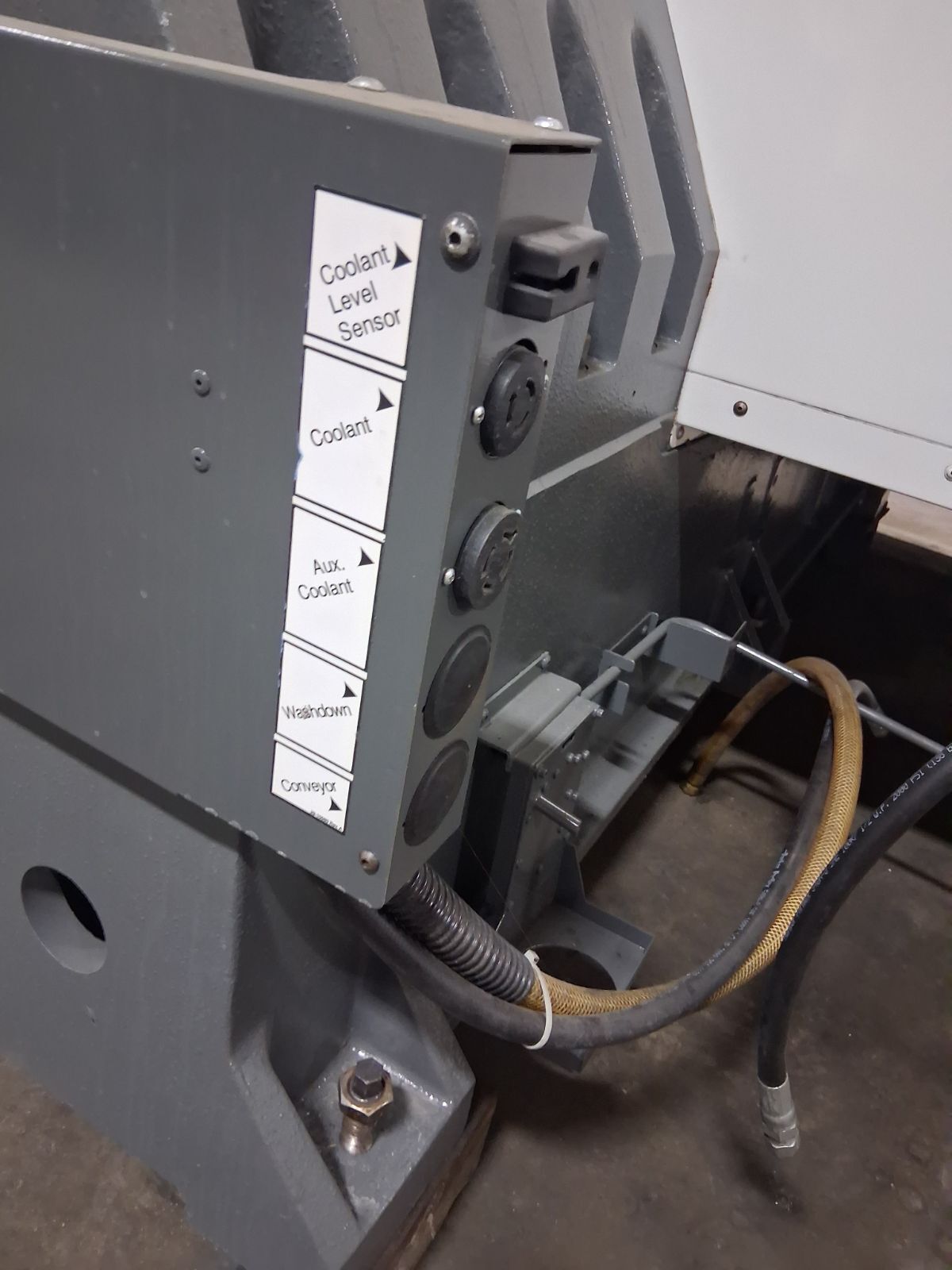

| Coolant Tank |
| Chip Auger |

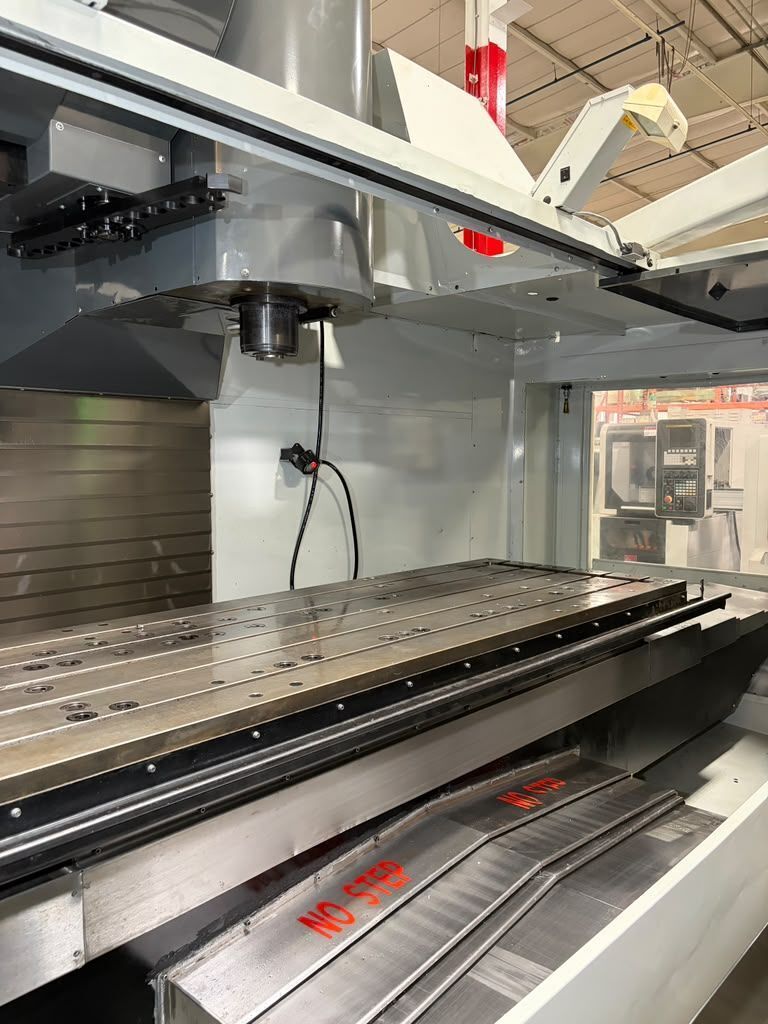

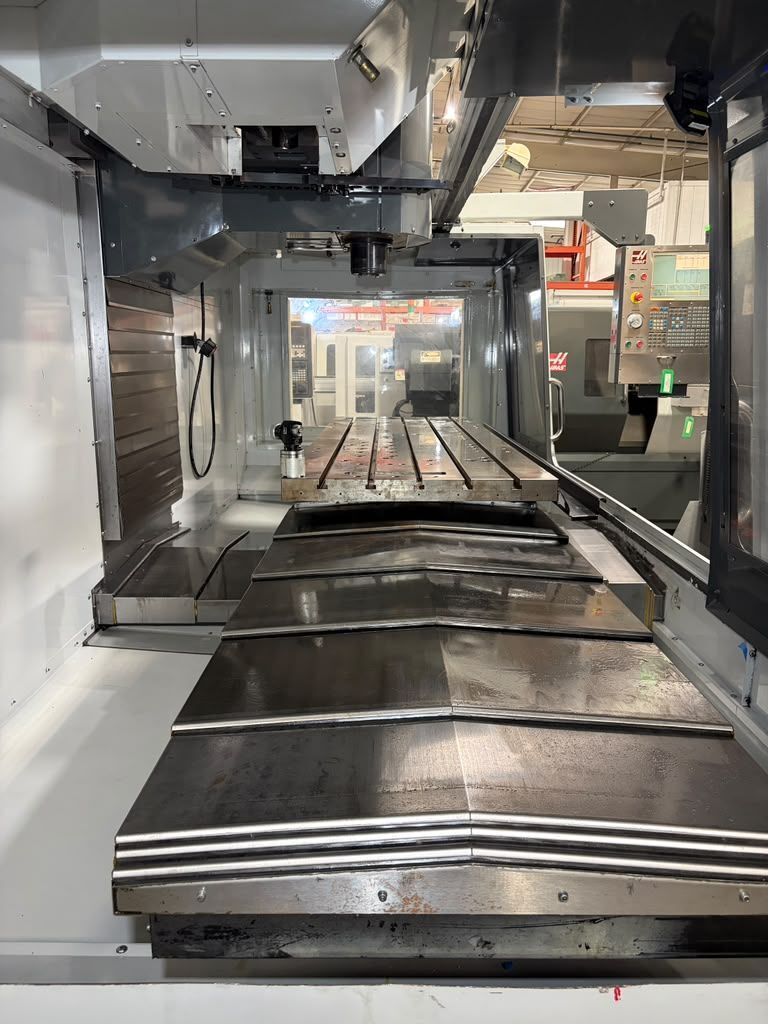

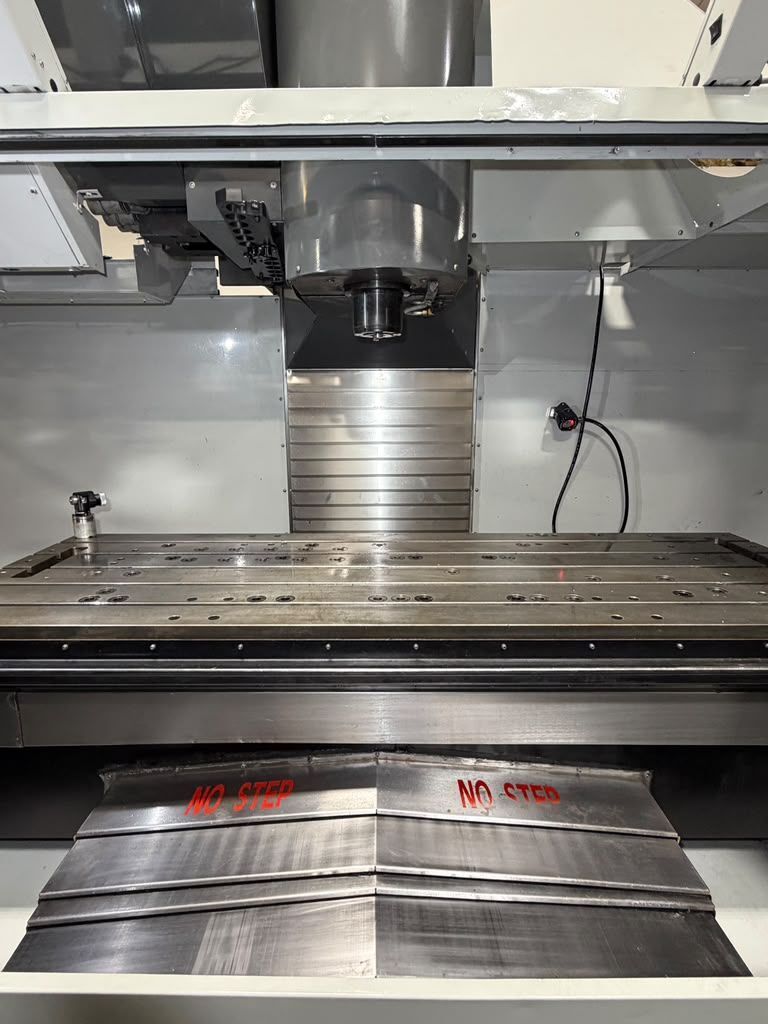

| Table: |
|---|
| Length: 84″ |
| Width: 28″ |
| Number of Standard T-Slots: 5 |
| T-Slot Width: 5/8″ |
| Maximum Weight on Table: 4,000 lbs |
| Travels: |
|---|
| X-Axis Travel: 84″ |
| Y-Axis Travel: 32″ |
| Z-Axis Travel: 30″ |
| Rapid Traverse Rates: 600 IPM |
| Cutting Feed Rates: 500 IPM |
| Spindle Nose to Table (Min.-Max.): 4″ – 34″ |
| Spindle: |
|---|
| Taper Size: CAT-40 |
| Speed Range: 12,000 RPM |
| Spindle Power: 30 HP |
| Automatic Tool Changer: |
|---|
| Capacity: 40-Station Side Mounted |
| Maximum Tool Weight: 12 lbs |
| Maximum Tool Diameter (Full): 2.5″ |
| Maximum Tool Diameter (Adjacent Empty): 5″ |
| Maximum Tool Length: 16″ |
| General: |
|---|
| Air Required: 100 psi, 4 scfm |

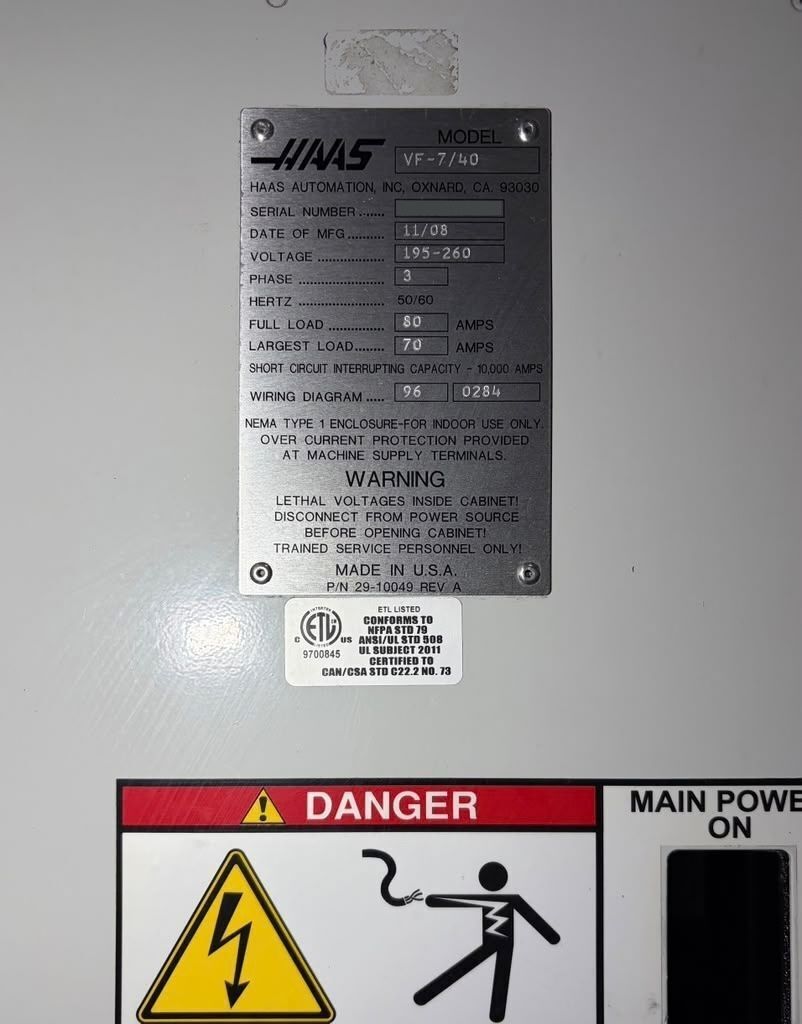

| Power: 195V – 260V / 50/60 Hz / 3-Phase |
| Overall Dimensions: 214″ × 102″ × 129″ High |
| Weight: 25,600 lbs |
